Old 28th July 2015, 00:15   #9136
Senior - BHPian

audioholic's Avatar

Join Date: Jun 2012
Location: BengaLuru
Posts: 2,589
Thanked: 2,937 Times
Default Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by honeybee View Post
I have a problem with the headlights of my Accord. The bulbs are HB3 and HB4, not the standard H4 ones.

If I run higher wattage bulbs, I cannot find a relay which will work with HB3 and HB4 bulbs. Where do I find a relay that can work with these types of bulbs?

Another alternative is to use HIDs. Are there direct replacement kits available for this?

The last, probably crazy, option is to switch to H4 bulbs. Is it possible to run four H4 bulbs instead of two HB3 and two HB4 bulbs?

1. Your car will mostly have inbuilt relays which can handle a bulb upgrade. To verify this do check the fuse box in the engine bay or the fuse box inside the cabin for the relay. Else try switching beams in a silent place. You will hear clicking if the relay is located in the cabin.

2. Even if you insist on adding a relay, you can use the normal H4 relays, just that the wiring, holders and connectors should be custom made to suit the bulb type. You can use any automobile relay rated for 30A too without issues.

3. There are HID kits but they are better off with a projector to throw the light where it is supposed to go.

Try sourcing HB3 and HB4 of higher wattage. IIRC they are available at 80W ratings and not 100/90W like H4. Hence the increase in wattage will be quite less which the relay already installed will handle without issues.
audioholic is offline   Reply With Quote
Old 28th July 2015, 06:28   #9137
Senior - BHPian

Join Date: Apr 2008
Location: Dombivli/Gurgao
Posts: 2,515
Thanked: 990 Times
Default Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by audioholic View Post
1. Your car will mostly have inbuilt relays which can handle a bulb upgrade. To verify this do check the fuse box in the engine bay or the fuse box inside the cabin for the relay. Else try switching beams in a silent place. You will hear clicking if the relay is located in the cabin.

Try sourcing HB3 and HB4 of higher wattage. IIRC they are available at 80W ratings and not 100/90W like H4. Hence the increase in wattage will be quite less which the relay already installed will handle without issues.
I am already running higher wattage HB4 and HB3 bulbs (Philips, made in Germany) but the throw is worse than my Nano which is running 100/90 bulbs. Making a custom relay wiring with suitable holders is again something that will take time.

So I can't just swap out all these bulbs with H4 all around?
honeybee is offline   Reply With Quote
Old 28th July 2015, 23:55   #9138
BHPian

Ricci's Avatar

Join Date: Nov 2008
Location: Pune
Posts: 688
Thanked: 747 Times
Default Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by honeybee View Post
I am already running higher wattage HB4 and HB3 bulbs (Philips, made in Germany) but the throw is worse than my Nano which is running 100/90 bulbs. Making a custom relay wiring with suitable holders is again something that will take time.

So I can't just swap out all these bulbs with H4 all around?
Ah, not so easily. The Hb3 and HB4 bulbs have holders that are perpendicular to the bulb capsule and are single filament ( 65 and 55W respectively ), the H4 is dual filament 60/55W. You could remove the holder, fit H4 holder and solder the connections, but the filament positioning is a bit different.

Check visual comparison:
http://www.hidplanet.com/forums/show...l=1#post287622


Quote:
Originally Posted by honeybee View Post
Any idea if halogen projectors are available as aftermarket?
EDIT : Yes, there are aftermarket projectors available - from cheap ones for much under 10k to FXR kits which cost 25-30k.
For Honda Accord and other premium cars like Cruze, there would already be ready-made full headlamp assembly drop in replacements with projectors, you may have scour your city's automotive spares market - and online is always there.

Do bear in mind, many people find HID and similarly colored "white" bulbs dismal in rains , not universal - so YMMV (Your Mileage May Vary). Wet tarmac absorbs most of the light and reflects little, so no matter what, available/reflected light will be lower than in dry conditions.

Last edited by Ricci : 29th July 2015 at 00:15.
Ricci is offline   (1) Thanks Reply With Quote
Old 29th July 2015, 00:06   #9139
Senior - BHPian

Join Date: Apr 2008
Location: Dombivli/Gurgao
Posts: 2,515
Thanked: 990 Times
Default Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by Ricci View Post
Ah, not so easily. The Hb3 and HB4 bulbs have holders that are perpendicular to the bulb capsule and are single filament ( 65 and 55W respectively ), the H4 is dual filament 60/55W. You could remove the holder, fit H4 holder and solder the connections, but the filament positioning is a bit different.

Check visual comparison:
http://www.hidplanet.com/forums/show...l=1#post287622
Dang, I knew there was a catch!

Any idea if halogen projectors are available as aftermarket? I desperately need to work on the lights and will only have a couple of hours in the next couple of days to make a choice. If all else faila, I shall have to go with HIDs in the low beam. I have a long drive coming up on this weekend and with rains, I don't want to be feeling my way in the dark.
honeybee is offline   Reply With Quote
Old 29th July 2015, 23:21   #9140
Newbie

Join Date: Mar 2014
Location: Pune
Posts: 17
Thanked: 3 Times
Default Re: Gannu's VW Polo GT TDI ownership log : 35,000 km up!

Quote:
Originally Posted by shetty_rohan View Post
Awesome mod
Can you please help me with the following
- Please provide me the link, so that my friend in US could buy this, and get it to India.
- Approximate weight of the package.
Hey Rohan did you get the Morimotos? How does it function? Any errors?
adityan27 is offline   Reply With Quote
Old 30th July 2015, 10:11   #9141
BHPian

Join Date: Sep 2013
Location: Bangalore
Posts: 306
Thanked: 201 Times
Default Re: Gannu's VW Polo GT TDI ownership log : 35,000 km up!

Quote:
Originally Posted by adityan27 View Post
Hey Rohan did you get the Morimotos? How does it function? Any errors?
Hi Aditya, I have not gone for the Morimotos. Instead upgraded the bulbs(100/90) with the relay.
shetty_rohan is offline   (1) Thanks Reply With Quote
Old 30th July 2015, 11:29   #9142
Senior - BHPian

Join Date: Apr 2008
Location: Dombivli/Gurgao
Posts: 2,515
Thanked: 990 Times
Default

I shall be taking the plunge tomorrow with HIDs in the low beam. The dealer will be fitting 55w bulbs, no projectors. Will check the throw and then take a call if projectors should be fitted instead. Total damage is around 6k with a one year warranty.
I asked for 4300k, if not in stock, have to go for 6000k.
honeybee is offline   Reply With Quote
Old 30th July 2015, 11:51   #9143
Senior - BHPian

mayankk's Avatar

Join Date: Apr 2010
Location: New Delhi
Posts: 3,902
Thanked: 2,924 Times
Default Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by honeybee View Post
I shall be taking the plunge tomorrow with HIDs in the low beam. The dealer will be fitting 55w bulbs, no projectors. Will check the throw and then take a call if projectors should be fitted instead. Total damage is around 6k with a one year warranty.
I asked for 4300k, if not in stock, have to go for 6000k.
You said youre doing this for driving in the rains and in the dark.
If you receive 6000k, its going to be a painful drive.
I dont know the technicalities(acknowledging lack of technical knowledge here, since that is a bone of contention), but my own experience with 6000k in projectors, and without saw hazardously low visibility under yellow streetlights, and with rains. Much worse than stocks.
mayankk is online now   Reply With Quote
Old 30th July 2015, 12:46   #9144
Senior - BHPian

silversteed's Avatar

Join Date: Jan 2010
Location: PGT//BLR//STR
Posts: 1,915
Thanked: 1,294 Times
Default Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by honeybee View Post
I shall be taking the plunge tomorrow with HIDs in the low beam. The dealer will be fitting 55w bulbs, no projectors. Will check the throw and then take a call if projectors should be fitted instead. Total damage is around 6k with a one year warranty.
I asked for 4300k, if not in stock, have to go for 6000k.
HIDs without projectors is not a good idea, and this has been mentioned time and again. Reflectors are designed for a transverse filament, while the HID's electrodes are aligned longitudinally and the light source is at a different point. High chance that the beam pattern will be nothing close to being useful - you may get an ultra bright foreground or a badly focussed beam that'll blind oncoming motorists.

6000k is not the best colour temperature, as it'll cause a dazzling effect in rains and fog. A lower colour temperature would help us see through fog.

INR 6k for a set of HIDs, two ballasts and the harness is mouthwatering, but reliability is a suspect - unless it's a reputed manufacturer and not some cheap knock-off.

Last edited by silversteed : 30th July 2015 at 12:48.
silversteed is offline   Reply With Quote
Old 30th July 2015, 16:26   #9145
BHPian

jaguar.runs's Avatar

Join Date: Jan 2010
Location: Dubai
Posts: 265
Thanked: 80 Times
Default Philips Ultinon Xtreme Vison H11 LED

I always wanted to change the low beam in my TLC as I was not happy with the looks of the normal halogen bulb. I already had the Philips DRL on and wanted something which would complement the looks of with the same color temperature. High Beam already had a HID as factory fit and that is good enough in late night rural drives. I thought of having a HID installed in the low beam, but thought of the irregular beam pattern and spread with HID in a normal lens and dropped that idea.

The most easiest option was to go for Xtreme Vision H11 as it would be brighter than the halogen bulb I had. For some reason that bulb is not available with the dealer in UAE and I searched almost every outlet they had. Ended up buying a Philips Diamond Vision bulb and Xtreme Vison T10 LED. The results were good, especially the T10 which was extremely bright.

Name:  DV.jpg
Views: 1411
Size:  75.8 KB

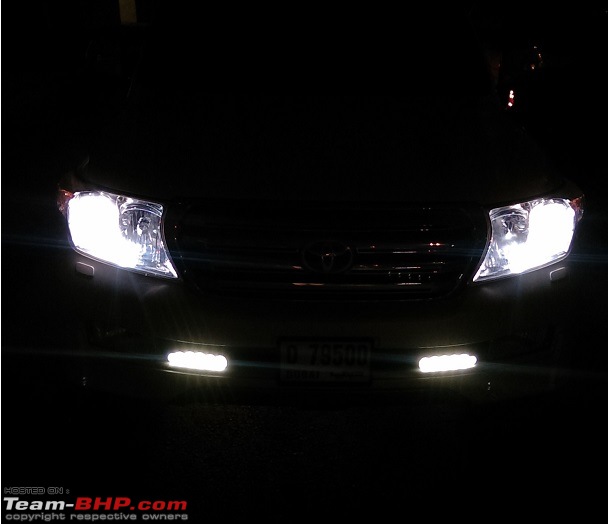

Name:  DV1.jpg
Views: 1377
Size:  39.9 KB

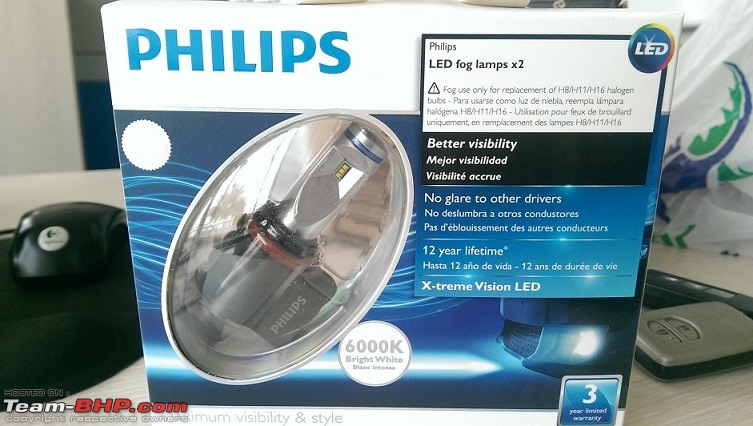

I was happy, not for long. While browsing web I came to know about the Philips Ultinon Xtreme Vision LED H11. Searched for reviews and found that it is a plug n play conversion and does not involve any additional harness or fans. Good for me! Decided to go for it and found one in Amazon for 134.12 USD. (Link: http://www.amazon.com/gp/product/B00...ilpage_o02_s00) Including shipping it was 150 USD and delivered to my office right before the weekend.

Name:  LED1.jpg
Views: 1302
Size:  126.7 KB

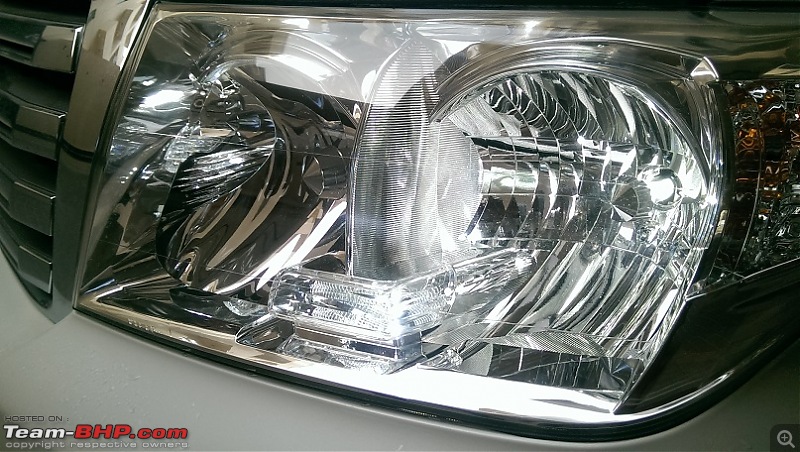

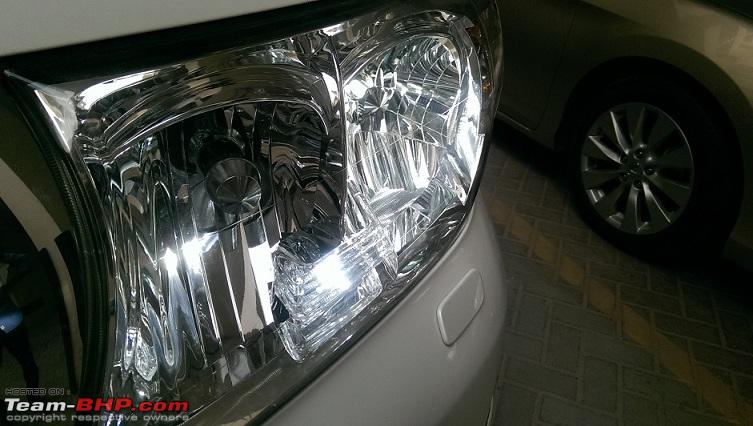

Fitted it in the evening itself and adjusted the spread and cut-off manually at an empty parking against the wall. Below pictures will give you an idea of how good it looks.

Name:  LED2.jpg
Views: 1289
Size:  125.6 KB
Auto Lighting thread : Post all queries about automobile lighting here-led3.jpg
Auto Lighting thread : Post all queries about automobile lighting here-led4.jpg
Auto Lighting thread : Post all queries about automobile lighting here-led5.jpg
Auto Lighting thread : Post all queries about automobile lighting here-led6.jpg

As expected, the performance in fog is not great with the 6000k color temperature. I can live with that as the fog lamp is still the factory halogen.

Auto Lighting thread : Post all queries about automobile lighting here-led7.jpg

Last edited by jaguar.runs : 30th July 2015 at 16:30.
jaguar.runs is offline   (2) Thanks Reply With Quote
Old 30th July 2015, 22:32   #9146
BHPian

drhoneycake's Avatar

Join Date: Aug 2014
Location: Bengaluru
Posts: 205
Thanked: 361 Times
Default Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by anshuman_v View Post
Hi Aniketh,

You have got a few good suggestions from different people. Both Philips and Osram are good, the latest seems to be Osram Nightbreaker Unlimited - so maybe you want to go with that.

These bulbs are quite standard and easily available - any car accessories showroom will have them, just drive into one and ask. For pricing, you can bring down the price they quote by quoting the online price.

'itwasntme' has also made a good suggestion about the after market lights. Be warned though, they are additional fittings, so they are not as easy as just replacing the bulbs. You need a good installer who can do a good job, plus will be able to focus them correctly and so on.

Given all this, I would say just replace the bulbs to start with - that should address quite a few of your concerns. If you still are unhappy, look for additional lights or projector HID and so on.


As per all your experienced suggestions, I plonked a pair of Philips Extreme Visions. Currently on the car, I see only very marginal improvement.

Thinking about going with Projectors and HID. Again, Im confused. Theres so much information on the net, I really can't wrap my head around all that.

Want to know :-
1) Should I get a complete projector headlight assembly ???
(For e.g - http://www.performancezoneindia.com/...eadlights.html)

2) Should I source parts (Ballasts, shrouds etc.) and get it retrofitted ??? If so, where in Bengaluru.

I can manage in the city, but on highways it is really inadequate.

Thanks again,
Aniketh
drhoneycake is offline   Reply With Quote
Old 30th July 2015, 22:40   #9147
Senior - BHPian

Join Date: Apr 2008
Location: Dombivli/Gurgao
Posts: 2,515
Thanked: 990 Times
Default Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by mayankk View Post
You said youre doing this for driving in the rains and in the dark.
If you receive 6000k, its going to be a painful drive.
It's just that I don't think anything could be worse than the stock, and I just happen to be driving over the weekend, so needed something better pretty bad.

Quote:
Originally Posted by silversteed View Post
INR 6k for a set of HIDs, two ballasts and the harness is mouthwatering, but reliability is a suspect - unless it's a reputed manufacturer and not some cheap knock-off.
Concerns noted and will try best to ensure I get the benefit of the extra output. It's some local brand but the seller is a known one and should stand by the warranty.

As I said, it's a last ditch effort, so worst case it will be a costly lesson learnt and I can always switch back to stock.
honeybee is offline   Reply With Quote
Old 2nd August 2015, 01:17   #9148
Senior - BHPian

Join Date: Apr 2008
Location: Dombivli/Gurgao
Posts: 2,515
Thanked: 990 Times
Default

The bulbs are of a Chinese brand called GM. The installation was quick and my first opportunity to test the bulbs was last evening.

The spread of the light is much better than the halogen bulbs. While trailing other cars I observed the light didn't get upto the rear windshield, and a few hours ago while parking, I could see the reflection of the headlights in a shop window and the reflection didn't blind me.

So right now I think this is a good upgrade. In fact I am wondering if I should also go the same route for the high beams.
honeybee is offline   Reply With Quote
Old 2nd August 2015, 03:25   #9149
BHPian

Join Date: Aug 2013
Location: Bangalore
Posts: 98
Thanked: 34 Times
Default

I am thinking of replacing my Honda City's bulbs. Any idea which ones are better. I need a better spread. Osram or Philips and which model ?
sahilkhurana is offline   Reply With Quote
Old 2nd August 2015, 07:27   #9150
Senior - BHPian

Join Date: Apr 2008
Location: Dombivli/Gurgao
Posts: 2,515
Thanked: 990 Times
Default

You could go for stock wattage bulbs such as Philips Extreme Vision or ClearVision or Osram Nightbreakers. These come in the regular 55/60 wattage but claim to give more light output.
honeybee is offline   Reply With Quote
