Old 9th December 2013, 17:07   #1
BHPian

rshanker's Avatar

Join Date: Aug 2013
Location: CBE <-> BNG
Posts: 120
Thanked: 283 Times
Default RaceDynamics launches DynaRD - Dynamometer for Motorcycles

dynaRD is the latest range of chassis dynamometers for motorcycles developed to monitor, test and analyze engine performance accurately in real time. With support upto 300hp, dynard eliminates the need for road trials and allows the user to identify issues within minutes in a safe, reliable and repeatable environment.

Website link here
  • Horsepower measurement up to ~300hp
  • SAE corrected results
  • Simplified operation and data analysis
  • Integrated weather station and data acquisition module
  • Dual rollers for ease of use
  • Adjustable wheelbase for multiple vehicles
  • Max speed of 150kmph to 280 kmph
  • Weight ~470kgs
  • Made in India

Name:  dynarddynoeffecte1386067418478.jpg
Views: 3259
Size:  76.7 KB

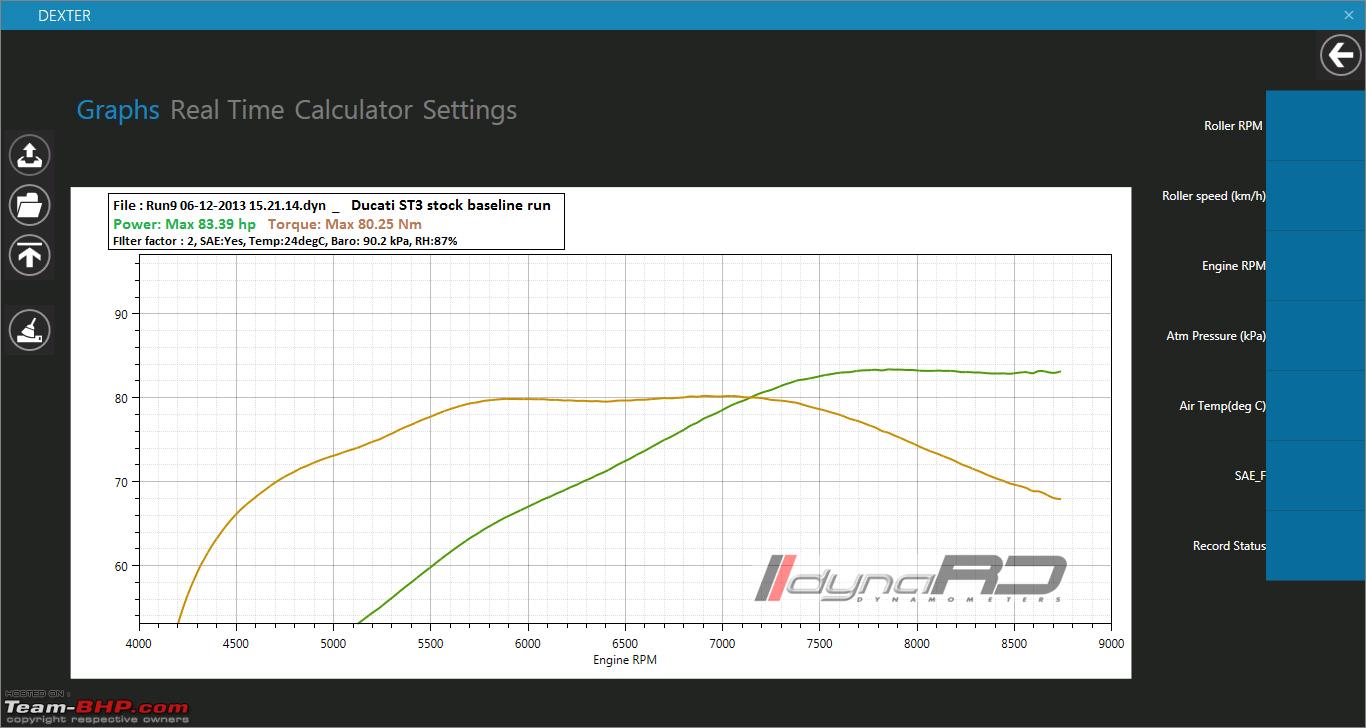

RaceDynamics launches DynaRD - Dynamometer for Motorcycles-dexter_pr_ducati.jpg

Last edited by Rehaan : 13th December 2013 at 13:46. Reason: Adding more info
rshanker is online now   (7) Thanks Reply With Quote
Old 12th December 2013, 15:01   #2
GTO
Team-BHP Support

GTO's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 47,709
Thanked: 89,166 Times
Default Re: RaceDynamics launches DynaRD - Dynamometer for Motorcycles

Thread moved from the Assembly Line (The "Assembly Line" Forum section) to Motorbikes. Thanks for sharing!
GTO is offline   (2) Thanks Reply With Quote
Old 12th December 2013, 15:30   #3
Senior - BHPian

ku69rd's Avatar

Join Date: Sep 2009
Location: Bangalore
Posts: 2,293
Thanked: 1,226 Times
Default Re: RaceDynamics launches DynaRD - Dynamometer for Motorcycles

Suppose they are giving free runs for bikers to realize their vehicles potential from 11th to 14th of this month. Was wondering if the power is measured at the crank or at the rear wheel?
ku69rd is offline   Reply With Quote
Old 12th December 2013, 15:36   #4
Team-BHP Support

Rehaan's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 22,367
Thanked: 22,583 Times
Default Re: RaceDynamics launches DynaRD - Dynamometer for Motorcycles

Quote:
Originally Posted by ku69rd View Post
Was wondering if the power is measured at the crank or at the rear wheel?
The power is measured at the rear wheel.

Chances are, the results sheet they give you will mention the power at the wheel, as well as an estimation of the power at the crank for your model of bike.

cya
R
Rehaan is offline   Reply With Quote
Old 13th December 2013, 12:30   #5
BHPian

PratikPatel's Avatar

Join Date: Sep 2010
Location: Mumbai
Posts: 147
Thanked: 641 Times
Default Re: RaceDynamics launches DynaRD - Dynamometer for Motorcycles

Correct me if I am wrong, but this is a chassis dyno, therefore, it will measure the power at the wheel. This is the most popular type of dyno in the aftermarket due to its ease to setup dyno runs due to the roll on and roll off nature of the dyno setup.

To measure power accurately at the crank, one requires a engine dyno. These type of dyno have a docking station where the engine is mounted on test stand and run. Since these are intricate setups that require time and the engine to be removed from the vehicle for the runs.
PratikPatel is offline   Reply With Quote
Old 13th December 2013, 16:11   #6
BHPian

Rohit Manohar's Avatar

Join Date: Dec 2012
Location: Bangalore
Posts: 33
Thanked: 10 Times
Default Re: RaceDynamics launches DynaRD - Dynamometer for Motorcycles

Did anyone from T-BHP take their motorcycles and get the dyno test done at Race Dynamics ? I was always curious to know the truth ever since I fixed a K&N filter to my P220F whether it took the Bhp above the stock 21, since some people say it does increase the Bhp whereas others say it just produces more noise. Was planning to check this out one way or another before the replacing the filter with the stock one.
Rohit Manohar is offline   Reply With Quote
Old 13th December 2013, 18:13   #7
Team-BHP Support

Rehaan's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 22,367
Thanked: 22,583 Times
Default Re: RaceDynamics launches DynaRD - Dynamometer for Motorcycles

Quote:
Originally Posted by PratikPatel View Post
Correct me if I am wrong, but this is a chassis dyno, therefore, it will measure the power at the wheel. This is the most popular type of dyno in the aftermarket due to its ease to setup dyno runs due to the roll on and roll off nature of the dyno setup.
Correct.

Dynos are best used as relative measuring tools (rather than absolute). So rather than say, measuring at the crank and seeing if your manufacturer claims match your bike, you should be measuring before and after a particular change or modification is made - and comparing the difference.

Read more about dynos here (All about Dynamometers + DYNO visit with GTO's Vtec!).

cya
R
Rehaan is offline   Reply With Quote
Old 13th December 2013, 20:52   #8
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 3,506
Thanked: 2,071 Times
Default Re: RaceDynamics launches DynaRD - Dynamometer for Motorcycles

More details would be nice. Like price and installed base. Single roller or two rollers? Almost certainly an inertial type. So how has that been made/ fabricated/ machined? Calibration actual, or theoretical? Burstproof housing for the flywheel?

Quote:
Originally Posted by Rehaan View Post
Dynos are best used as relative measuring tools (rather than absolute).
At the manufacturer level, you do need absolute values!

Regards
Sutripta
Sutripta is offline   (1) Thanks Reply With Quote
