Old 8th November 2015, 16:04   #1306
Senior - BHPian

FINTAIL's Avatar

Join Date: Oct 2013
Location: Bombay / Poona
Posts: 1,092
Thanked: 1,073 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by autocrat View Post
Fellow Fiatians,


Any other design was there?

KEEP THAT GRILLE. IT IS WORTH IT'S WEIGHT IN GOLD!!

That aside; following are the types of grille's used :

1964 / 1965 FIAT 1100 Delight:

Name:  grille.jpg
Views: 651
Size:  465.7 KB

Seen here on MTJ 2146, a seafoam green Delight from Poona.

(as you can see, the squarish grille was found on the 1964/1965 Delights. The grille pattern was an exact replica of the pattern on the 1964 Fiat 1100 Super Select / Fiat 1100 Export)

Seen below, is a line of older FIAT's, the rightmost one is a Pune registered 1957 FIAT Elegant; and the leftmost car is a very original 1964 Super Select, Bombay registered. The other two cars, are also Super Selects.

The FIAT 1100/Premier Padmini Technical Information thread-64-super-select.jpg

The 1965/1966 to end of 1972 FIAT 1100 Delights:

Seen here on MTJ 4150; one of Team-BHP Mod @Karlosdeville's 71-72 Delights:

(Grille was made up of aluminium)

The FIAT 1100/Premier Padmini Technical Information thread-mtj4150.jpg

On the 1973 Premier President-

Seen here on MTJ 648, a Pune registered 1973 Premier President-

Very original car, now owned by *someone* in Bombay:

Name:  mtj 648.jpg
Views: 622
Size:  65.8 KB

A close up of the grille- on a 1971/72 Delight, Bombay registered, that used to be seen in Poona:

How the car got the President grille? Well, god knows.

The FIAT 1100/Premier Padmini Technical Information thread-mrh-3504.jpg

I took that pic in one of the bylanes off FC Road. The car is a 1100 Delight, which is rather evident- note the 'long' bumper guards- they look beautiful, don't they?

There is a noticeable difference b/w the 1100D and the President grilles.

Most noticeable, is the fact that the President grille came with the ''PAL'' logo, which looked very similar to the FIAT logo found on the older FIAT 1100 Delight's.

Really rare monogramme, as rare as hen's teeth, and was in production for only 12 odd months in 1972/73.

Last edited by FINTAIL : 8th November 2015 at 16:07.
FINTAIL is offline   (2) Thanks Reply With Quote
Old 8th November 2015, 17:40   #1307
BHPian

autocrat's Avatar

Join Date: Oct 2011
Location: Bangalore
Posts: 629
Thanked: 447 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by FINTAIL View Post
[i]
There is a noticeable difference b/w the 1100D and the President grilles.

Most noticeable, is the fact that the President grille came with the ''PAL'' logo, which looked very similar to the FIAT logo found on the older FIAT 1100 Delight's.

Really rare monogramme, as rare as hen's teeth, and was in production for only 12 odd months in 1972/73.
Dear Sir,

Many thanks for all the information! The metal grills themselves are so beautiful! My copy needs some loving restoring. Buried in sands of time for 20 odd years, it could only survive as its aluminium.
autocrat is offline   Reply With Quote
Old 8th November 2015, 18:16   #1308
BHPian

boeuff's Avatar

Join Date: Mar 2008
Location: Blr
Posts: 174
Thanked: 56 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Took the weekend to do another 300 Km shakedown trip, early in the trip the brakes suddenly started binding and the pedal loaded up completely, loosened a nipple in a wheel to release the pressure, increased the pedal free play a little as I felt the piston may not have been coming to the end of the stroke. After that ran beautiful
Attached Thumbnails
The FIAT 1100/Premier Padmini Technical Information thread-image.jpg

boeuff is offline   Reply With Quote
Old 8th November 2015, 21:03   #1309
Senior - BHPian

FINTAIL's Avatar

Join Date: Oct 2013
Location: Bombay / Poona
Posts: 1,092
Thanked: 1,073 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by autocrat View Post
Dear Sir,

Many thanks for all the information! The metal grills themselves are so beautiful! My copy needs some loving restoring. Buried in sands of time for 20 odd years, it could only survive as its aluminium.
Now, if you look at the pics of @boeuff's 1976 Padmini, you'll notice one thing: It has the same grille as the Premier President.

Only the ''PAL" logo is a bit different. And that indeed, is correct for the early Padmini's. The President grille was retained, but with the new logo.

In the 1980's there was a whole host of changes, which made the PP a bit worse. As early as '75-76, I believe, the gearbox underwent some cost cutting, there were some changes made to the gearbox design.

In the 1980's, a plasticy, chrome grille was introduced. And the Premier Padmini ''Economy'' had a black grille, with a honeycombish pattern. Cost cutting, obviously, for the ''Economy'' version.

In addition to all this, before I forget, lol- I think the 1100D also had a lovely grille called the ''chromodora''. These were Italian made, I believe, and could be added as a dealer accessory.

A pic of a 1100D, with the (very, very, very rare) Chromodora grille (that I got off the net) :

Name:  1964 1100d.jpg
Views: 647
Size:  20.0 KB

These 'Chromodora' Grills were made of White metal and chromed. Once they develop pitting due to neglect or long unattended storage, more often than they cannot be re-chromed to their original state.

Sigh- they really look lovely, when properly chromed (as in the pic above)

_______________________

Last edited by FINTAIL : 8th November 2015 at 21:05.
FINTAIL is offline   (2) Thanks Reply With Quote
Old 8th November 2015, 23:13   #1310
BHPian

Join Date: Oct 2015
Location: Navi Mumbai
Posts: 46
Thanked: 31 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by FINTAIL View Post
As early as '75-76, I believe, the gearbox underwent some cost cutting, there were some changes made to the gearbox design.
Any details available about these changes that can help identify pre and post change gearboxes?

Regards,
Anwesh is offline   Reply With Quote
Old 9th November 2015, 00:02   #1311
BHPian

autocrat's Avatar

Join Date: Oct 2011
Location: Bangalore
Posts: 629
Thanked: 447 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by FINTAIL View Post
Now, if you look at the pics of @boeuff's 1976 Padmini, you'll notice one thing: It has the same grille as the Premier President.

Only the ''PAL" logo is a bit different. And that indeed, is correct for the early Padmini's. The President grille was retained, but with the new logo.
Was any PAL logo made in metal?

Quote:
Originally Posted by FINTAIL View Post
In addition to all this, before I forget, lol- I think the 1100D also had a lovely grille called the ''chromodora''. These were Italian made, I believe, and could be added as a dealer accessory.

A pic of a 1100D, with the (very, very, very rare) Chromodora grille (that I got off the net) :

Attachment 1437054

These 'Chromodora' Grills were made of White metal and chromed. Once they develop pitting due to neglect or long unattended storage, more often than they cannot be re-chromed to their original state.

Sigh- they really look lovely, when properly chromed (as in the pic above)

_______________________
Thanks a lot for the information on chromodora! Behram Sir too had mentioned about this grille.

When challenged with cheaper cost products in the market, the only path chosen is to make our product cheaper to meet a price. Sad, but that's the easiest way i guess.
autocrat is offline   Reply With Quote
Old 9th November 2015, 10:44   #1312
Distinguished - BHPian

Join Date: Jul 2007
Location: MUMBAI
Posts: 3,059
Thanked: 4,384 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by FINTAIL View Post
As early as 75-76, I believe, the gearbox underwent some cost cutting, there were some changes made to the gearbox design. I think the 1100D also had a lovely grille called the ''Chromodora''. These were Italian made, I believe, and could be added as a dealer accessory. A picture of a 1100D, with the (very, very, very rare) Chromodora grille.
Dear Gowtham - In 1975, the integrated keyway in the ID of the phosphor bronze bushes for the second and third gears was removed as a "value engineering" () exercise! Turned ID bushes were introduced. This eliminated the ID broaching operation and saved huge cost. The design premise was that when the main shaft nut is tightened, all the tolerance stack-up will ensure that the bushes do not rotate with relation to the main shaft but in reality this did not happen. The bushes rotated, leading to friction and jamming of the bushes on the main shaft. I have seen numerous main shafts burnt in this interface area. This immediately lead to bush face wear which had an axial design clearance of 0.1mm with the driving second and third gears. Due to this, the effective main shaft nut torque reduced and the whole assembly just came apart. This is also the main reason for second gear crashing in Premier Padmini cars made after 1975, the other reason is counter shaft flex as the second gear pair is housed as a cantilever in the rear housing.

There is a "Chromodora Italiana" grille story also. In 1984, some 200 grilles were officially imported for meeting the production requirements. Enjoy the photograph of the "Chromodora Italiana" grille fitted on my left hand drive! This is one out of the 200 imported, I had bought it in 1984. Similarly, stainless steel bumpers were imported in 1990. I still have a set lying with me! . ENJOY!

PAL monograms were never made in metal, even the vertical monogram was made only in plastic.

Best regards,

Behram Dhabhar
Attached Thumbnails
The FIAT 1100/Premier Padmini Technical Information thread-img_0313.jpg


Last edited by DHABHAR.BEHRAM : 9th November 2015 at 10:47.
DHABHAR.BEHRAM is offline   (5) Thanks Reply With Quote
Old 9th November 2015, 12:20   #1313
Senior - BHPian

FINTAIL's Avatar

Join Date: Oct 2013
Location: Bombay / Poona
Posts: 1,092
Thanked: 1,073 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by autocrat View Post
Was any PAL logo made in metal?
I think so, yes.

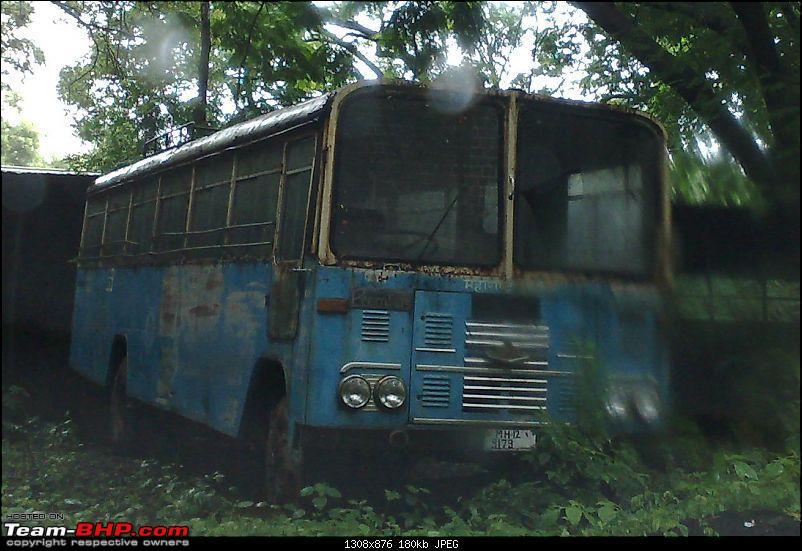

Here is a rarity, a Premier Bus. Was spotted in Poona by Karlosdeville, circa 2008.

Notice that huge PAL logo. I wonder, if it was made up of metal. Maybe yes?

The FIAT 1100/Premier Padmini Technical Information thread-mh-12-978-pal-bus-mh-govt.jpg


Quote:
Originally Posted by Anwesh View Post
Any details available about these changes that can help identify pre and post change gearboxes?

Regards,
Kindly refer BD Sir's previous post.

The GB units made after 1975 had a tendency to crash about a bit, in the second gear.

The older GB units, are perfect! The GB in our '72 1100D still performs perfectly!

_____________________
FINTAIL is offline   (1) Thanks Reply With Quote
Old 9th November 2015, 13:20   #1314
Distinguished - BHPian

Join Date: Jul 2007
Location: MUMBAI
Posts: 3,059
Thanked: 4,384 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by FINTAIL View Post
Here is a rarity, a Premier Bus. Was spotted in Poona by Karlosdeville, circa 2008. Notice that huge PAL logo. I wonder, if it was made up of metal. Maybe yes? The gearbox units made after 1975 had a tendency to crash about a bit, in the second gear. The older GB units are perfect! The GB in our '72 1100D still performs perfectly!
Dear Fintail - no please, these big logos were also of plastic. Making them in sheet metal would have called for a complicated die, you think it would happen? Oh come on now. There were some commercial vehicles lying in scrap inside the plant till they went to ground, I had seen them. The commercial vehicles were called "PREMIER ROADMASTER". The big bus chassis had a suffix saying SFIP (straight frame inline pump)! By the way, I have actually seen FARGO vans being manufactured in the Kurla plant in 1977. The cabs were all in light green color. .

Yes, gearboxes of cars made after 1975 have a tendency to crash second gear. Original fiat gearboxes are perfect, they will run forever! .

Best regards,

Behram Dhabhar
DHABHAR.BEHRAM is offline   (3) Thanks Reply With Quote
Old 9th November 2015, 15:09   #1315
BHPian

autocrat's Avatar

Join Date: Oct 2011
Location: Bangalore
Posts: 629
Thanked: 447 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by DHABHAR.BEHRAM View Post
Dear Gowtham - In 1975, the integrated keyway in the ID of the phosphor bronze bushes for the second and third gears was removed as a "value engineering" () exercise! Turned ID bushes were introduced. This eliminated the ID broaching operation and saved huge cost. The design premise was that when the main shaft nut is tightened, all the tolerance stack-up will ensure that the bushes do not rotate with relation to the main shaft but in reality this did not happen. The bushes rotated, leading to friction and jamming of the bushes on the main shaft. I have seen numerous main shafts burnt in this interface area. This immediately lead to bush face wear which had an axial design clearance of 0.1mm with the driving second and third gears. Due to this, the effective main shaft nut torque reduced and the whole assembly just came apart. This is also the main reason for second gear crashing in Premier Padmini cars made after 1975, the other reason is counter shaft flex as the second gear pair is housed as a cantilever in the rear housing.
Question: What I understand is, the positive locking of key was replaced by friction?

Most importantly, if I get a pre-75 gear box, I should pick it up

Quote:
Originally Posted by DHABHAR.BEHRAM View Post
There is a "Chromodora Italiana" grille story also. In 1984, some 200 grilles were officially imported for meeting the production requirements. Enjoy the photograph of the "Chromodora Italiana" grille fitted on my left hand drive! This is one out of the 200 imported, I had bought it in 1984. Similarly, stainless steel bumpers were imported in 1990. I still have a set lying with me! . ENJOY!

PAL monograms were never made in metal, even the vertical monogram was made only in plastic.

Best regards,

Behram Dhabhar
This chromadora does look very very nice! The bulge in the bonnet, and the red roll cage tell a different story altogether!

Quote:
Originally Posted by FINTAIL View Post
I think so, yes.

Here is a rarity, a Premier Bus. Was spotted in Poona by Karlosdeville, circa 2008.

Notice that huge PAL logo. I wonder, if it was made up of metal. Maybe yes?

Attachment 1437136
The registration plate says its post 1990! Interesting!
autocrat is offline   (1) Thanks Reply With Quote
Old 9th November 2015, 15:15   #1316
BHPian

Join Date: Oct 2015
Location: Navi Mumbai
Posts: 46
Thanked: 31 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by DHABHAR.BEHRAM View Post
Dear Gowtham - In 1975, the integrated keyway in the ID of the phosphor bronze bushes for the second and third gears was removed as a "value engineering" () exercise! Turned ID bushes were introduced. This eliminated the ID broaching operation and saved huge cost. The design premise was that when the main shaft nut is tightened, all the tolerance stack-up will ensure that the bushes do not rotate with relation to the main shaft but in reality this did not happen. The bushes rotated, leading to friction and jamming of the bushes on the main shaft. I have seen numerous main shafts burnt in this interface area. This immediately lead to bush face wear which had an axial design clearance of 0.1mm with the driving second and third gears. Due to this, the effective main shaft nut torque reduced and the whole assembly just came apart. This is also the main reason for second gear crashing in Premier Padmini cars made after 1975, the other reason is counter shaft flex as the second gear pair is housed as a cantilever in the rear housing.
Sir, is there any solution to this problem, other than hunting for a pre 75 gearbox?

Regards,
Anwesh is offline   Reply With Quote
Old 9th November 2015, 16:54   #1317
BHPian

boeuff's Avatar

Join Date: Mar 2008
Location: Blr
Posts: 174
Thanked: 56 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by DHABHAR.BEHRAM View Post
[b][u]

Yes, gearboxes of cars made after 1975 have a tendency to crash second gear. Original fiat gearboxes are perfect, they will run forever! .
True, my long dead uncle's millicento and another 1100D had such butter smooth gear changes, I had the second gear crash problem which was solved after I replaced a broken spring clip in the synchroniser.
However all gears are quite notchy, I wonder if there is a cure for the notchy gearshifts.
boeuff is offline   (1) Thanks Reply With Quote
Old 12th November 2015, 14:43   #1318
BHPian

autocrat's Avatar

Join Date: Oct 2011
Location: Bangalore
Posts: 629
Thanked: 447 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

After the jet was changed to 102.5 I re-timed and adjusted the carburettor, the car spews out lots of water in cold and runs smoothly. The car pulls nicely, and on inclines I don't need to downshift.

You can just sit in front of this car and admire it all day

The FIAT 1100/Premier Padmini Technical Information thread-2015_11_12_14_23_30_oneshot.jpg
autocrat is offline   (1) Thanks Reply With Quote
Old 12th November 2015, 15:10   #1319
BHPian

Cyberdoctorind's Avatar

Join Date: Aug 2005
Location: Hyderabad
Posts: 182
Thanked: 45 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Thanks to this tread and guidance by Behram Sir, I have been able to re-time my Padmini. My car needs a clutch replacement and I am looking for guidance to do it myself in case it is possible
Cyberdoctorind is offline   (1) Thanks Reply With Quote
Old 13th November 2015, 15:45   #1320
BHPian

Join Date: Apr 2014
Location: Nagercoil
Posts: 52
Thanked: 62 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Isnt this a President?, seen in a workshop in Kerala
Attached Thumbnails
The FIAT 1100/Premier Padmini Technical Information thread-ppd.jpg


Last edited by sankar009 : 13th November 2015 at 15:52.
sankar009 is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
Fiat 1100 / Premier Padmini - Parts to Stock for FUTURE! arun1100 Post-War 336 2nd February 2016 17:32
The lovely Premier Padmini S1 (Fiat 1100-D) Ram The Indian Car Scene 391 1st February 2016 07:42
My 1973 (FIAT 1100) Premier President President Post-War 208 17th September 2015 00:13
Fiat 1100 "Family" -1962 -Technical, Photos & Information john a milne Post-War 64 29th May 2012 11:15
Used Maruti800, premier padmini , premier 118ne ? sakharamcool Hatchbacks 8 27th May 2008 11:17


All times are GMT +5.5. The time now is 22:18.

Copyright 2000 - 2016, Team-BHP.com
Proudly powered by E2E Networks
