Old 26th December 2015, 00:42   #1366
Newbie

Join Date: Dec 2015
Location: Delhi
Posts: 7
Thanked: 19 Times
Default

Quote:
Originally Posted by Karthik1100 View Post
Adivir, firstly, welcome to Team-bhp! We are happy to see another Classic Fiatian on-Board!

The Safari looks fantastic, the color looks pretty good, a rare one. Do post some pics of the Safari from rear and do you have any old pics? Also the pics of the other Fiat you have. I am asking too much eh!

BD Sir will be very happy to see your car. Hope to see you regularly here!
Thanks a lot Karthik for your warm welcome and appreciating my car! I will surely post some more pictures. My Padmini is currently in a workshop, undergoing body work and paint job. Once, she is back, I will show her off!

Quote:
Originally Posted by 1100D View Post
Although its a nice looking Padmini you have there, I am sorry, but it doesn't look like a Safari, probably its a Sedan modified to look like an estate.

Safari has different rear door and also the rear section has a completely different shape.
Dear Senior BHPian,
Thanks a lot for your feedback! After reading your post, I checked with my father and got this information - This car is a Premier Drive Away (PDA) chassis with body built by Kamal Auto, Jaipur. I would be grateful for your feedback on the same.

Quote:
Originally Posted by Anwesh View Post
Here is a original first generation Safari built on President drive away chassis. This had the rear doors with the angular frame as shown in the pic above, but the tailgate was horizontal opening with hinges on rhs.

That said, I suspect that all Safaris sold new by dealers across the country may not have been built by Starline. If PAL was delivering chassis to the dealers, building the body at their local would have been a more viable proposal considering logistics and economics. So a dealer from Delhi may have used original President/Padmini rear doors while building a Safari at his end.

Somebody who was working with the sales department of PAL or with a dealer during 75/80 can throw light on this.

Regards,
Dear Anwesh,
Thanks a lot for your feedback. As you rightly suspected, the body was built in Jaipur by Kamal Auto.

Some more pictures of my Fiat Safari.
Attached Thumbnails
The FIAT 1100/Premier Padmini Technical Information thread-image.jpeg


Last edited by karlosdeville : 30th December 2015 at 12:56. Reason: Consecutive posts
Adivir is offline   (1) Thanks Reply With Quote
Old 26th December 2015, 04:44   #1367
Newbie

Join Date: Dec 2015
Location: Delhi
Posts: 7
Thanked: 19 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by Karthik1100 View Post
Adivir, firstly, welcome to Team-bhp! We are happy to see another Classic Fiatian on-Board!

The Safari looks fantastic, the color looks pretty good, a rare one. Do post some pics of the Safari from rear and do you have any old pics? Also the pics of the other Fiat you have. I am asking too much eh!

BD Sir will be very happy to see your car. Hope to see you regularly here!

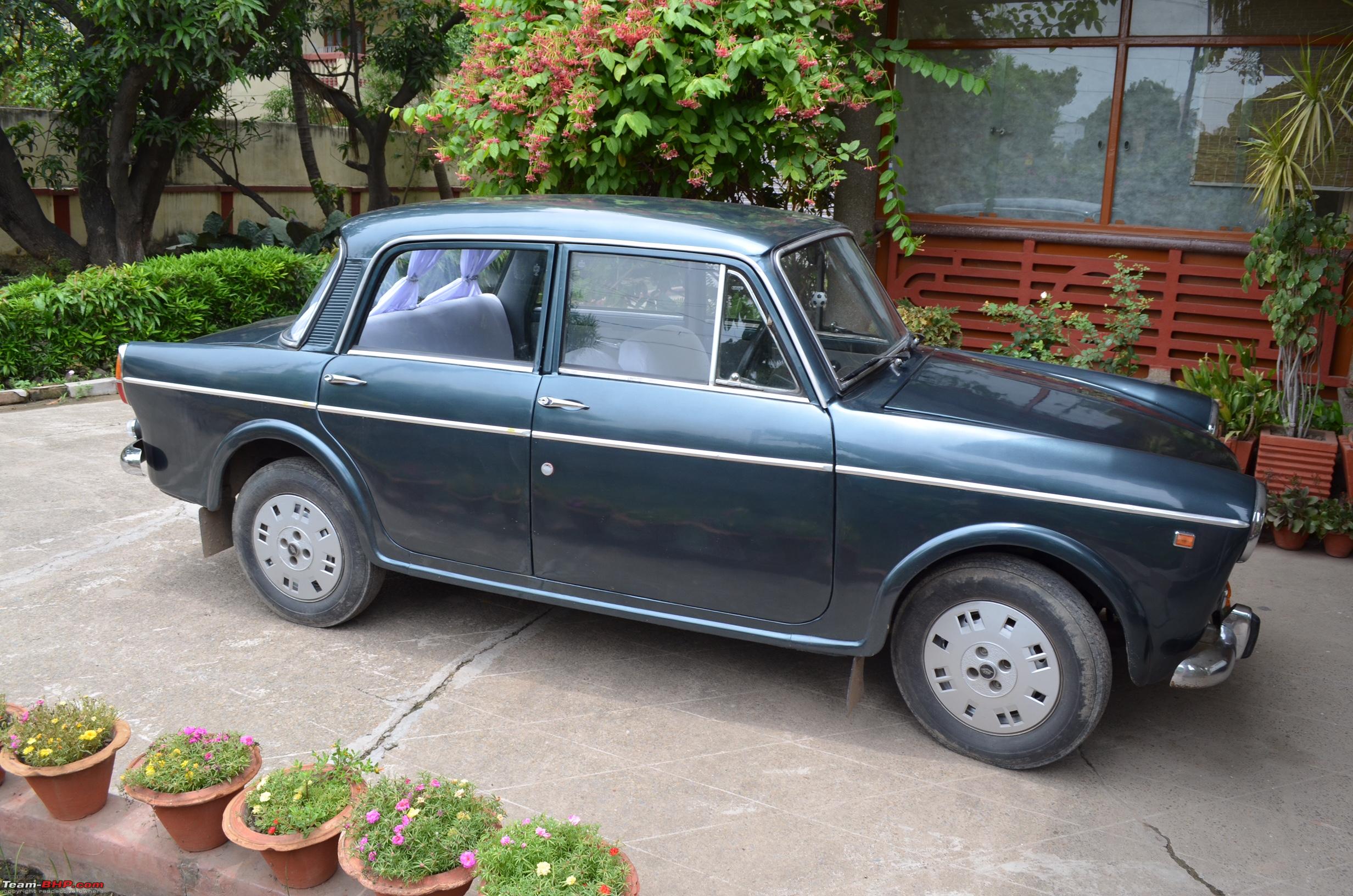

Here is the photo of my other Padmini, painted three years back. I will post the latest one as soon as She is back from the workshop. Hope you like her
Attached Thumbnails
The FIAT 1100/Premier Padmini Technical Information thread-image.jpeg

Adivir is offline   (3) Thanks Reply With Quote
Old 26th December 2015, 20:20   #1368
Senior - BHPian

1100D's Avatar

Join Date: Jun 2006
Location: Calcutta
Posts: 4,106
Thanked: 2,150 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by Adivir View Post
Dear Senior BHPian,
Thanks a lot for your feedback! After reading your post, I checked with my father and got this information - This car is a Premier Drive Away (PDA) chassis with body built by Kamal Auto, Jaipur. I would be grateful for your feedback on the same.
Quote:
Originally Posted by Adivir View Post
Some more pictures of my Fiat Safari.
I must say, Kamal auto did a "Kamaal" job. It looks much better than the Safari. However, is there a cross bracing behind the rear seat top?
1100D is offline   Reply With Quote
Old 26th December 2015, 20:41   #1369
Senior - BHPian

FINTAIL's Avatar

Join Date: Oct 2013
Location: Bombay / Poona
Posts: 1,092
Thanked: 1,073 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Since we're talking about the station wagon versions of the Premier Padmini;

Here's a gem- a station wagon job on a 1973 Premier President.

Job by Starline Motors? Who knows. Fact is, this is an excellent reference image, and @Anwesh's car's D-pillar corresponds with this one.

Ladies and gentlemen- Introducing the 1973 Premier Safari -

Note the Premier President grille; and the slightly different rear door. Very well done job.

Name:  Premier President wagon.JPG
Views: 978
Size:  120.8 KB

Gosh, I LOVE how the car looks, particularly with 'em whitewalls on!

(Photo Credits: Well, you know who )

Last edited by FINTAIL : 26th December 2015 at 20:43.
FINTAIL is offline   (1) Thanks Reply With Quote
Old 27th December 2015, 00:58   #1370
BHPian

Join Date: Oct 2015
Location: Navi Mumbai
Posts: 46
Thanked: 31 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by FINTAIL View Post
Since we're talking about the station wagon versions of the Premier Padmini;

Job by Starline Motors? Who knows. Fact is, this is an excellent reference image, and @Anwesh's car's D-pillar corresponds with this one.

Ladies and gentlemen- Introducing the 1973 Premier Safari -

Note the Premier President grille; and the slightly different rear door. Very well done job.

Attachment 1453559
This is a Starline Safari. The first owner of our car had confirmed that it was Starline built. The final version built by Starline debuted around 83/84 and had a longer wheelbase (IIANM) a top hinged sloping tailgate, rectangular head and taillights (may be from the 118NE), front wings with a angular top (the curve to match the original round h/ls was replaced to match the new rectangular lights). The grill was a long black one of about the same height as the h/ls. This front face was similar to that of the NE.

Regards,
Anwesh is offline   Reply With Quote
Old 27th December 2015, 07:24   #1371
Newbie

Join Date: Dec 2015
Location: Delhi
Posts: 7
Thanked: 19 Times
Default

Quote:
Originally Posted by 1100D View Post
I must say, Kamal auto did a "Kamaal" job. It looks much better than the Safari. However, is there a cross bracing behind the rear seat top?

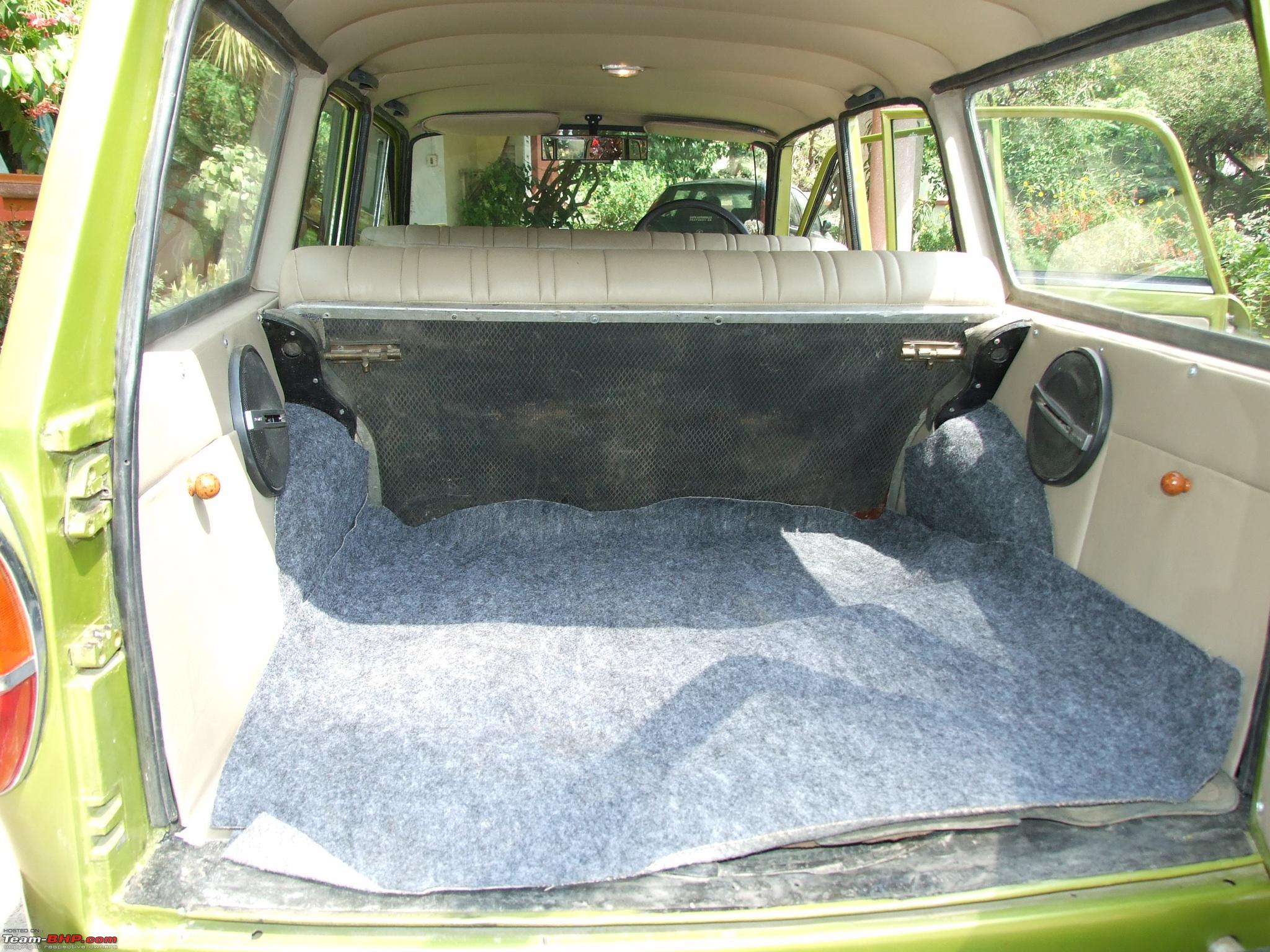

Thank you so much Senior BHPian. It does not have a cross bracing behind the rear seat. Sharing pictures of the rear side. A change to the rear seating is that it can be folded.

Quote:
Originally Posted by 1100D View Post
I must say, Kamal auto did a "Kamaal" job. It looks much better than the Safari. However, is there a cross bracing behind the rear seat top?

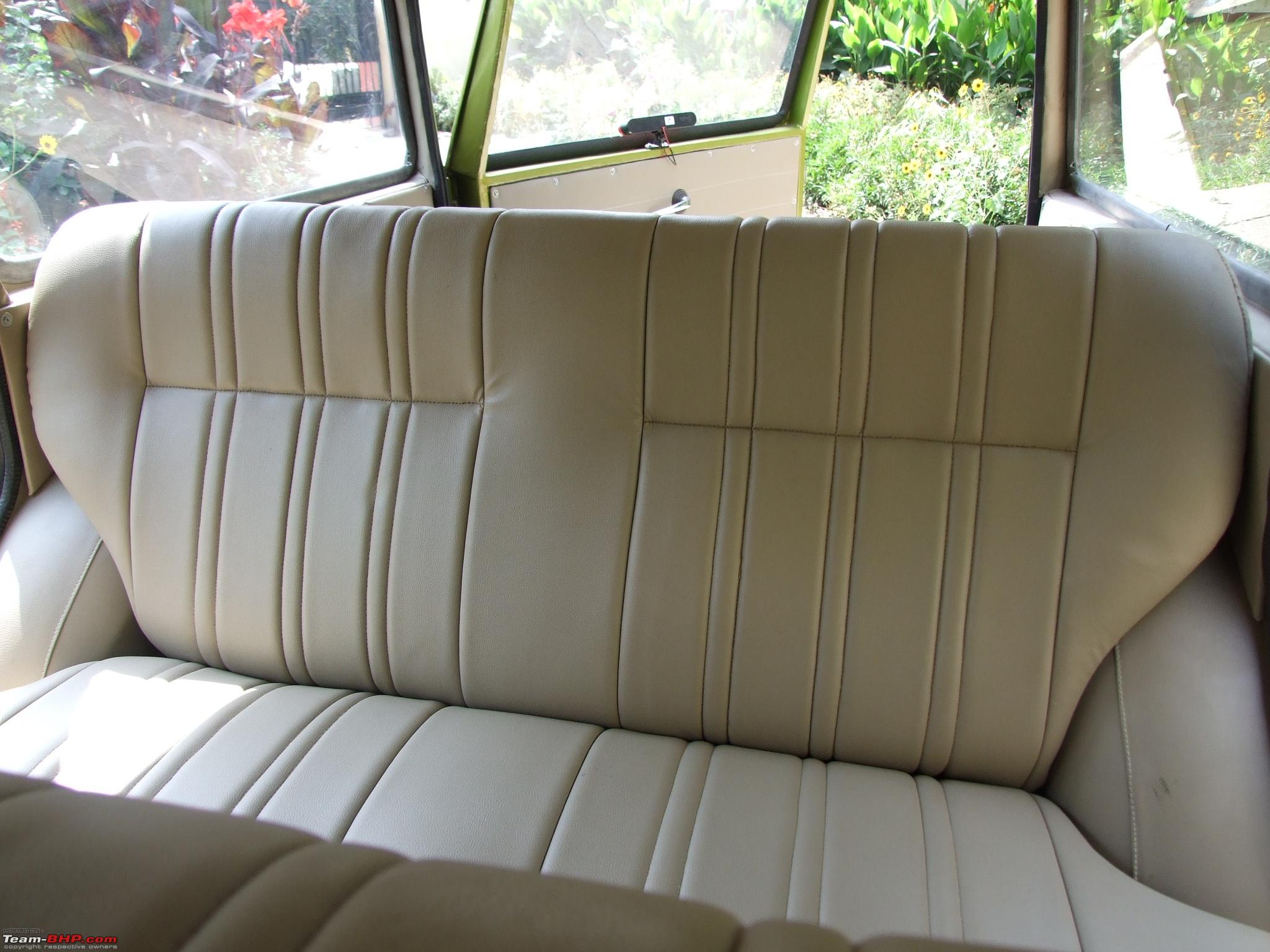

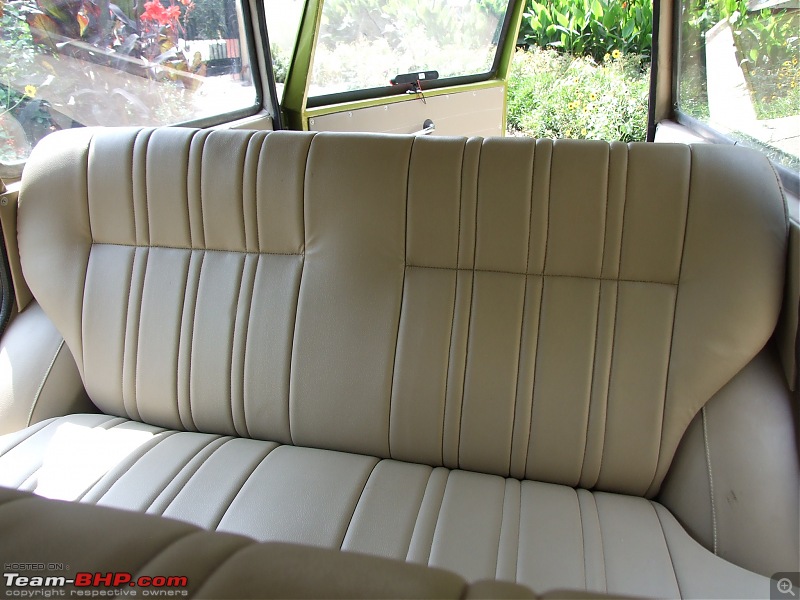

View of the rear seat from front.
Attached Thumbnails
The FIAT 1100/Premier Padmini Technical Information thread-image.jpeg

The FIAT 1100/Premier Padmini Technical Information thread-image.jpeg


Last edited by karlosdeville : 30th December 2015 at 12:57. Reason: Consecutive posts
Adivir is offline   (1) Thanks Reply With Quote
Old 27th December 2015, 12:01   #1372
BHPian

DudeWithaFiat's Avatar

Join Date: Jan 2012
Location: Kochi/Bengaluru
Posts: 314
Thanked: 338 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by autocrat View Post
Dear Dude with a Fiat,

I don't have an answer to your question, but I have another question: If you have an alrernator, do you still need an ammeter?
Hello Autocrat,

I had fitted the ammeter a couple of years back so that I can know whether the battery is getting charged. It was very cheap to get it done, so thought why not.

Quote:
Originally Posted by DHABHAR.BEHRAM View Post
Dear Dudewithafiat - hello to you. Please note that Lucas TVS SA15 alternator application on Padmini wiring harness does not call for ammeter. If you have an ammeter, please disconnect it, otherwise the system will not work properly.
Best regards,

Behram Dhabhar
Hello to you too Sir!. I had fitted the ammeter couple of years back to be informed about whether the battery is getting charged or not. I finally got hold of an auto electrician on Friday who examined and found that the alternator had gone bust. Replaced it with what he said Maruti Zen's alternator. I would like to get the ammeter disconnected if you say so. After I got my Fiat to Bangalore couple of years back, I had three mechanics serviced the car, two out of which did a bad job. I am still searching for a good mechanic for my Padmini (its an S1) in Bangalore.

Current issues: Slight clattering (like a diesel) from engine and exhaust leak. Both combined, I am able to get all my neighbors come out of their houses everytime I rev the Padmini .

The one mechanic who did service the car well once (near HSR Layout), literally yelled at me on phone when I told him of the idea of replacing the Solex with Mikuni (from Zen) and asked me not to come back to him if I even get the adaptation done, which I did with the help of Ilango and a friend here..

Last edited by DudeWithaFiat : 27th December 2015 at 12:05.
DudeWithaFiat is offline   Reply With Quote
Old 30th December 2015, 11:55   #1373
BHPian

autocrat's Avatar

Join Date: Oct 2011
Location: Bangalore
Posts: 630
Thanked: 450 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by DudeWithaFiat View Post
Current issues: Slight clattering (like a diesel) from engine and exhaust leak. Both combined, I am able to get all my neighbors come out of their houses everytime I rev the Padmini .

The one mechanic who did service the car well once (near HSR Layout), literally yelled at me on phone when I told him of the idea of replacing the Solex with Mikuni (from Zen) and asked me not to come back to him if I even get the adaptation done, which I did with the help of Ilango and a friend here..
Hello Sreeraj,

Good talking to you on phone and look forward to meeting you at our workplace

The clatter seems to be from the tappets.

What was the reason for the switch from Solex to Mikuni? Do you notice better performance with Mikuni?

Question to BEHRAM SIR:

Sir, are the jet sizes standardized across manufacturers?
autocrat is offline   (1) Thanks Reply With Quote
Old 30th December 2015, 13:30   #1374
Senior - BHPian

FINTAIL's Avatar

Join Date: Oct 2013
Location: Bombay / Poona
Posts: 1,092
Thanked: 1,073 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by autocrat View Post

Question to BEHRAM SIR:

Sir, are the jet sizes standardized across manufacturers?
May I reply?

Yes, I should think that carburetor jet sizes are standardized across manufacturers.

Still remember my father fiddling around with different carb jet sizes in the Mikuni Carburetor; bolted on our M800 (1997 SB308 DX AC)

Extracting every ounce of performance out of the tiny Suzuki F8B was FUN, mind you.

Still remember that humming sound from the engine @ 4th gear / 55 kmph. Sigh. Miss those days.

Last edited by FINTAIL : 30th December 2015 at 13:33.
FINTAIL is offline   (1) Thanks Reply With Quote
Old 30th December 2015, 16:14   #1375
Distinguished - BHPian

Join Date: Jul 2007
Location: MUMBAI
Posts: 3,059
Thanked: 4,385 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by Adivir View Post
This car is a Premier Drive Away (PDA) chassis with body built by Kamal Auto, Jaipur.
Dear Adivir - hello to you. Kamal Automobiles was the PAL dealership in Jaipur. The owner was Mr.Dayanidhi Kasliwal, lovingly known as "gattababu". Please ask your father if he still has some contact. If yes, please pass on a message to Dayanidhi, that Behram Dhabhar had come to your dealership in the last week of October 1994 with MMB1975 and MMY5189, both Premier Safari Service Vans in blue color with yellow top, on the way to New Delhi and beyond for the Himalayan Rally. He may still remember!

Your car looks very nice. Notice that the rear bumper is fitted inverted to prevent fouling with the tailgate when opened. Anything sold in those days! .

Dear Gowtham - no, jet sizes are not standard across manufacturers. Jet size is decided by fluid mass flow on U-tube manometers and has no direct relation to diameter. Please help Sreeraj, his car needs your touch now!

Best regards,

Behram Dhabhar
DHABHAR.BEHRAM is offline   (2) Thanks Reply With Quote
Old 1st January 2016, 17:23   #1376
BHPian

DudeWithaFiat's Avatar

Join Date: Jan 2012
Location: Kochi/Bengaluru
Posts: 314
Thanked: 338 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by DHABHAR.BEHRAM View Post

Dear Gowtham - no, jet sizes are not standard across manufacturers. Jet size is decided by fluid mass flow on U-tube manometers and has no direct relation to diameter. Please help Sreeraj, his car needs your touch now!

Best regards,

Behram Dhabhar
Small world we live in. I PM'ed Gowtham, exchanged phone numbers and it turned out that we work at the same company, SAME building! . Will be meeting at our office cafeteria after I come back from vacation.
DudeWithaFiat is offline   (2) Thanks Reply With Quote
Old 3rd January 2016, 15:53   #1377
BHPian

autocrat's Avatar

Join Date: Oct 2011
Location: Bangalore
Posts: 630
Thanked: 450 Times
Default

I did a quick solo Bangalore-Chikmagalur-Bangalore in my Padmini. Started at 9.30 am from home, was on NICE ROAD by 9.45, and reached hassan by 12.45. I did a full tank at hassan and was astonished to see I got 17.5 kmpl mileage with 97.5 jet. I continued onward and after some twisting and pothole ridden roads I took the arsikere road (single track) back to blr. Started by 8.00 and reached home at 12.00

Overall distance was 501 km and 32 l of petrol was consumed. Overall mileage of approx 15.5 kmpl.

Last edited by autocrat : 3rd January 2016 at 15:58.
autocrat is offline   Reply With Quote
Old 4th January 2016, 10:36   #1378
BHPian

autocrat's Avatar

Join Date: Oct 2011
Location: Bangalore
Posts: 630
Thanked: 450 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Some pics:

The FIAT 1100/Premier Padmini Technical Information thread-img_20160102_14255101.jpeg

The FIAT 1100/Premier Padmini Technical Information thread-img_20160102_17290901.jpeg

The FIAT 1100/Premier Padmini Technical Information thread-img_20160102_15061801.jpeg

I drove through the night on a single lane highway and the lights on my car was a real boon. One parking light LED has conked and needs replacement. Brakes have settled down and retardation is progressive and predictable. Suspension is pliant on undulating roads, but there there are "thud" sounds on sharp potholes.

501 km and I was having no sign of fatigue. If only I lived farther, I could have driven longer

The doors squeak a bit - need to get door setting done - does anyone know where to get this done in Bangalore?

Quote:
Originally Posted by DudeWithaFiat View Post
Small world we live in. I PM'ed Gowtham, exchanged phone numbers and it turned out that we work at the same company, SAME building! . Will be meeting at our office cafeteria after I come back from vacation.
Indeed! Looking forward to meet you and your nice car

Last edited by autocrat : 4th January 2016 at 10:50.
autocrat is offline   (1) Thanks Reply With Quote
Old 4th January 2016, 14:31   #1379
Distinguished - BHPian

Join Date: Jul 2007
Location: MUMBAI
Posts: 3,059
Thanked: 4,385 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by autocrat View Post
I did a quick solo Bangalore-Chikmagalur-Bangalore in my Padmini. Started at 9.30 am from home, was on NICE ROAD by 9.45, and reached Hassan by 12.45. I did a full tank at Hassan and was astonished to see I got 17.5 kmpl mileage with 97.5 jet. I continued onward and after some twisting and pothole ridden roads I took the Arsikere road (single track) back to Bangalore. Started by 8.00 and reached home at 12.00. Overall distance was 501 km and 32liters of petrol was consumed. Overall mileage of approximately 15.5 kmpl.
Dear Gowtham - you have mentioned 15.5kmpl () already and the tail pipe is still not pink. There are still many things to do. This reading clearly indicates that you are still running rich. Take one more reading with another 97.5 size main jet (original only), this one seems to have it's mass flow skewed towards the higher side. Then, we shall start optimizing all other parameters.

Remember, you are still running 4.3:1 (cruise-ability), reworked muffler and 1.5 inch exhaust system with single outlet exhaust manifold (back pressure), engine driven fan (eddies and power rob), no fuel return line (fuel pressure variability at needle valve), tubed bias ply tires (coefficient of rolling resistance) and the production scavenge cylinder head with traditional 16/56 degrees valve timing (fill ratio and volumetric efficiency). All this, optimized, was the S1. I had obtained 21.6kmpl in GVW condition! .

Best regards,

Behram Dhabhar

Last edited by DHABHAR.BEHRAM : 4th January 2016 at 14:49.
DHABHAR.BEHRAM is offline   (3) Thanks Reply With Quote
Old 4th January 2016, 15:42   #1380
BHPian

autocrat's Avatar

Join Date: Oct 2011
Location: Bangalore
Posts: 630
Thanked: 450 Times
Default Re: The FIAT 1100/Premier Padmini Technical Information thread

Quote:
Originally Posted by DHABHAR.BEHRAM View Post
Dear Gowtham - you have mentioned 15.5kmpl () already and the tail pipe is still not pink. There are still many things to do. This reading clearly indicates that you are still running rich. Take one more reading with another 97.5 size main jet (original only), this one seems to have it's mass flow skewed towards the higher side. Then, we shall start optimizing all other parameters.

Remember, you are still running 4.3:1 (cruise-ability), reworked muffler and 1.5 inch exhaust system with single outlet exhaust manifold (back pressure), engine driven fan (eddies and power rob), no fuel return line (fuel pressure variability at needle valve), tubed bias ply tires (coefficient of rolling resistance) and the production scavenge cylinder head with traditional 16/56 degrees valve timing (fill ratio and volumetric efficiency). All this, optimized, was the S1. I had obtained 21.6kmpl in GVW condition! .

Best regards,

Behram Dhabhar
Sir, Gross Vehicle Weight 21.6 kmpl is phenomenal! I am trying to get hold of an S1 exhaust manifold, but so far in vain. I hope I can find one soon.
autocrat is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
Fiat 1100 / Premier Padmini - Parts to Stock for FUTURE! arun1100 Post-War 336 2nd February 2016 17:32
The lovely Premier Padmini S1 (Fiat 1100-D) Ram The Indian Car Scene 391 1st February 2016 07:42
My 1973 (FIAT 1100) Premier President President Post-War 208 17th September 2015 00:13
Fiat 1100 "Family" -1962 -Technical, Photos & Information john a milne Post-War 64 29th May 2012 11:15
Used Maruti800, premier padmini , premier 118ne ? sakharamcool Hatchbacks 8 27th May 2008 11:17


All times are GMT +5.5. The time now is 00:54.

Copyright 2000 - 2016, Team-BHP.com
Proudly powered by E2E Networks
