Default Single Engine Fighter Review: the MiG 21

If Mohammed won't go to the mountain, then the mountain must go to Mohammed. Here is a review of my favourite machine - the MiG-21. Disclaimer - the following is a readable summary of what I have picked up from open sources – the internet.

What’s in a name?
In the erstwhile Soviet Union, aircraft were named after their design bureaus – thus MiG stands for Artem Mikoyan and Mikhail Gurevich – the two persons who founded the design bureau. They also have the tradition of giving fighters odd numbers – hence 21. The earlier MiGs numbers were numbered 15, 17, 19 and later the 23, 25,27 and 29. The IAF has/had all versions since the 21. The PAF has/had Chinese versions of the MiG -19 and 21. The West have been giving their fighters a standard nomenclature of the letter F followed by the series. Hence the F-16 and so on. In keeping with that tradition they have named the Soviet fighter similarly i.e starting with the letter F. Hence the NATO designation of Fishbed for the MiG-21 series of aircraft. We have of course given the MiG-21 bis the name of Vikram. Incidentally the suffix is an abbreviation for a Russian word which means ‘final version’. As it turns out it wasn’t!

Achievements
The MiG-21 has the distinction of holding a number of modern aviation records: it is the most produced supersonic jet aircraft in aviation history, the most produced combat aircraft since the Korean War, and it had the longest production run of a combat aircraft -1959 to 1985 over all variants. Just the Soviet union had produced over 10,000 aircraft! We would have produced upward of 200 ourselves. It set a new world speed record way back in 1960, reaching a top speed of 2499km/h. In 1961,it went on to set a new altitude record at 34,714 m (113,891 ft), breaking the previous record set by the US built F-104 Starfighter by 2899 m (9511 ft). Incidentally, both these aircraft faced each other in the 1971 Indo-Pak conflict. The MiG has been flown by over 50 Air Forces and is still flying in many - a half-century after its maiden flight!

Design
The MiG-21 was designed as a single engine, supersonic interceptor – mainly to bring down the likes of the high flying US spy plane – the U-2. Essentially the idea was to keep the aircraft small, clean (low drag) and light weight. This resulted in a very low endurance/range (or radius of action) unless you added external drop tanks. With a delta wing, and a high thrust to weight ratio, it has an excellent rate of climb of 235 m/s (46,250 ft/min). The same aerodynamic features that enabled this however put it at a disadvantage when it came to any form of turning combat since this led to a rapid loss of speed.

IAF Service
The Indian Air Force has been one of the largest users of the MiG-21 outside the Soviet Union. It saw its initial deployment in the Indo-Pak conflict of 1965 and later the Indo-Pak conflict of 1971. That war witnessed the first supersonic air combat in the subcontinent when an Indian MiG-21 shot down a PAF F-104 Starfighter with its GSh-23 twin barrelled 23mm cannon. The MiG- 21 also shot down 3 more F-104 Starfighters & one MIG-19 before the war ended. It should be remembered that at that time the MiG was in a minority as compared to other fighters in the IAFss inventory. It was also used as late as 1999 in the Kargil War. The MiG-21's last known kill took place in 1999 during the Atlantique incident when two MiG-21 aircraft of the IAF intercepted and shot down a Breguet Atlantique reconnaissance aircraft of the Pakistani Navy with R-60MK (AA-8 Aphid), which was flying into Indian air space.

Vital Statistics
Length: 15.0 m (49 ft 2.5 in)
Wingspan: 7.154 m (23 ft 5.66 in)
Height: 4.125 m (13 ft 6.41 in)
Empty weight: 5,339 kg (11,770 lb)
Gross weight: 8,725 kg (19,235 lb)
Thrust: 40.21 kN (9,040 lbf) dry, 69.62 kN (15,650 lbf) with afterburner
Maximum speed: 2,350 km/h (1,468 mph)
Maximum speed: Mach 2.2
Range: (internal fuel) 1,210 km (751 miles)
Service ceiling: 17,800 m (58,400 ft)

Armament
1x internal 23 mm GSh-23 cannon, plus
2x K-13A (R-3R) or 4x Molniya R-60 AAM or
2x 500 kg (1,102 lbs) of bombs

Here are some of my favourite pics from the net.

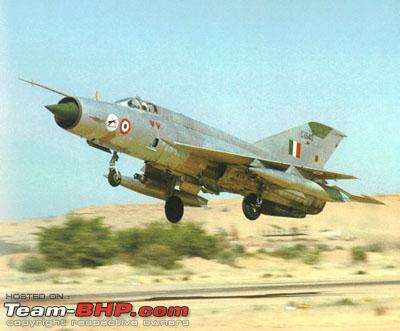

The grey one is a typical MiG-21 bis. In fact the colour is often referred to as bis-grey. All the red stuff are blankings and covers to be removed before flight.

The next picture is a MiG-21M. It looks like a landing on a desert base by the background of dunes. All landings as are the take-offs are purely manual - constraints of space and weight imply keeping out luxuries like the Instrument Landing System.

The one with Mach diamonds in the exhaust is of course a MiG take-off. The diamonds are visible only in certain atmospheric conditions. The sound, as someone mentioned in a different thread, is deafening. Not restricted by noise monitoring stations out there in the desert!

The pair of MiGs are getting ready for a formation take-off - this is generally the quickest way to get two aircraft airborne for an intercept. A typical 'scramble' would be a pair take-off followed by the intercept of an intruder within a few minutes.

The next picture is a very common 3-view diagram of the MiG. Pretty much self-explanatory. Hardly visible from the front and presents a very small radar cross-section.

And at the last are two shots of the cockpit. The second of the two pics is a simulation. As you can see, it is pretty cramped..no glass cockpit this! None of the luxuries of its civilian counterpart - no autopilot, no auto-throttle!

And there you have it... a very small account of a very great aircraft!
