Default Functional Mod-job: Custom mudguard for my Ninja 650

Superbikes/Sportsbikes and their tyres are one thing that makes every bike enthusiast go crazy. Whether for cosmetic or bike dynamics, changing the tyres can be one of the most rewarding experiences. Both in the way that it makes the bike look, and in the way that it rides too. Some of the enthusiast go extreme and try plonking in the widest possible tyre. A 240 section tyre is a common sight but now-a-days we can even see 300 or 330 section tyres.

When I bought myself a N650, the previous owner had installed a 180 section tyre. That tyre looks very sweet on the N650 and dynamically too the bike rides really very well. I can take turns at any speed without the fear of losing grip.

Functional Mod-job: Custom mudguard for my Ninja 650-img_20170501_072024.jpg
The Thunderbird seems so tiny from this view!

I ride my N650 just like a regular bike we ride in city and have not kept it exclusive for weekend breakfast rides. So after having spent some time riding my N650 and getting used to it came to know about a peculiar problem. I will not be able to ride it in monsoons as the open rear tyre splashes a lot of water on bike and the vehicles following me. Sometimes even my legs got dirtied from the water the tyre splashed. Kawasaki has provided a tyre hugger but it really doesn't help much. It is very small and is provided only to avoid the water splash on the rear side of engine and the ABS unit (European models have it installed right behind this tyre hugger)

Company fitted Tyre Hugger:
Functional Mod-job: Custom mudguard for my Ninja 650-wp_20170422_10_05_25_pro.jpg
Functional Mod-job: Custom mudguard for my Ninja 650-n650-oem-tyre-hugger.jpg

Here you can see how small the tyre hugger is. It is too puny to arrest the amount of water which will be splashed by the tyre. So my search started to procure some type of hugger that would guard me, my bike and the vehicles trailing me during monsoon.

Some of the Tyre hugger designs that I saw in market:

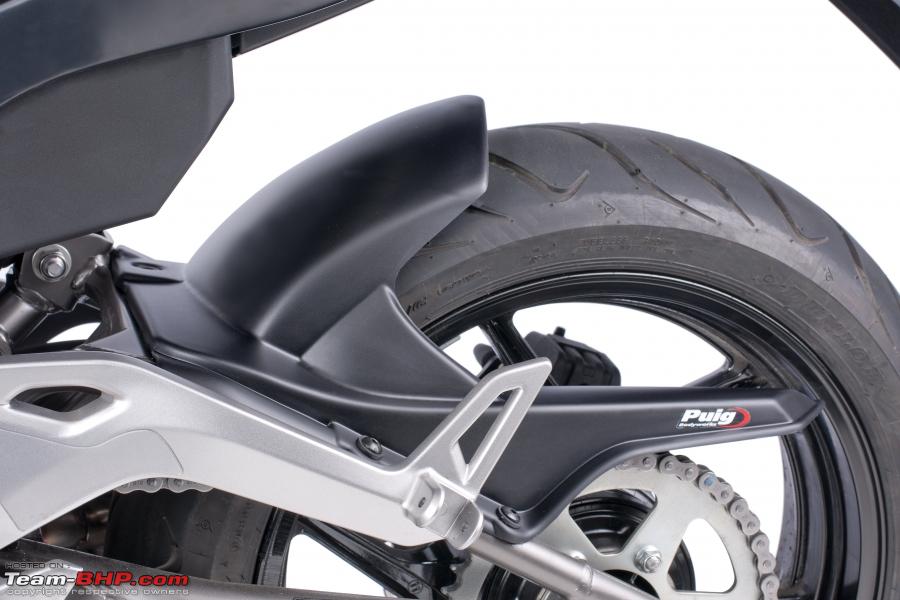

1: Puig: REF.6041C (Carbon Fibre Look) / REF.6041J (Matt Black)
This fender just looks better over the original Kawasaki fender. It is just 2 inches longer than the one Kawasaki provides.
Functional Mod-job: Custom mudguard for my Ninja 650-puig22317.jpg

2: Esatto by Leon:
Came across this on EBay. This was lot different than what I had in mind and looks similar to what the KTM and the Yamaha has. But again there was an issue of how much water will it arrest. It is just a mud flap type piece and not a pure tyre hugger.
Functional Mod-job: Custom mudguard for my Ninja 650-sl1600.jpg

During my search, I came across many tyre huggers which were similar to the once Puig manufactured (mentioned above) just like its replica. All of them that I saw are being manufactured not keeping in mind what the monsoons in India are. So I approached a friend of mine who is in the bike modifications and he came out with a brilliant idea. He took a fender whose curve was suitable for my tyre curvature. Widened it as per the tyre's width, then adjusted it for the final fitting. Welded the support rods by keeping it on the bike. and Voila! I had a fender which had the utility and also looked good on the bike. Some pics of the Work in Progress.
Functional Mod-job: Custom mudguard for my Ninja 650-1.jpg

Adjusting the fender height
Functional Mod-job: Custom mudguard for my Ninja 650-2.jpg

Support rod being hand-crafted
Functional Mod-job: Custom mudguard for my Ninja 650-3.jpg

Mounting side of the support rod made red hot and beaten to make it flat
Functional Mod-job: Custom mudguard for my Ninja 650-4.jpg

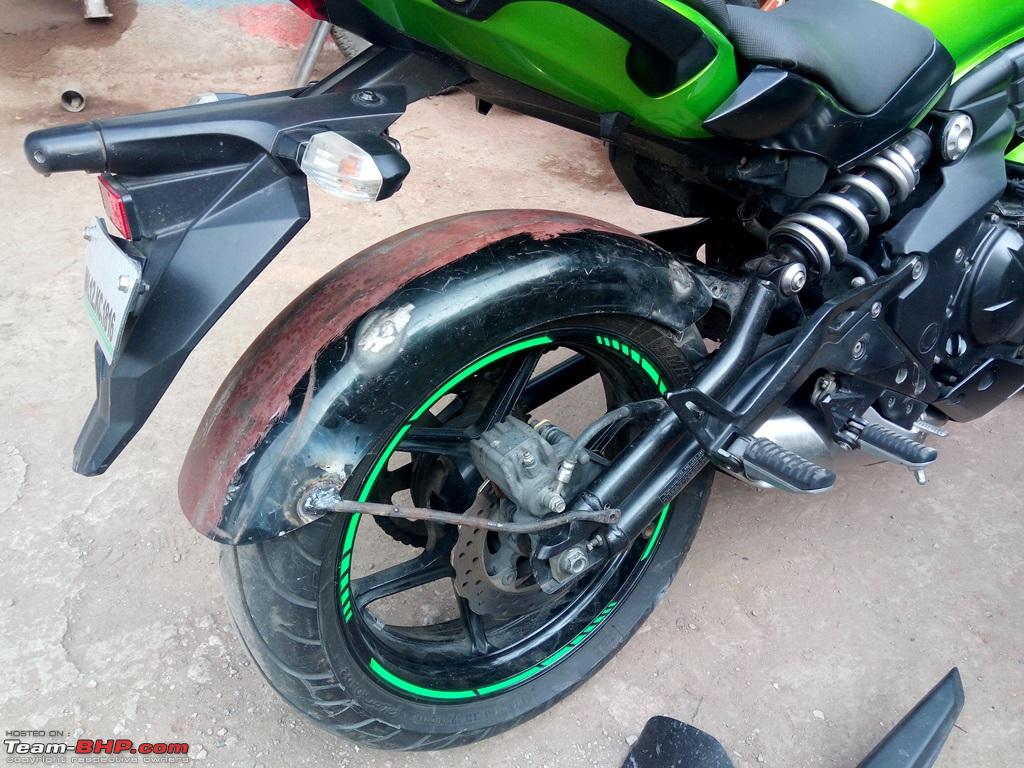

Final outcome after welding the support rods in place.
Functional Mod-job: Custom mudguard for my Ninja 650-img_20170514_163945.jpg
Functional Mod-job: Custom mudguard for my Ninja 650-img_20170514_163953.jpg

After a bit of finishing touches like grinding and polishing out the welded edges and painting the fender it turned out to very beautiful. Once installed on my N650 it was a sigh of relief for me as it did not look ugly! Overall I am very satisfied with my Mod-job and this fender will definitely do its job in our soon to come monsoons!
Functional Mod-job: Custom mudguard for my Ninja 650-img_20170519_152548.jpg
Functional Mod-job: Custom mudguard for my Ninja 650-img_20170519_152555.jpg

Last edited by Rehaan : 1st June 2017 at 16:20. Reason: Adding some spacing :)
