Old 8th July 2011, 16:46   #1
Senior - BHPian

Stratos's Avatar

Join Date: Mar 2004
Location: Mumbai, IN
Posts: 2,593
Thanked: 1,210 Times
Default Fiat Punto - Technical Specifications & Feature List

Fiat Punto - Technical Specifications & Feature List

Team-BHP will now be uploading the full feature list and technical specifications of each car sold in India. This information isn't readily available; even manufacturer websites sometimes don't present all the data (intentionally), while the fancy formats they use make for poor readability. Then, we have some manufacturers who tend to confuse you by listing a glovebox as a feature!! Lastly, the official websites don't follow any standard display order as such, which can make comparisons across cars very difficult.

Team-BHP will follow a standard, easy-to-refer-to format across all Indian cars. With time, this data will be transferred to an interactive website section.

IMP : Please list out any errors in the following sheet; your contribution will greatly help the community, other BHPians & guests. You can point out corrections on this thread itself. Thank you!

Fiat Punto - Technical Specifications & Feature List-puntospec01.jpg

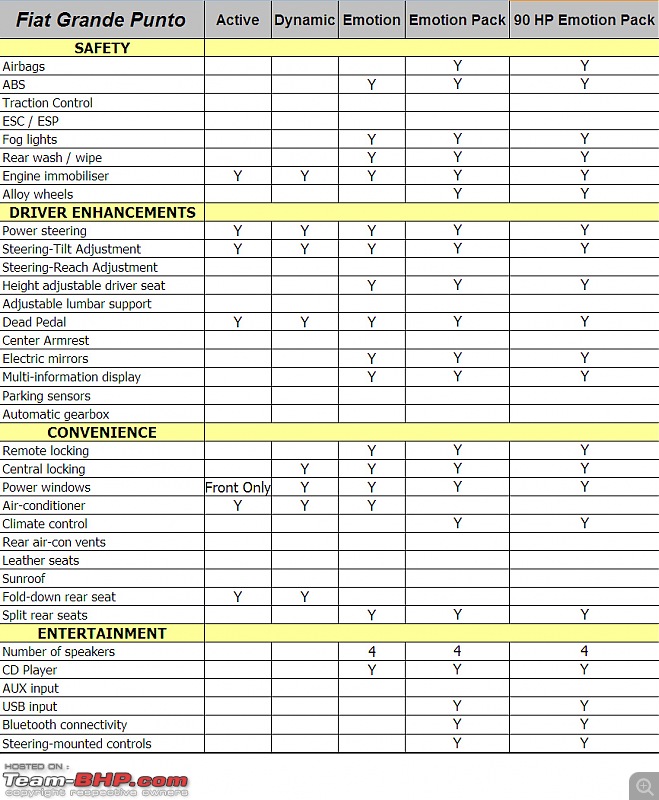

Fiat Punto - Technical Specifications & Feature List-puntofeat01.jpg
Stratos is offline   (3) Thanks Reply With Quote
Old 8th July 2011, 16:55   #2
BHPian

praz's Avatar

Join Date: Jan 2010
Location: Bangalore<->Chennai
Posts: 99
Thanked: 9 Times
Default Re: Fiat Punto - Technical Specifications & Feature List

In the safety section, I see that there is only ABS. I think some cars come with ABS alone and some with ABS + EBD and the punto comes with the latter.
praz is offline   (1) Thanks Reply With Quote
Old 8th July 2011, 17:09   #3
Senior - BHPian

theexperthand's Avatar

Join Date: Oct 2008
Location: Bangalore
Posts: 1,369
Thanked: 1,136 Times
Default Re: Fiat Punto - Technical Specifications & Feature List

All Punto variants have rear air con vents under the front seats, but it gets activated only when you select the option which allows air flow on your body and feet.

While the Active and Dynamic variants do not have the full fledged MID like higher variants, the display is not really basic - the display shows trip distance, DTE, Fuel average, instantaneous fuel consumption, Average trip speed and trip time taken, so this is a kind of multi information display. I think may be we can say 'basic MID' instead of leaving the space blank and creating the impression that the active and dynamic variants do not have any kind of MID.

Last edited by theexperthand : 8th July 2011 at 17:13.
theexperthand is offline   (1) Thanks Reply With Quote
Old 8th July 2011, 17:18   #4
Senior - BHPian

bluevolt's Avatar

Join Date: Jan 2011
Location: New Delhi
Posts: 2,963
Thanked: 2,211 Times
Default Re: Fiat Punto - Technical Specifications & Feature List

I am uploading e-brochure and price list of Fiat Punto. This will help members/guests to find all info at same place.

Please click this link ( or right click and click save link) to download e-brochure*.http://www.fiat-india.com/pdf/Punto-leaflet.pdf
http://www.fiat-india.com/pdf/Punto-brochure.pdf

*(As the size is over 3MB, couldn’t upload directly here)

Ex-Showroom Prices for DELHI

Petrol

1.2 active - Rs. 4,31,558

1.2 dynamic - Rs. 4,62,565

1.2 emotion - Rs. 4,93,572

1.4 emotion - Rs. 5,44,585

1.4 emotion pk- Rs. 6,01,871

Diesel

1.3 active - Rs. 5,17,578

1.3 dynamic - Rs. 5,51,586

1.3 emotion - Rs. 5,94,595

1.3 emotion pk - Rs. 6,50,609

90HP emotion pk
- Rs. 6,84,763
bluevolt is offline   (2) Thanks Reply With Quote
Old 8th July 2011, 17:24   #5
BHPian

Join Date: Mar 2008
Location: Chennai , Tamil Nadu
Posts: 282
Thanked: 56 Times
Default Re: Fiat Punto - Technical Specifications & Feature List

Quote:
Originally Posted by Stratos View Post
Fiat Punto - Technical Specifications & Feature List

Team-BHP will now be uploading the full feature list and technical specifications of each car sold in India. This information isn't readily available; even manufacturer websites sometimes don't present all the data (intentionally), while the fancy formats they use make for poor readability. Then, we have some manufacturers who tend to confuse you by listing a glovebox as a feature!! Lastly, the official websites don't follow any standard display order as such, which can make comparisons across cars very difficult.

Team-BHP will follow a standard, easy-to-refer-to format across all Indian cars. With time, this data will be transferred to an interactive website section.

IMP : Please list out any errors in the following sheet; your contribution will greatly help the community, other BHPians & guests. You can point out corrections on this thread itself. Thank you!
The height adjustable driver's seat option and ABS on the Emotion variant should have an asterisk next to it as it is available only on the 1.3 Multijet Emotion. The 1.2 FIRE Emotion Punto does not have ABS and height adjustable driver's seat.

Quote:
While the Active and Dynamic variants do not have the full fledged MID like higher variants, the display is not really basic - the display shows trip distance, DTE, Fuel average, instantaneous fuel consumption, Average trip speed and trip time taken, so this is a kind of multi information display. I think may be we can say 'basic MID' instead of leaving the space blank and creating the impression that the active and dynamic variants do not have any kind of MID.
+1 to @theexperthand's post. It can be listed as Basic MID atleast for the Active and Dynamic variants.

Cheers,
Kaushik

Last edited by kaush666 : 8th July 2011 at 17:28.
kaush666 is offline   Reply With Quote
Old 8th July 2011, 22:16   #6
Senior - BHPian

oxyzen's Avatar

Join Date: Feb 2010
Location: Not fixed.
Posts: 1,026
Thanked: 265 Times
Default Re: Fiat Punto - Technical Specifications & Feature List

A suggestion.
Can we have a separate sub-section for " Technical Specifications & Feature List"?

Thanks.
oxyzen is offline   Reply With Quote
Old 9th July 2011, 11:26   #7
Senior - BHPian

Join Date: Nov 2009
Location: Bhubaneswar
Posts: 1,762
Thanked: 532 Times
Default Re: Fiat Punto - Technical Specifications & Feature List

Rear Fog lamps are standard across all variants.
julupani is offline   Reply With Quote
Old 17th July 2011, 20:57   #8
Senior - BHPian

Klub Class's Avatar

Join Date: Aug 2007
Location: KA17|KL65|KL41
Posts: 3,803
Thanked: 898 Times
Cool Re: Fiat Punto - Technical Specifications & Feature List

Stratos, the feature list is incomplete. That said, I'm sharing the detailed features list* :

ACTIVE VARIANT
  • SAFETY & SECURITY
    • Programmable speed limit warning system
    • Fire prevention system
    • Fog lamps (rear)
    • Engine immobilizer with FIAT Code system (FCS) rolling code
    • Double crank prevention system
    • Engine guard metal plate
    • Metal plate the back of the rear seats
    • Headlamps height adjustment
    • Parking lights of one side can be activated
  • EXTERIORS
    • Body color bumpers
    • Full wheel covers
  • INTERIORS
    • Theater dimming cabin lamps
    • Back seat pockets
    • Rear parcel tray
    • Rear seat head rests- fixed type
    • Full fabric seat upholstry
    • Flat folding rear seat
  • COMFORT & CONVENIENCE
    • AC with heater (HVAC)
    • Rear AC vents
    • Speed sensitive front wipers
    • Hydraulic Power Steering
    • Front power windows with Auto down on both windows and driver side auto up as well
    • Clutch footrest
    • Height adjustable front headrests
    • 12V power socket
    • Battery saver
    • Internally adjustable ORVMs
    • Tilt steering
    • Speed sensitive intermittent front wipers
  • AUDIO
    • Active variant comes with pre wiring for music system, speakers for all 4 doors and antenna.
  • INSTRUMENT PANEL/MID DISPLAY
    • Single tripmeter
    • Tachometer
    • Driver seat belt warning
    • Follow me home headlamps (upto 210 seconds)
    • Digital clock, odometer etc.
    • Headlamp height adjustment
  • MY CAR SETTINGS
    • Speed limit setting
    • Clock settings,
    • Buzzer volume setting
    • Units settings.

DYNAMIC VARIANT: All the features of ACTIVE variant plus those given below:
  • SAFETY & SECURITY
    • Programmable auto door locks
  • EXTERIORS
    • No additions
  • INTERIORS
    • Theater dimming cabin lamp with spot light function
    • Fabric insert on door trim and door arm rest
    • Center console is silver in color
    • Chrome rings and cosmetic enhancements around the instrument panel
  • COMFORT & CONVENIENCE
    • Instrument panel light regulation
    • All four auto down power windows with driver side auto up as well
    • Central locking
    • Theater dimming lights will work for all four doors
  • AUDIO
    • no additions
  • INSTRUMENT PANEL/MID DISPLAY
    • The advanced MID screen shows:
    • Date and day
    • Odometer
    • Clock
    • Headlight aiming position
    • Speed limit warning system
    • Warning messages from advanced onboard diagnostics system: boot open, specific door open warning message (right front, left rear, right rear, boot open etc), warning on anomalies detected (any fused bulb, headlight bulb, indicator bulb, Ice on road warning if external temperature dropping close to zero)
    • Dual trip computer (Trip A and Trip B)
    • Trip Data shown-
    • Distance to Empty (Range)
    • Trip Distance
    • Average consumption
    • Instantaneous consumption
    • Average speed
    • Travel time (driving time)
  • MY CAR SETTINGS
    • It is an advanced program that has the following features:
    • Allows customization of various settings like-
    • Language (total of 9 languages),
    • Units (Km or miles, Km/l or miles per gallon etc)
    • Calender settings(day, date and time),
    • Button and buzzer volume,
    • Programmable auto door locks settings,
    • Speed warning on/off with speed threshold setting at which it comes into action,
    • Service reminder details,
    • TripB data
  • OTHER POINTS regarding DYNAMIC VARIANT:
    • Keyless system for Dynamic costs 4k (for Active, it costs 10k). Savings of 6k.
    • Spend close to Rs1500 and you can get control switches of all four power windows on driver side panel as well

EMOTION VARIANT- DYNAMIC variant plus features given below:
  • SAFETY & SECURITY
    • Anti Lock Braking system
    • Electronic Brake force distribution
    • Height adjustable front seat belts
    • Electronically controlled front fog lamps
    • Keyless entry
  • EXTERIORS
    • Body color door handles and ORVMs
    • Silver front grill with silver painted fog lamp enclosures
  • INTERIORS
    • Dual tone interiors
    • Silver painted door handles
  • COMFORT & CONVENIENCE
    • Electrically adjustable outside rear view mirrors (ORVMs)
    • Intelligent rear defogger with timer
    • Rear washer and intelligent rear wiper
    • Desmodronic foldable key
    • Boot/luggage lamp
    • Height adjustable rear headrests
    • Pollen filter
    • Height adjustable driver seat
    • All control switches are illuminated
    • 60:40 split folding rear seats
  • AUDIO
    • Blaupunkt Music system with 4 average speakers
    • Speed sensitive volume control

  • INSTRUMENT PANEL/MID DISPLAY
    • Audio display on MID- Displays song name, radio frequency, artist and album name etc on the MID
  • MY CAR SETTINGS
    • See radio/song details on MID on/off

EMOTION PACK VARIANT- EMOTION variant plus these
  • SAFETY & SECURITY
    • Dual stage front driver and passenger airbags
    • 3 point ELR seat belts with pre-tensioners and load limiters
    • Passenger airbag on/off
    • Seat belt warning has buzzer as well
  • EXTERIORS
    • 15 inch alloy wheels
    • 195/60R15 tyres (widest in the segment)
    • Spare tyre is also 15 inch

  • INTERIORS
    • No additions
  • COMFORT & CONVENIENCE
    • Automatic Climate control
    • Steering mounted audio and Blue&Me controls
    • Leather wrapped steering wheel
    • Leather wrapped gear knob
  • AUDIO
    • Microsoft Blue&Me system
    • SMS Reader
    • Car communicator/voice commands for phone calling by contact name or digit by digit dictation to the car
    • Windows Media Player for playing music via Blue&Me USB port
    • USB Port in glove box on Blue&Me system
    • Voice commands for Media player control
    • Onboard storage memory inside Blue&Me system for storing uploaded index of phonebook besides storing incoming SMS.
    • Pairing with upto 5 Bluetooth mobile phones
  • INSTRUMENT PANEL/MID DISPLAY
    • Text from SMS Reader
    • Incoming contact name/phone number display
    • Outgoing contact name/phone number display
    • Phonebook display
    • Blue&Me settings display
  • MY CAR SETTINGS
    • Passenger airbag on/off setting

* All thanks to my friend Dr.Yashik Bansal for granting me the permission to share this piece of information for the benefit of Team-BHP readers which exceeds 100k.

Stratos, I humbly request you to go through the above features list and make necessary changes. Thanks.

Last edited by Klub Class : 17th July 2011 at 21:15.
Klub Class is offline   Reply With Quote
