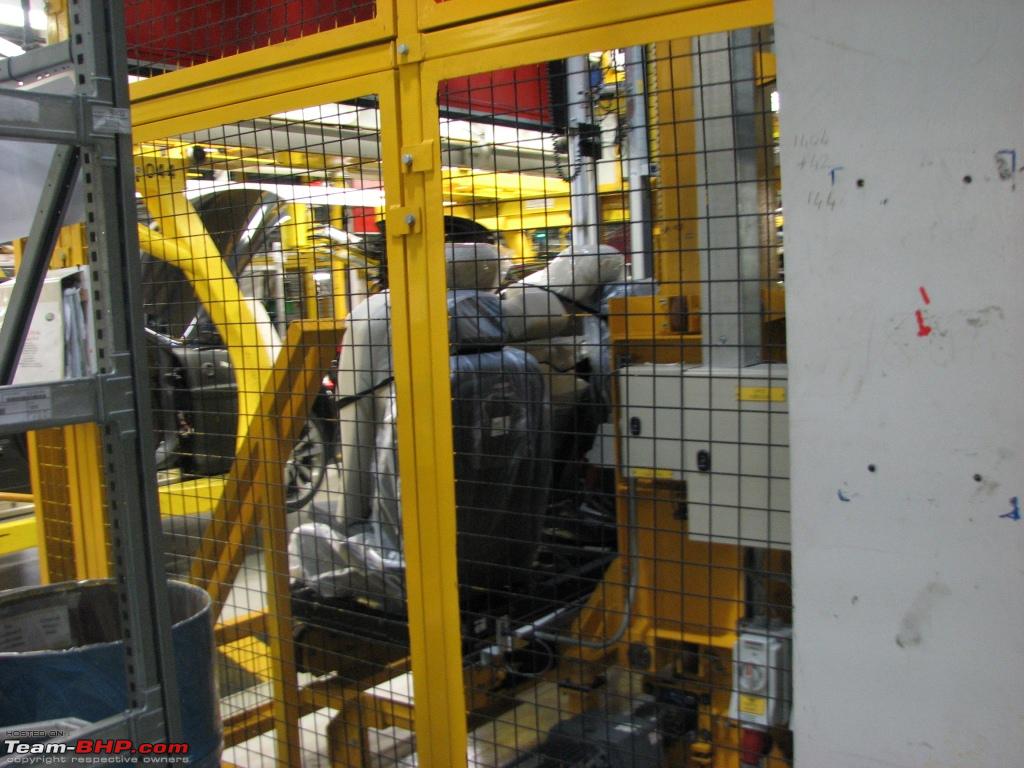

After the tyres, it's time for the XJ's interiors to be taken care of. In go the plush seats:
PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-21.jpg

PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-22.jpg

All dressed up, the XJ will have its first taste of oils & fluids. This is like giving a child the first drop of water...a very important moment in the life of the vehicle. Nannies, errr machines, come and feed the XJ:
PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-24.jpg

PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-25.jpg

Of course there are some parts that are made in China. How can you be at a manufacturing line and not see a "Made in China" tag? The various chrome embellishments that will go into the vehicle:
PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-23.jpg

Last edited by GTO : 21st May 2012 at 18:57.
khan_sultan is offline   (9) Thanks Reply With Quote
Old 12th May 2012, 01:56   #17
Team-BHP Support

khan_sultan's Avatar

Join Date: Apr 2006
Location: Bangalore
Posts: 4,663
Thanked: 3,185 Times
Default Re: Jaguar: Team BHP visits the Castle Bromwich Factory UK

The doors are still not installed. This is done at the end, to allow workers / robots easy access to the car. The XJ is equipped with a Bower Wilkins audio system:
PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-28.jpg

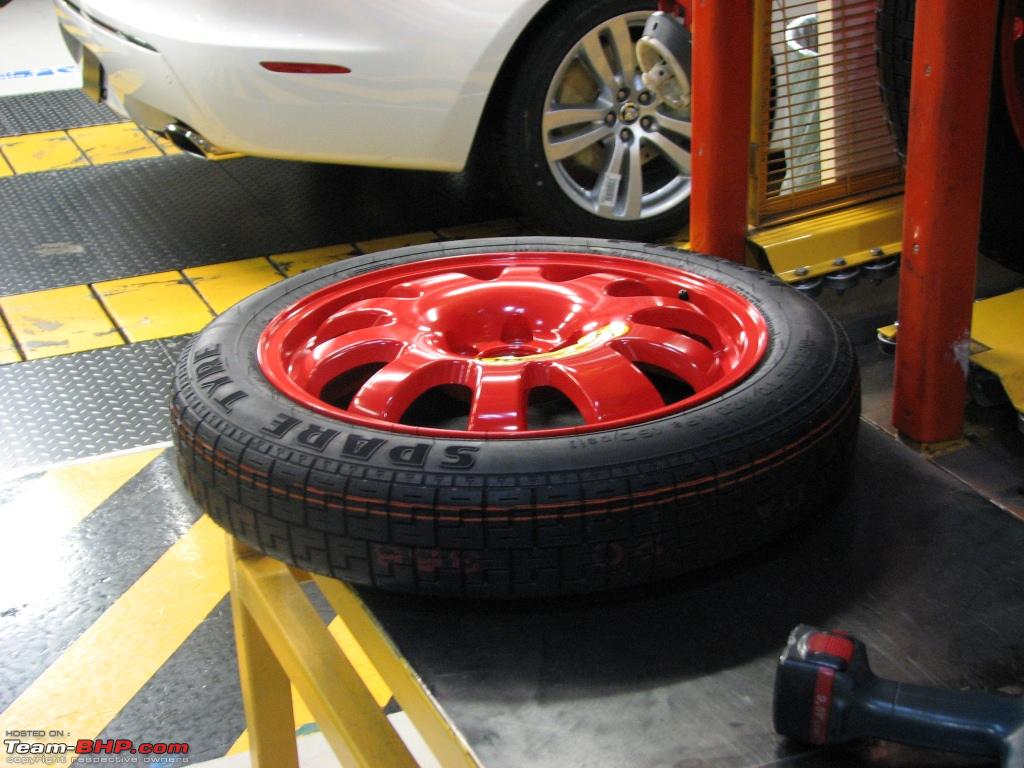

The smaller, space saver spare:
PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-30.jpg

The XJ is fully kitted out and ready for final tests. The extensive testing takes place at the VCATS station:
PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-31.jpg

Last edited by GTO : 21st May 2012 at 19:00.
khan_sultan is offline   (7) Thanks Reply With Quote
Old 12th May 2012, 01:58   #18
Team-BHP Support

khan_sultan's Avatar

Join Date: Apr 2006
Location: Bangalore
Posts: 4,663
Thanked: 3,185 Times
Default Re: Jaguar: Team BHP visits the Castle Bromwich Factory UK

Final inspection:
PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-32.jpg

Then driven away...
PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-33.jpg

...to the yard and ready for shipment. Now you know how the XJ is created, right from the aluminium sheets to final assembly:
PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-35.jpg

Last edited by GTO : 21st May 2012 at 19:02.
khan_sultan is offline   (18) Thanks Reply With Quote
Old 12th May 2012, 02:03   #19
Team-BHP Support

khan_sultan's Avatar

Join Date: Apr 2006
Location: Bangalore
Posts: 4,663
Thanked: 3,185 Times
Default Re: Jaguar: Team BHP visits the Castle Bromwich Factory UK

Next on the schedule is a session with Mark White - Chief Technical Specialist for Light Weight Body Structures at Jaguar. We arrive in a large room where a cut out of the XK is parked. This section shows the different materials used in the construction of the body structure. The silver being aluminium, the different shades of green being alloys, and the black being magnesium:
PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-36.jpg

Mark White is hugely passionate about his subject area. He has worked at Jaguar for all of his professional life and is a self confessed Jaguar & Lotus enthusiast. He's had posters of Jaguar since the childhood days, and wanted to work here only. It is said that if Mark doesn't know the answers to light weight body structures, probably no one else does either:
PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-37.jpg

Some of the key takeaways from his presentation were:

- The '03 XJ was the first volume-production car to use an all-aluminium monocoque chassis
- There's no difference in quality between new and recycled aluminium
- At the end of the XJ's life, nearly 100% of its aluminium is recyclable
- The XJ body structure weighs 150 kgs lesser than the comparable steel body of competing vehicles
- The XJ body structure weighs approximately the same as that of a Mini

PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-39_1.jpg

Here is the presentation that he used. If you are into automotive structures, you might find it useful:
CB Mark White Aluminium Presentation.pdf

The factory still has the markings of RAF. See the drain pipe; the topmost part has RAF stampings, remnants of the days when aircrafts were built here:
PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of the XJ-39.jpg

Last edited by GTO : 21st May 2012 at 19:12.
khan_sultan is offline   (20) Thanks Reply With Quote
Old 21st May 2012, 19:20   #20
GTO
Team-BHP Support

GTO's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 47,709
Thanked: 89,162 Times
Default Re: PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of th

Thread moved from the Assembly Line (The "Assembly Line" Forum section) to the Technical Section. Thanks for sharing!
GTO is offline   Reply With Quote
Old 21st May 2012, 19:49   #21
BHPian

Neel's Avatar

Join Date: Apr 2004
Location: Bangalore
Posts: 166
Thanked: 22 Times
Default Re: PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of th

Awesome, pics complement the write up very well.
Was hoping to see more on the engine assembly and variants.
Neel is offline   Reply With Quote
Old 21st May 2012, 20:01   #22
BHPian

Join Date: Jun 2007
Location: -_-
Posts: 313
Thanked: 113 Times
Default Re: PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of th

Officially my favourite thread on team bhp. Ill keep coming back to go through this thread again and again for quite some time.
most of us have visited an automobile plant at some point , but to gain access to info on the most current and advanced practices in the automobile industry is something
mycarhasablower is offline   (1) Thanks Reply With Quote
Old 21st May 2012, 20:11   #23
BHPian

Join Date: Nov 2009
Location: 1.37N 103.92E
Posts: 71
Thanked: 41 Times
Default

khan_sultan, awesome thread.
One question on the paint shop. Do they use an electrolytic process to coat aluminum?
What metal/alloy do they use? Not sure if the answer is a trade secret.
"MIG/TIG". So many memoies came back. Last I read about that was in college.

Last edited by rtandon : 21st May 2012 at 20:12.
rtandon is offline   Reply With Quote
Old 21st May 2012, 20:23   #24
Team-BHP Support

khan_sultan's Avatar

Join Date: Apr 2006
Location: Bangalore
Posts: 4,663
Thanked: 3,185 Times
Default Re: PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of th

Quote:
Originally Posted by Neel View Post
Awesome, pics complement the write up very well.
Quote:
Originally Posted by mycarhasablower View Post
Officially my favourite thread on team bhp.
Quote:
Originally Posted by rtandon View Post
khan_sultan, awesome thread.
Thanks guys. I enjoyed writing this one and enjoyed every bit of the factory tour.

Quote:
Was hoping to see more on the engine assembly and variants.
How I wish we could have seen that also. Unfortunately, as I mentioned in the report also, the engines are manufactured in a FORD factory somewhere else.

Quote:
to gain access to info on the most current and advanced practices in the automobile industry is something
Agree. The manufacturing process of these wonderful machines was an eye opener for me.

Quote:
One question on the paint shop. Do they use an electrolytic process to coat aluminum?
What metal/alloy do they use? Not sure if the answer is a trade secret.
We didn't see the paint shop hence don't have information about the process. The alloys used are different varieties of custom spec alloys. Most of the aluminum based alloys are sourced from Aditya Birla group. Actually, if you go through the attached presentation from Mark White, you can read up on the details of the alloys used.

Link to Presentation
khan_sultan is offline   (1) Thanks Reply With Quote
Old 21st May 2012, 20:38   #25
Distinguished - BHPian

smartcat's Avatar

Join Date: Jun 2007
Location: Bangalore
Posts: 2,970
Thanked: 11,910 Times
Default Re: Jaguar: Team BHP visits the Castle Bromwich Factory UK

Is the paint shop within the factory premises or are the cars painted elsewhere and brought back to the factory?

Quote:
Originally Posted by khan_sultan View Post

Cut section of the XJ body. Notice how shiny the aluminium is. We asked if a customer can order this finish, but the answer was in the negative. If someone from the Middle East sees this, he'd have probably placed an order for a dozen right then and there:
That's because sunlight reflecting on the body will be hazardous to other road users.
smartcat is online now   Reply With Quote
Old 21st May 2012, 21:15   #26
Newbie

Join Date: May 2009
Location: Bangalore
Posts: 13
Thanked: 7 Times
Default Re: Jaguar: Team BHP visits the Castle Bromwich Factory UK

Quote:
Originally Posted by khan_sultan View Post

The XJ is fully kitted out and ready for final tests. The extensive testing takes place at the VCATS station:
Attachment 926402
Absolutely captivating; thanks for an elaborate coverage !
What does the testing include ? I remember from Ferrari's Megafactory show coverage, that is a 20 mile test run of each vehicle at in-house test tracks, subsequent to a rigorous tests on a dyno. Is track testing a part of JLR's process ?

Secondly, did the discussion on lightweight structures touch upon composites, or was it restricted to alloys and aluminium ?
shobhit is offline   (1) Thanks Reply With Quote
Old 22nd May 2012, 00:06   #27
BHPian

Blow Horn Ok's Avatar

Join Date: Feb 2012
Location: Bokaro
Posts: 595
Thanked: 358 Times
Default Re: PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of th

Thanks for posting the most detailed production story of a great Car. I was glued to this for an hour! Now I am sure that the Jaguar is one of the pioneers of light weight body construction. What about their efforts of reducing weight and emissions of the engine? Now after this post I know they use Ford's facility but please provide more details of the engine and transmission. Also please post details of the paint booth section if you have.
Blow Horn Ok is offline   (1) Thanks Reply With Quote
Old 22nd May 2012, 01:32   #28
Senior - BHPian

getsurya's Avatar

Join Date: Aug 2008
Location: Hyderabad
Posts: 1,381
Thanked: 944 Times
Default Re: PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of th

Hi Khan,

Great report there! Awesome!!

Truly enticing and glued was I, for reading it through. Thank you for sharing and the journey.
getsurya is online now   Reply With Quote
Old 22nd May 2012, 02:38   #29
BHPian

Join Date: Jul 2010
Location: Calcutta
Posts: 53
Thanked: 10 Times
Default Re: PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of th

Thanks a lot khan_sultan for the wonderful thread and team-bhp moderators and support for creating and maintaining this amazing site. The experience of its valuable members, unbiased, in-depth reviews and the diverse areas t-bhp covers has made it one of the most respected forums in the world which is evident from the number of invites it receives for various events. Hope to see more of these.
Concorde is offline   (1) Thanks Reply With Quote
Old 22nd May 2012, 03:14   #30
BHPian

LP640's Avatar

Join Date: Jun 2008
Location: Munich
Posts: 97
Thanked: 41 Times
Default Re: PICS : Jaguar's Castle Bromwich (UK) Factory. Detailed report on the making of th

Finally an aluminium production facility! Never imagined that working with aluminium would be so different. No spot welding or seams, just rivets and glue!
It really is a brave step to move to aluminium from steel. And Jaguar seems to have mastered it!
LP640 is offline   (1) Thanks Reply With Quote
