Old 12th January 2014, 03:10   #16
Distinguished - BHPian

Join Date: Oct 2011
Location: Hyderabad
Posts: 9,371
Thanked: 13,345 Times
Default Re: On Board Diagnostics (OBD) for Dummies

While surfing on-line for any data or matter on OBD-II, this is what I stumbled upon.

The following images give the Pin-out guide used by different manufacturers.

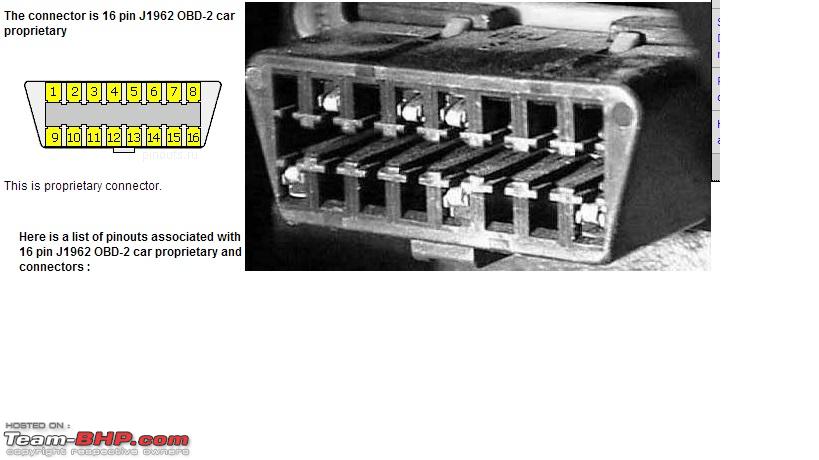

This the 16-pin that I am referring to where each pin has different function programmed:
On Board Diagnostics (OBD) for Dummies-16-pin.jpg

Functions by Manufacturers

Audi
Name:  Audi.jpg
Views: 1926
Size:  73.9 KB

BMW
On Board Diagnostics (OBD) for Dummies-bmw.jpg

Fiat
On Board Diagnostics (OBD) for Dummies-fiat.jpg

Ford
On Board Diagnostics (OBD) for Dummies-ford.jpg

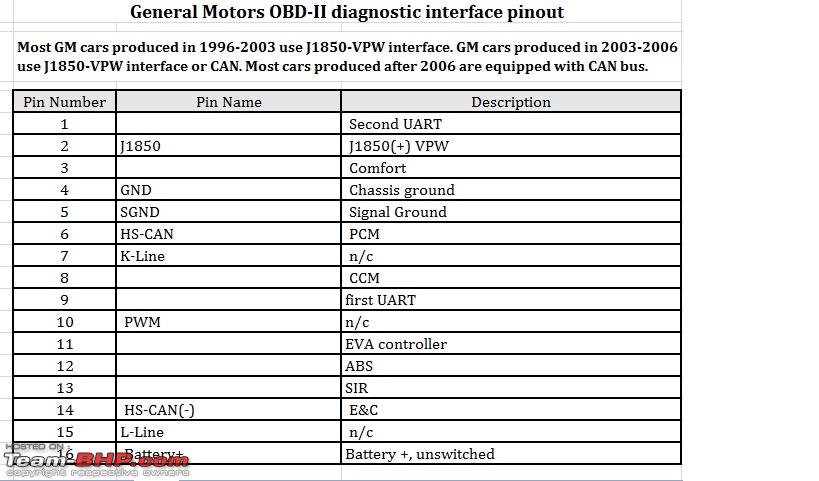

General Motors
On Board Diagnostics (OBD) for Dummies-gm.jpg

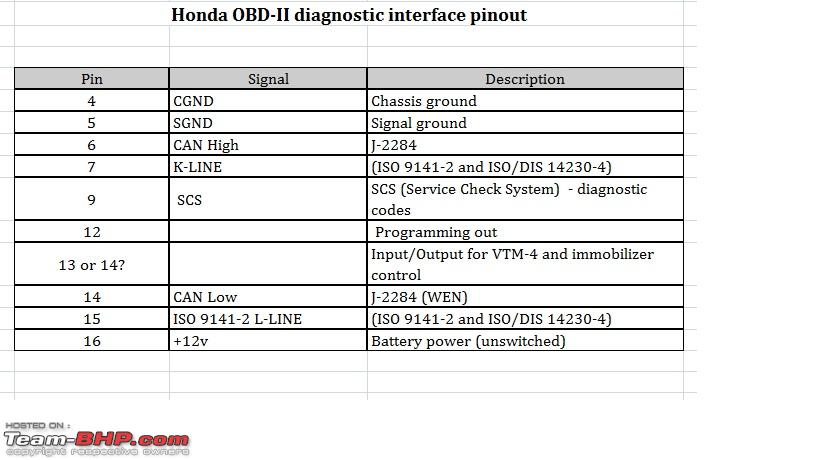

Honda
On Board Diagnostics (OBD) for Dummies-honda.jpg

Hyundai
On Board Diagnostics (OBD) for Dummies-hyundai.jpg

Mercedes
On Board Diagnostics (OBD) for Dummies-mercedes.jpg

Mitsubishi
On Board Diagnostics (OBD) for Dummies-mitsubishi.jpg

Nissan
On Board Diagnostics (OBD) for Dummies-nissan.jpg

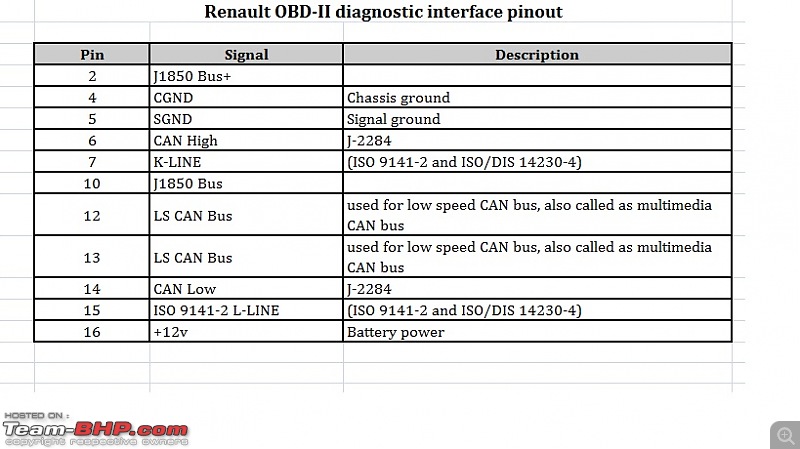

Renault
On Board Diagnostics (OBD) for Dummies-renault.jpg

Skoda
On Board Diagnostics (OBD) for Dummies-skoda.jpg

Suzuki
On Board Diagnostics (OBD) for Dummies-suzuki.jpg

Toyota
On Board Diagnostics (OBD) for Dummies-toyota.jpg

Volkswagen
On Board Diagnostics (OBD) for Dummies-vw.jpg

Volvo
On Board Diagnostics (OBD) for Dummies-volvo.jpg

SOURCE: http://connector.pinoutsguide.com/16...OBD_2_special/

Note: Sorry for images in this way as they are all screen shots taken and not much time to process them so just posting it. Hope it is useful to someone.

Anurag
a4anurag is offline   (2) Thanks Reply With Quote
Old 8th December 2015, 17:54   #17
BHPian

samaspire's Avatar

Join Date: Sep 2015
Location: Manipal / Udupi
Posts: 958
Thanked: 2,275 Times
Default Re: On Board Diagnostics (OBD) for Dummies

Quote:
Originally Posted by audioholic View Post
Hi Anurag
Thanks a ton for the offer. We already have a few with us, to be exact four of them. Will need some more. However, do retain yours with you. I will require a different kind of help from you in a few weeks of time. Hence the device is better kept with yourselves. Will let you know when help is required .
Thanks again.
What happened to the project? Has it been posted elsewhere?
samaspire is offline   Reply With Quote
Old 8th December 2015, 18:15   #18
Distinguished - BHPian

audioholic's Avatar

Join Date: Jun 2012
Location: BengaLuru
Posts: 3,265
Thanked: 5,003 Times
Default Re: On Board Diagnostics (OBD) for Dummies

Quote:
Originally Posted by samaspire View Post
What happened to the project? Has it been posted elsewhere?
Lol back then we were ballistic in starting it out but later the whole thing got shelved. I was interested in the project because it was related to automobiles but I got a job that took me much closer to my passion and I got to work on better stuff like safety systems and collision avoidance. So that project went to the shelf I will do it if I get some time and manpower. Why this question?
audioholic is offline   Reply With Quote
Old 8th December 2015, 18:38   #19
BHPian

samaspire's Avatar

Join Date: Sep 2015
Location: Manipal / Udupi
Posts: 958
Thanked: 2,275 Times
Default Re: On Board Diagnostics (OBD) for Dummies

Quote:
Originally Posted by audioholic View Post
Lol back then we were ballistic in starting it out but later the whole thing got shelved. I was interested in the project because it was related to automobiles but I got a job that took me much closer to my passion and I got to work on better stuff like safety systems and collision avoidance. So that project went to the shelf I will do it if I get some time and manpower. Why this question?
Was doing some research for installing an OBD scanner in my Aspire, which took me to Anurag's thread where your posts caught my eye. Sounded interesting.
What was the idea anyway? Maybe someone else can try it out.
samaspire is offline   Reply With Quote
Old 8th December 2015, 19:19   #20
Distinguished - BHPian

audioholic's Avatar

Join Date: Jun 2012
Location: BengaLuru
Posts: 3,265
Thanked: 5,003 Times
Default Re: On Board Diagnostics (OBD) for Dummies

Quote:
Originally Posted by samaspire View Post
Was doing some research for installing an OBD scanner in my Aspire, which took me to Anurag's thread where your posts caught my eye. Sounded interesting.
What was the idea anyway? Maybe someone else can try it out.
My idea was to develop an Android application that would keep a track on the driving habits and give out reports based on a few algorithms to guage how efficient the driving was and any errors with the car or the driving. Though there are plenty of diagnostic apps available, none of this catered to an end user who was a noob in this area. So we wanted to target that kind of an audience. I then realised that it took a lot of manpower to fine tune stuff and also I had no clue about application development in Android. Just when I started my hands on a basic app, life took me elsewhere
audioholic is offline   (2) Thanks Reply With Quote
Old 9th December 2015, 14:31   #21
BHPian

samaspire's Avatar

Join Date: Sep 2015
Location: Manipal / Udupi
Posts: 958
Thanked: 2,275 Times
Default Re: On Board Diagnostics (OBD) for Dummies

Quote:
Originally Posted by a4anurag View Post

Have you tried using the ELM 327 OBD II reader on your car before purchase?

Anurag.
Hi anurag,
You seem to be an expert on OBDs. I'm thinking of buying one for my Ford Figo Aspire, but some listings on ebay specifically mention that they are not for Ford cars. Do you know anything about that?
samaspire is offline   Reply With Quote
Old 9th December 2015, 16:56   #22
BHPian

devrajman's Avatar

Join Date: Mar 2009
Location: Bangalore
Posts: 504
Thanked: 116 Times
Default Re: On Board Diagnostics (OBD) for Dummies

Quote:
Originally Posted by samaspire View Post
Hi anurag,
You seem to be an expert on OBDs. I'm thinking of buying one for my Ford Figo Aspire, but some listings on ebay specifically mention that they are not for Ford cars. Do you know anything about that?
It works with Ford all cars after 2007 without issues, just buy Big Size ELM327 or VGate ELM327, other have fitting issues nothing else.
devrajman is offline   (1) Thanks Reply With Quote
Old 16th December 2015, 09:47   #23
BHPian

samaspire's Avatar

Join Date: Sep 2015
Location: Manipal / Udupi
Posts: 958
Thanked: 2,275 Times
Default Re: On Board Diagnostics (OBD) for Dummies

Quote:
Originally Posted by devrajman View Post
It works with Ford all cars after 2007 without issues, just buy Big Size ELM327 or VGate ELM327, other have fitting issues nothing else.
If I buy the obd device plus 1 bluetooth device for calling and music, would both of them work simultaneously with my Android phone?
samaspire is offline   Reply With Quote
Old 16th December 2015, 10:13   #24
BHPian

devrajman's Avatar

Join Date: Mar 2009
Location: Bangalore
Posts: 504
Thanked: 116 Times
Default Re: On Board Diagnostics (OBD) for Dummies

Quote:
Originally Posted by samaspire View Post
If I buy the obd device plus 1 Bluetooth device for calling and music, would both of them work simultaneously with my Android phone?
That depends on your phone bluetooth version. Newer version support multi connections, connect to OBD and bluetooth hands free. However AFAIK, those multiconnections should be of diff type, like one is serial data and other is async audio

Do try it, like, connect to music/audio device and transfer a file to another mobile/laptop.
devrajman is offline   (1) Thanks Reply With Quote
Old 16th December 2015, 11:49   #25
BHPian

d3mon's Avatar

Join Date: Nov 2008
Location: Bangalore
Posts: 470
Thanked: 584 Times
Default Re: On Board Diagnostics (OBD) for Dummies

Quote:
Originally Posted by samaspire View Post
If I buy the obd device plus 1 bluetooth device for calling and music, would both of them work simultaneously with my Android phone?
Quote:
Originally Posted by devrajman View Post
That depends on your phone bluetooth version. Newer version support multi connections, connect to OBD and bluetooth hands free. However AFAIK, those multiconnections should be of diff type, like one is serial data and other is async audio

Do try it, like, connect to music/audio device and transfer a file to another mobile/laptop.
1) Bluetooth OBD works in my aspire
2) I can connect to both the SYNC system and the OBD dongle together on my LG G2 on Android 5.0
d3mon is offline   (1) Thanks Reply With Quote
Old 16th December 2015, 14:55   #26
BHPian

samaspire's Avatar

Join Date: Sep 2015
Location: Manipal / Udupi
Posts: 958
Thanked: 2,275 Times
Default Re: On Board Diagnostics (OBD) for Dummies

Quote:
Originally Posted by d3mon View Post
1) Bluetooth OBD works in my aspire
2) I can connect to both the SYNC system and the OBD dongle together on my LG G2 on Android 5.0
Good to know. I have the S4 MINI and the specs are almost the same as yours.

Which obd device are you using? the software I assume is Torque. What are the readings that are available from the Aspire?
samaspire is offline   Reply With Quote
Old 16th December 2015, 21:44   #27
BHPian

d3mon's Avatar

Join Date: Nov 2008
Location: Bangalore
Posts: 470
Thanked: 584 Times
Default Re: On Board Diagnostics (OBD) for Dummies

It's a generic ELM OBD adapter. I have a diesel, which has different sensors than the petrol engine that you have.
d3mon is offline   Reply With Quote
Old 25th December 2015, 11:32   #28
BHPian

samaspire's Avatar

Join Date: Sep 2015
Location: Manipal / Udupi
Posts: 958
Thanked: 2,275 Times
Default Re: On Board Diagnostics (OBD) for Dummies

These are 2 options that I found

1) ebay listing: Rs.499
Latest Super Mini Elm 327v 2.1 Bluetooth EOBD2 CAN-BUS OBD2 Car Reader Scanner
2015 Latest v2.1 Bluetooth with best features
Name:  _12.JPG
Views: 1212
Size:  14.3 KB

Very compact and would be hidden away in my Aspire


2) amazon listing: Rs.690 (same is available on ebay for Rs.735)

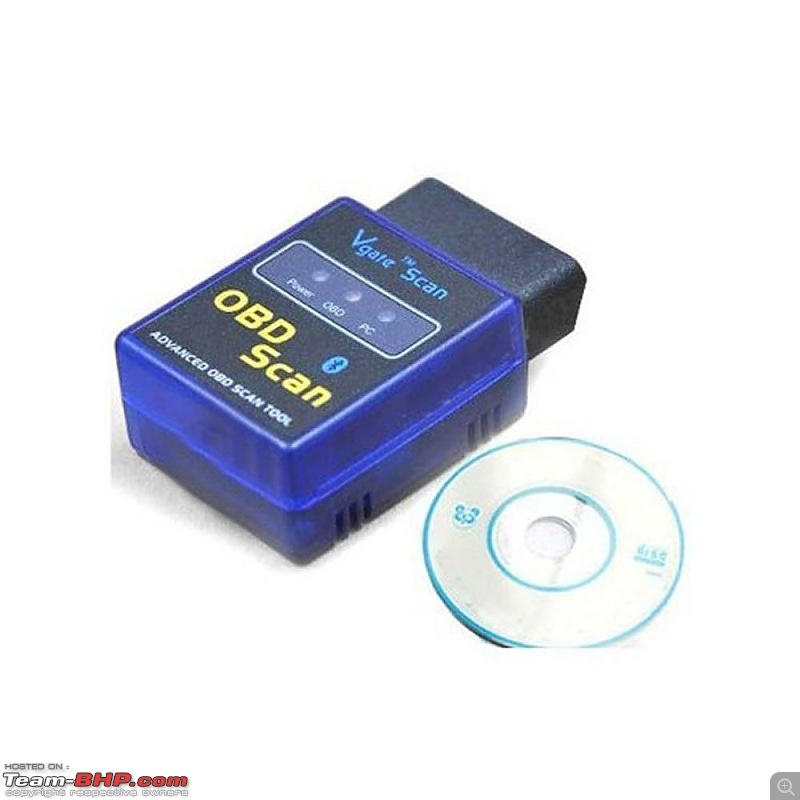

Vgate ELM327 V2.1 Bluetooth Mini Small Interface OBD2 Scanner Adapter Diagnostic Tool Works On Android/Symbian/Windows
On Board Diagnostics (OBD) for Dummies-51ltottu4l._sl1000_-1.jpg

Bigger. Would be visible on the driver side, but might not interfere with the foot.
samaspire is offline   Reply With Quote
Old 5th March 2016, 19:39   #29
Senior - BHPian

procrj's Avatar

Join Date: Oct 2013
Location: Bangalore
Posts: 1,129
Thanked: 2,470 Times
Default Re: On Board Diagnostics (OBD) for Dummies

Quote:
Originally Posted by audioholic View Post
My idea was to develop an Android application that would keep a track on the driving habits and give out reports based on a few algorithms to guage how efficient the driving was and any errors with the car or the driving.
I remember reading on the insurance thread that in the US, a few insurance firms did provide custom insurance quotes based on driving habits. I am assuming that this was tracked using an OBD reader which would send data using a sim.

Your project sounds similar and would actually be a good product to sell to a zoomcar or other car rentals where they can track driver driving style and based on that define the deposit and maybe even rental pricing. Being a data guy I can only imagine the amount of data this could generate and how it can be used.
procrj is offline   Reply With Quote
Old 21st October 2016, 16:02   #30
Newbie

Join Date: Oct 2015
Location: Kolkata
Posts: 3
Thanked: 0 Times
Default Re: On Board Diagnostics (OBD) for Dummies

Hi,

I need an urgent information. For all of BS4 compliant TATA and ALeyland trucks, what are the OBD2 port pinout configurations? What are the manufacturer specific PID's which can be retrieved?



Many thanks in advance
*** Surojit M
Surojit is offline   Reply With Quote
