Default VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

VCDS is a very useful feature in all VAG cars like VW/Skoda/Audi/Porsche. With the help of the Ross-tech VCDS cable and software a lot of features can be unlocked in these cars. It can also be used for diagnosing issues, taking logs etc. I bought the cable a few years back and have used it quite a lot over time. A lot of people keep asking me about stuff that can be done using it. So I thought I would put up a thread for the benefit of all bhpians.

VCDS as such has a whole lot of options and its impossible to master it completely. However, I would like to put up some of the common things for which it can be used. Feel free to add to this thread any other interesting feature which you might have found.

Firstly, I would like to use my VW Polo GT Tsi (6R 77KW) as a base car to illustrate some of the options. I will be putting up screenshots of the things I have done in my Polo.

The main VCDS screen (latest version 12.12.2)
Name:  Screenshot 1.jpg
Views: 26178
Size:  80.8 KB

Choosing a complete scan/ Deletion of fault codes etc.
Name:  Screenshot 4.jpg
Views: 24018
Size:  96.3 KB

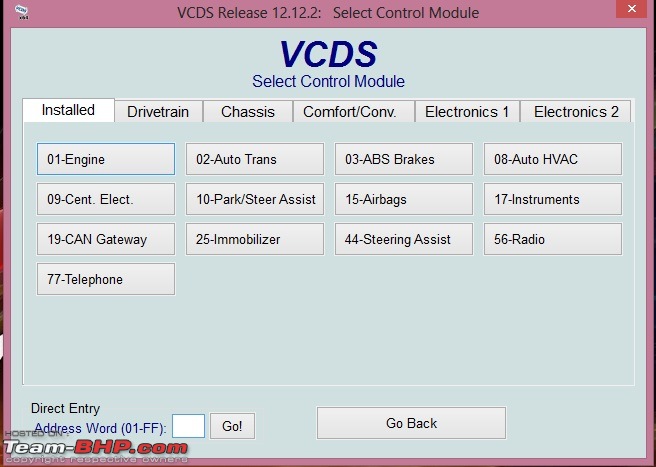

Modules available
Name:  Screenshot 21.jpg
Views: 24270
Size:  79.8 KB

Brake settings :

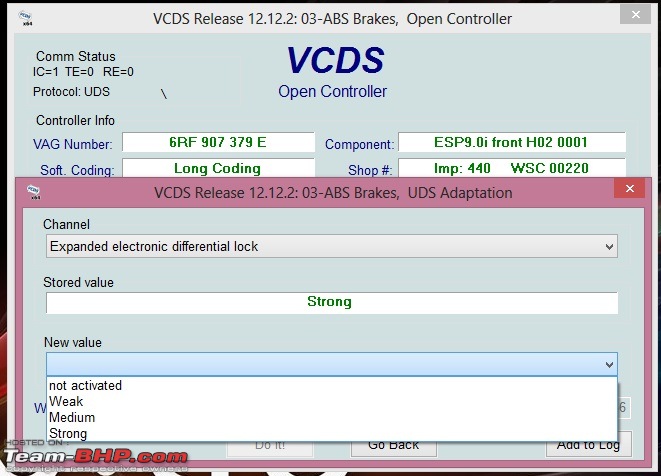

EDL default is medium
Name:  Screenshot 6.jpg
Views: 26932
Size:  90.3 KB

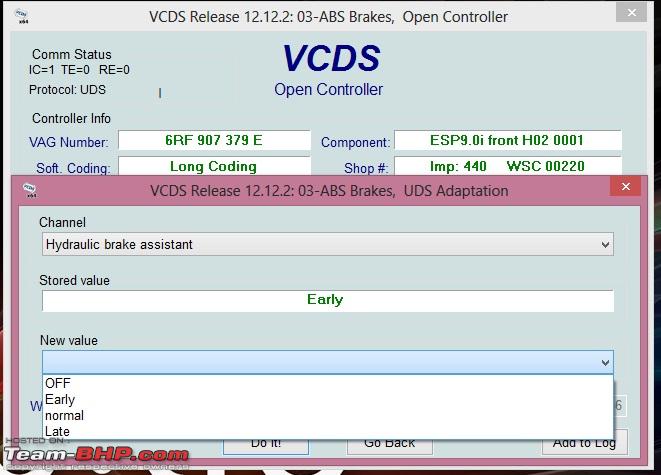

Assist default is normal
Name:  Screenshot 7.jpg
Views: 23775
Size:  88.4 KB

Hill start assistant
Name:  Screenshot 8.jpg
Views: 23490
Size:  84.2 KB

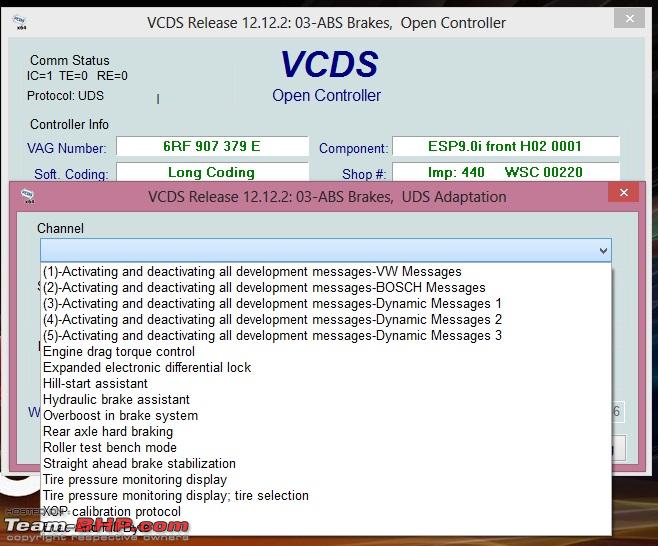

Other options
Name:  Screenshot 9.jpg
Views: 23446
Size:  144.3 KB

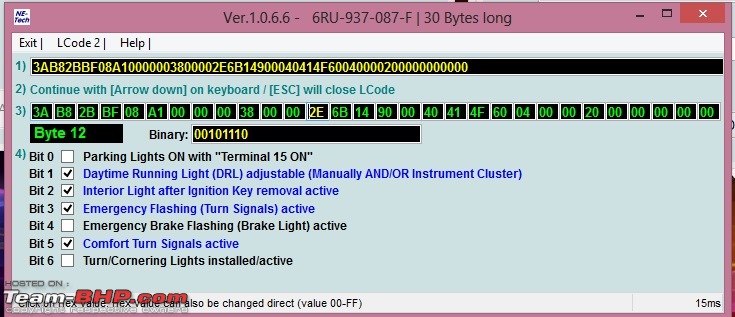

Central Electronics: Mostly self explanatory
Name:  Screenshot 10.jpg
Views: 23247
Size:  83.0 KB

Name:  Screenshot 11.jpg
Views: 23122
Size:  99.4 KB

Name:  Screenshot 12.jpg
Views: 23173
Size:  103.1 KB

Name:  Screenshot 13.jpg
Views: 23589
Size:  86.6 KB

Name:  Screenshot 14.jpg
Views: 23432
Size:  80.7 KB

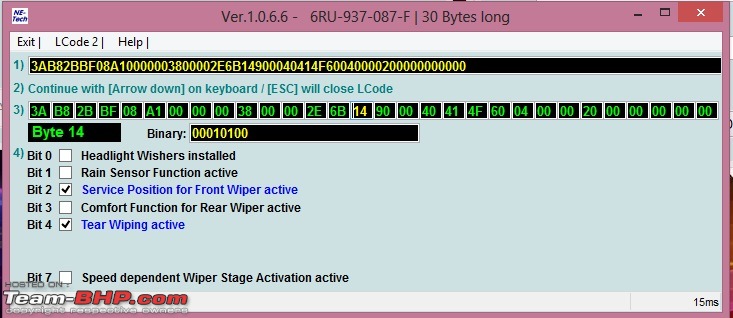

Rear wiper active on engaging reverse if front wipers are on
Name:  Screenshot 15.jpg
Views: 23781
Size:  91.0 KB

Changing number of lane change clicks
Name:  Screenshot 16.jpg
Views: 22940
Size:  83.9 KB

Warnings
Name:  Screenshot 17.jpg
Views: 23126
Size:  66.5 KB

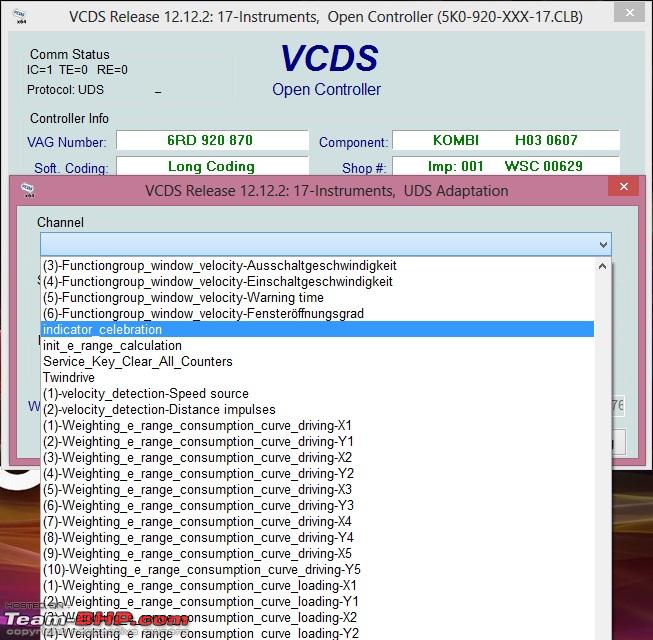

Needle sweep/staging (needs upgraded instrument cluster)

Name:  Screenshot 18.jpg
Views: 23578
Size:  183.8 KB

Video from YOUTUBE, its not my car.

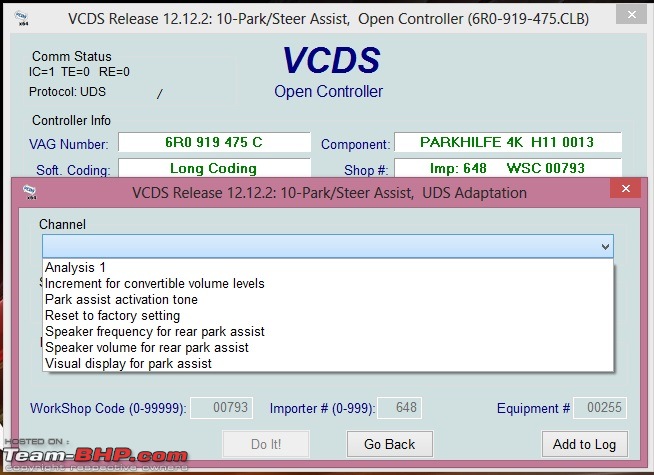

Parking sensor options
Name:  Screenshot 19.jpg
Views: 23155
Size:  98.6 KB

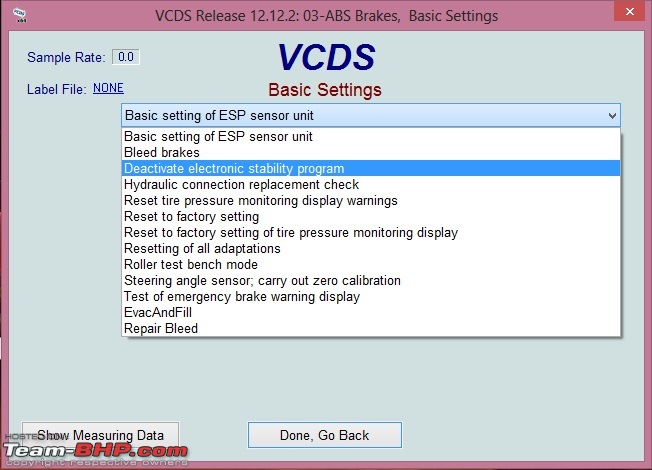

Disabling ESP
Name:  Screenshot 22.jpg
Views: 23091
Size:  85.2 KB

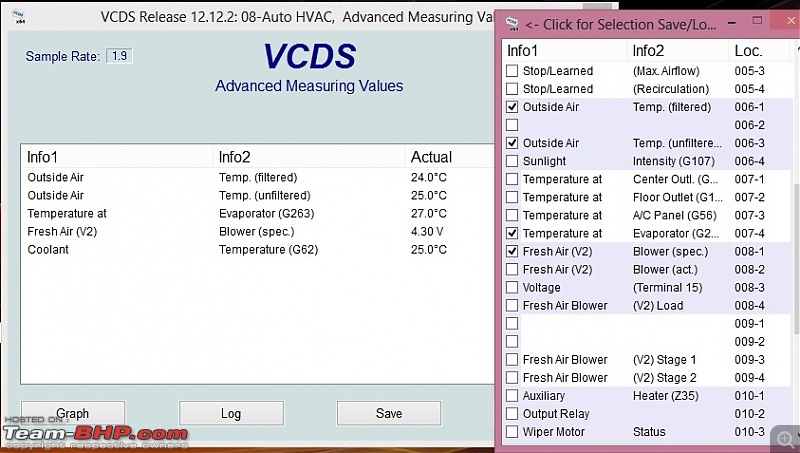

Taking log of various measurements (just a sample)
VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread-screenshot-23.jpg


I will be updating the thread with more stuff for different cars whenever possible. Kindly update with whatever extra stuff you can find about VCDS in this thread.

Last edited by robimahanta : 24th June 2014 at 12:57.
robimahanta is offline   (54) Thanks Reply With Quote
Old 25th June 2014, 12:45   #2
GTO
Team-BHP Support

GTO's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 44,181
Thanked: 65,469 Times
Default re: VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

Thread moved from the Assembly Line (The "Assembly Line" Forum section) to Technical Stuff. Thanks for sharing!
GTO is offline   (1) Thanks Reply With Quote
Old 25th June 2014, 16:12   #3
BHPian

TheLizardKing's Avatar

Join Date: Jul 2013
Location: Mumbai
Posts: 203
Thanked: 465 Times
Default re: VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

Wow this looks really interesting. Thanks for sharing.

For those who are interested in the $$$, it is $250/$350 (depending on the type of cable) + ~$80 shipping by FedEx International Priority. The cable acts as a license dongle for the software, so there is no separate activation cost. Check out http://www.ross-tech.com/
TheLizardKing is offline   Reply With Quote
Old 25th June 2014, 16:31   #4
BHPian

Join Date: Feb 2010
Location: Chennai
Posts: 984
Thanked: 631 Times
Default re: VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

This is good... its really nice to see the owners of the VW group coming forward and sharing their knowledge and ideas. Would there be any offer for bulk purchases of VCDS cable? If yes, we could think of a 'group buy'.
nitinbose is offline   Reply With Quote
Old 25th June 2014, 16:59   #5
BHPian

iliketurtles's Avatar

Join Date: Aug 2011
Location: Mumbai
Posts: 946
Thanked: 768 Times
Default re: VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

Very useful thread Robi, thanks for sharing.

From a personal point of view, the needle sweep staging seems really interesting, would love to get it done at some point in time.
iliketurtles is online now   Reply With Quote
Old 25th June 2014, 18:06   #6
BHPian

latentpotential's Avatar

Join Date: Oct 2012
Location: IIMA
Posts: 485
Thanked: 320 Times
Default re: VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

Wow, this is way beyond what is available on most other cars.

Some queries: Is there any option whereby you can backup the original settings and save it to your laptop (just in case), or reset everything to factory defaults, in case some option or combination of options plays foul with the system?

Further, can this data be fed to an independent display or additional aftermarket display screen?
latentpotential is offline   Reply With Quote
Old 25th June 2014, 19:00   #7
BHPian

robimahanta's Avatar

Join Date: Aug 2009
Location: BLR/GAU
Posts: 609
Thanked: 1,543 Times
Default

Quote:
Originally Posted by latentpotential View Post
Wow, this is way beyond what is available on most other cars.

Some queries: Is there any option whereby you can backup the original settings and save it to your laptop (just in case), or reset everything to factory defaults, in case some option or combination of options plays foul with the system?

Further, can this data be fed to an independent display or additional aftermarket display screen?

Yes you can save an entire back up log of your car. Most of the stuff is on trial and error basis and one should be careful while changing critical values. If the function is not applicable then the controller wont accept the code. From what I have seen till now, its pretty safe.

I am not sure about feeding the data to an independent screen. The cable connects to an USB port and works on any windows based laptop with the software.

I am based in Bangalore and would gladly help anyone who wants to try it out.
robimahanta is offline   (1) Thanks Reply With Quote
Old 25th June 2014, 19:48   #8
BHPian

guha_2001's Avatar

Join Date: Jun 2006
Location: Bengaluru
Posts: 57
Thanked: 62 Times
Default re: VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

Robi

Great thread! Your explanation clarifies a lot about the mystery that is VAG COM.

When I search for VCDS cable on Aliexpress, I see several manufacturers selling it. Any idea on the functionality/quality etc? These seem to be a fraction of the price ($50 including shipping)

I have good experiences with Aliexpress, so wanted to hear your views on the product.

Thanks
guha_2001 is offline   Reply With Quote
Old 25th June 2014, 20:20   #9
BHPian

robimahanta's Avatar

Join Date: Aug 2009
Location: BLR/GAU
Posts: 609
Thanked: 1,543 Times
Default

Quote:
Originally Posted by guha_2001 View Post
Robi



Great thread! Your explanation clarifies a lot about the mystery that is VAG COM.



When I search for VCDS cable on Aliexpress, I see several manufacturers selling it. Any idea on the functionality/quality etc? These seem to be a fraction of the price ($50 including shipping)



I have good experiences with Aliexpress, so wanted to hear your views on the product.



Thanks

Aliexpress is good and even I have got stuff from it. But the fake vcds cables are a hit and miss. Some of them work fine as long as you do not have an active internet connection on the laptop. Sometimes it does not work with the updated software, so new cars may not be supported.

Just make sure you get a Hex-Can-USB cable. Some of the cables are not CANBUS compatible.

Even in Ebay India these clone/fake chinese cables are available but I personally have never tried one.
robimahanta is offline   (1) Thanks Reply With Quote
Old 25th June 2014, 20:23   #10
Team-BHP Support

Gannu_1's Avatar

Join Date: Apr 2013
Location: Madras
Posts: 4,354
Thanked: 8,056 Times
Default re: VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

Thanks a lot for the thread Robi! About time we had one on the forums.

The amount of customisations VCDS offers is massive! Right from enabling the honk-honk during locking/unlocking the car using the keyfob, auto door locks when the speed crosses 15 kmph, auto unlocking while removing the key, enabling cluster staging (not possible on the stock clusters of the Polo, Fabia, Rapid and Vento), XDS settings, brake assist settings, number of lane change indicators, activating emergency brake flashers and so forth.

Ross-Tech also has an interactive VCDS tour/demo - link

You can click on all the buttons and it would open the corresponding menu/screen as if you were actually operating the software. Like an interactive demo.

Quote:
Originally Posted by guha_2001 View Post
When I search for VCDS cable on Aliexpress, I see several manufacturers selling it. Any idea on the functionality/quality etc
It's a hit or miss. I've seen posts on various forums abroad wherein some members have had luck with cheaper replica cables.

With Ross-Tech's original cable, you get a good support from their team for resolving issues. Even for the silliest of issues, their team is supposedly very helpful in resolving them. With a replica cable, you don't get absolutely any support from the team. No doubt, the cable is mighty expensive especially for us home users who plan to do some DIY and tinkering with our car. Ross-Tech should have had a cheaper offering with the cable priced at some 100 USD. For folks who operate independent FNGs (Vagtune, Pete's etc), this is a good price but not definitely us.

Quote:
Originally Posted by iliketurtles View Post
From a personal point of view, the needle sweep staging seems really interesting, would love to get it done at some point in time.
Déjà vu (Back in Black! A VW Jetta Highline DSG comes home) perhaps?

Emergency brake flashing feature when the ABS is activated:


Last edited by Gannu_1 : 25th June 2014 at 20:31.
Gannu_1 is offline   (3) Thanks Reply With Quote
Old 25th June 2014, 20:28   #11
BHPian

iliketurtles's Avatar

Join Date: Aug 2011
Location: Mumbai
Posts: 946
Thanked: 768 Times
Default re: VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

Quote:
Originally Posted by Gannu_1 View Post
Haha, yes, your memory does serve you right! I have been too lazy/unable to get it done thus far. I can't justify spending about $300 just to soothe my ego each morning If I can pinpoint some unfortunate soul in Mumbai with the cable, I'll pester him until I can!

Quote:
Originally Posted by Gannu_1 View Post
Emergency brake flashing feature when the ABS is activated:
Quite a cool feature, practical too to some extent. Must remind myself to get that done too, whenever.
iliketurtles is online now   Reply With Quote
Old 26th June 2014, 11:27   #12
BHPian

newtonMeter's Avatar

Join Date: Mar 2012
Location: Gurgaon
Posts: 482
Thanked: 313 Times
Default re: VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

Yes, VCDS is quite powerful. I am using it on my Vento for last 4 months and pretty satisfied. BTW - I ordered a Chinese Ross-tech hex can cable (12.12.0) for $20 and it works fine.

Some key features activated

1. Emergency Braking Flashing lights
2. Locking - audible feedback (Horn)
3. Changed Time to 24 Hours, Earlier was 12H
4. Changed RCD 510 8 speaker mode to 4 speaker mode (not treble speakers in my Vento)
5. Changed Reverse Buzzer tone to subtle Audi type sound.
6. Changed RCD 510 Reverse OPS Car diagram to Jetta (to show the boot) - earlier was 6R polo - hatchback picture
7. Installed 9w2 Bluetooth module.
8. Changed Comfort turn signal (lane change) blinking to 5 (from 3)
9. Enabled tear drop wiping (one additional wipe after a delay once you use the windscreen washer)
10. Enabled Push to talk button on the Steering wheel (Current assignment was Mute)

Things tried but not working - trying to find solution
1. Enabled Coming home/Leaving home and linked with Fog lamps/Head lamps light - but some how not working
2. Enabled DRL for parking lights - not working


For my friend 2011 Polo Highline
1. Enabled Auto lock @ 15kmph

Last edited by newtonMeter : 26th June 2014 at 11:28. Reason: added content
newtonMeter is offline   (1) Thanks Reply With Quote
Old 26th June 2014, 13:24   #13
BHPian

Baddychat's Avatar

Join Date: Mar 2013
Location: Noida
Posts: 283
Thanked: 116 Times
Default re: VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

This is an extremely useful thing that you have shared. Would be useful for all VW/Skoda owners in India who want to tweak their machines around a little.
Baddychat is offline   Reply With Quote
Old 26th June 2014, 18:51   #14
BHPian

Join Date: Dec 2006
Location: Mumbai
Posts: 69
Thanked: 33 Times
Default re: VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

Quote:
Originally Posted by newtonMeter View Post
Things tried but not working - trying to find solution
1. Enabled Coming home/Leaving home and linked with Fog lamps/Head lamps light - but some how not working
2. Enabled DRL for parking lights - not working
These will not work as indian polo does not use BCM to trigger the headlights and parking lights. Instead they are directly powered via the headlight switch unlike laura and jettas which has only a trigger in the switch which sends signals to the BCM and the BCM then powers the appropriate light.
Also the leaving home and coming home feature requires a Light sensor to work as it is designed to light up your pathway when its dark Outside.

Last edited by anarchy_99 : 26th June 2014 at 18:54.
anarchy_99 is offline   (1) Thanks Reply With Quote
Old 26th June 2014, 21:01   #15
BHPian

newtonMeter's Avatar

Join Date: Mar 2012
Location: Gurgaon
Posts: 482
Thanked: 313 Times
Default re: VCDS (Vag-Com Diagnostic System) for VW & Skoda - Discussion Thread

Quote:
Originally Posted by anarchy_99 View Post
These will not work as indian polo does not use BCM to trigger the headlights and parking lights. Instead they are directly powered via the headlight switch unlike laura and jettas which has only a trigger in the switch which sends signals to the BCM and the BCM then powers the appropriate light.
Also the leaving home and coming home feature requires a Light sensor to work as it is designed to light up your pathway when its dark Outside.
Thanks for that. Yes, i know LH/CH needed light sensor - but if we did have the BCM control as you mentioned, the CH function can still be activated by just firing the High beam once before exiting the car (opening the door).

But you may be right that the BCM is not controlling the Headlights hence no control.

Last edited by newtonMeter : 26th June 2014 at 21:01. Reason: grammatical
newtonMeter is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
Vag-com (VCDS) and Passat B7 exhaustpipe Technical Stuff 9 25th June 2016 16:04
Technical and diagnostic Guide: Hyundai's HVAC systems sidindica Technical Stuff 54 20th May 2016 13:04
Bangalore Meet: VCDS tweaks for VW & Skoda cars psuraj The Team-BHP Meet Section 52 26th January 2015 16:41
Affordable ODB Display & Diagnostic Tools (eg. GReddy Informeter, ELM 327, etc) dot Modifications & Accessories 33 12th March 2013 22:44
Android based Engine Perfomance/Diagnostic Tool SudhanshuSD Technical Stuff 3 2nd December 2010 16:10


All times are GMT +5.5. The time now is 22:57.

Copyright ©2000 - 2016, Team-BHP.com
Proudly powered by E2E Networks
