Old 29th July 2016, 20:53   #1
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 3,387
Thanked: 1,842 Times
Default Multi-link Bonnet Hinges

Can someone list out which Indian vehicles (current, or recently discontinued) have/ had multilink bonnet hinges. And pictures of those, if possible.

Sutripta
Sutripta is offline   (1) Thanks Reply With Quote
Old 31st July 2016, 15:40   #2
Distinguished - BHPian

deetjohn's Avatar

Join Date: Sep 2006
Location: Kochi
Posts: 3,750
Thanked: 6,128 Times
Default re: Multi-link Bonnet Hinges

Quote:
Originally Posted by Sutripta View Post
And pictures of those, if possible.
There you go!

Multi-link Bonnet Hinges-img_20160731_152221999.jpg

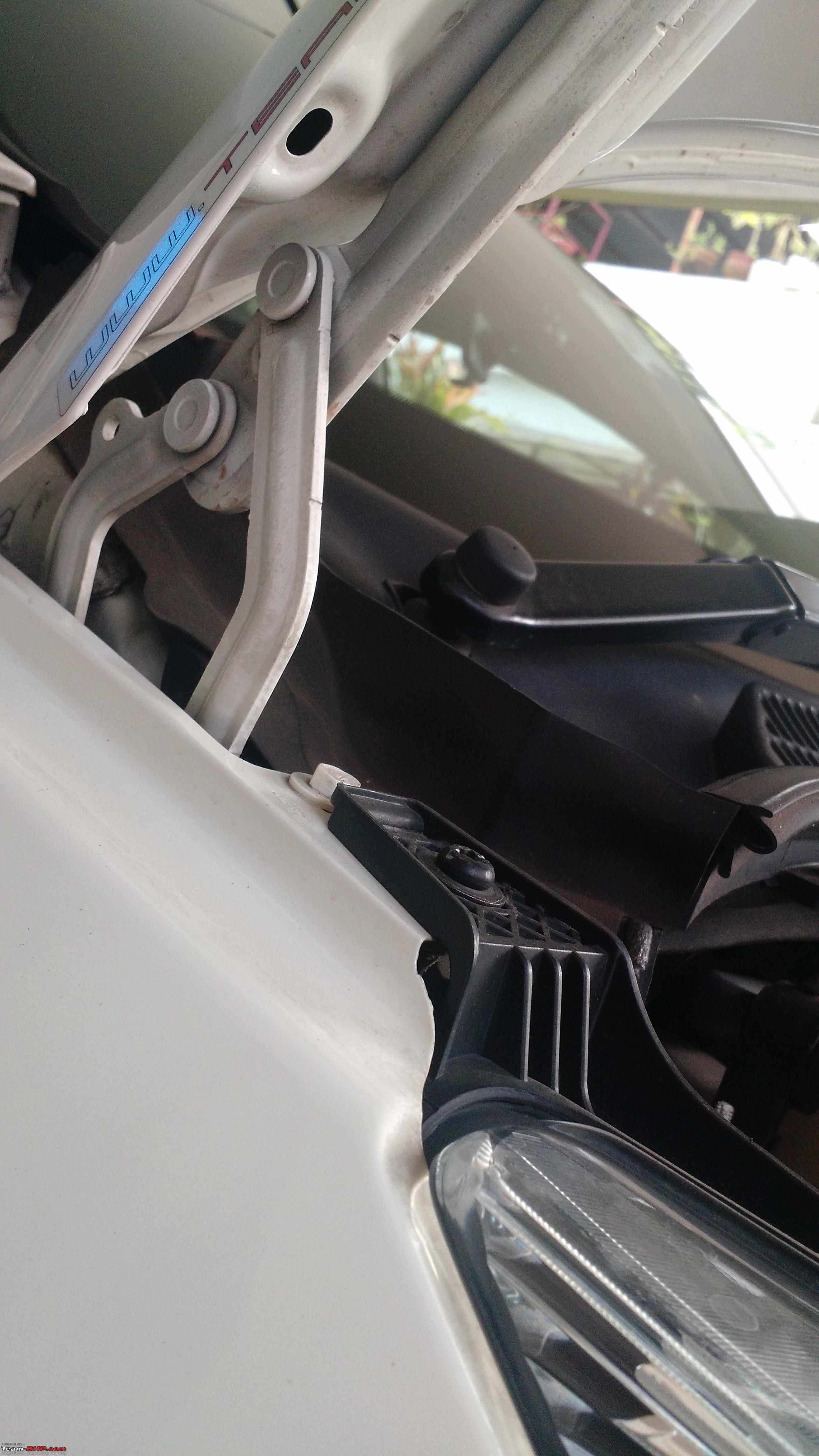

Multi-link Bonnet Hinges-img_20160731_152235330.jpg

Multi-link Bonnet Hinges-img_20160731_152250666.jpg

Multi-link Bonnet Hinges-img_20160731_152320565.jpg
deetjohn is offline   (8) Thanks Reply With Quote
Old 31st July 2016, 17:43   #3
Team-BHP Support

Gannu_1's Avatar

Join Date: Apr 2013
Location: Madras
Posts: 4,534
Thanked: 8,699 Times
Default re: Multi-link Bonnet Hinges

The new Superb has it.

Multi-link Bonnet Hinges-2016skodasuperb07.jpg

Name:  C__Data_Users_DefApps_AppData_INTERNETEXPLORER_Temp_Saved Images_07b_20clamshellhood.gif
Views: 1407
Size:  697.5 KB

Last edited by Gannu_1 : 31st July 2016 at 19:13.
Gannu_1 is offline   (8) Thanks Reply With Quote
Old 31st July 2016, 19:24   #4
Senior - BHPian

wanderernomad's Avatar

Join Date: Jul 2007
Location: Chandigarh
Posts: 2,328
Thanked: 579 Times
Default re: Multi-link Bonnet Hinges

Whats special or advantageous about them?
wanderernomad is offline   Reply With Quote
Old 31st July 2016, 21:05   #5
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 3,387
Thanked: 1,842 Times
Default re: Multi-link Bonnet Hinges

Thanks guys. Will wait for others to chip in.

Wonder if with the coming of gas struts, the design with springs working between links is dead.

Regards
Sutripta
Sutripta is offline   Reply With Quote
Old 1st August 2016, 08:14   #6
Distinguished - BHPian

deetjohn's Avatar

Join Date: Sep 2006
Location: Kochi
Posts: 3,750
Thanked: 6,128 Times
Default re: Multi-link Bonnet Hinges

Quote:
Originally Posted by wanderernomad View Post
Whats special or advantageous about them?
What I have observed is that, with some designs, it's a necessity. The shape of the fender, windshield, bonnet (Both Fiesta and Superb got clamshell bonnet) and the overall clearances available decides that.

With multilink, the bonnet pushes a little forward and opens. This helps to clear the very sloping windshield and the lid is almost perpendicular to the ground when it's fully open. Gives more accessibility to the engine bay.

Also, one don't need to bear the entire weight of the bonnet while opening as it's always supported by two legs on either side.
deetjohn is offline   (3) Thanks Reply With Quote
Old 1st August 2016, 13:02   #7
GTO
Team-BHP Support

GTO's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 45,628
Thanked: 75,400 Times
Default Re: Multi-link Bonnet Hinges

I guess the first car in India to have these was the Mercedes W124.





Allowed the hood to open up 90 degrees like this:
Name:  ebay sales 067.jpg
Views: 1087
Size:  110.2 KB
Image Source
GTO is offline   (2) Thanks Reply With Quote
Old 1st August 2016, 20:39   #8
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 3,387
Thanked: 1,842 Times
Default Re: Multi-link Bonnet Hinges

^^^
Talk of being overengineered!
Quote:
Originally Posted by GTO View Post
I guess the first car in India to have these was the Mercedes W124.
Actually the first in India I think would be the American cars, late 40s-early 50s.
Currently in the homegrown crop, off the top of my head, would be Aria, Storme, XUV (I think).

Regards
Sutripta
Sutripta is offline   Reply With Quote
Old 12th August 2016, 16:02   #9
GTO
Team-BHP Support

GTO's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 45,628
Thanked: 75,400 Times
Default Re: Multi-link Bonnet Hinges

Quote:
Originally Posted by Sutripta View Post
Actually the first in India I think would be the American cars
Looks like Americans love this system! Here's the 2016 Ford Mustang with multi-link hinges for the boot:
Multi-link Bonnet Hinges-13.jpg
GTO is offline   (4) Thanks Reply With Quote
Old 12th August 2016, 20:55   #10
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 3,387
Thanked: 1,842 Times
Default Re: Multi-link Bonnet Hinges

Long back I remember seeing a VW with a very lightweight multilink boot hinge. I think it was the Passat, not too sure.

I was actually trying to list all the multilink hinges which one could buy as spares here in India now. Spring type, not gas strut type. Not too difficult designing and making a one off. Will work, but look crude. Sourcing the spring would be another matter altogether.

Regards
Sutripta
Sutripta is offline   Reply With Quote
Old 15th August 2016, 23:15   #11
Senior - BHPian

sourabhzen's Avatar

Join Date: Jun 2012
Location: GURGAON
Posts: 1,490
Thanked: 1,237 Times
Default Re: Multi-link Bonnet Hinges

Quote:
Originally Posted by Sutripta View Post
Long back I remember seeing a VW with a very lightweight multilink boot hinge. I think it was the Passat, not too sure.

I was actually trying to list all the multilink hinges which one could buy as spares here in India now. Spring type, not gas strut type. Not too difficult designing and making a one off. Will work, but look crude. Sourcing the spring would be another matter altogether.

Regards
Sutripta
I think Storme has it.
Attached Thumbnails
Multi-link Bonnet Hinges-tatasafaristormevaricor40010.jpg

sourabhzen is offline   (2) Thanks Reply With Quote
Old 18th August 2016, 17:24   #12
BHPian

sai_ace's Avatar

Join Date: Apr 2008
Location: CBE-BLR
Posts: 274
Thanked: 156 Times
Default Re: Multi-link Bonnet Hinges

The Fiat Linea has this set up for its boot lid.

Credit for the pic is http://www.team-bhp.com/forum/test-d...-1-3l-mjd.html

and then Patchyboy has shown that it isn't too difficult to replicate the same yup front as well for the bonnet.

http://www.team-bhp.com/forum/diy-do...ft-bonnet.html (Linea T-Jet DIY: Installing gas struts to lift the bonnet)
Attached Thumbnails
Multi-link Bonnet Hinges-boot-3-hydralic.jpg

sai_ace is offline   (2) Thanks Reply With Quote
