Old 8th July 2017, 20:13   #301
Senior - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 1,907
Thanked: 10,416 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Styler View Post
Can you please check if we can source the Power Steering Rack Overhaul Seal Kit For the Grand Vitara 2007, 2.0 ltr model from the MGP Stores ? If it is possible kindly let me know the part numbers to order.
I checked my database and a few other sources, and couldn't find any such kit. However, to be double sure, I have pinged the MGP store owner in my city if he knows about any such kit. Will let you know as soon as I hear from him.

Quote:
Originally Posted by samaspire View Post
Am i right in assuming that the cigarette lighter socket is the same for all Marutis? I need one, to install it in my Ford. Cap not necessary.
They appear the same in all cars, but I could find many different part numbers. You may try this one:

Part Number: 990J0M68KM0-010
Name: CIGARETTE LIGHTER A-STAR
Price: Rs. 350

Quote:
Are the wire connectors (that slot into the bottom) also available as MGP?
I don't think they are available separately. They come as a part of Wiring harness Number 2, typically which is under dash.

Regards,
Shashi
Leoshashi is online now   (7) Thanks Reply With Quote
Old 11th July 2017, 09:11   #302
BHPian

Styler's Avatar

Join Date: Mar 2008
Location: New Delhi
Posts: 376
Thanked: 191 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
I checked my database and a few other sources, and couldn't find any such kit. However, to be double sure, I have pinged the MGP store owner in my city if he knows about any such kit. Will let you know as soon as I hear from him.
Shashi Ji
I just ordered this in US and will be getting this through somebody traveling to India on 14th July.
http://www.bestpartsonline.com/power...0Vitara%202007

The manufacturer (Kotek) site says it is a Power Steering Rack and Pinion Kit for Suzuki Grand Vitara 2006-2012. I hope this is the right kit for our Grand Vitaras.
http://www.powersteeringkits.net/

Styler
Styler is offline   (1) Thanks Reply With Quote
Old 12th July 2017, 11:13   #303
Newbie

Join Date: Jun 2016
Location: Mumbai
Posts: 22
Thanked: 17 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hello Shashi

Need the weather beading on my Grand Vitara window. The Horizontal beading which scrapes against the sliding glass. In absence of these the rain water drops goes down into the door unobstructed.
Thanks.
spgv is offline   Reply With Quote
Old 13th July 2017, 12:14   #304
BHPian

Prodigy07's Avatar

Join Date: May 2013
Location: Chennai
Posts: 411
Thanked: 244 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post

Regards,
Shashi
Hi Shashi,

Can you please provide the part number for the below ?

Car - Baleno
Part required - ORVM Outer over
Prodigy07 is offline   Reply With Quote
Old 13th July 2017, 17:48   #305
BHPian

Manoj2268's Avatar

Join Date: Jul 2008
Location: Delhi
Posts: 182
Thanked: 90 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Part Numbers required:

Gear Knob - WagonR Vxi 2006-2010

Fender liner - Wagonr R Lxi 2004

Rear Bumper clips/stay - WR vxi 2004

Radiator support rubbers, clamp, hoses - WagonR VXi

Steering wheel WagonR 2006 2010(without airbag) and horn pad

High mount stop Lamp Wagonr 2004 Vxi(with the cover, retaining clips and bulb wattage, if available)

ABC pedal rubbers
Manoj2268 is offline   Reply With Quote
Old 13th July 2017, 22:08   #306
Senior - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 1,907
Thanked: 10,416 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by spgv View Post
Hello Shashi

Need the weather beading on my Grand Vitara window. The Horizontal beading which scrapes against the sliding glass. In absence of these the rain water drops goes down into the door unobstructed.
Thanks.
Which side and which door?? Also a pic will help a lot.

Quote:
Originally Posted by Prodigy07 View Post
Hi Shashi,

Can you please provide the part number for the below ?

Car - Baleno
Part required - ORVM Outer over
Which Baleno?? Sedan or hatch?? Also mention the variant. Please stick to the given format. Thanks.

Quote:
Originally Posted by Manoj2268 View Post
Part Numbers required:

Gear Knob - WagonR Vxi 2006-2010
28113M72F50

Quote:
Fender liner - Wagonr R Lxi 2004
72321M67K00=RIGHT

72322M67K00=LEFT

Quote:
Rear Bumper clips/stay - WR vxi 2004
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-1.jpg
Quote:

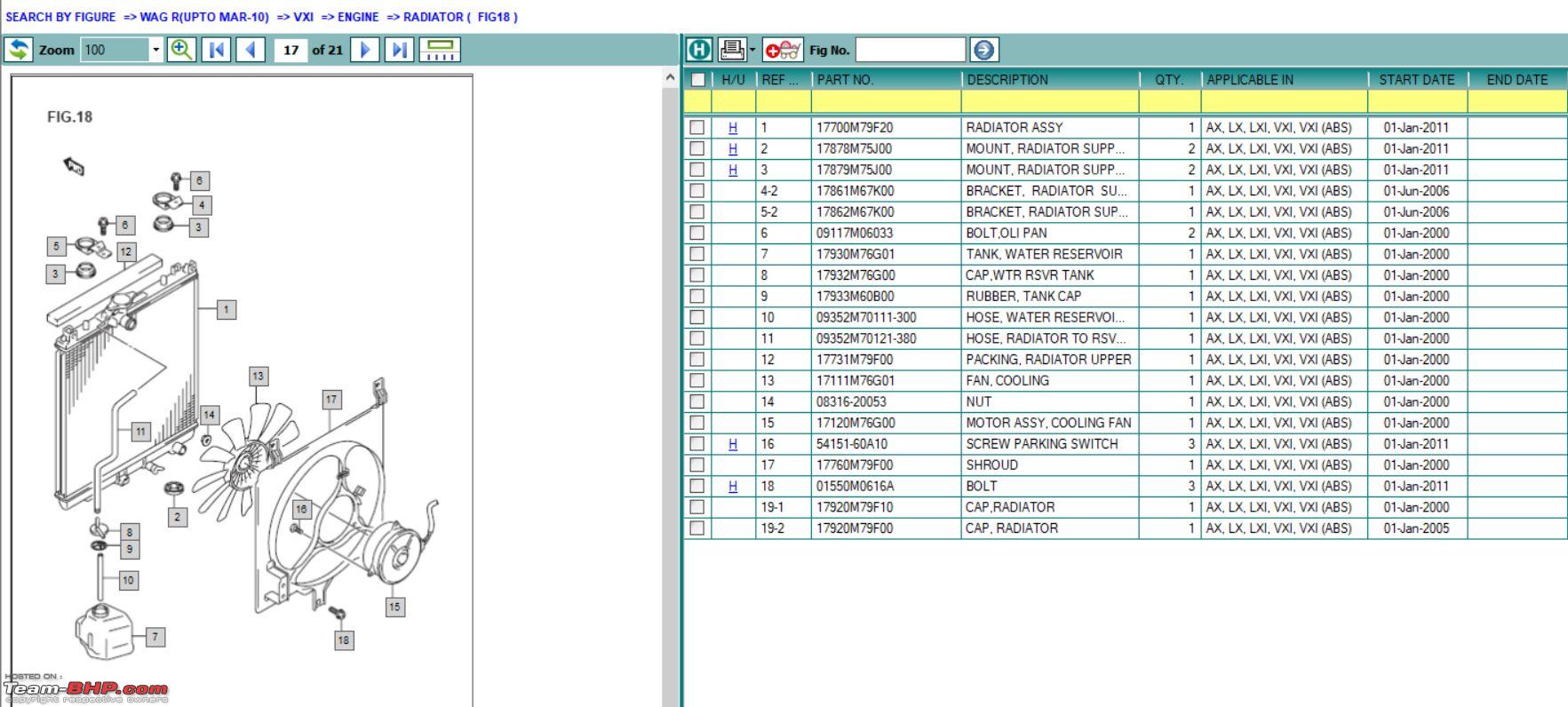

Radiator support rubbers, clamp, hoses - WagonR VXi
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-2.jpg
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-3.jpg

Quote:
Steering wheel WagonR 2006 2010(without airbag) and horn pad
Steering Wheel: 48110M59K00-P4Z
Pad: 48121M59K00-P4Z

Quote:
High mount stop Lamp Wagonr 2004 Vxi(with the cover, retaining clips and bulb wattage, if available)
Part has probably been discontinued as its throwing an error. Request you to contact your MGP dealer.

Quote:
ABC pedal rubbers
A Pedal Rubber: 49451M60B00
B & C: 49751M79001(Dotted type), 49751M58J00(Criss Cross Type which current gen cars get)

Regards,
Shashi

Last edited by Leoshashi : 13th July 2017 at 22:22.
Leoshashi is online now   (7) Thanks Reply With Quote
Old 13th July 2017, 23:34   #307
Senior - BHPian

Captain Slow's Avatar

Join Date: Mar 2010
Location: Bangalore
Posts: 1,256
Thanked: 647 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Can you help me with the Antenna for the Radio ? Maruti Esteem.
Captain Slow is offline   Reply With Quote
Old 14th July 2017, 00:08   #308
Senior - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 1,907
Thanked: 10,416 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Captain Slow View Post
Can you help me with the Antenna for the Radio ? Maruti Esteem.
Part Number: 39250M60B20
Root part number: 39250M60B11
Name: ANTEENA ASSY
Listed under: Accessories
Price: Rs. 541.63

Root part number will help you in finding the compatible equivalent incase the part is closed.

Regards,
Shashi
Leoshashi is online now   (7) Thanks Reply With Quote
Old 14th July 2017, 18:41   #309
BHPian

Manoj2268's Avatar

Join Date: Jul 2008
Location: Delhi
Posts: 182
Thanked: 90 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Thank you for the information Shashi.

I require few more part numbers, along with the pictures(as shared in your previous post)

Front bumper grille(Type 1 WagonR - 2002)

PCV Valve: Wagon R Vxi 2004

Engine oil cap and o ring.: Wagon R Lxi 2004

Petrol tank cap and o ring: Wagon R Lxi 2004

Fog lights wiring harness: Wagon R Vxi 2004

Boot carpet: Wagonr Lxi 2004

Throttle body gasket: wagonR 2004

Did Wagon R ever come with Bonnet Insulation a-la Swift VDi? If yes, I would like to know the part number.

Disc brake parts(Pad, caliper pins, pad spring clips etc): Wagon R 2004.

Many thanks!
Manoj2268 is offline   Reply With Quote
Old 16th July 2017, 15:59   #310
Senior - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 1,907
Thanked: 10,416 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Manoj2268 View Post

Front bumper grille(Type 1 WagonR - 2002)
71741M79F00-5PK

Quote:
PCV Valve: Wagon R Vxi 2004
18118-73G10
OR
18118M58B11

Quote:
Engine oil cap and o ring.: Wagon R Lxi 2004
Oil Cap :16920M68K00

O Ring: 11179M68K00

Quote:
Petrol tank cap and o ring: Wagon R Lxi 2004
89260-50J00(Ask MGP store to check for alternatives using root part number, as this is expensive).

Quote:
Fog lights wiring harness: Wagon R Vxi 2004
Part of the entire engine bay harness. Not available separately.

Quote:
Boot carpet: Wagonr Lxi 2004
75130M76F00

Quote:
Throttle body gasket: wagonR 2004
13421M77G10

Quote:
Did Wagon R ever come with Bonnet Insulation a-la Swift VDi? If yes, I would like to know the part number.
No

Quote:
Disc brake parts(Pad, caliper pins, pad spring clips etc): Wagon R 2004.
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-wr.jpg

Regards,
Shashi
Leoshashi is online now   (8) Thanks Reply With Quote
Old 19th July 2017, 22:17   #311
Senior - BHPian

sagarpadaki's Avatar

Join Date: May 2010
Location: Bengaluru
Posts: 2,625
Thanked: 1,251 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hello Shashi, can you please provide part numbers for Zen 2002 model?

1.Stabiliser bar bush kit
2. Day/Night IRVM
3. All rubber replaceable parts for Front suspension .

Thanks
sagarpadaki is offline   Reply With Quote
Old 19th July 2017, 22:49   #312
Senior - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 1,907
Thanked: 10,416 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by sagarpadaki View Post
Hello Shashi, can you please provide part numbers for Zen 2002 model?

1.Stabiliser bar bush kit
2. Day/Night IRVM
3. All rubber replaceable parts for Front suspension .

Thanks
1.
Part No: 99000M24120-403
Name: STABILIZER BAR SET ZEN
Price: Rs. 103.08

2.
Part No: 84703M70B41
Name: MIRROR ASSY INSIDE REAR VIEW(DAY &N
Price: Rs. 563


3.
Part No: 99000M24120-257
Name: BUSH SET FR STRUT(ZEN)
Price: Rs. 866.64

Regards,
Shashi
Leoshashi is online now   (8) Thanks Reply With Quote
Old 21st July 2017, 10:05   #313
Senior - BHPian

sagarpadaki's Avatar

Join Date: May 2010
Location: Bengaluru
Posts: 2,625
Thanked: 1,251 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hello Shashi, need info for few more parts for 2002 Zen

1. Radiator assembly
2. Radiator input and output rubber hoses
3. Heater Core
4. Fuel Injector MPFI(4 nos)

Thanks
sagarpadaki is offline   Reply With Quote
Old 21st July 2017, 10:41   #314
BHPian

samaspire's Avatar

Join Date: Sep 2015
Location: Manipal / Udupi
Posts: 940
Thanked: 2,224 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi Shashi,
Did the 2008 Alto come with a Rubber boot for the Accelerator pedal?
Is yes,

Model Name: Alto 2008
Variant: Lx
Part required: Accelerator Rubber Boot

Or anything else that is compatible.
samaspire is offline   Reply With Quote
Old 21st July 2017, 12:13   #315
Senior - BHPian

sagarpadaki's Avatar

Join Date: May 2010
Location: Bengaluru
Posts: 2,625
Thanked: 1,251 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
Part Number: 39250M60B20
Root part number: 39250M60B11
Name: ANTEENA ASSY
Listed under: Accessories
Price: Rs. 541.63

Root part number will help you in finding the compatible equivalent incase the part is closed.

Regards,
Shashi

Is there is a root part number for the antenna of Zen as well? Coz the antenna is not available even for order.
sagarpadaki is offline   Reply With Quote
