Old 17th August 2009, 14:51   #181
Senior - BHPian

spadival's Avatar

Join Date: Oct 2004
Location: Dayton, OH
Posts: 1,770
Thanked: 15 Times
Default

Quote:
Originally Posted by NetfreakBombay View Post
Do you know if this might work with Alto as well?
You will have to find out yourself. Just check the OBD port. Most likely it will be just under the steering wheel, in the part of the dashboard just above the brake/clutch pedals.

1. If it is a 12 pin port, it is definately pre OBD II.
2. If it is a 16 pin port, but has ONLY 3 wires coming out from behind it, its pre OBD II.
3. If it is 16 pin and more than 3 wires, its OBD II with a Suzuki specific customized protocol.

If it is pre OBD II, the protocol in the link I put earlier should work. The 7812 baud rate worked on my Baleno. The transmission rate may or may not work on other pre OBD II Suzuki cars, but if it doesn't, you'll have to try with rates multiples of 7812 .. i.e 15126 etc. There are DIY guides on how to fabricate the circuit for serial comms between a PC and ECU. Just Google ALDL circuit.

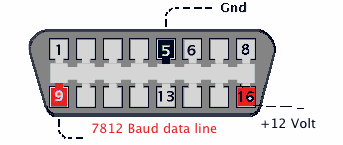

Name:  obd2pinout.gif
Views: 6948
Size:  5.4 KB


Quote:
Originally Posted by DRC View Post

@Spadival.. When Maruti is over milking the success of old 1.3 esteem engine, I don't know what more to expect.
Ahh.. I totally forgot. You have a point there.
spadival is offline   Reply With Quote
Old 19th August 2009, 17:19   #182
Senior - BHPian

pramodkumar's Avatar

Join Date: Mar 2006
Location: Gods own country
Posts: 1,930
Thanked: 744 Times
Default

Nice thread guys,

can any one tell me, what is OBD standard for a 2000 Lancer, I am planing a carputer and came accross

OBD-II Scantools | iRide Technologies

Can someone tell which one is best suited for my requirement.


Thanks,

Pramod
pramodkumar is offline   Reply With Quote
Old 26th October 2009, 15:43   #183
BHPian

anandbhat's Avatar

Join Date: Aug 2008
Location: Bangalore
Posts: 135
Thanked: 14 Times
Default OBDII for Laura and what can be done!

Those who are interested about what a OBD-II can be used for, here is a link that I tried on Laura!
http://www.team-bhp.com/forum/techni...ml#post1548570

Very useful in diagnosing the problem I should say.
anandbhat is offline   Reply With Quote
Old 31st October 2009, 21:00   #184
BHPian

babhishek's Avatar

Join Date: Sep 2006
Location: KOLKATA
Posts: 306
Thanked: 11 Times
Default

From experience, not all manufacturers enable OBD - also different manufacturers make it quite tough to diagnose issues due to incomplete or proprietary diagnostics firmware

i have tried alto, zen, esteem, swift and none of them could give me a readout / basic response
babhishek is offline   Reply With Quote
Old 14th December 2009, 11:13   #185
BHPian

Join Date: Dec 2008
Location: Pune
Posts: 522
Thanked: 161 Times
Default

Hello experts,

Do you know, which OBD protocol is being used in Indica Vista Quadrajet?
I heard that Fiat Engines do not support standard protocol.
sushantr5 is offline   Reply With Quote
Old 14th December 2009, 11:35   #186
BHPian

Join Date: Jun 2005
Location: Bangalore
Posts: 70
Thanked: 21 Times
Default

Quote:
Originally Posted by sushantr5 View Post
Hello experts,

Do you know, which OBD protocol is being used in Indica Vista Quadrajet?
I heard that Fiat Engines do not support standard protocol.
When i went for my AC update, i figured out they use CAN protocol. But i have not been able to get through it. In case you do, please let me know.
svdath is offline   Reply With Quote
Old 31st December 2009, 11:04   #187
BHPian

COUGAR's Avatar

Join Date: Dec 2005
Location: Delhi
Posts: 538
Thanked: 82 Times
Default

Quote:
Originally Posted by spadival View Post
1. If it is a 12 pin port, it is definately pre OBD II.
2. If it is a 16 pin port, but has ONLY 3 wires coming out from behind it, its pre OBD II.
3. If it is 16 pin and more than 3 wires, its OBD II with a Suzuki specific customized protocol.
I have been struggling for ages to get the OBD-2 thing working. My 2007 MPFI Gypsy has a 16-pin port located just under and behind the glovebox compartment. It has 4 wires coming out, so going by your prev post it is OBD-II.

Some queries:
1. Is it true that the Gypsy ECU is derived from the one used on the Grand Vitara 2003 model?
2. What protocol does the GV 2003 use?
3. Is there a way to disable the "handshake" using CentraFuse and set speeds?
COUGAR is offline   Reply With Quote
Old 7th January 2010, 16:56   #188
BHPian

Join Date: Oct 2009
Location: Chandigarh
Posts: 198
Thanked: 32 Times
Default

Quote:
Originally Posted by SamtheLeo View Post
Guys,

Please advise if Mahindra (Scorpio 2006 SLX) would be OBD II compliant & if yes where to look for the port.
Its on the driver side, between door and steering, below dash. Compliance wise, I have seen Mahindra guys using Laptop for diagnostics having similar screens as the screenshots here. Will get some phone pics next time
gharika is offline   Reply With Quote
Old 8th January 2010, 11:34   #189
BHPian

Join Date: Apr 2009
Location: Gurgaon
Posts: 446
Thanked: 2 Times
Default

@ Gharika : Thanks a lot Dear, Now before I connect it to my laptop (being a Novice) What all do i need. I suppose a

1 A Cable
2 A software

Where can i get these
SamtheLeo is offline   Reply With Quote
Old 20th January 2010, 23:34   #190
BHPian

Join Date: Nov 2008
Location: Navi Mumbai
Posts: 381
Thanked: 28 Times
Default

Guys any idea where can I get a ScanGauge II in India? I wrote to LinearLogic and got a reply that they cann't ship that to India and given a reseller's reference in Greece. Recently I tested SG II in my Rtiz Vdi and it got connected and worked and I'm planing to get one for my car.
gaddiwale is offline   Reply With Quote
Old 20th January 2010, 23:57   #191
Senior - BHPian

pranavt's Avatar

Join Date: May 2008
Location: Mumbai
Posts: 1,628
Thanked: 270 Times
Default

Contact these guys and ask them if they can import it for you:
iRide Technologies - Home

Else, order one yourself using a CC and their official website, or contact them first to find out of they have an Indian/Asian distributor: scangauge@linear-logic.com
pranavt is offline   Reply With Quote
Old 21st January 2010, 09:15   #192
BHPian

the_maassk's Avatar

Join Date: Sep 2008
Location: Vadodara/ NG7 2QP
Posts: 205
Thanked: 4 Times
Default

You can get it shipped to India directly from Linear Logic. I got mine that way! Ordered from the website and got it shipped to me via DHL International Express. Reached me in a few days. Also, I was not charged anything extra for the shipment to India! They shipped it for free. Customs did not charge me anything either.

Contact Kimberly Smith at ScanGauge@linear-logic.com. I still have their emails on this.
the_maassk is offline   Reply With Quote
Old 21st January 2010, 11:55   #193
knp
BHPian

Join Date: May 2006
Location: bangalore
Posts: 218
Thanked: 18 Times
Default

^ Even, I had sent a mail to Linear-logic and they had replied that they will not be shipping to India. Then, I got it through KMD from another forum for 9600/- shipped to my place and I am pretty much using it in my i10.
knp is offline   Reply With Quote
Old 29th January 2010, 12:15   #194
BHPian

Join Date: Oct 2009
Location: Chandigarh
Posts: 198
Thanked: 32 Times
Default Scorpio OBD and ELM 327

Quote:
Originally Posted by SamtheLeo View Post
@ Gharika : Thanks a lot Dear, Now before I connect it to my laptop (being a Novice) What all do i need. I suppose a

1 A Cable
2 A software

Where can i get these
I got the hardware (cable plus adapter) from here
DealExtreme: $29.99 ELM327 USB Vehicle OBD-2 Scanner Tool

The software is also included. Only one issue though, I have not been able to read the engine information using the given software. Seems like the hardware works but the protocol used is altered some how. I am currently searching for softwares and documentation that can solve this mystery.
gharika is offline   Reply With Quote
Old 28th February 2010, 16:29   #195
Newbie

Join Date: Mar 2007
Location: Coimbatore
Posts: 1
Thanked: 0 Times
Default fiat Linea Diagnostic connector

Hi everybody, I have found out the Diagnostic connector for the Linea 1.3 Multijet. It is in the driver side fuse box located in the last row. It has 16 pins but the shape is not that of OBD-II. Any idea what it could be? A similar looking port photo has been attached.

Thanks
Attached Images

Pravin Kumar KR is offline   Reply With Quote
