Old 18th February 2014, 13:55   #31
Distinguished - BHPian

Join Date: Nov 2007
Location: Belur/Bangalore
Posts: 3,699
Thanked: 8,477 Times
Default re: EGR system - What's it purpose & when does the EGR valve open/close?

Quote:
Originally Posted by DerAlte View Post
Also, EGR doesn't affect FE - it is exclusively for NOx reduction. If EGR is not working, you might get better FE (don't try it though).
^ and that is precisely true that recently one of my relatives complaining of poor FE in his Indigo CS took it to an FNG and that fella simply introduced a metal sheet in the EGR valve and blocked it for good.

The results: Definite improvement in FE Numbers
The verdict: Temporary workarounds and momentary pleasure of having an impression that the problem is solved.

Like you mention, its the sensor position of the EGR which acts as a signal to the ECU, just like the Throttle Position Sensor, Idle Air controller sensor which mostly works based on the Min-Max voltage range proportional to the valve opening.

A resistance test between Signal-Ground and terminals with Lowest and Highest valve opening can also confirm the functioning of the EGR.
paragsachania is offline   Reply With Quote
Old 18th February 2014, 15:34   #32
Senior - BHPian

el lobo 6061's Avatar

Join Date: Apr 2011
Location: Navi Mumbai
Posts: 1,464
Thanked: 946 Times
Default re: EGR system - What's it purpose & when does the EGR valve open/close?

EGR is technologically good as it helps in reduction of NOX. But our fuel & air quality coupled with harsher environment plays havoc with EGR system.

Its better to disable EGR via ECU remap. In 1.6 TDi you can easily gain 6 BHP by disabling EGR but you do pollute more.
el lobo 6061 is online now   Reply With Quote
Old 17th June 2014, 19:54   #33
BHPian

Join Date: Apr 2010
Location: Mumbai
Posts: 427
Thanked: 426 Times
Default re: EGR system - What's it purpose & when does the EGR valve open/close?

Hi,

vehicle: Xylo E6 (mEagle)
ODO : ~92000 KM (3.5yrs)
work: cleaning of EGR
when : in Mar'14
where: MMASS

Few months back I asked directly the MMASS to clean EGR valve. Generally they dont do such work unless there is any specific complaint of vehicle. In my case, I didnt have any issue, simply wanted some cleaning!

After this activity, I didnt notice any change in performance - neither +ve nor -ve.

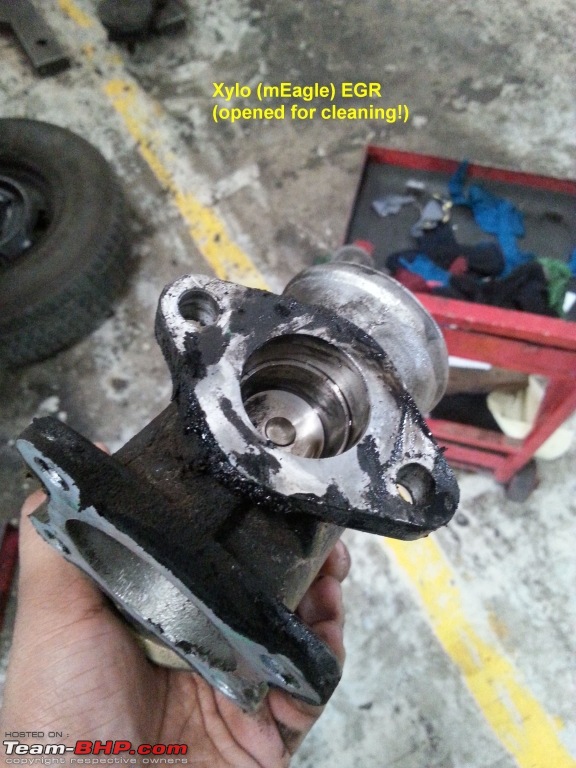

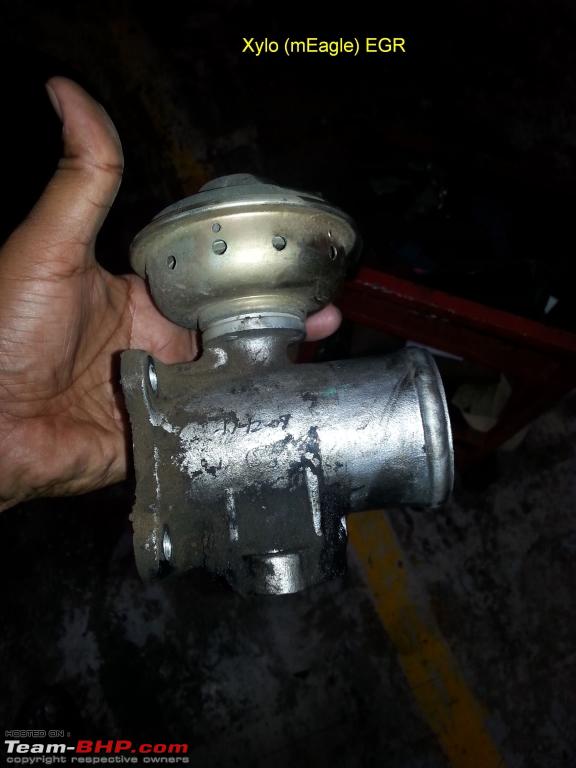

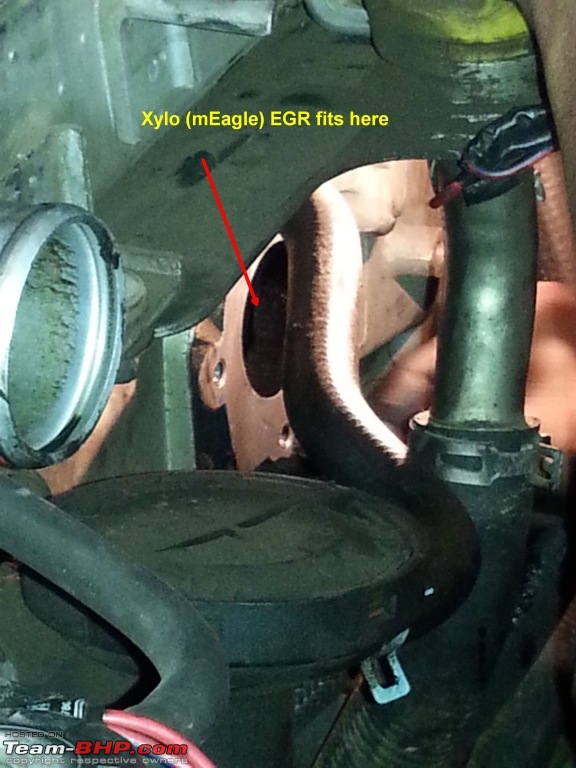

some pics taken during the process:

Name:  20140329_143222_img.jpg
Views: 2083
Size:  207.1 KB

Name:  20140329_143241_img.jpg
Views: 2297
Size:  350.7 KB

Name:  20140329_143258_img.jpg
Views: 2200
Size:  341.9 KB

Name:  20140329_143513_img.jpg
Views: 2158
Size:  274.9 KB

Name:  20140329_143518_img.jpg
Views: 2142
Size:  359.5 KB

Name:  20140329_143652_img.jpg
Views: 2843
Size:  286.9 KB

I believe the inside of compartment where EGR fits will anyways get carbon soot deposits ! It was gently cleaned using a cloth, without any other liquid. The EGR valve was cleaned using Petrol.

Xylo uses Padmini VNA's EGR valve, which looks just similar to that "Drop Type" model as shown on http://www.padminivna.com/egr.html

Interestingly, while fitting it back, the bolts didnt fit well, and they had to again 'thread' the area, which took a very long time.

regards,
pcpranav is offline   (3) Thanks Reply With Quote
Old 31st August 2014, 01:32   #34
BHPian

amitpunjani's Avatar

Join Date: Jul 2007
Location: Delhi
Posts: 445
Thanked: 94 Times
Default Urgent Help EGR sx4

Yesterday I got EGR system cleaned of my Sx4 at MASS Now EGR was cleaned by injection of some additives from the opening of EGR valve. It wasn't done conventional way by opening the whole unit of EGR. Prior to cleaning of EGR engine was also changed. Now I have two major concerns

Is this the rite way yo clean EGR valve with additive and also is there a possibility additive could have mixed with engine oil and harm the engine
amitpunjani is online now   Reply With Quote
Old 31st August 2014, 11:29   #35
Distinguished - BHPian

a4anurag's Avatar

Join Date: Oct 2011
Location: Hyderabad
Posts: 8,692
Thanked: 11,026 Times
Default Re: Urgent Help EGR sx4

Quote:
Originally Posted by amitpunjani View Post
Yesterday I got EGR system cleaned of my Sx4 at MASS Now EGR was cleaned by injection of some additives from the opening of EGR valve. It wasn't done conventional way by opening the whole unit of EGR. Prior to cleaning of EGR engine was also changed. Now I have two major concerns

Is this the rite way yo clean EGR valve with additive and also is there a possibility additive could have mixed with engine oil and harm the engine
I guess it is possible seeing these two videos.



Another relevant one:



Seems to be easy but slightly tricky. I'll try this if I can get hold of the product (Bardahl).

Note: Can you find out what MASS has done and how?!

If it is the same procedure then we can do a DIY.

If the above method was followed (additive added in fuel tank) then there is no harm to the engine or the engine oil.

Anurag.
a4anurag is online now   (2) Thanks Reply With Quote
Old 1st September 2014, 12:53   #36
BHPian

::CMS::'s Avatar

Join Date: Sep 2013
Location: Bangalore
Posts: 571
Thanked: 449 Times
Default re: EGR system - What's it purpose & when does the EGR valve open/close?

EGR Delete will definitely give an improvement in performance and FE but at the cost of environment pollution. It can be done in the ECU map but there are chances that the valve may get open partially to pass the soot through due to the air pressure, so a permanent solution is to block it with a metal plate. It has to be done at both levels for a permanent EGR delete.
::CMS:: is offline   Reply With Quote
Old 1st September 2014, 18:04   #37
Distinguished - BHPian

a4anurag's Avatar

Join Date: Oct 2011
Location: Hyderabad
Posts: 8,692
Thanked: 11,026 Times
Default re: EGR system - What's it purpose & when does the EGR valve open/close?

Quote:
Originally Posted by ::CMS:: View Post
EGR Delete will definitely give an improvement in performance and FE but at the cost of environment pollution. It can be done in the ECU map but there are chances that the valve may get open partially to pass the soot through due to the air pressure, so a permanent solution is to block it with a metal plate. It has to be done at both levels for a permanent EGR delete.
Exactly and IMO not advisable at all.

If at all low power bothers a driver then better to do a remap or buy a powerful car.

Removing / blocking the EGR completely will have that car failing in emission test!

Anurag.
a4anurag is online now   Reply With Quote
Old 5th September 2014, 12:31   #38
BHPian

amitpunjani's Avatar

Join Date: Jul 2007
Location: Delhi
Posts: 445
Thanked: 94 Times
Default Re: Urgent Help EGR sx4

Quote:
Originally Posted by a4anurag View Post
I guess it is possible seeing these two videos.



Note: Can you find out what MASS has done and how?!

If it is the same procedure then we can do a DIY.

If the above method was followed (additive added in fuel tank) then there is no harm to the engine or the engine oil.

Anurag.
Hi Anurag,

Certainly the procedure, can't be done DIY. A chemical by BG Products was used along with the high pressure of compressed air and the car was revved to about 3,000 RPM. Their was a abit of knocking sound as well from the engine during the process.

From the exhaust there was a lot of Black smoke and some times white smoke as well.

The entire process took about 15-20 mins. I'm not sure... how useful this process in comparison to dismantling of EGR system, but let me tell you there is remarkable improvement in Engine. It feel less harsh and turbo kick is bit early than 2,000 RPM.

Amit
amitpunjani is online now   Reply With Quote
Old 7th September 2014, 22:28   #39
Newbie

Join Date: Jul 2014
Location: Capital cityTVM
Posts: 21
Thanked: 9 Times
Default Re: Urgent Help EGR sx4

Quote:
Originally Posted by amitpunjani View Post



From the exhaust there was a lot of Black smoke and some times white smoke as well.

Amit
Revv your vehicle to redline so that the soot accumulated in exhaust gets cleared.BTW EGR cleaning should be done by dismantling EGR and intake manifolds also to be cleaned. You will have a intake manifold filled with carbon
tikku.dk is offline   Reply With Quote
Old 7th September 2014, 22:44   #40
Distinguished - BHPian

a4anurag's Avatar

Join Date: Oct 2011
Location: Hyderabad
Posts: 8,692
Thanked: 11,026 Times
Default Re: Urgent Help EGR sx4

Quote:
Originally Posted by tikku.dk View Post
Revv your vehicle to redline so that the soot accumulated in exhaust gets cleared.
Which ideally is the italian tune-up procedure. But that suggests to revv the engine in all gears while on the move.

I keep doing it every 2K kms.

Anurag.
a4anurag is online now   Reply With Quote
Old 28th January 2015, 05:34   #41
BHPian

Join Date: Apr 2013
Location: Hyderabad
Posts: 178
Thanked: 144 Times
Default EGR - What's it purpose & when does the EGR valve open/close?

Note from Mod: This discussion has been split into its own thread from its original location (Fiat Linea and Fiat Punto (90 BHP) Owners. Timing chain issue & recall).

Quote:
Originally Posted by lurker View Post
Justin, the reasons are very simple. Just go methodically. Timing chain problem was due to long oil change interval. But engine getting clogged up with gunk is due to EGR. But these events can also happen simultaneously as well. In most turbo diesel engines including trucks fitted with EGR valves, this will be a problem.

Unless they can proactively resolve issues by opening and cleaning engine intake manifold ever 30,000 kms. Clean EGR valve every 30,000 kms. Change oil (for mineral every 5K and synthetic every 7K) in light of Indian city driving conditions. (it's not possible to drive above 100 kmph at steady throttle at all times in India, so that EGR valve remains closed).
EGR valve opening-closing is not exactly dependent on vehicle speed but load. Under moderate cruising speed, the egr valve will open. It closes when the rpm is too low or high or under heavy acceleration when full power is needed.

Once the EGR valve gets clogged (assuming that the ports block and not the valve itself ) after 60k kms then there is effectively no mixing of exhaust gases with intake, no?

The mjd has an egr cooler with ports and a bend which gets clogged over a period of time and reduces the amount of exhaust gases going into the intake.

Last edited by Rehaan : 30th January 2015 at 18:40. Reason: Adding opening note about split thread.
interc00led is offline   Reply With Quote
Old 28th January 2015, 08:23   #42
Senior - BHPian

lurker's Avatar

Join Date: Jun 2006
Location: Tura
Posts: 1,244
Thanked: 506 Times
Default Re: Fiat Linea and Fiat Punto (90 BHP) Owners. Timing chain issue & recall

Quote:
Originally Posted by interc00led View Post
It closes when the rpm is too low or high or under heavy acceleration when full power is needed.
Think again. What is the purpose of EGR. Because of newer pollution control norms being foisted upon car manufacturers, this is one of their primary solutions to make exhaust emissions compliant with Euro IV, BSIV.

Basically exhaust gasses which have unburnt fuel is again recirculated back into the engine so that carbon emissions can be minimized. This also means a hotter running engine, because when the EGR works aka when the valve is open the engine is sucking in hot, dirty, carbon laden air back through the intake. This may minimize emissions but is obviously bad for the engines.

So EGR will close only when fuel is at leanest and emission is most minimum. That would mean in a modern CRDI a steady 70-100 kmph@5th or 6th gear without any increase or decrease in acceleration.
lurker is offline   Reply With Quote
Old 28th January 2015, 20:34   #43
BHPian

Join Date: Apr 2013
Location: Hyderabad
Posts: 178
Thanked: 144 Times
Default Re: OT

Quote:
Originally Posted by lurker View Post
Think again. What is the purpose of EGR. Because of newer pollution control norms being foisted upon car manufacturers, this is one of their primary solutions to make exhaust emissions compliant with Euro IV, BSIV.

Basically exhaust gasses which have unburnt fuel is again recirculated back into the engine so that carbon emissions can be minimized. This also means a hotter running engine, because when the EGR works aka when the valve is open the engine is sucking in hot, dirty, carbon laden air back through the intake. This may minimize emissions but is obviously bad for the engines.

So EGR will close only when fuel is at leanest and emission is most minimum. That would mean in a modern CRDI a steady 70-100 kmph@5th or 6th gear without any increase or decrease in acceleration.
You have got the basics wrong. EGR helps to meet the NOx emissions and not the CO&HC emissions(Catalytic converter is there for this job).
NOx forms at high temperatures and EGR lowers the peak combustion-chamber temperature thereby preventing the formation of NOx.

Yes, I agree that the particulate matter from the egr can cause engine wear but most of it is burnt within the combustion chamber itself and whatever passes past the piston rings get into the engine oil and the modern engine oils are designed to retain/hold it.

Contrary to your statement->Actually, when the engine is running lean(diesels always run lean- here I am referring to relative ratio), the core combustion-chamber temperature will be very high(I am not talking about the exhaust gas temperature here).
interc00led is offline   (1) Thanks Reply With Quote
Old 28th January 2015, 21:21   #44
Distinguished - BHPian

a4anurag's Avatar

Join Date: Oct 2011
Location: Hyderabad
Posts: 8,692
Thanked: 11,026 Times
Default Re: Fiat Linea and Fiat Punto (90 BHP) Owners. Timing chain issue & recall

Quote:
Originally Posted by interc00led View Post
It closes when the rpm is too low or high or under heavy acceleration when full power is needed.
Quote:
Originally Posted by interc00led View Post
EGR helps to meet the NOx emissions and not the CO&HC emissions(Catalytic converter is there for this job). NOx forms at high temperatures and EGR lowers the peak combustion-chamber temperature thereby preventing the formation of NOx.
to both the points!

Quote:
Originally Posted by lurker View Post
Think again. What is the purpose of EGR. Because of newer pollution control norms being foisted upon car manufacturers, this is one of their primary solutions to make exhaust emissions compliant with Euro IV, BSIV.

So EGR will close only when fuel is at leanest and emission is most minimum. That would mean in a modern CRDI a steady 70-100 kmph@5th or 6th gear without any increase or decrease in acceleration.
After reading our post, I thought why not check what the EGR does in reality at certain speeds on the move.

What I did was, asked my friend to take screen shots of the data when I drive.

On a clear road, in 5th gear tried the following:

1) Kept the car cruising at 60 kmph;
2) Kept the car cruising at 80 kmph;
3) Kept the car cruising at 100 kmph and
4) Under acceleration from 80 kmph to 100 kmph.

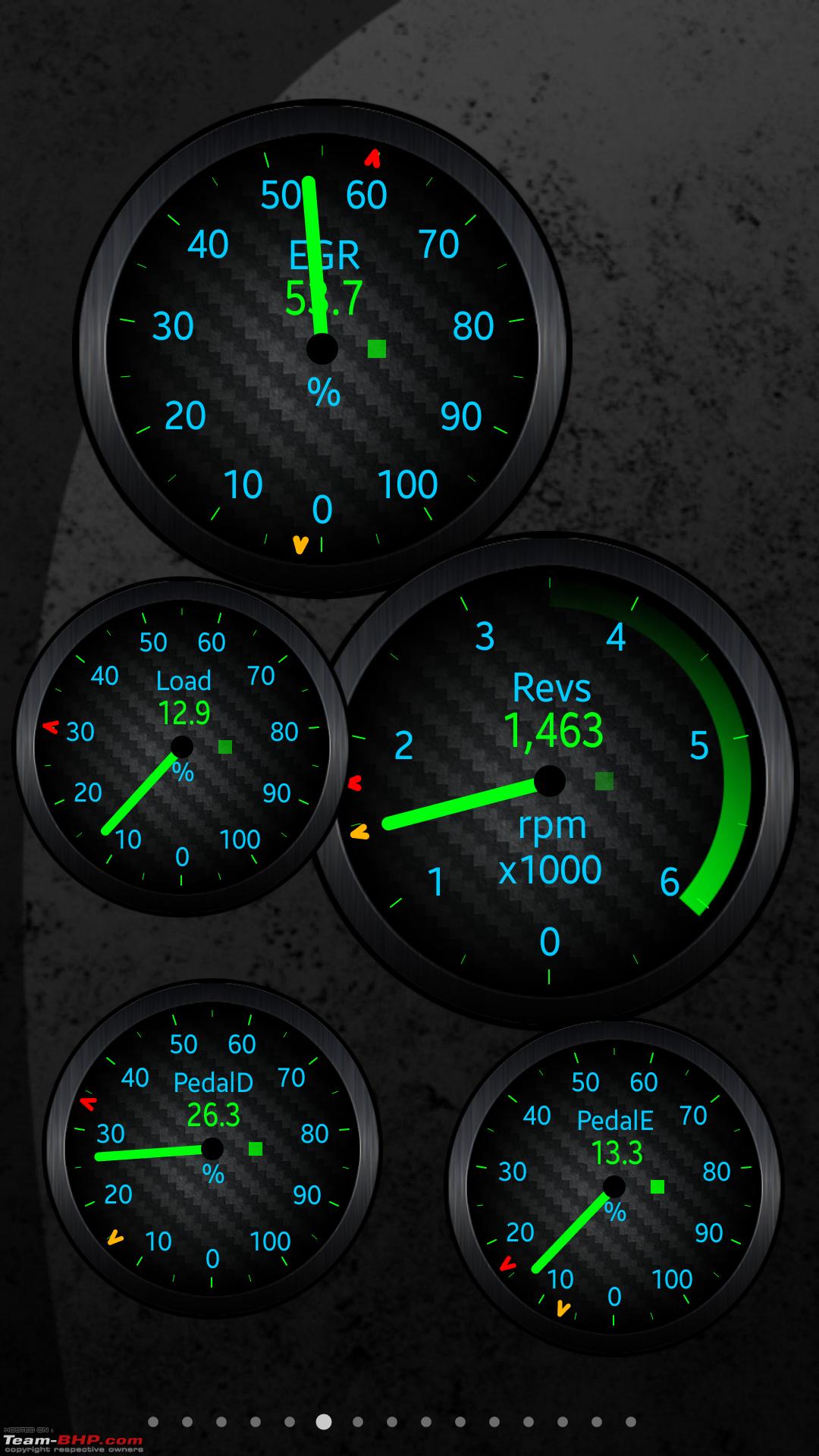

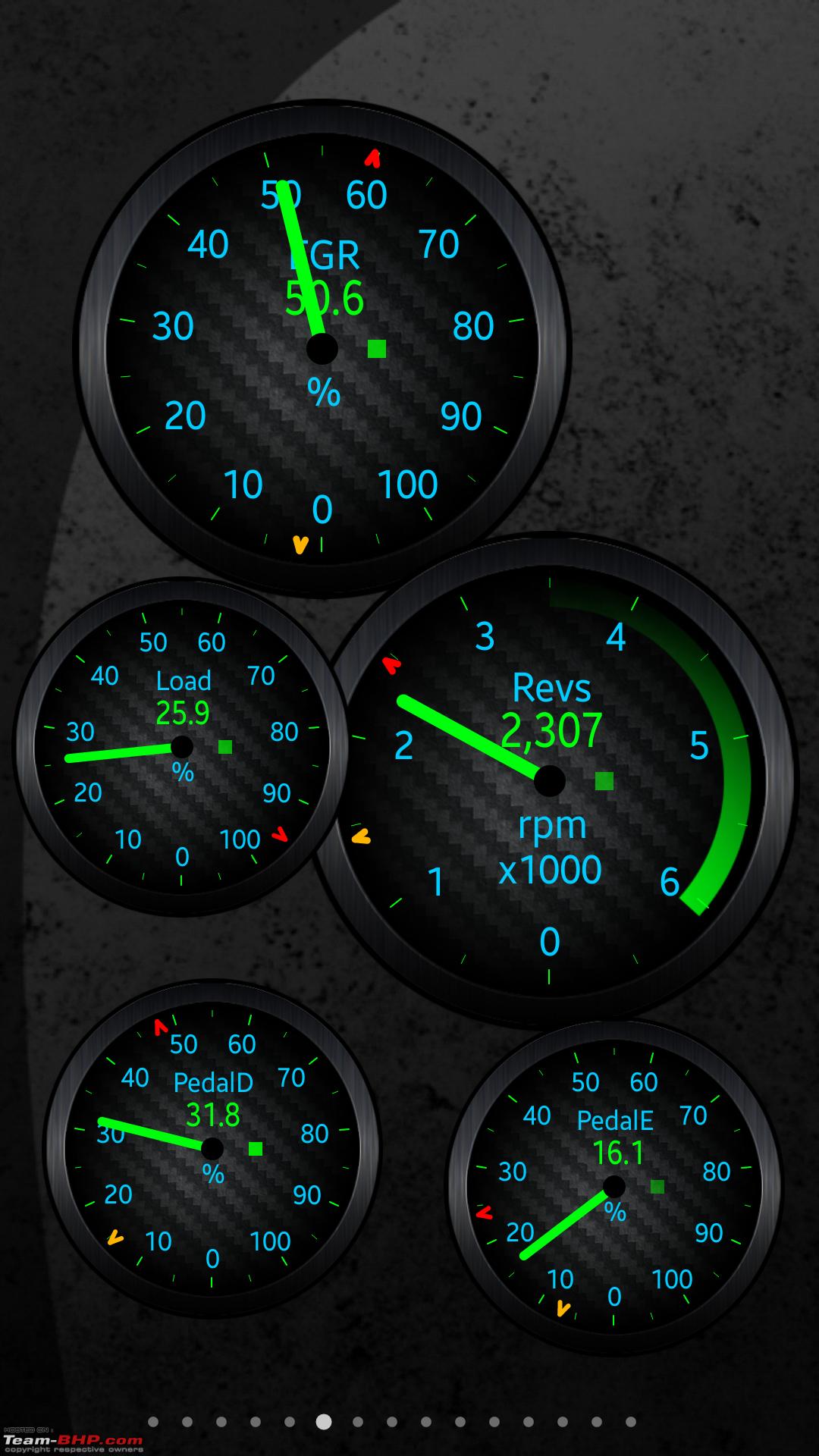

I wanted to see the reading at these speeds and also to see if the valve is 'Open' or 'Close'.

1)

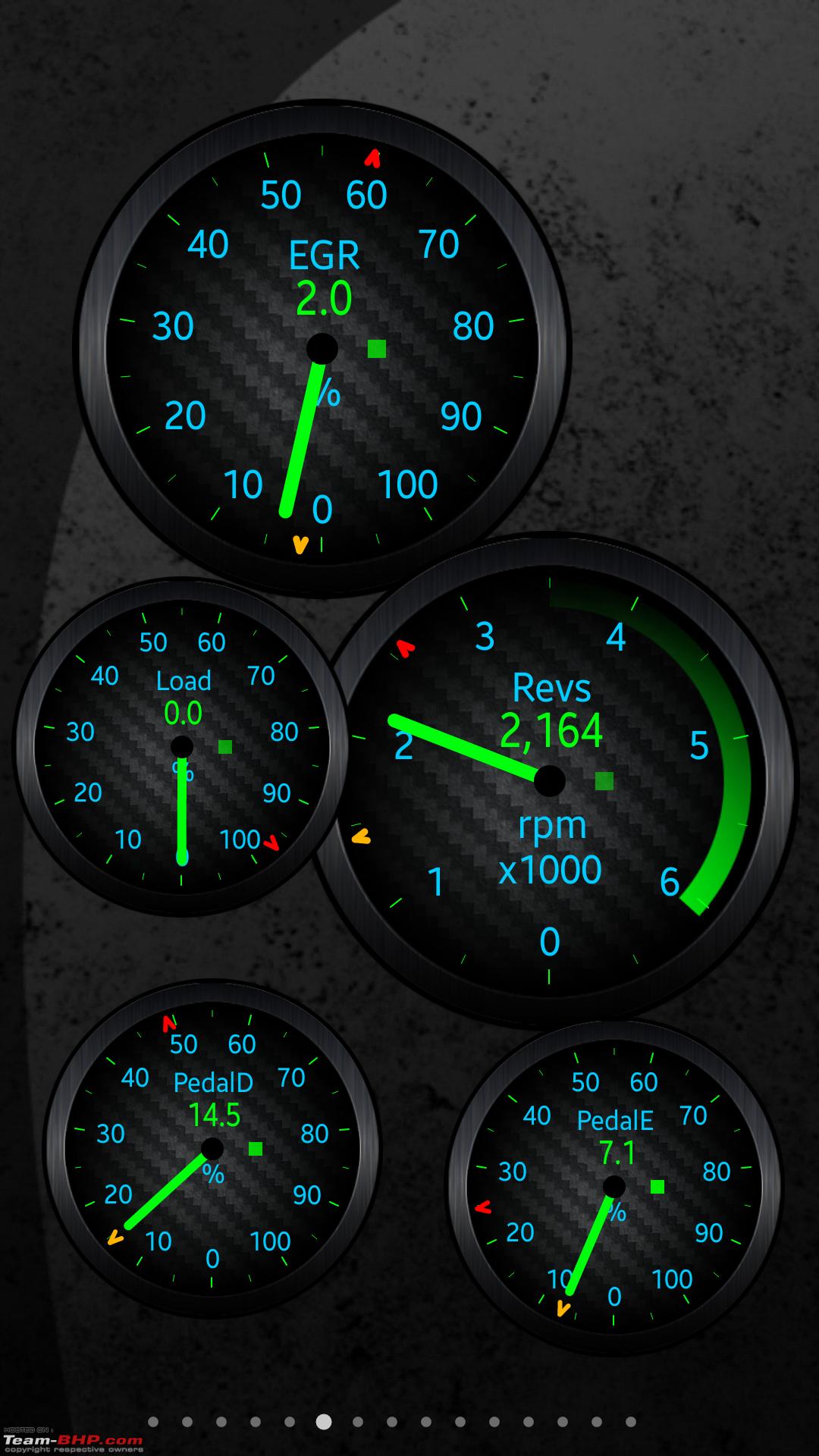

EGR system - What's it purpose & when does the EGR valve open/close?-60-kmph.png

2)
EGR system - What's it purpose & when does the EGR valve open/close?-80-kmph.png

3)
EGR system - What's it purpose & when does the EGR valve open/close?-100-kmph.png

4)
EGR system - What's it purpose & when does the EGR valve open/close?-under-accel.png

Conclusion:
  • The EGR remains open most of time depending on the throttle position (See Pedal D & E).

  • Under acceleration when the engine is producing power, the EGR valve closes so that the unburnt gases do not enter to reduce the output! hence we see the black smoke at this point.

  • When the car is cruising, the EGR valve is open so the gases/emissions is under control (NOx). AFAIK, the NOx parameter will fail if checked when revving the engine due to closing of the EGR valve.

What say guys?

EDIT: The car in question here is my Swift ZDi

Last edited by a4anurag : 28th January 2015 at 21:32. Reason: Adding the EDIT
a4anurag is online now   (6) Thanks Reply With Quote
Old 29th January 2015, 03:57   #45
Senior - BHPian

lurker's Avatar

Join Date: Jun 2006
Location: Tura
Posts: 1,244
Thanked: 506 Times
Default Re: OT

Quote:
Originally Posted by interc00led View Post
EGR lowers the peak combustion-chamber temperature thereby preventing the formation of NOx.
In BSIII engine, there was no EGR and some Toyota Qualis and Innova which do not have it are running fine even today without opening the engine.

Quote:
Yes, I agree that the particulate matter from the egr can cause engine wear but most of it is burnt within the combustion chamber itself and whatever passes past the piston rings get into the engine oil and the modern engine oils are designed to retain/hold it.
People who have removed EGR have gained 3 km/L in England. Second the engine runs better on fresh air and you even do not have to change engine oil that frequently. So that lesser crud thrown back into the environment. EGR gains are only theoritical and only in the initial phases before sludge cakes up inside engine and makes every little gain earned through EGR immaterial.

Quote:
Contrary to your statement->Actually, when the engine is running lean(diesels always run lean- here I am referring to relative ratio), the core combustion-chamber temperature will be very high(I am not talking about the exhaust gas temperature here).
there are people who have kept a sensor on EGR so that they get a notification on when exactly the damn EGR closes. Firstly it doesn't close that frequently, and then when it builds up sludge it doesn't close ever at all.
lurker is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
DIY: EGR Valve Cleaning (1.3L DDiS / MJD) a4anurag DIY - Do it yourself 12 29th August 2016 02:21
8 Valve SOHC vs 16 Valve SOHC shineshine Technical Stuff 6 12th February 2016 22:23
DIY: How to Block the EGR Valve on a Turbo DI svsantosh DIY - Do it yourself 42 19th December 2015 15:10
effect of grinding EGR valve in diesels reachbennym Technical Stuff 1 23rd December 2008 09:05
Open open open Sesame!! VJ_MAVRICK Shifting gears 12 10th January 2008 15:24


All times are GMT +5.5. The time now is 20:50.

Copyright 2000 - 2017, Team-BHP.com
Proudly powered by E2E Networks
