Default What is "Ramp Breakover Angle"

These days the 4x4 advertisements mention a lot of technical details and one such detail is the ramp breakover angle. I was wondering what this is and how does it help?

I can understand the angle of approach & the angle of departure angle adn it's relevance for a 4x4, but can't seem to understand the ramp breakover angle -- the included & excluded angles seem to confuse me.

Can someone help in explaining in a language that can be understood by common folks?
khan_sultan is offline   Reply With Quote
Old 28th March 2008, 10:57   #2
Senior - BHPian

clevermax's Avatar

Join Date: Jun 2006
Location: Tvm/Amsterdam
Posts: 1,601
Thanked: 403 Times
Default

This is a measure of a vehicle's ability to drive over a sharp ridge or ramp without touching its underside. The "included" angle measures the angle inside the ramp; the "excluded" angle measures the combined angles outside the ramp to the horizontal. A short-wheelbase vehicle with a high ground clearance and large tires will have the best (highest) ramp breakover angle.

Of course I googled it and found out. HTH.

And please check this link, it has a picture.

Ramp Breakover Angle on carlist.com

Last edited by Rehaan : 28th March 2008 at 13:14.
clevermax is offline   Reply With Quote
Old 28th March 2008, 11:15   #3
Team-BHP Support

khan_sultan's Avatar

Join Date: Apr 2006
Location: Bangalore
Posts: 4,663
Thanked: 3,186 Times
Default

Quote:
Originally Posted by clevermax View Post
This is a measure of a vehicle's ability to drive over a sharp ridge or ramp without touching its underside. The "included" angle measures the angle inside the ramp; the "excluded" angle measures the combined angles outside the ramp to the horizontal. .....
Buddy, I have seen this and the picture also -- had checked this before posting the question here.
  • What is angle inside the ramp?
  • What is combined angles outside the ramp to the horizontal
Sorry, but was never good at geometry..
khan_sultan is offline   Reply With Quote
Old 28th March 2008, 11:19   #4
Senior - BHPian

clevermax's Avatar

Join Date: Jun 2006
Location: Tvm/Amsterdam
Posts: 1,601
Thanked: 403 Times
Default

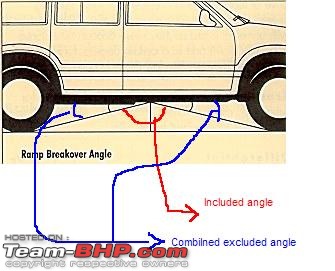

Name:  rba.jpg
Views: 13274
Size:  17.8 KB

Hope this explains the included angle and the excluded angle...
clevermax is offline   Reply With Quote
Old 28th March 2008, 15:09   #5
Senior - BHPian

nitrous's Avatar

Join Date: May 2004
Location: UAE/Lon/Madras
Posts: 6,966
Thanked: 282 Times
Default

^^Good explanation.
Btw, This thread should be present in the 4x4 section.
nitrous is offline   Reply With Quote
Old 28th March 2008, 17:01   #6
Senior - BHPian

Join Date: Sep 2006
Location: Melbourne, Hyd
Posts: 1,235
Thanked: 23 Times
Default

Quote:
Originally Posted by nitrous View Post
^^Good explanation.
Btw, This thread should be present in the 4x4 section.
doesnt those angles valid to other vehicles viz passenger cars, goods vehicles (oh! btw, there are 3 wheeled vehicles as well which carry goods and passengers)

Also, we can include the "gradient angles" in this discussion.

@clevermax, good work there. That was really clever.
can you also put up a diagram showing the gradient angle?
kkr2k2 is offline   Reply With Quote
Old 28th March 2008, 19:55   #7
Senior - BHPian

clevermax's Avatar

Join Date: Jun 2006
Location: Tvm/Amsterdam
Posts: 1,601
Thanked: 403 Times
Default

Quote:
Originally Posted by nitrous View Post
^^Good explanation.
Btw, This thread should be present in the 4x4 section.
Quote:
Originally Posted by kkr2k2 View Post
doesnt those angles valid to other vehicles viz passenger cars, goods vehicles (oh! btw, there are 3 wheeled vehicles as well which carry goods and passengers)

Also, we can include the "gradient angles" in this discussion.

@clevermax, good work there. That was really clever.
can you also put up a diagram showing the gradient angle?
Thanks!
I don't know exactly what is gradient angle, does it indicate the angle of the chassis with the horizontal?
clevermax is offline   Reply With Quote
Old 28th March 2008, 20:20   #8
Newbie

dsskumaran's Avatar

Join Date: Mar 2008
Location: Bangalore
Posts: 4
Thanked: 2 Times
Post

This site may give you details on the significance of not only 'Ramp Breakover Angle', but many other too.
The page does have the description too.
Rick's Buggy Project - Design Overview

Rgds,
SK
