Default Project Baleno: RED backlighting for the dials. Total cost= Rs.4

The boring green backlighting of the original dials is very much 80's stuff or so I thought. Had tried to change the bulbs with white LEDs some time back but a miscalculation of the voltage and current resulted in the LEDs getting bursted no sooner than I turned them on.

This time the idea was to remove the green coloured cap of each bulb and cover it with coloured transparent paper. Obviously changing the yellow bulbs into white was not possible...so i opted for red cellophane from the nearby store. A piece of red transparent paper costed Rs 4 for an A3 sized sheet. For changing six bulbs, less than 1/8th of it only was needed.

First step is to remove the instrument cluster. There are two screws at the top.
Project Baleno: RED backlighting for the dials. Total cost= Rs.4-dsc00094.jpg


Next remove the plastic cowl surrounding the gauges and take out the four screws surrounding it.
Project Baleno: RED backlighting for the dials. Total cost= Rs.4-dsc00095.jpg

Detach the wires behind the panel and pull it out carefully. Time to get the bulbs out and their green caps removed.
Project Baleno: RED backlighting for the dials. Total cost= Rs.4-dsc00096.jpg

Now all I needed was a pair of scissors and a roll of transparent cellotape. Also, get someone to give you company...in my case, it was the four month old 'Tippu' .
Project Baleno: RED backlighting for the dials. Total cost= Rs.4-97.jpg

The bulb covered with red transparent paper. Finish is not all that important.Project Baleno: RED backlighting for the dials. Total cost= Rs.4-dsc00098.jpg

Follow the same with the bulbs on the central console too.

Wait till it gets dark and presto! There you have it-the red dials for that sporty look.
Project Baleno: RED backlighting for the dials. Total cost= Rs.4-dsc00072.jpg

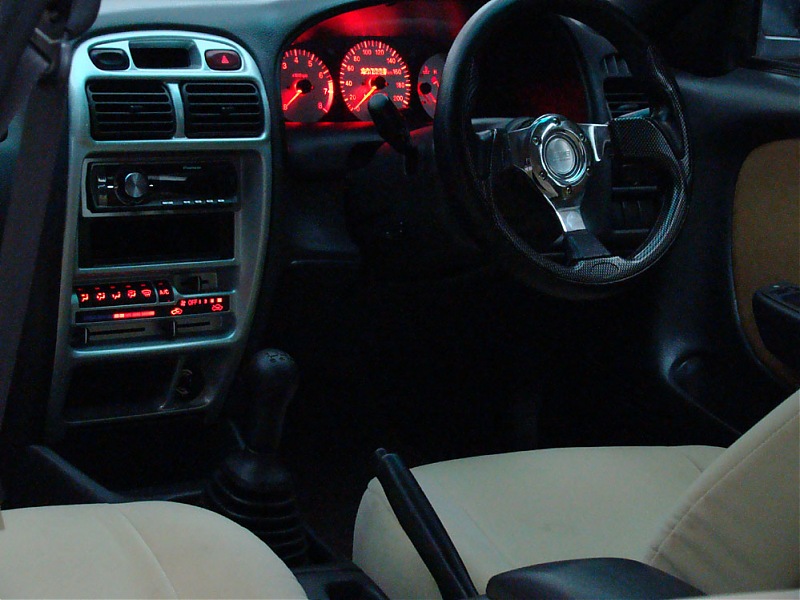

Project Baleno: RED backlighting for the dials. Total cost= Rs.4-dsc00074.jpg
Project Baleno: RED backlighting for the dials. Total cost= Rs.4-dsc00077.jpg
Project Baleno: RED backlighting for the dials. Total cost= Rs.4-dsc00078.jpg
Project Baleno: RED backlighting for the dials. Total cost= Rs.4-dsc00080.jpg
Project Baleno: RED backlighting for the dials. Total cost= Rs.4-dsc00087.jpg
Project Baleno: RED backlighting for the dials. Total cost= Rs.4-dsc00086.jpg
Project Baleno: RED backlighting for the dials. Total cost= Rs.4-dsc00088.jpg
vivekji05 is offline   (1) Thanks Reply With Quote
Old 26th September 2008, 21:15   #2
Senior - BHPian

ramie2400's Avatar

Join Date: Nov 2006
Location: Mumbai
Posts: 1,900
Thanked: 58 Times
Default

Aaahh!!! that looks killer buddy good works,even i was considering to do something lin my car
ramie2400 is offline   Reply With Quote
Old 26th September 2008, 21:24   #3
BANNED

Join Date: Nov 2006
Location: London
Posts: 5,012
Thanked: 147 Times
Default

There is a thread running on this already! I dont remember who, but someone has done Exactly the same!!
Cyrus43 is offline   Reply With Quote
Old 26th September 2008, 21:30   #4
Senior - BHPian

greenhorn's Avatar

Join Date: Apr 2007
Location: TN-14
Posts: 6,838
Thanked: 1,317 Times
Default

https://www.team-bhp.com/forum/modif...no-w-pics.html
@ cyrus- there ya go!
greenhorn is online now   Reply With Quote
Old 26th September 2008, 21:31   #5
BHPian

nithz's Avatar

Join Date: Jul 2008
Location: coorg
Posts: 51
Thanked: 8 Times
Default

Good work vivek (reminds me of school days )i too gonna try this out ,but what abt the paper doesnt it get a kind of faded over a period of time ? any idea that u get coloured bulbs of this kind so that we can try in other colours like orange or blue cheers: .This is what we call innovation

Last edited by Technocrat : 24th October 2008 at 15:27. Reason: only two smilies per post allowed
nithz is offline   Reply With Quote
Old 26th September 2008, 21:36   #6
BHPian

vivekji05's Avatar

Join Date: May 2007
Location: Ernakulam
Posts: 262
Thanked: 76 Times
Default

The link is wrong. Do you suggest that I should go and post this one there?
vivekji05 is offline   Reply With Quote
Old 26th September 2008, 21:58   #7
Senior - BHPian

danlalan's Avatar

Join Date: Nov 2005
Location: mumbai,JUHU
Posts: 1,597
Thanked: 133 Times
Default

OT: The doggy's dam cute.
danlalan is offline   Reply With Quote
Old 26th September 2008, 22:12   #8
BHPian

toiingg's Avatar

Join Date: Oct 2006
Location: Calcutta
Posts: 601
Thanked: 70 Times
Default

Brilliant finish. Isn't the light too bright during the night ?
toiingg is offline   Reply With Quote
Old 26th September 2008, 23:03   #9
BHPian

hell boy's Avatar

Join Date: Sep 2007
Location: mumbai
Posts: 108
Thanked: 3 Times
Default

That a very good jod you have done very cool.........
hell boy is offline   Reply With Quote
Old 26th September 2008, 23:11   #10
Senior - BHPian

humyum's Avatar

Join Date: Feb 2006
Location: Leicester/Mumbai
Posts: 2,306
Thanked: 2,188 Times
Default

Maaannnnnnnn.This looks mindblowin.really awesome.Gurus,possible in the zen to do the same in the zen?Is the panel in the zen too this easily removable?I would love to do this.

Last edited by humyum : 26th September 2008 at 23:28.
humyum is offline   Reply With Quote
Old 26th September 2008, 23:32   #11
Senior - BHPian

vinit.merchant's Avatar

Join Date: Jan 2008
Location: Pune
Posts: 1,128
Thanked: 934 Times
Default

Thats brilliant.
Even I would like to do this on my Palio but I am unsure whether I will be able to open up the instrument cluster on my own. Gurus, any input?
vinit.merchant is offline   Reply With Quote
Old 26th September 2008, 23:40   #12
Senior - BHPian

rjstyles69's Avatar

Join Date: Sep 2006
Location: Bengalooru..
Posts: 4,345
Thanked: 789 Times
Default

Creativity at its best I must say my compliments to you. What if the bulb over heats due prolonged driving, wont the plastic melt ?
rjstyles69 is offline   Reply With Quote
Old 27th September 2008, 06:41   #13
BHPian

vivekji05's Avatar

Join Date: May 2007
Location: Ernakulam
Posts: 262
Thanked: 76 Times
Default

Thank you...thanks everyone.

@nithz, rjstyles69

The paper i have used is the same as the one used by decorative lighting people, who cover their ordinary bulbs to get red, blue, green etc. This paper doesnt melt much as it can withstand the heat produced by the bulb. You can tell this to the shopkeeper and he should understand. Ordinary transparent paper at the book stall, used for craftwork by children will melt.

@toiingg

Actually it isn't. I used a camera with over exposure settings to click those pictures. The shutter was kept opened for nearly 1.6 seconds to let in all that light, so that I can shoot without the flash. I took those pics at around 7:30pm in the evening. You can see that the whole interior is lit up and there is a lot of red reflection on the surrounding cowl. In reality only the numbers show up while the silver dial is not visible.

The light is not too bright and is evenly spread across the dials. Most people thought it was stock.

You can do it on almost all Maruti cars. Have no idea of the Palio..but if you can remove the thing and post a few pics, I can tell you what to do.
vivekji05 is offline   Reply With Quote
Old 27th September 2008, 06:45   #14
Senior - BHPian

rr_zen's Avatar

Join Date: Sep 2006
Location: Chennai, India
Posts: 1,711
Thanked: 262 Times
Default

That looks really cool. I might want to try the same on my Esteem now !
rr_zen is offline   Reply With Quote
Old 27th September 2008, 09:11   #15
Senior - BHPian

Join Date: Feb 2006
Location: BLR
Posts: 2,222
Thanked: 11 Times
Default

Quote:
Originally Posted by vivekji05 View Post
Also, get someone to give you company...in my case, it was the four month old 'Tippu'
Great Job... difficult to get a picture to show what it actually looks like.

Also your pup seems to be very intelligent.. he's got that look in his eyes. I remember my boxer trying being nosy when I was doing the damping on my car... lol absolute clown.

Quote:
Originally Posted by rjstyles69 View Post
Creativity at its best I must say my compliments to you. What if the bulb over heats due prolonged driving, wont the plastic melt ?
Chetta this is the same film the use for stage lighting (fashion shows, plays etc, parties etc) and those lights emit intense heat so I guess this should not pose a problem.

Nevertheless might be a good idea to change it once in few months.
