Old 8th October 2009, 21:40   #31
Senior - BHPian

ported_head's Avatar

Join Date: Mar 2004
Location: Mumbai, India
Posts: 2,391
Thanked: 8 Times
Default

Few more bits from the Red Bull guys:
* There isn't a surface the vehicle hasn't been showcased on apart from ice. Grass, gravel, sand, cobbled streets, you name it.

* The gearing is pretty tall, apart from first gear, which is really short. Makes for good doughnuts and burnouts.

* They were carrying cans of Fuchs Silkolene Pro 0-W-20 oil.

* They carry their own compressors too for compressed air for the pneumatic valvetrain and the air tools.

* The quality of machining and casting has to be seen to be believed. It's the sort of stuff they write engineering books about.

* Carbon fibre quality is super too. Nice clear top laminating layer, shows the fibre weave clearly. Though I think there would be more than one direction of weave. I don't know much about carbon fibre, but would love it if somebody can explain how they bond the metallic ends to , say, the suspension pushrods.

* I could not make out any adjustments for the camber on the F/R wheels or toe adjustments on the rear. Anybody have any idea how it works?

* Anybody know what kind of bolts they use for the suspension mountings? They looked like 8mm allen bolts, but what material are they made of?

* Mpower, can you explain the rear damper? It seems a little different then the regular monoshock, right? The pushrods are feeding loads into what? How is a single coil spring compensating for two wheels? I mean, what happens when only the inside wheel hits a kerb?

Edit: I see that on end of the bell crank feeds the monoshock. Via what looks like an equal bias bar. The other end feeds a hydraulic damper. Which acts as an anti roll bar? How do the two wheels remain independent of each other? This sort of setup acts to limit wheel travel, right? Is that why it bounces off the kerbs, more often than not?

Last edited by ported_head : 8th October 2009 at 22:10.
ported_head is offline   Reply With Quote
Old 8th October 2009, 22:03   #32
BHPian

sajands's Avatar

Join Date: Mar 2005
Location: Bangalore
Posts: 830
Thanked: 135 Times
Default

Awesome job Rehaan. Hope you get a close up look at the speed run and get us more pics after sunday's run
sajands is offline   Reply With Quote
Old 8th October 2009, 22:55   #33
BHPian

sabret00the's Avatar

Join Date: Mar 2006
Location: Halifax, Canada
Posts: 686
Thanked: 43 Times
Default

wow awesome and mindblowing are the three words that came to my mind after going through the pictures.
sabret00the is offline   Reply With Quote
Old 9th October 2009, 00:25   #34
Team-BHP Support

Rehaan's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 22,381
Thanked: 22,606 Times
Default

Quote:
Originally Posted by theragingbull View Post
...have an idea if we need an invitation for the Engine Fire Up...
You will require a pass for that event. However, a true petrol head might just want to stand outside the "need-a-pass" area and listen to that thing in person!!

Quote:
Originally Posted by cargirl View Post
...the PR guys were completely vague about the how and when and where and everything else about the event.
Well to be fair, the even was/is days away. If they still don't know on Saturday, then i'll be worried

Quote:
Originally Posted by cargirl View Post
...And it seems the DC will give an interview only to who else but TOI... but does BHP stand a chance of a face-to-face with him?
Lets see how it goes
Any questions in particular to be asked?

Also if anyone has a question for the engineers -- do put it up here and i will try to get an answer on Saturday.


Quote:
Originally Posted by Mpower View Post
...You should have asked [about FE]. He would have given you a deailed answer. Mileage calcs vv imp for pitstop strategy....
Actually i did ask!
My question was - how many liters is the car going to use on Sunday?
(Also a way to gauge how long sundays run will be - using existing F1 FE data)
The answer - "I don't know!"
(Most of the engineers hadn't even got a chance to see the sealink as yet. Team Manager - Tony Burrows would probably know best as he has checked out the "track".)

cya
R
Rehaan is offline   Reply With Quote
Old 9th October 2009, 01:24   #35
Team-BHP Support

Rehaan's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 22,381
Thanked: 22,606 Times
Default

Quote:
Originally Posted by Mpower View Post
I stared at it for while and I can see a monoshock ie single spring with linkages operating shocks and swaybars (that are not visible).
Here are some more rear suspension pics :
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-img_1678.jpg



Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-img_1682.jpg


Look at the 4 varying ways in which the Carbon suspension arms are attached to the metal parts.
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-p1000766.jpg



This looks like a linear potentiometer to me. (which is an electrical sensor for measuring rear suspension movement).
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-img_1684.jpg



Quote:
Originally Posted by Mpower View Post
...lightweight everything to save on air freight. ...

Good point!

All the containers had weights mentioned on them...
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-p1000755.jpg


...and were packed totally to the brim, probably with exactly the same equipment in each container every time.
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-p1000816.jpg



Quote:
Originally Posted by ported_head View Post
...* There isn't a surface the vehicle hasn't been showcased on apart from ice.
They mentioned that they had roughed up the undercarriage a couple of times -- but the biggest problem they face with the show car events is overheating. The exhaust can reach about 1100*C and their priority is to cool the car down when it comes back in to the paddock.


On that note, here is the oil cooler, with an add-on fan (not present on the race car).
The radiator is in the same place on the left side.
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-p1000767.jpg



Quote:
Originally Posted by ported_head View Post
...* I could not make out any adjustments for the camber on the F/R wheels.... Anybody have any idea how it works?

I think this might be your answer ported! Aluminum shims! Thicker ones for more positive camber.
(Old-school solution - and they seem to be hand filed too )
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-img_1681.jpg



The top-left white button is Traction Control.
The bottom-left grey button is a "drinks" button that hydrates the driver via a tube to his helmet when pressed!

Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-p1000786.jpg
(Neither button works on this show car though)

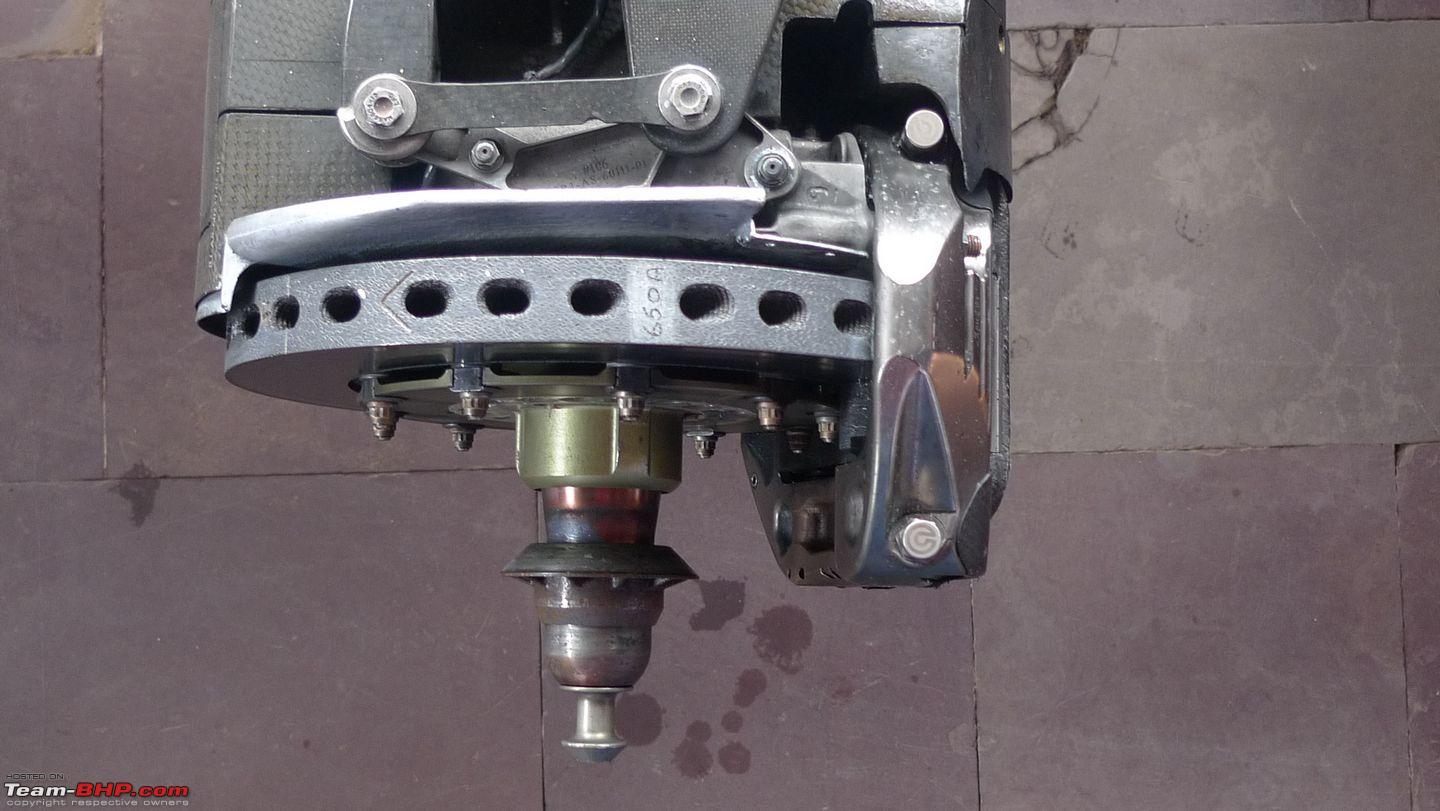

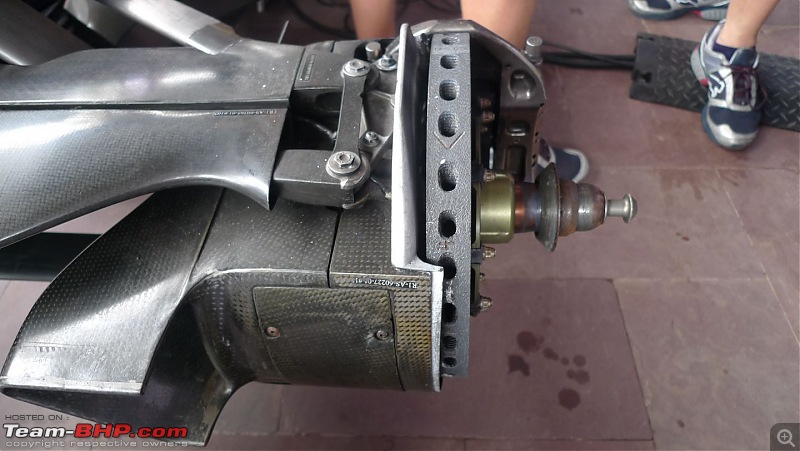

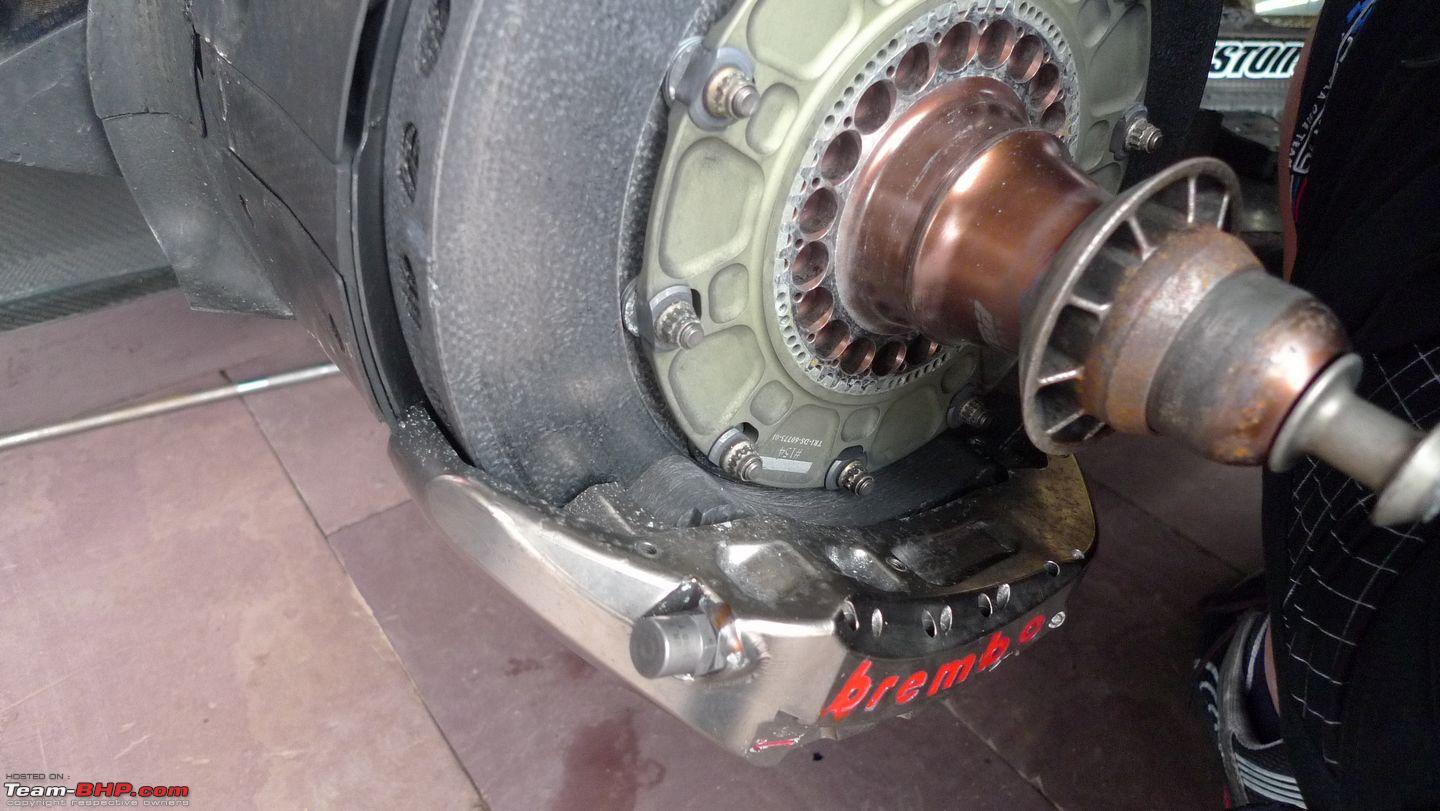

Some more pics of the brakes:
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-p1000781.jpg

The use of carbon fiber in braking applications just blows my mind!
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-img_1680.jpg

Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-p1000784.jpg

Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-p1000783.jpg



Random Engine stats :

- The engine itself weighs about 93kgs
- It puts out about 750hp in this avatar (with the reduced 16.7k-rpm redline)


cya
R

Last edited by Rehaan : 9th October 2009 at 02:38.
Rehaan is offline   Reply With Quote
Old 9th October 2009, 02:10   #36
Senior - BHPian

IndrojitSircar's Avatar

Join Date: Apr 2009
Location: Kolkata/Delhi
Posts: 2,263
Thanked: 113 Times
Default

I must say that this is a very well detailed report by Ported head and Rehaan.Thankx to these guys we have had an experience of a life time seing the effort put in by them.Well i do have some questions and will put them up by friday night so that you guys could ask them.Have a great time with the team and the car.Thank you again for this detailed report.
IndrojitSircar is offline   Reply With Quote
Old 9th October 2009, 03:41   #37
BHPian

Bhargava_sr's Avatar

Join Date: Jun 2007
Location: HOSUR
Posts: 311
Thanked: 17 Times
Default

Thanks for the amazing pics and report of this beauty, I would have never got a chance to see this so close without this thread
Bhargava_sr is offline   Reply With Quote
Old 9th October 2009, 06:39   #38
Distinguished - BHPian

Mpower's Avatar

Join Date: Mar 2005
Location: Bangalore
Posts: 10,432
Thanked: 1,682 Times
Default

Quote:
Originally Posted by ported_head View Post
* They were carrying cans of Fuchs Silkolene Pro 0-W-20 oil.

* Anybody know what kind of bolts they use for the suspension mountings? They looked like 8mm allen bolts, but what material are they

Edit: I see that on end of the bell crank feeds the monoshock. Via what looks like an equal bias bar. The other end feeds a hydraulic damper. Which acts as an anti roll bar? How do the two wheels remain independent of each other? This sort of setup acts to limit wheel travel, right? Is that why it bounces off the kerbs, more often than not?
During a single wheel bump, pushrod pulls on one end of balance bar via bellcrank. Bar pushes the spring and compresses it while the other end of the bar has minimal movement. As the bar rotates looks like it twists the vertical rod which acts a a torsion spring (sway bar)

In a double wheel bump, both ends move down and the vertical bar doesnt twist.

Its a single spring but 2 stage. But there are 2 shocks with piggyback reservoirs.

Last edited by Mpower : 9th October 2009 at 06:50.
Mpower is offline   Reply With Quote
Old 9th October 2009, 10:10   #39
BHPian

16v100bhp's Avatar

Join Date: Sep 2005
Location: Middletown CT USA
Posts: 329
Thanked: 10 Times
Default

Awesome report Rehaan.. Read through every word. Really missed this
16v100bhp is offline   Reply With Quote
Old 9th October 2009, 11:51   #40
BHPian

cargirl's Avatar

Join Date: Mar 2009
Location: Mumbai
Posts: 35
Thanked: Once
Default

@Rehaan - Don't have any questions in particular for DC, just wanted to know. :-) Maybe you can ask at the presscon after the event if the f2f doesn't happen.

I think it will be an awesome event... though the 100 kmph is a dampener. You already got pre-speed link events to attend, so I guess you're excitement is skyrocketing by now. :-P

BTW, any idea about the sequence of events on Sunday?
cargirl is offline   Reply With Quote
Old 9th October 2009, 11:57   #41
Senior - BHPian

Dippy's Avatar

Join Date: Feb 2004
Location: Mumbai, India
Posts: 7,269
Thanked: 163 Times
Default

Quote:
Originally Posted by cargirl View Post
@Rehaan - Don't have any questions in particular for DC, just wanted to know. :-) Maybe you can ask at the presscon after the event if the f2f doesn't happen.

I think it will be an awesome event... though the 100 kmph is a dampener. You already got pre-speed link events to attend, so I guess you're excitement is skyrocketing by now. :-P

BTW, any idea about the sequence of events on Sunday?

@cargirl : Event on Sunday begins with showrun at 2 PM starting from the tool booth end of the Sealink at Bandra. After the run across the Link DC might do some extra stunts for the crowd at reclaimation that is what I know of. Engine start is tomorrow Saturday at 12 noon at the same place. Been observing the setup there for the past few days.

Last edited by Dippy : 9th October 2009 at 11:59.
Dippy is offline   Reply With Quote
Old 9th October 2009, 14:03   #42
BHPian

ambivalent_98's Avatar

Join Date: Jul 2009
Location: Pune-Bangalore
Posts: 758
Thanked: 161 Times
Default

I'm speechless seeing all those pics. Thanks a lot for sharing
ambivalent_98 is offline   Reply With Quote
Old 9th October 2009, 15:28   #43
Team-BHP Support

Rehaan's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 22,381
Thanked: 22,606 Times
Default

Some pics from the monkeycam :

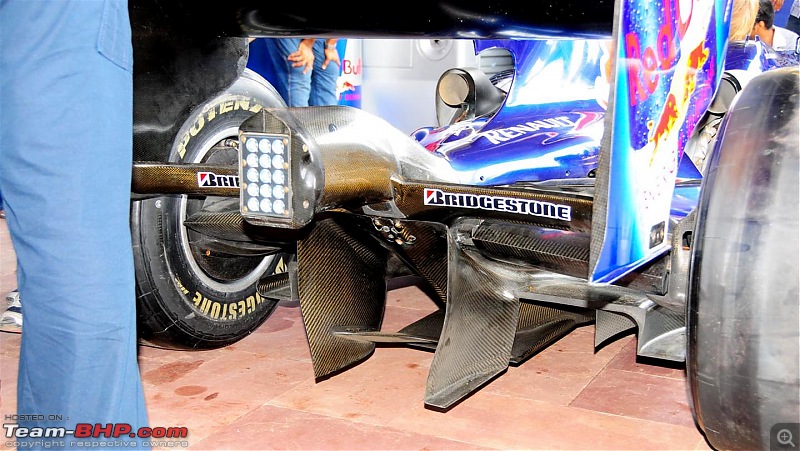

Check out the rear aerodynamics.
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-dsc_7004.jpg



Probably a camera window on the RVM? Though this is not one of the locations of any of the 3 cameras on the show car.
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-dsc_7019.jpg

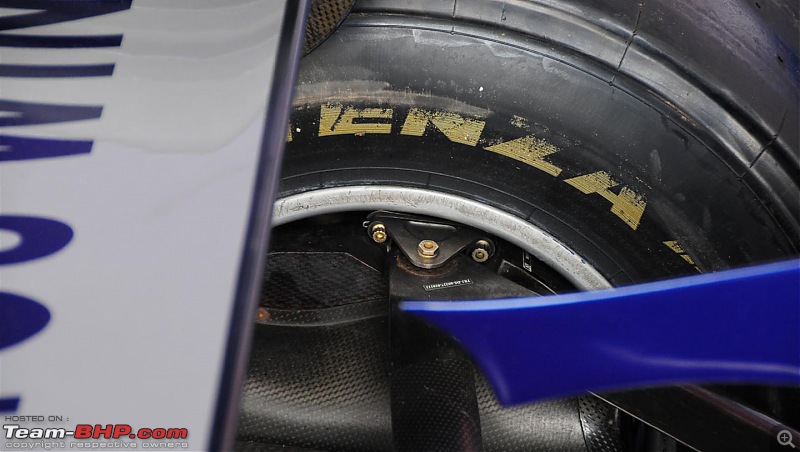

Check out how tight that clearance is at the edge of the rim!
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-dsc_7027.jpg



The hole below is where the external starter shaft goes in. (Starter device shown on pg1)
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-dsc_7028.jpg



Notice how basic the rear wing adjustment is! Currently set for high downforce.
Pics & Video : Red Bull Formula 1 Car Assembly & Engine Fire-up in Mumbai-dsc_7030.jpg


cya
R

Last edited by Rehaan : 9th October 2009 at 15:33.
Rehaan is offline   Reply With Quote
Old 9th October 2009, 15:54   #44
BHPian

cargirl's Avatar

Join Date: Mar 2009
Location: Mumbai
Posts: 35
Thanked: Once
Default

@Dippy- Thanks!

Does anyone here have an idea where we should park if we're going for the event?
cargirl is offline   Reply With Quote
Old 10th October 2009, 01:26   #45
BHPian

dhawcash's Avatar

Join Date: Dec 2008
Location: jaipur
Posts: 124
Thanked: 141 Times
Default

hi everyone,

im really pleased to see such detailed pics of F1 car parts...esp the suspension....
what i dont get is how the arrangement acts as an antiroll bar (the specs state antiroll bar)....what i can guess is that the superstiff dampers (two of them alongside the central spring) prevent rolling....

another thing i havn't been able to figure out is that why are F1 tires so high in profile?

and really amazed to see those super thick brake pads biting into the carbon ceramic brakes

and surprised to see so many rusted parts...(the starter motor supporting tubular structure, apart from those hubs)
