Default Lug nuts - How many do you really need?

I've been wondering about this. What is the advantage having five lug nuts on the wheels instead of the normal four? I saw a Fortuner the other day and it had six! So how exactly do the extra lug nuts help? Sure, if you lose/damage some lug nuts, then the more you have, the better. But other than that, are there any benefits to having more lug nuts?
McLaren Rulez is offline   Reply With Quote
Old 18th April 2010, 00:28   #2
Senior - BHPian

Shan2nu's Avatar

Join Date: Feb 2004
Location: Hubli - Karnata
Posts: 5,525
Thanked: 87 Times
Default

I guess having more lug nuts distributes the force more evenly and reduces the load on each nut. A circular table with 6 legs is more stable than one with 5, 4 or 3.

Shan2nu

Last edited by Shan2nu : 18th April 2010 at 00:30.
Shan2nu is offline   Reply With Quote
Old 18th April 2010, 00:46   #3
Distinguished - BHPian

Nikhilb2008's Avatar

Join Date: Jul 2006
Location: Bangalore
Posts: 4,825
Thanked: 4,803 Times
Default

And this is truer for bigger, heavier vehicles.

The Nano manages with 3.

Most cars like the Swift, Spark, 800, Alto, Wagon R, Esteem, Baleno, Getz, Verna, Lancer, Cedia, Corolla(old), have 4.

Civic, Innova, Laura, Mercs, Beemers, etc have 5. Usually it's a 5-hole 114.3 PCD config. The Germans are a 112 PCD config.

Safari, Scorpio, etc have a 5 hole 160 PCD. The larger PCD helps in distributing the heavier vehicle load evenly I guess.

So, you see from the above, the heavier and bigger a vehicle gets, the more lug nuts it has and in some cases, a bigger PCD.
Nikhilb2008 is offline   Reply With Quote
Old 18th April 2010, 00:51   #4
Distinguished - BHPian

Mpower's Avatar

Join Date: Mar 2005
Location: Bangalore
Posts: 10,432
Thanked: 1,682 Times
Default

& F1 cars have only 1.
Mpower is offline   (2) Thanks Reply With Quote
Old 18th April 2010, 07:16   #5
BHPian

pradipk's Avatar

Join Date: Aug 2008
Location: Bangalore
Posts: 216
Thanked: 21 Times
Default

Quote:
Originally Posted by Mpower View Post
& F1 cars have only 1.
The "Feather Weight" vehicle on the planet.
pradipk is offline   Reply With Quote
Old 18th April 2010, 09:50   #6
Senior - BHPian

vigsom's Avatar

Join Date: Feb 2006
Location: AUH<->MAA
Posts: 1,722
Thanked: 581 Times
Default

as far as I know,the number of lug nuts n bolts depends on:
  • rim diameter
  • load carrying capacity of wheel
vigsom is offline   Reply With Quote
Old 18th April 2010, 11:22   #7
BHPian

rohan_iitr's Avatar

Join Date: Feb 2009
Location: Bangalore
Posts: 992
Thanked: 401 Times
Default

Quote:
Originally Posted by Mpower View Post
& F1 cars have only 1.
That is to minimise the time taken to change the tyre during a race.

Rohan
rohan_iitr is offline   Reply With Quote
Old 18th April 2010, 21:25   #8
Distinguished - BHPian

Mpower's Avatar

Join Date: Mar 2005
Location: Bangalore
Posts: 10,432
Thanked: 1,682 Times
Default

Quote:
Originally Posted by pradipk View Post
The "Feather Weight" vehicle on the planet.
when its standing still. On the move there is a ton (pun not intended) of downforce.

note that it can also pull 6g of lateral load
Mpower is offline   Reply With Quote
Old 18th April 2010, 23:21   #9
Senior - BHPian

clevermax's Avatar

Join Date: Jun 2006
Location: Tvm/Amsterdam
Posts: 1,601
Thanked: 404 Times
Default

Those Volvo buses have more than 6 on each wheels!
clevermax is offline   Reply With Quote
Old 19th April 2010, 00:08   #10
Distinguished - BHPian

Nikhilb2008's Avatar

Join Date: Jul 2006
Location: Bangalore
Posts: 4,825
Thanked: 4,803 Times
Default

Quote:
Originally Posted by Mpower View Post
when its standing still. On the move there is a ton (pun not intended) of downforce.

note that it can also pull 6g of lateral load
Then how can they manage with only one? I mean, is it just because of the high tech, strong materials used in the construction or is there something else?
Nikhilb2008 is offline   Reply With Quote
Old 19th April 2010, 01:13   #11
Senior - BHPian

khoj's Avatar

Join Date: Sep 2008
Location: Dilli
Posts: 2,722
Thanked: 1,253 Times
Default

Quote:
Originally Posted by Mpower View Post
when its standing still. On the move there is a ton (pun not intended) of downforce.

note that it can also pull 6g of lateral load
The materials of construction along with the size of that one nut allow the loads to be evenly distributed over the large cross sectional area. The nuts are torqued to approx 500lb/ft each and to ensure that the nuts do not work themselves loose when the wheels are turning the right hand side of the car uses right-handed threads, the left-hand side of the car left-sided threads.

Edit : Found something related and interesting
http://www.autoevolution.com/news/fe...ges-17062.html

Last edited by khoj : 19th April 2010 at 01:18. Reason: added info
khoj is offline   Reply With Quote
Old 20th April 2010, 16:03   #12
Team-BHP Support

Rehaan's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 22,381
Thanked: 22,610 Times
Default

Quote:
Originally Posted by pradipk View Post
The "Feather Weight" vehicle on the planet.
Its not just F1 cars that use this system. Look at LeMans cars - they use em too. Primary purpose is to speed up tyre changes, though weight savings might also play in its favour depending on construction and materials used.

But why not WRC ?? I guess simply because tyre-change times aren't as important here. (Probably also due to the rules).

On the other hand, there are some "road cars" that use this system too. Take for example the Bugatti EB110 and the Porsche Carrera GT :

Name:  PorscheCarreraRearWheel.jpg
Views: 3694
Size:  106.5 KB
(Red wheel nuts on the LHS, blue on the RHS. Each with threads going in a different direction so as not to undo themselves)

And this isn't some "new technology concept" either. Vintage race cars have used single wheel nuts since many years ago.

Quote:
Originally Posted by vigsom View Post
as far as I know,the number of lug nuts n bolts depends on:
  • rim diameter
  • load carrying capacity of wheel
One more factor could be redundancy! Gets scary on cars like the nano with only 3 nuts!

Quote:
Originally Posted by Nikhilb2008 View Post
Then how can they manage with only one? I mean, is it just because of the high tech, strong materials used in the construction or is there something else?
In addition to materials, its also about the way the load is spread (simple physics, instead of material properties).

Instead of using four smaller bolts to fasten something, you could use a single larger dia (hollow?) bolt which could give you the same strength and load bearing.

The principle applies similarly in a lot of other areas. Eg. Tube frame vs Ladder chassis / table with 4 thin legs vs large central post.

As for spreading the load when a single bolt is used; the bolt is just in tension, its the mounting surface that will probably still be large enough to handle cornering forces and such.


Quote:
Originally Posted by khoj View Post
...large cross sectional area...
^ This is key.

As vigsom said, each bolt can only handle a certain amount of forces based on its diameter. The more force the wheel has to deal with (weight or high-performance driving forces) requires there to be more bolts. Alternatively, larger diameter bolts could be used but that would be less practical than just adding one more bolt.

cya
R

PS - i guess i am saying "bolts" when i should be saying "studs"?

Last edited by Rehaan : 20th April 2010 at 16:07.
Rehaan is offline   (1) Thanks Reply With Quote
Old 20th April 2010, 16:15   #13
Team-BHP Support

Rehaan's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 22,381
Thanked: 22,610 Times
Default

Quote:
Originally Posted by Rehaan View Post
Its not just F1 cars that use this system. Look at LeMans cars - they use em too. Primary purpose is to speed up tyre changes, though weight savings might also play in its favour depending on construction and materials used.
Unlike the majority of a Formula One car's parts, the manufacture of the wheel nut does not have to be a particularly scientific process. Machined in conventional fashion from a block of steel, Jordan have used the same simple nut design since 1997.
Source (Its an article from 2003, so don't know how true it stands today)

Quote:
Originally Posted by Rehaan View Post
And this isn't some "new technology concept" either. Vintage race cars have used single wheel nuts since many years ago.

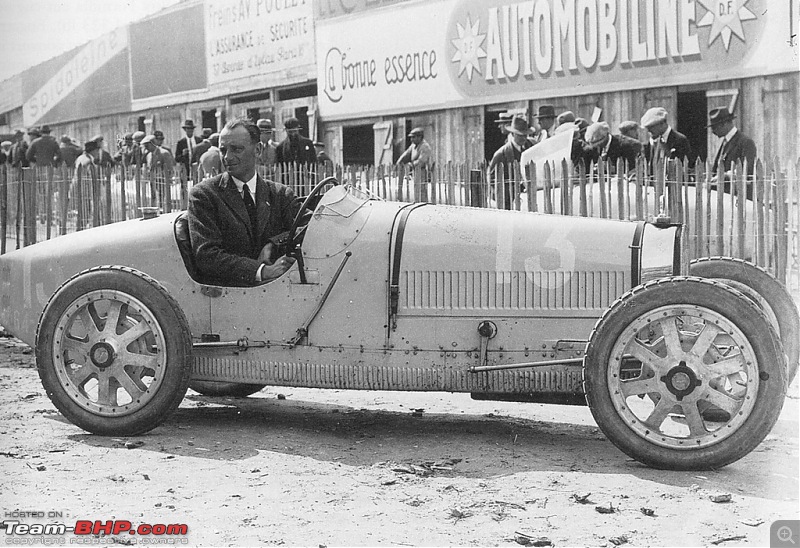

Here you go. A Bugatti from the 1920s :

Lug nuts - How many do you really need?-192420french20gp20lyons2020bugatti20type2035202litre208cyl20sc.jpg
Source

^ Check out the ALLOYS as well!

cya
R
Rehaan is offline   (1) Thanks Reply With Quote
Old 20th April 2010, 21:58   #14
Distinguished - BHPian

Mpower's Avatar

Join Date: Mar 2005
Location: Bangalore
Posts: 10,432
Thanked: 1,682 Times
Default

Quote:
Originally Posted by Nikhilb2008 View Post
Then how can they manage with only one? I mean, is it just because of the high tech, strong materials used in the construction or is there something else?
Its sole purpose is for quick pitstops. Having 5 fasteners is optimum to get a good clamp load. Like someone said, the torque is 5 times higher.

I've also seen racing conversion kits where you replace 5 lugs with one center nut. They replace lugs with dowel pins for piloting and anti rotate feature.
Mpower is offline   Reply With Quote
Old 3rd May 2010, 09:24   #15
Newbie

Crazygoan's Avatar

Join Date: Mar 2010
Location: Goa
Posts: 2
Thanked: 0 Times
Default

Hi...not sure if I'm on the right thread, but I want to change the lug nuts on my Chevy Cruze LTZ AT. Do I use 12x1.25 or 12x1.5? Please advice. Thanks!
Crazygoan is offline   Reply With Quote
