Thumbs up How to Jump Start your car (dead battery)

Guide: How to jump start your car!

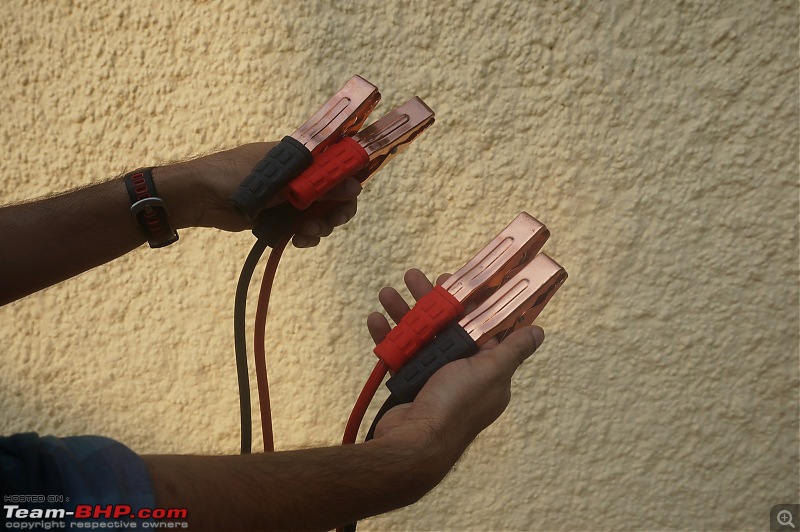

Booster cables:
How to Jump Start your car (dead battery)-1.jpg
How to Jump Start your car (dead battery)-3.jpg

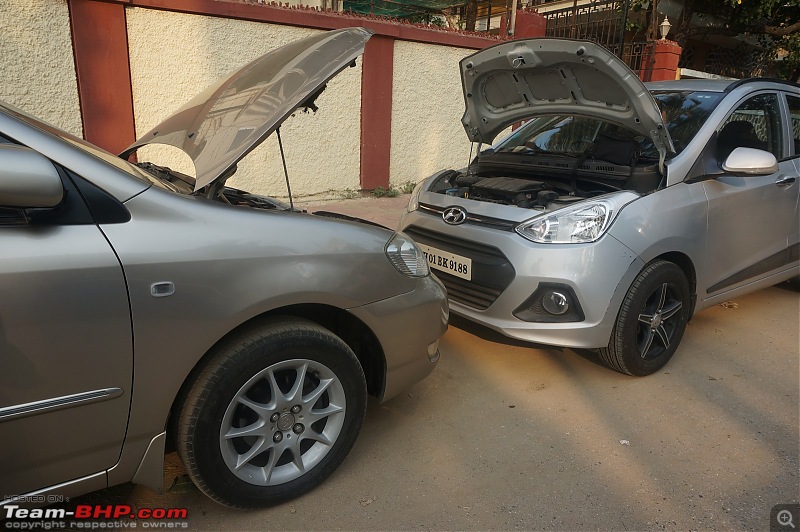

#1 - Position the dead car and booster car such that the ends of the booster cable can easily reach their battery terminals. Ensure that both cars are in neutral and have their handbrakes engaged:
How to Jump Start your car (dead battery)-2.jpg

#2 - Connect the red cable to the positive terminal of the battery of the dead car:
How to Jump Start your car (dead battery)-4.jpg
How to Jump Start your car (dead battery)-5.jpg

#3 - Connect the other end of the red cable to the positive terminal of the battery of the booster car:
How to Jump Start your car (dead battery)-6.jpg

#4 - Connect the black cable to the negative terminal of the battery of the booster car. IMP - The red & black alligator metal clips should NOT touch each other:
How to Jump Start your car (dead battery)-7.jpg

#5 - Connect the other end of the black cable to an unpainted metal surface (such as a bolt) in the engine bay of the dead car:
How to Jump Start your car (dead battery)-8.jpg
How to Jump Start your car (dead battery)-9.jpg

#6 - Ensure that the cables won't get entangled with any moving part once the engines start. Then, start the engine of the booster car and let it idle for 60 seconds:
How to Jump Start your car (dead battery)-10.jpg

#7 - Start the engine of the dead car and let it idle. If the dead car’s battery has gone totally flat, it can take a while before it garners enough strength to be able to crank the engine:
How to Jump Start your car (dead battery)-11.jpg

#8 - Disconnect the black cable from the dead car

#9 - Disconnect the black cable from the booster car

#10 - Disconnect the red cable from the booster car

#11 - Disconnect the red cable from the dead car
