VW Polo DIY: Adding a boot lamp!

The VW Polo sold in India lacks a lamp in the boot whereas the one sold overseas gets one. Cost cutting? You bet!

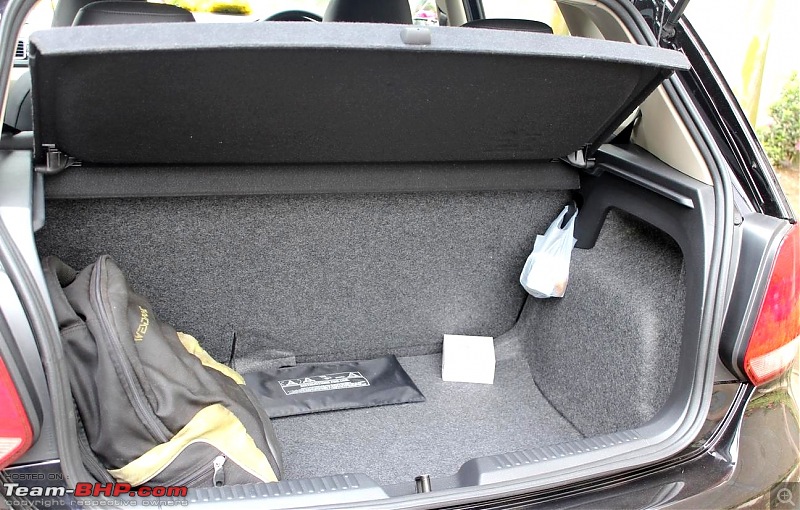

This is the boot compartment of the Polo sold in India:

VW Polo DIY: Adding a boot lamp!-img_2877.jpg

And this is the boot of the Polo sold overseas:

VW Polo DIY: Adding a boot lamp!-polo9_960.jpg
(Source: Google Images)

They get an even better boot floor with a latch and anchoring hooks on either side to secure the luggage. One variant gets an additional 12V socket as well. We can only hope VW India includes these in the next generation MQB Polo when it is sold here. A light in the boot compartment is an essential equipment and helps during midnight pick ups and drops.

Parts Required:

Parts with the part numbers and the quantity follows:

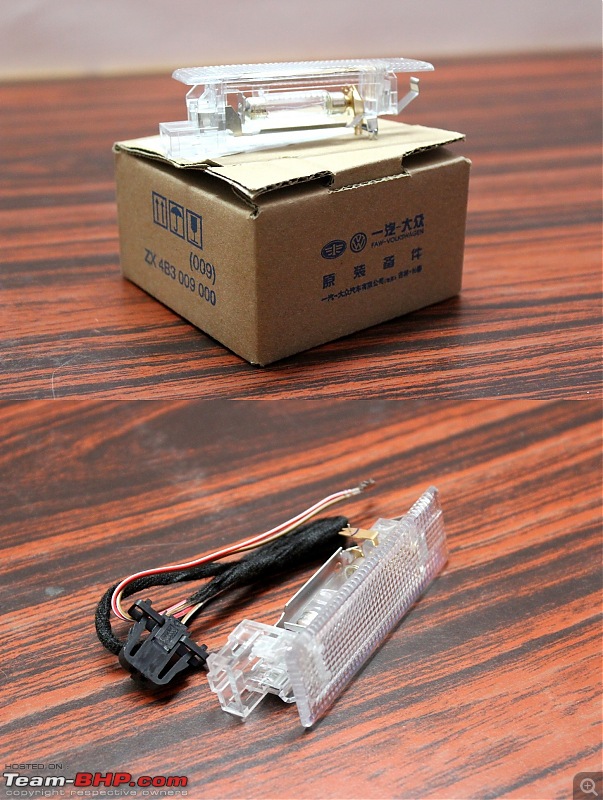

1. Boot light - 1KD 947 101A - 1 no.

VW Polo DIY: Adding a boot lamp!-bl1.jpg

The light ships with a 43 mm festoon bulb. I replaced it with an equivalent festoon LED.

2. Terminal - 000 979 131 - 2 nos.

VW Polo DIY: Adding a boot lamp!-557bg2s960.jpg

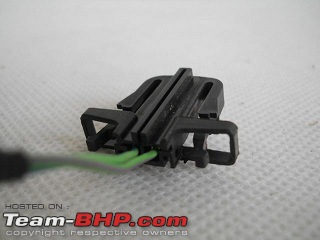

3. Connector - 3B0 972 702 - 1 no.

VW Polo DIY: Adding a boot lamp!-eng_pl_connectorcontactvwaudiskodaseat3b097270215292_2.jpg

4. Wire - 1.25 sq. mm, Qty - 6 m

OR

Just get the harness from Aliexpress (they sell 4 for 10 USD or so) - cheaper than the individual components and saves time from crimping.

5. Heat shrink sleeve - 2 mm, Qty - 2 m.

6. Flexible metal cable - 3 m, Qty - 1 no. Available at hardware stores, this flexible cable is used to pull the harness and route it through the headliner and plastic trims.
Tools Required:
1. Dremel/rotary tool with the plastic cut-off wheel.

2. T20 Allen key/hex bit or equivalent Torx. bit.

3. Heat gun.

4. Soldering iron.

5. Utlity knife like the Stanley 10-175 (image).

6. Solder.

7. Flux.

8. Crimping tool (if the components are purchased separately).

9. Safety goggles (must-have during the cutting operation!).

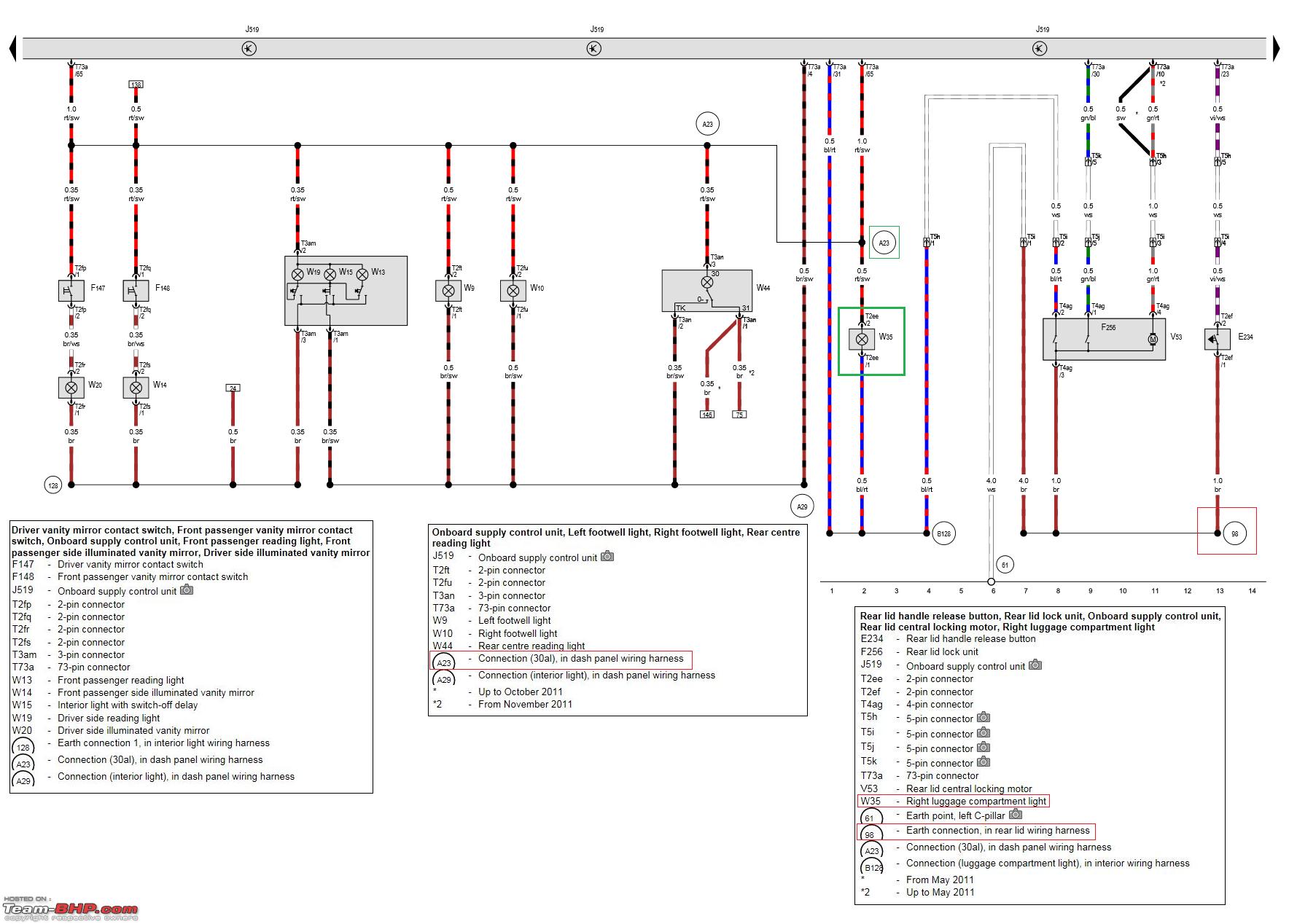

Wiring schematic:

VW Polo DIY: Adding a boot lamp!-bl3.png

The lamp is connected to the door-open signal of the cabin light so it turns on the light when any of the door is open. If the car is locked and the boot-open button on the keyfob is pressed, it turns on the light as well.

Procedure:
1. We need to prepare the harness before heading to the car.
a. If the components (terminals, connector and wire) were sourced separately, crimp the terminal with the wire (each wire cut into 2 pieces of 3 m length) and insert them into the 2 slots of the connector.

b. If the ready-made harness was purchased from Aliexpress, simply extend the 2 ends by soldering the wires and heat-shrink the soldered joints.
VW Polo DIY: Adding a boot lamp!-wp_20150607_10_58_52_pro.jpg

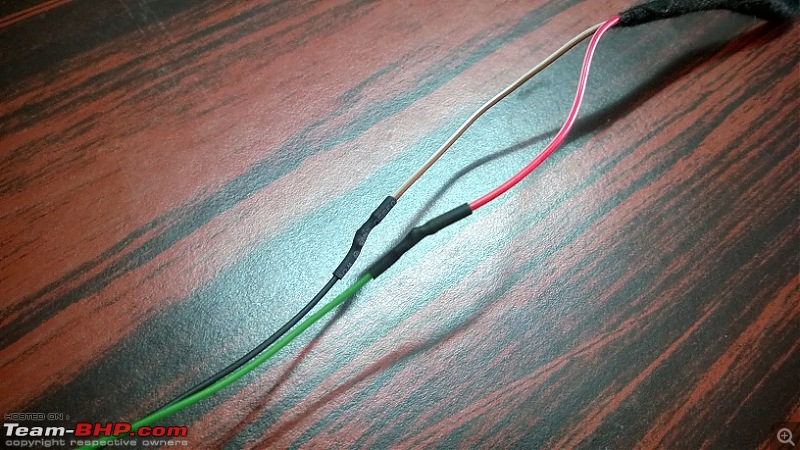

To keep the 2 independent long cables together, use pieces of heatshrink tubing at definite pitches.

2. Head to the car with the necessary tools, boot light and the harness. Pry open the cabin light's diffuser lens and undo the 2 T20 Torx screws. Pull the cabin light down. Refer this link for details.

I had swapped the stock cabin light with the one having 2 reading lights, a central festoon light and the mic slot. I had also soldered 3 cables to the copper traces on the lamp to tap 12V for the footwell lights (door open signal) and auto-dimming mirror (permanent 12V signal).

3. Tie the harness with the flexible metal cable to route it. For the 2 free ends of the harness, simply wrap it with the cable and make a knot. Tie the connector end as shown below:

VW Polo DIY: Adding a boot lamp!-img_0270.jpg

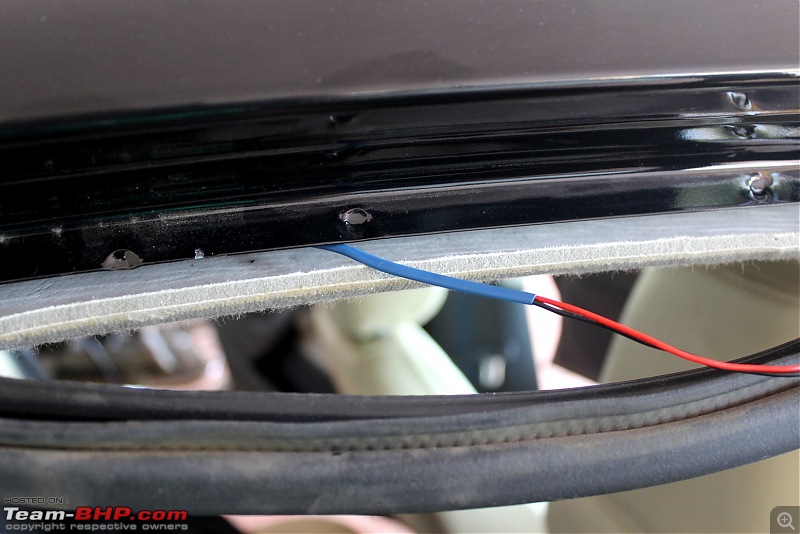

4. Open the driver side door and pull the rubber beading at the top.

VW Polo DIY: Adding a boot lamp!-img_0276.jpg
(Image shown above is of the rear right door)

The beading exposes a small gap between the headliner and the ceiling. Push the knot-end of the harness through this gap and pull it through the cabin light slot. The connections can be done later.

5. Open the door behind the driver-side and pull out the beading at the top. Push the connector-end of the harness from the driver-side to the passenger-side and pull it out.

VW Polo DIY: Adding a boot lamp!-img_0273.jpg

6. Open the boot and pull out the headliner trim. It comes off with bare hands - no prying tools needed.

VW Polo DIY: Adding a boot lamp!-img_0267.jpg

Push the connector-end from the passenger-side door beading gap, towards the rear-trim gap and pull it out.

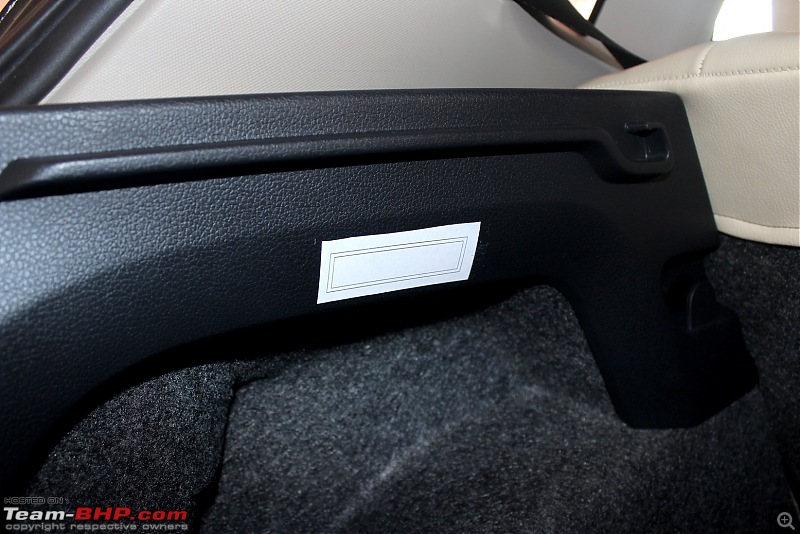

7. Using a 1:1 template of the required cutout (dimensions - 72 mm x 20 mm) on a printed paper, paste the cut template on the C-pillar bottom trim:

VW Polo DIY: Adding a boot lamp!-img_0263.jpg

Note that there is a 2 mm offset on the cutout which is where we intend to use the cut-off wheel to permit some clearance for the final touches.

8. Pull out the boot lining below the trim before beginning the cutting process.

VW Polo DIY: Adding a boot lamp!-img_0268.jpg

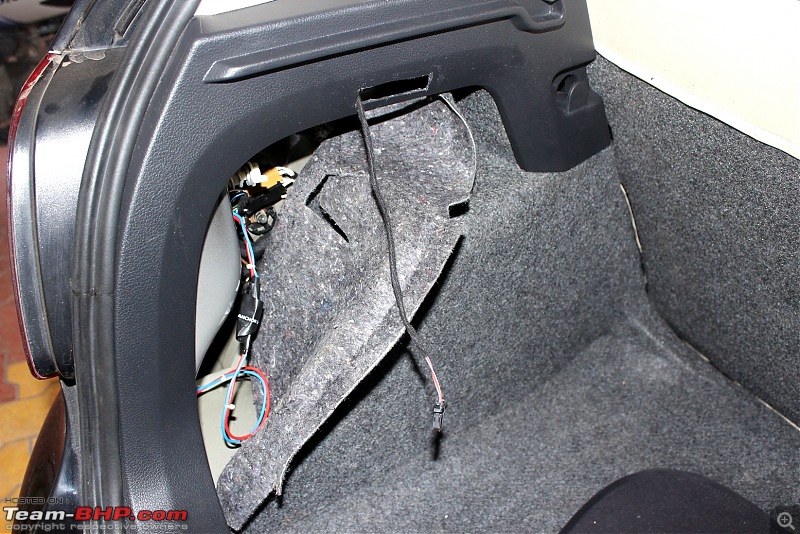

Use the Dremel/rotary tool with the plastic cut-off wheel to make the cutout. I used the 35000 rpm mode on the Dremel and it cut through the plastic like a hot knife through butter, but it was throwing the plastic bits all over the place so please wear safety goggles while attempting this. The utility knife can be used but is a time consuming process - I'd recommend the knife to finish/smoothen the cut edges.

VW Polo DIY: Adding a boot lamp!-img_0277.jpg

Insert the lamp and check if the cutout is adequate. A tight fit is perfect but a larger cutout and the lamp will not sit perfectly and will begin moving around! Exercise caution while cutting and do it S-L-O-W-L-Y, one step at a time.

9. Pry open the C-pillar trim using the hand at the top - there's no need to pull it out completely!

VW Polo DIY: Adding a boot lamp!-img_0269.jpg

Push the connector-end of the harness to the gap between the body and the C-pillar, and route it towards the trim where the cutout was made.

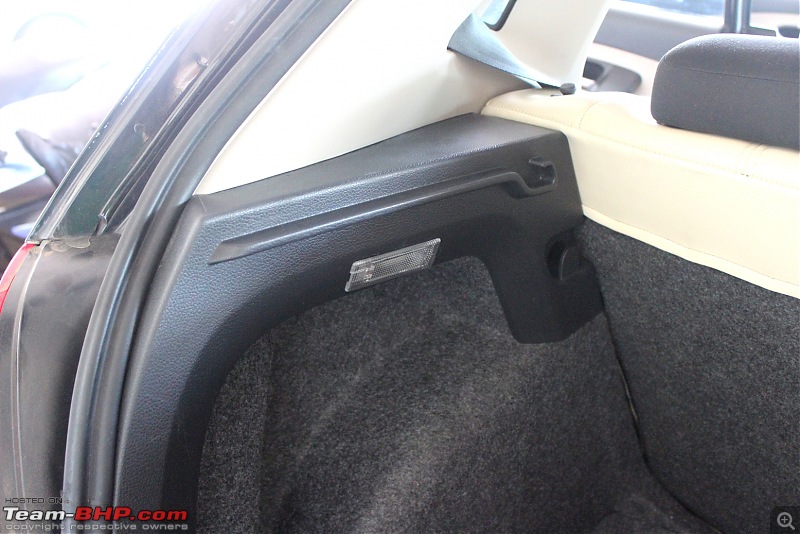

10. Plug the connector to the lamp and insert it into the slot.

VW Polo DIY: Adding a boot lamp!-img_0281.jpg

11. Connect the 2 bare ends to the luster terminal where the door-open signals trigger the cabin lamp.

VW Polo DIY: Adding a boot lamp!-img_0286.jpg

Check if the boot lamp lights up. If it's a bulb, polarities do not matter. Else you may have to reverse the festoon LED at the lamp OR reverse the terminals of the harness.

12. Replace the C-pillar trim, the boot trim at the top and the rubber beadings of the doors. None of these need any tools whatsoever. Just give the trims a solid knock once they are in place to ensure the V-clips lock in their respective slots. Screw the cabin light back in place and replace the diffuser lens. Test the light by locking the car and unlocking the door and the boot using the keyfob.
Results:

VW Polo DIY: Adding a boot lamp!-bl2.jpg

Thank you for reading!

Last edited by Gannu_1 : 29th June 2015 at 10:37.
Gannu_1 is offline   (65) Thanks
Old 30th June 2015, 13:27   #2
GTO
Team-BHP Support

GTO's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 70,335
Thanked: 298,733 Times
Re: VW Polo DIY: Adding a boot lamp!

Thread moved from the Assembly Line to the Modifications Section. Thanks for sharing!
GTO is offline
Old 30th June 2015, 15:36   #3
Senior - BHPian

Join Date: Jun 2015
Location: KA01
Posts: 1,226
Thanked: 2,694 Times
Re: VW Polo DIY: Adding a boot lamp!

Wonderful solution to a very conspicuous omission by VW in India, superb execution to OEM standards! Hope VW reads this thread and are prompted into action
GeeTee TSI is offline   (1) Thanks
Old 1st July 2015, 02:39   #4
BHPian

delta5's Avatar

Join Date: Sep 2011
Location: TN 23
Posts: 202
Thanked: 127 Times
Re: VW Polo DIY: Adding a boot lamp!

Quote:
Originally Posted by Gannu_1 View Post
The VW Polo sold in India lacks a lamp in the boot whereas the one sold overseas gets one. Cost cutting? You bet!

Thank you for reading!

Yet another gem of a DIY Ganesh, Splendid!
The lengths you go to document all the parts and listing required tools, yet another 5-star thread. I always wanted the boot lamp for my Polo GT as well, I tried couple of Chinese LED stick ons, it didn't work out well, they get switched on by itself and drain the Duracells quickly.
I am thinking of using my original interior light, which is lying idle after I bought the one with map reading lamps, as a boot lamp. I haven't thought this through, but my idea is to mount it under the parcel tray and hook it up to the actual cabin lamp. While mounting it shouldn't be a problem, it's the cable works that's the problem, can't do discrete for this setup. And I would also like to remove my parcel shelf quickly as I carry my bike in the car at times.
Any suggestions on how to go about this? Or should I copy your DIY?
Thanks,
D.
delta5 is offline   (1) Thanks
Old 1st July 2015, 10:54   #5
Senior - BHPian

funkykar's Avatar

Join Date: Oct 2008
Location: Bengaluru
Posts: 2,635
Thanked: 6,595 Times
Re: VW Polo DIY: Adding a boot lamp!

Very detailed and cleanly executed.

On my Palio, I had done a not so clean DIY by pulling a line parallel from the cabin light along with the speaker wires which were already installed during ICE time. Only negative was, one of the doors needed to be open for the boot to light up.
funkykar is offline   (1) Thanks
Old 2nd July 2015, 14:01   #6
BHPian

Join Date: Jun 2015
Location: Warwick
Posts: 40
Thanked: 36 Times
Re: VW Polo DIY: Adding a boot lamp!

Brilliant DIY write up with clear instructions..

It is sad that brands like VW don't provide some basic thing like these in Indian market.

We had problems with our Polo TDi
- lack of under- body protection which 'eventually' led to oil starvation and engine seizure
- loose exterior trim, keeps falling..
- Equipment level is poor compared to rest of the vehicles in the same segment.

Looking forward for more DIY write ups..
autodoctor is offline   (1) Thanks
Old 4th July 2015, 16:29   #7
BHPian

Join Date: May 2015
Location: Navsari
Posts: 84
Thanked: 54 Times
Re: VW Polo DIY: Adding a boot lamp!

Quote:
Originally Posted by Gannu_1 View Post

The light ships with a 43 mm festoon bulb. I replaced it with an equivalent festoon LED.
A brilliant DIY Ganesh, like always. I bet even doctors don't operate on patients with such dedication like you work on your Polo.
From where did you buy the 43mm festoon LED? Can you please share the link. I am planning to replace yellow bulbs with LEDs in cabin, boot and foot-well lights.
chintu_91 is offline   (2) Thanks
Old 30th July 2015, 21:30   #8
BHPian

sunilsoft's Avatar

Join Date: Feb 2014
Location: Mohali
Posts: 261
Thanked: 236 Times
Re: VW Polo DIY: Adding a boot lamp!

WoW, Gannu_1 you are the guru of DIY installs here. Please mention the aliexpress link for buying harness.
I came across vagtune.in website they are offering electric foldable mirrors for Rs. 35990.
Is it worth the amount?
sunilsoft is offline
Old 6th February 2019, 11:21   #9
BHPian

sunilsoft's Avatar

Join Date: Feb 2014
Location: Mohali
Posts: 261
Thanked: 236 Times
Re: VW Polo DIY: Adding a boot lamp!

Gannu Bhai,

I want to connect the trunk light to the bcm. Just wanted to know that the power wire will come from T73a/65 pin.

For Ground wire can we use any nut or metal contact point?

Where is connection 98 rear lid located.

Last edited by sunilsoft : 6th February 2019 at 11:28. Reason: update
sunilsoft is offline
Old 6th February 2019, 11:25   #10
BANNED

Join Date: Dec 2007
Location: Gurugram
Posts: 7,969
Thanked: 4,786 Times
Re: VW Polo DIY: Adding a boot lamp!

@Gannu_1; excellent implementation.
sgiitk is offline   (1) Thanks
Old 13th February 2019, 12:22   #11
Team-BHP Support

Gannu_1's Avatar

Join Date: Apr 2013
Location: Madras
Posts: 7,169
Thanked: 20,185 Times
Re: VW Polo DIY: Adding a boot lamp!

Quote:
Originally Posted by sunilsoft View Post
Just wanted to know that the power wire will come from T73a/65 pin.
That's the same as the cabin light's 'always on' positive signal coming from T73a/65. I have tapped it from there instead of the BCM.

Quote:
Originally Posted by sunilsoft View Post
For Ground wire can we use any nut or metal contact point?
Yes. Prefer a nut but crimp the cable end using an appropriate ground/earth crimp terminal and use the nut or bolt to secure it.

Quote:
Originally Posted by sunilsoft View Post
Where is connection 98 rear lid located.
Inside the boot lid's trim. Instead, remove the boot's interior cladding on the left side and you'll notice a nut there. Use that as the GND connection.
Gannu_1 is offline   (1) Thanks
Old 8th March 2019, 20:41   #12
Newbie

archbishopofbhp's Avatar

Join Date: Feb 2019
Location: Kolkata
Posts: 23
Thanked: 69 Times
Re: VW Polo DIY: Adding a boot lamp!

Volkswagen should sponsor you for all your awesome DIY stuff! Its truly amazing to see mods for nearly every aspect of a Polo posted by you!
archbishopofbhp is offline
Old 7th February 2020, 12:08   #13
Senior - BHPian

dkaile's Avatar

Join Date: May 2011
Location: Meerut, India
Posts: 3,352
Thanked: 7,435 Times
Re: VW Polo DIY: Adding a boot lamp!

Thanks. Did a similar install on my Baleno Sigma 2020. The post is here - https://www.team-bhp.com/forum/offic...ml#post4741622 (Maruti Baleno : Official Review)


VW Polo DIY: Adding a boot lamp!-baleno-interior-cabin-led-29012020_4.jpg


VW Polo DIY: Adding a boot lamp!-baleno-interior-cabin-led-29012020_5.jpg


VW Polo DIY: Adding a boot lamp!-baleno-interior-cabin-led-29012020_6.jpg


Cheers...
dkaile is offline   (2) Thanks
Old 8th February 2020, 23:05   #14
Newbie

debashishsen26's Avatar

Join Date: Oct 2019
Location: Bhopal
Posts: 9
Thanked: 27 Times
Re: VW Polo DIY: Adding a boot lamp!

Thanks for such amazing write-ups which makes these DIYs seem so easy.

Ordered the boot light recently during the AliExpress 11.11 day sale. Adding the link below:
https://www.aliexpress.com/item/3281...27424c4dwiT4kw

Seller: NEWM Autolight Store
Amount Paid: Rs 450

The shipment arrived in 20 days. It already had LEDs.

VW Polo DIY: Adding a boot lamp!-img_5387.jpg

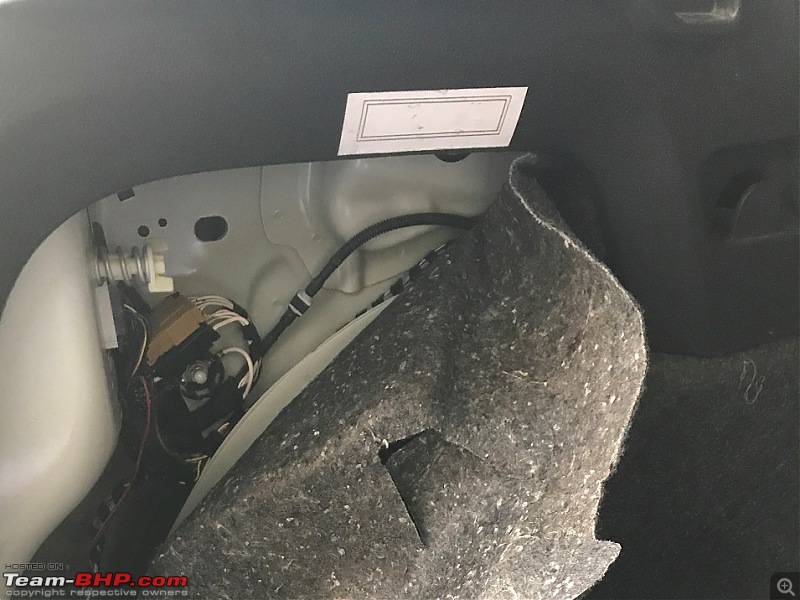

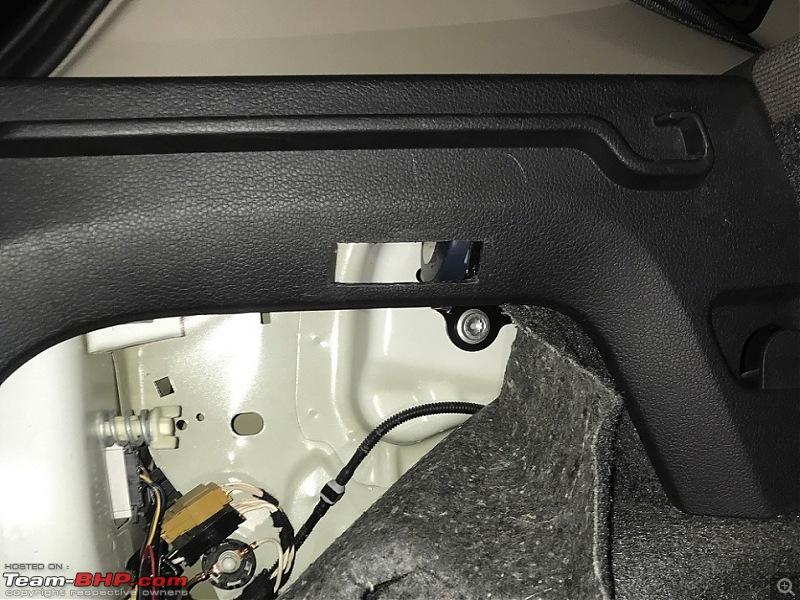

Followed this write up word-to-word and it turned out to be a perfect job.

VW Polo DIY: Adding a boot lamp!-img_5449.jpg

VW Polo DIY: Adding a boot lamp!-img_5451.jpg


The final result:

VW Polo DIY: Adding a boot lamp!-img_5452.jpg

Last edited by debashishsen26 : 8th February 2020 at 23:33.
debashishsen26 is offline   (2) Thanks
Old 4th June 2020, 00:26   #15
BHPian

Join Date: Nov 2019
Location: Kochi
Posts: 104
Thanked: 186 Times
Re: VW Polo DIY: Adding a boot lamp!

Hi Gannu_1,
Thanks for the great guide. But if one wanted to turn the light on only when the boot is open, would it be a good idea to run an LED strip in parallel to the boot status switch? I'm concerned about driving the LED strip off a connection that's meant for a sensor. Would it be a better idea to get a fuse tap from the fuse box, run a wire to the boot and use it to power the LED strip, with the boot status switch used only as a switch and not a power source?
