Default DIY: Repairing the Power Window buttons

On a lazy Saturday morning what normal people do - drink tea, take nap, watch television etc, what BHPians do - DIY.

And the idea for the DIY comes after reading so many topics on this wonderful forum and after getting stupid replies from ASS. My Tata Vista 2012 model has completed around 65000 kms so far. Apart from few minor issues the car is serving me well and has never betrayed me. So last week I had sent my vehicle to TASS in Meerut, UP. Issues I reported to them were clutch being hard and rear power windows on the driver side panel stopped working. The buttons for front power windows were working absolutely fine but rear ones were giving troubles as the window would roll down but won't roll up. To close the rear windows I had to use the buttons on the rear door itself.

Service advisor called me up in the afternoon that the clutch has been replaced and the complete panel of the power window buttons has to be changed as it is not working. The cost he mentioned was around 4000/- for the panel. I refused and mentioned that I will get replaced on the next visit. So today morning while cleaning the car I thought why not try some DIY.

And here are the pics-

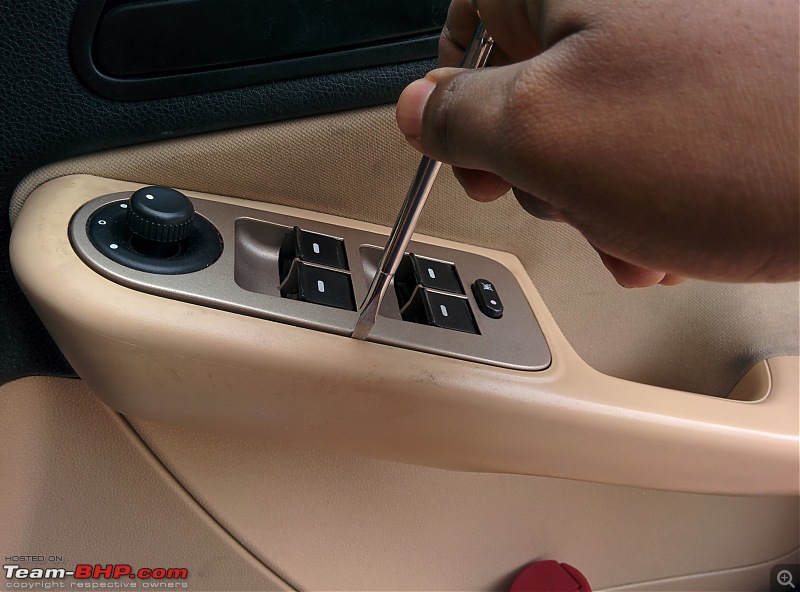

Removing the panel
DIY: Repairing the Power Window buttons-pry-panel-out.jpg
DIY: Repairing the Power Window buttons-pry1.jpg

Side View of the complete panel after removing from the housing. Broke one of the clips though. and for all the Sherlock Holmes - Yes I do keep my Shaver and Pass Pass (mouth freshener) in my car.
DIY: Repairing the Power Window buttons-panel-side.jpg

Connector removed
DIY: Repairing the Power Window buttons-connection-removed.jpg

Buttons housing separated from the main housing.
DIY: Repairing the Power Window buttons-buttons-panel-removed.jpg

Side view of the buttons housing. Marked in the red are the clips that are to be opened.
DIY: Repairing the Power Window buttons-side-view-panel.jpg

Buttons completely removed
DIY: Repairing the Power Window buttons-opened-panel.jpg

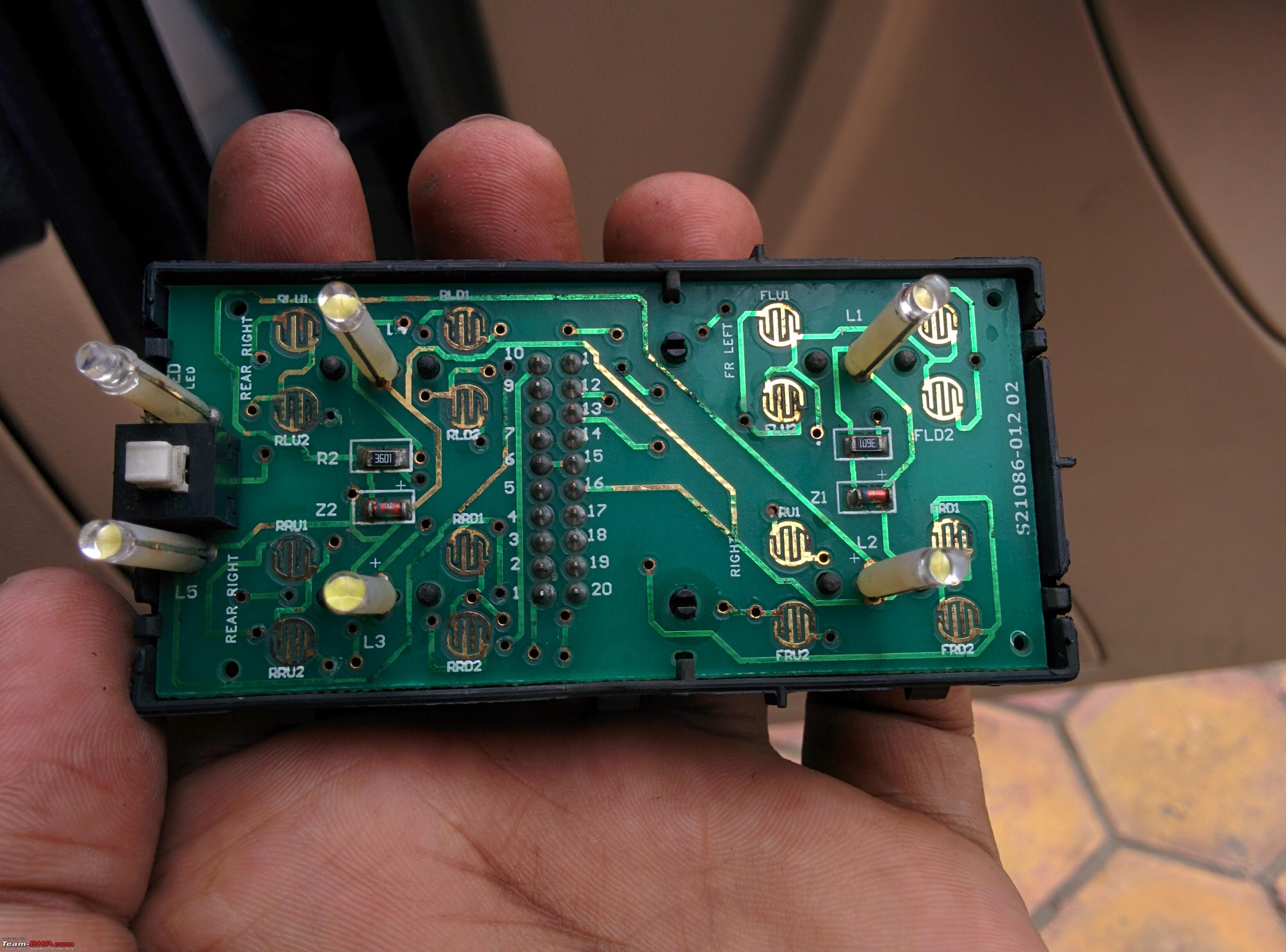

DIY: Repairing the Power Window buttons-panel-rubber-removed.jpg

Circuit plate front & Back (forgot to take before and after pics)
DIY: Repairing the Power Window buttons-panel-front.jpg

The closing is simply reversing the steps. As they say carbon on the circuit which I cleaned using an old tooth brush and after shave lotion. The complete thing took only around 20 minutes right from opening to reassembling and the buttons are working fine now.
