Default DIY: Bench power supply using a computer's ATX SMPS

I wanted a source of 12V power at home that could output at least 4-5 A to do some testing with bulbs, HID ballasts, head units etc. before proceeding to install it in the car (helps in troubleshooting DOA components). While researching on the internet, I read about these old discarded computer power supplies (SMPS) being converted to bench power supplies which could output +12 V, +5 V and +3.3 V and it was a fairly simple process.

Fortunately, I had a spare 450W power supply stashed somewhere after I sold off my NAS system (Network Attached Storage). Not sure why this power supply remained unsold but now I am glad it didn’t all this while! I made one when I found some spare time during a weekend.

DIY: Bench power supply using a computer's ATX SMPS-img_5765.jpg

This way, I wouldn’t have to go to the car in the basement parking and pry open the fuse box trim every time I intend to test some new component.

Parts required:
  1. Computer power supply/SMPS with the 230 V power cable. I used a Corsair 450W power supply which had an output of 34A on the +12V rail.

    DIY: Bench power supply using a computer's ATX SMPS-img_20170805_234809.jpg

    Name:  IMG_20170805_234914.jpg
Views: 5824
Size:  147.0 KB

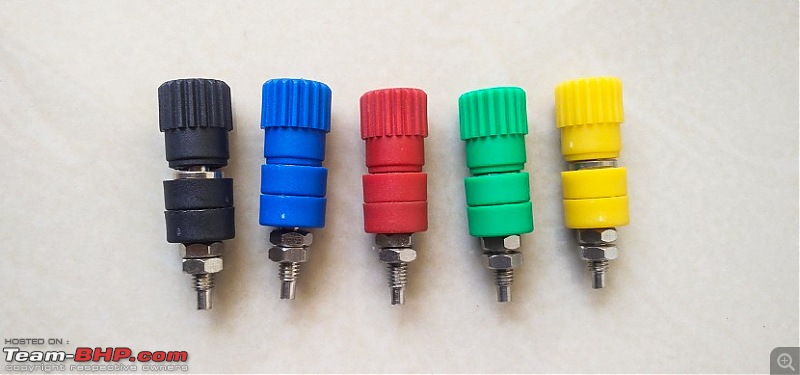

  2. Binding posts - 4 nos. of various colors for the +3.3V, +5V, +12V and GND. I got these from a local outlet that deals with electronic components. You can get them in various sizes too – I chose a larger size.

    DIY: Bench power supply using a computer's ATX SMPS-img_20170903_122053.jpg

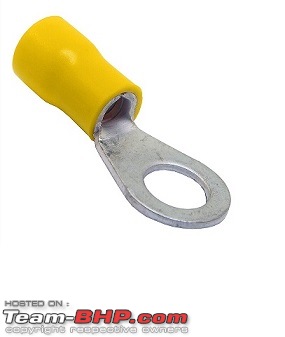

  3. Ring terminals - 4 nos. of medium size. The terminal would be inserted into the binding post thread so choose the size depending on the binding post.

    Name:  Ring terminal.jpg
Views: 5832
Size:  19.3 KB
    (Image source: Google Images)

Tools required:
  1. Soldering iron

  2. Solder spool

  3. Heat shrink sleeve - 8 mm dia, 300 mm length

  4. Wire cutter/stripper

  5. Cutting pliers

  6. Phillips head screw driver

  7. Cable ties – 4 inch, 12 nos.

  8. Center punch

  9. Drilling machine with a HSS drill bit (choose the size of the bit based on the binding post thread dia.)

  10. Screw driver/ratchet with hex. socket

  11. Crimping tool

  12. Heat gun

  13. Digital multimeter (DMM)

Warning:

Although the track side of the PCB is not accessed in this DIY, I should put up this warning for anyone who's planning to remove the PCB from the unit.

Power supplies have large filter capacitors that store electrical energy for a long duration even after the unit is turned off. This can give a nasty shock if you end up touching the terminals accidently without discharging them!

I would recommend using a 60W bulb to discharge them before attempting to work on the power supply – attach the bulb to a bulb holder, use the two wire ends to connect to the cap’s leads and the illuminating bulb would slowly fade away discharging the cap. Shorting the terminals isn’t recommended since it will result in a big spark and can damage the PCB’s tracks in the process.

Procedure:
  1. Before attempting to convert a discarded PSU to a bench power supply, test if the PSU is working. Plug the 230 V cable to the socket and turn it on. Using a bare wire or a paper clip, insert one end on pin #16 with the green colored cable (PS_ON#; highlighted below) and the other end to any of the pins with a black colored cable (GND) on the 24 pin connector:

    Name:  24 pin.png
Views: 5828
Size:  91.6 KB
    (Image source: Corsair)

    With a paper clip inserted in pin #15 and #16:
    Name:  3652.ATX.JPG
Views: 5809
Size:  76.2 KB
    (Image source: Google Images)

    The fan inside the PSU should spin if the unit is working.

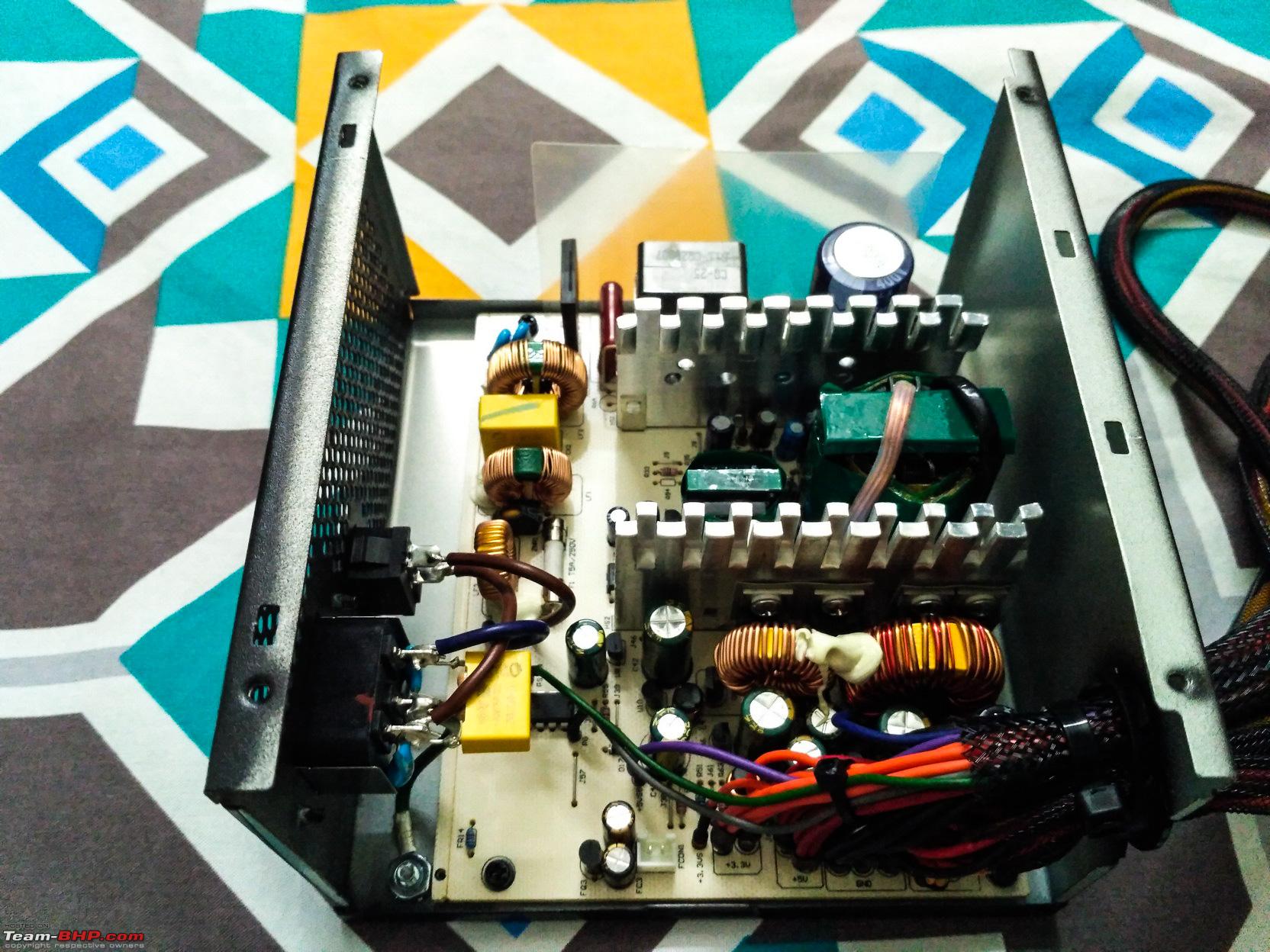

  2. Unscrew the top panel of the power supply:

    DIY: Bench power supply using a computer's ATX SMPS-img_20170806_003251.jpg

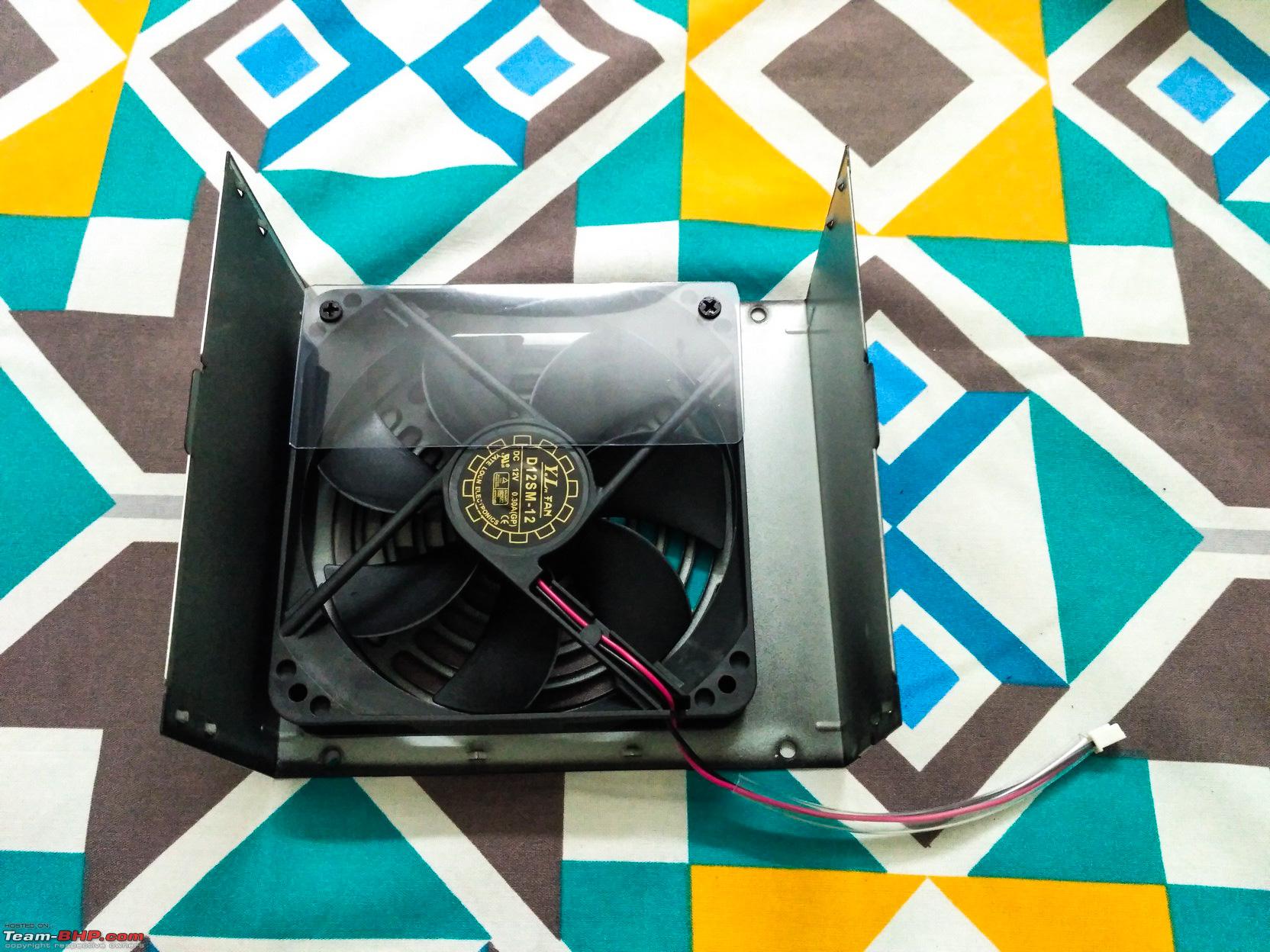

    If there’s a 120 mm fan on the top panel, disconnect the 2-pin connector from the PCB and remove the panel:

    DIY: Bench power supply using a computer's ATX SMPS-img_20170806_004104.jpg

  3. Trim the output cables from the power supply using the pliers.

    DIY: Bench power supply using a computer's ATX SMPS-img_20170806_003825.jpg

    Don’t throw away the cables – they can be reused for those odd jobs.

  4. Cut the cable ties inside the unit carefully and remove any sleeves:

    DIY: Bench power supply using a computer's ATX SMPS-img_20170806_004342.jpg

  5. All power supplies use a standard color coding for the cables for different voltages:

    Yellow - +12 V
    Orange - +3.3 V
    Red - +5 V,
    Black - GND,
    Green – PS_ON#

    Snip the remaining unwanted cables from the PCB using the wire cutter and trim the length of the remaining cables to 80-100 mm (while closing the top cover towards the end, bending the bunch of cables can be a pain).

    For each binding post, 4-5 cables are more than sufficient. The rest of them can be snipped at the PCB. Bundle the wires of the same color and tie them using the cable ties:

    DIY: Bench power supply using a computer's ATX SMPS-img_20170806_111043.jpg

  6. The green cable is a single cable which is used to turn on the DC side of the power supply. Solder it to the GND terminals or connect it to a black wire from the bunch. I've soldered it to the GND terminals on top of the PCB:

    DIY: Bench power supply using a computer's ATX SMPS-img_5015.jpg

  7. Using the center punch, mark the center of the holes on the top cover where the binding posts are to be fixed:

    DIY: Bench power supply using a computer's ATX SMPS-img_20170903_124731.jpg

    Take special care if there’s a fan mounted on the top panel. The gap between the edge of the fan and the power supply will be less leaving little space for the binding posts. Unscrew the fan after marking the center points.

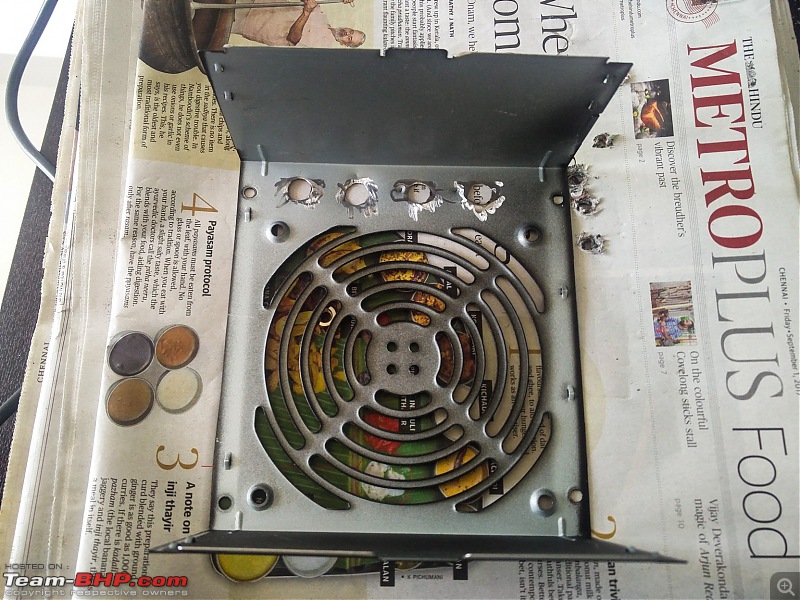

  8. Drill the holes at the marks using the drilling machine:

    DIY: Bench power supply using a computer's ATX SMPS-img_20170903_132403.jpg

    DIY: Bench power supply using a computer's ATX SMPS-img_20170903_132416.jpg

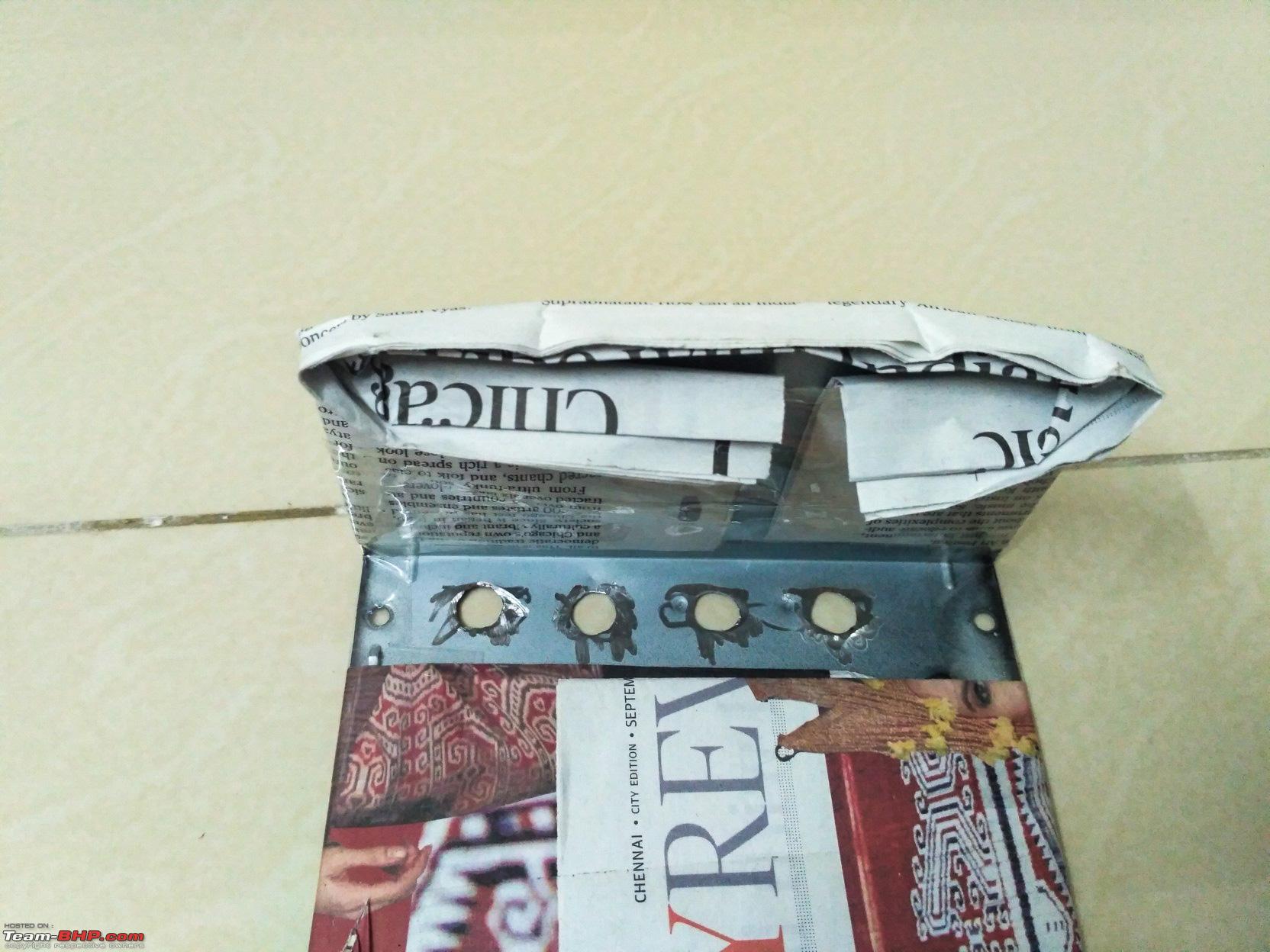

    Keep a bunch of newspapers below the panel when you do the drilling.

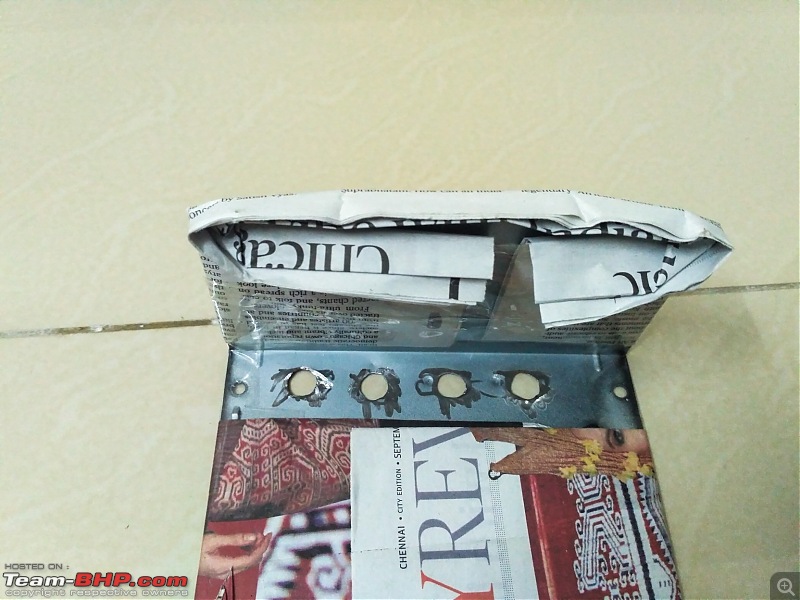

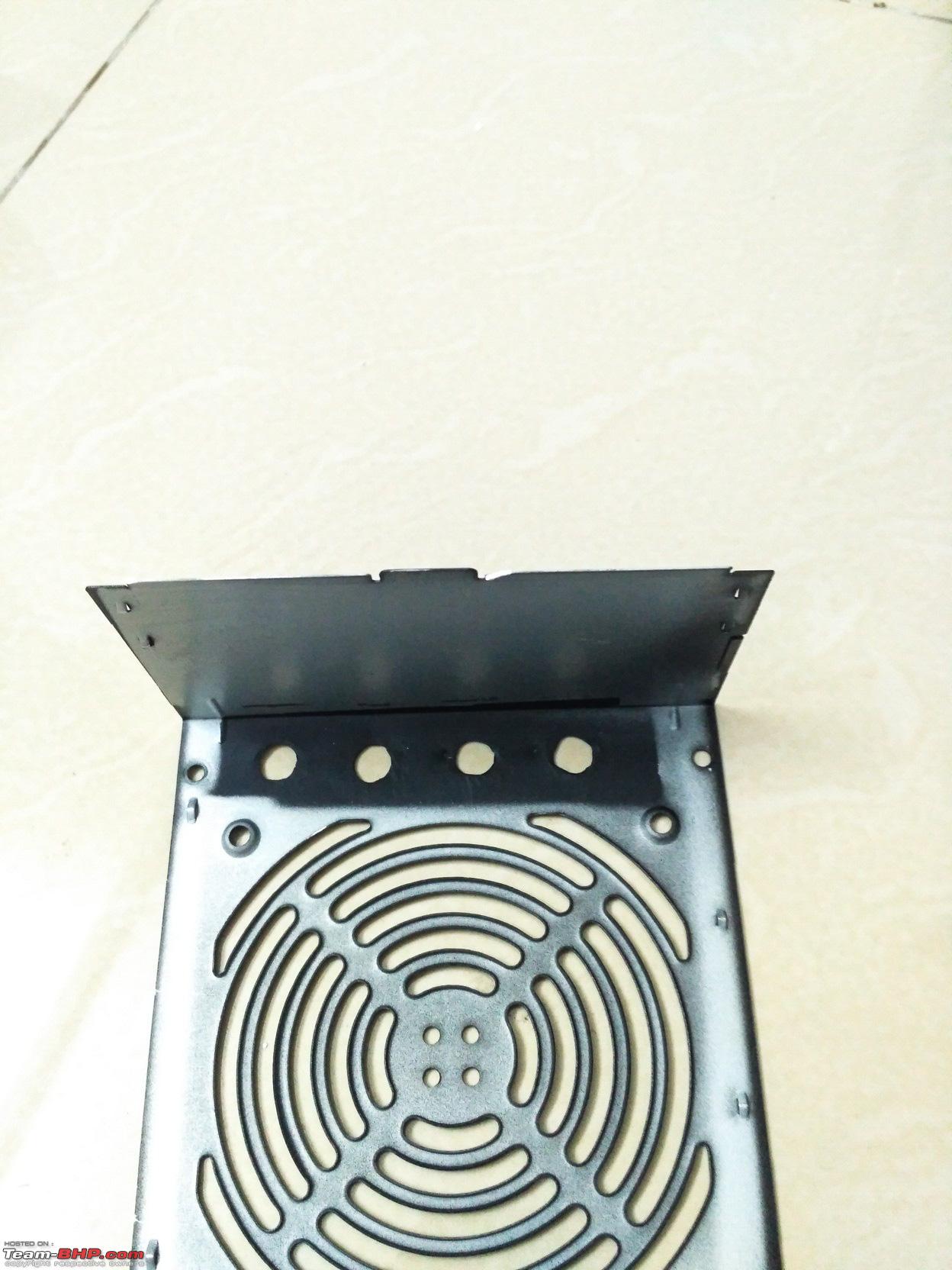

    The ungainly mess you see above is because I didn’t have the HSS bit of the right size for the binding posts and ended up with smaller holes than what was required. I had to enlarge the holes manually and grind the sharp edges using the dremel which removed the paint. Don’t do that mistake! If you are unsure of the size of the HSS bits required, get 3-4 bits of incremental sizes. They are cheap! So to set this right, I had to source some matte black spray paint cans to paint the ground surfaces to prevent it from getting rusted:

    DIY: Bench power supply using a computer's ATX SMPS-img_20170912_184528.jpg

    DIY: Bench power supply using a computer's ATX SMPS-img_20170912_184600.jpg

    DIY: Bench power supply using a computer's ATX SMPS-img_20170912_204353.jpg

    DIY: Bench power supply using a computer's ATX SMPS-img_20170912_204400.jpg

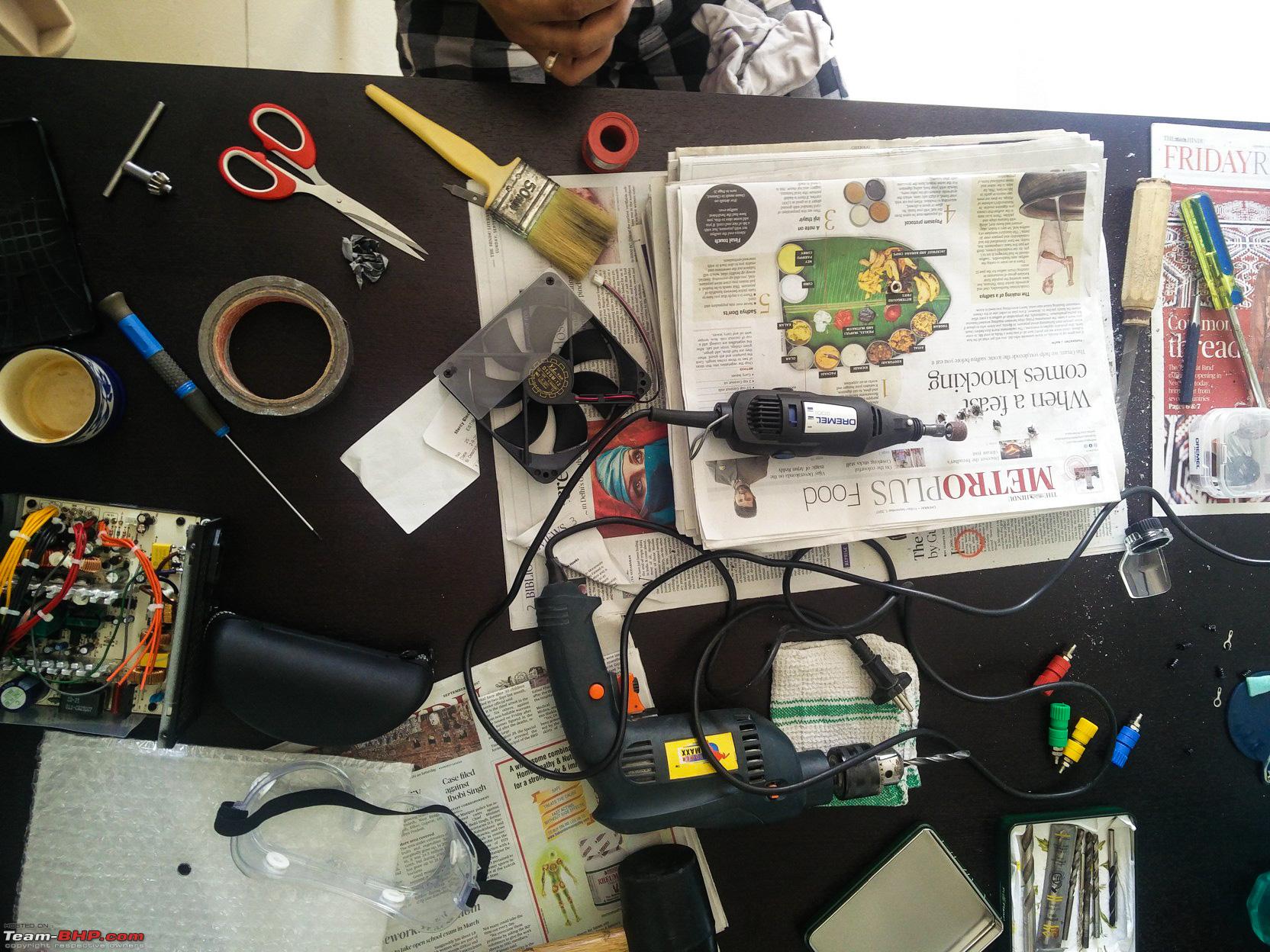

    A snap of the dining table (also serves as the workbench) during the process:
    DIY: Bench power supply using a computer's ATX SMPS-img_20170903_132544.jpg

  9. Screw the binding posts to the top panel using the hex. socket attachment:

    DIY: Bench power supply using a computer's ATX SMPS-img_20170903_133925.jpg

    DIY: Bench power supply using a computer's ATX SMPS-img_20170903_134006.jpg

    I mounted the posts in this order: GND, +3.3 V, +5 V, +12 V.

  10. Using the wire stripper, remove the insulation of the cables of each bundle and wrap them:

    DIY: Bench power supply using a computer's ATX SMPS-img_20170903_135146.jpg

    Solder the joint, insert a heatshrink sleeve into the bunch and crimp the ring terminal firmly to the soldered joint:

    DIY: Bench power supply using a computer's ATX SMPS-img_20170903_135730.jpg

    Repeat the steps for the other 3 bunches. Finally, use the heat gun to shrink the sleeves over the crimped joint.

  11. Insert the lugs into the binding posts and tighten the second nut:

    DIY: Bench power supply using a computer's ATX SMPS-img_20170912_210646.jpg

    Before attempting to close the top panel of the power supply, connect the power cable and do a quick test using the DMM to check if the unit is pushing the voltages through the 3 posts.

  12. Screw the fan to the top panel, connect the 2-pin connector to the socket on the PCB, insert the panel back to the unit (this may require some effort due to the bunch of cables on the binding posts) and screw it. We are good to go!

Results:

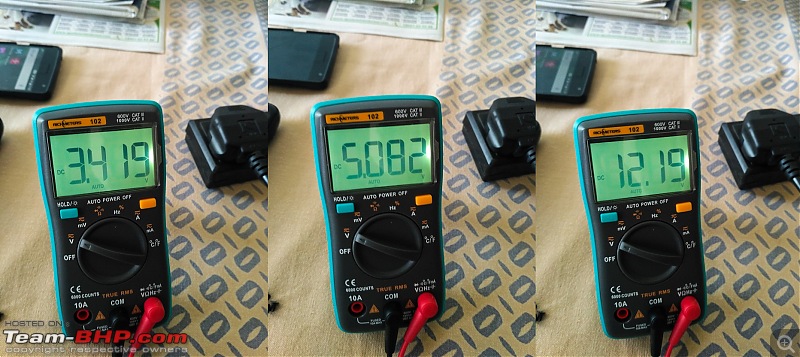

Testing with a DMM:

DIY: Bench power supply using a computer's ATX SMPS-img_20170806_112517.jpg



With an H8 55W bulb:



Testing the 12V to USB converter for the dash-cam charger:
DIY: Bench power supply using a computer's ATX SMPS-img_5198.jpg

Thanks for reading! Let me know if you have any queries.

Last edited by Gannu_1 : 5th November 2017 at 00:19.
Gannu_1 is offline   (51) Thanks Reply With Quote
Old 5th November 2017, 20:16   #2
Team-BHP Support

Eddy's Avatar

Join Date: Apr 2007
Location: Delhi
Posts: 7,402
Thanked: 4,678 Times
Default re: DIY: Bench power supply using a computer's ATX SMPS

Thread moved from the Assembly Line. Thanks for sharing.
Eddy is offline   (1) Thanks Reply With Quote
Old 5th November 2017, 21:39   #3
BHPian

sudeepg's Avatar

Join Date: Feb 2006
Location: Bangalore
Posts: 528
Thanked: 1,227 Times
Default re: DIY: Bench power supply using a computer's ATX SMPS

Quote:
Originally Posted by Gannu_1 View Post

For each binding post, 4-5 cables are more than sufficient. The rest of them can be snipped at the PCB. Bundle the wires of the same color and tie them using the cable ties:
Great DIY Ganesh! For someone who does a lot of DIY, this is a valuable tool and makes a lot of sense. I didn't understand why you need 4-5 cables instead of just one. Each cable should output either 3, 5 or 12 volts, isn't it?
sudeepg is offline   (2) Thanks Reply With Quote
Old 5th November 2017, 21:48   #4
Senior - BHPian

reignofchaos's Avatar

Join Date: Apr 2007
Location: Bangalore
Posts: 2,223
Thanked: 1,174 Times
Default re: DIY: Bench power supply using a computer's ATX SMPS

Just make sure the power supply can take it without the fan. It wasn't designed to run without a fan so the entire setup might be a fire hazard.

Of course if you use a large enough supply with decent components (which that corsair vs supply isn't), this should not be an issue!
reignofchaos is offline   (2) Thanks Reply With Quote
Old 6th November 2017, 01:44   #5
Distinguished - BHPian

Thad E Ginathom's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 7,841
Thanked: 7,230 Times
Default re: DIY: Bench power supply using a computer's ATX SMPS

Very nice idea, Ganesh

Quote:
Originally Posted by sudeepg View Post
Each cable should output either 3, 5 or 12 volts, isn't it?
Each cable could take the voltage, but could it takes the amps?
Thad E Ginathom is offline   (3) Thanks Reply With Quote
Old 6th November 2017, 09:49   #6
BHPian

sudeepg's Avatar

Join Date: Feb 2006
Location: Bangalore
Posts: 528
Thanked: 1,227 Times
Default Re: DIY: Bench power supply using a computer's ATX SMPS

Quote:
Originally Posted by Thad E Ginathom View Post
Very nice idea, Ganesh

Each cable could take the voltage, but could it takes the amps?
Indeed! It does look like to have 34A on the 12V rail it needs a higher gauge wire. Thank you!
sudeepg is offline   Reply With Quote
Old 6th November 2017, 12:00   #7
Senior - BHPian

R2D2's Avatar

Join Date: Oct 2008
Location: Punya Nagari
Posts: 1,894
Thanked: 1,138 Times
Default Re: DIY: Bench power supply using a computer's ATX SMPS

If it were a single output wire then he'd have to upgrade the gauge to a 8 or even 4 AWG.

However, since he's taken the factory fitted output wires from different 'rails' (as they are called in PC PSU terminology), bunched them together and crimped them to a ring terminal, the 'bunch' should be ok to take the load.

However I'd have used a larger ring terminal for 34A. However, that may create a fitment problem.

EDIT: Most PSU fans have their duty cycle controlled by a thermistor. I'd retain the fan as far as possible or make sure the heatsinks have some other method of cooling either active or passive.

Last edited by R2D2 : 6th November 2017 at 12:04. Reason: EDIT
R2D2 is offline   Reply With Quote
Old 6th November 2017, 16:40   #8
BHPian

ROG_AK's Avatar

Join Date: Oct 2017
Location: Bangalore
Posts: 71
Thanked: 730 Times
Default Re: DIY: Bench power supply using a computer's ATX SMPS

Great mod! The power supply will be fine. His planned usage will not push it to it's limits and it can easily be used in this passive mode without too much of a risk.
ROG_AK is offline   (3) Thanks Reply With Quote
Old 6th November 2017, 20:55   #9
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 3,506
Thanked: 2,072 Times
Default Re: DIY: Bench power supply using a computer's ATX SMPS

Does not matter in this case, but one should be aware that in a multitap transformer setup, only one of the outputs is monitored/ controlled. Normally the 5V/ 3.3V.

Regards
Sutripta
Sutripta is offline   (1) Thanks Reply With Quote
Old 7th November 2017, 11:41   #10
DRC
BHPian

DRC's Avatar

Join Date: Dec 2004
Location: Cockpit
Posts: 907
Thanked: 42 Times
Default Re: DIY: Bench power supply using a computer's ATX SMPS

Super cool Gannu!!

Though many wireheads (just like petrol heads :-) ) use the ATX supply for any DC power needs, not many would take effort to create a proper set up like this one.
And, Its a joy reading your posts.

As already mentioned by someone, this kind of SMPS monitors only 5V for regulation. So, if you are primarily using 12V, it may not be as closely regulated and trip at times. One of the work around for this is to connect a phantom load to 5V.
DRC is offline   (1) Thanks Reply With Quote
Old 7th November 2017, 17:28   #11
BHPian

Join Date: Sep 2012
Location: Pune
Posts: 308
Thanked: 753 Times
Default Re: DIY: Bench power supply using a computer's ATX SMPS

Excellent DIY

I am just wondering if it can also charge a car battery without cooking the circuit once it reaches a full charge.

I havent been into electricals and electronics since my engineering days but let me know what you think.

Regards,
NJ
NiInJa is offline   (1) Thanks Reply With Quote
Old 8th November 2017, 20:46   #12
Senior - BHPian

R2D2's Avatar

Join Date: Oct 2008
Location: Punya Nagari
Posts: 1,894
Thanked: 1,138 Times
Default Re: DIY: Bench power supply using a computer's ATX SMPS

Quote:
Originally Posted by NiInJa View Post
I am just wondering if it can also charge a car battery without cooking the circuit once it reaches a full charge.
Batteries need charging at 13.2 (float) to 14.4 VDC (bulk). The output from a this SMPS is 12 VDC which is too low to fully charge your battery to 12.66 VDC which is the voltage at full state of charge. So, in a nutshell, this SMPS won't work for battery lead acid battery charging.
R2D2 is offline   (1) Thanks Reply With Quote
Old 12th November 2017, 12:57   #13
Team-BHP Support

Gannu_1's Avatar

Join Date: Apr 2013
Location: Madras
Posts: 4,873
Thanked: 9,706 Times
Default Re: DIY: Bench power supply using a computer's ATX SMPS

Quote:
Originally Posted by sudeepg View Post
I didn't understand why you need 4-5 cables instead of just one.
When you connect a load that draws a lot of power (e.g. a 100W bulb on 12V), a single cable may not be sufficient. Either a bunch of cables as in this mod or replace it with a single lower gauge cable (larger cross sectional area).

Quote:
Originally Posted by reignofchaos View Post
Just make sure the power supply can take it without the fan. It wasn't designed to run without a fan so the entire setup might be a fire hazard.
Quote:
Originally Posted by R2D2 View Post
I'd retain the fan as far as possible or make sure the heatsinks have some other method of cooling either active or passive.
I haven't removed the fan from the unit or disconnected it! It is pretty much there and spins when the power supply is turned on. You can see it in the last pic.

Quote:
Originally Posted by DRC View Post
One of the work around for this is to connect a phantom load to 5V.

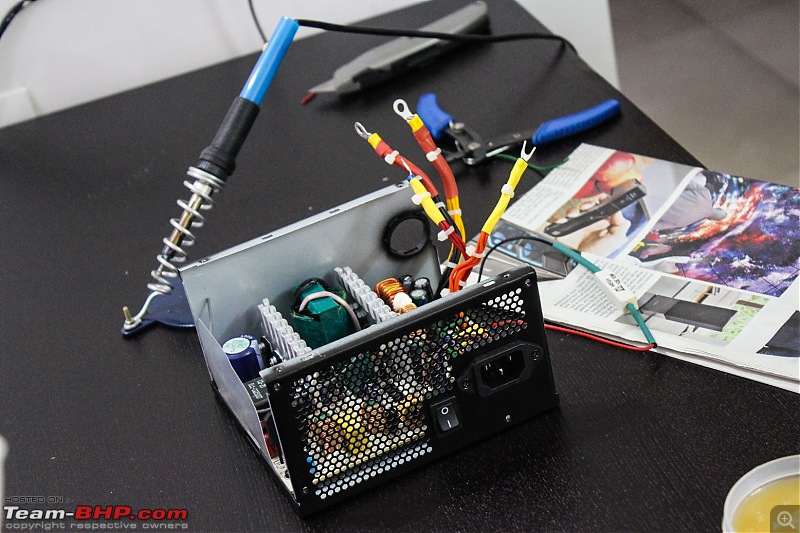

Initially, I did connect a 10 ohm 10W ceramic resistor to the 5V rail as a constant load but removed it later since the unit was working fine without this load.

DIY: Bench power supply using a computer's ATX SMPS-img_5023.jpg

Quote:
Originally Posted by NiInJa View Post
I am just wondering if it can also charge a car battery without cooking the circuit once it reaches a full charge.
The Wikihow article suggests it can but has a caveat:

Quote:
You can use your power supply 12V output as a car battery charger! Be careful, though: if your battery is too discharged, the power supply short circuit protection will trigger. In that case, it's better to put a 10 Ohm, 10/20 Watts resistor in series with the 12 V output, in order to not overload the power supply. Once the battery is near 12V charge(you can use a tester to verify that), you can remove the resistor, in order to charge the remaining of the battery.
Gannu_1 is offline   (2) Thanks Reply With Quote
Old 12th November 2017, 15:35   #14
Senior - BHPian

R2D2's Avatar

Join Date: Oct 2008
Location: Punya Nagari
Posts: 1,894
Thanked: 1,138 Times
Default Re: DIY: Bench power supply using a computer's ATX SMPS

Quote:
Originally Posted by Gannu_1 View Post
I haven't removed the fan from the unit or disconnected it! It is pretty much there and spins when the power supply is turned on. You can see it in the last pic.
Oh, then that's fine as it takes care of the cooling.

Quote:
The article suggests it can but has a caveat:
Well, it can charge the battery from fully discharged to 12V (the max voltage of the SMPS) but leaving the battery in that state would lead to it being severely under charged.

A LA battery with a no-load voltage of 12V is only @ 25% SOC and the plates would sulphate very quickly Batteryfaq OCV & SOC table See table 4.4.2. Most low maintenance flooded car batteries are of Sb/Ca chemistry.
R2D2 is offline   (1) Thanks Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
Surge Suppression required between car battery power supply and media player anthiltg Technical Stuff 27 11th October 2011 14:05
Kenwood CD Player Power Supply Chip Blown honeybee In-Car Entertainment 1 1st November 2010 10:18
Car PC power supply :Help noidaboy In-Car Entertainment 9 23rd February 2010 00:17
Wide voltage range SMPS Pallavi Gadgets, Computers & Software 16 4th December 2009 18:53
Using PC SMPS Unit As a Power Source for Creative Speakers anuragn Gadgets, Computers & Software 28 9th December 2008 18:09


All times are GMT +5.5. The time now is 12:48.

Copyright 2000 - 2017, Team-BHP.com
Proudly powered by E2E Networks
