Default DIY: Auto Folding ORVMs (Maruti S-Cross)

Lockdown. 1.0, 2.0, 3.0, 4.0.

Kungfu Panda (Jr.) was hibernating for a long time now. April the IInd, my kitty cat, watches over Kungfu Panda (Jr.) from above, and protects him from rodents during his hibernation session.
Name:  IMG_20200529_101835Edit.jpg
Views: 7545
Size:  208.2 KB

Introducing April the IInd
Name:  IMG_20200529_112358_01Edit.jpg
Views: 7536
Size:  309.0 KB

Boodmo, the automotive component supplier was delivering me items during lock down 4.0, and amazon delivered me the very next day the restrictions were relaxed, the order I had placed some weeks back, the auto folding ORVM module.

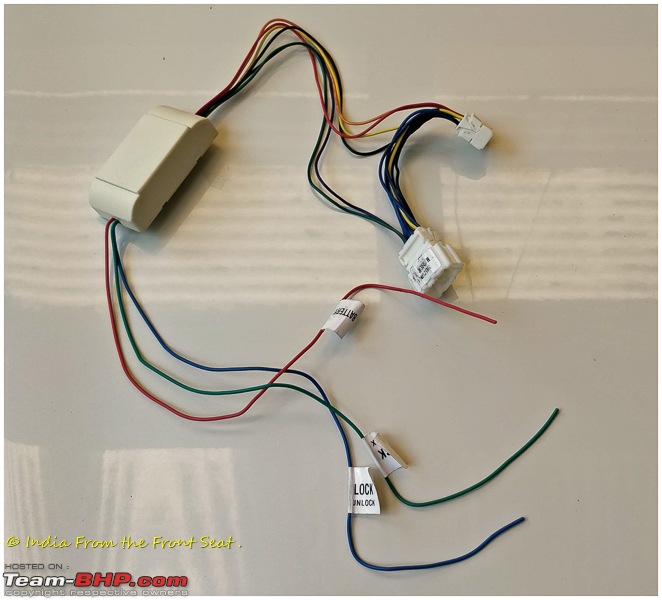

Auto folding ORVM Module
Name:  IMG_20200529_112446Edit.jpg
Views: 7504
Size:  228.2 KB

We need 3 of this Splice wire tap to complete the DIY
Name:  IMG_20200529_123658Edit.jpg
Views: 7454
Size:  186.1 KB

So with the components in hand for the DIY, I set out for the operation under the watchful eyes of April the IInd.

Curtains up!!
Name:  IMG_20200529_102113Edit.jpg
Views: 7457
Size:  234.6 KB

The component cost
1. Auto folding ORVM Module - Rs. 1400.00
2. Splice Wire Tap 3 No.s - Rs 75.00
all of Rs 1475 and some 30 minutes of your time for the DIY

Let us get into action.

Last edited by laluks : 30th May 2020 at 21:12.
laluks is offline   (24) Thanks
Old 30th May 2020, 20:32   #2
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 6,511
Thanked: 14,912 Times
Default re: DIY: Auto Folding ORVMs (Maruti S-Cross)

We need to open the driver side door panel, where the mirror controls are connected.

Let me tell you how to open up the driver side door panel without destroying anything

Operation : Opening up the driver side door Panel
Name:  IMG_20200529_102153Edit.jpg
Views: 7368
Size:  293.3 KB

There are two locks and two screws to be removed in opening up the driver door panel, and seven clips to be carefully pulled out.

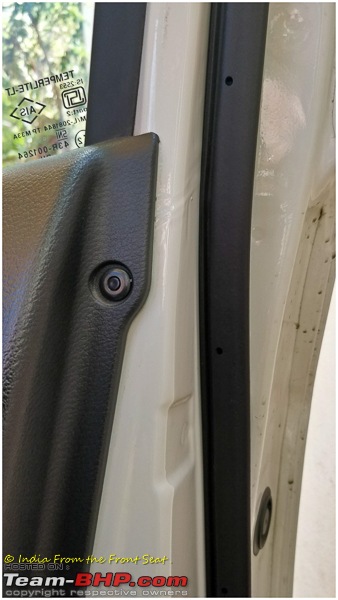

One lock to the top right of the panel
Name:  IMG_20200529_102203Edit.jpg
Views: 7254
Size:  142.4 KB

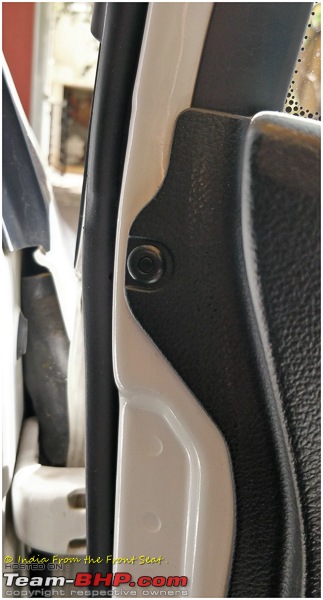

Other lock to the top left of the panel
Name:  IMG_20200529_102212Edit.jpg
Views: 7198
Size:  148.1 KB

Push the middle portion of the lock inside, lock releases
Name:  IMG_20200529_102634Edit.jpg
Views: 7162
Size:  161.2 KB

Take out the lock
Name:  IMG_20200529_102612Edit.jpg
Views: 7149
Size:  155.3 KB

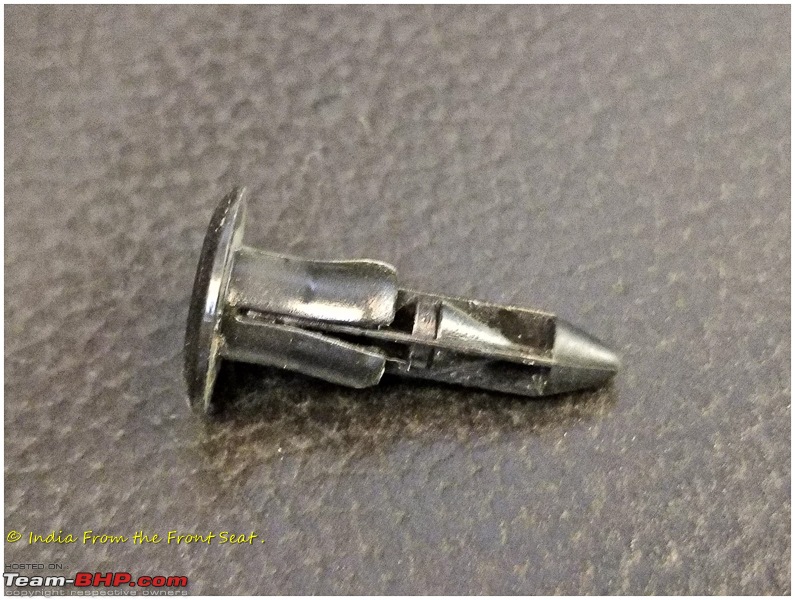

A look at the locks
Name:  IMG_20200529_102715Edit.jpg
Views: 7157
Size:  368.8 KB

Name:  IMG_20200529_102729Edit.jpg
Views: 7130
Size:  368.9 KB

Be careful not to break the locks, in the event of a broken lock, you have a rattling door panel after installation.

Now let us find out the screws and unscrew them

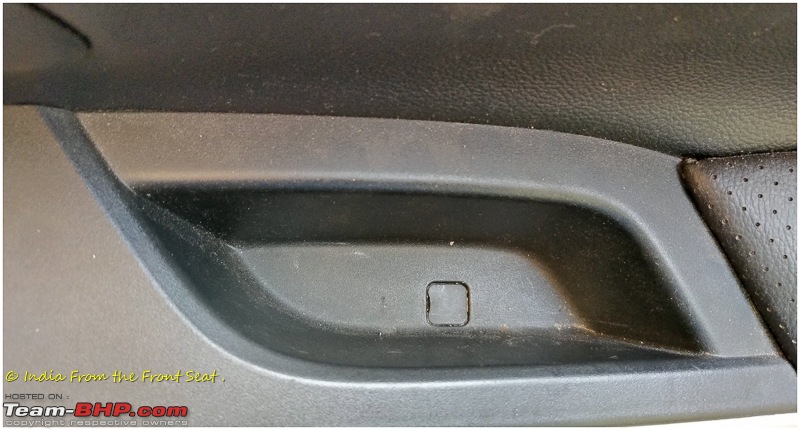

One screw is hidden inside the door handle
Name:  IMG_20200529_102225Edit.jpg
Views: 7083
Size:  261.8 KB

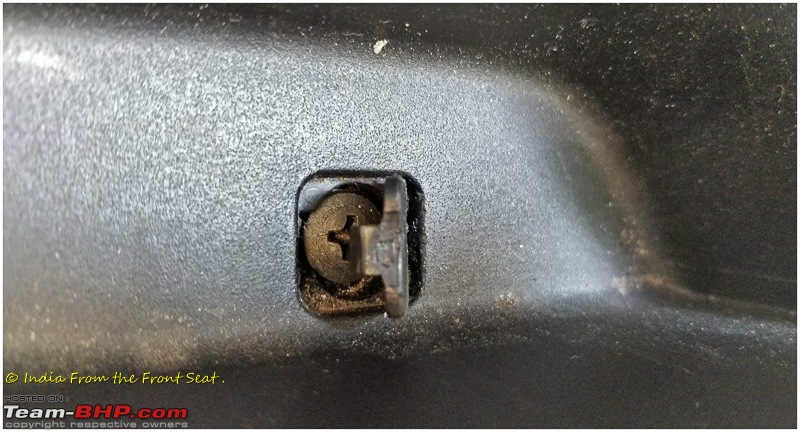

Slightly pop that cover out, I tried to pull it out. It did not come, since the other side is connected to the panel, so as to prevent loss of that cover
Name:  IMG_20200529_102407Edit.jpg
Views: 7082
Size:  291.4 KB

Remove the screw. You get a view as to how the cover is connected to the panel
Name:  IMG_20200529_102536Edit.jpg
Views: 7061
Size:  270.9 KB

The second screw is hidden behind the door open lever
Name:  IMG_20200529_103129Edit.jpg
Views: 7040
Size:  255.2 KB

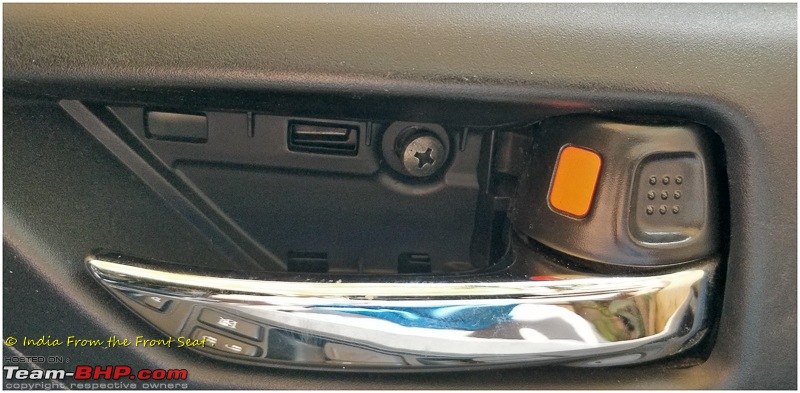

Remove that cover to expose the screw
Name:  IMG_20200529_103330Edit.jpg
Views: 7018
Size:  259.2 KB

Remove the screw
Name:  IMG_20200529_103356Edit.jpg
Views: 7002
Size:  249.4 KB

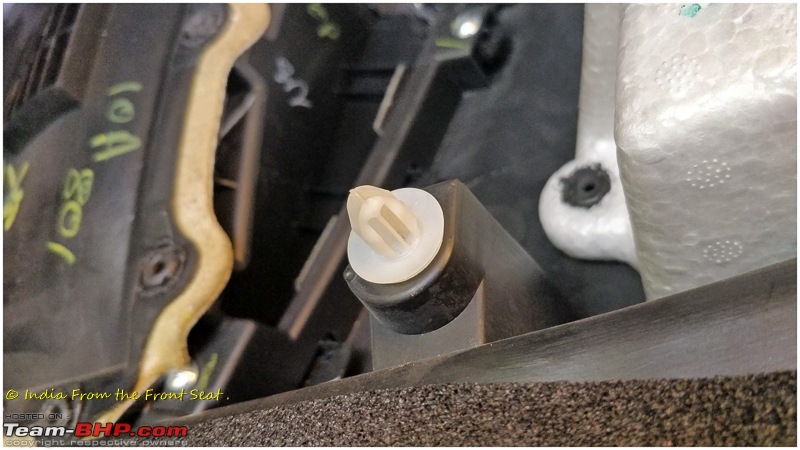

There are seven such clips around the periphery of the panel inside

Name:  IMG_20200529_122128Edit.jpg
Views: 6987
Size:  236.5 KB

Name:  IMG_20200529_122156Edit.jpg
Views: 6973
Size:  265.1 KB

Carefully with a little force slowly pull out the panel and the clips one by one, till the door panel is fully detached from the door frame. Some times it might happen that these white clips stay in the door frame and only the panel comes out. In that case carefully unplug the same from the door frame and place them back on the panel, so that it helps you in fitting the panel back nicely and snugly fit with out rattles. If you miss or break one of these, be ready for the rattles.

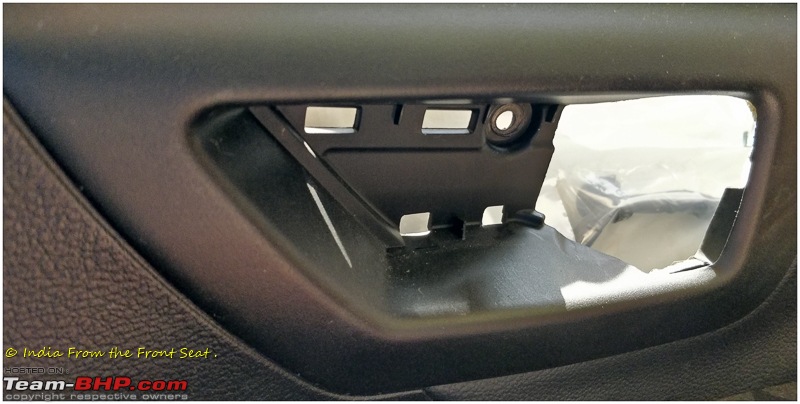

Slowly slide the door panel out of the door open lever
Name:  IMG_20200529_103613Edit.jpg
Views: 6951
Size:  234.0 KB

Now the door panel is in your hand, but still the connectors are connected to the driver side door switches and mirror control.

Connector - Mirror Control Switch
Name:  IMG_20200529_103643Edit.jpg
Views: 6941
Size:  302.1 KB

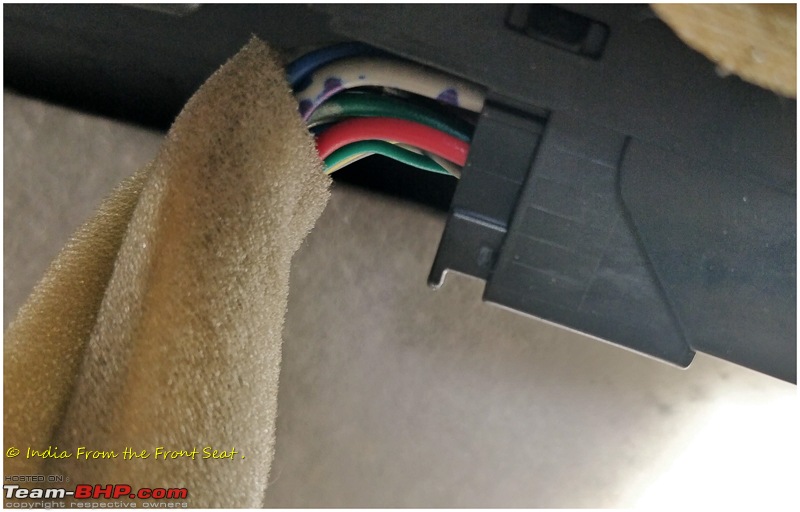

Connector - Window lifter, lock unlock switches on the door panel
Name:  IMG_20200529_103657Edit.jpg
Views: 6926
Size:  251.6 KB

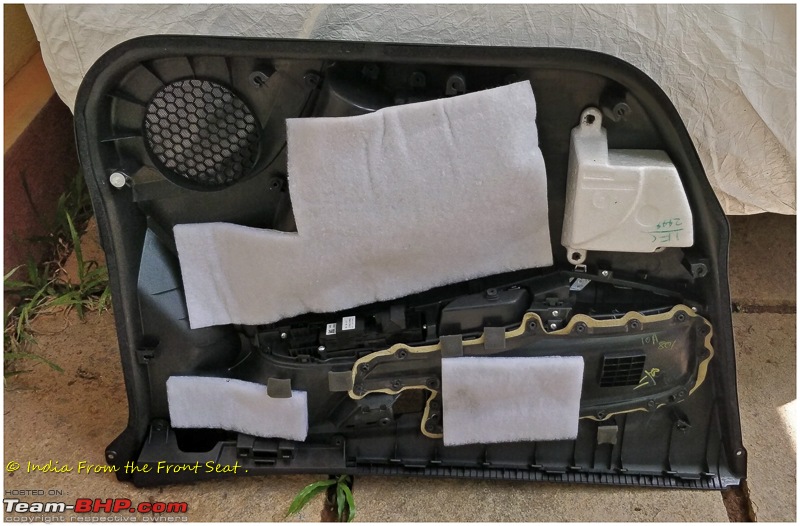

You need to pull the connectors out and the door panel is fully detached. Keep it safe somewhere.
Name:  IMG_20200529_103820Edit.jpg
Views: 6930
Size:  318.3 KB

Now that the door panel is out, we are ready for the actual DIY

Last edited by laluks : 30th May 2020 at 20:34.
laluks is offline   (20) Thanks
Old 30th May 2020, 20:59   #3
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 6,511
Thanked: 14,912 Times
Default re: DIY: Auto Folding ORVMs (Maruti S-Cross)

The mirror control switch connector side, its here that we plug in the connector from the ORVM module
Name:  IMG_20200529_103829Edit.jpg
Views: 6888
Size:  317.2 KB

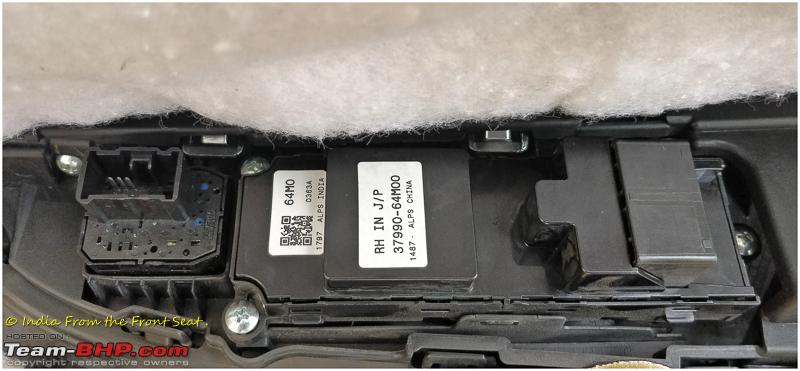

You can see the door unlock, window lifter switch module next to the mirror control unit
Name:  IMG_20200529_103833Edit.jpg
Views: 6849
Size:  212.3 KB

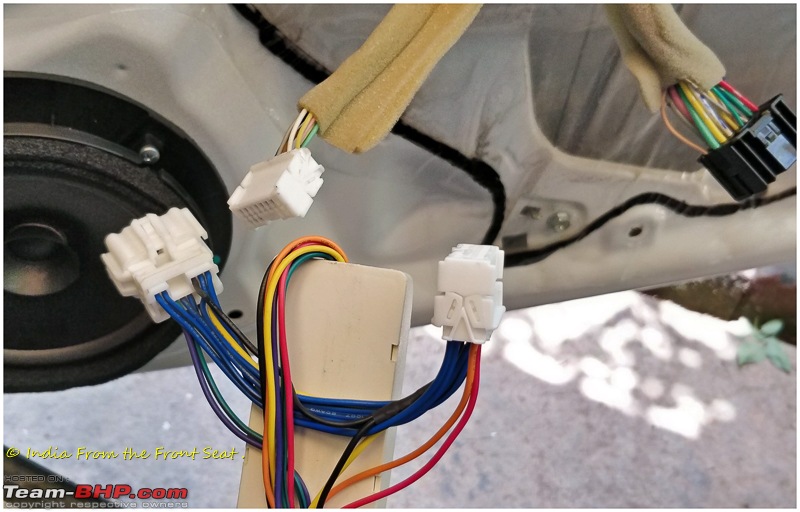

Picture showing the three connectors
Name:  IMG_20200529_114507Edit.jpg
Views: 6825
Size:  285.8 KB

The connector we removed form the mirror control unit from the car is the top white one. We connect that to the connector (left white big one) of the module, and the other connector (right white one) we connect back to the mirror control switch socket.

After connecting as described above, now the open white connector will be connected to the mirror control switch before we place the door panel back. Basically its as simple as that!!
Name:  IMG_20200529_114621Edit.jpg
Views: 6790
Size:  271.6 KB

Now let us take a look at the connector and wiring towards the door lock unlock solenoid
Name:  IMG_20200529_103925Edit.jpg
Views: 6749
Size:  159.8 KB

Connector removed to check out the signals.
Name:  IMG_20200529_104532Edit.jpg
Views: 6723
Size:  133.1 KB

Green wire carries the lock signal, and the white wire carries the unlock signal, whenever user requests lock/unlock with his key fob or Key less entry switch.

Now using the splice wire tap, we tap Lock signal (Green wire) for the Auto folding ORVM module (Blue Wire)
Name:  IMG_20200529_115815Edit.jpg
Views: 6681
Size:  157.9 KB

Now using the splice wire tap, we tap Unlock signal (White wire) for the Auto folding ORVM module (Green Wire)
Name:  IMG_20200529_120043Edit.jpg
Views: 6666
Size:  165.8 KB

So the lock unlock signals are now available to the module for decision
Name:  IMG_20200529_120025Edit.jpg
Views: 6634
Size:  168.3 KB

We connect it back
Name:  IMG_20200529_120139Edit.jpg
Views: 6601
Size:  153.1 KB

The module needs a 12 volt connection all the time, and we connect the red wire of the module to a battery line using the third splice wire tap.

That's it. Its done.

Carefully refit the door panel back. Press the seven clips in for a snug fit. Then put the locks, the screws and the covers back in place. It's time for rock and roll now



----------------------------------------------------------

Unrelated to the DIY, but since we opened up the panel, wanted to check out the Stock speakers!!

Stock Speaker
Name:  IMG_20200529_103946Edit.jpg
Views: 6552
Size:  264.9 KB

Removed it to check it out
Name:  IMG_20200529_104057Edit.jpg
Views: 6537
Size:  277.0 KB

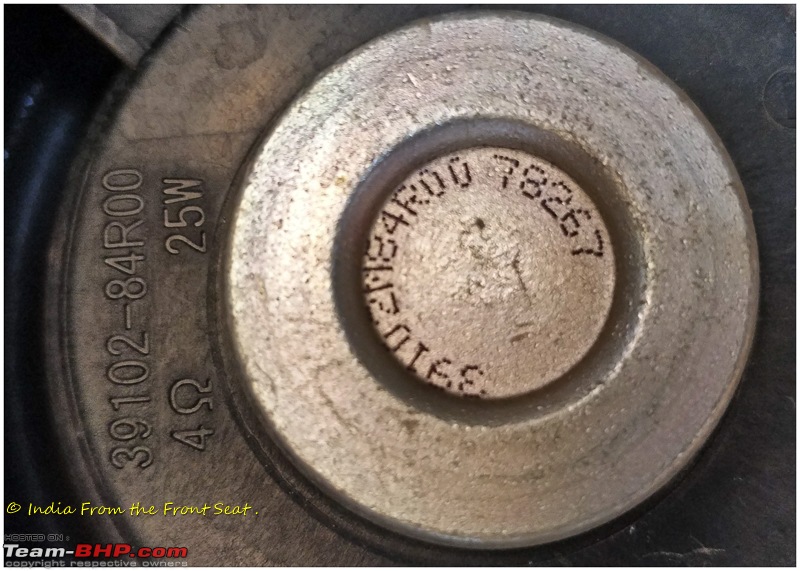

Its a puny 25W 4 Ohm speaker, part number is visible
Name:  IMG_20200529_104110Edit.jpg
Views: 6520
Size:  339.6 KB

Look at that puny magnet
Name:  IMG_20200529_104136Edit.jpg
Views: 6497
Size:  303.8 KB
laluks is offline   (18) Thanks
Old 30th May 2020, 21:10   #4
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 6,511
Thanked: 14,912 Times
Default re: DIY: Auto Folding ORVMs (Maruti S-Cross)

It's the time to disco

Auto folding ORVM reacting on Lock Unlock Signals from Key Fob


Auto folding ORVM reacting on Lock Unlock Signals from Key Less Entry Switch



That's it guys, DIY over in just 30 minutes.

And time for Kungfu Panda (Jr.) to get back to his hibernation .
Name:  IMG_20200529_124131Edit.jpg
Views: 6216
Size:  200.6 KB

Lock down 5.0 announced, and its another month of hibernation.

Thanks for reading. Happy DIY.
laluks is offline   (39) Thanks
Old 31st May 2020, 04:45   #5
Team-BHP Support

CrAzY dRiVeR's Avatar

Join Date: Jun 2006
Location: Bengaluru
Posts: 13,713
Thanked: 41,330 Times
Default re: DIY: Auto Folding ORVMs (Maruti S-Cross)

Thread moved out from the Assembly Line. Thanks for sharing!
CrAzY dRiVeR is offline   (2) Thanks
Old 1st June 2020, 10:53   #6
Senior - BHPian

blackwasp's Avatar

Join Date: Apr 2015
Location: Navi Mumbai
Posts: 2,572
Thanked: 19,506 Times
Default Re: DIY: Auto Folding ORVMs (Maruti S-Cross)

Quote:
Originally Posted by laluks View Post
That's it guys, DIY over in just 30 minutes.
That was an easy to understand DIY and thanks for the videos at the end. Just one question, will this work for other Maruti cars that have electronic outside mirror retraction feature available?
blackwasp is offline   (1) Thanks
Old 1st June 2020, 11:01   #7
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 6,511
Thanked: 14,912 Times
Default Re: DIY: Auto Folding ORVMs (Maruti S-Cross)

Quote:
Originally Posted by blackwasp View Post
That was an easy to understand DIY and thanks for the videos at the end. Just one question, will this work for other Maruti cars that have electronic outside mirror retraction feature available?
This should work on any cars that have an automatic retraction feature for the ORVMs. All you need to look is for matching the connectors . I tried the same disco on my fortuner (DIY: Toyota Fortuner Type 2 - Auto Dimming IRVM & Auto Folding ORVM)too

Last edited by laluks : 1st June 2020 at 11:02.
laluks is offline   (5) Thanks
Old 1st June 2020, 11:03   #8
Distinguished - BHPian

Reinhard's Avatar

Join Date: Nov 2010
Location: Pune
Posts: 3,210
Thanked: 8,218 Times
Default Re: DIY: Auto Folding ORVMs (Maruti S-Cross)

Fantastic DIY & wonderful write up. Nicely compiled & surely will be very useful for those looking to do this. And a really useful mod indeed. High-practicality modifications are always very handy & especially satisfying when done as a DIY. Every-time we use any of them - there is a recurring credit of little happiness about the DIY. Boodmo really is one of the better things that happened to car enthusiasts in recent times!

Car-makers sure must be hating us on forums for doing such things & then writing it down for others to also try. Devalues their car trims and "feature" lists. Also puts a question mark on them as people think why was such a simple thing skimped on in the first place.
Cheers!
Reinhard is offline   (5) Thanks
Old 1st June 2020, 12:06   #9
BHPian

Join Date: Nov 2019
Location: Coimbatore
Posts: 56
Thanked: 77 Times
Default Re: DIY: Auto Folding ORVMs (Maruti S-Cross)

Can we do this by playing around with the VCDS for VW cars? I knew a lot can be tweaked with VCDS in VW group cars. By playing around with VCDS, We don't even need the additional cables and removing panels.
gasinveins is offline
Old 1st June 2020, 12:13   #10
BANNED

Join Date: Mar 2006
Location: Chennai
Posts: 1,377
Thanked: 108 Times
Infractions: 0/1 (5)
Default Re: DIY: Auto Folding ORVMs (Maruti S-Cross)

Quote:
Originally Posted by laluks View Post
This should work on any cars that have an automatic retraction feature for the ORVMs. All you need to look is for matching the connectors . I tried the same disco on my fortuner (DIY: Toyota Fortuner Type 2 - Auto Dimming IRVM & Auto Folding ORVM)too
Hi laluks , Any idea if i can make my Type 3(2012) innova OVRM close and open with touch of a button. I know it has only mirror adjustment but i am desperately looking for this add-on feature.

Any pointer do let me know
joshguy is offline   (1) Thanks
Old 1st June 2020, 13:12   #11
A2B
Newbie

Join Date: Jul 2019
Location: HYD/CHN
Posts: 4
Thanked: 2 Times
Default Re: DIY: Auto Folding ORVMs (Maruti S-Cross)

Hi laluks,

Great very visual post.
My doubt, when you start driving the car, it will lock the doors once you reach speed.
Won't it close the ORVM's then?
A2B is offline   (2) Thanks
Old 1st June 2020, 13:55   #12
BHPian

Join Date: May 2017
Location: Thiruvananthapu
Posts: 59
Thanked: 38 Times
Default Re: DIY: Auto Folding ORVMs (Maruti S-Cross)

Dear Sir,
Kindly provide the details of part number and other relevant details, if any for procuring the autofolding ORVM Module.
I also want to incorporate the same into my SCross-Alpha/ April 2018 model.
Thanks.
Muniswami S
smuniswami is offline   (2) Thanks
Old 1st June 2020, 18:01   #13
Newbie

deepakpk's Avatar

Join Date: Jun 2017
Location: Chennai
Posts: 7
Thanked: 5 Times
Default Re: DIY: Auto Folding ORVMs (Maruti S-Cross)

Hi laluks,

Great work!
Any idea if it can be done on vehicles that has only electronic adjustment and not the auto fold option?

Thanks, Deepak
deepakpk is offline   (1) Thanks
Old 1st June 2020, 18:24   #14
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 6,511
Thanked: 14,912 Times
Default Re: DIY: Auto Folding ORVMs (Maruti S-Cross)

Quote:
Originally Posted by Reinhard View Post
Fantastic DIY & wonderful write up. Nicely compiled & surely will be very useful for those looking to do this. And a really useful mod indeed. High-practicality modifications are always very handy & especially satisfying when done as a DIY. Every-time we use any of them - there is a recurring credit of little happiness about the DIY. Boodmo really is one of the better things that happened to car enthusiasts in recent times!

Car-makers sure must be hating us on forums for doing such things & then writing it down for others to also try. Devalues their car trims and "feature" lists. Also puts a question mark on them as people think why was such a simple thing skimped on in the first place.
Cheers!
Thanks Reinhard. One would wonder what is about 1500 saved on each vehicle, may be its the volumes and less variants for manageability. Anyways!

Boodmo for Maruti works fine. I've had hard times with Honda parts. Toyota, if I am lazy to go to my Service Centre to order, I do that on Boodmo. Normally service centre in Bangalore receive in some 3 to 4 days, boodmo takes a month to deliver.

Quote:
Originally Posted by gasinveins View Post
Can we do this by playing around with the VCDS for VW cars? I knew a lot can be tweaked with VCDS in VW group cars. By playing around with VCDS, We don't even need the additional cables and removing panels.
I have no experience tampering german cars, may be Gannu_1 can comment

Quote:
Originally Posted by joshguy View Post
Hi laluks , Any idea if i can make my Type 3(2012) innova OVRM close and open with touch of a button. I know it has only mirror adjustment but i am desperately looking for this add-on feature.

Any pointer do let me know
Like we discussed in the past, the first and foremost requirement here is the availability of electrically fold-able ORVMs in your car. If it is not, but a manual one, then we start with first changing the manual to an electrically controlled one. This can be expensive and for Toyota, the electrical ORVMs are about 9K a piece, and a Switch Assembly for its control some 6K and of course the wiring part.

Second requirement is the availability of auto lock unlock feature, which is already there.

Once that prerequisite is taken care then this auto folding mirror can be installed.

But the costs are almost touching 30K for you to add this now. I don't know whether its VFM in this case, but very much doable.

Quote:
Originally Posted by A2B View Post
Hi laluks,

Great very visual post.
My doubt, when you start driving the car, it will lock the doors once you reach speed.
Won't it close the ORVM's then?
No, locking from inside with the lock/unlock switch and auto lock feature on reaching 10mph/16Kmph if enabled will not trigger this action. The signals are different.

Quote:
Originally Posted by smuniswami View Post
Dear Sir,
Kindly provide the details of part number and other relevant details, if any for procuring the autofolding ORVM Module.
I also want to incorporate the same into my SCross-Alpha/ April 2018 model.
Thanks.
Muniswami S
I picked it up from amazon just for fun. There are many suppliers for the same. Another one is here.

Only thing I am worried and time will have to tell is how much it drains the battery, since it is always connected to battery power. Such cheap gizmos, I really doubt if it is tested for battery drains and stuffs like that. You really don't want to go to a dead battery on an urgent day you need the car. Since I have back up cars, I am just fooling around.

All you have to know is the Lock and Unlock signal input for the modules you pick, and where to tap the lock and unlock signal from your vehicle.

If you fancy you can do auto folding ORVM along with auto window pane closing. I did not like it since it closes windows one by one, and can be dangerous on cars without anti pinch if kids are around. I would not advice this, Safety is not sure. Many kits are available, one such is here.


Quote:
Originally Posted by deepakpk View Post
Hi laluks,

Great work!
Any idea if it can be done on vehicles that has only electronic adjustment and not the auto fold option?

Thanks, Deepak
Electrically adjustable ORVMS, with electrical folding feature is a prerequisite. Else first DIY would be to make it electrically fold-able.

Last edited by laluks : 1st June 2020 at 18:35.
laluks is offline   (3) Thanks
Old 1st June 2020, 21:01   #15
BHPian

Join Date: May 2017
Location: Thiruvananthapu
Posts: 59
Thanked: 38 Times
Default Re: DIY: Auto Folding ORVMs (Maruti S-Cross)

Thank you Sir, for the reply.
Also, Noted your opinion and concerns with respect to this DIY project.
I will buy the item soon and will carry out the work taking your "posted information" as the guide.
smuniswami is offline   (1) Thanks
Reply

Most Viewed
Thread Tools Search this Thread
Search this Thread:

Advanced Search

Copyright 2000 - 2020, Team-BHP.com
Proudly powered by E2E Networks
