Old 12th December 2021, 06:59   #1531
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,399
Thanked: 39,161 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by self_driven View Post
Hi Shashi

Can you please help me with part number and price of rear fog lamp assembly for the 2nd gen pre-facelift Swift.

Thanks!
Part Number: 36570M74L00
Price: Rs. 475

Regards,
Shashi
Leoshashi is offline   (2) Thanks
Old 12th December 2021, 07:21   #1532
xci
Newbie

Join Date: Apr 2021
Location: Kolkata, WB
Posts: 6
Thanked: 3 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
Control panel is separate and backlighting mechanism is separate, you need just the outer part?
Sir, can you please provide details of both the parts ? I will check once and then order.

Thank you.
xci is offline
Old 17th December 2021, 22:57   #1533
BHPian

sac23's Avatar

Join Date: Apr 2021
Location: Kollam
Posts: 34
Thanked: 45 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi,
I was trying to purchase an oil filter for Ignis 2018 with a K12B engine from boodmo. There are filters from a lot of manufactures available there. Namely, Purolator, Mahle, Hella, ZIP, Bosch. Which one should I ideally go for?
Filters in boodmo

Also, why are there some filters without the outer casing?
sac23 is offline
Old 30th December 2021, 12:49   #1534
Senior - BHPian

supremeBaleno's Avatar

Join Date: Dec 2005
Location: Chennai / Kochi
Posts: 5,469
Thanked: 2,461 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi Shashi, could you please post the partnumbers & price for the following spares of the Baleno1.6 :
- rear Struts
- front lower arm
- front driveShaft
And recommendations (if any) for alternatives that are good ?
Thanks !!!
supremeBaleno is offline
Old 8th January 2022, 11:19   #1535
Senior - BHPian

sumeethaldankar's Avatar

Join Date: May 2007
Location: Mumbai
Posts: 3,601
Thanked: 2,643 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Will I get just the container for the new 2019 Petrol Swift. Currently this is how it looks The part is not available at the service centre where I just dropped the car. Have covered the lower torn bits with duct tape. I hope I don't have to change the motor assembly as well just to get the plastic container bit.
Attached Thumbnails
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-riptorn1.jpg


Last edited by sumeethaldankar : 8th January 2022 at 11:29.
sumeethaldankar is online now
Old 8th January 2022, 11:24   #1536
BHPian

PaddleShifter's Avatar

Join Date: Jul 2010
Location: CH01 - HR03
Posts: 664
Thanked: 1,388 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by sac23 View Post
Hi,
I was trying to purchase an oil filter for Ignis 2018 with a K12B engine from boodmo. There are filters from a lot of manufactures available there. Namely, Purolator, Mahle, Hella, ZIP, Bosch. Which one should I ideally go for?
Filters in boodmo

Also, why are there some filters without the outer casing?
I am a bit late in replying to your query.

If you are confused regarding the selection of filter, just order the part online on Maruti Genuine Parts website and you can collect it from a Maruti Genuine Parts distributor in your city.
PaddleShifter is online now   (2) Thanks
Old 8th January 2022, 23:47   #1537
Senior - BHPian

pjbiju's Avatar

Join Date: Apr 2006
Location: Pune
Posts: 1,272
Thanked: 839 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Leoshashi need your help.

Model Name- Swift (2006 make)
Variant- VXi
Parts Required- A/C compressor & Evaporator

My car's AC is now not working properly and may need to replace the compressor. When I enquired with a MGA spares store, they told me that there is a compressor for Type 1 Swift and the cost is ~Rs. 55k and then there is a compressor for Type 2 which he said costs ~14k. Not sure why there is a huge difference in the prices and if they are compatible with each other.
pjbiju is offline
Old 17th January 2022, 20:23   #1538
BHPian

Ponbaarathi's Avatar

Join Date: Jan 2016
Location: Chennai
Posts: 101
Thanked: 200 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi, can anyone provide me the part number for PM 2.5 Cabin AC Filter.

Model : Swift 2nd Gen
Variant : VXI(O)
YOM : 2017

Thanks in advance.
Ponbaarathi is offline
Old 29th January 2022, 13:47   #1539
BHPian

amvj's Avatar

Join Date: Jun 2009
Location: Bangalore
Posts: 481
Thanked: 1,474 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi Shashi,

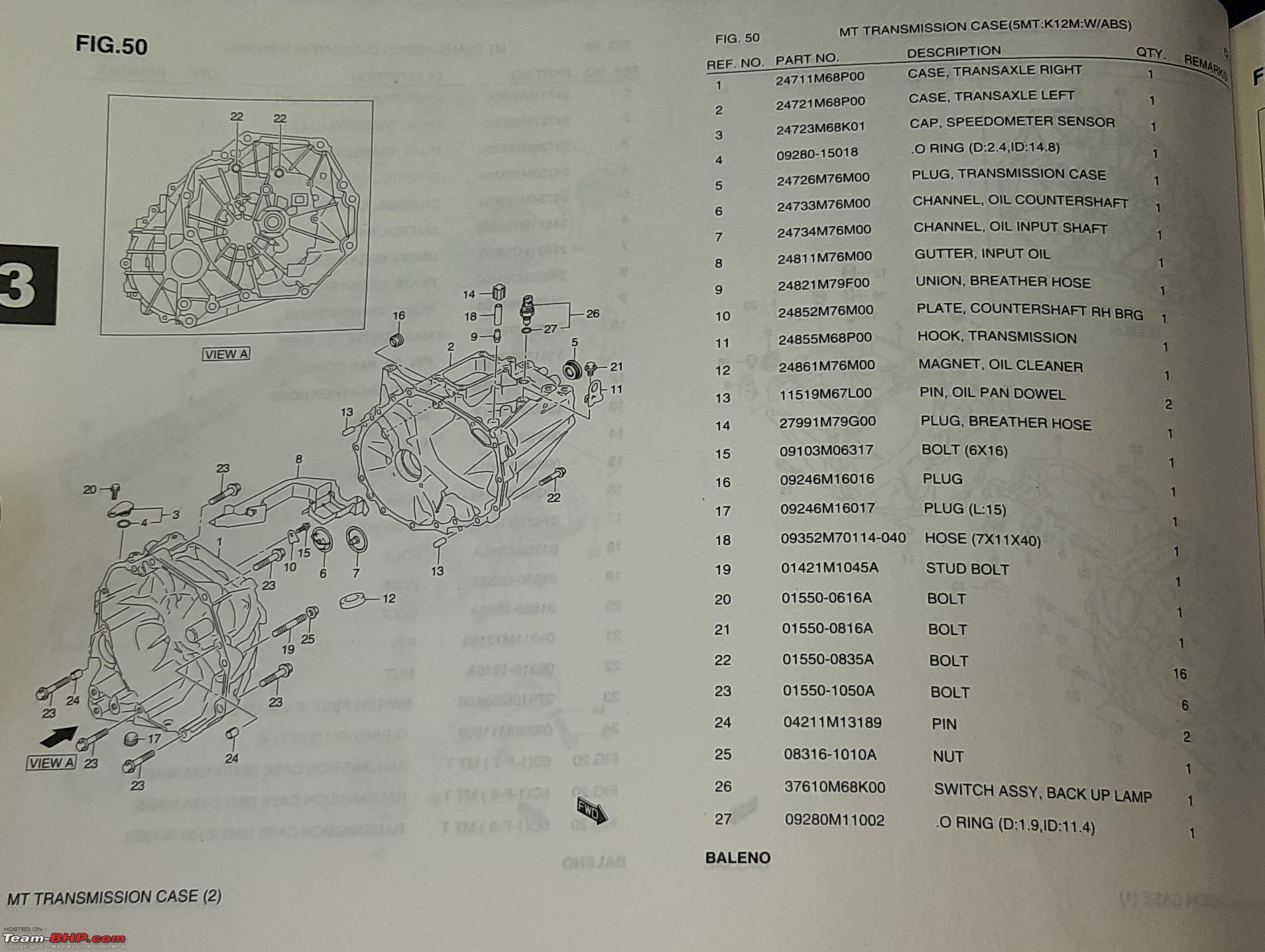

I would like to change the transmission oil on my Baleno 1.2L Petrol manual. However, I am not sure regarding the drain plug, bolt, washer I need to buy. I checked the parts catalogue but still confused. Please provide the part number for the items I need buy.

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-20220129_133450.jpg

Hope I can use this oil for my car gearbox.

Name:  Shell spirax.PNG
Views: 168
Size:  453.2 KB

Last edited by amvj : 29th January 2022 at 13:48.
amvj is online now
Old 30th January 2022, 09:35   #1540
Newbie

Join Date: Jun 2010
Location: Pune
Posts: 11
Thanked: 49 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi Shashi,

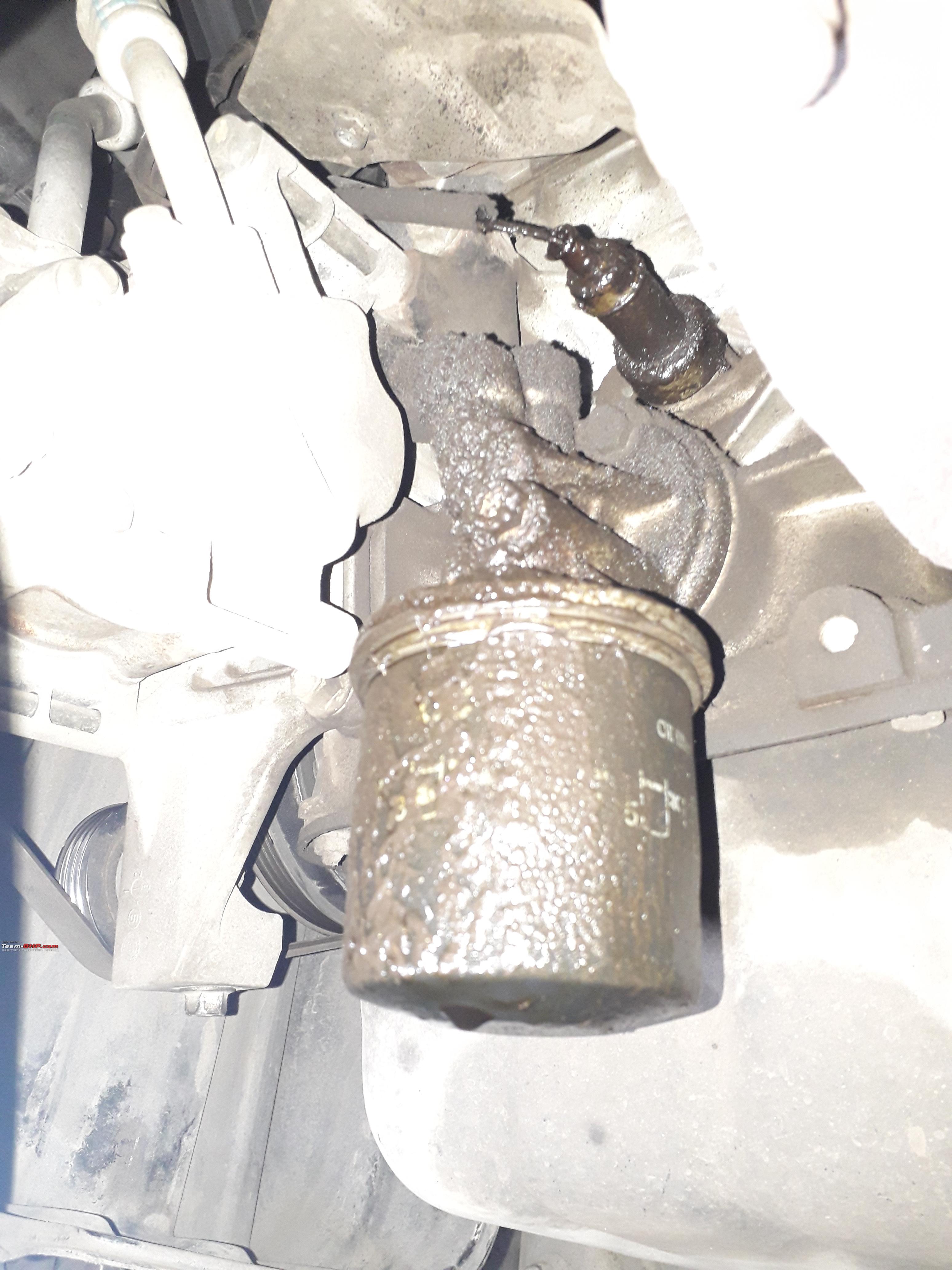

Had gone to get one of the squeaky belts repaired and noticed oil leaking near the oil filter.
The mechanic said that the switch needs to be replaced, any idea about the part no. ?
2007 Swift Vxi
Attached Thumbnails
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-20211202_165527.jpg

psyph3r is offline
Old 30th January 2022, 17:51   #1541
Senior - BHPian

Join Date: Jan 2012
Location: Bengaluru
Posts: 1,082
Thanked: 2,661 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by supremeBaleno View Post
Hi Shashi, could you please post the partnumbers & price for the following spares of the Baleno1.6 :
- rear Struts
- front lower arm
- front driveShaft
And recommendations (if any) for alternatives that are good ?
Thanks !!!
I had replaced the front lower arms last year from a FNG. This was SGP part sourced from Essar Automotive and had cost me 9312/- each. I don't have the part number for this though.
unk9ja is offline
Old 30th January 2022, 18:14   #1542
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,399
Thanked: 39,161 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by sac23 View Post
Hi,
I was trying to purchase an oil filter for Ignis 2018 with a K12B engine from boodmo. There are filters from a lot of manufactures available there. Namely, Purolator, Mahle, Hella, ZIP, Bosch. Which one should I ideally go for?
Filters in boodmo

Also, why are there some filters without the outer casing?
Stick to MGP, Part Number 16510M68K00

Quote:
Originally Posted by supremeBaleno View Post
Hi Shashi, could you please post the partnumbers & price for the following spares of the Baleno1.6 :
- rear Struts
- front lower arm
- front driveShaft
And recommendations (if any) for alternatives that are good ?
Thanks !!!
Lower Struts:

OE Part numbers: 41802-60GA0 and 41801-60GA0, costs Rs. 8510 each
Alternative: TRW Left and TRW Right

TRW is a reputed aftermarket brand and I'll highly recommend it.

Lower Arm: 45201-63G01 and 45202-63G01, costs Rs. 11,300 each.

Driveshafts: 44101M60G00 and 44102M60G00, Rs. 6008 each.

Quote:
Originally Posted by sumeethaldankar View Post
Will I get just the container for the new 2019 Petrol Swift. Currently this is how it looks The part is not available at the service centre where I just dropped the car. Have covered the lower torn bits with duct tape. I hope I don't have to change the motor assembly as well just to get the plastic container bit.
Tank: 38450M56R40, costs Rs. 195
Cap: 38452M56R30, costs Rs. 9

Quote:
Originally Posted by pjbiju View Post
Leoshashi need your help.

Model Name- Swift (2006 make)
Variant- VXi
Parts Required- A/C compressor & Evaporator

My car's AC is now not working properly and may need to replace the compressor. When I enquired with a MGA spares store, they told me that there is a compressor for Type 1 Swift and the cost is ~Rs. 55k and then there is a compressor for Type 2 which he said costs ~14k. Not sure why there is a huge difference in the prices and if they are compatible with each other.
Yes there is a compressor worth 50k plus! I'll recommend contacting some subros dealer from here. One of my trusted suppliers for Subros are:

United Sales Agency, Kolkata: 98318 18809, replies nicely over whatsapp
Anand Motors, Jaipur: 94145 34777, replies better over call.

You will save significantly over what MGP will give you. For example, check out the approximate prices on Anand Motor's webpage: Link . Do call the numbers given and deal directly over phone or whatsapp for best prices.

Quote:
Originally Posted by Ponbaarathi View Post
Hi, can anyone provide me the part number for PM 2.5 Cabin AC Filter.

Model : Swift 2nd Gen
Variant : VXI(O)
YOM : 2017

Thanks in advance.
I believe this should fit: 990J0M82PS0-010, Rs. 625

Quote:
Originally Posted by amvj View Post
Hi Shashi,

I would like to change the transmission oil on my Baleno 1.2L Petrol manual. However, I am not sure regarding the drain plug, bolt, washer I need to buy. I checked the parts catalogue but still confused. Please provide the part number for the items I need buy.

Attachment 2266314

Hope I can use this oil for my car gearbox.

Attachment 2266315
You should change 09246M16016(filler) and 09246M16017(drain).

I wouldn't recommend 80W90 for Baleno. Try sourcing 75W90/75w80 GL4 or stick to the lifetime fluid Maruti recommends. Link

With 80w90, you may feel the shifts to be hard when car is cold.

Quote:
Originally Posted by psyph3r View Post
Hi Shashi,

Had gone to get one of the squeaky belts repaired and noticed oil leaking near the oil filter.
The mechanic said that the switch needs to be replaced, any idea about the part no. ?
2007 Swift Vxi
37820M70F00, Rs. 210

Regards,
Shashi
Leoshashi is offline   (7) Thanks
Old 8th February 2022, 13:27   #1543
Senior - BHPian

balenoed_'s Avatar

Join Date: Jul 2016
Location: KL14 <> KA01
Posts: 1,426
Thanked: 3,593 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi,

Can you please provide some detail on power steering pump for Baleno (old).
Part# & price.
balenoed_ is online now
Old 8th February 2022, 13:39   #1544
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,399
Thanked: 39,161 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by balenoed_ View Post
Hi,

Can you please provide some detail on power steering pump for Baleno (old).
Part# & price.
Part Number: 49110-64G11
Name: PUMP ASSYPOWER STEERING
MRP: ₹32,615
Leoshashi is offline   (1) Thanks
Old 8th February 2022, 14:03   #1545
Senior - BHPian

balenoed_'s Avatar

Join Date: Jul 2016
Location: KL14 <> KA01
Posts: 1,426
Thanked: 3,593 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
Part Number: 49110-64G11
Name: PUMP ASSYPOWER STEERING
MRP: ₹32,615
Oops!
I will then go ahead with the repair way, with a quote of 9K.
balenoed_ is online now   (1) Thanks
