Old 15th November 2019, 18:11   #1081
NPV
Distinguished - BHPian

NPV's Avatar

Join Date: Oct 2009
Location: Namma Bengaluru
Posts: 7,259
Thanked: 10,398 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi Shashi,
I'm looking for the "Cam Shaft Timing Belt" that needs replacement at 100k Km

Vehicle:First gen. Swift Dzire Vxi (Petrol) 2009 model

Can you confirm if this is the correct part ?
12761M70C20 "BELT TIMING (MPFI)", MRP Rs.714.00

Also, do the Timing Belt Tensioner, Tensioner Spring, Tensioner Plate, Bolt, etc need to be replaced along with the Timing belt ? If yes, the part numbers for them will help

Last edited by NPV : 15th November 2019 at 18:19.
NPV is offline
Old 15th November 2019, 19:42   #1082
Distinguished - BHPian

paragsachania's Avatar

Join Date: Nov 2007
Location: Belur/Bangalore
Posts: 7,148
Thanked: 27,144 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by NPV View Post
Also, do the Timing Belt Tensioner, Tensioner Spring, Tensioner Plate, Bolt, etc need to be replaced along with the Timing belt ? If yes, the part numbers for them will help
Yes. It is always better to replace the entire Timing belt kit along with the auxiliary parts. For the WagonR, I have religiously done this twice till now without fail.
paragsachania is offline   (2) Thanks
Old 15th November 2019, 19:50   #1083
BHPian

Join Date: Aug 2015
Location: Hyderabad
Posts: 254
Thanked: 130 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi. The front right hand window of my Wagon R [2011] has fallen into the door. I understand that regulator cable may have to be replaced if broken. Appreciate if you could post the part # and approx price. Thanks in advance.
Zezé is offline
Old 15th November 2019, 23:48   #1084
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,695
Thanked: 42,459 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by supremeBaleno View Post
Shashi, could you please post the part# and prices for the following parts of Baleno 1.6 ?
1) Ignitor
2) Radiator
Thanks
Assuming you mean coil packs and not igniters,

Name: COIL ASSY IGNITION
Part Number: 33400M78L00(Shared with EECO, so should be readily available)
Price: Rs. 1890

Radiator: Kindly check this link, should be helpful: https://www.team-bhp.com/forum/techn...ml#post4644054 (Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1))

Quote:
Originally Posted by NPV View Post
Hi Shashi,
I'm looking for the "Cam Shaft Timing Belt" that needs replacement at 100k Km

Vehicle:First gen. Swift Dzire Vxi (Petrol) 2009 model

Can you confirm if this is the correct part ?
12761M70C20 "BELT TIMING (MPFI)", MRP Rs.714.00

Also, do the Timing Belt Tensioner, Tensioner Spring, Tensioner Plate, Bolt, etc need to be replaced along with the Timing belt ? If yes, the part numbers for them will help
Yes your info on the timing belt is correct. For G series engines, you need to change a host of other parts also and this makes it a bit complex, so make sure your mechanic is competent.

Name: DAMPER TENSIONER SPRING
Part Number: 12823-82001
Price: Rs. 165

Name: SPRING TENTIONER
Part Number: 12821M70C00
Price: Rs.5

Name: TENSIONER COMP TIMING BELT
Part Number: 12810M71C22/32
Price: Rs. 605/624

Quote:
Originally Posted by Zezé View Post
Hi. The front right hand window of my Wagon R [2011] has fallen into the door. I understand that regulator cable may have to be replaced if broken. Appreciate if you could post the part # and approx price. Thanks in advance.
The regulator mechanism has failed or the sash has rusted and collapsed. Can be either case. Kindly check which part has failed.

Regards,
Shashi
Leoshashi is offline   (6) Thanks
Old 16th November 2019, 10:21   #1085
BHPian

Join Date: Aug 2015
Location: Hyderabad
Posts: 254
Thanked: 130 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
The regulator mechanism has failed or the sash has rusted and collapsed. Can be either case. Kindly check which part has failed.

Regards,
Shashi
Thanks, Shashi. Will take the car to the workshop today and have it checked out.
Zezé is offline   (1) Thanks
Old 16th November 2019, 11:56   #1086
BANNED

Join Date: Feb 2019
Location: Junagadh
Posts: 46
Thanked: 78 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post

We have a plethora of threads asking for advice regarding spare parts, where the Maruti owners tend to get lost. Also, I've been receiving many PMs asking for spare part numbers and price. While I humbly help them all, posting on a common forum will help a larger audience. Hence I thought of having a central query thread for MGP/SGP/MGAs.
Hello Sir,

I am having Maruti Suzuki SX4 ZXi model (2011). I need the rear wheel hub as it started humming tremendously. So i inquired in MASS. After two days they told me that Rear Wheel Hub is not available as a MGP and they need to import SGP Part which will cost whopping 13k. So what i would like to know is whether any other car's Rear Wheel hub (must be MGP for less cost) is compatible with SX4 ? Mine is ABS version.

Thanks in advance!

Last edited by Rudra Sen : 16th November 2019 at 17:58. Reason: quote content trimmed
CaptainBrijesh is offline
Old 16th November 2019, 12:10   #1087
Senior - BHPian

supremeBaleno's Avatar

Join Date: Dec 2005
Location: Chennai / Kochi
Posts: 5,554
Thanked: 2,711 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
Assuming you mean coil packs and not igniters,
Sorry for the confusion. Attached part was what I meant - the mechanic called it Ignitor, but clearly that isn't the correct name.
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-balenoignitor.jpg
supremeBaleno is online now   (1) Thanks
Old 16th November 2019, 17:45   #1088
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,695
Thanked: 42,459 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by CaptainBrijesh View Post
Hello Sir,

I am having Maruti Suzuki SX4 ZXi model (2011). I need the rear wheel hub as it started humming tremendously. So i inquired in MASS. After two days they told me that Rear Wheel Hub is not available as a MGP and they need to import SGP Part which will cost whopping 13k. So what i would like to know is whether any other car's Rear Wheel hub (must be MGP for less cost) is compatible with SX4 ? Mine is ABS version.

Thanks in advance!
Try to get 43402M55K00. It costs Rs. 3412 and should fit perfectly.

Regards,
Shashi
Leoshashi is offline   (5) Thanks
Old 16th November 2019, 18:20   #1089
BANNED

Join Date: Feb 2019
Location: Junagadh
Posts: 46
Thanked: 78 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
Try to get 43402M55K00. It costs Rs. 3412 and should fit perfectly.

Regards,
Shashi
This part is for which vehicle?
As i have said earlier, MASS is saying that MGP rear wheel hub is not available. It has been discontinued. So would like to know that, this is from other vehicle or SX4 only?

Thanks.
CaptainBrijesh is offline
Old 16th November 2019, 18:40   #1090
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,695
Thanked: 42,459 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by CaptainBrijesh View Post
This part is for which vehicle?
As i have said earlier, MASS is saying that MGP rear wheel hub is not available. It has been discontinued. So would like to know that, this is from other vehicle or SX4 only?

Thanks.
It's family part of the original SGP hub and is meant to be a replacement for that(in SX4 also). Also, it currently comes in S Cross and Vitara Brezza.

Regards
Shashi
Leoshashi is offline   (2) Thanks
Old 17th November 2019, 09:40   #1091
BHPian

Join Date: Oct 2012
Location: Bangalore
Posts: 66
Thanked: 29 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hello Shashi,
Could you please help with part number and price for the "Antenna assembly" of Baleno-VXi (old one - sedan)?

Thanks
sujithpnair is offline
Old 17th November 2019, 10:41   #1092
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,695
Thanked: 42,459 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by sujithpnair View Post
Hello Shashi,
Could you please help with part number and price for the "Antenna assembly" of Baleno-VXi (old one - sedan)?

Thanks
Part No: 39250M60G20
Name: ANTENNA ASSY
Price:Rs. 645

Regards,
Shashi
Leoshashi is offline   (2) Thanks
Old 17th November 2019, 10:45   #1093
Team-BHP Support

Vid6639's Avatar

Join Date: Jul 2006
Location: Bangalore
Posts: 17,736
Thanked: 43,520 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

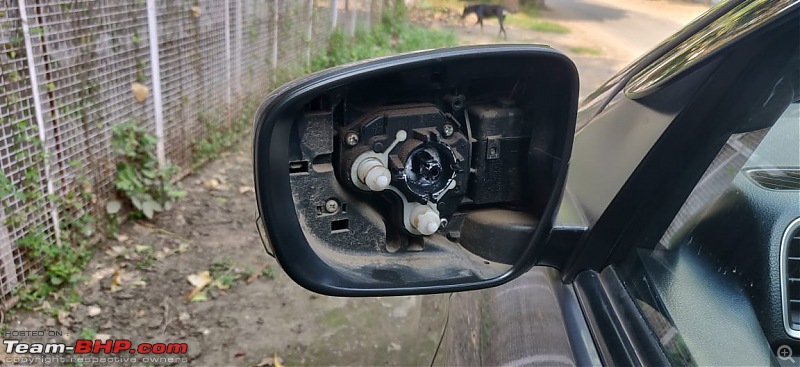

Can someone help with part number as well where to get just the mirror for Ciaz left ORVM.

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-whatsapp-image-20191116-13.07.05.jpeg

The car is in Baroda GJ and the Nexa dealer is claiming needs a full assembly change for 5.5K as they don't sell just the mirror. I don't buy this.
Vid6639 is offline
Old 17th November 2019, 10:58   #1094
Distinguished - BHPian

BoneCollector's Avatar

Join Date: Apr 2011
Location: BIHAR
Posts: 3,212
Thanked: 10,850 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Vid6639 View Post
Can someone help with part number as well where to get just the mirror for Ciaz left ORVM.

Attachment 1935562

The car is in Baroda GJ and the Nexa dealer is claiming needs a full assembly change for 5.5K as they don't sell just the mirror. I don't buy this.
Which variant is this? Apparently top trim and lower ones have different mirrors as per Boodmo. Mirror for LDi and VDi is only around Rs. 330/-
BoneCollector is offline
Old 17th November 2019, 11:09   #1095
Team-BHP Support

Vid6639's Avatar

Join Date: Jul 2006
Location: Bangalore
Posts: 17,736
Thanked: 43,520 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by BoneCollector View Post
Which variant is this? Apparently top trim and lower ones have different mirrors as per Boodmo. Mirror for LDi and VDi is only around Rs. 330/-
ZXI 2017 .
Vid6639 is offline
