Old 4th August 2020, 18:01   #1201
Senior - BHPian

pjbiju's Avatar

Join Date: Apr 2006
Location: Pune
Posts: 1,317
Thanked: 970 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
Part Number: 51300M75J00
Name: BOOSTER ASSY BRAKE MASTER
Price: Rs. 2926

Do note that this consists of only the black body part. Master cylinder and reservoir etc needs to be bought separately.

Regards,
Shashi
Hi Shashi,

Will you let me know the part numbers of the master cylinder + reservoir assembly? Does it come as a separate assembly? Car: Swift VXi (Non-ABS, 2006 model)

Thanks,
Biju
pjbiju is offline
Old 4th August 2020, 21:30   #1202
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,644
Thanked: 41,579 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by ROG_AK View Post
Hi,

Could you please share the spark plug part number and price for Baleno RS. Is it just an Iridium plug or Laser Iridium plug?
Name: SPARK PLUG (NGK ILZKR7D8)
Part Number: 09482-00642
MRP: ₹2,040.00

It seems to be a normal iridium.

Name:  0948200642_2.jpg
Views: 1070
Size:  192.7 KB

Quote:
Originally Posted by pjbiju View Post
Hi Shashi,

Will you let me know the part numbers of the master cylinder + reservoir assembly? Does it come as a separate assembly? Car: Swift VXi (Non-ABS, 2006 model)

Thanks,
Biju
This should help you: https://oriparts.com/7/49/3230/814326
Leoshashi is offline   (5) Thanks
Old 5th August 2020, 12:29   #1203
BHPian

Join Date: Mar 2004
Location: Pune
Posts: 144
Thanked: 135 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi Shashi,

I am looking to replace switch assy audio control (part number: 3746079J40ZCP) on my Ritz Zxi.

Would you know if part number: 37460M55K00ZML is compatible with it? Boodmo does not seems to indicate that. However, visually both parts appear to be similar.

Thanks.
vaasu is offline   (1) Thanks
Old 5th August 2020, 12:32   #1204
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,644
Thanked: 41,579 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by vaasu View Post
Hi Shashi,

I am looking to replace switch assy audio control (part number: 3746079J40ZCP) on my Ritz Zxi.

Would you know if part number: 37460M55K00ZML is compatible with it? Boodmo does not seems to indicate that. However, visually both parts appear to be similar.

Thanks.
Yes they should fit. Go ahead!
Leoshashi is offline   (5) Thanks
Old 6th August 2020, 14:59   #1205
Senior - BHPian

Join Date: Jul 2009
Location: Calcutta
Posts: 4,668
Thanked: 6,204 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
Format for a query

Model Name-
Variant-
Part Required (post a picture if the part isn't easy to describe)-
Hi,
M800 5 Speed.
Radiator fan - Same as M800 AC model, or different?

Sutripta
Sutripta is offline
Old 6th August 2020, 20:57   #1206
Senior - BHPian

Klub Class's Avatar

Join Date: Aug 2007
Location: KA17|KL65|KL41
Posts: 4,850
Thanked: 1,927 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Need help with the MGP part number (and price if possible) of NGK Iridium spark plugs for 2009 Grand Vitara 2.4.

- NGK part number SILFR6A11 (5468) is the recommended one as per the owners manual. I had written to NGK India and they confirmed that the spark plug is not available in the open market. Part can be ordered only through Maruti.

- I had requested my service advisor to search for part number 0948200606 (SGP). He told he couldn't find the part in the database.

- He could find Denso Nickel spark plugs in the database. Costs 380 per plug.

Thanks


Last edited by Klub Class : 6th August 2020 at 21:00.
Klub Class is offline
Old 6th August 2020, 22:32   #1207
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,644
Thanked: 41,579 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Sutripta View Post
Hi,
M800 5 Speed.
Radiator fan - Same as M800 AC model, or different?

Sutripta
You need the fan motor, or the fan(Blades) itself?

For fan motor alone, better get Denso make motor. Its easily available in aftermarket. Kindly refer to my OEM & Aftermarket thread for the part number and price.

If its only the blades you need(without the motor), its same for 4 speed and 5.

5 Speed doesn't get the entire assembly(Shroud plus blades plus motor), so you will have to get them individually. Shroud anyways doesn't go bad as its metal.

Quote:
Originally Posted by Klub Class View Post
Need help with the MGP part number (and price if possible) of NGK Iridium spark plugs for 2009 Grand Vitara 2.4.

- NGK part number SILFR6A11 (5468) is the recommended one as per the owners manual. I had written to NGK India and they confirmed that the spark plug is not available in the open market. Part can be ordered only through Maruti.

- I had requested my service advisor to search for part number 0948200606 (SGP). He told he couldn't find the part in the database.

- He could find Denso Nickel spark plugs in the database. Costs 380 per plug.

Thanks

Part number in MGP is:

Name: PLUG SPARK
Part Number: 09482-00605
MRP: ₹380.00

There is no option of Iridiums inside MGP AFAIK. However you should be able to get using the NGK-Denso Cross reference charts I have posted in my Aftermarket spares thread.

Regards,
Shashi
Leoshashi is offline   (5) Thanks
Old 8th August 2020, 11:47   #1208
NPV
Distinguished - BHPian

NPV's Avatar

Join Date: Oct 2009
Location: Namma Bengaluru
Posts: 6,969
Thanked: 9,348 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Shashi, this query is for a friend who is getting some work done on his Zen.

Details of the car:
Maruti Zen MPFI
Year - 2003
Variant - LX

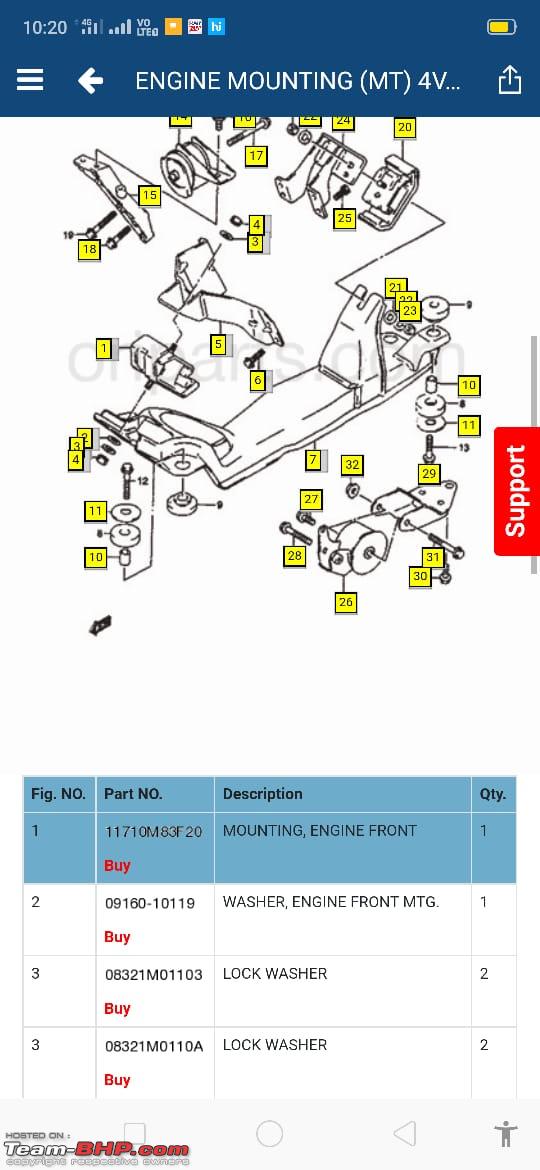

Part he is looking for is the "Mounting, Engine Front" (Part #1 in the diagram below).
He says that the part isn't available at MGP stores currently, so is there an alternate part ?
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-engine-mounting.jpeg

*Boodmo seems to have it currently, so that could be an option too, but there will be some wait time to receive the product.
NPV is offline
Old 11th August 2020, 11:13   #1209
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,644
Thanked: 41,579 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by NPV View Post
Shashi, this query is for a friend who is getting some work done on his Zen.

Details of the car:
Maruti Zen MPFI
Year - 2003
Variant - LX

Part he is looking for is the "Mounting, Engine Front" (Part #1 in the diagram below).
He says that the part isn't available at MGP stores currently, so is there an alternate part ?
Attachment 2040023

*Boodmo seems to have it currently, so that could be an option too, but there will be some wait time to receive the product.
Please check properly, its discontinued even on Boodmo :(

It seems Maruti has discontinued this part/switching to some other part hence temporary discontinuation. Ask him to ask MGP store to see if its available nearby.

Regards,
Shashi

PS: Just a wild guess, consult mechanic if Super Carry's mount with Part No: 11610M77P00/11620M77P00 will work or not. They aren't compatible as per Maruti but I have a strong feeling that it should be, looks similar.

Last edited by Leoshashi : 11th August 2020 at 11:15.
Leoshashi is offline   (5) Thanks
Old 19th August 2020, 20:37   #1210
Newbie

Join Date: Aug 2015
Location: Mumbai
Posts: 20
Thanked: 13 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi. This is regarding Maruti Swift 1st Gen (Lxi) - 2008 Model.

The Wiper Motor Cover/Rubber (not sure what its called) has been eaten completely by Rats.

I have attached the screenshot of the part I am referring to.

Tried Checking on Boodmo but was not successful. Maybe I am not looking in the correct section.


Would really help, if someone could help with a part number for this.
Attached Thumbnails
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-swift-wiper-cover.png

rayvonnee is offline
Old 22nd August 2020, 18:40   #1211
Senior - BHPian

Join Date: Jan 2012
Location: Bengaluru
Posts: 1,098
Thanked: 2,796 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Attaching the part number and the cost for the front suspension parts of Baleno sedan
Name:  IMG_20200822_183819.jpg
Views: 676
Size:  67.9 KB
The last row is for the rear wheel bearing. It is a hub mounted one and does not come separately.

Last edited by unk9ja : 22nd August 2020 at 18:41.
unk9ja is offline   (3) Thanks
Old 22nd August 2020, 18:48   #1212
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,644
Thanked: 41,579 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by rayvonnee View Post
Hi. This is regarding Maruti Swift 1st Gen (Lxi) - 2008 Model.

The Wiper Motor Cover/Rubber (not sure what its called) has been eaten completely by Rats.

I have attached the screenshot of the part I am referring to.

Tried Checking on Boodmo but was not successful. Maybe I am not looking in the correct section.


Would really help, if someone could help with a part number for this.
That is a part of the entire wiper motor assembly and you cannot procure it separately.

See images of part number 38100M75J10 on Boodmo.

Regards,
Shashi
Leoshashi is offline   (4) Thanks
Old 22nd August 2020, 19:28   #1213
Newbie

Join Date: Aug 2015
Location: Mumbai
Posts: 20
Thanked: 13 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
That is a part of the entire wiper motor assembly and you cannot procure it separately.

See images of part number 38100M75J10 on Boodmo.

Regards,
Shashi
Thank you so much. I missed checking the pics on boodmo.
rayvonnee is offline   (1) Thanks
Old 22nd August 2020, 20:42   #1214
BHPian

WhiteSierra's Avatar

Join Date: Jul 2020
Location: Hyderabad
Posts: 428
Thanked: 2,243 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi Leoshashi,

I've seen someone modify / add a rear wiper on their zen. I have a 2012 Wagon R LXI and want to add a rear wiper to my car aswell. I checked all VXI parts on boodmo, but I couldn't find wiring harness for the same. These are all the parts required for the work, also looks like I should change the wiper stalk to operate rear wiper
https://oriparts.com/7/83/3022/789386

Does it come with a separate plug and play wiring harness or do we have to make any alterations to existing wiring harness? I'm very skeptical about messing around with original wiring harness as it might lead to any short circuits in future. As per your experience, do you recommend this mod or shall I pass it on?
WhiteSierra is offline
Old 22nd August 2020, 22:13   #1215
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,644
Thanked: 41,579 Times
Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by WhiteSierra View Post
Hi Leoshashi,

I've seen someone modify / add a rear wiper on their zen. I have a 2012 Wagon R LXI and want to add a rear wiper to my car aswell. I checked all VXI parts on boodmo, but I couldn't find wiring harness for the same. These are all the parts required for the work, also looks like I should change the wiper stalk to operate rear wiper
https://oriparts.com/7/83/3022/789386

Does it come with a separate plug and play wiring harness or do we have to make any alterations to existing wiring harness? I'm very skeptical about messing around with original wiring harness as it might lead to any short circuits in future. As per your experience, do you recommend this mod or shall I pass it on?
For that Zen mod, we used parts of the harness we bought, but it wasn't entirely plug and play. We had to make our own custom harness and use only couplers and some other parts. We had to tap 12V lines separately.

If you are ready to do that, then you may go ahead with the mod.

For my own rear wiper installation in my M800, I was lucky enough to find the harness of export model which had wires running for defogger, rear fog etc. However I had to tap for some connections at couple of places like illumination.

One way you can go is changing all the harnesses to VXi. However that will not be a very cost effective way of installation.

Regards,
Shashi
Leoshashi is offline   (3) Thanks
