Old 8th April 2021, 12:04   #1426
Senior - BHPian

supremeBaleno's Avatar

Join Date: Dec 2005
Location: Chennai / Kochi
Posts: 5,428
Thanked: 2,332 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by supremeBaleno View Post
Though one baffling thing is the part 6 (VSS) is not shown inside the Speedometer Assembly.
While parts 1 to 5 are indicated in the Speedometer Assembly, parts 6 & 7 are not. Which is strange.
Name:  IMG_4396.jpg
Views: 734
Size:  75.2 KB

Also the parts table (below) is kind of confusing. Line-4 says parts 1-6 are for VXi AT (our model),
but then Line-10 says part6 is for Non-ABS model (ours has ABS). Both are contradictory.
Wondering if this is some error in the parts manual ?
Name:  IMG_4397.jpg
Views: 764
Size:  75.0 KB

Last edited by supremeBaleno : 8th April 2021 at 12:05.
supremeBaleno is offline
Old 9th April 2021, 03:31   #1427
Senior - BHPian

govigov's Avatar

Join Date: Oct 2007
Location: Cochin!!!!!
Posts: 1,579
Thanked: 945 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

I was not aware that you can buy Maruti Suzuki Genuine Accessories at marutisuzuki.com.

Here is a link - https://www.marutisuzuki.com/genuine...re-accessories

I found some products listed here that are hard to come by and are not listed in boodmo.
govigov is offline   (2) Thanks
Old 11th April 2021, 18:26   #1428
BHPian

viXit's Avatar

Join Date: Apr 2020
Location: Hyd
Posts: 650
Thanked: 1,830 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi!

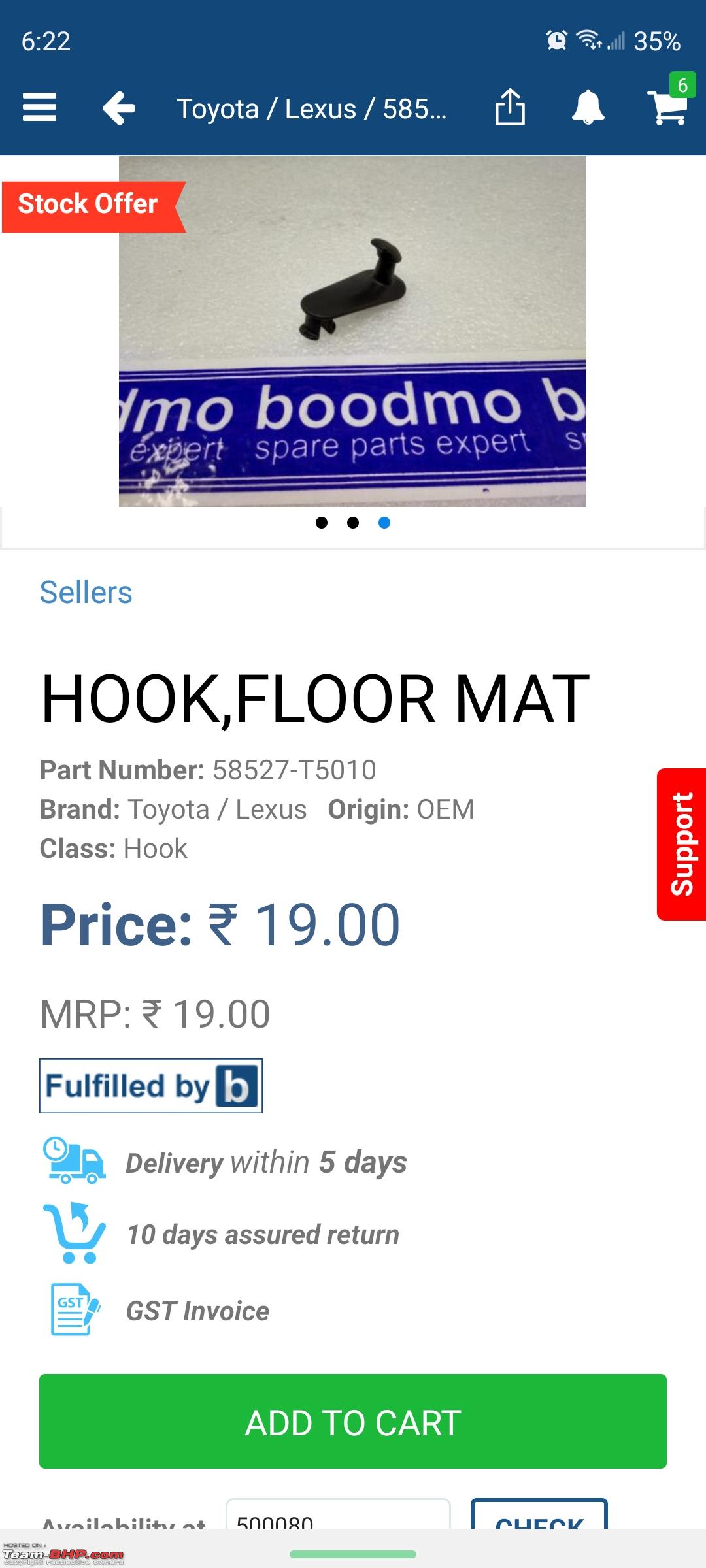

Can you help me with any floor mat hooks like these from MGP which I can use in my car, we only have generic Universal foot mats in our car and hence have them sliding around all the time. Thanks in no small part to the laminated flooring of the car, which is smooth and helps the mats slide

Any and every help is appreciated, thanks
Attached Thumbnails
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-screenshot_20210411182208_boodmo.jpg

viXit is offline
Old 12th April 2021, 07:38   #1429
BHPian

stallmaster's Avatar

Join Date: Dec 2020
Location: Kolkata
Posts: 138
Thanked: 696 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi Leoshashi, do you know if earlier generation Suzuki engines of F & G series are interference engines or not? I wanna know if my engines are gonna commit suicide if a timing belt worth 500 fails.
stallmaster is offline
Old 24th April 2021, 01:13   #1430
BHPian

batish's Avatar

Join Date: Jan 2017
Location: -
Posts: 295
Thanked: 770 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Can anybody tell me what would be the length of the jump start cables in this accessory: 990J0M999X0-010. Tried googling but could not find any length specifications. Don't want to end up with a 2ft. cable.
batish is offline
Old 17th May 2021, 09:23   #1431
Senior - BHPian

tanwaramit's Avatar

Join Date: Aug 2005
Location: Dilwalon ki Dilli
Posts: 1,915
Thanked: 451 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

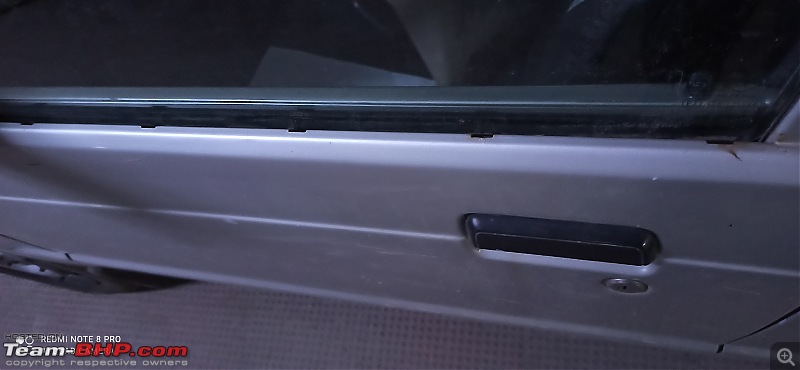

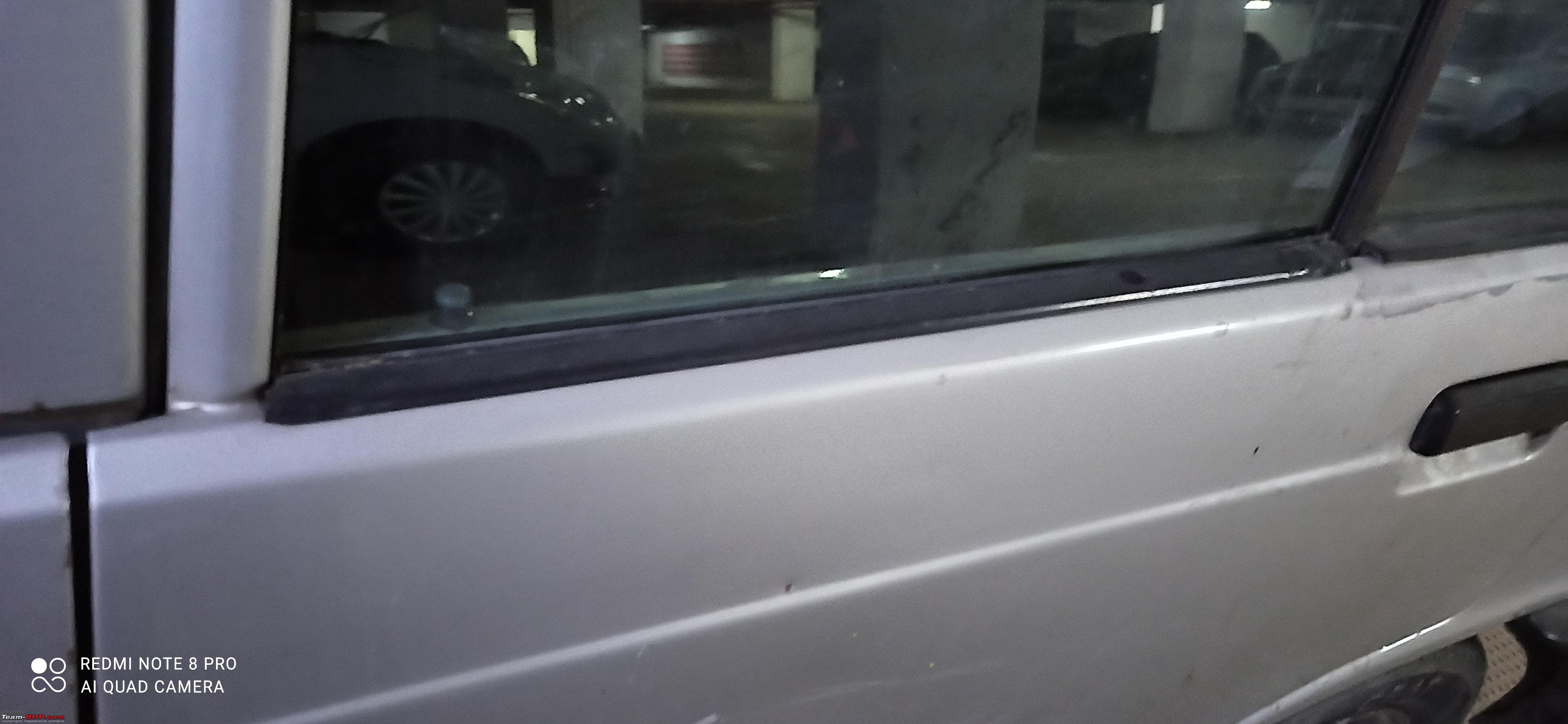

I need window side beadings for M800 AC 2010 model.

Missing for the front left door. Still in place for back left door.

Can you please help with the part numbers? I tried checking online, but got more confused.

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-img_20210501_203242.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-img_20210501_203254.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-img_20210501_203248.jpg
tanwaramit is offline
Old 17th May 2021, 09:52   #1432
Senior - BHPian

balenoed_'s Avatar

Join Date: Jul 2016
Location: KL14 <> KA01
Posts: 1,371
Thanked: 3,460 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
Thanks for updating.
Dear Shashi, Not seeing you in action on this thread since April 6th. I hope you and your family are safe and doing good.

(Mods, off-topic, but just thought of checking in on the hero of this thread)

Last edited by balenoed_ : 17th May 2021 at 09:54.
balenoed_ is offline   (1) Thanks
Old 17th May 2021, 10:55   #1433
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,195
Thanked: 37,292 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Apologies everyone for the delayed reply. Was unwell so couldn't reply.

Quote:
Originally Posted by revvharder View Post
Hi Shashi sir,

Could you help me with the part number and cost of CNG filter for the 2021 Wagonr and sometime back you had recommended some door protector from MGA but I'm unable to locate that post, if possible could you share the part number for those as well.

Thanks
There are two options:

1. Replace the entire filter assembly:

Part Number: 15410M67L70
Name: FILTER COMP CNG
MRP ₹1,070

2. Rebuild the filter:

Part Number: 15414M60MA0
REPAIR KIT, FILTER
MRP ₹875

I'm not sure which door guards you are mentioning. Is it this one: 990J0M67LPA-010/990J0M67LPA-020. I have the same ones on my cars. Very discreet but does the job well if located strategically. There are many options so I'm not sure which one I had recommended in past.

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-20210113_172233.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-20210514_085005.jpg

Quote:
Originally Posted by wanderernomad View Post
Dear Shashi, can you please help me in locating the part number of the following alloy wheel cap and also if someone can point me out to some local source. Thanks.
Its a 2007 Baleno VXI.
There you go: Link (The love of my life - A 2000 Maruti 800 DX 5-Speed. EDIT: Gets export model features on Pg 27)

Quote:
Originally Posted by Sanidhya mukund View Post
Asking for a friend: Can the ZXI plus smart play infotainment system be fitted in an Ertiga VXI automatic? If yes, will it involve wire splicing? Also, how much is it likely to cost? He needs an automatic and finds the VXI to be quite VFM, but he needs apple CarPlay and android auto.
No idea buddy. But that system costs around 40k IIRC, and you can get much better HUs for fraction of that cost.

Quote:
Originally Posted by viXit View Post
Hi!

Can you help me with any floor mat hooks like these from MGP which I can use in my car, we only have generic Universal foot mats in our car and hence have them sliding around all the time. Thanks in no small part to the laminated flooring of the car, which is smooth and helps the mats slide

Any and every help is appreciated, thanks
You get these hooks with MGA Floor mats. Refer to the 4th point of the post: Link (My first car: 2020 Maruti Suzuki XL6 Alpha MT Review)

Quote:
Originally Posted by stallmaster View Post
Hi Leoshashi, do you know if earlier generation Suzuki engines of F & G series are interference engines or not? I wanna know if my engines are gonna commit suicide if a timing belt worth 500 fails.
The older ones like F8B were non interference types. F8D was interference type. Which engine are you specifically asking for?

Quote:
Originally Posted by batish View Post
Can anybody tell me what would be the length of the jump start cables in this accessory: 990J0M999X0-010. Tried googling but could not find any length specifications. Don't want to end up with a 2ft. cable.
Should be around 5-6ft. I have them and will confirm the length by EOD.

Quote:
Originally Posted by tanwaramit View Post
I need window side beadings for M800 AC 2010 model.

Missing for the front left door. Still in place for back left door.
I'm posting the part numbers for all 4 sides:


Front RH: 83810M84110
Front LH: 83820M84110
Rear RH: 83830M84110
Rear LH: 83840M84110

Quote:
Originally Posted by balenoed_ View Post
Dear Shashi, Not seeing you in action on this thread since April 6th. I hope you and your family are safe and doing good.

(Mods, off-topic, but just thought of checking in on the hero of this thread)
Apologies, we were all down with Covid. Posting on this thread needs a lot of commitment and effort so I was avoiding it for the time being.

Regards,
Shashi
Leoshashi is offline   (7) Thanks
Old 18th May 2021, 20:08   #1434
Senior - BHPian

wanderernomad's Avatar

Join Date: Jul 2007
Location: Chandigarh
Posts: 2,526
Thanked: 1,240 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Thank you Shashi. Hope everyone has recovered. Unprecedented and difficult times. Please take care.
wanderernomad is offline   (1) Thanks
Old 21st May 2021, 21:09   #1435
BHPian

PSM_360's Avatar

Join Date: Jul 2015
Location: Ludhiana/Pune
Posts: 44
Thanked: 54 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi,

I hope this thread is suitable for my query as it is related to the MGP part that I just received from Boodmo.

I ordered a lockset for my Maruti 1000.
Part No. 37109M70C10 ( https://boodmo.com/catalog/part-lock_set-6788349/ )
I followed the OEM parts catalogue on Boodmo.

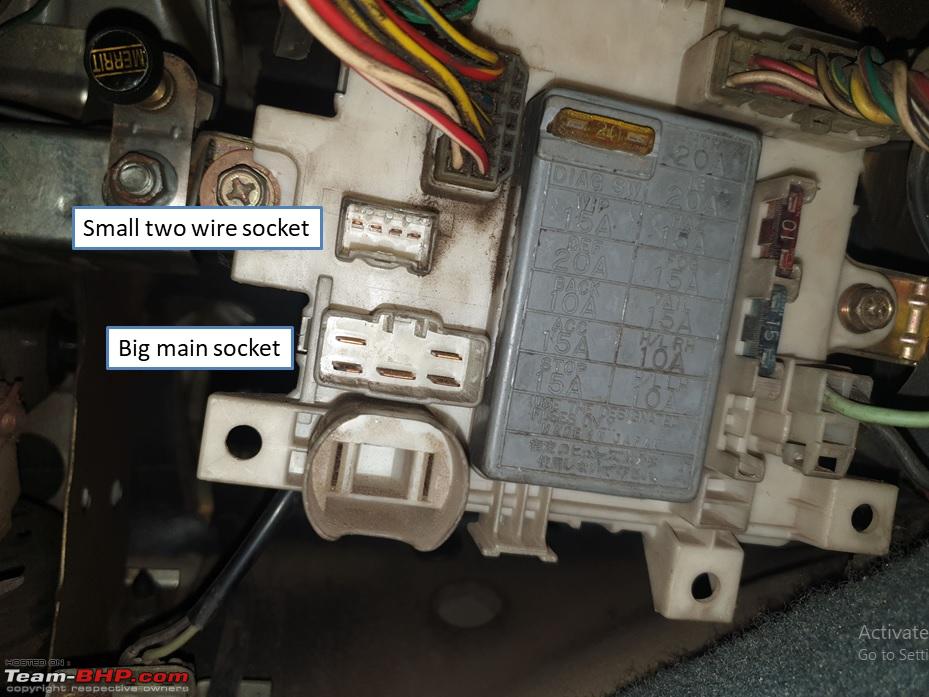

Prior to fitting, I checked sockets on the lock cylinder and found that the new one has only one big socket but the factory fitted has two, one standard big one and a two-wire small one. Does anyone know what this 2-wire small socket is for? Although I have tried plugging in the socket, it cranks and works fine.

Please have a look at the below photos and guide.

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-1.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-2.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-3.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-4.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-5.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-6.jpg

Thanks,
PSM_360
PSM_360 is offline
Old 26th May 2021, 14:48   #1436
BHPian

PSM_360's Avatar

Join Date: Jul 2015
Location: Ludhiana/Pune
Posts: 44
Thanked: 54 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi,

I need clutch plates set and release bearing for my Maruti 1000. Please provide part numbers. Esteem clutch set does not fit a Maruti 1000.
PSM_360 is offline
Old 26th May 2021, 17:12   #1437
BANNED

Join Date: Aug 2019
Location: Bengaluru
Posts: 33
Thanked: 38 Times
Default

Quote:
Originally Posted by PSM_360 View Post
Hi,

I need clutch plates set and release bearing for my Maruti 1000. Please provide part numbers. Esteem clutch set does not fit a Maruti 1000.
Hello sir. Please provide year of your vehicle and variant. I will try to help further.
Thanks.
pdpyen is offline
Old 26th May 2021, 18:35   #1438
BHPian

PSM_360's Avatar

Join Date: Jul 2015
Location: Ludhiana/Pune
Posts: 44
Thanked: 54 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by pdpyen View Post
Hello sir. Please provide year of your vehicle and variant. I will try to help further.
Thanks.
1994 Maruti 1000
Chassis code: MA3EBD21S00______
Engine code: F10AIN________
PSM_360 is offline
Old 26th May 2021, 21:52   #1439
BANNED

Join Date: Aug 2019
Location: Bengaluru
Posts: 33
Thanked: 38 Times
Default

Quote:
Originally Posted by PSM_360 View Post
1994 Maruti 1000
Chassis code: MA3EBD21S00______
Engine code: F10AIN________
May i know if you checked this?

Clutch https://boodmo.com/catalog/part-clut...plate-5506510/


https://boodmo.com/catalog/part-22400m63b22-36616536/


I'm unable to find the release bearing. Please give some time I'll revert.


Update - This should match, confirmed with my spare dealer.

https://boodmo.com/catalog/part-releaser-5396326/

https://boodmo.com/catalog/part-bearing-5396327/


Please satisfy before ordering.

Last edited by pdpyen : 26th May 2021 at 21:58.
pdpyen is offline   (1) Thanks
Old 26th May 2021, 22:45   #1440
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,195
Thanked: 37,292 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by PSM_360 View Post
Prior to fitting, I checked sockets on the lock cylinder and found that the new one has only one big socket but the factory fitted has two, one standard big one and a two-wire small one. Does anyone know what this 2-wire small socket is for? Although I have tried plugging in the socket, it cranks and works fine.
No idea buddy, will have to check wiring diagram for this.

Quote:
Originally Posted by PSM_360 View Post
Hi,

I need clutch plates set and release bearing for my Maruti 1000. Please provide part numbers. Esteem clutch set does not fit a Maruti 1000.
For M1000,

Pressure Plate: 22100M80031
Clutch Plate: 22400M63B20
Release Bearing: 23265-65G00

Regards,
Shashi
Leoshashi is offline   (1) Thanks
