The DPF Saga | Tips & Advice on avoiding DPF issues

Emissions and performance are like the Yin and Yang of the automotive industry. While any enthusiast would love to drive a fire-breathing monster, they’re not very kind to nature. Since 2000, India adopted the Bharat Stage (BS) Emission Standards which were modelled on the EU norms. We’re currently in the BS6 era and that has brought major changes to the automobiles that are rolling off the factory floor. Diesel cars specifically have had to go through a lot of modifications to meet emission norms. So, what are these changes and what are the things you need to keep in mind to buy a diesel car in 2023? Let's dive deep into that.

The European Union switched to Euro-V standards in 2009. This was the big change that required diesel vehicles to be equipped with a diesel particulate filter (DPF) by 2011. Euro-VI further tightened the strings on diesel engine emissions. In India, we skipped the Euro-V and jumped straight to Euro-VI or BS6. If you look at the history, over different stages of emission norms, various technologies were introduced to reduce the emissions in diesel engines. Initially, higher injection pressures and high-pressure common rail systems were added to reduce the particulate matter (PM). This was followed by the EGR systems which helped reduce the NOx levels. Then there was diesel oxidation catalyst (DOC), diesel particulate filter (DPF), selective catalytic reduction (SCR) and diesel exhaust fluid (DEF) that followed.

The DPF Saga | Tips & Advice on avoiding DPF issues-www.teambhp_77.jpg

Before we get into the systems that reduce the emissions, let’s quickly go through the major emission components that are regulated in the norms. In the BS6 standards, limits have been set over 3 emissions – Nitrogen Oxide (NOx) Limit (80 mg), Particulate Matter (PM) Limit (4.5 mg/km) and HC (Hydrocarbons) + NOx (170 mg/km).

1. Nitrogen Oxide (NOx) – If you’re based out of Delhi, smog is something you are more than familiar with. NOx is the primary ingredient of smog and even acid rain. Nitrogen Oxides are formed due to the high operating temperatures of diesel engines.

2. Particulate Matter (PM) – In diesel engines, PM is formed due to unburned fuel. The excess fuel during the combustion process leaves the cylinder and through the exhaust system, you will see it in the form of black smoke. They are classified by the size of the matter and denoted as a number ahead of the letters ‘PM’. For instance, PM10 are particles that are 10 microns or smaller. They can be inhaled and cause coughing & irritation. PM2.5 (something you see on air filters these days) particles are small enough to mix into the bloodstream and are the more dangerous ones as some studies have shown that these contain carcinogenic compounds.

3. Hydrocarbons (HC) – They’re combustible compounds made up of hydrogen and carbon. If you remember your chemistry, you know this is a very vast topic. What’s in focus are propane, butane, and methane. These are formed due to improper combustion as there are lean and rich areas in the cylinder since the fuel can’t get everywhere evenly. Thus, you have unburnt hydrocarbons coming out of your exhaust.

The DPF Saga | Tips & Advice on avoiding DPF issues-h2bludiagram.jpg
Image source

Now that we know what’s coming out of the tailpipe, we can look at the stuff that reduces the emissions.

Exhaust Gas Recirculation (EGR)

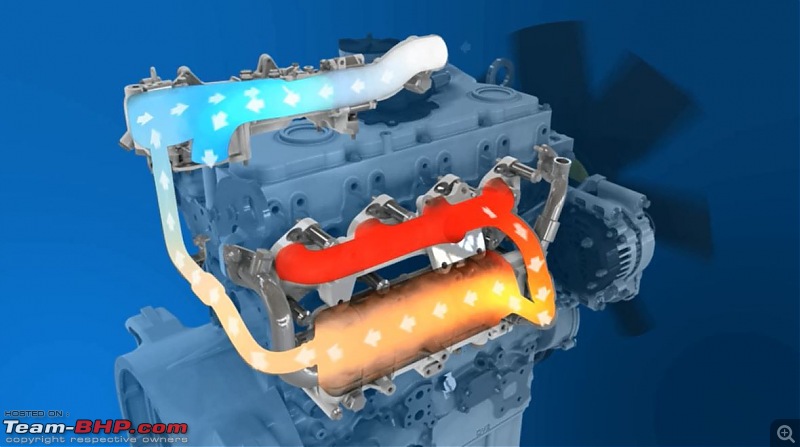

The DPF Saga | Tips & Advice on avoiding DPF issues-exhaustgasrecirculation.jpeg
Image Source

As mentioned earlier, back in the day, higher injection pressures and high-pressure common rail systems were used to meet the particulate matter (PM) standards. While this was working well, high-pressure systems resulted in higher operating temperatures which led to the increase in NOx emissions. Hence a system had to be developed to control the NOx by reducing the operating temperature. EGR does exactly this by circulating small amounts of exhaust gas into the intake manifold. The exhaust gas mixes with the incoming air/fuel mixture and dilutes it, thus reducing peak combustion temperatures and pressures. This further results in lower NOx emissions.

There are two major components of the EGR – the EGR Valve and the EGR Cooler. The valve is responsible for controlling the flow of exhaust gases which re-enter the intake stream. The EGR cooler, as the name suggests, is responsible for cooling down the exhaust gases before they are re-introduced into the intake system. It uses engine coolant to lower the temperature.

The EGR flow depends on the engine operating conditions. For instance, higher EGR flow is necessary during cruising and mid-range acceleration as the combustion temperatures are high. Similarly, for low speeds, the flow is reduced. During engine warm-up, idle and full throttle conditions, there is no EGR flow to avoid any adverse effect on drivability or efficiency.

Diesel Particulate Filter (DPF)
The DPF Saga | Tips & Advice on avoiding DPF issues-1_0x0_790x520_0x520_diesel_particulate_filter_resize.jpg
Image source

When the emission norms were further tightened on the particulate matter limits, DPF was introduced. Adding a filter seems like a simple solution, but it comes with its own set of complexities. DPF is essentially a high-density filtration system for particulate matter. Inside, you will find a very fine filter that can trap particles as fine as 1 micron (one-thousandth of a millimetre). The filter has a maze-like pattern which means that particulate matter cannot escape, and as the material is porous it allows the gas to pass through. Hence the soot and ash get collected in the filter over a period of time. If you're wondering what’s the difference between soot and ash? Soot is made of unburnt hydrocarbons which are formed when fuel is heated in the absence of oxygen. So, the more efficient the combustion, the less soot there will be. Ash is formed after burning off the soot. It cannot be burnt away and over a long period, gets collected in the DPF.

In regular driving conditions, soot keeps getting collected in the DPF and creates back pressure which kicks in 'Regeneration'. This is a process where the soot collected in the DPF is burnt off. If the temperature of the exhaust gas is high enough, the soot collected in the DPF can be burnt off. There are two types of DPF regeneration - Active and Passive. Passive regeneration is done by driving on the highway at a speed of 60-80 km/h at least for a couple of hours. This helps increase the temperature of the exhaust and clear off the soot naturally. If you want to have a longer life for your diesel engine, it’s recommended to have passive regeneration regularly. So, highway driving at least once a month is a must.

If the soot isn’t cleared off by Passive Regen, the car goes into Active Regen mode. This is a process where all the soot is burned off all at once. As a thumb rule, remember that the fewer active regens your car sees, the better it is for its life. So, make sure that you get those highway kilometres in your car so that the passive regeneration takes care of your DPF. Your car can be stationary when the Active regen is performed and different cars have different procedures to follow. Here’s a video explaining the procedure for Hyundai Creta –


Now while the DPF takes care of the particulate matter, the high temperatures do lead to the formation of NOx. This must be lowered again and that is done with the help of an SCR.

Selective Catalytic Reduction (SCR) and Diesel Exhaust Fluid (DEF)
The DPF Saga | Tips & Advice on avoiding DPF issues-peugeot3082015059en.343065.19.jpg
Image Source

In the exhaust system, the SCR sits after the DPF and is responsible for reducing the NOx emissions. It does so by injecting DEF into the exhaust gases. DEF also known as AdBlue is a urea-based chemical that turns to ammonia when exposed to heat. This sets off a reaction that converts the nitrogen oxides into nitrogen and water. Generally, you will need to top up the AdBlue tank every 10,000 kilometres. Here’s an important tip regarding the DEF – Make sure that the fluid does not fall on your car paint. It is toxic and even a single drop of DEF can lead to corrosion of the metal over a few months.

Now from theory to the real world. How is it to live with a BS6 diesel car? What are some of the things that you should keep in mind? Is diesel for you? Let’s go through some do’s and don’ts of owning a diesel car. BHPian ninjanayak has also answered some of the common questions regarding the DPF.

Get out and drive
The DPF Saga | Tips & Advice on avoiding DPF issues-samruddhi-cruise.jpg

We’ve talked about passive and active DPF regeneration and the lesser active regeneration your car goes through, the longer your DPF will last. The focus is to get as much soot cleared off as possible with passive regeneration. This means that you need to regularly hit the highways (at least once a month) where you can reach speeds of up to 60-80 km/h for a prolonged period.

No lugging or driving at low revs
The DPF Saga | Tips & Advice on avoiding DPF issues-2017jeepcompass12.jpg
This one’s for the manual transmission owners and a good practice in general too. Once you have your car properly warmed up, don’t drive at slow speeds in higher gears. Keep the engine hot and let the soot burn off. For automatic cars, the gearbox logic takes this into account and keeps the engine revs high and never lugs.

Don't drive on low fuel
The DPF Saga | Tips & Advice on avoiding DPF issues-img_20181228_144058.jpg

While low fuel is sometimes unavoidable, try to keep the fuel indicator out of the red zone. Low fuel can put excess pressure on the fuel pump which could get damaged. Also, if air gets sucked in, it can increase friction on the internal components of the engine. Impurities in the fuel usually get settled at the bottom which might get sucked in during combustion which is harmful for the engine.

Use the right engine oil
The DPF Saga | Tips & Advice on avoiding DPF issues-img_20110707_080304.jpg

This is something that’s applicable to both petrol and diesel cars, but more so in diesel cars with DPF. Engine oil lubricates the cylinder surface, and it gets burnt during combustion. Hence, your exhaust includes burnt engine oil which gets collected in your DPF in the form of metallic compounds called SAPS (sulfated ash, phosphorous, and sulfur). Every manufacturer has a set limit for the SAPS content (mid / low / high) based on the engine. So, if the wrong oil with high SAPS content is used in an engine that’s not designed for it, the DPF can get clogged.

Regular maintenance & DPF Check

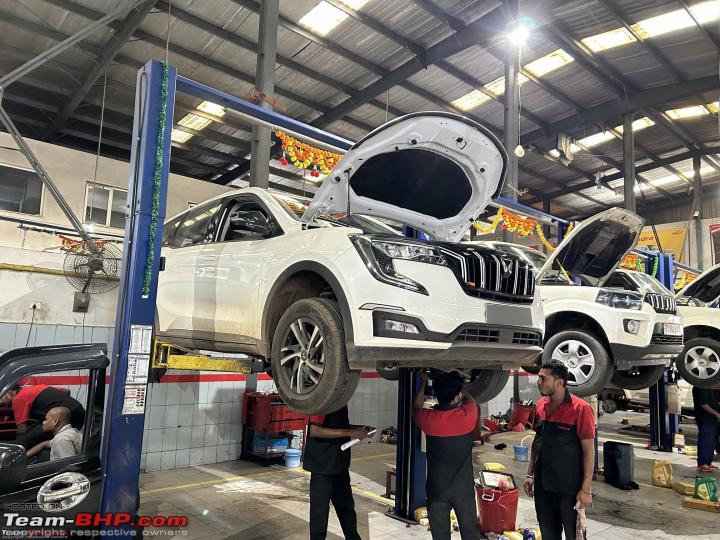

The DPF Saga | Tips & Advice on avoiding DPF issues-xuv70011.jpeg

It’s important that you follow your service schedule religiously. Especially if you haven’t driven your car much, the service centre can get the active regeneration done for you. Diagnostic tools should be able to let you know the condition of your DPF as well. Also, mechanics will be able to check the condition of various components of the exhaust system.

Smoke check
The DPF Saga | Tips & Advice on avoiding DPF issues-dieselexhaust.jpg

Concerning diesel vehicles, since there are a lot of components in the exhaust system and when one of them fails, it can result in the vehicle breaking down. It’s better to get the system periodically checked and always check the colour of the exhaust smoke. If you do notice excessive white / blue / black smoke, get your car checked ASAP. This could be one of the first signs of a breakdown, so it’s better if you get it sorted before there’s some major failure.

Don’t ignore the DEF levels
The DPF Saga | Tips & Advice on avoiding DPF issues-deflevelserror.jpg

Be sure that your DEF levels are maintained. You will get a warning light on your instrument cluster when the level is low, don’t ignore it. If the fluid runs out, the car will go into limp mode and in some cases, it won’t start until the fluid is topped up. Here’s an important note – Whenever topping up the DEF, make sure that it doesn’t spill on your car’s paint. Even a single drop will cause the surface to rust in just a few months.

Other good habits

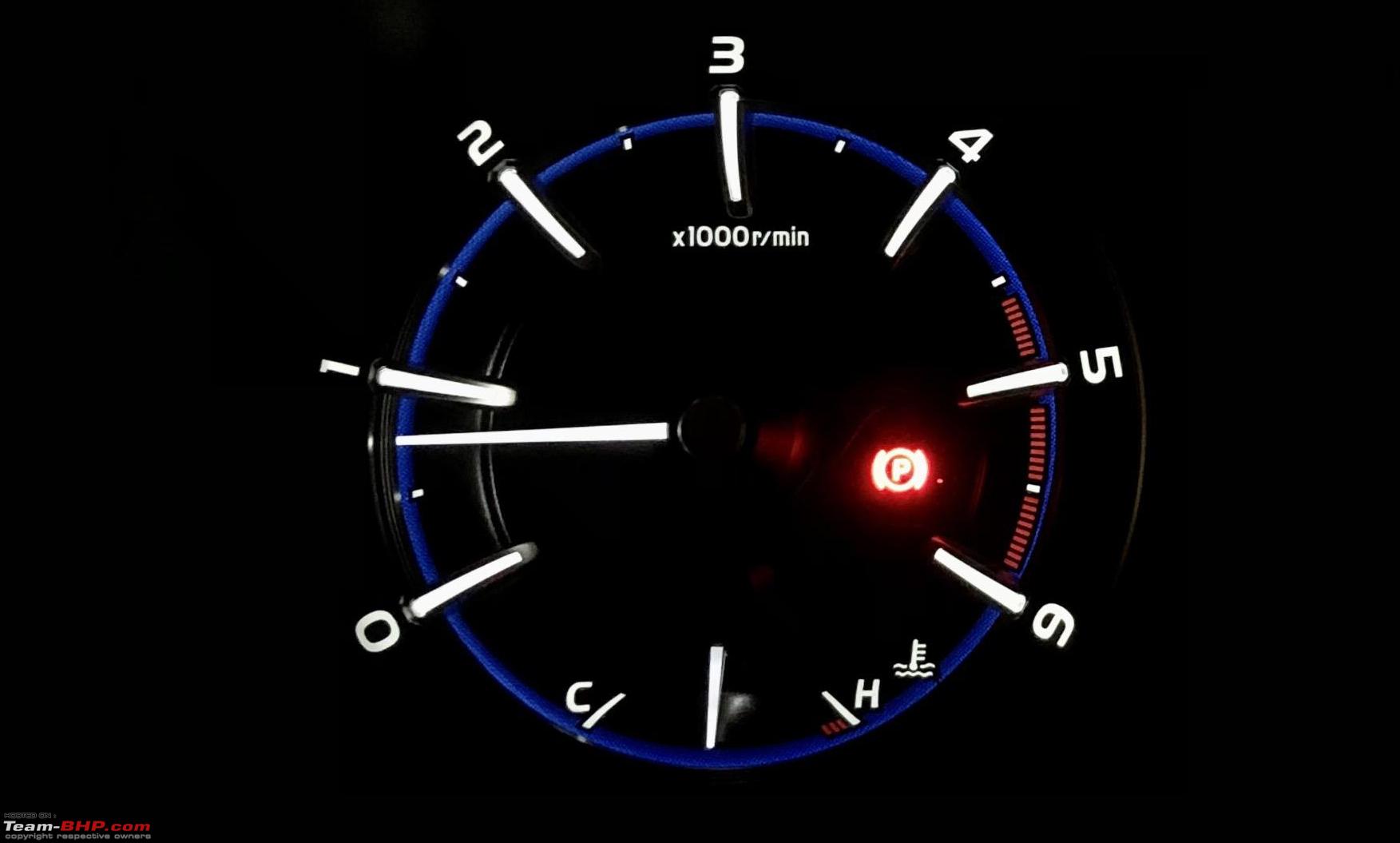

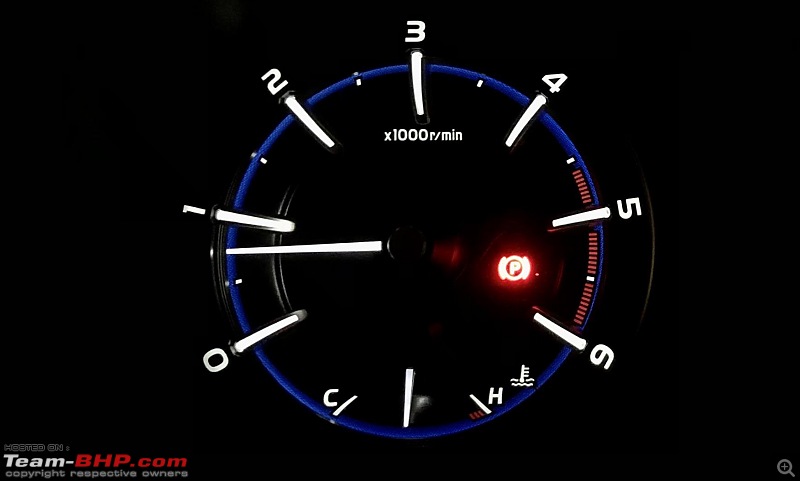

The DPF Saga | Tips & Advice on avoiding DPF issues-img_7429.jpg

Instead of just turning on the car and letting it idle before you get to drive, it’s advisable to drive slowly for a few kilometres so that the engine warms up. Also, when you reach your destination, don’t immediately turn off the car. Let it idle for some time so that you’re not shutting down the turbo abruptly. Give about 30 seconds before shutting down your car to avoid premature wear of your turbo.

Requesting you to please contribute with additional tips for cars with DPF.

Final thoughts

There’s no denying that emission norms have made things tricky for someone who wants to buy a new diesel car. The complicated exhaust system makes lives a bit difficult for the owners, but if you are prepared for it, owning a diesel car shouldn’t be that much of an issue. BHPian ph03n!x has done over 55,000 km with his Thar and hasn’t had any DPF related issues.

If you don’t want to deal with the DPF and the strings that it comes attached with, you can opt for a used car that doesn’t have a DPF. But if your usage is primarily going to be short trips around the city, it’s best if you consider other fuel types like petrol, hybrid or even electric.

Sources : Wikipedia, 1, 2, 3

Last edited by Omkar : 16th September 2023 at 13:09.
Omkar is online now   (86) Thanks
Old 16th September 2023, 13:11   #2
Team-BHP Support

Join Date: Apr 2016
Location: Mumbai
Posts: 1,257
Thanked: 17,116 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

Thread moved from the Assembly Line.
Omkar is online now   (1) Thanks
Old 16th September 2023, 14:59   #3
Distinguished - BHPian

ashis89's Avatar

Join Date: Aug 2011
Location: Bengaluru
Posts: 3,317
Thanked: 10,046 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

Per my experience, driving with a slightly heavy foot helps keep the DPF clean. People say short distances are bad for diesels. But my daily office commute used to be 2-3 kms only which can take upto 50-55 mins to cover. Yet I have never seen any DPF light all due to the heavy foot driving, wherever possible.

And I avoid premium diesels at all cost (this is recommended by OEMs as well). During early days of BS6, anyone filling premium diesel into their Seltos used to get DPF clogged.

Last edited by ashis89 : 16th September 2023 at 15:17.
ashis89 is offline   (21) Thanks
Old 17th September 2023, 12:41   #4
BHPian

Revvatron's Avatar

Join Date: Aug 2022
Location: Hyderabad
Posts: 123
Thanked: 348 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

How do we know passive regen is occurring during the drive. Based on other threads in forum, there is a mileage drop or the engine feels more rough. But I am not able to notice either of them. Is there some other way to notice this?
Revvatron is online now
Old 17th September 2023, 13:02   #5
BHPian

Join Date: Jan 2023
Location: Kochi
Posts: 64
Thanked: 130 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

During my 10 months and 6500 KMs ownership of Alcazar Diesel, I had to do active regen 5 times now. Main culprit for me is the short runs and running initial kilometers mainly in Eco mode. Need to see how can I overcome this as it becomes too irritating when the error throws up out of blue and it takes 30 mins to do an active regen.
rx100 is online now
Old 17th September 2023, 15:26   #6
BHPian

Join Date: Oct 2020
Location: Bangalore
Posts: 858
Thanked: 885 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

I'm wondering if we take into account all these DPF related issues and diesel lost due to regen cycles, not to mention about the inconvenience when these things happen out of the blue, whether going for Diesel car makes sense anymore specially for urban driving (and occasional highway runs) conditions ?

I think people should take into account all these factors while evaluating petrol vs diesel options.

Last edited by Aviator_guy : 17th September 2023 at 15:29.
Aviator_guy is online now   (4) Thanks
Old 17th September 2023, 16:03   #7
Newbie

Join Date: Sep 2023
Location: UK03/04/06/07
Posts: 18
Thanked: 23 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

Quote:
Originally Posted by Aviator_guy View Post
I'm wondering if we take into account all these DPF related issues and diesel lost due to regen cycles, not to mention about the inconvenience when these things happen out of the blue, whether going for Diesel car makes sense anymore specially for urban driving (and occasional highway runs) conditions ?

I think people should take into account all these factors while evaluating petrol vs diesel options.
Diesel vehicles hardly ever made sense for urban + occasional highway driving. NA petrol or hybrids are the best options for urban driving IMO. Diesels/Turbo petrols for highways.
Amrit@wheels is offline   (1) Thanks
Old 17th September 2023, 16:08   #8
Senior - BHPian

PrideRed's Avatar

Join Date: May 2012
Location: BLR/PTR
Posts: 3,212
Thanked: 9,160 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

The last statement "If you don’t want to deal with the DPF and the strings that it comes attached with, you can opt for a used car that doesn’t have a DPF. But if your usage is primarily going to be short trips around the city, it’s best if you consider other fuel types like petrol, hybrid or even electric" is a good summary .

If the car is used for long trips, I don't find this bothersome unless you are hitting high altitude. One of my car has done 45K and other 18K and touchwood there has been no DPF issue. Have seen few cars that have done over a lac at service center without hiccups. Yes there are cars which have had issues and no denying the fact that DPF had made the car more complex and restricted the use case. Few things to do with BS6:

1. Ensure timely service and use manufacturer recommended engine oil.
2. Stick to reputed or known fuel stations as much possible .
3. Avoid interrupting regen as much possible.
4. Avoid driving car with low fuel.
5. Fill DEF timely , check for expiry date and use from a reputed brand.
6. When in high altitude, use engine braking and keeping engine on boil .

Cars with DPF need bit of extra care compared to bullet proof BS4 diesel, but if your usecase is primarily highway/long drives , it's not much of an issue.

Last edited by PrideRed : 17th September 2023 at 16:11.
PrideRed is online now   (4) Thanks
Old 17th September 2023, 16:29   #9
BHPian

Join Date: Aug 2021
Location: Chennai
Posts: 213
Thanked: 1,129 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

I have done ~1 lakh KMs on a B6 Innova Crysta and ~50K on XUV 700. While the Innova does active regen automatically 2-3 times a week, I've had to do active regen in the XUV 2-3 times in total. I've also noticed that the Crysta uses a lot more DEF than the XUV. I am not sure why though.


I've also observed that aggressive driving leads to lot more DEF regeneration cycles. I suspect that lots more soot is generated. Going steady on the A-pedal is safer, smoother, more economical, and results in less regen.
buzzy_boy is offline   (2) Thanks
Old 17th September 2023, 17:38   #10
BHPian

Join Date: Oct 2020
Location: Bangalore
Posts: 858
Thanked: 885 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

Quote:
Originally Posted by Amrit@wheels View Post
Diesel vehicles hardly ever made sense for urban + occasional highway driving. NA petrol or hybrids are the best options for urban driving IMO. Diesels/Turbo petrols for highways.
And still I see people around me plonking big bucks on Diesel SUV even though the driving would be mostly city. We need to come out of "Kitna deti hai" mindset and see the full picture for the BS6 diesel vehicles. Not sure many of them are even aware of this DPF and regen thing.

Last edited by Aviator_guy : 17th September 2023 at 17:43.
Aviator_guy is online now
Old 17th September 2023, 18:01   #11
BHPian

rd18's Avatar

Join Date: Sep 2021
Location: Pune
Posts: 70
Thanked: 122 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

Great post with loads of theoretical as well as practical explanations. Pure gold!

Have an Altroz BS6 diesel, which mostly sees city runs. Had faced DPF issues during the start, but below have helped out I think:
1. No eco mode usage.
2. No lugging.
3. Following idle start and stop mechanism.
4. Filling up at the same HP COCO pump at Pune(Pimpri).
5. Not letting fuel tank go below 30%.
6. Occasional speed bursts. Attached pic with GTO post.

The DPF Saga | Tips & Advice on avoiding DPF issues-img_5744.jpeg

Apart from that regular maintenance is always being done. Somehow, my car is not seeing highway usage that I intended.

Itís best to stay away from BS6 diesel if usage is city based only. Thatís a sound advice.
Had I followed it, I wouldnít have got Altroz.
rd18 is offline   (12) Thanks
Old 17th September 2023, 18:26   #12
Newbie

Join Date: May 2023
Location: Bangalore
Posts: 6
Thanked: 2 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

Such helpful information! Thank you and appreciate the effort. I didn't realise passive and active regeneration until now. Recently purchased the Scorpio-N and have been taking it out for long drives covering 80 - 100 kms at least once a month. Will do it more intentionally moving forward
Nero is offline
Old 17th September 2023, 19:02   #13
BHPian

Join Date: Sep 2022
Location: KL-01/MH-16
Posts: 86
Thanked: 137 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

Thank you for penning down such an informative article. I strongly believe that anyone driving a vehicle should know each and every aspect of the vehicle so that he doesn’t get surprised at some critical juncture. Many people owning BS VI diesel vehicles are not aware of these points. Infact all automobile manufacturers should include these details in their manuals.
Kkumar is offline
Old 17th September 2023, 19:09   #14
Newbie

Join Date: Sep 2023
Location: UK03/04/06/07
Posts: 18
Thanked: 23 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

Quote:
Originally Posted by Aviator_guy View Post
And still I see people around me plonking big bucks on Diesel SUV even though the driving would be mostly city. We need to come out of "Kitna deti hai" mindset and see the full picture for the BS6 diesel vehicles. Not sure many of them are even aware of this DPF and regen thing.
I know one person in my circle. They bought a Crysta 2.4 MT only to take it to the local market and may be an occasional highway drive once every 6 months or so. Needless to say, they deal with a lot of DPF issues.
Amrit@wheels is offline   (2) Thanks
Old 17th September 2023, 23:12   #15
Newbie

Join Date: Jul 2022
Location: Mumbai
Posts: 5
Thanked: 58 Times
Re: The DPF Saga | Tips & Advice on avoiding DPF issues

Quote:
Hence a system had to be developed to control the NOx by reducing the operating temperature. EGR does exactly this by circulating small amounts of exhaust gas into the intake manifold. The exhaust gas mixes with the incoming air/fuel mixture and dilutes it, thus reducing peak combustion temperatures and pressures. This further results in lower NOx emissions.
Hi Omkar. Thank you for an informative post.
I have two questions for you
1.Do BS6 diesels have the same mechanism as quoted above. I mean small amount of exhaust gases being channeled into intake manifold?
2. Suggest a good OBD scanner, so that I can monitor soot levels and plan drives accordingly.

I own a Creta BS6 diesel.

One imp info to all BS6 diesel vehicle owners. As per manual the engine oil specification is 0W 20ACECA C5 for creta. However, when I try to get my vehicle serviced at ASS, the SA suggests 0W 30 API SN claiming that the latter is synthetic and gives better protection. I stick to Manual recommendations. I understand that ACEA C5 oils give better protection to engines in case of BS6 diesels. Attaching a pic of barell.
Attached Thumbnails
The DPF Saga | Tips & Advice on avoiding DPF issues-screenshot_20230917_230436_whatsapp.jpg

dilipkgr is offline   (1) Thanks
