Peted Swift VDI + ABS 2007

BUSA’s Team-BHP Garage

Engine Specifications:

1248CC Multijet
Bore X Stroke - 69.6mm X 82mm
4 Cylinder / 16 Valves / DOHC
Power - 75 BHP @4000RPM
Torque - 190Nm@2000RPM
Fixed Geometry Turbocharger with Intercooler
Cooled EGR System
Green Oil Filter
Aluminium Bed Plate
Chain Drive Timing System Using Auto Tensioner
5 Step Multi Injection Common Rail System @ 1400 bar
Engine of the year 2005, need i say more?

Engine Misc:

Petes Box running on stage 1 makes power now 95bhp and Torque 220NM
Green Cotton Filter with Dynamisation Kit
0 - 100 kmph less then 11 secs
FE - Around 16kmpl with hard driving in City
Mobil 1 Fully Synthetic Motor Oil - 5W50

Turbocharger & Induction:

Yes has a Turbo.

Fuel & Tuning:

IOC Regular
43L Tank

Exhaust:

Stock as of now, FFE in the pipeline.

Drivetrain:

5 speed manual with synchromesh in all gears, 1 Reverse
Gear Ratios
1st - 3.545
2nd - 1.904
3rd - 1.233
4th - 0.911
5th - 0.725
Reverse - 3.250
Clutch - Hydraulic

Weight reduction & transfer:

Lenso Maglite Wheels, Very light, indeed.
Car weighs - 1075kgs, will remove seats, dash et all for drags.

Suspension, wheels & tires:

Wheels : - Lenso Maglite 4 Spoke Hyperblack - 100PCD, Offset - 40mm, Width - 7J
Tyres 195/60/15 - Michelin Energy XM1s
Suspension - Stock for now
Ventilated discs in the front, rear drums.

Interior:

Pioneer 7950UB
Front - JBL GTO 607 Compos
Rear - JBL GTO 607 Compos
Damping on all four doors using Dynamat Extreme

Exterior:

Upgraded 100/90 Hella's with Bosch Relay(Shifting to Osram Silverstar)
Windtone Horn
Autocop Security System

Linky to Petes review

Click Thumbnail to Enlarge.

Full Size Image Pages

Gallery Statistics

Member:

BUSA

Created:

29th September 2007 00:19

Last Modified:

30th December 2007 19:34

Views:

7095

Images:

Comments:

Comments

Author	Comment	Date
niazjifri	Pcs of Wheels Lenso Maglite 4 Spoke Hyperblack/Tyres 195/60/15 - Michelin Energy XM1s. plz..	1st December 2009
JayD	Petes stage 1 gives u 90bhp and 215 nm torque. Not 95 and 220.	4th July 2009
ultimatechamp	New and more piccharrss BUSA bhai,pleeezzz!	14th December 2008
abhibh	BUSA bahi plz we need to see the alloys ;)	5th March 2008
rider60	the car and the pete's kit looks good can i have more pictures of the car with the alloys and the hids?	3rd March 2008
BUSA	thanks headers, the top end is good with the CAI, its pulls neatly till 5k, almost like a petrol. Handling is very good with upsized wheels. @ Viper - Will surely dyno the car, but no plans in the near future.	17th February 2008
viper	Hey why dont you dyno the car. It's better to post actual figures of your car rather than posting claimed figures of 20Bhp increase.	17th February 2008
headers	Hey BUSA, nice car..what s the top end now.. and howz your handling?	17th February 2008
BUSA	Thanks rider, i had put pics with the alloys, plan to upgrade a few things in the cars.	8th February 2008
rider60	okay i got it ki this car is real fast now can i have more pics of the car with alloys? just kidding, nice car and nice color too, i wanted white or RED but settled for silver! enjoy the baby beast mate!	8th February 2008
BUSA	LOL EL, Thanks :p	23rd January 2008
esteem_lover	So, this is the busa'ed swift. Neat (I meant the engine bay). :)	22nd January 2008
BUSA	yeah the results will be very good, ur car will be faster, quite a ferw DSG Laura's running with Petes.	20th January 2008
vincy_30	hey i have a laura auto transmision do you still feel that the results will be good, i am worried for the auto.	20th January 2008
BUSA	surely you should try it on the Laura, since the effects on the Laura are much much better as u can get a remap, PM turboindia,he will give u details	13th January 2008
vincy_30	hey where did you get the pete fixed from . should i try on my laura	13th January 2008
BUSA	SQ is good, but it needs a amp badly, will be putting that soon, got the HU for 9k(grey) and speaker for 4.8k with B&W that amounts to 18.6k damping	31st December 2007
aks_karthik	How is the SQ with 4 Compos in doors.How much did u spend including HU and Speakers	31st December 2007
BUSA	yeah souljah i have tints from Vkool	28th December 2007
BUSA	The camel location is on the way to amby valley.	17th December 2007
BUSA	my enter button got stock. I got the stickers from local accesory shop. Yet to get spoiler, after market lamps, black roof.	17th December 2007
BUSA	stickers	17th December 2007
BUSA	p	17th December 2007
BUSA	nt	17th December 2007
BUSA	Stickers	17th December 2007
BUSA	Camel is stock, but has green twister filter. Yeah stickers are reflective. Army sticker of colony i live in :)	17th December 2007
s0uljah	Finally some more pics. Looking good! Is that an army sticker? Also do you have reflective tints, what brand/spec?	17th December 2007
akshay1234	lol.. faithless...	17th December 2007
faithless_1984	which place is this ? is the camel Pete`d as well ? lol	17th December 2007
BUSA	thanks guys, the camel outruns the indica from 0 - 100 :p	17th December 2007
hellspawn	pics of ur 3 rides...swift,indica and the camel...lol	16th December 2007
hellspawn	WOAH!!FINALLY BRO...CAR LOOKS NEAT.	16th December 2007
shuvd	Finally!!	16th December 2007
BUSA	guys pics with the wheels up	16th December 2007
BUSA	Yup logged in, coz team-bhp is on mostly, either i am talking on the phone to a dealer, or negotiating with music dealers for ICE :)	15th December 2007
faithless_1984	Thats funny...you are logged in most of the time but dont have the time to upload some pics ? Anyways its your wish buddy.	15th December 2007
BUSA	ya faithless, need some time, really busy with negotiating with dealers for a car.	15th December 2007
faithless_1984	Yeah busa how about some pics with the alloys ???	15th December 2007
BUSA	The Petes box has been tucked away secretly that its not visible, bw the battery & the filter.	15th December 2007
hellspawn	how about pics with the rims and the pete's on the car rather than seperately... :)	15th December 2007
PatienceWins	I love this car, alloys, colour, tyres...The best Swift VDI I have seen as it is simple, elegant and a beast	14th December 2007
BUSA	Thanks Jerish666 :)	24th November 2007
jerish666	It is 190NM to 210NM , power from 75bhp to 90bhp.	24th November 2007
jerish666	looks so cool Busa	24th November 2007
BUSA	The figures are in KWs and torque is from 190NM to 215NM, power from 75bhp to 90bhp.	24th November 2007

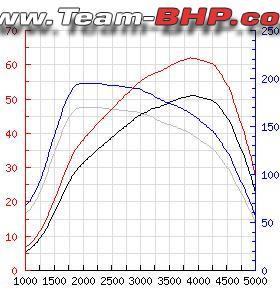

im_srini	Hi Busa, the graph, is it power & torque at the wheels ? Wow ! So, power's up from 51 to 61 BHP, & torque up from 170 to 200 Nm ?	23rd November 2007
BUSA	yeah there are with the rims, will post a pic soon, actually i m plannin to change the rim to 16", car is in dealership coz of warranty issues.	20th November 2007
shuvd	BUSA - How about a pic with the alloys fitted?	20th November 2007
abhilashvk	Thats a beauty you have there. Is it sporting that new rims now?	20th November 2007
BUSA	i mean u get not got.	18th November 2007
BUSA	u got a petes sticker with the tunning box and a petes tuned sticker with the green.	18th November 2007
akshay1234	there are petes stickers? i never got any.	18th November 2007
BUSA	very well done and the colour totally rocks, i plan a spoiler but not the wrc1 and skirts from the swift sports, rather the whole sports kit of swift	18th November 2007
BUSA	Karthik - What ever spoilers i put or skirts, my car is never going to look as good as ur swift which was the most fantastic swift i hav eva seen,....	18th November 2007
karthik247	a wrc spoiler and some skirts is all u need to get this swift rocking. would smoke a fair bit of cars i suppose while they drool at the looks ;)	18th November 2007
BUSA	Thanks Karthik prefer the Q looks, all the Petes stickers are lying with me, but have not installed it. Plan a GTi kit though.	18th November 2007
karthik247	nice fast car..... all u need to do its make it look like it.	18th November 2007
BUSA	car is at dealership undergoing warranty issues.	17th November 2007
streetsdisciple	whats the use of mentioning the alloys ,tyres and ICE if you cant post pics to prove it bro ?	17th November 2007
.anshuman	Wow,swift definitely deserves a tuning box,how much improvement in driveablity do you find after the box?	15th November 2007
blue2ki	aiiee... lenso is good	9th November 2007
moralfibre	Busa bhai: It is the International Engine of the Year 2005 in the 1.0-1.4-litre category and not 2006 :).	7th November 2007
BUSA	ricky - the green oil filter is OE and used by MUL itself.	28th October 2007
Ricky_63	Did not know there was a "Green Oil Filter" also available or is it a typo	28th October 2007
BUSA	20bhp and 25NM	26th October 2007
akshay1234	how many bhp and nm did u add when u put on the 2nd setting on your box?	26th October 2007
streetsdisciple	still no pics wth d alloys ,hmmmmmmm ,busa man wach ya upto ???	23rd October 2007
rijo_tj	heyy busa...i too have got the same set of rims....glad i could find a similar thninkin person :)	22nd October 2007
nikunj_cal	Sahi item hai teri gaari bosss :-) !!!! Lol	15th October 2007
BUSA	Thanks alot raghu. @ Carfreek - Got all the engine upgrades from Petes Performance Products. Contact Turboindia on the forum for more info.	14th October 2007
rocksterraghu	Whoa! Soooooper ride! Two thumbs up, Busa!	14th October 2007
CARFREAK17	dude tell me where did u get the engines upgrades	14th October 2007
BUSA	blue2ki - running on stage 2 and yes the car is fast, really fast.	13th October 2007
BUSA	jesal, street - my bad, will post alloy pics asap.	13th October 2007
streetsdisciple	Monsoon`s still nt over ? :D Hmmmmmmmmmm	13th October 2007
blue2ki	good! stage 2 will be killer	13th October 2007
jesal	can i see pics of the rims bro	12th October 2007
BUSA	thanks alot ranjan	12th October 2007
kumar_ranjan	Very neat car. Nice Pics	12th October 2007
BUSA	yeah shuvd, but think about a Magnum Peted, that would be a sure hoot.	2nd October 2007
shuvd	NICE!! must be a hoot to drive!	1st October 2007
BUSA	vkochar- Getz CRDi gallery cummin soon, as soon as you gift you Getz to me :)	30th September 2007
BUSA	@ street - I havenot taken pics of the aloys, the monsoons have really made the alloys dirty, need to remove the grime and take the pics.	30th September 2007
streetsdisciple	Nice choice of colour,,,,,you`r gonna wait for the monsoon`s to get over to post pics of the alloys ???	30th September 2007
vkochar	BUSA - Kab aa rahi hai Getz CRDi Gallery ?? LOL !!!	30th September 2007
BUSA	will post in due time, need to get the car washed properly once monson is ova, a nice polish n then new pics.	30th September 2007
akshay1234	pics of the new rims?	30th September 2007
nischint	wooow!!	29th September 2007
