Default DIY: Cruise control install in an Abarth Punto

First DIY on my car, installed CC stalk from Alfa 147. Bought this CC stalk few months back from ebay UK, it was shipped and delivered in 15 days. Rest of the stuff was from Aliexpress/local stores. ECU connector pins from rsdelivers website. You can find all links on Wildy's post (DIY: Cruise Control installation on my Fiat Abarth Urban Cross Avventura) on the same. His thread was really helpful. Also referred to Rajan sirs thread here (DIY: Cruise Control for the Fiat Linea).

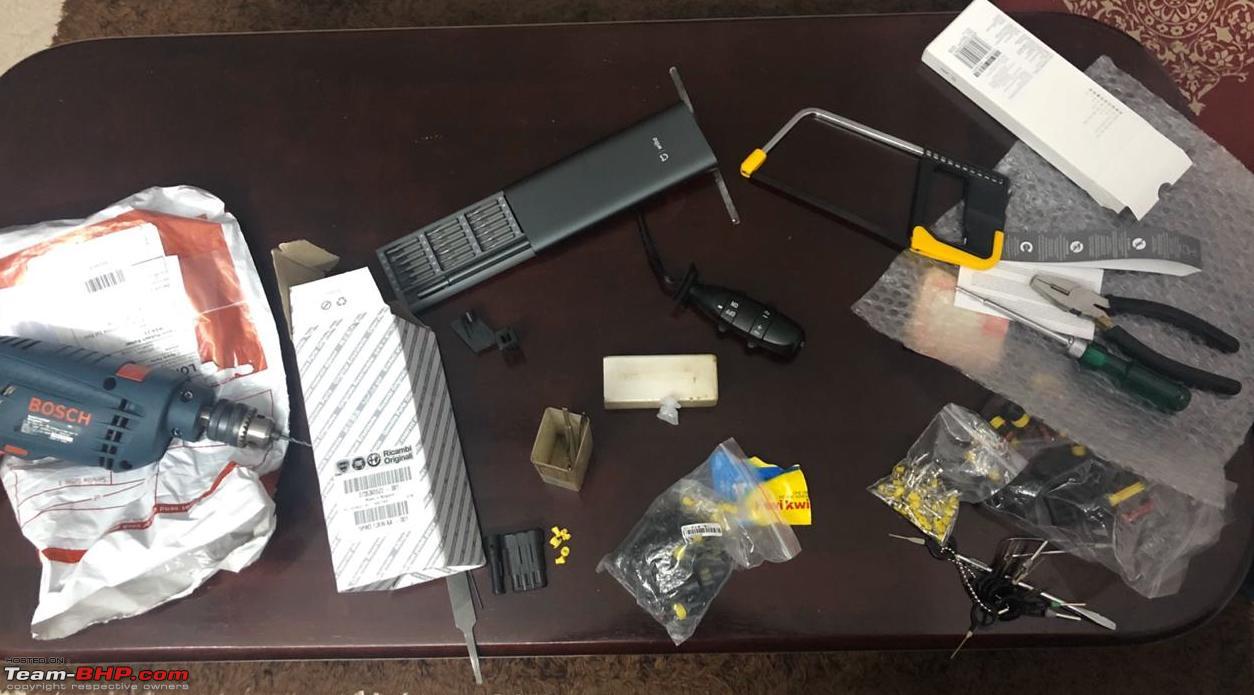

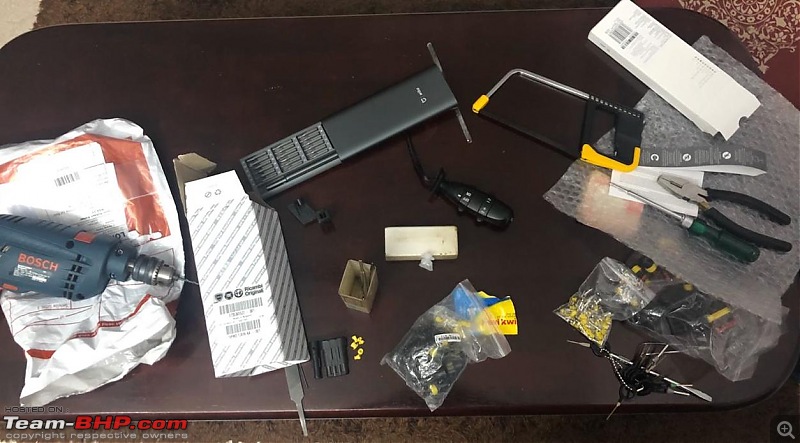

You will need following.

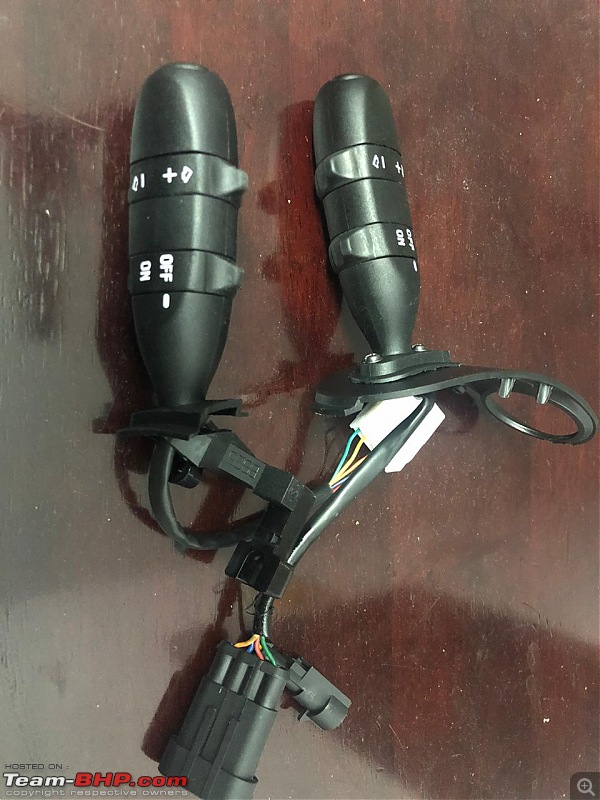

1. Ebay UK - Alfa 147 CC stalk
Name:  1.jpg
Views: 5859
Size:  60.5 KB

2. Aliexpress - 4 pin connector - i have used two pairs of them, you might need more/less depending upon how you do the wiring.
Name:  15.png
Views: 5869
Size:  292.4 KB

3. Aliexpress - 1 pin connector - I have used 2 pairs of them, again you might need more/less depending upon the wiring.
Name:  14.png
Views: 5854
Size:  262.6 KB

RSDelivers - EQS Pin for ECU - You will need 4 pins.
Name:  16.png
Views: 5819
Size:  81.9 KB

3. PVC wire 22-24AWG - 3 meters x 5, if you can get in 5 different colors it would be helpful in wiring.
I had ordered wires also from Aliexpress but it was silicon one and too soft. Later bought some PVC wires from nearby electronics store along with below stuff.

4. Rubber sleeve - 3 meters
5. Corrugated pipe - 3 meters
6. Automotive tape

I have covered all the wires with rubber sleeve then wrapped with tape, for engine bay wire i have added corrugate pipe on top and wrapped with some more tape.

Connection diagram
Name:  55.png
Views: 5814
Size:  45.2 KB


I will add some pics of the installation. The installation is covered in complete detail in the thread links i have posted above.

Ready for mounting, this is small plastic panel from steering wheel shroud where CC stall will be installed.
Name:  2.jpg
Views: 5798
Size:  76.1 KB

Removed the mount from the CC, this can not used on Punto stalk column.
Name:  3.jpg
Views: 5773
Size:  63.8 KB

Drilling hole for wires
Name:  5.jpg
Views: 5748
Size:  89.8 KB

Drilling holes for mounting the stalk
Name:  6.jpg
Views: 5728
Size:  53.8 KB

This is how it looks after mounting the stalk.
Name:  4.jpg
Views: 5712
Size:  42.3 KB

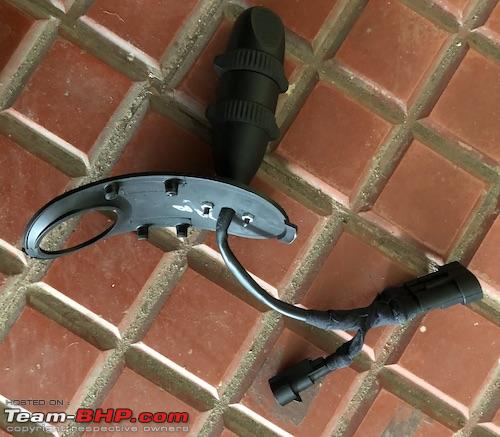

After installing the connectors and tape.
Name:  7.jpg
Views: 5718
Size:  85.2 KB

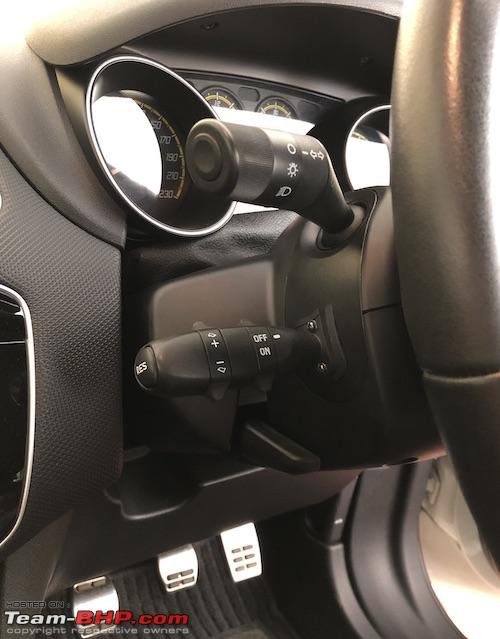

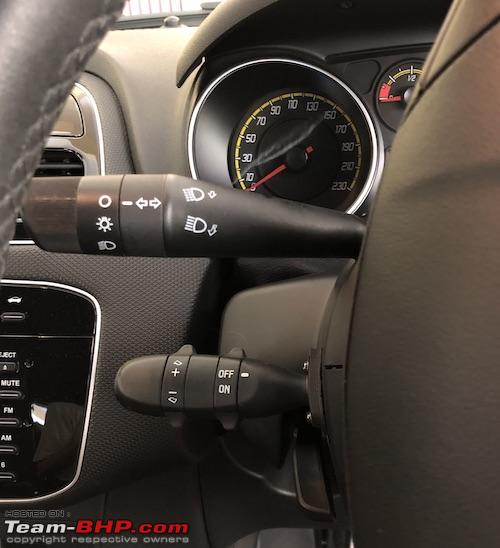

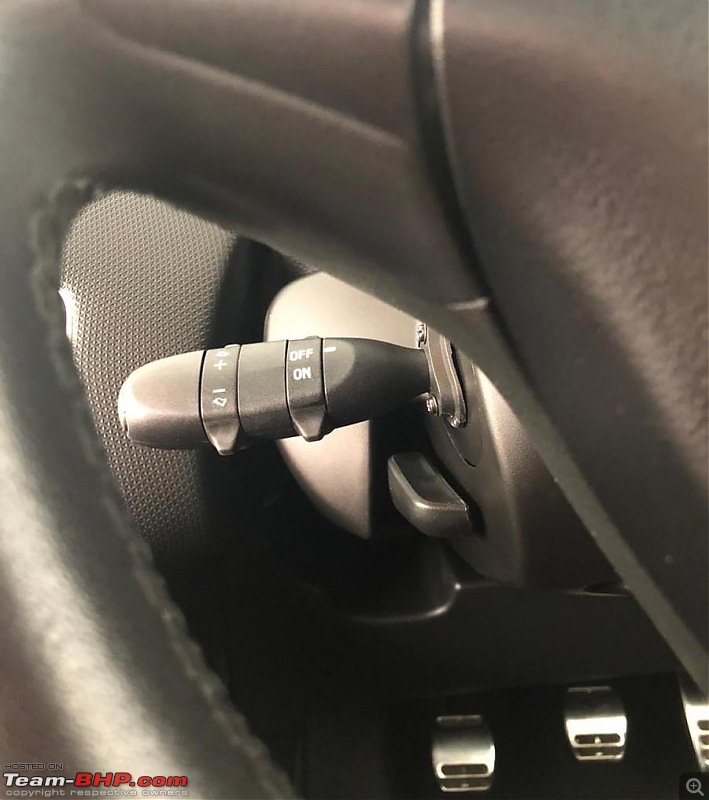

After mounting the plastic shroud back in the steering column
Name:  13.jpg
Views: 5713
Size:  85.3 KB
Name:  9.jpg
Views: 5692
Size:  71.1 KB

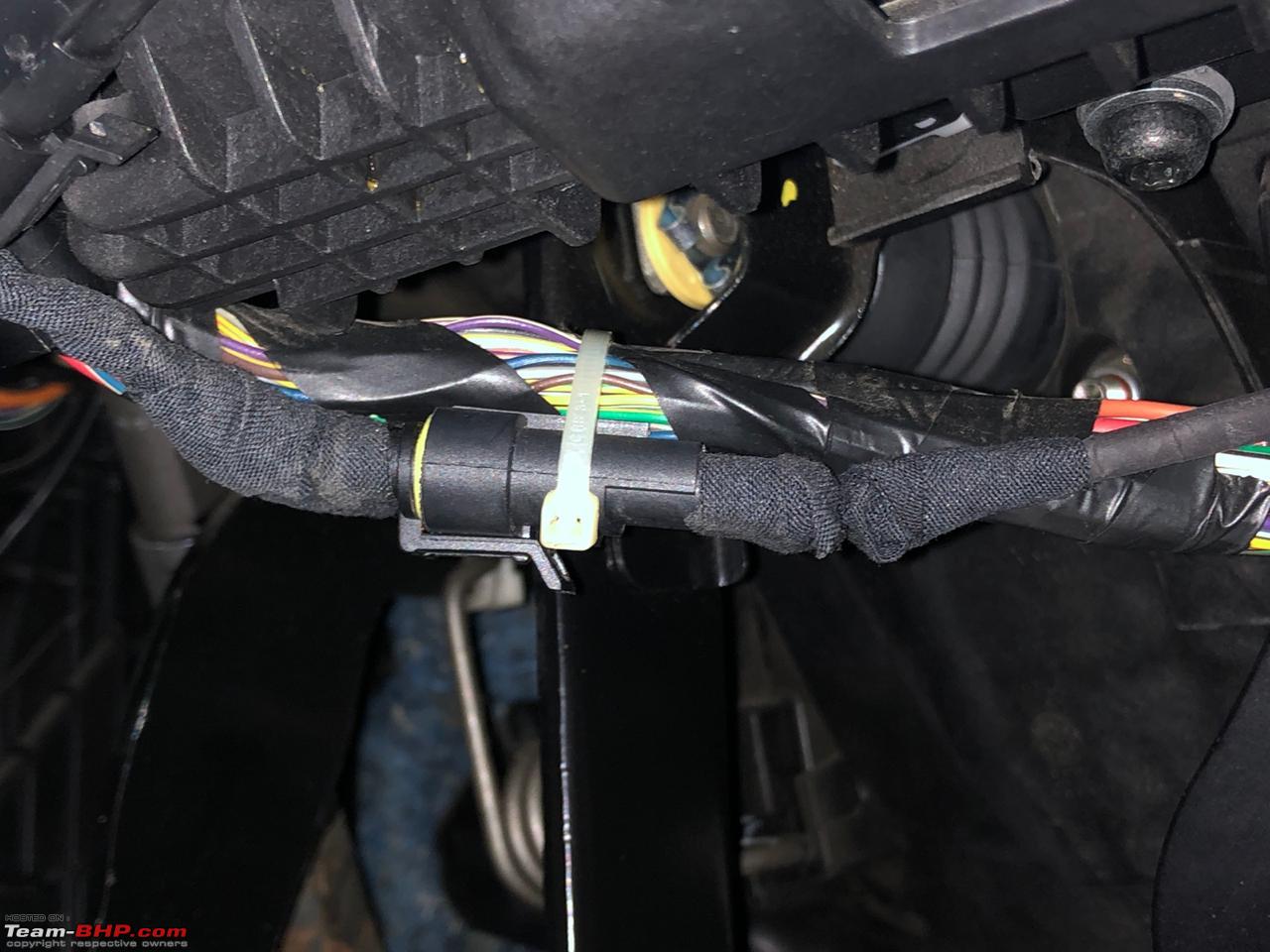

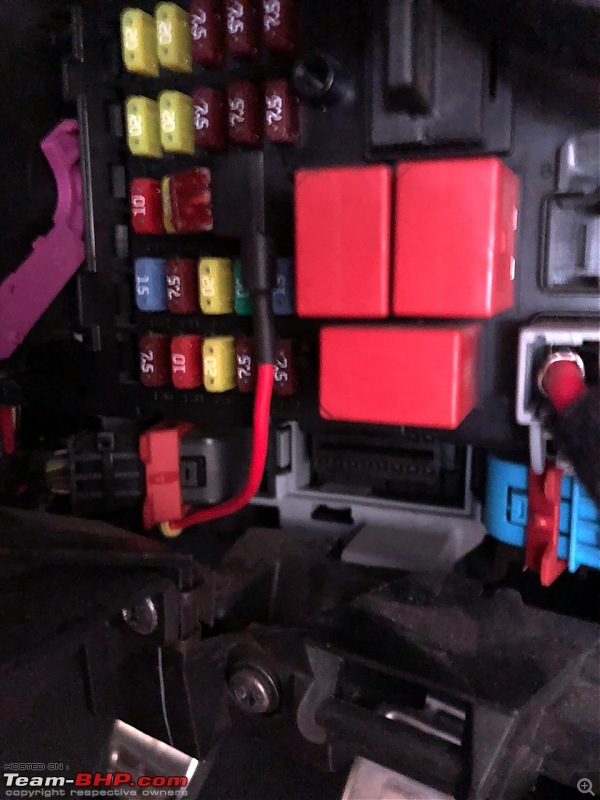

Interior wiring, this cable was used to connect the cable from ECU to CC stalk and fuse tap to CC stalk.
Name:  8.jpg
Views: 5684
Size:  78.4 KB

Connectors on the steering column, this is where CC stalk was plugged in.
Name:  12.jpg
Views: 5679
Size:  82.8 KB


Engine bay wiring, i didnt took much pics of this work, as i struggled a lot with the ECU pins and moving the wiring through firewall.

Pins on the ECU
Name:  43.JPG
Views: 5666
Size:  39.3 KB

After installing the wires and fixing back the connector
Name:  41.jpg
Views: 5657
Size:  58.2 KB

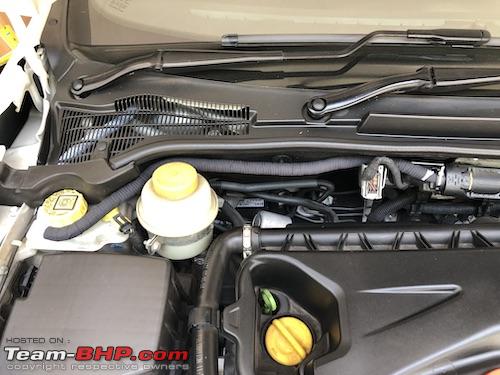

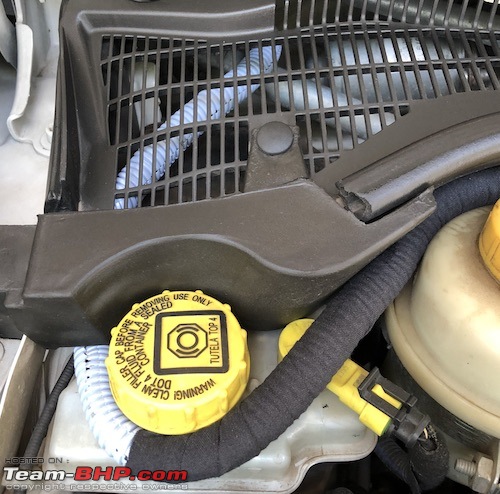

Wiring
Name:  40.jpg
Views: 5662
Size:  75.2 KB
Name:  42.jpg
Views: 5673
Size:  99.0 KB

Installing the ECU pins was difficult because the wire i had used was very soft and i was not able to push them in, they are seated properly and i can't pull them out but the secondary lock is not sliding inside(purple tab in below image) Need to figure this out.
Name:  17.jpg
Views: 5656
Size:  80.5 KB

i have routed the wire from engine bay to interior through the firewall. There is a hole for bonnet release wire, as its small hole with rubber gasket it was really tough to pass these 4 wires with sleeve installed. As the hole is further below the wiper mount, even access to that place is limited, you can just feel the rubber gasket with your fingers. Somehow with a lot of effort i managed to fit a metal wire in that hole and then tie the wires in that metal wire and pull from other side.

Now only thing left was to enable CC in ECU, body module and dashboard module. That was another challenge, will explain in next post.

Last edited by Eddy : 26th March 2019 at 13:23.
Rahulkool is offline   (16) Thanks Reply With Quote
Old 26th March 2019, 13:42   #2
Senior - BHPian

Rahulkool's Avatar

Join Date: Oct 2007
Location: Chennai
Posts: 1,288
Thanked: 726 Times
Default re: Palio 1.6 to the Fiat Abarth Punto. EDIT: 25,000kms done, cruise control installation on page 5!

For enabling the CC in various modules needs a Multiscan software and ELM 327 obd reader.

I had one bluetooth obd reader which i had bought from amazon long back.
Name:  IMG_4147.PNG
Views: 5626
Size:  875.7 KB

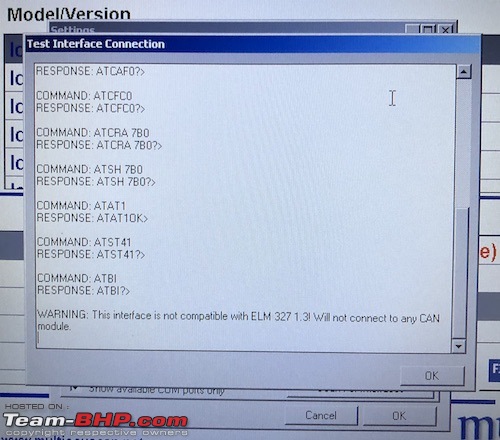

This one didnt worked and gave below error.
Name:  61.jpg
Views: 5575
Size:  72.1 KB

Then i bought wifi OBD scanner from amazon.
Name:  IMG_4146.PNG
Views: 5608
Size:  691.0 KB

This one lets me connects to the ECU but when i try to connect to BCM i get error.
Name:  62.jpg
Views: 5561
Size:  54.6 KB

Wasted at least 3-4 days in all this, after doing everything.

Finally borrowed wifi/USB obd scanner from a friend, this one worked just fine, phew!
Name:  IMG_4266.jpg
Views: 5544
Size:  45.4 KB

You need to enable CC in the dashboard
Fiat/Idea 1.4 16V/Dashboard/Instrument panel Marelli(modal)
Click on connect and select actuators
Name:  63.jpg
Views: 5546
Size:  60.3 KB

Then enable CC in BCM
Fiat/Idea 1.4 16V/Body/Can setup
Click on connect and enable CC, then click on execute, then you have to select proxy alignment and click on execute.
Name:  64.jpg
Views: 5542
Size:  58.5 KB
Name:  65.jpg
Views: 5530
Size:  64.0 KB

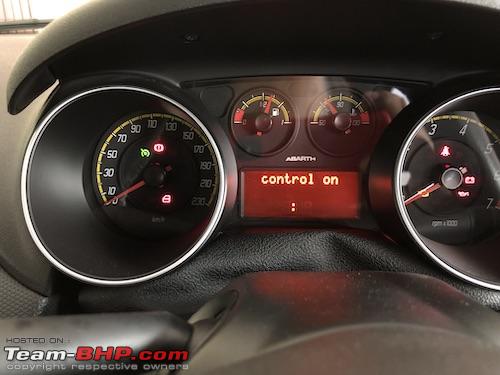

Switch off the ignition, wait for few secs and switch on and you can see green CC light on the speedo meter.

Name:  11.jpg
Views: 5514
Size:  58.1 KB
Name:  10.jpg
Views: 5501
Size:  57.7 KB
Rahulkool is offline   (26) Thanks Reply With Quote
Old 26th March 2019, 14:08   #3
Senior - BHPian

bottle's Avatar

Join Date: Sep 2006
Location: Chennai
Posts: 1,540
Thanked: 163 Times
Default re: Palio 1.6 to the Fiat Abarth Punto. EDIT: 25,000kms done, cruise control installation on page 5!

A huge effort there , please share a video of this in action
bottle is offline   (3) Thanks Reply With Quote
Old 26th March 2019, 15:24   #4
Senior - BHPian

blackwasp's Avatar

Join Date: Apr 2015
Location: Navi Mumbai
Posts: 1,990
Thanked: 12,770 Times
Default re: Palio 1.6 to the Fiat Abarth Punto. EDIT: 25,000kms done, cruise control installation on page 5!

Quote:
Originally Posted by Rahulkool View Post
For enabling the CC in various modules needs a Multiscan software and ELM 327 obd reader.
Thanks for writing it up. I have the stalk and the wires. Waiting for ECU pins from a friend. Even I plan to do it DIY style. Your report has definitely been a help.

Cant wait to install it in my car. Do post about the improvement I the FE post the CC install.
blackwasp is online now   (3) Thanks Reply With Quote
Old 26th March 2019, 17:55   #5
Senior - BHPian

Rahulkool's Avatar

Join Date: Oct 2007
Location: Chennai
Posts: 1,288
Thanked: 726 Times
Default re: Palio 1.6 to the Fiat Abarth Punto. EDIT: 25,000kms done, cruise control installation on page 5!

Quote:
Originally Posted by bottle View Post
A huge effort there , please share a video of this in action
Sure

Quote:
Originally Posted by blackwasp View Post
Thanks for writing it up. I have the stalk and the wires. Waiting for ECU pins from a friend. Even I plan to do it DIY style. Your report has definitely been a help.

Cant wait to install it in my car. Do post about the improvement I the FE post the CC install.
All the best!

Works really well, havent take it to highway yet after CC installation.

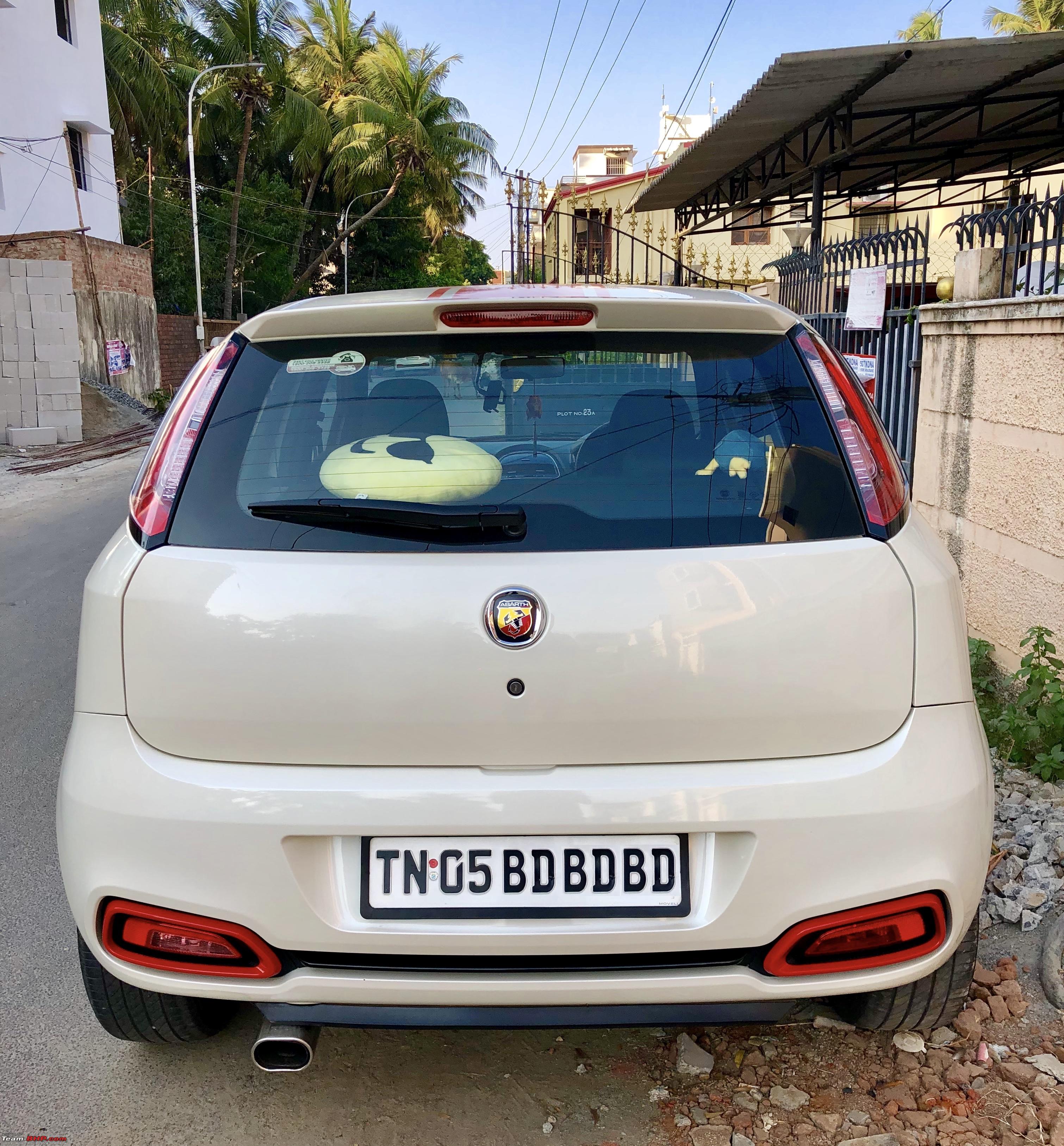

Detailed the car after long time.

DIY: Cruise control install in an Abarth Punto-1.jpg

DIY: Cruise control install in an Abarth Punto-2.jpg

DIY: Cruise control install in an Abarth Punto-3.jpg
Rahulkool is offline   (14) Thanks Reply With Quote
Old 27th March 2019, 08:14   #6
GTO
Team-BHP Support

GTO's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 53,312
Thanked: 129,506 Times
Default Re: DIY: Cruise control install in an Abarth Punto

Many thanks for sharing, Rahul! Moving your helpful DIY to a new thread!
GTO is offline   (4) Thanks Reply With Quote
Old 1st April 2019, 06:36   #7
BHPian

Wildy's Avatar

Join Date: Aug 2013
Location: Wild Planet
Posts: 228
Thanked: 955 Times
Default Re: DIY: Cruise control install in an Abarth Punto

Well done Rahul. In the long way to come, this feature going to be very helpful to you especially when you are in the mood for very long road trips. Goodluck and keep up the great work.
Wildy is offline   (2) Thanks Reply With Quote
