Help my 5.1 speakers dont work with my DVD

Guys,

My friend bought an Altec Lansing vs 3251 5.1 channel system and decided to connect it to a Samsung DVD player with USB, FM and 5.1 channel output. Every thing went off fine till the time we decided to connect the two.
The jacks of dvd wont fit into the AL and those of AL wont fit into DVD.

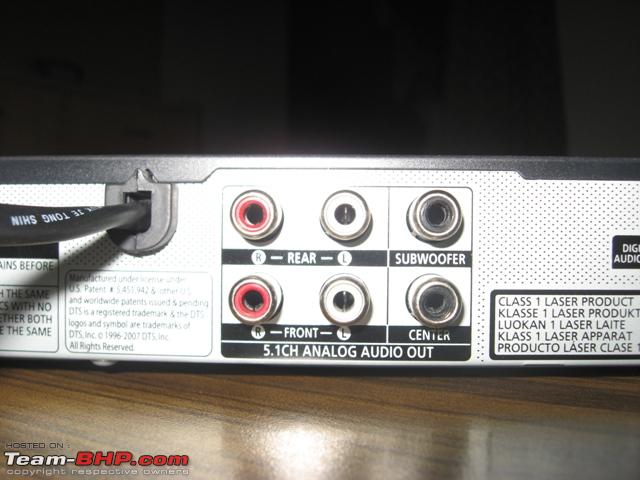

Pictures 1 & 2 The jacks of DVD and its rear.

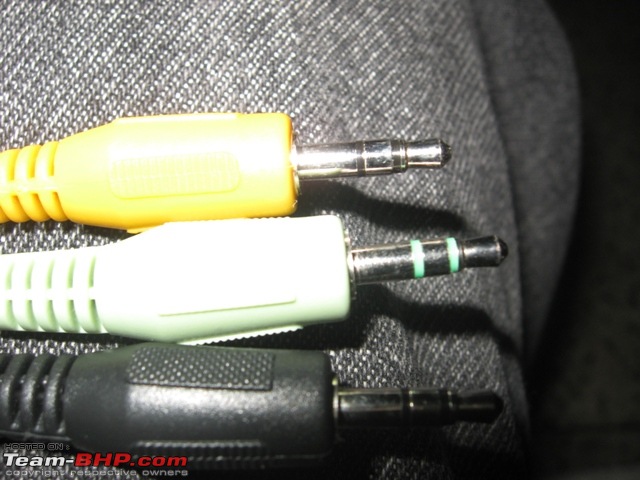

Pictures 3 & 4 The jacks of AL and its rear.

We tried using connectors and the following pictures show the connectors and the way they were used to plug both outs from the DVD to the single input jack of the AL's.

Now the problem is that at any given point of time only two speakers work that too when they are plugged into the lower socket as shown in the picture 6.

Guys help us out as to how can we make all of them work together? Urgent as after spending 4.2K on the Al's and 3.5K for the Samsung DVD we are still not making it work.
