Team-BHP - Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:

Originally Posted by sankdeshmukh (Post 4160361)

Need Driver side Door lock assembly, Central locking is locking up all three doors except driver side, have to lock it manually with key.
Even when car crosses 20kmph except driver side all other doors gets autolock.

Car Maruti SX4 ZXI
Model 2011.

Are you sure its the door lock which is faulty here??

Quote:

If you can provide me catelogue for SX4 in pdf form it will be greatful.

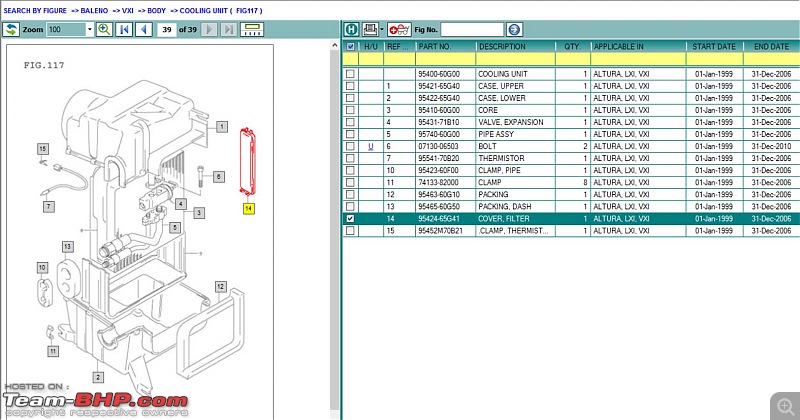

Sorry buddy, not possible. Its a software from where I get all these part numbers.

Quote:

Originally Posted by KarthikRaj (Post 4160448)

Thanks a lot, Sashi. I would rather go for the sets rather than going for individual pieces. Request your assistance.

Part No: 76011M84000-T01
Name: TRIM SET(Grey)
Price: Rs. 875

For seat belt trims

Part Number: 76161M84301-T01
Name: GARNISH CTR PILLAR INNER RH
Price: Rs. 66

Part Number: 76171M84301-T01
Name: GARNISH CTR PILLAR INNER LH
Price: Rs. 66

Quote:

Originally Posted by Dr.Naren (Post 4160940)

@Leoshashi : I wanted to know the pricing of 1.6 S-Cross ECU / Engine control assembly. I could get only the following part number. It would be great if you could find out the pricing.

Part number : 33920M65MA0

Thanks!!

Sorry buddy, currently I am able to help only the owners of cars which are mentioned on Page 1 of this thread. Hopefully, newer models will be added soon.

However after a quick call to the friendly MGP dealer, I came to know that your given part number costs Rs. 28,630. :)

Regards,
Shashi

Hi Leoshashi,

If I may take the liberty of asking on behalf of 2 of our Facebook followers who are not members as yet:

Nitesh Mhatre

Model Name- Maruti Swift
Variant- 2007 Type 2
Part required- Airbag assembly (Driver & Co- Driver)

Ajay Jangid

Model Name- Alto
Variant- 2009 LX
Parts required-
All suspension components for all four corners
All clutch components
Brake pads front and rear
All filters
4 wheel rims
All wheel bearings

Thanks :)
R

Sure Rehaan Sir. :)

Quote:

Originally Posted by Rehaan (Post 4161106)

Nitesh Mhatre

Model Name- Maruti Swift
Variant- 2007 Type 2
Part required- Airbag assembly (Driver & Co- Driver)

Thanks :)
R

Part Number: 48150-73K00-ART
Part Name: MODULE ASSY AIR BAG
Price: Rs. 35723
Remarks: Kindly ask your MGP store for any other alternate/localised spare part. This is the part(SGP) which originally came in 1st gen Swift ZXi

I am providing spare number of 1st gen Dzire too which is MGP and is localised(hence cheaper). This should fit in your Swift too.

Part No: 48150M55K10-ART
Name: MODULE ASSY, AIRBAG
Price: Rs. 5378

Part Number: 73920M75J00
Part Name: MODULE ASSY PASSENGER AIRBAG
Price: Rs. 6423

Quote:

Ajay Jangid

Model Name- Alto
Variant- 2009 LX
Parts required-
All suspension components for all four corners
All clutch components
Break pads front and rear
All filters
4 wheel rims
All wheel bearings[/indent]

Kindly be specific in your query. Such generalised queries will not be entertained in future. The query of "all suspension components" alone involves 100s of spares.

Regards,
Shashi

Quote:

Originally Posted by balenoed_ (Post 4161327)

I had the same issue for my '04 Baleno that the headlight never turned off one day. Did exactly the same thing of disconnecting the battery to put it off.

The problem identified to be that the Combination Switch Assmebly (the assembly under the steering that you use to turn on/off the headlight) is damaged internally. A possible short inside the mould which was un-repairable. The unit costs 9000/- (SGP). I decided to to not spend that, and disconnected the headlamp connection from that assembly and made a separate On/Off toggle switch on the dash panel.

The combination switch was localised in 2005 and is now available in MGP for half the price :)

Part Number: 37400M60G50
Name: SWITCH ASSY, COMBINATION
Price: Rs. 4603

Regards,
Shashi

Quote:

Originally Posted by Dr.Naren (Post 4161794)

This link is also very helpful for MGP parts and pricing.

http://oriparts.com/7?_ga=1.84868121...107.1486722219

It covers all models except new launches like Ignis, Brezza. Also pricing of few spare parts are not available.

Cheers!!

Thanks for sharing. However, some of the part numbers mentioned on this site are wrong/part numbers and description missing.

I used to heavily rely on this site earlier, but slowly realised that only about 80% of the mentioned part numbers are correct.

Quote:
