We have a plethora of threads asking for advice regarding spare parts, where the Maruti owners tend to get lost. Also, I've been receiving many PMs asking for spare part numbers and price. While I humbly help them all, posting on a common forum will help a larger audience. Hence I thought of having a central query thread for
MGP/SGP/MGAs.
My source of this info is the
Electronic parts catalogue. Unfortunately, the version I have isn't updated after 2010, so presently, I am unable to help owners of cars, which was launched after 2010.
You may also ask me about spares details of latest gen MSIL cars also which aren't mentioned here, and I'll try to help you out, but I should mention this that service in this case isn't guaranteed. :)
Cars supported:
1. Maruti 800 SB308
-STD(Carb/MPFI)
-AC(Carb/MPFI
-Automatic(Carb)
-5 Speed MPFI
2. Maruti Omni(both 5 Seater and 8)/(Carb and MPFI)
3. Maruti 1000
4. Maruti Zen(LX, LXi, VX, VXi, AT, Diesel, 2 Door)
5. Maruti Esteem(LX/LXi/VX/VXi/AT/Diesel)

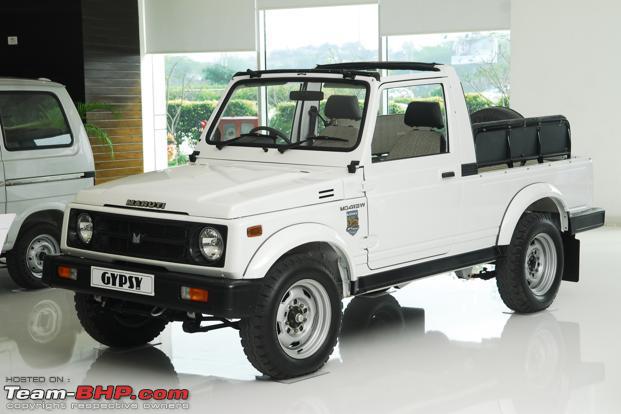

6. Maruti Gypsy(Mainly MG413W)

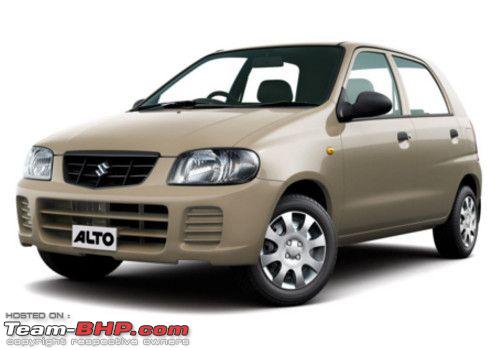

7. Maruti Alto(STD/LX/LXi/STD CNG/LX CNG/LXi CNG/VXi 1.1)
8. Maruti Versa(STD/DX1/DX2/SDX)
9. Wagon R(F series LX, LXi, VXi, VXi ABS, AX)
10. Wagon R( K series LX, LXi, VXi, VXi(ABS), CNG, LPG)
11. Estilo( F series LX, LXi, VXi, VXi(ABS), CNG)
12. Estilo(K series)
13. Alto K10 Old (Prefacelift LXi, VXi)
14. Swift 1st gen(LXi, VXi, VXi(ABS), ZXi, LDi, VDi, VDi(ABS))

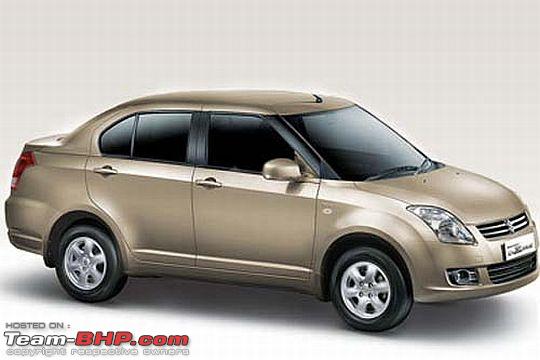

15. Swift Dzire 1st Gen(LXi, VXi, ZXi, LDi, VDi, ZDi)
16. Baleno(LXI, VXi, Altura)
17. Grand Vitara(2.0MT, 2.0AT, 2.4MT, 2.4AT)
18. Kizashi(2.4 MT, 2.4CVT)

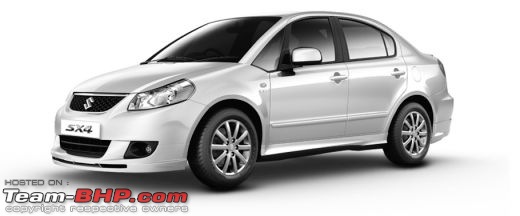

19. SX4(VXi, ZXi, ZXi Leather, VXi CNG, ZXi CNG, ZXI(L) CNG), ZXI AT)
20. A-Star(LXi, VXi, VXi ABS, ZXi, AT)
21. Ritz(LXi, VXi, VXi(ABS), ZXi, LDi, VDi, VDi(ABS))
22. EECO(5 Seater, 8 Seater, 5 S AC, CNG)
Format for a query :)
Model Name-
Variant-
Part Required (post a picture if the part isn't easy to describe)-
This will be a very useful thread for all Maruti owners; which majority of us as car buyers are. I am sure that this will keep you busy constantly. :D
For starters, please help with with the blower speed resistor, which blew off some time back and now by blower doesn't run on speed 1.
Model Name- Zen
Variant- Lx
Part Required- Blower speed control resistor.
Thanks!
EDIT/ PS: Thanks for using my car's Picture :D
Model name- Maruti 800
Variant- 1997(preface lift) carb.
Parts required- Price of the clutch set(release bearing+pressure plate+ clutch plate).
Quote:
Originally Posted by saket77
(Post 4159245)
Model Name- Zen
Variant- Lx
Part Required- Blower speed control resistor.
|
Part number: 74140M60D00
Part description: Resistor HVAC ZEN
Price: Rs. 461.50
Part Serviceability: Open
Recommendation: Same thing happened in my car a few days ago. When it was removed, we saw one of the 3 terminals corroded and had deposits on them. My SA cleaned it and installed it back. No problem since then. :)
Quote:
Originally Posted by EFF-EIGHT-BEE
(Post 4159261)
Model name- Maruti 800
Variant- 1997(preface lift) carb.
Parts required- Price of the clutch set(release bearing+pressure plate+ clutch plate).
|
I'd recommend you to get the clutch kit, which includes Clutch plate and pressure plate. You can purchase both of them separately also, but it will be expensive.
Part Number: 99000M24120-870
Part Description: CLUTCH KIT FOR CAR 800
Price: Rs. 1610
Part serviceability: Open
Part Number: 09269N35003
Part description: Bearing, release
Price: Rs. 419.73
Part Serviceability: Open
Part Number: 23161M58002
Part description: Retainer, release bearing
Price: Rs. 108
Part Serviceability: Open
Regards,
Shashi
Great thread. This is going to keep you occupied for years to come :)
Here's my query:
Model Name- Alto 2008
Variant- Lx
Part Required- driver side central AC vent. It's been free wheeling for 2 years now
Quote:
Originally Posted by samaspire
(Post 4159405)
Great thread.
|
Thanks :) Hope people find it useful.
Quote:
Model Name- Alto 2008
Variant- Lx
Part Required- driver side central AC vent. It's been free wheeling for 2 years now
|
Giving you some options w.r.t the spares:D
1.
Part Number: 73631M81A10-5PK
Part Name: LOUVER SIDE VENT(BLACK)
Price: Rs. 60.5
2.
Part Number: 73631M81A10-P4Z
Part Name: LOUVER SIDE VENTILATOR(Grey)
Price: Rs. 102.06
There is another part number, but has the
same family number. This means it should fit alto too, even though its listed under old WagonR(parts sharing).
Part Number: 73631M81A20-P4Z
Family Part number: 73631M81A10-P4Z
Part Name : LOUVER SIDE VENT
Price: Rs. 46
Regards,
Shashi
From my end
For 2004 Alto Lx.
1. Clutch Kit
2. Front Bumper and Head Lamps (Both with and without height adjust from the facelifted type 2)
3. Rear defogger glass from Xcite (2009?)
4. Rear wash wipe full kit (what all parts and price) including the switch on dashboard (would the switch from 1st Gen Wagon R be suitable?)
5. Any cheaper alternative for power steering conversion? MGP kit from Maruti is around 40K, OEM from outside market is 30K.
Quote:
Originally Posted by Ramon
(Post 4159511)
1. Clutch Kit
2. Front Bumper and Head Lamps (Both with and without height adjust from the facelifted type 2)
3. Rear defogger glass from Xcite (2009?)
4. Rear wash wipe full kit (what all parts and price) including the switch on dashboard (would the switch from 1st Gen Wagon R be suitable?)
5. Any cheaper alternative for power steering conversion? MGP kit from Maruti is around 40K, OEM from outside market is 30K.
|
1.
Part Number: 99000M24120-871
Part Name: CLUTCH KIT FOR ALTO
Price: Rs. 2495
2.(Kindly check with your stockist before ordering. This is a running item and should be easily available)
Part Number: 71711M79G20-799
Part Name: FRONT BUMPER ALTO
Price: Rs. 1319.05
Part No: 35121M79G40/70
Part Name: UNIT HEADLAMP RH ALTO MINOR/BS4
Price: Rs. 2200
Part No: 35321M79G40/70
Part Name: UNIT HEADLAMP LH ALTO MINOR/BS4
Price: Rs. 2200
3. Whose mobile number is that?? :D
Sorry, no entry found for Alto Excite's rear windshield. Are you sure it had defogger??
4. No such "kit" or package available. You'll have to retrofit from Alto VXi
5. No idea about aftermarket spares. This thread is only about MGP.
Two PS retro-fitment kits are available in MGA.
Part Number: 99000M24120-346
Name: POWER STEERING SET ALTO
Price: Rs. 46032.12
Part Number: 99000M24120-327
Part Name: POWER STEERING SET(WAGON R)
Price: Rs. 37160.06
Regards,
Shashi
Thanks a lot!!!
Can I get the parts and prices for the Vxi rear wash wipe?
And adjustable headlamps.
And yes. A defogger version was available.
Quote:
Originally Posted by Leoshashi
(Post 4159499)
1.
Part Number: 73631M81A10-5PK
Part Name: LOUVER SIDE VENT(BLACK)
Price: Rs. 60.5
2.
Part Number: 73631M81A10-P4Z
Part Name: LOUVER SIDE VENTILATOR(Grey)
Price: Rs. 102.06
|
Just confirming. I need the one of the central AC vents not the side vents near the doors. Are these, those?
Another requirement:
Driver side seat belt lock - female.
Mine unlocks randomly.
The one on the right is what I'm looking for
Need the part number for the following parts
1- All 4 AC vents
2- Window channel beading All 4 windows
Excellent initiative bro. Hats off.
Here is a query from my side-
Model Name- Maruti 800
Variant- std (1992)
Part Required - Print Meter; Body, fuel/temp
Both the parts are for my old speedometer, which i want to repair.
Model Name: ZEN
Variant: LXI 2002 model
Part requirement: Door trims All four,
