Default Strengthening MM540 C Section Chassis

Hi Folks,

I am trying to source an NGCS chasis for my next project. However, if I cannot get one in a reasonable time, I would like to strengthen my current MM540 chasis & change the leaf perch to use the wider leaf springs from the NGCS chasis.

I am planning to make another C and box the chasis and some additional cross members.

I would like to hear from you guys about pros and cons and anything else I should keep in mind when doing this.

The reason I am doing this is that my jeep is getting a heart transplant with an 125bhp/28kgm Isuzu 3.1L TCIC IDI engine.
4x4addict is offline   Reply With Quote
Old 21st January 2011, 17:57   #2
Senior - BHPian

pjbiju's Avatar

Join Date: Apr 2006
Location: Karamattom, Aluva, Kotagiri, Yercaud, Hospet, Indore, Nashik, Pune (now)
Posts: 1,167
Thanked: 433 Times
Default Re: Strengthening MM540 C Section Chasis

One of the easier methods used with good results is to add another C-section (either outside or inside) to improve the strength of the chassis. In this case, you have to add the additional C inside. Adding it to the outside could alter the mounting positions of other brackets on the frame. And if those brackets are welded onto the frame, then adding an outside C-section would be impossible.

This can be done for the whole chassis or at certain points and the edges can be welded together.

Unlike some of the truck chassis where you have straight long members for the chassis frame, the long members of the chassis of Jeeps are not straight. I guess even the cross sections would vary across its length. That would make it difficult to convert it into a box section or even a full length C over C. Also if you weld in other places other than the free edges, it could lead to weak spots in the frame.

I do not think you need additional cross members. But strengthening existing ones could be thought of.

Last edited by pjbiju : 21st January 2011 at 17:59.
pjbiju is offline   Reply With Quote
Old 21st January 2011, 19:23   #3
Senior - BHPian

jeepster's Avatar

Join Date: Oct 2008
Location: MH24 aka LATUR
Posts: 1,521
Thanked: 941 Times
Default Re: Strengthening MM540 C Section Chasis

its very complected to add another c section & making it Box section.

IMO best way to increase torsional rigidity is to add cross-members to c section chassis.

see attached pic's.
http://www.team-bhp.com/forum/4x4-te...tml#post835143 (Highly Modified MM340 - Scorpio Powered Beast)




rgds,
Nikhil
jeepster is offline   Reply With Quote
Old 21st January 2011, 19:52   #4
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,757 Times
Default Re: Strengthening MM540 C Section Chasis

Interesting. I'm gonna keep an eye on this thread. I too need answers.
Tejas@perioimpl is offline   Reply With Quote
Old 21st January 2011, 21:16   #5
Senior - BHPian

Kandisa's Avatar

Join Date: Oct 2008
Location: Noida
Posts: 1,040
Thanked: 203 Times
Default Re: Strengthening MM540 C Section Chasis

Quote:
Originally Posted by 4x4addict View Post
..I am trying to source an NGCS chasis for my next project. However, if I cannot get one in a reasonable time, I would like to strengthen my current MM540 chasis & change the leaf perch to use the wider leaf springs from the NGCS chasis.
Nice thread. I am sure the idea is running in many jeeper's head. Putting another C section might not be very complicated. But i wonder how easy it would be to change the leaf perches to use the NGCS leafs. Has anybody done this?
Kandisa is offline   Reply With Quote
Old 21st January 2011, 22:18   #6
BANNED

Join Date: Apr 2010
Location: Pune
Posts: 1,201
Thanked: 821 Times
Default Re: Strengthening MM540 C Section Chasis

Very common things to take care with chassis repair .( before the work starts )

I am no expert but the things I am listing must be looked into detail with the help of persons having expertise in that particular/respective field.

I have listed this , thinking as if I am going to do it .

1) objective ( clarity ), what exactly you want

a) repair ?
b) modification ? major/ minor
c) re construction ? total/partial

2) design of components , ( general layout ) also accurate measurements

3) need of jigs ,fixtures etc if any ( tools etc ) OR in your case choice of workshop & person

4) choice of material ,( metal ,grade ,properties etc ) from where to source it

5) choice of welding
a) which type of welding will be the best & who can do it (welding methods )
b ) choice of welding machine & material ( type of rods,its quality etc)

6) anti rust treatment ( cleaning of chassis, paint or galvanising )

Sudarshan
Sudarshan is offline   Reply With Quote
Old 22nd January 2011, 08:51   #7
BANNED

Join Date: Apr 2010
Location: Pune
Posts: 1,201
Thanked: 821 Times
Default Re: Strengthening MM540 C Section Chasis

This is a little OT

This (chassis strength & others ) is the exact reason for the birth of the Land Rover .Its born ( & inspired ) out of WW 2 Jeep only .

After WW2 British engineers experimented on few Jeep chassis ( war surplus ) . They wanted a way out from the shortcomings of the Legendary Jeep. So they experimented ( chopp-shop type )

One major part they looked into is the C section chassis .The Jeep chassis has its few disadvantages/limitations . In simple words its not suitable for longer wheel base then the 80" original & there is a need for more strength if more powerful motor is given .

look at the both pics & compare , the Rover chassis has more cross members then the Jeep & its box shape . This gives more torsional rigidity ,that improves handling

Jeep chassis ( 80" W. B. )

Strengthening MM540 C Section Chassis-jeepcj.jpg-1.jpg

Land Rover ( series ) ( 88" W. B.) Have a look at the fixed cross members bellow engine bell housing & GB shown in red arrows

Name:  LRseriesroller88.jpg1.jpg
Views: 11470
Size:  163.3 KB

Land Rover ( 109" W. B. ) chassis drawing ( note the number of cross members)

Name:  109bhp.jpg
Views: 5635
Size:  146.6 KB

Sudarshan

Last edited by Sudarshan : 22nd January 2011 at 08:53.
Sudarshan is offline   (1) Thanks Reply With Quote
Old 22nd January 2011, 20:14   #8
BHPian

Grace's Avatar

Join Date: Sep 2009
Location: Bangalore
Posts: 315
Thanked: 159 Times
Default Re: Strengthening MM540 C Section Chassis

Wow, an interesting topic I must say. Lemme introduce myself, a new kid on the block, Am Andy, known as Grace on this forum. I recently (March 2010) bought an 540 just to offroad. My other ride is a pickup 4X4 and I wanted something easy to go around. Went searching within Bangalore and came up with a find from a known jeeper. I was very ecstatic with the find that I closed my all senses and just went bling bling and paid him and took the ride home, little to realise that there were a lot of issues to be dealt with. Now since this a chassis rebuild story,will post my 'dukh bhari dastan' in appropriate thread. At this point I would like to thank 4x4addict with whom I had a brief chat before I took up this work. I will let the pictures do the talking and please be assured that pictures are in the right order. Your comments and suggestions are welcomed.

oops .. posting pictures for first time, do bear with me
Attached Thumbnails
Strengthening MM540 C Section Chassis-1.jpg

Strengthening MM540 C Section Chassis-2.jpg

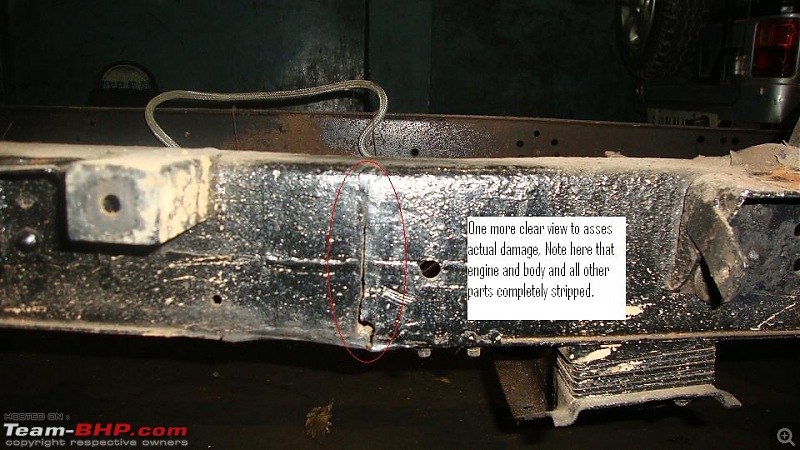

Strengthening MM540 C Section Chassis-3.jpg

Strengthening MM540 C Section Chassis-4.jpg

Strengthening MM540 C Section Chassis-5.jpg

Strengthening MM540 C Section Chassis-6.jpg

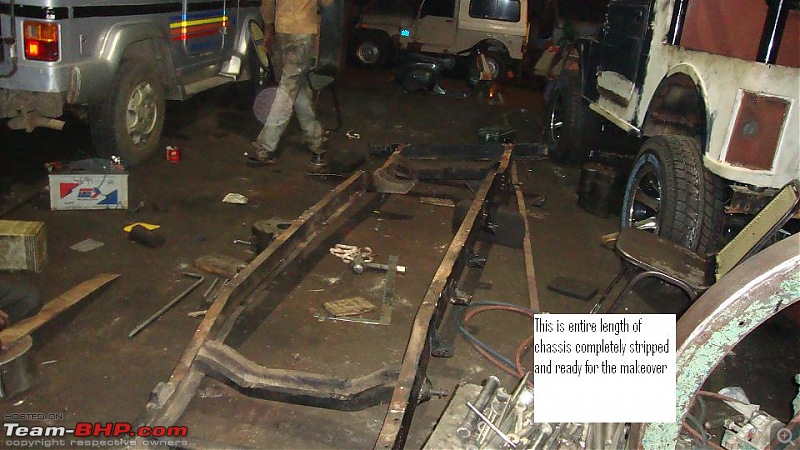

Strengthening MM540 C Section Chassis-7.jpg

Strengthening MM540 C Section Chassis-8.jpg

Strengthening MM540 C Section Chassis-9.jpg

Strengthening MM540 C Section Chassis-10.jpg


Last edited by Grace : 22nd January 2011 at 20:28.
Grace is offline   Reply With Quote
Old 22nd January 2011, 20:32   #9
BHPian

Grace's Avatar

Join Date: Sep 2009
Location: Bangalore
Posts: 315
Thanked: 159 Times
Default Re: Strengthening MM540 C Section Chassis

Mods may delete if duplication of photos are happening. Regret I am too young on this forum
Attached Thumbnails
Strengthening MM540 C Section Chassis-11.jpg

Strengthening MM540 C Section Chassis-12.jpg

Strengthening MM540 C Section Chassis-13.jpg

Strengthening MM540 C Section Chassis-14.jpg

Strengthening MM540 C Section Chassis-15.jpg

Strengthening MM540 C Section Chassis-16.jpg

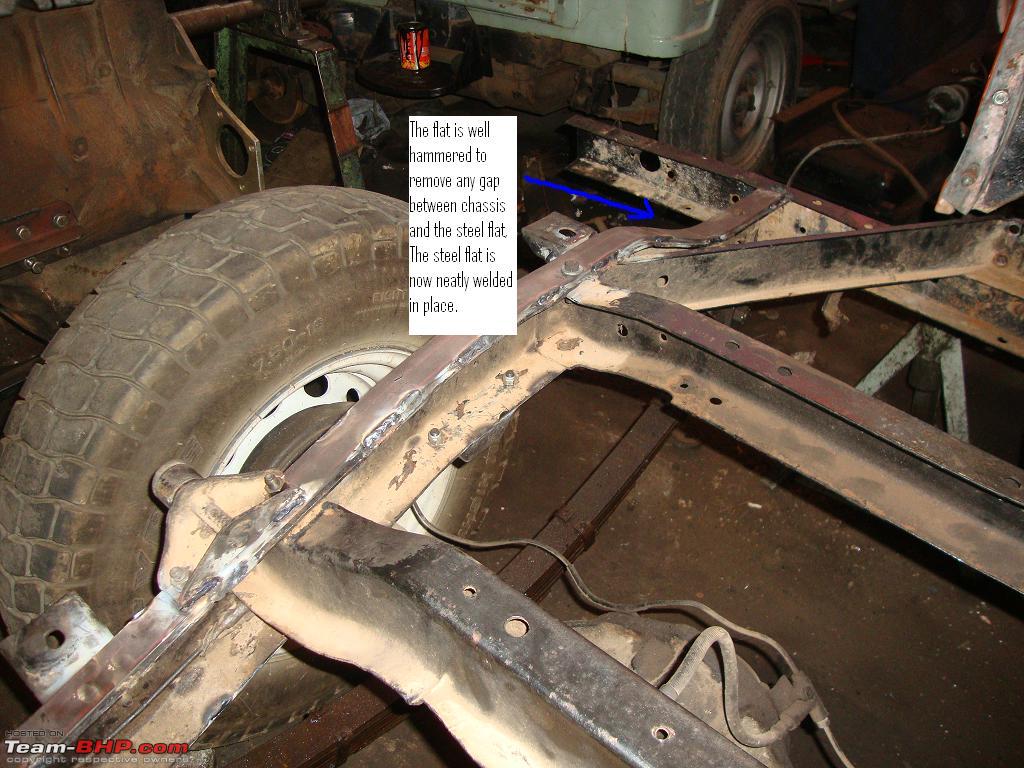

Strengthening MM540 C Section Chassis-17.jpg

Strengthening MM540 C Section Chassis-18.jpg

Strengthening MM540 C Section Chassis-20.jpg

Grace is offline   (2) Thanks Reply With Quote
Old 22nd January 2011, 20:57   #10
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default Re: Strengthening MM540 C Section Chassis

Nice work Andy! The problem here may be the addition of so much weight added to the chassis. May have been simpler to get another chassis.
jyobeb is online now   Reply With Quote
Old 22nd January 2011, 21:21   #11
BHPian

Grace's Avatar

Join Date: Sep 2009
Location: Bangalore
Posts: 315
Thanked: 159 Times
Default Re: Strengthening MM540 C Section Chassis

Hi Beboy,

Addition in weight is just 16 kgs. But benefit of strength derived is in manifolds.


OT: Hope you remember me,I met you in Madurai with Raghuram at the Toyota showroom,BTW thanks again for the snorkel,it is intended for this Jeep. I heard from Tini that you swapped your engine,hows the jeep now? Rocking ... I suppose

Last edited by Grace : 22nd January 2011 at 21:23. Reason: spelling
Grace is offline   (1) Thanks Reply With Quote
Old 22nd January 2011, 21:36   #12
BANNED

Join Date: Apr 2010
Location: Pune
Posts: 1,201
Thanked: 821 Times
Default Re: Strengthening MM540 C Section Chassis

@ Grace , looks good , now peace of mind . its good to work on a completely stripped down chassis as welding can be done properly .

& hey you certainly don't sound like a new 'kid'


BTW how did you choose the material for the job ? any specific grade of steel ?

Also have you checked the chassis after the job for any misalignment ? & how ?

Sudarshan
P.S. @ jyobeb, new chassis ok but how much it will cost ? I think this is cheaper .

Last edited by Sudarshan : 22nd January 2011 at 21:40.
Sudarshan is offline   Reply With Quote
Old 22nd January 2011, 21:42   #13
Senior - BHPian

jeepster's Avatar

Join Date: Oct 2008
Location: MH24 aka LATUR
Posts: 1,521
Thanked: 941 Times
Default Re: Strengthening MM540 C Section Chassis

hey Andy , great work bro.

how could a so called Jeeper sell this to any one!! (i hope he is not a bhpian here)

can you please share the costs.


rgds,
Nikhil
jeepster is offline   Reply With Quote
Old 22nd January 2011, 22:48   #14
BHPian

Grace's Avatar

Join Date: Sep 2009
Location: Bangalore
Posts: 315
Thanked: 159 Times
Default Re: Strengthening MM540 C Section Chassis

@jyobeb, cost of new chassis (as offered to me by the mechanic was at RS 20000), this would entail registration in the RC book, plus other costs such as body bushes and additional labor which would've easily cost another5-6k. Getting jeep done at reputed mechanic in Bangalore is a costly affair (good ones are hard to come by). Note that I am on a shoestring budget. Wait till you hear the cost for this mod job.

@Sudarshan sir, Thankyou for the encouragement received ,I am a new kid, with respect to the questions posed by you. I went around hunting in the gujri market for chassis grade steel. Did not bother about thickness but was worried on the final added weight. I found that truck chassis (all sizes) were getting scrapped and decided to get those chassis parts welded onto the jeep chassis. Continued search lead me to lot of folks who strongly advised against going in for truck chassis welding on jeep chassis. More so on welding remaining on the chassis and adding of weight. I finally decided to go in for 4mm by 2.5 inch by entire length both sides up and down as that was the cheapest option. As regards the alignment, checked with a spirit leveler (I know it is not a very accurate tool for this activity) and trust in the mechanic's ability as he is the most famous in Bangalore.

@jeepster, thankyou bro for your kind words,the person who sold the jeep happens to be a member here.

Cost Involved: Removing and putting back entire body and engine and all other parts from the chassis: INR 4000.

Cost of grinding the burrs (please read as previous ugly welding job): INR 500

Cost of MS FLAT 4mmX2.4 inchesX10 feet X4 pieces(there was wastage too): INR 2000 odd.

Cost of MS flat cutting,shaping,hammering,Riveting and welding 4 pieces: INR 3000.(This is a labor intensive job)

cost of Brake oil : INR 300 odd.

Removing and reinstallation of electrical work : INR 700.

Sundry expenses like replacement of Engine bedding,body bushes and other: INR 800.

Piece of mind : PRICELESS

This done, now I have the confidence of doing the toughest of Bangalore OTR spots. My next round of mod is installation of MRCBT steering. Depending on 4X4addict. Ahoy !! are ya listening?

Warm Regards
Grace is offline   Reply With Quote
Old 22nd January 2011, 23:13   #15
BHPian

swastikviji's Avatar

Join Date: Feb 2009
Location: Bangalore
Posts: 417
Thanked: 158 Times
Default Re: Strengthening MM540 C Section Chassis

Hi Andy
This is not just strengthening chassis, it seems you are rebuilding whole chassis, any how i am sorry for you for not inspecting the jeep before you buy.
