Default Force Motors @ Auto Expo 2016

Force Motors' line up for Auto Expo 2016 included various versions of the Traveller. The company also displayed the Gurkha off-roader, which has been seen in action at the 2014 & 2015 editions of the Rain Forest Challenge India, and engines and axles that it manufactures for BMW and Mercedes-Benz.

Force Motors @ Auto Expo 2016-1.jpg

Force Motors @ Auto Expo 2016-2.jpg

Force Motors @ Auto Expo 2016-3.jpg

Force Motors @ Auto Expo 2016-138a.jpg

Force Motors @ Auto Expo 2016-139.jpg

Force Motors @ Auto Expo 2016-140.jpg

Last edited by Aditya : 7th February 2016 at 15:05.
Aditya is offline   (5) Thanks Reply With Quote
Old 6th February 2016, 16:47   #2
Team-BHP Support

Join Date: Feb 2004
Location: Mumbai
Posts: 7,316
Thanked: 23,892 Times
Default Re: Force Motors @ Auto Expo 2016

The Traveller Smart Citibus has a monocoque construction. It measures 6,770 mm in length, 2,225 mm in width and 2,670 mm in height (2,870 mm with roof mounted AC). It has a wheelbase of 4,020 mm and a kerb weight of 5,570 kg.

Force Motors @ Auto Expo 2016-19.jpg

Force Motors @ Auto Expo 2016-20.jpg

Force Motors @ Auto Expo 2016-20a.jpg

Force Motors @ Auto Expo 2016-21.jpg

A look at the rear end. Notice the reversing camera at the top:
Force Motors @ Auto Expo 2016-22.jpg

LED destination display located at the top:
Force Motors @ Auto Expo 2016-23.jpg

A side step for the front passengers, none for the ones getting into the rear:
Force Motors @ Auto Expo 2016-23b.jpg

Powered by a 2,149cc, BS-III compliant diesel engine that puts out 129 BHP and 300 Nm of torque. A 2,596cc, BS-III compliant CNG unit is also available:
Force Motors @ Auto Expo 2016-24.jpg

ABS with EBD is optional:
Force Motors @ Auto Expo 2016-24a.jpg

Emergency exit is located at the rear right:
Force Motors @ Auto Expo 2016-25.jpg

Dashboard has a GPS navigation system mounted on it:
Force Motors @ Auto Expo 2016-26.jpg

Basic four-spoke steering wheel:
Force Motors @ Auto Expo 2016-27.jpg

Instrument cluster consists of a digital odometer and trip meter and analogue tachometer, speedometer, fuel gauge and temperature gauge:
Force Motors @ Auto Expo 2016-27a.jpg

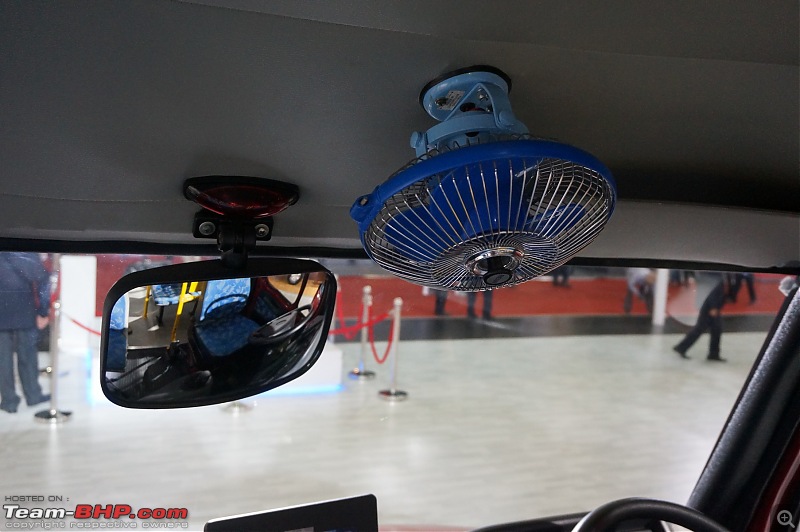

An old-school fan keeps the driver cool. Huge convex mirror located next to it:
Force Motors @ Auto Expo 2016-27b.jpg

A closer look at the gear lever. Notice the odd positioning of reverse gear:
Force Motors @ Auto Expo 2016-28.jpg

Glove box is located at the left:
Force Motors @ Auto Expo 2016-28b.jpg

21+D seating capacity, 2x1 seating configuration, fixed seats:
Force Motors @ Auto Expo 2016-33.jpg

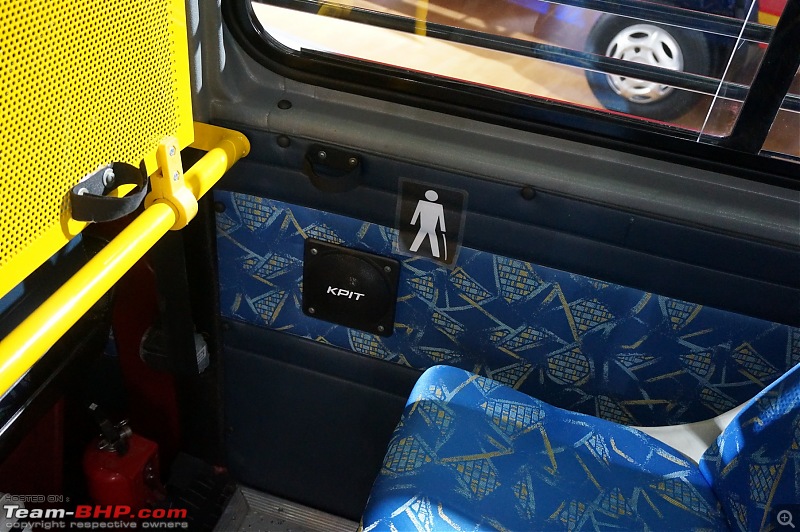

The first row of seats is reserved for senior citizens:
Force Motors @ Auto Expo 2016-33a.jpg

Wheel well hampers legroom for this seat:
Force Motors @ Auto Expo 2016-33b.jpg

The Smart Citibus comes with two emergency exits - one is located at the rear, behind the last row of seats. Notice the hammer located at the top left corner:
Force Motors @ Auto Expo 2016-35a.jpg

The second emergency exit is located at the rear right:
Force Motors @ Auto Expo 2016-35b.jpg

The procedure to operate the emergency exit located at the rear right:
Force Motors @ Auto Expo 2016-35c.jpg

Jack knife door for passengers:
Force Motors @ Auto Expo 2016-37a.jpg

The door can be operated automatically or manually by shifting this lever:
Force Motors @ Auto Expo 2016-37c.jpg

Emergency opening system of the jack knife door:
Force Motors @ Auto Expo 2016-37d.jpg

A closer look at one of the grab handles:
Force Motors @ Auto Expo 2016-38.jpg

CCTV camera is located above the driver's seat:
Force Motors @ Auto Expo 2016-39.jpg

An LED destination display lets passengers know about the next stop:
Force Motors @ Auto Expo 2016-40.jpg

The Smart Citibus comes with a first aid kit and a fire extinguisher:
Force Motors @ Auto Expo 2016-42.jpg

A stop request button has been provided:
Force Motors @ Auto Expo 2016-43.jpg

Last edited by Aditya : 7th February 2016 at 12:31.
Aditya is offline   (6) Thanks Reply With Quote
Old 6th February 2016, 16:51   #3
Team-BHP Support

Join Date: Feb 2004
Location: Mumbai
Posts: 7,316
Thanked: 23,892 Times
Default Re: Force Motors @ Auto Expo 2016

The Traveller Delivery Van is available in 4 wheelbases ranging from 3,050 mm to 4,020 mm. The 4,020 mm version is available in two body styles - regular and wide body. The vehicle featured here is the Wider Body-4020.

Force Motors @ Auto Expo 2016-44.jpg

This van has a monocoque body that measures 6,770 mm in length, 2,225 mm in width and 2,670 mm in height:
Force Motors @ Auto Expo 2016-45.jpg

Powered by a 3,245cc, BS-IV compliant diesel engine that develops 114 BHP and 320 Nm of torque. A BS-III complaint 2,149cc motor is also available:
Force Motors @ Auto Expo 2016-47.jpg

Simple and straightforward dashboard. Steering wheel is a four-spoke affair:
Force Motors @ Auto Expo 2016-49.jpg

Air-conditioning to keep the occupants of the cabin cool:
Force Motors @ Auto Expo 2016-50.jpg

While the driver gets an adjustable bucket seat, the passenger gets a fixed bench that can seat two persons:
Force Motors @ Auto Expo 2016-51.jpg

Driver's side door pad gets a bottle holder:
Force Motors @ Auto Expo 2016-52.jpg

Safety kit includes a fire extinguisher:
Force Motors @ Auto Expo 2016-53.jpg

The van gets sliding doors on both sides of the cargo box:
Force Motors @ Auto Expo 2016-48.jpg

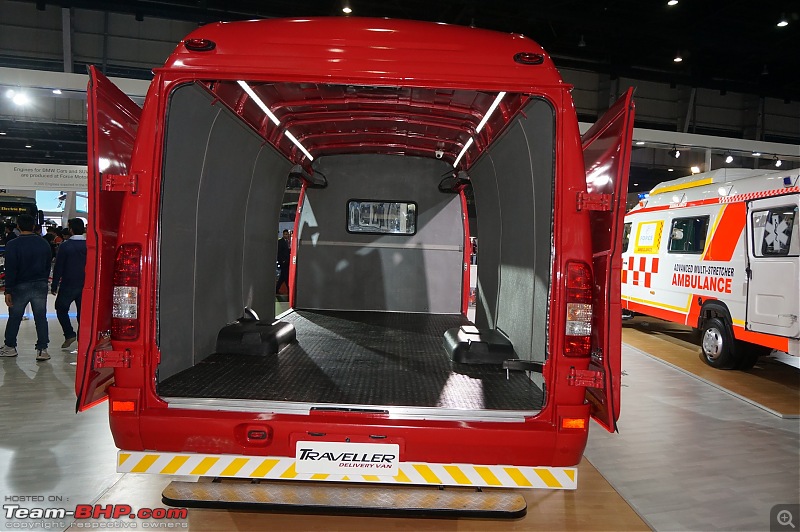

Rear doors open 270 degrees and do not hamper the loading / unloading process:
Force Motors @ Auto Expo 2016-46.jpg

Inner dimensions of the cargo box are 4,653 mm (l) x 2,000 mm (w) x 1,880 mm (h). Payload = 2,500 kg:
Force Motors @ Auto Expo 2016-54.jpg

While the inner sides of the cargo box get plastic cladding...
Force Motors @ Auto Expo 2016-55.jpg

...the roof gets none:
Force Motors @ Auto Expo 2016-56.jpg

This window allows the occupants of the cabin to keep an eye on the cargo:
Force Motors @ Auto Expo 2016-57.jpg

Last edited by Aditya : 7th February 2016 at 09:01.
Aditya is offline   (4) Thanks Reply With Quote
Old 6th February 2016, 16:58   #4
Team-BHP Support

Join Date: Feb 2004
Location: Mumbai
Posts: 7,316
Thanked: 23,892 Times
Default

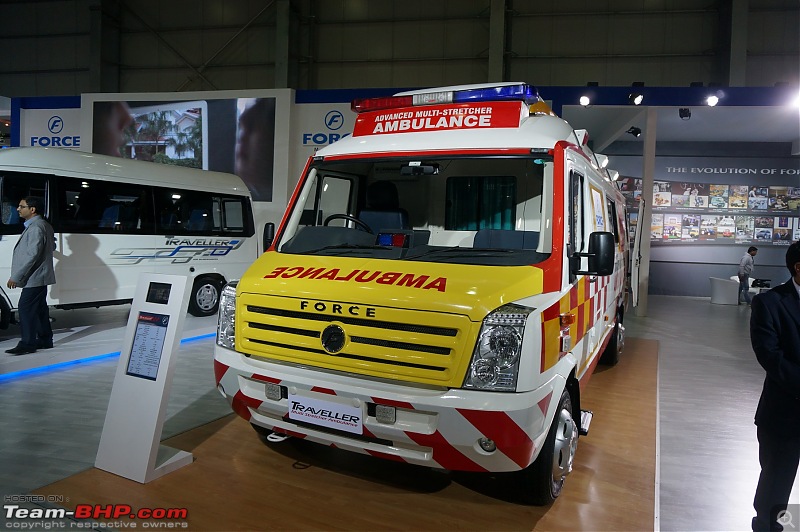

The Traveller Advanced Multi-stretcher Ambulance is designed to carry 6 medic staff + 4 patients + 1 driver.

Force Motors @ Auto Expo 2016-58.jpg

The Ambulance is 6,770 mm long, 2,225 mm wide and 2,670 mm tall with a wheelbase of 4,020 mm:
Force Motors @ Auto Expo 2016-59.jpg

Warning lights and siren located on the roof:
Force Motors @ Auto Expo 2016-61a.jpg

Flashing warning lights located at various places:
Force Motors @ Auto Expo 2016-62.jpg

Force Motors @ Auto Expo 2016-63.jpg

Force Motors @ Auto Expo 2016-63a.jpg

The ambulance uses a 2,149cc, BS-III compliant diesel engine that puts out 129 BHP and 300 Nm of torque and is mated to a 5-speed transmission. It is equipped with ABS + EBD and air suspension:
Force Motors @ Auto Expo 2016-64.jpg

The rear of the vehicle is full of life saving equipment:
Force Motors @ Auto Expo 2016-60.jpg

Force Motors @ Auto Expo 2016-65.jpg

Force Motors @ Auto Expo 2016-66.jpg

Storage compartments located along the top:
Force Motors @ Auto Expo 2016-66a.jpg

This ramp makes it easier to load or unload stretchers:
Force Motors @ Auto Expo 2016-67.jpg

Window between the cabin and medical compartment:
Force Motors @ Auto Expo 2016-68.jpg

Public address system mounted on the dashboard:
Force Motors @ Auto Expo 2016-69.jpg

Controls for the air-conditioning:
Force Motors @ Auto Expo 2016-69a.jpg

Switches for the air-suspension and lights:
Force Motors @ Auto Expo 2016-70.jpg

Driver's seat is height adjustable:
Force Motors @ Auto Expo 2016-71.jpg

Safety equipment includes a fire extinguisher:
Force Motors @ Auto Expo 2016-72.jpg

MCBs for the medical equipment are located behind the driver's seat:
Force Motors @ Auto Expo 2016-73.jpg

Force Motors @ Auto Expo 2016-74.jpg

The Traveller First Responder is used by the Fire and Rescue department. It measures 5,415 mm in length, 1,975 mm in width and 2,550 mm in height with a wheelbase of 3,350 mm. It is fitted with a winch in the front and powered by a 2,149cc, diesel engine that puts out 129 BHP.

Force Motors @ Auto Expo 2016-102.jpg,

Force Motors @ Auto Expo 2016-103.jpg

The dashboard houses the public address system and switches for the siren, lights, etc:
Force Motors @ Auto Expo 2016-104.jpg

Force Motors @ Auto Expo 2016-105.jpg

Force Motors @ Auto Expo 2016-106.jpg

The vehicle is loaded with fire fighting and rescue equipment:
Force Motors @ Auto Expo 2016-107.jpg

Force Motors @ Auto Expo 2016-107a.jpg

Tools are mounted on the rear door as well:
Force Motors @ Auto Expo 2016-107b.jpg

An LED display cautions motorists:
Force Motors @ Auto Expo 2016-108.jpg

Last edited by Aditya : 7th February 2016 at 15:00.
Aditya is offline   (6) Thanks Reply With Quote
Old 6th February 2016, 17:07   #5
Team-BHP Support

Join Date: Feb 2004
Location: Mumbai
Posts: 7,316
Thanked: 23,892 Times
Default Re: Force Motors @ Auto Expo 2016

The Traveller Super is 5,415 mm long, 1,975 mm wide and 2,550 mm tall. It has a wheelbase of 2,550 mm and a ground clearance of 210 mm. It is powered by a 2,596cc, diesel engine that produces 90 BHP and 250 Nm of torque. Power is transmitted to the rear wheels through a 5-speed gearbox. It has disc brakes at the front and drum brakes at the rear. ABS with EBD is available as well.

Force Motors @ Auto Expo 2016-75.jpg

Force Motors @ Auto Expo 2016-76.jpg

Force Motors @ Auto Expo 2016-77.jpg

Force Motors @ Auto Expo 2016-77a.jpg

The Traveller Super gets air suspension at the rear:
Force Motors @ Auto Expo 2016-78.jpg

Side step makes it easy for passengers to enter and exit:
Force Motors @ Auto Expo 2016-79.jpg

9+D seating capacity, 2x1 seating configuration:
Force Motors @ Auto Expo 2016-81.jpg

Seat backs feature grab handles, bottle holders and nets to keep books, magazines, etc:
Force Motors @ Auto Expo 2016-82.jpg

Seats can be reclined using these buttons. The armrest can be adjusted as well:
Force Motors @ Auto Expo 2016-82a.jpg

Each row of seats gets a power outlet:
Force Motors @ Auto Expo 2016-82b.jpg

Acres of space to keep luggage:
Force Motors @ Auto Expo 2016-83.jpg

TV screen to keep passengers entertained:
Force Motors @ Auto Expo 2016-84.jpg

Front doors come with power windows:
Force Motors @ Auto Expo 2016-85.jpg

The dashboard houses the controls for the air-conditioner, audio system head unit, 12V power outlet and switched for the lights, headlight leveller and air suspension:
Force Motors @ Auto Expo 2016-87.jpg

Last edited by Aditya : 7th February 2016 at 13:19.
Aditya is offline   (4) Thanks Reply With Quote
Old 6th February 2016, 17:11   #6
Team-BHP Support

Join Date: Feb 2004
Location: Mumbai
Posts: 7,316
Thanked: 23,892 Times
Default Re: Force Motors @ Auto Expo 2016

The Traveller Royale has a monocoque body and air suspension. It is powered by a 2,149cc, BS-III compliant diesel engine that puts out 129 BHP and 300 Nm of torque. It comes with a 5-speed transmission, ABS and EBD.

Force Motors @ Auto Expo 2016-88.jpg

The Royale measures 6,770 mm in length , 2,225 mm in width and 2,670 mm in height. It has a wheelbase of 4,020 mm and a ground clearance of 190 mm.Kerb weight = 3,050 kg:
Force Motors @ Auto Expo 2016-89.jpg

Force Motors @ Auto Expo 2016-90.jpg

The luggage compartment door is help up by pneumatic struts. The compartment has a light as well:
Force Motors @ Auto Expo 2016-91.jpg

Emergency exit is located on the right side at the rear:
Force Motors @ Auto Expo 2016-92.jpg

Simple and edgy dashboard houses a GPS unit, an audio system head unit and an air-conditioner control unit. A ice box is also provided:
Force Motors @ Auto Expo 2016-93.jpg

This vehicle's interiors have been customised by Pinnacle:
Force Motors @ Auto Expo 2016-94.jpg

Ambient lighting along the steps:
Force Motors @ Auto Expo 2016-95.jpg

Force Motors @ Auto Expo 2016-96.jpg

15+D seating capacity, 2x1 seating configuration, reclining seats:
Force Motors @ Auto Expo 2016-97.jpg

All seats come with lap belts:
Force Motors @ Auto Expo 2016-98.jpg

Seat backs have grab handles on both sides:
Force Motors @ Auto Expo 2016-99a.jpg

Separate air-conditioner vents and reading lamps for each seat:
Force Motors @ Auto Expo 2016-99b.jpg

Each row of seats gets a USB charging port:
Force Motors @ Auto Expo 2016-99c.jpg

A TV screen to keep the passengers entertained:
Force Motors @ Auto Expo 2016-101.jpg

A sunroof is provided as well:
Force Motors @ Auto Expo 2016-101a.jpg

Last edited by Aditya : 7th February 2016 at 11:53.
Aditya is offline   (5) Thanks Reply With Quote
Old 6th February 2016, 17:20   #7
Team-BHP Support

Join Date: Feb 2004
Location: Mumbai
Posts: 7,316
Thanked: 23,892 Times
Default Re: Force Motors @ Auto Expo 2016

The Force Gurkha EOV 4x4x4 has also been displayed at the 2016 Auto Expo. Check it out.

Force Motors @ Auto Expo 2016-7.jpg

Last edited by Aditya : 7th February 2016 at 08:05.
Aditya is offline   (4) Thanks Reply With Quote
Old 6th February 2016, 17:26   #8
Team-BHP Support

Join Date: Feb 2004
Location: Mumbai
Posts: 7,316
Thanked: 23,892 Times
Default

Force Motors assembles engines for two of the most popular luxury car manufacturers in the world - BMW and Mercedes-Benz:
Force Motors @ Auto Expo 2016-110.jpg

This is the 3.0-litre 6-cylinder diesel unit that is used in the 5-Seres, 7-Series, X3 and X5. It produces 255 BHP and 560 Nm of torque:
Force Motors @ Auto Expo 2016-112.jpg

Force Motors @ Auto Expo 2016-113.jpg

Force Motors @ Auto Expo 2016-114.jpg

BMW's 3-Series, 5-Series, X3 and GT cars use this 2.0-litre, 4-cylinder diesel engine, which develops 187 BHP and 400 Nm of torque:
Force Motors @ Auto Expo 2016-116.jpg

Force Motors @ Auto Expo 2016-117.jpg

Force Motors @ Auto Expo 2016-118.jpg

M 274 petrol engine (Mercedes-Benz C-Class):
Force Motors @ Auto Expo 2016-131.jpg

OM 651 diesel engine (Mercedes-Benz E-Class):
Force Motors @ Auto Expo 2016-135.jpg

OM 642 V6 diesel engine (Mercedes-Benz S-Class):
Force Motors @ Auto Expo 2016-137.jpg

Force Motors also assembles axles for Mercedes-Benz cars. Here's the rear axle of the C-Class:
Force Motors @ Auto Expo 2016-127.jpg

Rear axle of the Mercedes-Benz GL-Class:
Force Motors @ Auto Expo 2016-129.jpg

Force Motors also showcased the engines and gearboxes that it uses in its own range of vehicles:
Force Motors @ Auto Expo 2016-119.jpg

Force Motors @ Auto Expo 2016-120.jpg

Force Motors @ Auto Expo 2016-121.jpg

G 32-M/5 syncromesh gearbox - 5F + 1 R, max torque = 320 Nm:
Force Motors @ Auto Expo 2016-123.jpg

G 28-M/5 syncromesh gearbox - 5F + 1R, max torque = 250 Nm:
Force Motors @ Auto Expo 2016-dsc05977.jpg

Last edited by Aditya : 7th February 2016 at 15:01.
Aditya is offline   (11) Thanks Reply With Quote
Old 7th February 2016, 15:04   #9
Team-BHP Support

Join Date: Feb 2004
Location: Mumbai
Posts: 7,316
Thanked: 23,892 Times
Default Re: Force Motors @ Auto Expo 2016

Thread moved out from the Assembly Line (The "Assembly Line" Forum section) section.
Aditya is offline   Reply With Quote
Old 7th February 2016, 17:00   #10
BHPian

Join Date: Apr 2012
Location: Thane
Posts: 112
Thanked: 76 Times
Default Re: Force Motors @ Auto Expo 2016

I am really impressed with how far Force Motors has come. The Traveller comes across as a very dynamic platform. Just wondering as to how BMW and Mercedes Benz, both competitors ended up selecting the same company as engine manufacturer.
Bookkeeper is offline   (2) Thanks Reply With Quote
Old 7th February 2016, 21:43   #11
BANNED

Join Date: Jul 2008
Location: in a Toyota!
Posts: 2,686
Thanked: 595 Times
Default Re: Force Motors @ Auto Expo 2016

I must say FM has good ideas and very good imagination about the product offerings.

BUT, they will remain an "also ran company"! until they know how to implement and execute these ideas and imagination.
Parm is offline   (2) Thanks Reply With Quote
Old 8th February 2016, 10:51   #12
BHPian

pamiboy's Avatar

Join Date: Oct 2009
Location: Cochin
Posts: 259
Thanked: 102 Times
Default Re: Force Motors @ Auto Expo 2016

Yes, really impressed with the range of customization provided by each platforms. Nice that they are providing dedicated models for fire service, ambulances, etc. Hopefully they will come on their own soon.
pamiboy is offline   (2) Thanks Reply With Quote
Old 8th February 2016, 14:43   #13
Senior - BHPian

girishglg's Avatar

Join Date: Oct 2008
Location: KA-05
Posts: 1,079
Thanked: 425 Times
Default Re: Force Motors @ Auto Expo 2016

This thread has some usual stuff from Force and some engine stuff which many of us did not even know.

Knew that OM616, the workhorse of the Travellers were of Mercedes origin but wow they do make the motors for the top German brands as well!

The Traveller range is pretty good for a monocoque with great suspension but felt that their engines were very measly for the vehicles. Wonder why they did not display any other version of the Gurkha or Trax or I missed it
girishglg is offline   (1) Thanks Reply With Quote
Old 8th February 2016, 17:34   #14
Senior - BHPian

ariesonu's Avatar

Join Date: Mar 2010
Location: Bombay
Posts: 1,090
Thanked: 1,271 Times
Default Re: Force Motors @ Auto Expo 2016

Oh How I wished that they had displayed something of 3050 or 3350 models.
I was anxiously waiting for them. These two are perfect choices for decent size CARAVAN that I am building but something new would have given me more ideas for same.
The dashboard quality also seems to have gone down & so does the passenger seats.
All that they have done is display different version of Traveller 26.

Regards-Sonu
ariesonu is offline   (1) Thanks Reply With Quote
Old 8th February 2016, 19:20   #15
Team-BHP Support

aah78's Avatar

Join Date: Feb 2004
Location: NYC / BOM
Posts: 3,625
Thanked: 1,627 Times
Arrow Re: Force Motors @ Auto Expo 2016

Thanks for the detailed coverage Aditya!

Excellent effort from Force Motors.

I only wish that they put effort into actually trying to sell & service their products.

Just some things I didn't like that I'd like to point out:

Regarding the Traveller Smart Citibus - this is meant for the rural / small town market, I guess.
  • Why use a tacky add on aftermarket fan for the driver? Why not design something that looks integrated at-least, and why ignore the passengers? In this day & age, is it really necessary to make a transporter non-AC?
  • The wheel well intruding into passenger space.
Regarding the Traveller Delivery Van - that passenger bench seat is just horrid, plus no option for passenger seat-belts.

Regarding the Traveller Super - a partition between the passenger seating area & the luggage area will improve aesthetics and prevent luggage from intruding into passenger space.

Regarding the Traveller Royale - the green accent lighting looks tacky, in the pictures. Maybe a softer, dimmer accent would look better in my opinion.

Last edited by aah78 : 8th February 2016 at 19:23.
aah78 is offline   (2) Thanks Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
Force Motors (including Force One 4x4) @ Auto Expo 2012 GTO The Indian Car Scene 32 19th March 2016 10:44
Tata Motors @ Auto Expo 2016 GTO The Indian Car Scene 95 27th February 2016 09:31
Force Traveller at Auto Expo Mpower Commercial Vehicles 23 18th June 2012 18:49
Force Motors Launched Force Trip Mini Van KMohanan Commercial Vehicles 13 1st September 2011 10:19
Wheelosphere at The Hindu Chennai Auto Expo The Hindu Chennai Auto Expo 2010 udayjani The Indian Car Scene 3 10th October 2010 16:54


All times are GMT +5.5. The time now is 22:27.

Copyright 2000 - 2017, Team-BHP.com
Proudly powered by E2E Networks
