Quote:

Originally Posted by jeepster (Post 2522810)

Mahindra Armada/Marshal/bolero/550 (NGCS)

Front Track : 1460 mm

Rear Track : 1355 mm

track difference 100 millimeters = 3.93700787 inch

so one needswheel spacer of 1.96850393 inch or 49.9999998 millimeters at both sides.:Frustrati
so in general highway driving the 2 inch track difference will not cause any problems.

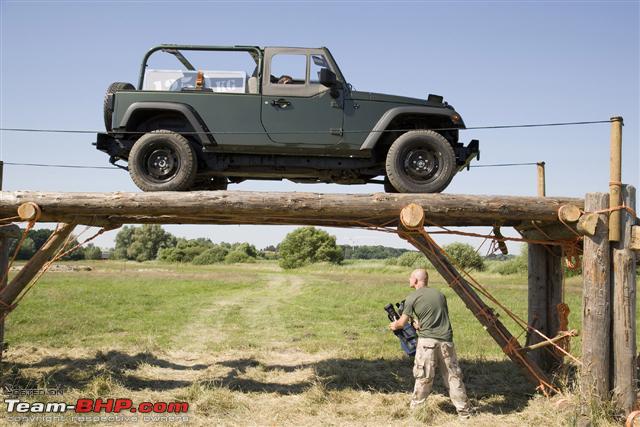

but when a jeeps try to cross ditch or small river stream on tree logs the 2 inch track difference is not Ideal.

Attachment 814580

Attachment 814581

Attachment 814583

Attachment 814585

simple mod will be adding spacer of 2 inch which is not recommended by many gurus.

or installing new wider axle from mm FC ot mm Maxx series with tack of 1500mm (-+10mm).

BTW have you driven Armada/Bolero'550 NGCS ?

& tried to avoid potholes while driving one?
result the front tyre avoids it & reat dosent .

Hi Nikhil,

What problems will a variation in Wheel Tracks create while driving over such log/narrow bridges?

Even with a 6" Difference in Wheel Track 57Front & 51Rear I had no such problems. Just that it look FUGLY.

wrt to Pot Holes if the front avoids it and the rear doesn't that means the pot hole is 2-2.1" wide:D

What is the width of the tyre?

Regards,

Arka

Quote:

Originally Posted by jeepster (Post 2522854)

5 mm =100 mm??? i dont think so.:uncontrol

give me some examples of vehicles with track difference of 100 mm.:D

Autorickshaw :D
Ok i know thats a poor attempt at humor :)

A track width difference of 10cm is huge. Apart from log crossings wouldn't that also affect while traversing deep slush/snow where the rear wheels can't fit in the rut carved by the fronts?

Edit: Just read Arka's reply. So its a non issue after all apart from the looks?

Quote:

Originally Posted by condor (Post 2522842)

Ok, So ?

I think such a difference in track width could pose a problem while evading/going over obstacles during an offroad exercise.

Quote:

Originally Posted by ex670c (Post 2522899)

What problems will a variation in Wheel Tracks create while driving over such log/narrow bridges?

haven't crossed any but in general the track should be equal. (+-10mm difference will not matter)

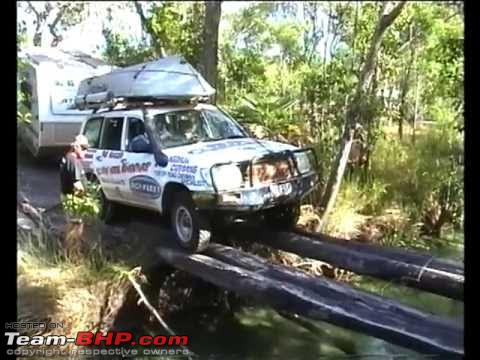

see this pic

with 4 inch track difference the vehicle will be unsteady while crossing such obstacle but it will be manageable.

20091208_142052.RED.UPHILL.BRIDGE.avi - YouTube

Vyrilia Point Way - YouTube

if such thing happnes here , vehicle & driver will be deep *** (MUD:uncontrol).

Rangey Crossing the log bridge - YouTube

Jeep Cherokee Log Bridge - YouTube

steve over bridge - YouTube

Nissan Patrol Cape York Bridge Crossing 4x4 - YouTube

GALL BOYS - THE LOG BRIDGE - 4X4 OFF ROAD 4X4 AUSTRALIA - YouTube

Quote:

Even with a 6" Difference in Wheel Track 57Front & 51Rear I had no such problems. Just that it look FUGLY.

a good driver can drive a vehicle on 2 wheels too.

i have done it with Scorpio. (had to spend 1.5L on it afterward :D)

Quote:

wrt to Pot Holes if the front avoids it and the rear doesn't that means the pot hole is 2-2.1" wide:D

dont remember exactly there are billions of them.

Quote:

What is the width of the tyre?

currently i have a 6" wide tyres.

rgds,
Nikhil

EDIT:
i suggest to have one log crossing obstacle at TPC & AKC next season . (with 1ft high of cource)

we will have all the answers.

@ tejas
By modifying the differential what i meant to do was to shorten the length of the axle as well as the differential tube and bring it at par with the rear one.But the experiment would have resulted in ruining the whole front setup if it is not successful because while the tube one has to alter the fixing points as well as shorten the sway bar.

Quote:

Originally Posted by jeepster (Post 2523005)

haven't crossed any but in general the track should be equal. (+-10mm difference will not matter)

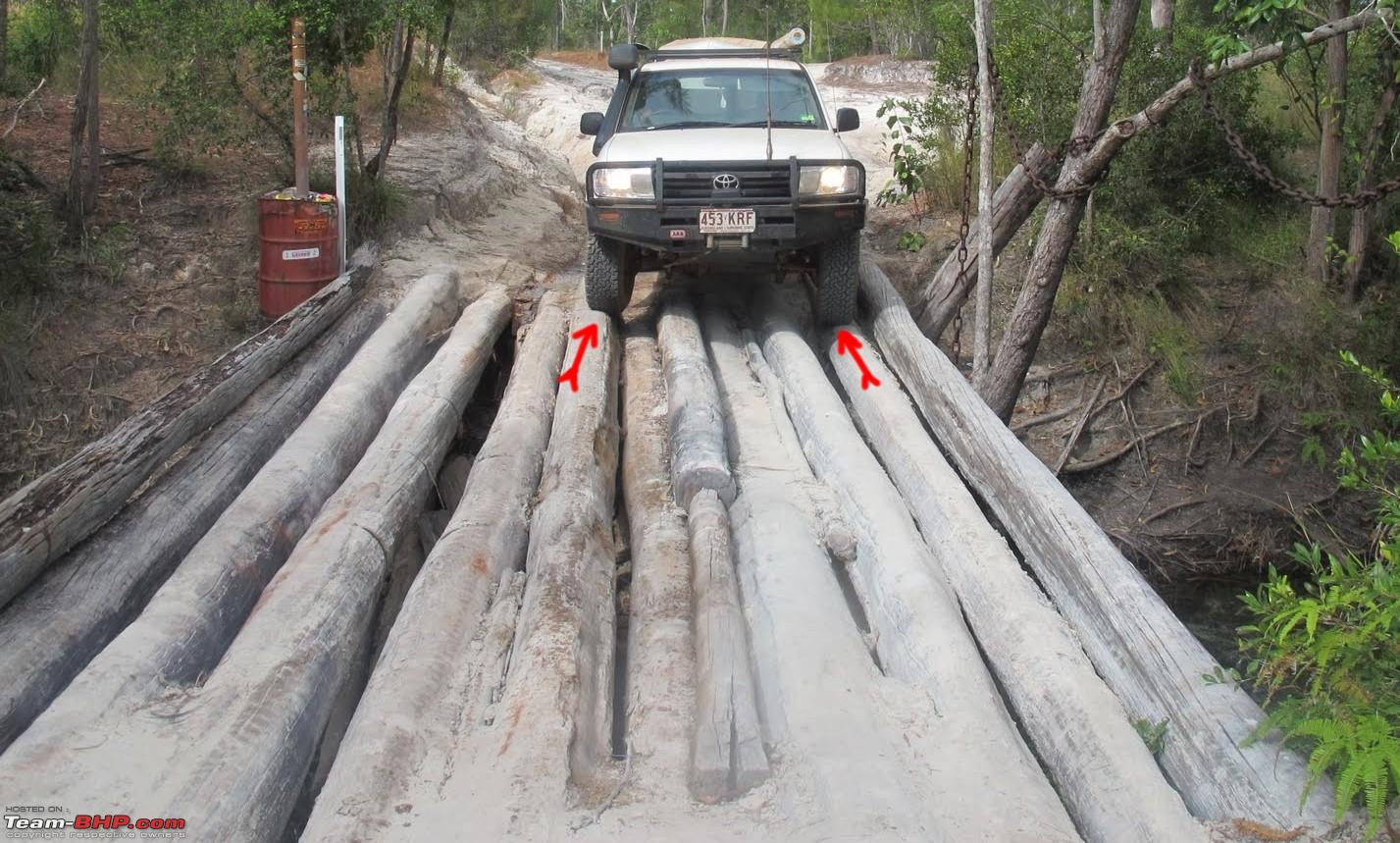

see this pic
Attachment 814632

with 4 inch track difference the vehicle will be unsteady while crossing such obstacle but it will be manageable.

if such thing happnes here , vehicle & driver will be deep *** (MUD:uncontrol).

a good driver can drive a vehicle on 2 wheels too.

i have done it with Scorpio. (had to spend 1.5L on it afterward )

dont remember exactly there are billions of them.

currently i have a 6" wide tyres.

rgds,
Nikhil

EDIT:
i suggest to have one log crossing obstacle at TPC & AKC next season . (with 1ft high of cource)

we will have all the answers.

Hi Nikhil,

Please explain why a vehicle will be unsteady dues to a track difference of 4" .

What is the width of the logs? in the above videos

What is the width of the tyres in the above videos?

Regards,

Arka

PS -- I suggest you get your vehicle ready and participate in some off road events, you will have even more questions :thumbs up

Quote:

Originally Posted by ex670c (Post 2523241)

Please explain why a vehicle will be unsteady dues to a track difference of 4" .

What is the width of the logs? in the above videos

What is the width of the tyres in the above videos?

see how the tyres slips on the logs.
this is what i was referring to as unsteady.
log crossing 1 - YouTube
here the driver dose not know the exact position of tyres on the logs.
now if the front tyre is just on the log the rear tyre will be offset by 2 inches. (that is irrespective of tyre size :D)
steve over bridge - YouTube

so no matter how big tyre you use the rear tyre will be 2 inch in side & this increases chances of tyre slipping at the rear.

now what do you think would have happened if the red jeep in above video had lost grip on the rear right tyre while other three still on the logs??

Quote:

PS -- I suggest you get your vehicle ready and participate in some off road events, you will have even more questions

i am trying my best to complete Armada project.

EDIT:

BTW if you think i go hunting for people who use vehicles with such deformities , then you are wrong.lol:

as i am using Bolero slx & Armada on daily basis.

its just that i dont like such hugh track difference & i am planning to change that on the Armada as well. (dont know when it will actually happen)

Quote:

Originally Posted by jeepster (Post 2523339)

see how the tyres slips on the logs.
this is what i was referring to as unsteady.
log crossing 1 - YouTube

here the driver dose not know the exact position of tyres on the logs.
now if the front tyre is just on the log the rear tyre will be offset by 2 inches. (that is irrespective of tyre size :D)

so no matter how big tyre you use the rear tyre will be 2 inch in side & this increases chances of tyre slipping at the rear.

i am trying my best to complete Armada project.

Hi Nikhil,

The Rear Track Width and Front Track Width will intersect or overlap.

Front Tyre Section Width (7.50X16) 160mm (approx)

Rear Tyre Section Width (7.50X16) 160mm (approx)

Offset at Rear 50mm

50mm offset is easily accommodated due to the with of the tyres being considerably more 50mm.

Even if a log bridge is just as wide as the Rear Track or Just as wide as the Front track the vehicle will pass with out any fuss.

Because the Difference in Track allows the wheels to over lap at the section width.

What you are trying to speculate will hold true only if the Section Width of the Tyres are considerably less than the difference in track width (2.1" Tyres) or if the Difference in Track Width is more than the width of the Tyre (7.5"-10"), or if the diameter of the logs are lesser than or equal to the off-set between Front & Rear Tracks (2.5") :D

Regards,

Arka

Quote:

Originally Posted by jeepster (Post 2523339)

BTW if you think i go hunting for people who use vehicles with such deformities , then you are wrong.

as i am using Bolero slx & Armada on daily basis.

its just that i dont like such hugh track difference & i am planning to change that on the Armada as well. (dont know when it will actually happen)

Hi Nikhil,

You don't need to hunt for people with, vehicles with such deformities because you have two of them in your Garage.:D

But have you used any of them extensively off-road with a working 4WD?

If the Track width was so problematic then M&M wouldn't have made them for the past 10yrs on their Largest selling vehicles i.e Bolero & Scorpio.

In case you have some in depth or ingenious idea as to why M&M ended with such deformities please do share with us.

Also do share with us how to correct such deformities in our vehicles.:thumbs up

Regards,

Arka

Quote:

Originally Posted by ex670c (Post 2523581)

You don't need to hunt for people with, vehicles with such deformities because you have two of them in your Garage.:D

correct.:D

Quote:

But have you used any of them extensively off-road with a working 4WD?

never!!

Quote:

If the Track width was so problematic then M&M wouldn't have made them for the past 10yrs on their Largest selling vehicles i.e Bolero & Scorpio.

In case you have some in depth or ingenious idea as to why M&M ended with such deformities please do share with us.

Quote:

Originally Posted by jeepster (Post 2519813)

yes they dont want to modify the body design which restricts the rear axle track.

ex
the marshal/armada/bolero rear wheel arch design limits the track to 53".

at the same time MAXX series can accommodate 58" FFRA due to wider body.

i am facing the same problem with my Armada.:Frustrati

Quote:

Also do share with us how to correct such deformities in our vehicles.:thumbs up

its your choice to do it & how to do it.
i will just get 58" axle.:D

rgds,
Nikhil

Quote:

Originally Posted by ex670c (Post 2524752)

You definitely are a Killer, I pray please tell me how you will fit a 58" FC Van in a Armada/NGCS vehicle.

first i will source a 58" axle & then figure out the way to fit it.

there are some vehicles with such mods here.

will try to get some tips from them. (if they are willing to share, other wise it will be me & googlelol: )

Quote:

PS - The track difference will be 12.7 mm per side:Shockked:

i can live with that.:D

rgds,
Nikhil

Quote:

Originally Posted by jeepster (Post 2525248)

Hi Nikhil,

How types of 58" FFRA have been manufactured? Which one will you use.

What type os axle will you use, what hub and spindle will you use?

Please do share with us to prevent us from googling.

Regards,

Arka

Pardon me for jumping in.. but is the track difference really that much troublesome?
If that is the case how did the Indian Army managed to use these jeeps all these years? They must been to many remote & offroad places..

Just a thought:)

BTW: As per M&M, the track difference is to reduce the turning radius so what is the turning radius for Thar CRDE (57"-53") & Thar MDI (51""-51")?

Thanks Arka for the illustration. :thumbs up

(OT: Dear Sammy, how much you paid for NGCS 550. Can you please post some pics here?)

Quote:

Originally Posted by ex670c (Post 2525495)

How types of 58" FFRA have been manufactured? Which one will you use.

AFAIK only 2 types one for SPOA (FC) & one for SPUA (MAXX) woth different pinion angles. (excluding the offset of the diff's)

Quote:

What type os axle will you use, what hub and spindle will you use?

lol:

Quote:

Please do share with us to prevent us from googling.

believe me, if i had answers of all question i wouldn't be here.:uncontrol

BTW why dont you tell me??

rgds,
Nikhil

Quote:

Originally Posted by jeepster (Post 2525805)

AFAIK only 2 types one for SPOA (FC) & one for SPUA (MAXX) woth different pinion angles. (excluding the offset of the diff's)

believe me, if i had answers of all question i wouldn't be here.

BTW why dont you tell me??

Hi Nikhil,

IIRC the FC is 58"and the MAXX Pickup is 59" :D.

So what are the Differential Off-Set Available with the above two FFRA's?

If you use the MAXX typer FFRA your Rear Track will increase by 25.4mm on each side.

Get your Axles ready and I will surely tell you what little I know.

Regards,

Arka
