Finally after a long long wait, I was able to get together the ICE and complete it for now.
Without much drama, let the music play.
Past Equipment List
The CAR -- SWIFT ZXI
SPEAKERS FRONT- DLS Components (MS6A)
SPEAKERS REAR - NONE
HU - ALPINE CDA -117 (Time Alignment, Bluetooth, USB, IMPRINT Ready, IPOD/Iphone ready) basically all the oohhh laa laaa one can look for.
AMP - JBL 75.4 (The old master)
WIRES - Scosche 4 Awg.
Damping - Front 2 Doors.
The RESULT
Me sitting in car with a weird smile on the face, people on the road and in their cars wondering whats the funny joke he heard.
Its been a long time I was smiling all day without much to explain to anyone.
Current Equipment List
The Car -- Swift ZXI
SPEAKERS FRONT - DLS 2 WAY COMPONENTS
SPEAKERS REAR - NONE
HU - ALPINE CDA 117 + PAC for steering wheel controls

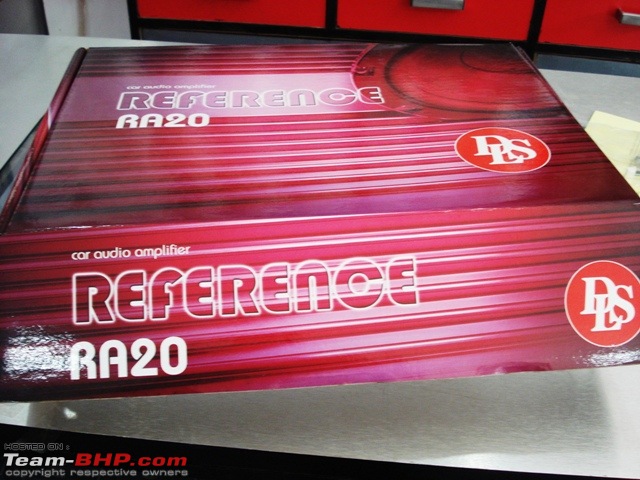

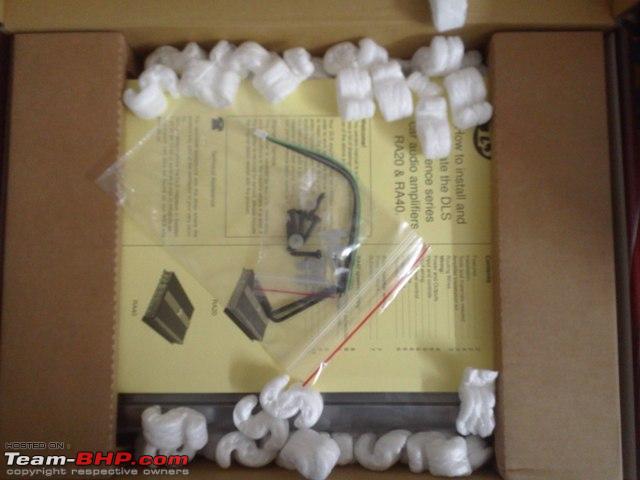

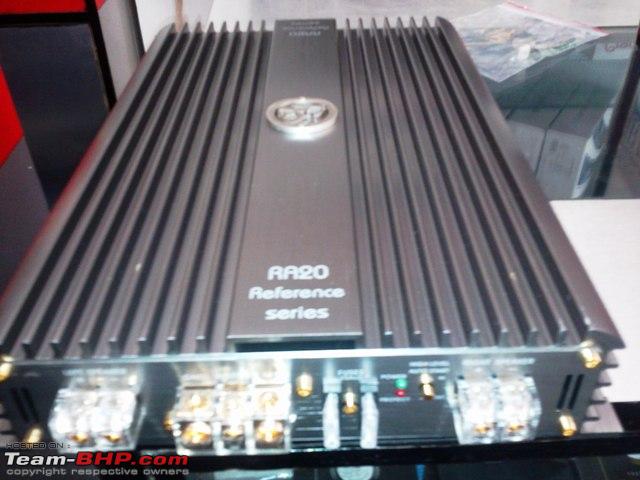

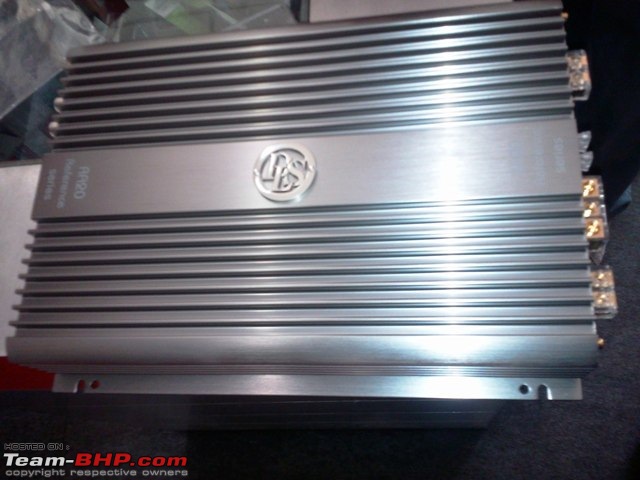

AMP 1 - DLS RA 20 -- powering the fronts
SUB - lil suspense lol:
WIRING (RCA'S/POWER/SPEAKERS) - AUDISON + 1 SCOSCHE Power/Ground Wire
DAMPING - FRONT 2 Door damped more + Boot
INSTALLATION PLACE - MOTOR CONCEPTS
The RESULT
Me jumping in the car......finding words to explain what I am experiencing ...HEAVENNNNNNNN.... it has finally opened its gates and I am on its DOOOR... n Floooreeeddddd..:)
If Music is what drives my SOUL.... I am now breathing it with every song I play.....
The noticable difference is the way the Comps are now singing with autority.
Earlier the highs were detailed no complains..now they are very detailed which adds more quality to the setup.
The comp woofers are now actually hitting and I can very well feel what I was missing from the setup.
RA20 just talks to these comps with pure fun and makes them work hard...real hard.
DLS has made me a lifelong fan, their products are just awesome and I am sure the ones who have experienced it wont let it off so easily.
Now the biggest difference to the whole config....THE SUB...
It took me a lot of time thinking what i really wanted, many products were shorlisted and then again the list revisted and again revisted...finally I could make
THE CHOICE.

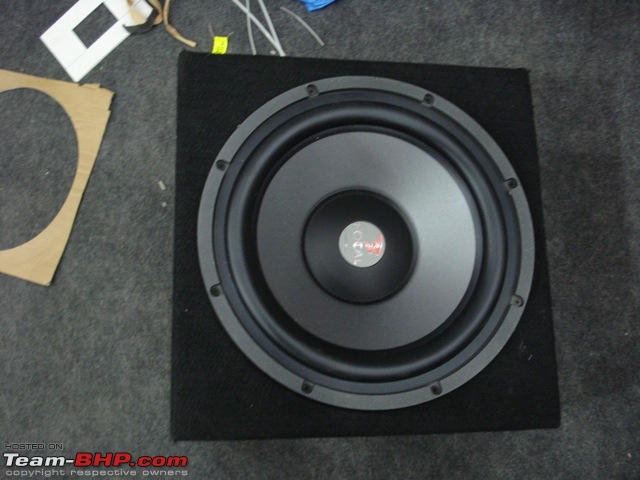

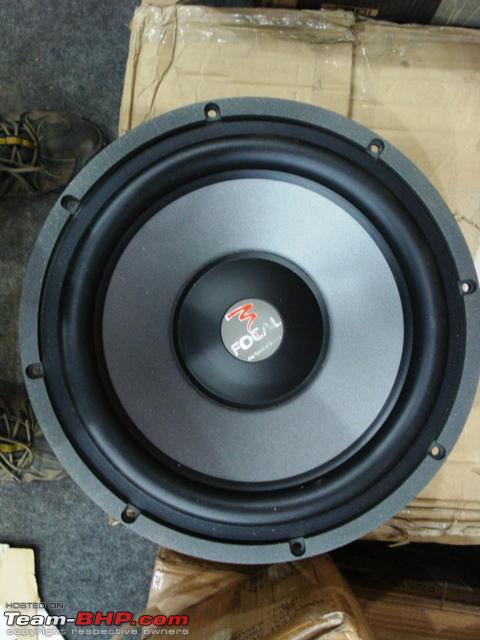

SUB - FOCAL 33V2 (in a custom sealed box)

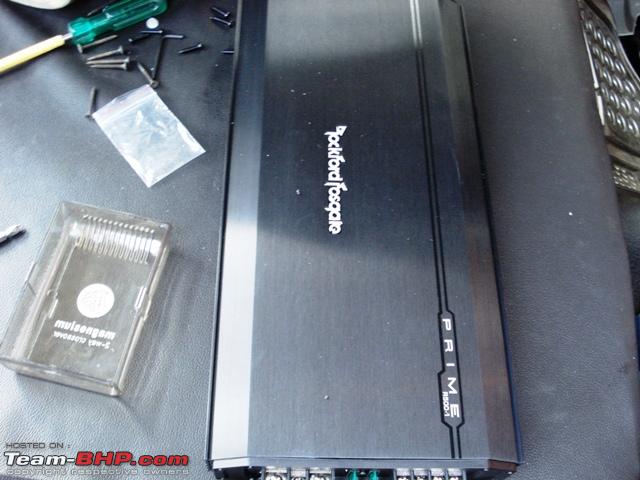

AMP 2 - ROCKFORD FOSGATE 500-1 -- powering the sub
The sub is Awesooooommmmeeeeee !!! Period.
It does it jobs perfect, NO DRAMA at all. Blends beautifully with the overall sound stage and KICKS HARD I mean HARRDDDD !!!! and that too very QUICKLY..no sleeping over the punch.
A BIG THANKS to AJAY (Bass&Trouble) once again, earlier he helped me with the comps and this time around with the beautiful sub.
The two most important part of the setup and they are what makes the whole experience pleasurable. Thanks Man. YOU ROCK.
Another big thanks to Motor Concepts for working with me in completing the setup as per my liking. Its a very professional store and that's the best thing about them.
NEXT STEP -- Tune the setup more to experience more Magic.
Couple of random clicks, will post more in some time to showcase the rear truck view. (seats are removed as seats were also done by Motor Concepts on that day)
PS:-- I am noway affiliated to the store, they helped me with the installation and I like their attention to detail and quality work.
Note from the Team-BHP Support Team: Post Edited. Smilie usage is restricted to two per post on Team-BHP. Please refrain from using excessive smilies.
Please take the time to use proper punctuation as per Team-BHP rules. Avoid...typing...like...this. Thanks.
We advise you to read the Announcements and Board Rules section before proceeding any further.
Hey very nice setup...Congratulations!!!
PS:Price breakup please.Thanks
Congratulations, and thanks for the kind words.
Rockford Fosgate amps?
jeez, that's a beauty to the ears man!
anyways, could you just break that little suspense that you are holding back regarding that "punch machine" of yours ( the sub)
cheers
wild child
@wildchild - I have mentioned the sub in the post, its Focal 33v2.
Its a 13" DVC sub :), nominal power handling of 400 rms, the RF amp churns out 500 RMS @ 2 ohms to drive this monster.
yea, i missed it in your earlier post somehow.
anyways, that's a priced and an eye catching possesion!
good luck and happy hearing !
wild child
Quote:
Originally Posted by invincible7
(Post 2537709)
SUB - FOCAL 33V2 (in a custom sealed box)
|
Quote:
Originally Posted by invincible7
(Post 2540580)
@wildchild - I have mentioned the sub in the post, its Focal 33v2.Its a 13" DVC sub :), .
|
Sirjee, what is the box size for this sub? 2 cu. ft.? 3 cu. ft?
I have used Focal subs (home audio and ported) and they are mad. really mad. Impact (transient response) is their forte even if they dont go as low as some other subs. But I have always noted that they require rather large boxes (again compared to their similarly sized brethren from other companies).
Navin Jee I am using 1.06 Cu.Ft. sealed enclosure, this was chosen as per the Focal recommended size for faster and tighter response.
And yes your are right, they are mad..really mad.. they love being pushed.
The LPF is set at 50 HZ at the moment, do share your recommendations, still trying to experiment.
Let me find the sheet and share it here with you.

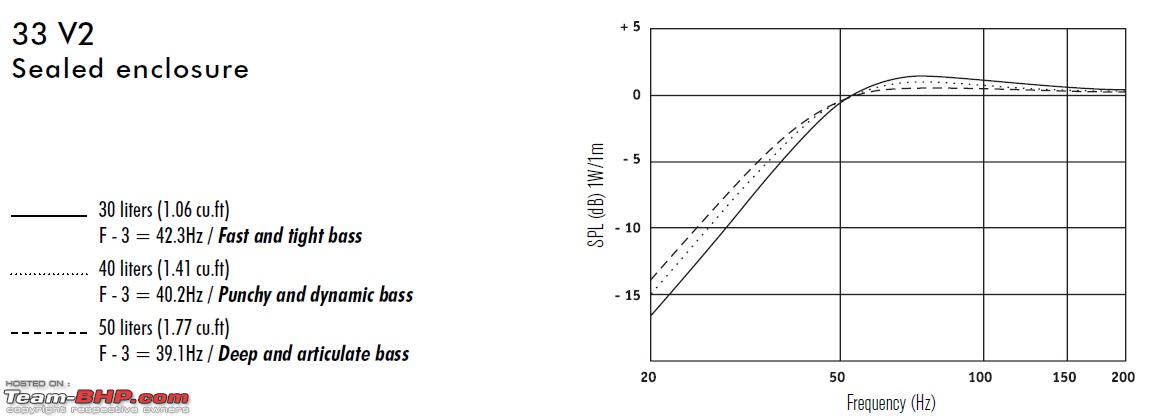

Graph depicting the sealed enclosure response curve based on size chosen.
Ok to update the thread, played a little with the system settings.
Currently the settings are as below.
HU - Parametric EQ (default settings/no boost)
Fronts - Thru DLS RA20 HPF - 80 Hz (no bassboost/phasing)
Sub - Thru RF500-1 LPF - 55HZ (no bassboost/phasing)
The system sounds sweet, for melidious/vocal tracks the punch is enough to keep the soothing effect and for Bass heavy tracks, the SUB makes a grant entry. :D
I am currently not using the TA feature as such, played a lil bit around with it.
Can someone suggest what is the sweet spot for TA settings.
Invincible you are much visible with your ICE in teambhp. Great set up. You might really enjoy the drive with big blast with in the closed windows. I am so happy with Ken wood ICE with 4 speakers with out Amp. So your joy with all these facilities should find no bounds. wish you all the Best.Thanks for posting all details.
Thanks Navan, I always listen to music with windows closed.
Its always a sleeper mode for me, not into blasting the music away to glory :) in the neighbourhood.
Here is the pic of the amps placement & installation. (camera pic quality)
Good one, by the looks itself it seems powerful, so whats the damage on the amp & sub?
OK here is the pricing.
DLS RA20 - $550 (got from US)
RF 500-1 - 14000/-
Sub - close to 20K
Did you get this done from Aman of Motor Concepts?
Yes Saintsinner, it was done at Motor Concepts.
