SML Isuzu @ The Bus & Special Vehicle Show, 2015

SML Isuzu had 3 buses on display at their stall. The range included the FR 1318, Samrat SL 5100 XM and the S7 staff & school bus.

FR 1318

Length: 10,900 mm
Width: 2,590 mm
Height: 3,310 mm
Wheelbase: 5,400 mm
Seating capacity: 41+1+1 / 36+1+1

Engine: Isuzu 4HK1XS, BSIII
Max power: 171 BHP @ 2,600 rpm
Suspension:-
-Front: Parabolic leaf spring with hydraulic double acting telescopic shock absorbers
-Rear: 4 bellow, air suspension
Steering: Power
Brakes: Full air dual circuit S cam roller follower type with ABS
Tyres and wheels: 9.00x20-16 PR
Fuel capacity: 280 liters

The SML Isuzu stall:
SML Isuzu @ The Bus & Special Vehicle Show, 2015-sml.jpg

Good styling with large ORVMs that protrude a fair bit ahead. Helps give the driver a wider field of view:
SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00054.jpg

Large glass portion along the side and nicely styled wheels:
SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00061.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00057.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00074.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00072.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00102.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00099.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00089.jpg

Armrests for all passengers. Available feature list includes reclining seats and individual lights:
SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00082.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00084.jpg

Last edited by GTO : 22nd January 2015 at 10:27.
Tushar is offline   (3) Thanks
Old 18th January 2015, 17:14   #2
Senior - BHPian

Tushar's Avatar

Join Date: Oct 2014
Location: Mumbai
Posts: 1,152
Thanked: 8,572 Times
re: SML Isuzu @ The Bus & Special Vehicle Show, 2015

S7 Bus-5100 (BS III)

Length: 9,280 mm
Width: 2,262 mm
Height: 2,960 mm
Wheelbase: 5,100 mm
GVW: 8,800 kgs
Seating capacity: 25+1, 40+1, 50+1

Engine: 3.5-liter, SLTHT3, BSIII
Max power: 101 BHP @ 3000 rpm
Max torque: 315 Nm @ 1,750-2,000 rpm
Suspension: Semi elliptical multi-leaf spring
Steering: Power
Brakes: Air brake
Tyres: 8.25x16-16 PR
Fuel capacity: 90 liters

S7 Bus-3940 (BS III)

Length: 7,484 mm
Width: 2,262 mm
Height: 2,960 mm
Wheelbase: 3,940 mm
GVW: 7,000 kgs
Seating capacity: 19+1, 30+1, 37+1

Engine: 3.5-liter, SLTHT3, BSIII
Max power: 101 BHP @ 3000 rpm
Max torque: 315 Nm @ 1,750-2,000 rpm
Suspension: Semi elliptical multi-leaf spring
Steering: Power
Brakes: Air brake
Tyres: 8.25x16-16 PR
Fuel capacity: 90 liters

S7 Bus (BS IV)

Length: 6,515 mm
Width: 2,262 mm
Height: 2,960 mm
Wheelbase: 3,335 mm
GVW: 6,340 kgs
Seating capacity: 15+1, 24+1, 30+1

Engine: 3.5-liter, SLT4, BSIV
Max power: 101 BHP @ 2,800 rpm
Max torque: 296 Nm @ 1,500 rpm
Suspension: Semi elliptical multi-leaf spring
Brakes: Hydraulic
Tyres: 7.50 x 16-16 PR
Fuel capacity: 90 liters

Note: The S7 is also available with a CNG variant.

One of six school buses at the event:
SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00004.jpg

Side profile is a bit odd. The FR 1318 looks attractive, but this looks like a forcefully downsized version of that bus:
SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00012.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00009.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00005.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00016.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00014.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00018.jpg

Last edited by GTO : 22nd January 2015 at 10:32.
Tushar is offline   (3) Thanks
Old 18th January 2015, 17:21   #3
Senior - BHPian

Tushar's Avatar

Join Date: Oct 2014
Location: Mumbai
Posts: 1,152
Thanked: 8,572 Times
re: SML Isuzu @ The Bus & Special Vehicle Show, 2015

Samrat SL 5100 XM

Length: 9,050 mm
Width: 2,230 mm
Height: 2,965 mm
Wheelbase: 5,100 mm
GVW: 8,800 kgs
Seating capacity: 24

Engine: 3.5-liter, SLT4, BS IV
Max power: 101 BHP @ 2,800 rpm
Max torque: 296 Nm @ 1,500 rpm
Suspension:-
-Front: Semi elliptical
-Rear: Air bellows
Steering: Power
Brakes: Air brake
Tyres: 8.25x16-16 PR
Fuel capacity: 90 liters

LED display board up front:
SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00023.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00024.jpg

Tata Sumo like tail-lights look small at the back. That rear window also seems tiny:
SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00027.jpg

A covered rear view camera:
SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00031.jpg

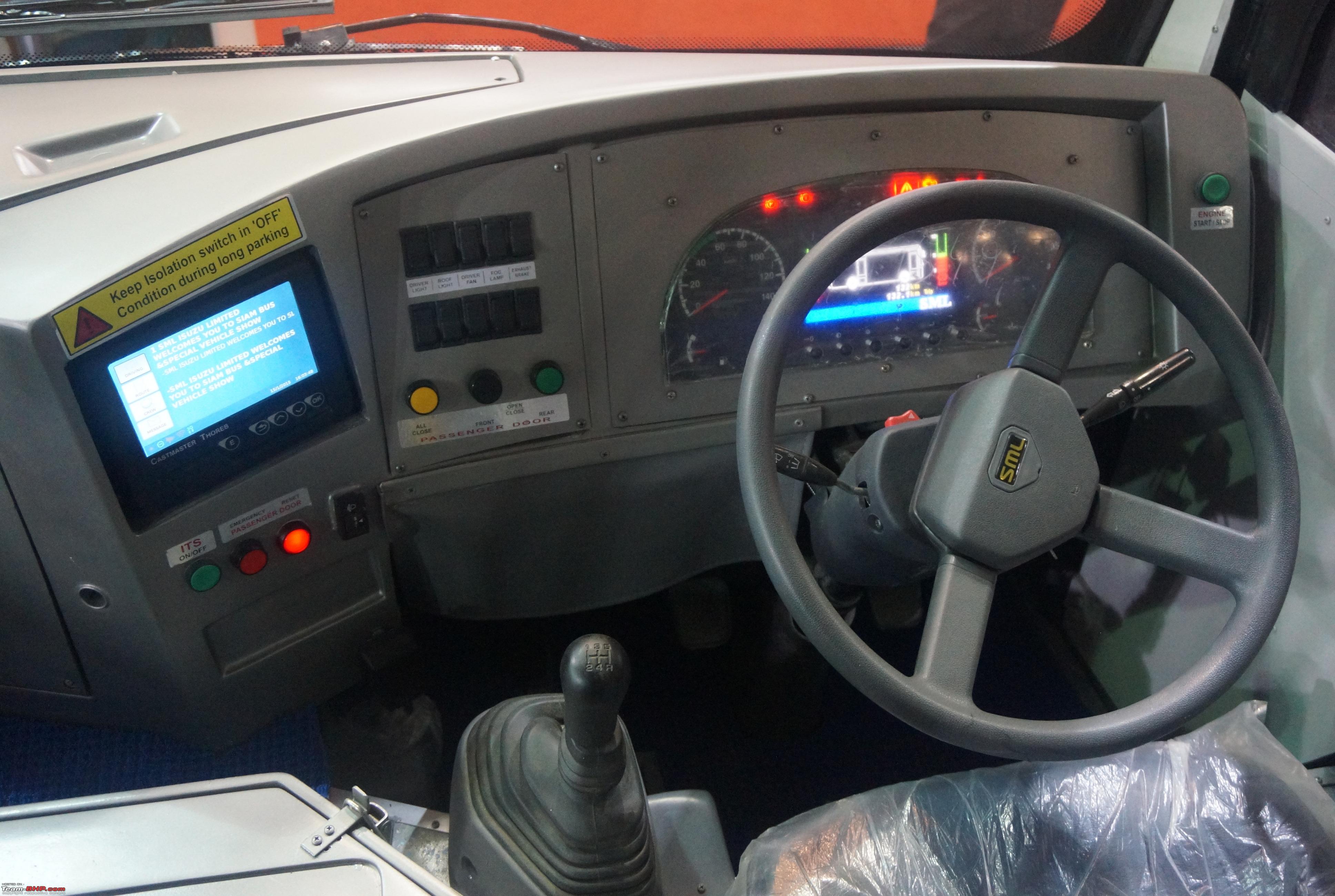

Dual entry/exit points:
SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00032.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00035.jpg

The feature list includes GPS; rear camera feed can be seen here:
SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00037.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00050.jpg

Push button start
SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00049.jpg

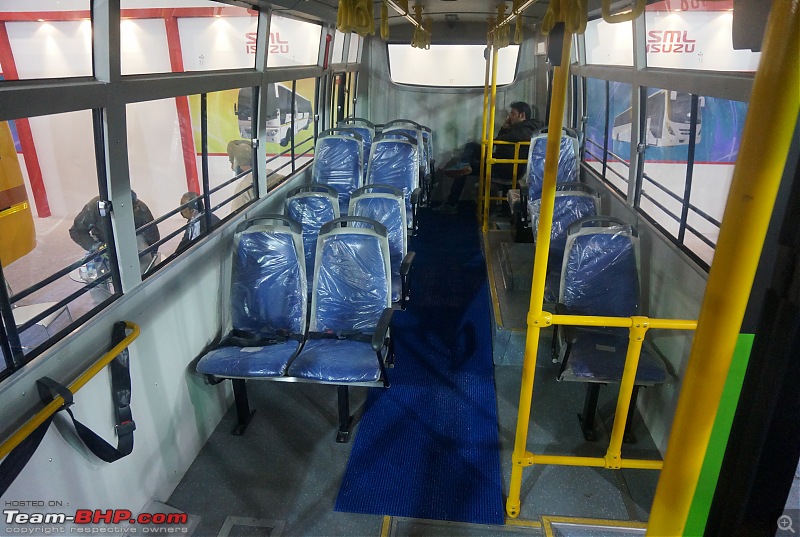

Too few seats for all that space. Lots of standees?
SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00040.jpg

SML Isuzu @ The Bus & Special Vehicle Show, 2015-image00042.jpg

Last edited by GTO : 22nd January 2015 at 10:39.
Tushar is offline   (4) Thanks
Old 22nd January 2015, 10:40   #4
GTO
Team-BHP Support

GTO's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 70,340
Thanked: 298,753 Times
Re: SML Isuzu @ The Bus & Special Vehicle Show, 2015

Thread moved from the Assembly Line to the Commercial Vehicle Section. Thanks for sharing!
