Old 30th October 2015, 12:09   #16
BHPian

vishnurajanme's Avatar

Join Date: Apr 2015
Location: chengannur
Posts: 230
Thanked: 193 Times
Re: DIY: Installing Brake Caliper Covers

Wow, that was an awesome DIY. Planning to do the same in my elite. Thank you so much for the steps. BTB, I found out certain problems. My brake caliper is not smooth. it is contoured in many places. So it wont touch this fake caliper correctly. Yours being a verna, will have the same issues na? Is there a gap between the caliper and the cover? Or did the anabond cover everything smoothly?

Last edited by Gannu_1 : 30th October 2015 at 12:11. Reason: ozm > awesome. Please refrain from using SMS lingo when posting on the forums!
vishnurajanme is offline
Old 11th November 2015, 22:45   #17
BHPian

Jassy1313's Avatar

Join Date: Feb 2007
Location: Mumbai
Posts: 340
Thanked: 810 Times
Re: DIY: Installing Brake Caliper Covers

I had ordered the caliper covers 6 months ago but was not sure how to install them. I saw a lot of videos on youtube but was not able to find the rite sealant in the local market. Then I came across your thread.
After reading you thread I decided to use your method. Everything went well and now I am super happy. It Looks awesome.. Thank you
Attached Thumbnails
DIY: Installing Brake Caliper Covers-img_4037-new.jpg

DIY: Installing Brake Caliper Covers-img_4036-new.jpg

Jassy1313 is offline
Old 14th November 2015, 12:30   #18
BHPian

vishnurajanme's Avatar

Join Date: Apr 2015
Location: chengannur
Posts: 230
Thanked: 193 Times

Those who cant fix this bash this guy, and those who fix this supports him. Well written diy dear. You rock!! But even I too have the same doubt. How to change the actual brake pads when this cover is in place? Should I remove the cover???

Last edited by vishnurajanme : 14th November 2015 at 12:31.
vishnurajanme is offline
Old 14th November 2015, 21:12   #19
BHPian

Jassy1313's Avatar

Join Date: Feb 2007
Location: Mumbai
Posts: 340
Thanked: 810 Times
Re: DIY: Installing Brake Caliper Covers

In my case I don't have to remove the caliper covers to change the pads because the caliper covers I have installed are of the smallest size available in the market. So they don't hide the bolts.

Last edited by Gannu_1 : 18th November 2015 at 08:54. Reason: coz > because. Please avoid using sms lingo while posting on the forums. Thanks!
Jassy1313 is offline
Old 18th November 2015, 08:16   #20
BHPian

197Horses's Avatar

Join Date: Oct 2014
Location: Ahmedabad
Posts: 63
Thanked: 64 Times

Quote:
Originally Posted by vishnurajanme View Post
Those who cant fix this bash this guy, and those who fix this supports him. Well written diy dear. You rock!! But even I too have the same doubt. How to change the actual brake pads when this cover is in place? Should I remove the cover???
Yea i know that while changing break pads i will need to remove them, usually my break pads last for 40-45 thousand kms. Now i guess thats a pretty ling time.Your view sounds funny something like a bride wont do make up thinking that it will be washed away when she takes a bath.

Quote:
Originally Posted by Jassy1313 View Post
I had ordered the caliper covers 6 months ago but was not sure how to install them. I saw a lot of videos on Youtube but was not able to find the rite sealant in the local market. Then I came across your thread.

After reading you thread I decided to use your method. Everything went well and now I am super happy. It Looks awesome.. Thank you
I am glad that you used my method.Your City looks amazing with those set of alloys.

Quote:
Originally Posted by vishnurajanme View Post
Wow, that was an awesome DIY. Planning to do the same in my elite. Thank you so much for the steps. BTB, I found out certain problems. My brake caliper is not smooth. it is contoured in many places. So it wont touch this fake caliper correctly. Yours being a verna, will have the same issues na? Is there a gap between the caliper and the cover? Or did the anabond cover everything smoothly?
Verna's caliper to similar to what you have described, to fill that gap use extra anabond.

Note from Support : Please use the EDIT or MULTI-QUOTE buttons instead of typing one post after another on the same thread!

To know how to multi-quote, click here.

Last edited by Gannu_1 : 18th November 2015 at 08:53. Reason: Please refer the note posted above.
197Horses is offline
Old 20th November 2015, 12:12   #21
BHPian

Jassy1313's Avatar

Join Date: Feb 2007
Location: Mumbai
Posts: 340
Thanked: 810 Times
Re: DIY: Installing Brake Caliper Covers

I had been to Bali (Indonesia) a few months ago. Out there every 3rd car has these Brembo Caliper covers installed. Even My driver had it installed and he said nothing happens to the Calipers as he has been using it for quite some time.
Attached Thumbnails
DIY: Installing Brake Caliper Covers-img_9966.jpg

DIY: Installing Brake Caliper Covers-img_9854.jpg

Jassy1313 is offline
Old 22nd May 2016, 21:46   #22
BHPian

PatchyBoy's Avatar

Join Date: Nov 2007
Location: Goa
Posts: 917
Thanked: 2,020 Times
How hot do Brake Calipers get?

I had upgraded to 16" OZ alloys a few months back and now the calipers look all crappy. Thinking of painting them and trying to decide on choices. I have come up with a couple of Photoshop visualizations, albeit amateurish. I have several questions -

1. How hot do Brake Calipers get?
2. Will plasti-dip hold up (advantage - reversible)
3. If not, what about regular enamel paint & clear?
4. Is it mandatory to use high temperature caliper paint?

Please see pics for concepts. Thanks in advance.

DIY: Installing Brake Caliper Covers-img_20150905_172938.jpg

DIY: Installing Brake Caliper Covers-option-1.jpg

DIY: Installing Brake Caliper Covers-option-2.jpg
PatchyBoy is offline   (1) Thanks
Old 22nd May 2016, 22:44   #23
BHPian

biggrin's Avatar

Join Date: Apr 2016
Location: Haryana
Posts: 152
Thanked: 204 Times
Re: How hot do Brake Calipers get?

Quote:
Originally Posted by PatchyBoy View Post
1. How hot do Brake Calipers get?
2. Will plasti-dip hold up (advantage - reversible)
3. If not, what about regular enamel paint & clear?
4. Is it mandatory to use high temperature caliper paint?
First things first, the alloys are drool maal.

The Photoshop visualizations you have created look great (especially the one with red caliper and white Fiat branding) but would be a task to execute. I don't think many painters would agree to give it a shot.

Plasti-dip is good, only because it is reversible, but I would advice spray paints instead. In case you want to change colour, you can sand the caliper surface and re-paint. You will not be able to go to 100% stock in this case, but silver/black would be good enough in case you want to revert to stock understated look.

Get a simple job done by a painter for the calipers, and ensure that they use a lot of gloss/clear (not sure what it is called but it acts as a protective shiny layer). Single shades like red or orange would look nice. Try doing a PS job on a picture that shows the profile of the car to get a better idea.

I am not too sure about this but caliper would/should be getting hot, as it is a brake component after all. Aerosol cans are low quality and markets are flooded with them. I have used one such spray can on a friend's car and the paint started to come off (crack) from the edges of the caliper in around 3 months. The paint on rear drum has held tight over the last one year. This might be because of different material of caliper and drum. I would suggesting going to a nearby painter instead. I got a quote of 800 bucks recently for calipers and drums in Delhi. Majority of people I know have gone through the 'painter' route and trust me, painters are in abundance in Delhi and you will never have to haggle for rates.

Which part of the 'Earth' do you live in by the way?

Last edited by biggrin : 22nd May 2016 at 22:49. Reason: Extra smiley
biggrin is offline   (2) Thanks
Old 22nd May 2016, 23:14   #24
BHPian

PatchyBoy's Avatar

Join Date: Nov 2007
Location: Goa
Posts: 917
Thanked: 2,020 Times
Re: How hot do Brake Calipers get?

Quote:
Originally Posted by biggrin View Post
First things first, the alloys are drool maal.
Thank you.

Quote:
The Photoshop visualizations you have created look great (especially the one with red caliper and white Fiat branding) but would be a task to execute. I don't think many painters would agree to give it a shot.
As with most other things in my car, this will be a DIY. The FIAT lettering will be vinyl sticker.

Quote:
Plasti-dip is good, only because it is reversible, but I would advice spray paints instead. In case you want to change colour, you can sand the caliper surface and re-paint. You will not be able to go to 100% stock in this case, but silver/black would be good enough in case you want to revert to stock understated look.
Makes sense. Thanks.

Quote:
Which part of the 'Earth' do you live in by the way?
Let's just say I am a global citizen, shall we?
PatchyBoy is offline   (1) Thanks
Old 23rd May 2016, 08:40   #25
Distinguished - BHPian

audioholic's Avatar

Join Date: Jun 2012
Location: BengaLuru
Posts: 5,649
Thanked: 19,332 Times
Re: How hot do Brake Calipers get?

Quote:
Originally Posted by PatchyBoy View Post
1. How hot do Brake Calipers get?
2. Will plasti-dip hold up (advantage - reversible)
3. If not, what about regular enamel paint & clear?
4. Is it mandatory to use high temperature caliper paint?
1. I have seen the calipers of my WagonR reaching 70deg C on my regular office drive of 25kms on free roads with some hard braking. Calipers of my SX4 have got to 84-85 deg C on highway drives when the car is fully loaded and a couple of hard braking cycles.

2. Nope. I dont think so. Once the temperature heats up, the coating will either come out or melt down. Rubber is not a good idea.

3. Enamel paint should do, but clear coat should be able to withstand high temperatures.

4. I recently painted calipers of my SX4 but used a high temperature resistant paint. The regular spray cans are acrylic paints which wont last at high temperatures but the high temperature paints are usually resin based which become quite hard and resistant to erosion. Cross posting images from another thread:

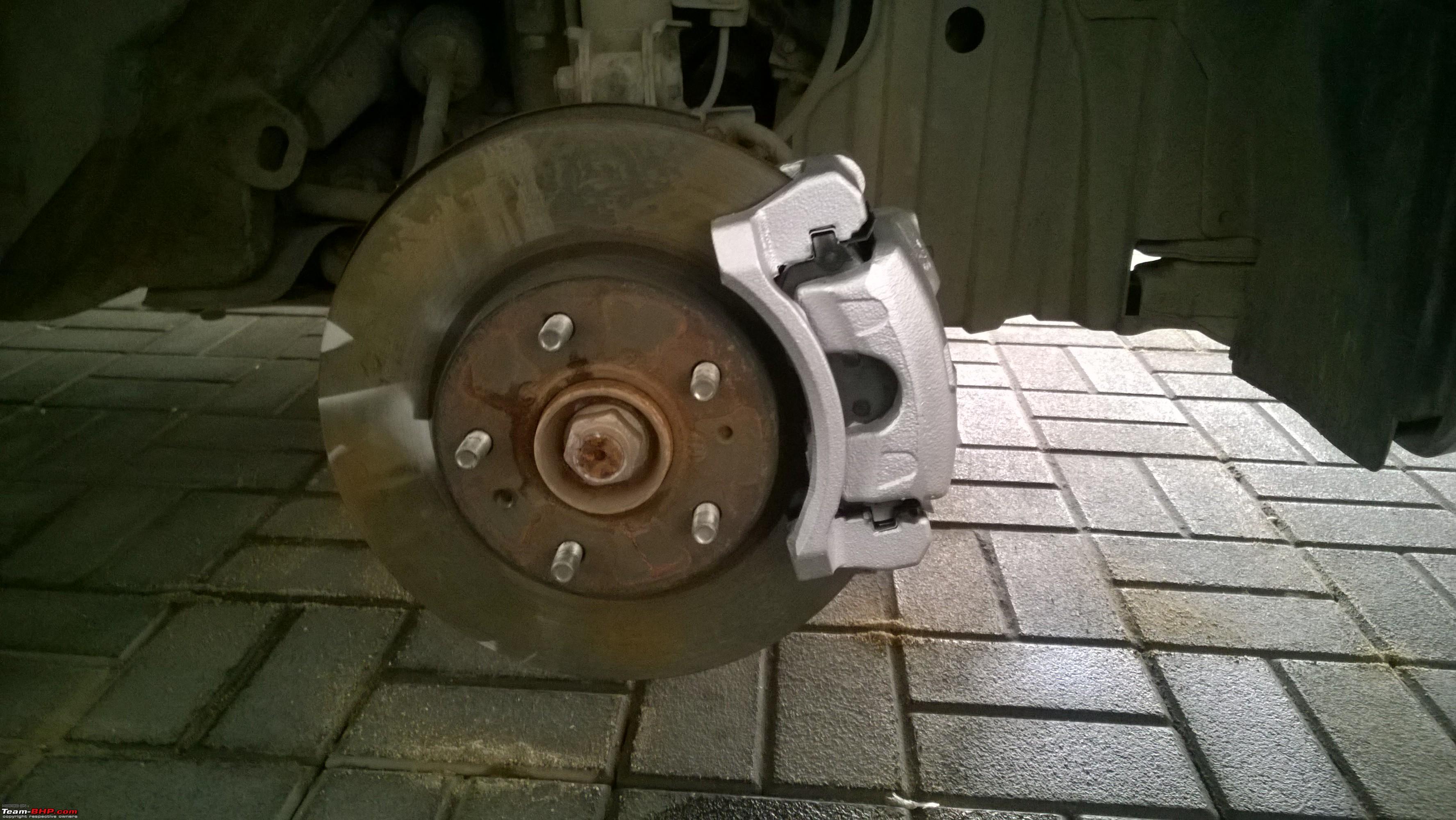

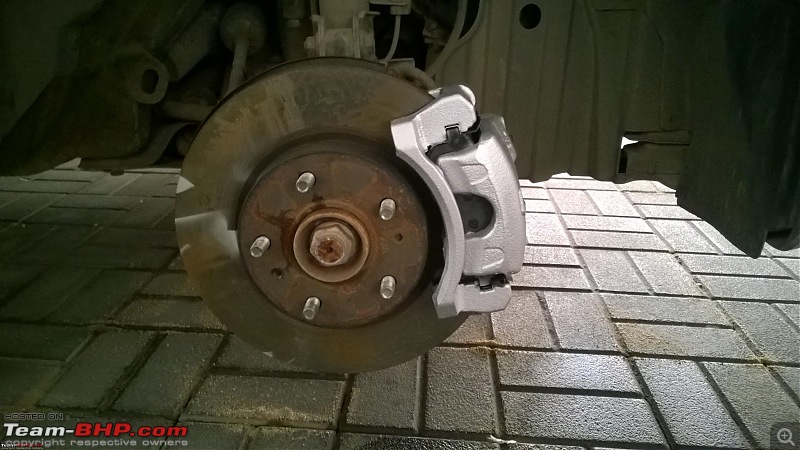

DIY: Installing Brake Caliper Covers-wp_20160403_15_54_55_pro.jpg

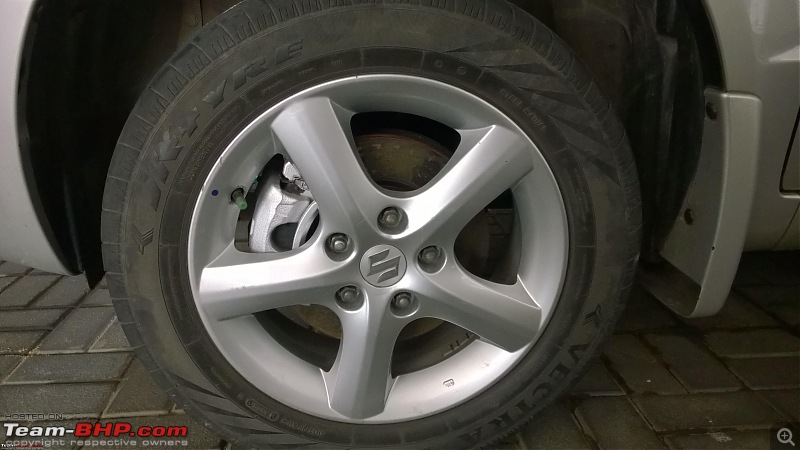

DIY: Installing Brake Caliper Covers-wp_20160403_15_55_15_pro.jpg

In comparison to the calipers, the rims of my car usually hover around 50deg C and not more than that. I think plasti dip will be much suitable here.

Last edited by audioholic : 23rd May 2016 at 08:43.
audioholic is offline   (4) Thanks
Old 23rd May 2016, 09:02   #26
Distinguished - BHPian

vigsom's Avatar

Join Date: Feb 2006
Location: NSEW
Posts: 3,756
Thanked: 25,344 Times
Re: How hot do Brake Calipers get?

Quote:
Originally Posted by PatchyBoy View Post
Thinking of painting them and trying to decide on choices.
I used 2k solid canary yellow to.paint the calipers on my 2003 Corolla.

http://www.team-bhp.com/forum/attach...t-imag0344.jpg
All that we did was use thinner and a clean brushto clean the calipers surface and then paint using another clean brush.

Painting has to be performed patiently to prevent excess paint in rolling over and spoiling the looks.

Please put on a pair of gloves when painting.

Last edited by vigsom : 23rd May 2016 at 09:05. Reason: added a link
vigsom is offline   (3) Thanks
Old 23rd May 2016, 09:10   #27
BANNED

Join Date: Dec 2007
Location: Gurugram
Posts: 7,969
Thanked: 4,786 Times
Re: How hot do Brake Calipers get?

I have had the brakes glowing red hot. It happened on a long down-slope in the French Alps in a rented Peugeot Auto. We ended up with a total brake failure, and only thing which saved us was an slip road going up. Why, we did not know the benefit of shifting down in the AT and continuous braking just cooked the calipers and discs.
sgiitk is offline   (5) Thanks
Old 23rd May 2016, 09:30   #28
BHPian

PatchyBoy's Avatar

Join Date: Nov 2007
Location: Goa
Posts: 917
Thanked: 2,020 Times
Re: How hot do Brake Calipers get?

Quote:
Originally Posted by audioholic View Post
1. I have seen the calipers of my WagonR reaching 70deg C on my regular office drive of 25kms on free roads with some hard braking. Calipers of my SX4 have got to 84-85 deg C on highway drives when the car is fully loaded and a couple of hard braking cycles.

In comparison to the calipers, the rims of my car usually hover around 50deg C and not more than that. I think plasti dip will be much suitable here.
Thanks a lot for specific information. May I ask if these were measured temperatures?
PatchyBoy is offline
Old 23rd May 2016, 09:34   #29
Distinguished - BHPian

audioholic's Avatar

Join Date: Jun 2012
Location: BengaLuru
Posts: 5,649
Thanked: 19,332 Times
Re: How hot do Brake Calipers get?

Quote:
Originally Posted by PatchyBoy View Post
Thanks a lot for specific information. May I ask if these were measured temperatures?
Yes. I have an infrared temperature gun. Sometime back I had a doubt that the calipers on the SX4 were jammed so I kept measuring temperatures on a regular basis.
audioholic is offline   (3) Thanks
Old 25th May 2016, 20:02   #30
Distinguished - BHPian

audioholic's Avatar

Join Date: Jun 2012
Location: BengaLuru
Posts: 5,649
Thanked: 19,332 Times
Re: How hot do Brake Calipers get?

Quote:
Originally Posted by PatchyBoy View Post
Thanks a lot for specific information. May I ask if these were measured temperatures?
Remembered this thread as I came home today and here is the temperature for today after a 26km drive home in both heavy traffic and some free roads
Tyre

DIY: Installing Brake Caliper Covers-tyre.jpg

Rim
DIY: Installing Brake Caliper Covers-rim.jpg

Caliper
DIY: Installing Brake Caliper Covers-caliper.jpg

I was off by what numbers I had stated to you. Just for everyone's reference
audioholic is offline   (3) Thanks
