Hey, Its Prerak, in this post i am showcasing the process of installing an
ASR Off button in the MK6 Jetta, i installed this in my Friend's Car (@das_mk6_jetta on instagram).
This Post will not be an in depth guide into how it is installed but just a showcase of this retrofit and some highlights of the process which is pretty straightforward and a good weekend project.
What is the Purpose of this extra button?
ASR stands for Anti Slip Regulation, it is another way of referring to Traction Control, but because the mk6 jettas's cluster reads it as 'ASR' i will be referring it as ASR throughout this Post. But, to my knowledge they serve the same purpose, that is to limit traction loss in any circumstance.
This means your vehicle cuts power anytime one or more wheels spin faster than others, this could be annoying while enthusiastic driving and especially during launches.
To ask your ABS to ignore this, we require this ASR Off Button.
Requirements
This Retrofit requires your vehicle to have ESP, i was not 100% sure if this jetta had ESP, cornering Lamps indicated that it did, it would mean it has a steering angle sensor, usually it is coupled with ESP and it also warned for traction loss in the cluster.
Just to be sure i hopped into 03-ABS Brakes in VCDS and under advanced measured values, opened ABS/ESP and they were toggling between On and Off confirming it had ESP.
Further, we require the
ASR Off button kit
This kit is very straightforward, One wire(yellow one) to the ABS Module, rest of the wiring just takes 'Power' and 'Illumination' from 12v socket located nearby.
Entire procedure is plug and play.
Procedure of Installation
Undo the Trim around Gear Lever and Swap the blank with the ASR Off Button
With the placement of button taken care of, you need to route the ABS signal wire out of the firewall and into the ABS Pump connector.
This step will be easier in an Automatic Car and slightly difficult in a manual car
For Right hand drive Manual vehicles, the grommet is in the passenger side and wire needs to route out of the passenger footwell. (Easier said than done, i would think thrice before doing it next time)

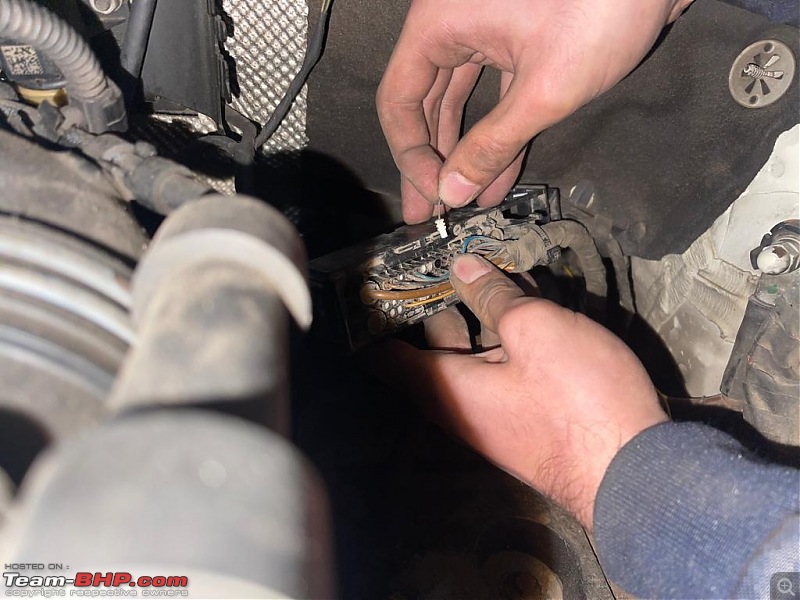

You can route the ABS Signal wire through one of these nipples and wire it into
Slot #8 of the ABS Pump Connector.
That Pretty much sums up the installation if you have a Pre 2014 VW Jetta, Post Facelift cars would require coding through VCDS but this car being Pre facelift 2013 Jetta did not require coding
Here is a screenshot from ecs tuning's guide on this Retrofit to help with coding for Post facelift jettas
Along with it is the PDF Guide they have for this retrofit, which is the very reason i am not going in depth with this one.
(This PDF is a property of
https://ecstuning.com
and i dont own any part of it)
Installation PDF:
PDF_12687_Volkswagen_MK6_Jetta_w_Keyless_Traction_Control_Button_Retrofit_Kit_Installation.pdf
Different kits have different ways to take power, my kit was entirely plug and play and did not require any of this wire tapping work. My kit just needed a connector from 12v socket from where it took power and illumination.
(Side note: Even though this jetta did not have an illuminated 12v socket, there was illumination signal provided in the connector that powered the 12v socket, perhaps a cost cutting measure and a prospective retrofit?)
Working
With the installation complete. it was time to test its working, with a rather huge hiccup along the way which was sorted, the ASR Off button could be tested,here it is in action
Excuse the low quality, this was taken right after the vehicle was fixed and i could finally test the button, with so much excitement i just whipped my phone out and took this quick clip.
Holding the ASR Off button de activates the ASR, and holding the same button again re activates it. A sign pops up in the cluster and even the MID warns and notifies you about it.
What was the hiccup?
Now this is the reason i sat down to type this post. During the installation of this button, the signal wire which needed to be ran to the ABS Pump had to be crammed through a grommet with at least 20 (even more) wires.
At the back of my head i was scared about puncturing one of them, even after taking precautions things go wrong. We took our time with the installation but still managed to mess up at the step i was worried about.
While routing out the signal wire, we definitely messed something up, Because we were greeted with these Lights.
That Red steering means the ECU cant reach the steering angle sensor, Tpms and traction lights are related to ESP faults, ESP would act up when it is not receiving any signal from the steering angle sensor.
First Thought:
"I removed the battery, these faults are bound to come up"
No Prerak, not when the steering is red, you would have been in the clear if it were yellow/Amber, in that instance you can just cycle the steering from lock to lock (which re calibrates the sensor) and you would have a clear dash.
Second thought:
"I must have blown a small fuse while putting the battery back together"
Never in my life have i wished for a blown fuse, but at this time i was hoping from all of my heart it would be a blown fuse.
But all the fuses checked out.

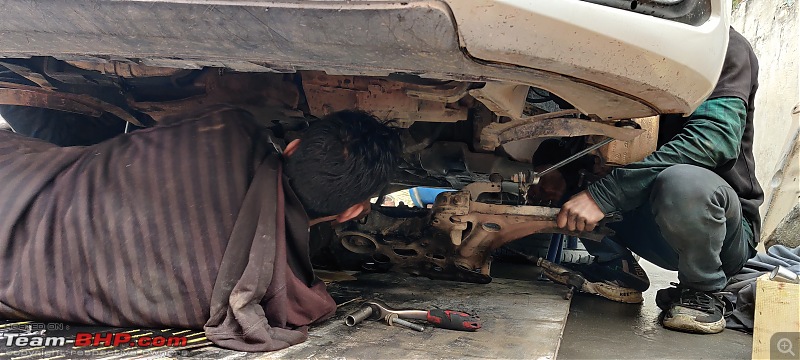

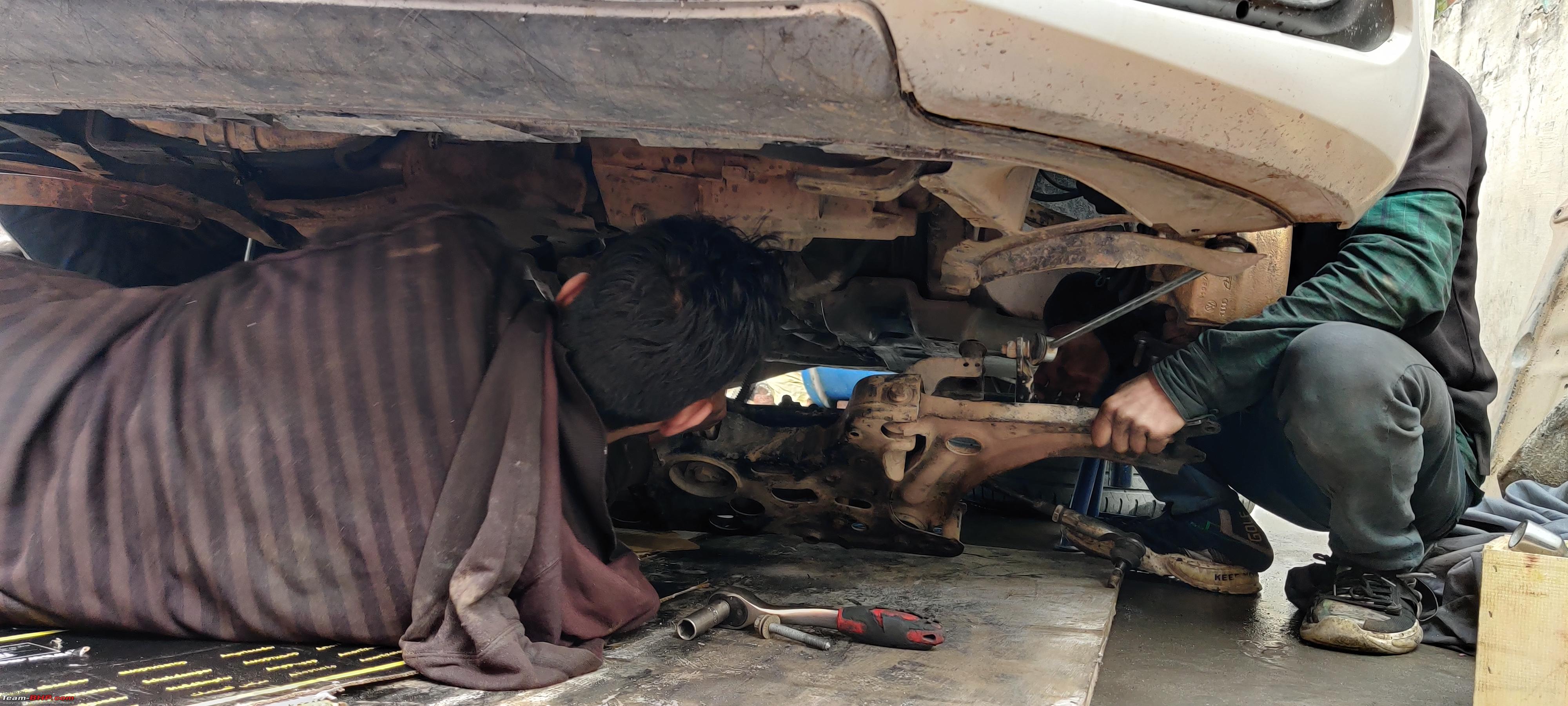

One entire day of checking reachable connectors did nothing either, took it to my local FNG
Their first thought:
"It needs a new steering rack"
i was not convinced at all, i was sure it was some small wiring puncture.
I persuaded them check the connections from the Rack and focus on wiring more than the rack.
After a few days of digging around (they could not work on it all the time, we would only tinker around in my presence) we found out the wire for
CAN Low was ripped at some point in the harness. Under no load, there is a potential difference of 5v between CAN high and Low, under load, it is 3v (Please correct me if i am wrong, i am not sure of loaded/Unloaded conditions, but sure of the values)
But the steering rack connector would not read continuity for CAN Low and Showed no potential difference either.
So we took apart the harness further and found the cut, it was under the grommet, away from the place i expected any cuts or damage, i thought it would cause problems right at the cut of the firewall, anyway, the cut was fixed with a length of OEM CAN Low wiring (did not wish to put any other color over there, would prevent any confusions for future mechanics) Steering angle sensor activated again through VCDS and calibrated as well.
ESP, CAN and ECU were pretty happy after this cut sorted out, took better part of a week to locate. I was relieved to have those errors clear out, it took a huge toll on my confidence with working on cars however. It made me ever so grateful to own an automatic which has a Huge grommet which lets us route anything through the firewall, this retrofit has made me develop a fear of working on Manual cars if it involves going through the firewall.
If any of you wish to do this retrofit, be a million times more careful, i know i will be next time.
But what did we learn
I learnt alot about the technicalities and working of the ABS Pump and Steering Rack, especially the steering angle sensor, i understood ESP slightly better, these are salient features we overlook while purchasing a vehicle, even though newer vehicles come with such features as standard, but not all Manual vehicles do.
I learnt how to diagnose better, even though no two cases are the same, but still after digging into the car for a week i got to know where to look at and what to check under certain circumstances.
I learnt how important patience is, even though we took our time with this one, maybe there was room for more patience, more care.
Unexpected things happen, this cut, under the harness, even after being patient and careful at every step took things with this retrofit in an entirely new direction.
Conclusion
But after all of that, My friend was happy with a functioning ASR Off Button, they enjoyed their Launches much better, loved the screeching of tyres without the Car Being limited by its safety feature.
Most of all, they were happy their Car got a Genuine retrofit done, they had been helping and assisting me with my retrofits all of this time, even while purchasing their car they mentioned they are looking forward to all the technical retrofits we were gonna do to this car.
Much more would come to this car for sure if it stays under their ownership and my proximity, they change cars frequently so i can't promise anything.
Anyhow, i hope you liked this showcase of the ASR Off Button and my experience while installing it.
