Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

The Tiago is a DIYer’s dream. I have frequently found bits and bobs to do with the car ever since I got it a year ago. Mine is a 2021 XZA+ AMT DT. The most expensive and supposedly top-specced of the lot. Yet, it lacks so much on the interior and the exterior! One may read through the TeamBHP threads and/or watch my uploads on YouTube for all the DIY I have done so far. A few examples are a front armrest, auto-dimming IRVM, parcel-tray strings and a rear 12v socket.

https://www.team-bhp.com/forum/diy-d...ata-tiago.html (DIY: Armrest installation for Rs. 1800 (Tata Tiago))

https://www.team-bhp.com/forum/diy-d...-cars-too.html (Adding parcel tray strings to a Tiago for Rs. 8 | This method would work for other cars too)

https://www.team-bhp.com/forum/diy-d...er-socket.html (DIY Installation | 12v rear power socket)

https://www.team-bhp.com/forum/diy-d...icted-diy.html (Auto-dimming IRVM for Rs. 2500 | Iím addicted to DIY)

https://www.team-bhp.com/forum/diy-d...ata-tiago.html (DIY: AMT Hydraulic Oil Change (Tata Tiago))

https://www.team-bhp.com/forum/diy-d...ata-tiago.html (DIY | Padded armrests on the door | Tata Tiago)


This time, I went about installing an OEM boot lamp. Perhaps the older models had one because there are slots for lamps on both the left- and right-hand side. Or maybe it is a panel part shared with the Tigor, which has a boot lamp.

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-105a.jpg

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-105b.jpg

Inspired by this video and dissatisfied with my own “jugaad” lamp, I went about getting things bought and ready for this DIY. My earlier attempt to Velcro a push-button LED spot lamp was not up to OEM standards, as one may see in this video.




Once again, I found myself heading to the Maruti workshop for a part to be fitted on a Tata car! The lamp is ditto amongst at least these two company’s cars. And it costs much less too. The Tata OEM lamp is Rs. 144 https://boodmo.com/catalog/part-load_area_lamp-6613697/ plus a shipping charge and a minimum order value of Rs. 399 from the website.


The identical one from Maruti is ₹96 over the counter! Please note that the shapes of the left and right-side lamps are not similar. This one would only fit in the slot on the right-hand side of the boot.

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-100.jpg

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-101.jpg


Other things needed:

-2.5 metres of wire. This cost me ₹20.
-long flat-head screwdriver
-short cross-head screwdriver
-electrical insulation tape
-super glue/glue gun
-soldering iron, flux, and wire
-optional extra-long laparoscopic forceps to snake the wire through
-you may or may not disconnect the battery. I did not.


Start by removing the cabin lamp with a flat-head screwdriver. It comes off easily.

Unscrew two + type screws of the lamp’s frame and pull the lamp’s harness outwards

Snake the wire towards the right-side B-pillar

Take the wire towards the rear C-pillar

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-104a.jpg

Unfasten the panel fascia on the C-pillar. There are two yellow clips that are easily undone with a long flat-head screwdriver.

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-104b.jpg

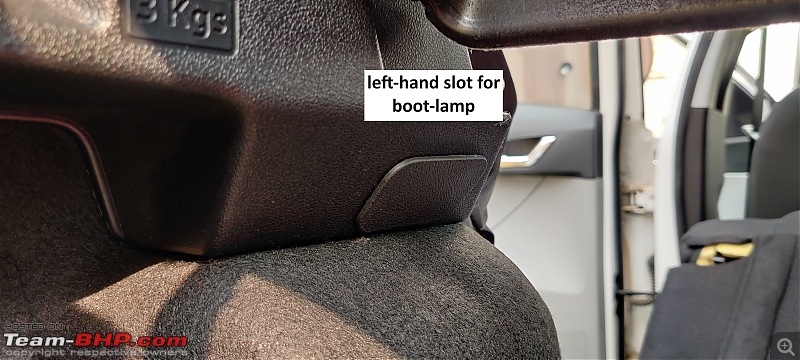

Bring the wire out through the slot for the lamp and replace the weather strips.

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-106.jpg

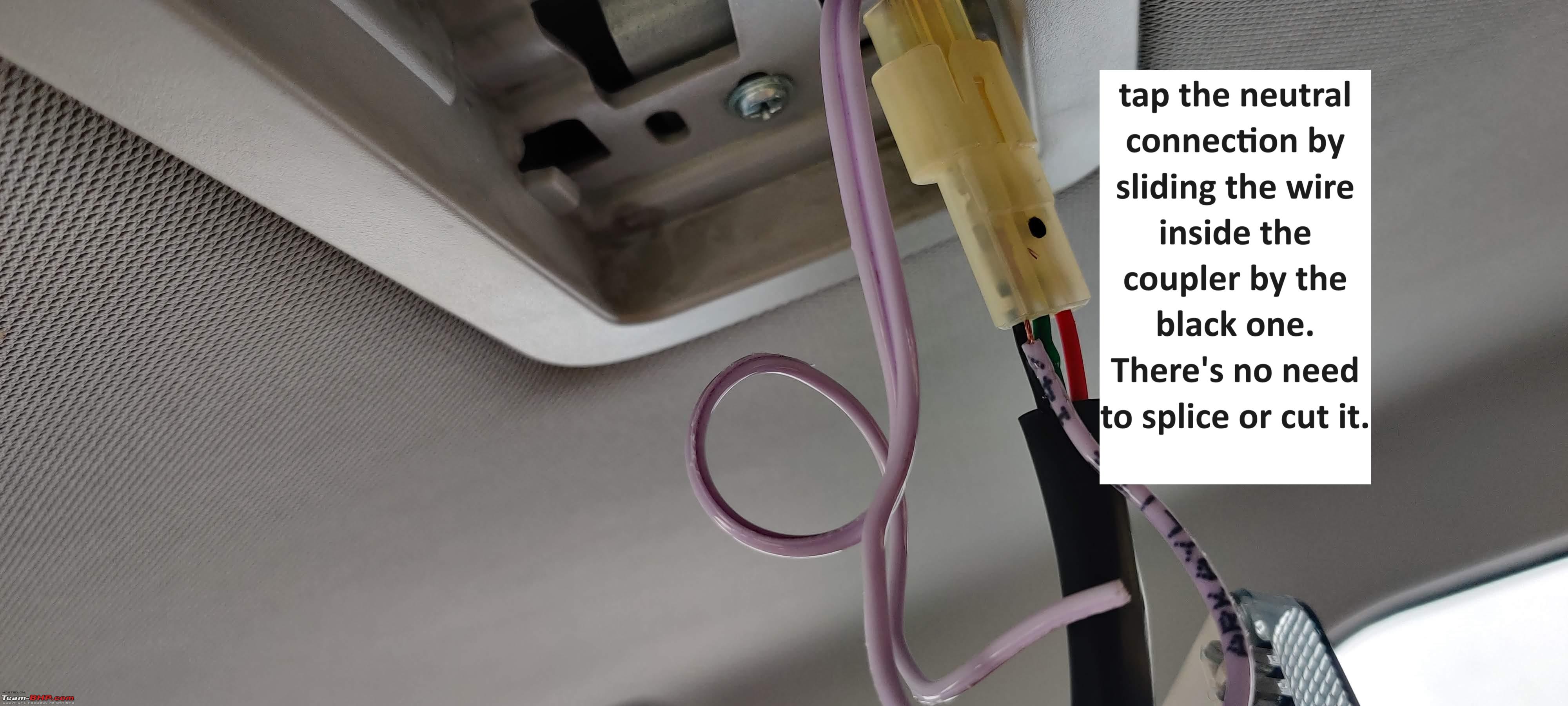

Make the connections on the cabin lamp. The black wire is neutral, and you merely need to slide in some exposed wire to make a connection. There is no need to splice or cut any original wires! Glue them together and tape them up for double security.

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-103b.jpg

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-108.jpg

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-109.jpg

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-103a.jpg

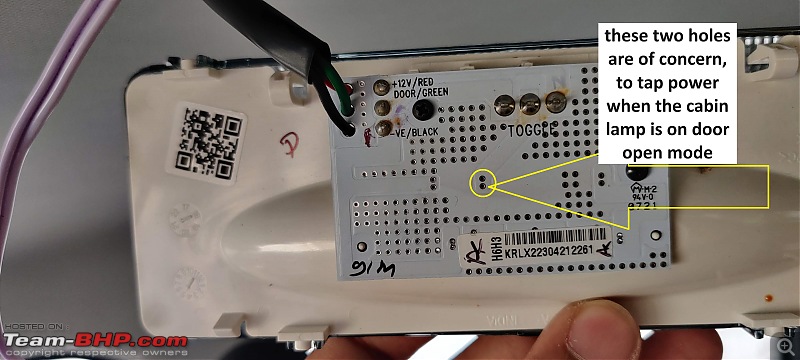

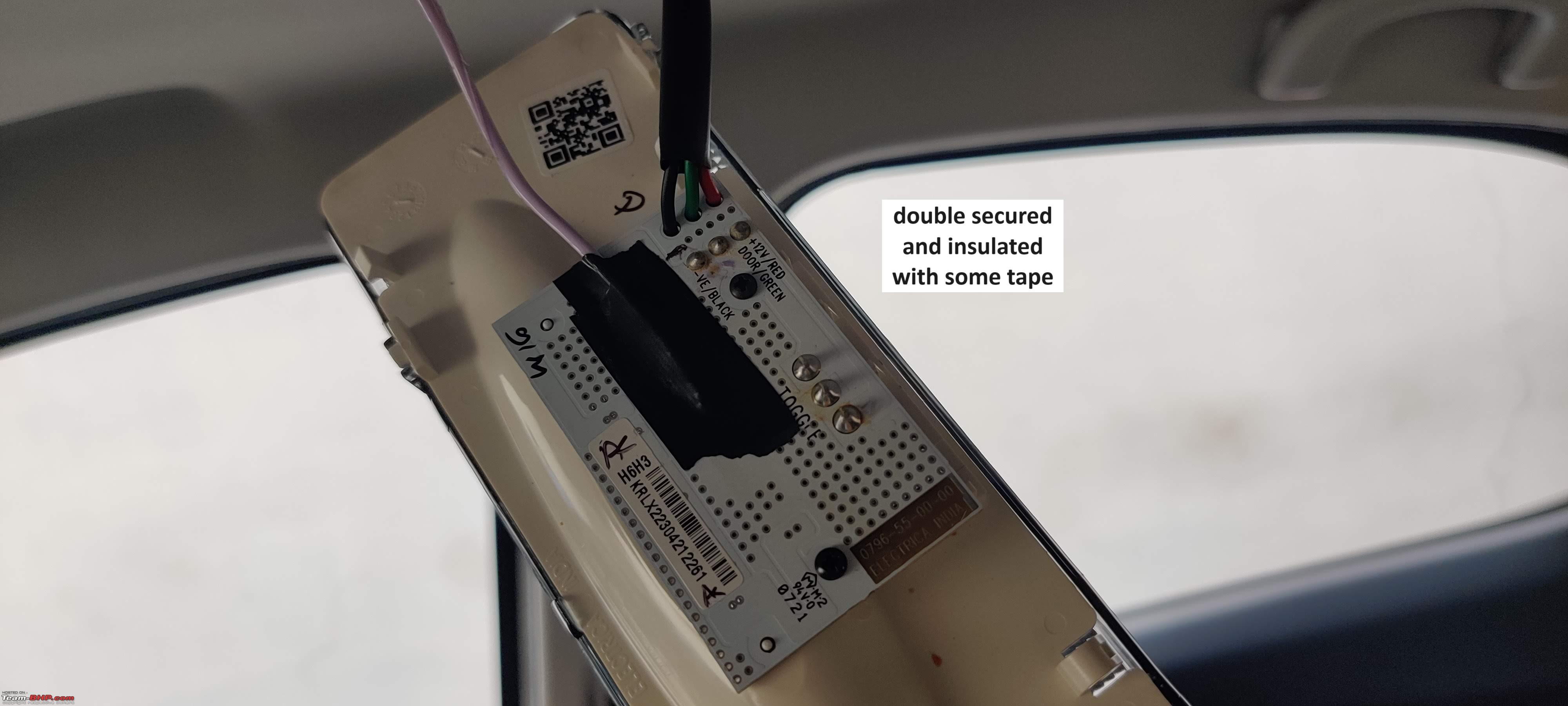

The green wire gets power when the switch is set to door open. I used this for the positive to have illumination only when the cabin lamp turns on with the door/boot hatch opening. Solder the wire to one of these two particular holes as indicated. Then glue an inch of wire to the board to secure it from vibrations. Tape it up for insulation.

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-110.jpg

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-111.jpg

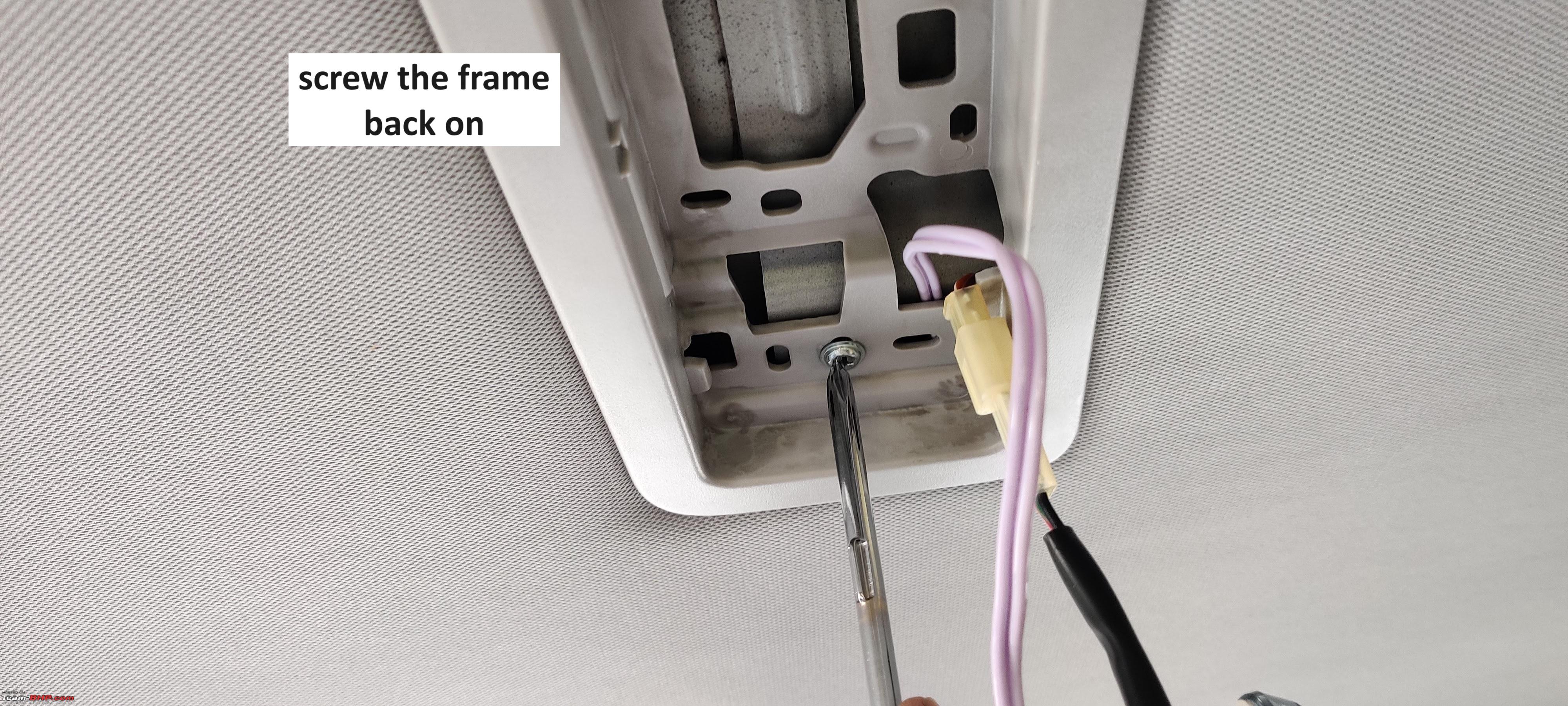

Then you refit the cabin lamp to its frame with the two + type screws.

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-107.jpg

At the other end, since the car has no original couple or harness, I chose to solder the wires to the lamp. You will need to correct the wire’s polarity first. My lamp came with pen markings for the + and – terminals. Loosely touch and test your wires first to check for illumination on door opening. Solder them once you are sure.

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-112.jpg

Fit the lamp into the slot.

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-113.jpg

Test and re-test as many times as you like. Have a look at my video on YouTube for a better understanding of the method.




Thanks!

Last edited by lemedico : 21st November 2023 at 22:31.
lemedico is offline   (35) Thanks
Old 21st November 2023, 23:39   #2
Senior - BHPian

greenhorn's Avatar

Join Date: Apr 2007
Location: KL-01
Posts: 7,731
Thanked: 4,361 Times

Isn't there any switch (or a provision for a switch) on the Tiago hatch door ?
My indica has a switch on the tailgate, and the light turns on only when the hatch door is opened
EDIT: https://boodmo.com/catalog/part-swit...gate-37465894/
Looks like its a tiago only part. so you should have a way to fit it.

Further EDIT
I spotted the switch in the team bhp Review here
https://www.team-bhp.com/carpics/tat...ta-zica-33.jpg
(check to the left of the latch)
But the review also says manually activated light. (but that switch is a bit useless if its not being used to control the light - unless the roof light considers the hatch opening also, in which case the roof light supply is fine)

Since you are using the supply from a line meant to power LED lights, would suggest using an LED bulb in the boot lamp to keep current draw down.

Last edited by Aditya : 22nd November 2023 at 04:59. Reason: As requested
greenhorn is offline   (2) Thanks
Old 22nd November 2023, 06:14   #3
BHPian

lemedico's Avatar

Join Date: Aug 2013
Location: Agra, Cambridge
Posts: 584
Thanked: 1,713 Times
re: Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

https://boodmo.com/catalog/part-wire_door_lamp-6794756/

For those who wish to use a coupler, there's one that fits to the lamp. I personally believe in keeping the costs to a minimum and cannot fathom paying nearly ₹200 for some wire!
lemedico is offline   (2) Thanks
Old 22nd November 2023, 06:16   #4
BHPian

lemedico's Avatar

Join Date: Aug 2013
Location: Agra, Cambridge
Posts: 584
Thanked: 1,713 Times
re: Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

Quote:
Originally Posted by greenhorn View Post
Isn't there any switch (or a provision for a switch) on the Tiago hatch door ?
My indica has a switch on the tailgate, and the light turns on only when the hatch door is opened
EDIT: https://boodmo.com/catalog/part-swit...gate-37465894/
Looks like its a tiago only part. so you should have a way to fit it.

Further EDIT
I spotted the switch in the team bhp Review here
https://www.team-bhp.com/carpics/tat...ta-zica-33.jpg
(check to the left of the latch)
But the review also says manually activated light. (but that switch is a bit useless if its not being used to control the light - unless the roof light considers the hatch opening also, in which case the roof light supply is fine)

Since you are using the supply from a line meant to power LED lights, would suggest using an LED bulb in the boot lamp to keep current draw down.
You're right about the switch, and my car has it. Itf function is to indicate boot open on the MID. I'm sure there would be a way to utilise it for the boot lamp on and off too but I haven't figured it out.

LED bulbs are a definite upgrade, I am searching for some on amazon as we speak
lemedico is offline   (1) Thanks
Old 22nd November 2023, 10:01   #5
BHPian

lemedico's Avatar

Join Date: Aug 2013
Location: Agra, Cambridge
Posts: 584
Thanked: 1,713 Times
re: Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

After two days of usage, I have a complaint. The bulb is dim and a LOT of light is being lost to the rear of the lamp into the dead space behind the panel.

Would you suppose I whack on a small piece of mirror or tinfoil over the lamp's backside? Technically, hat should reflect all of the light into the boot area.
lemedico is offline   (2) Thanks
Old 22nd November 2023, 13:46   #6
BHPian

Join Date: Nov 2022
Location: Delhi
Posts: 79
Thanked: 141 Times
Re: Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

Quote:
Originally Posted by lemedico View Post
After two days of usage, I have a complaint. The bulb is dim and a LOT of light is being lost to the rear of the lamp into the dead space behind the panel.

Would you suppose I whack on a small piece of mirror or tinfoil over the lamp's backside? Technically, hat should reflect all of the light into the boot area.
That can help a lot but make sure it does not touch any of the exposed terminals. Also as suggested by our fellow members earlier, since the system from factory is utilising LEDs, it may not be equipped to give the power required by halogen bulbs.

Off-topic: ther are simple small thimbles available off the shelf, like those of the horn but smaller which can be used to connect to the terminals of the light. I used to the same light in my Civic as glove compartment light.
Siddj38 is offline
Old 22nd November 2023, 15:53   #7
BHPian

lemedico's Avatar

Join Date: Aug 2013
Location: Agra, Cambridge
Posts: 584
Thanked: 1,713 Times
Re: Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

Quote:
Originally Posted by Siddj38 View Post
That can help a lot but make sure it does not touch any of the exposed terminals. Also as suggested by our fellow members earlier, since the system from factory is utilising LEDs, it may not be equipped to give the power required by halogen bulbs.

Off-topic: ther are simple small thimbles available off the shelf, like those of the horn but smaller which can be used to connect to the terminals of the light. I used to the same light in my Civic as glove compartment light.
I looked around for those thimbles at my local shops but nobody had any. I had to desperately complete the job on that particular day when I had no work in hospital and so I soldered them instead.
lemedico is offline   (1) Thanks
Old 22nd November 2023, 16:18   #8
Senior - BHPian

greenhorn's Avatar

Join Date: Apr 2007
Location: KL-01
Posts: 7,731
Thanked: 4,361 Times
Re: Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

Quote:
Originally Posted by lemedico View Post
After two days of usage, I have a complaint. The bulb is dim and a LOT of light is being lost to the rear of the lamp into the dead space behind the panel.

Would you suppose I whack on a small piece of mirror or tinfoil over the lamp's backside? Technically, hat should reflect all of the light into the boot area.
I had the same issue - I have already given the solution - I use an LED.
PLus I have found the lens and the reflector hinder rather than help -


Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-pxl_20231024_205114606.jpg

Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-pxl_20231024_184941873.jpg

This is how my Boot lamp is setup - the LED is angled a bit lower so that it fires directly into the boot. You could keep it immediately behind the lens to make sure no light is lost

This is what I am using
https://www.amazon.in/AllExtreme-EX2...dp/B07NGLBVCP/
Maybe you can use something like this
https://www.amazon.in/INFINITY-Readi...dp/B083M7DP5R/
greenhorn is offline
Old 22nd November 2023, 18:39   #9
Senior - BHPian

Join Date: Aug 2007
Location: BLR
Posts: 1,146
Thanked: 676 Times
Re: Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

Quote:
Originally Posted by lemedico View Post
LED bulbs are a definite upgrade, I am searching for some on amazon as we speak

I was unable to locate a suitable T10 LED on Amazon, but I came across several options on AliExpress. Unfortunately, they do not offer shipping to India, which is

I am in search of a product that emits light sideways, directing it outward in a manner similar to the one I found on Ali-express.


https://www.aliexpress.com/item/1005...d=Je24Jwi3HCnk
Attached Images

tj123 is offline
Old 22nd November 2023, 21:38   #10
BHPian

lemedico's Avatar

Join Date: Aug 2013
Location: Agra, Cambridge
Posts: 584
Thanked: 1,713 Times
Re: Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

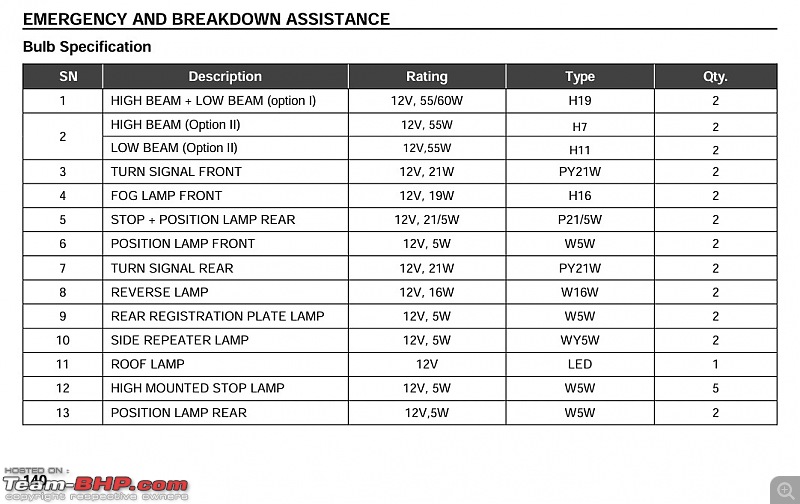

Could anyone confirm are w5w bulbs the same as T10s?
Attached Thumbnails
Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues-screenshot_2023112218152600_f541918c7893c52dbd1ee5d319333948.jpg

lemedico is offline
Old 23rd November 2023, 00:08   #11
Senior - BHPian

greenhorn's Avatar

Join Date: Apr 2007
Location: KL-01
Posts: 7,731
Thanked: 4,361 Times
Re: Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

Quote:
Originally Posted by lemedico View Post
Could anyone confirm are w5w bulbs the same as T10s?
T10 stands for 10 mm bulb diameter, w5w stands for 5w power consumption. Most LED t10's can no longer be called w5w because of the lower power consumption, just "compatible"

In practice, sellers use the terms interchangeably (there are even more numbers if you want to get more confused )
greenhorn is offline   (2) Thanks
Old 23rd November 2023, 08:42   #12
Senior - BHPian

greenhorn's Avatar

Join Date: Apr 2007
Location: KL-01
Posts: 7,731
Thanked: 4,361 Times
Re: Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

Does the roof light come on when you open the hatch door?
If yes you can leave it on all the time
greenhorn is offline
Old 23rd November 2023, 19:42   #13
BHPian

lemedico's Avatar

Join Date: Aug 2013
Location: Agra, Cambridge
Posts: 584
Thanked: 1,713 Times
Re: Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

Quote:
Originally Posted by greenhorn View Post
Does the roof light come on when you open the hatch door?
If yes you can leave it on all the time
It does. Are you talking about the switch on the lamp? If yes, then yep i do keep it ON all the time
lemedico is offline
Old 23rd November 2023, 20:10   #14
BHPian

Join Date: Dec 2011
Location: TN 14
Posts: 69
Thanked: 74 Times
Re: Rs. 96 OEM Tata Tiago Boot Lamp DIY Installation - No wire cutting or warranty issues

I see this on Amazon:

https://www.amazon.in/SIMTAC-Multi-Purpose-Fitment-T10-PRK/dp/B0C8PBS682/ref=sr_1_3?crid=3M39QXNK2HS84&keywords=t10%2Bled%2 Bbulb&qid=1700750161&sprefix=t10%2Caps%2C273&sr=8-3&th=1

Also quite a few other T10 options:
https://www.amazon.in/s?k=t10+led+bulb&ref=nb_sb_ss_ts-doa-p_3_3

Hope this helps.

Cheers,
Ram

Quote:
Originally Posted by tj123 View Post
I was unable to locate a suitable T10 LED on Amazon, but I came across several options on AliExpress. Unfortunately, they do not offer shipping to India, which is

I am in search of a product that emits light sideways, directing it outward in a manner similar to the one I found on Ali-express.
marsbhp is offline   (1) Thanks
