Cars today need to be tested across the length and breadth of the country in vastly different terrain and weather conditions. During these road tests, it's essential to stay away from prying eyes of the over-eager automobile enthusiasts, who would be more than happy to share pictures of the test mules on social media. An upcoming launch spotted without any camouflage would take a lot of the oomph out of the car's eventual unveiling, both in terms of the vehicle's design and also its features. Unsurprisingly, manufacturers wish to keep that ace up their sleeve for as long as they can, and are willing to go to great lengths to do so.

Obscuring the visual information by using camouflage is the weapon of choice. It's quick & dirty, cost-effective, and just so happens to be the universal solution.

Before we get to the different types of camouflage we have seen so far, let's first see how the popular black and white pattern came to be. It was created by British artist Norman Wilkinson in 1918 when he was in the Royal Navy. He wrapped the ship in black and white patterns to confuse the enemy's perception of a ship's size, speed and travel direction. It worked so well that around 4,000 camouflaged ships were used in World War 1.


Image Source

Over the years, car companies have tried various tricks in the book to fool spy photographers. These include using fake body parts like fenders and hoods, using cloth coverings, printed vinyl wraps and even matte black wraps. The most common style is the black and white patterned wraps which can throw off even the trained eye. It's not just the eye they want to fool, the patterns are apparently designed to not allow cameras to focus easily, resulting in blurry images. With the advanced pace at which camera technology has been moving, I wonder if this still holds true. These wraps can be across the whole body, or in the case of facelifts, only on certain updated body parts.

Some crafty manufacturers get extremely creative too. Back in 2010, Volkswagen tried to camouflage the Vento as a Ford sedan! Tweaks to the bodywork and Ford-like badges had quite a few BHPians scratching their heads.



Audi claims that the black and white theme, especially glossy white, helps break the car's body lines. While some manufacturers hide everything from prying eyes, Audi uses black in places as it reveals certain parts of the design, while the white covers it. This gives out a teaser to the automotive community on what to expect from a product (revealing certain creases or ensuring the shape of the grille is seen so spotters can identify the make of the car which means more positive exposure in the media). A good marketing move I must say, as it builds anticipation. Audi has also used fluoro paint in places in the camouflage to mislead the eye from identifying the design elements of the car.

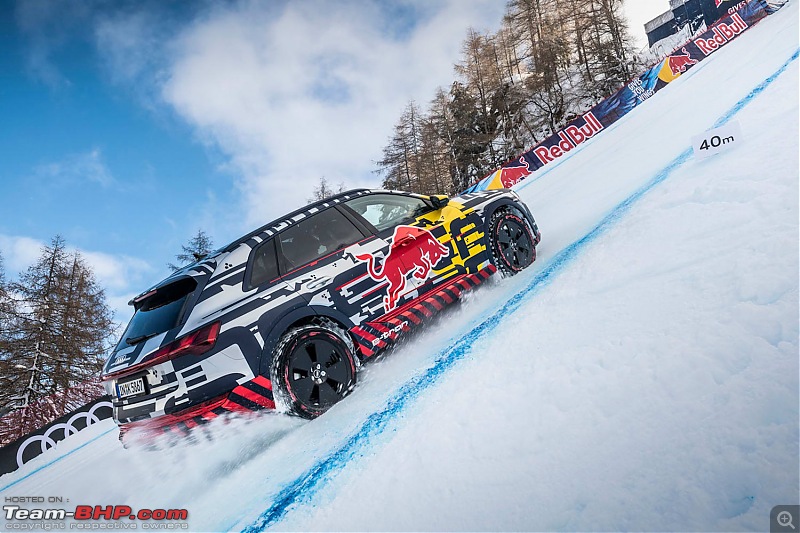

Unique livery on the e-tron:


Occasionally manufacturers take things beyond basic geometrics, and use identifiable elements in their patterns; like partying men and even the company logo.

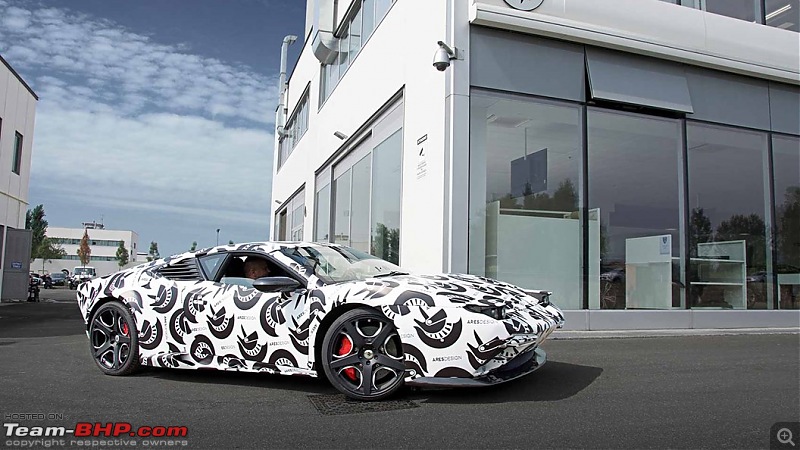

Viking helmet is the Ares logo, as seen on their Panther test-mule:

Image Source

Partying man motif gets your eyes to dance around the Evoque's curves:

Image Source

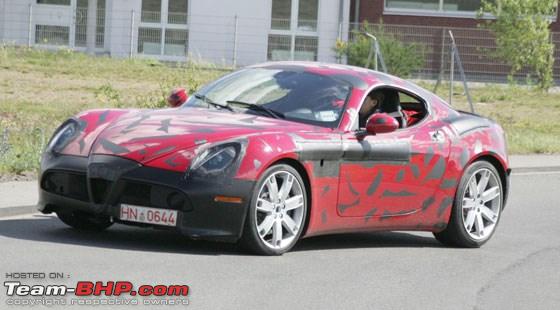

While testing the 8C, Alfa Romeo chose to go the other way with what looks like a patchwork of randomly placed tape on various parts of the bodywork:

Image Source

Sometimes the most effective solution is also the easiest one. A blanket cover on the Audi A7 prototype:

Image Source

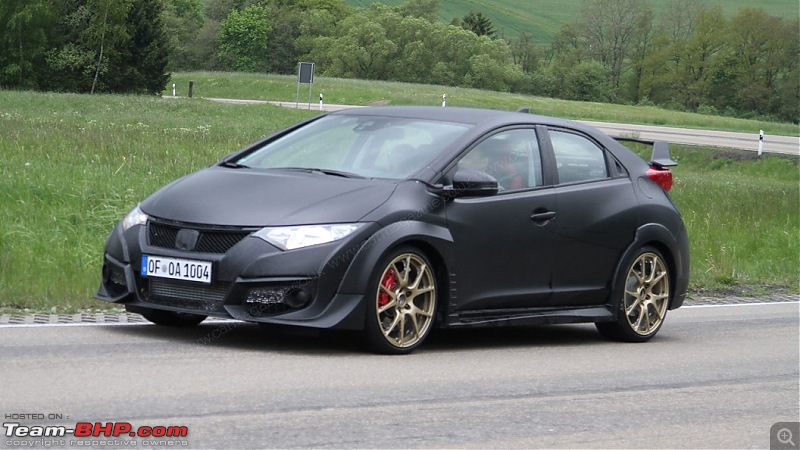

Not sure if test-mule or teenage owner - a matt black wrap on the Civic:

Image Source

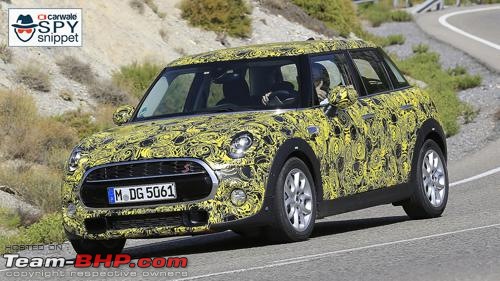

Yellow and black pattern on a Mini Cooper:

Image Source

Tapes on a Bentley to obscure its looks:

Image Source

Car makers also slowly remove camouflage from certain parts of the car revealing certain features. Case in point - when Mahindra's XUV700 was spotted with a panoramic sunroof:


A lot of work goes into designing a custom camo wrap for a car so that it looks good and fits perfectly. Skoda claims it took artists 120 hours to disguise the ENYAQ iV. The design is first drawn and then a mockup is produced using Photoshop. Changes are also made after it is fit onto the car's body to ensure that it gives viewers a glimpse of the future without revealing too much. One of the most critical areas is the front end as it gives away the face of the car. Adding a mask to the car would prevent viewers from seeing what's going on. However, at the same time, the camouflage should not affect the air flow and the engine's cooling, and neither should it interfere with the car's front cameras and sensors.

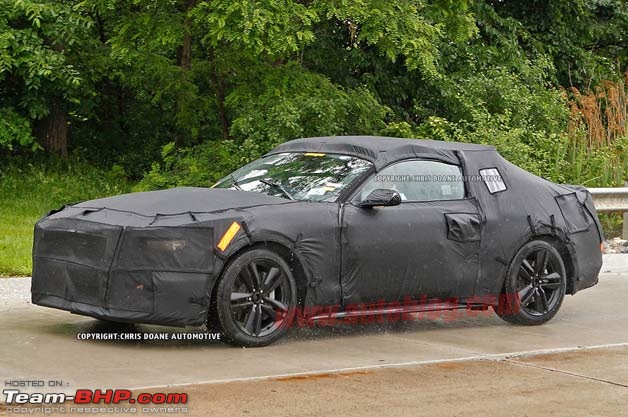

Covering the face of the Mustang was crucial for Ford, since it's such a pivotal point of the styling:

Image Source

To throw off enthusiasts, car makers usually start testing the car's mechanical components like a new drivetrain in the body of an existing car. For example, while testing the Skoda Kushaq and the Volkswagen Taigun, the VW group used bodies of the Skoda Kamiq as well as the Seat Arona. Car makers are also known to use the bodies of cars on sale in the market (Ferrari is using the body from a Maserati Levante to test the Purosangue). In such cases, tell-tale signs like minimal camouflage and sometimes raised ground clearance, distorted bodies and uncharacteristic exhaust note give the game away.

Here's a Maserati Levante test mule in the body of a Ghibli. The raised ground clearance gives it away:

Image Source

Once the car enters the road testing phase, bulky plastic or foam padding is used to conceal the shape of body parts. Temporary head lights and tail lights are used as seen in the case of the Mahindra XUV700. However, with this padded approach, engineers cannot test the aerodynamics and parameters like wind noise. It's only in the final few stages of testing that we see the actual body with production-spec parts with a printed vinyl wrap.

Temporary headlights on an early prototype of the XUV700:


Take a look at how Kia has added this thick padding to the back of the Sonet. Makes it look like a bigger SUV:

Image Source

It's not just the exterior. Sometimes, people peep into unguarded stationary test cars to snap a glimpse of the interior as well. To prevent leaks of the interior, many parts are also covered with camouflage, usually a black fabric. However, key parts like the vents, instrument dials and essential controls need to be left uncovered so they can be accessed by the driver. Sometimes, even the roof-liner is covered so as not to give away the presence or size of the sunroof.

Covered interior of a Mahindra XUV700:

Image Source

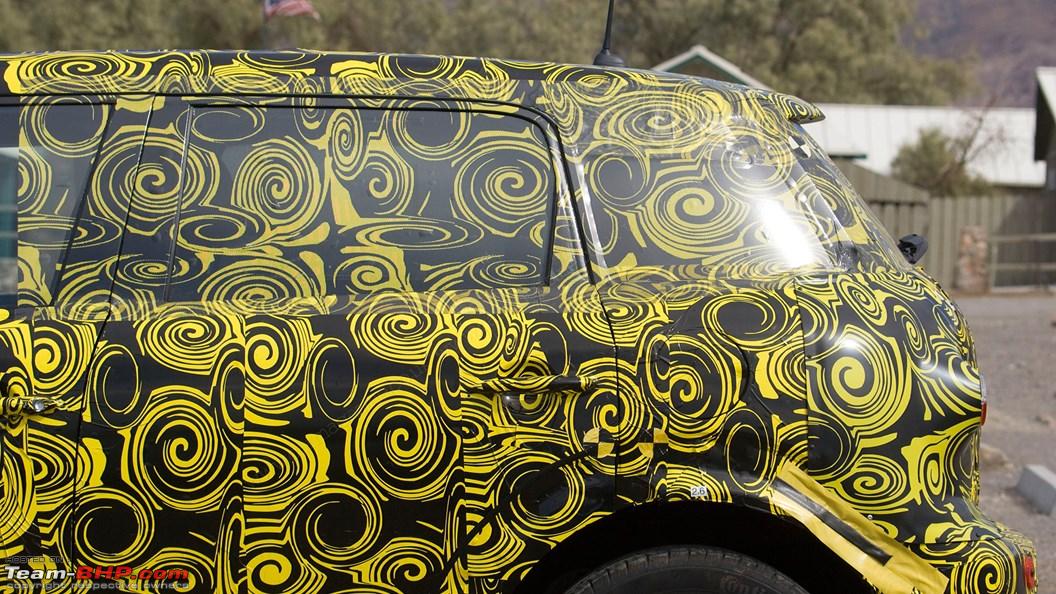

The mesh design on the windows is there to reduce people from seeing inside and getting a good photo:

Image Source

Side windows covered with a one-way vision print prevent people from seeing inside. However, the same cannot be done to the front windows:

Image Source

Sometimes the camo wraps themselves are used to promote the product or to run advertisements. This gives car makers an excellent public stage to tease the car before the launch. Audi showcased a camouflaged version of the A8 to the public for the first time at the premiere of Spider Man: Homecoming. The car had a spider web design on it. Before its launch, Skoda's Kodiaq appeared as the lead car at the 2019 Tour de France. Some of Audi's test cars had Red Bull's logo on the side as well.



Brand promotion happens on test cars in India as well. Building up to the launch, the Mahindra XUV700 had #HelloXUV700 written on the sides of the wrap:

Image Source


Recently, Skoda held a camouflage design competition where people could submit their own artwork, and the winning pattern would be used on the upcoming Skoda sedan. Cool idea for a competition! Here are the 5 finalists:


Lastly, take a look at this video where BMW engineers add plastic panels to the car to camouflage it. A 3D design is first rendered in a computer and only then the car's exterior as well as interior are covered:

https://www.youtube.com/watch?v=uaccjXcPc3Q

[Rehaan]

Thread moved out from the Assembly Line. Thanks for sharing!


Related thread: Queries about test mules

[GTO]

Sweet thread . Thanks for sharing, Chirag & Rehaan.

Skoda held a unique contest recently, asking enthusiasts to help them design a camo. Here's the final shortlist:



And no.1 on that list is a BHPian

Originally Posted by sbenstewart

My name is Ben Stewart from Tirunelveli. And, once the final results are out, will share in detail on how I used computer code in Python to generate the camo, along with the a bit higher resolution of the images and idea behind it along with my MY2020 Skoda too.

[moralfibre]

When I attended the Nexon EV test drive at Tata motors. Mr. Anand Kulkarni who is the VP of EV Passenger cars at Tata motors gave me an interesting trick they had. The Nexon was already launched in its petrol and diesel avatars. To keep the EV off prying eyes, they added an exhaust to the EV and removed any obvious EV bits from the car.

Therefore, he was using the EV for a good 4-5 months before actual launch without getting spotted. Unless someone really got close and heard the motor whine, no one could tell.

[Fateh Salim]

F1 fans will remember how the Red Bull cars turned heads with their camouflaged livery.


Red Bull RB11
Image Source


Christian Horner acknowledged that the idea was inspired by Vettel's helmet design, which he saw at the Italian Grand Prix (2014)
Image Source



Red Bull RB14
Image Source


Red Bull RB15
Image Source

[MrEnthusiast]

A very informative thread Chirag

It's great to see the various techniques carmakers use to prevent the leaks of major design elements used in their upcoming models, all while testing the components of these vehicle extensively.

Some test mules which use an altered design of a model which is already on sale is even more difficult to identify even to the trained eyes of Enthusiasts.

For example, this is the test mule of the upcoming Mercedes SL Roadster which may look like weird looking E class.

Image source: https://www.motor1.com/news/346200/m...ht-camera/amp/

The Defender being tested under a Range Rover Sport bodyshell

Image source: https://www.motor1.com/news/226703/n...der-spied/amp/

One of the First test mules of the NSX being tested under an unusually long body of the S2000
Image Source: https://www.motor1.com/news/4041/mor...py-photos/amp/

[JoshMachine]

Nice thread

Some manufacturers take this camouflaging so seriously.

In 2016, Ford introduced a new car wrapping pattern that looks more like the static on a television set. Unlike the conventional swirl pattern, it’s not as easy as the eyes, which will deter some less dedicated spy photographers.

Additionally, the pattern of this wrap is more complex and has layered graphics. This allows the car to stay out of focus on a camera. A skilled car render artist can still work with a blurry photo, but the end result won’t be nearly as accurate.

Check this video from Ford Europe:-

https://www.youtube.com/watch?v=r4T0_SqQPyc&t=63s

[TejasKinger]

I think in recent times, especially in the Indian context, I've really enjoyed the camouflage on the Hyundai Alcazar. Found it really classy with the castle motifs to go along with the theme.

[iamahunter]

Camouflage is used to hide the details of the car design.

However now-a-days, I feel that the camouflaged vehicles are used to more create hype around the model rather than just hide the features.

[Sahil]

Originally Posted by MrEnthusiast

Some test mules which use an altered design of a model which is already on sale is even more difficult to identify even to the trained eyes of Enthusiasts.

This is the best way to test new models, but most manufacturers don't use this method unless it's very early days of development. Reason being, they actually love the attention and buzz marketing the loud camouflaged test vehicles create. Feedback of various renders give them initially feedback.

Infact, I am pretty sure they call the car paparazzi's intentionally to click pics at various camouflaged stages. Much like how our bollywood and hollywood celebrities invite the paps to come to the airport to click their "impromptu" airport looks.

[A.K]

The 2013 Bentley Continental Flying Spur is one of the most interesting camo jobs I have come across. Bentley engineers very slyly put on a camo that made the car look like a W221 Merc S

[GaryTSI]

A lot of times, these manufacturers have used existing body shells to accommodate and test the new powertrains and some of them look hilarious.

The Enzo Mule in a 348 body



The Nissan GTR Mule in a G35 body



The Cullinan Mule which has a Phantom with a ridiculous wing



The 918 Mule with 911 panels

[jeepster]

TATA HARRIER mule in Land Rover Discovery Sport avtar.

VW ID Buzz in Transporter avtar.

[Dr.Abhi]

Originally Posted by JoshMachine

Nice thread

Some manufacturers take this camouflaging so seriously.

In 2016, Ford introduced a new car wrapping pattern that looks more like the static on a television set. Unlike the conventional swirl pattern, it’s not as easy as the eyes, which will deter some less dedicated spy photographers.

Additionally, the pattern of this wrap is more complex and has layered graphics. This allows the car to stay out of focus on a camera. A skilled car render artist can still work with a blurry photo, but the end result won’t be nearly as accurate.

Check this video from Ford Europe:-

https://www.Youtube.com/watch?v=r4T0_SqQPyc&t=63s

Maruti could have developed a whole new car with the effort and budget they are spending on developing a new camouflage pattern.
On a recent baleno facelift under cover sighting, maruti is seen doing away with black masking tape and i dont find anything wrong with it.

[anjan_c2007]

A very educative thread. Thanks Chirag. With more and more models and thereafter refreshes, and also existing ICE models getting available as EV's, camo becomes a hotbed, with a newfound flurry of activities. We see camo two wheelers in disguise too.

Rainwear like camo in a single shade needs the least of creativity as it appears. The Audi A7 rainwear like camo in brown however could have affected front visibility of the driver.

There are also incidents of the drivers of camo vehicles getting aggressive when curious onlookers are spotted getting cosy with the newbie machine. This is when such inquisitive onlookers try to click some sneak preview photos of the test mule.
