Default Fun DIY @ Home - Pocket e-Bike - The eCati

Disclaimer

1) This is not some patent winning project or a ground breaking technology; there are 100's of such examples on youtube & internet and I totally learnt from such projects and copied most of the ideas but implemented them with my own take on few things.

2) Neither TBhp nor me personally would approve of under-age & un-authorized persons to drive any automobile on any public-utility-road whatsoever & howsoever.

----------------------------------------------------------------------------------------

Circa July-2017

https://www.team-bhp.com/forum/motor...cket-bike.html (She runs! TVS Scooty converted to a Pocket Bike)

Scooty project turned out to be a success, along the way the cylinder bore packed up due to some hard revving runs. Tried to fix it once, but beyond a point son lost interest due to the hard suspension and he grew lot faster than I knew kids grow up...!! LOL.

Fun DIY @ Home - Pocket e-Bike - The eCati-scooty-small.jpg


Fast Forward >>>> Nov-19
Dusherra Pooja Holidays


Me and son were trotting around in my Rx135 and he showed interest to try the clutch and brake for a while. As expected from the scooty project, he picked up the basics of A-B-C of a geared bike but not before his left palm hurt, natural for a beginner.

One thing led to the other and thus landed the idea of a Pocket-e-bike, we call it the 'eCati'.


Purpose - has to be some purpose always, right?

1) A proper 'Geared' Motorbike (Accelarator-Brake-Cluch) - light weight, minus the risk of peppy petrol mill.

2) Infuse some thought process in my sons head along the way of the project, some creativity if I may say so...

3) E-mobility! He knows enough jargons by now about my (Chevy Sail-UVA) car parts and his Pocket-Scooty, but something new to both of us was e-cars and e-bikes.
svsantosh is offline   (31) Thanks
Old 13th January 2020, 11:12   #2
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,456
Thanked: 2,293 Times
Default Ground Work

1) Lots of Youtube fun projects provided vital, key inputs, some good and not-so-good ideas also. (Credits to Youtubers like 'Technical Partha', Jayanta Tech', BLDC bike' from whom I got the idea in the first place)

2) Pickup a low cost geared 4-stroke, preferably a Yamaha Crux - Why a 4S and a Crux - more on that later.

3) Risk it all and 'phonepe' funds to a unknown person off a youtube video and hope to receive the eKit. (I purchased it from 'Jayanta Tech' FYI - I am not associated commercially with anyone)

4) 4 Batteries to power it all

5) Basic tools, a handy mechanic, fabricator and a machine shop and lots of dirt-under-nails fun

--------------------------------------------------------------------------------------------------

The Bike

--Picked up a Yamaha Crux. It is a 4S engine and shares the RX100 chassis to a great extent. The best part of the RX chassis is it is pencil thin in profile, great for kids who would find it difficult to spread their legs in any other bikes. I had it home delivered from a old pal-mechanic of mine, on a Tata Ace. Only got this pic on whatsapp, I never met him coz his workshop is on the other side of town). Paid via google pay.

Fun DIY @ Home - Pocket e-Bike - The eCati-bike.jpg

--First few days went away in dismantling the bike down to its chassis and stowing away any and all unwanted parts. A good wash and removing the engine releaved its connection to the legendary RX. In hindsight, the Crux (Series) was the very 1st bike from Yamaha stable after stopping of the RX135-5Speed. No wonder they just retrofitted the 4S engine onto the 2S chassis with minor changes.

Fun DIY @ Home - Pocket e-Bike - The eCati-disassemble1.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-disassemble2.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-disassemble3.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-disassemble-4.jpg

--First change attempted was to reduce the overall height by reducing the 18" rims to 16" TVS50 rims. Retained the hubs for easy refittment and just exchanged the existing tyres and rims and spokes with a TVS50 wheel from scrap market.

Fun DIY @ Home - Pocket e-Bike - The eCati-wheels.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-wheels1.jpg

--Refit the wheels and by then son had taken cognizance of the fact that the project was a full-Go & got impatient to get onto a bike Viz-a-Viz a bicycle. Some 'flintstones type' fun with cousins and grampa on the empty shell revealed that bike is still too high for my son.

Fun DIY @ Home - Pocket e-Bike - The eCati-flintstones.jpg

--Next key decision was to chop the chassis down fully to accomodate his bum-to-feet height. One of the way I could think was to go mono-shock (or something similar to it). Got some mono-shocks from scrap market and fabricated a bracket to accomodate the two small shockers, acheived the height perfectly, but lost out on the damping, they were way too soft!!

Rough idea of mono shock
Fun DIY @ Home - Pocket e-Bike - The eCati-mono-placment.jpg

OE Angle of swing arm
Fun DIY @ Home - Pocket e-Bike - The eCati-measure-angle.jpg

Bicycle Handle height reference
Fun DIY @ Home - Pocket e-Bike - The eCati-cycle-handle-ref.jpg

Chopped
Fun DIY @ Home - Pocket e-Bike - The eCati-chopped.jpg

--So we went for a dual shock with a twist! Dual OE Shocks albeit on a different mount...!
svsantosh is offline   (28) Thanks
Old 13th January 2020, 16:06   #3
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,456
Thanked: 2,293 Times
Default The Engine

The Engine

1st Idea

--Disassemble full engine, reverse engineer the crankshaft 'bearing to bearing' and incorporate the output gears in its original position to drive the clutch's crankshaft drive gear.

Fun DIY @ Home - Pocket e-Bike - The eCati-disassemble1.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-disassemble2.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-disassemble3.jpg

--Eliminate the flywheel weight and magneto weight, all unnecessary baggage for a ebike. This step alone saved around 3-4 kilos of dead weight on the crank shaft.

Fun DIY @ Home - Pocket e-Bike - The eCati-disassemble4.jpg

--Extend the drive shaft outside the magneto cover (seen in many videos) and fit a V-Belt pulley and drive the shaft from a motor above - risking the riders feet or toe to the nearby rolling V-Belt!

Fun DIY @ Home - Pocket e-Bike - The eCati-1st-shaft.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-pulley1.jpg

--Flopped because couldnt find a smaller belt and somehow didnt seem convincing till the very end, scrapped the idea!

Fun DIY @ Home - Pocket e-Bike - The eCati-pulley2.jpg

2nd Idea

--Move over belt; let us try a chain drive with a hub+sprocket and drive it from a motor above, but still outside the magneto cover.

Fun DIY @ Home - Pocket e-Bike - The eCati-long-shaft-sprocket.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-shaft-outside1.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-shaft-outside2.jpg

--Didnt seem convincing still, inherent risk of mincing my sons feet on a nearby drive chain or belt was lingering on the back of my head.
svsantosh is offline   (19) Thanks
Old 13th January 2020, 16:21   #4
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,456
Thanked: 2,293 Times
Default Final Idea3rd Idea --Some smart person (On youtube) pulled it off by a very very smart and simple id

3rd Idea

--Some smart person (On you tube) pulled it off by a very very smart and simple idea. I really loved the simplicity in which he achieved the project closure and his idea involved using the entire bike's engine in as-is condition except for the head & bore removed, con-rod cut off with a cutting wheel, using the 'Timing' gear (driven) as the motor's drive gear and use the existing crankshaft's integrated sprocket as the driven and run the motor.

Credits - To You tuber 'Technical Partha'

Fun DIY @ Home - Pocket e-Bike - The eCati-youtube-idea.jpg

--I saw few potential issues in the above idea. The flywheel weight and the magneto weight still is putting unnecessary load on the electric motor. And more importantly, the timing chain doesn't come with serviceable links, if it snaps you anyways needs to disassemble the entire engine to replace it.

4th Idea (Not Final)

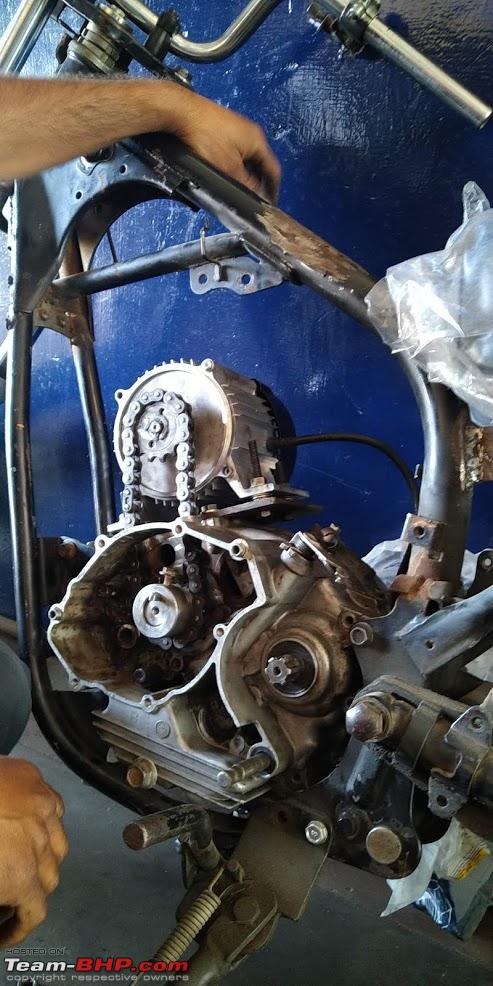

--Mashed up all the above ideas and ended up using the engines die cast body's timing chain slot to drive a fatter chain and thus shortening the drive rod + saving the riders feet + strengthening the drive chain + deleting the heavy crank shaft & Magneto.

Fun DIY @ Home - Pocket e-Bike - The eCati-final-crank-shaft2.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-final-crank-shaft-view.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-final-crank-shaft-view1.jpg

--This way engine's OEM outer dimensions are maintained.
svsantosh is offline   (24) Thanks
Old 13th January 2020, 17:31   #5
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,456
Thanked: 2,293 Times
Default Setbacks and Delays

There are bound to be setbacks on any project where ideas flow along the way and dedication is strictly limited to 'on the way back home' shopping from scrap yards.

One such was a haphazard implementation of the mono-shock.


The choice of mono shock from a 4-wheeler (side wheels for the specially abled scooter) was toooo' soft and even two of them were useless for my 30Kg son! Had to discard the entire idea.

Fun DIY @ Home - Pocket e-Bike - The eCati-monofail1.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-monofail2.jpg

This pic shows the uncanny resemblance to the RX Chassis.

Fun DIY @ Home - Pocket e-Bike - The eCati-monofail3.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-monofail4.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-monofail5.jpg

Other Being complete lack of idea about electrical and electronics.

Electrical Issue - 1

Motor was spinning in reverse (w.r.t to the crank Vs primary output sprocket), turned out to be classic case of 'Chinese electronics'. Seller was very helpful over the phone and the wiring was reversed in the kit to overcome the reversal syndrome (something to do the 'HALL SENSOR')

Note 2 color codes wires are reversed w.r.t to the other connector.

Old Wiring

Fun DIY @ Home - Pocket e-Bike - The eCati-old-wiring.jpg

New wiring

Fun DIY @ Home - Pocket e-Bike - The eCati-new-wiring-1.jpg

New wiring (4-20mA circuit)

Fun DIY @ Home - Pocket e-Bike - The eCati-new-wiring.jpg



Electrical Issue - 2

Original RPM seemed very very labored and slow, disassembled per a video from you tube (again!) and found the 'Planetary Gearbox' is slowing down the entire ops. Discarded the planetary arrangement and the primary RPM is really fast.

Fun DIY @ Home - Pocket e-Bike - The eCati-planet-1.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-planet-2.jpg

Fun DIY @ Home - Pocket e-Bike - The eCati-planet-3-ok.jpg

These delays cost valuable time in finishing the project at a faster pace!!

Last edited by svsantosh : 13th January 2020 at 17:38.
svsantosh is offline   (40) Thanks
Old 14th January 2020, 07:49   #6
Distinguished - BHPian

BoneCollector's Avatar

Join Date: Apr 2011
Location: BIHAR
Posts: 2,047
Thanked: 4,482 Times
Default Re: Fun DIY @ Home - Pocket e-Bike - The eCati

Wow.

I remember reading your other project thread. This one is equally interesting. The level of expertise when dealing with mechanicals is way beyond my understanding. I'm an electronics man, so I won't be asking you any questions but would love to see the final product.
BoneCollector is online now   (1) Thanks
Old 14th January 2020, 09:47   #7
Senior - BHPian

blackwasp's Avatar

Join Date: Apr 2015
Location: Navi Mumbai
Posts: 2,574
Thanked: 19,553 Times
Default Re: Fun DIY @ Home - Pocket e-Bike - The eCati

Wow! hooked onto this thread! Like your earlier one, can't wait to see the end result. And kudos to you and your son for pursuing this. Its not easy to do things DIY in India, at least on the scale you are doing.

Keep it up
blackwasp is online now
Old 14th January 2020, 10:37   #8
BHPian

Thermodynamics's Avatar

Join Date: Aug 2017
Location: Bengaluru
Posts: 658
Thanked: 3,223 Times
Default Re: Fun DIY @ Home - Pocket e-Bike - The eCati

Interesting DIY, one question, why didn't you consider a scrap TVS-50 instead of Crux, wouldn't that be a lot simpler ?

Last edited by Thermodynamics : 14th January 2020 at 10:39.
Thermodynamics is offline   (1) Thanks
Old 14th January 2020, 10:38   #9
knp
BHPian

Join Date: May 2006
Location: bangalore
Posts: 236
Thanked: 38 Times
Default Re: Fun DIY @ Home - Pocket e-Bike - The eCati

amazing.. especially, rather having your son watching some videos or playing games on smartphone, involving him in these DIY is appreciable. Keep up the great work and bookmarked this post
knp is offline
Old 14th January 2020, 11:02   #10
Senior - BHPian

Mr.Boss's Avatar

Join Date: Mar 2011
Location: Madras
Posts: 2,196
Thanked: 3,098 Times
Default Re: Fun DIY @ Home - Pocket e-Bike - The eCati

Quote:
Originally Posted by svsantosh View Post
Purpose - has to be some purpose always, right?

1) A proper 'Geared' Motorbike (Accelarator-Brake-Cluch) - light weight, minus the risk of peppy petrol mill.
Quote:
Originally Posted by Thermodynamics View Post
Interesting DIY, one question, why didn't you consider a scrap TVS-50 instead of Crux, wouldn't that be a lot simpler ?
OP answered in the initial post
Mr.Boss is offline   (1) Thanks
Old 14th January 2020, 11:31   #11
Distinguished - BHPian

condor's Avatar

Join Date: Jun 2006
Location: Speed-brkr City
Posts: 12,586
Thanked: 7,722 Times
Default Re: Fun DIY @ Home - Pocket e-Bike - The eCati

Santosh, that is an awesome DIY ! Just looking at this thread makes me feel like driving down to check it out in person, and ride it.

Then again, something like this should not be a surprise when we consider it is you who is doing it

condor is offline
Old 14th January 2020, 11:59   #12
Newbie

Join Date: Aug 2017
Location: Pune
Posts: 12
Thanked: 14 Times
Default Re: Fun DIY @ Home - Pocket e-Bike - The eCati

Quote:
Originally Posted by svsantosh View Post
Disclaimer

Purpose - has to be some purpose always, right?

2) Infuse some thought process in my sons head along the way of the project, some creativity if I may say so...

3) E-mobility! He knows enough jargons by now about my (Chevy Sail-UVA) car parts and his Pocket-Scooty, but something new to both of us was e-cars and e-bikes.

Life has a purpose and so does everything in it and your project echoes just that.It is not everyday we come across such wonderful DYI projects. Kudos to you my friend. I'm so excited and elated to read this.

I highly appreciate the fact that you have involved your kid in such a lovely scientific experiment, this learning for him I'm sure will take him a long way ahead. In this modern age where parents boast that their kids learning to use smartphones on their own is a great achievement, you have taken the old school way of teaching your kid the basics of life. Teamwork, challenges and lets do it attitude are somethings no one can teach from books.

More than anything else I also appreciate your time in all this; the time you are spending with your kid will definitely turn into solid memories which your boy would boast about his entire life. And trust me, not every so called busy parent can do that !

All the very best to the father son duo. Thanks a lot for sharing, was very happy to read it.
skyocean is offline
Old 14th January 2020, 13:18   #13
BHPian

Join Date: Dec 2005
Location: bang
Posts: 366
Thanked: 729 Times
Default Re: Fun DIY @ Home - Pocket e-Bike - The eCati

Nice project. I tried doing something similar for my son by attaching a bush cutter engine to an old kids bicycle using a V Belt. Even though the contraption worked. He refused to sit on it and pointed out to a parked Dominar and said " I want that, not this". Sent him to extra tuition class after that .

I am assuming that you are planning to use the clutch / gears of the ICE. You can also consider controlling speeds electronically. All the best.

Last edited by srini1785 : 14th January 2020 at 13:24.
srini1785 is online now
Old 14th January 2020, 14:50   #14
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,456
Thanked: 2,293 Times
Default Some Videos during the DIY

Some Videos taken during the run upto the 1st prototype run stage.

1st Crank shaft Prototype - Note the shaft coming out of the magneto adjust nut hole, would have fouled with the riders feet/toe, so dropped that idea.



Soft Dual Shockers Reject - Dad helping out with eagerness as always, I really liked the position and cool looking dually's but sadly they were way too soft.



Planetary Vs Direct - Here you can see the RPM drop caused by the planetary GB setup, this is suitable for direct drive to the wheel axle, but TO-BE avoided when you have a standard GB or a CVT (scooterette) application.



Hand Crank Rotate Test - After chopping the crank we tested the clearances and play of the drive chain from motor shaft to crank shaft.



Final Crank Setup - This was the final setup agreed with the motor base plate made from a scrap 4mm plate.

svsantosh is offline   (8) Thanks
Old 14th January 2020, 15:05   #15
Senior - BHPian

Mr.Boss's Avatar

Join Date: Mar 2011
Location: Madras
Posts: 2,196
Thanked: 3,098 Times
Default Re: Fun DIY @ Home - Pocket e-Bike - The eCati

All the very best for one more interesting project to keep the kid smiling.

Do you mind sharing the spec of electrical portion?
Mr.Boss is offline
