Red face Birthday off-roading bash on Grand Vitara goes sour...

On my birthday last Friday, I figured I'll do some off-roading in my office grounds. The idea had dual purpose, (1) Thorough testing of the new custom skid plates. (2) A small off-roading demo to my colleagues, most of whom haven't heard of the term off-roading.

Those of you not familiar with my new skid plates story, check here: http://www.team-bhp.com/forum/4x4-of...id-plates.html

It has been raining regularly since 1 week, very odd for March. The ground looked little soft. So when I scouted in the morning, I figured it was Ok. The show was scheduled for 5:30PM, after the weekly company meeting. But I noticed dark rain clouds by 3PM. By 3:30PM it started pouring pretty hard.

It was lightly drizzling when we started out at 5:30PM, all the audience were carrying umbrellas and my wife joined me in the GV. The trail had two sections, first one was simple climb on a semi-hard rocky (latrite stone) incline. Here is the video of that:



All were very impressed, and thought it was the end of the show.

Anyway, I told them it was a very simple part and then pointed to my next obstacle. Some gasped at that.



Some of you might recall that this was the same incline which Gurkha had failed to climb during the test drive. Now, I went further than than and reached the top, but was unable to break-over and land my front wheel on the level ground thanks to the reduced GC. At first, I thought I was not having enough torque or traction to make it across. After two attempts, my wife got out and watched from outside. She confirmed that the skid plates were banging against the ridge of the incline and stopping the GV cold. After 3 attempts, I gave up and turned around.

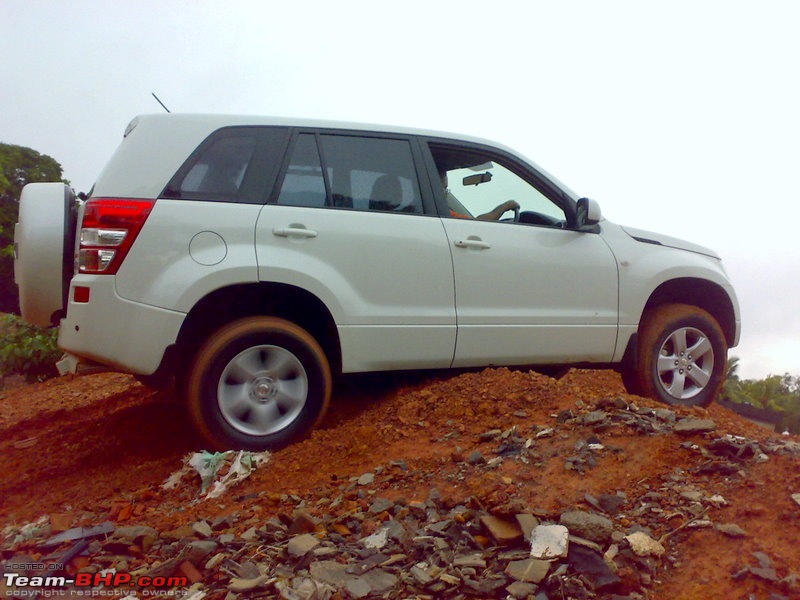

Defeated by skid plates
Name:  21032008158.jpg
Views: 14572
Size:  101.8 KB

As I reversing, I forgot to sidestep a crevice which I had noticed while driving in. But with the failed attempt in mind, it slipped my mind while backing out. None of my colleagues had ever seen anything like this, so when they did notice me backing out into the crevice, they didn't understand the danger, so nobody warned me. The soft mud easily gave way and the rear right tyre sunk deep into the crevice. The whole custom skid plate surface sat smack on the soft muddy ground. I had lost traction in practically all wheels, people reported seeing 3 wheels spinning sometime. Without the custom skid plates, I wouldn't have got stuck this easily, but the lowered flat platform was begging for it. But at the same time the custom skid plates protected the under-body very well from any damage. It took on the entire weight.



When I tried to get out of the driver side door, I couldn't. The bottom edge of driver side door had sunk too. I had to get out of the passenger side, which isn't an easy thing to do with a heavily muddy shoe.

We all spent the next 2.5 hours trying in vain to dig the GV out of the mud. Couple of us actually dug mud while lying down next to the vehicle. Pulling the GV with rope in any direction didn't work, even while using 8-10 people. We even got a 4x2 Gypsy to pull the GV out. The GV didn't even move a millimeter and the Gypsy was spinning it's wheels royally. The Gypsy guys from the local driving school were stupefied as to how the GV ended up there. I told them I drove to that place, but they couldn't understand why.

All the while it was raining lightly, but we had stopped noticing it. The area was lit by GV headlights and couple of torches. At 8:30PM we gave and got back to office, some of us completely covered in mud. The birthday cake was cut and we all had light snacks and cold-drinks. My father-in-law collected us from work at 9PM.

After reaching home, I was too tired for dinner. I took a hot shower, watched a movie with the whole family and then went to sleep. It rained whole night.

Next day I tried to get a crane to come and pull the GV out. But the crane owners we knew, didn't pick up their mobile. So I went to a local car garage and asked them come with their hydraulic jack which has a three ton load capacity. It was still raining non-stop, and the mud pile around GV had changed considerable over the rainy night, and the GV had settled snugly into the ground.

Looks very innocent and normal, isn't it?
Name:  269575428_Q6iJbL.jpg
Views: 4712
Size:  153.4 KB

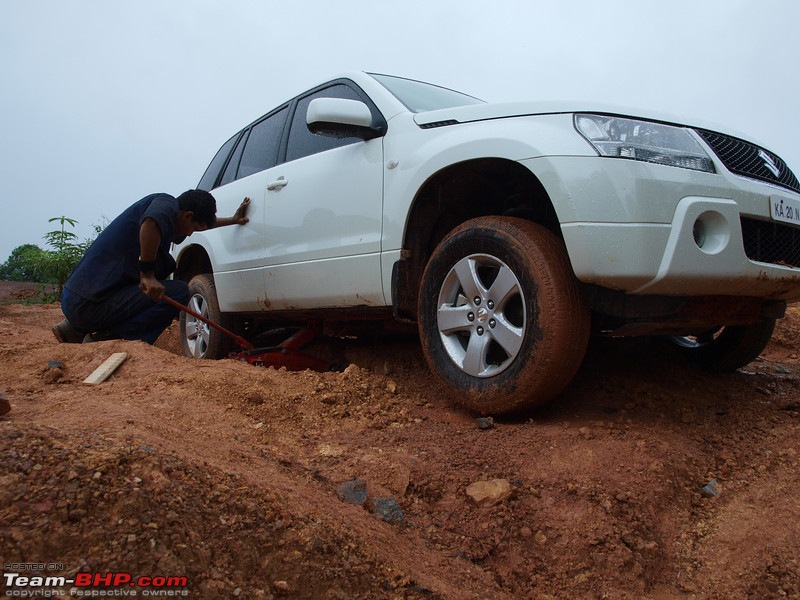

Lifting it with a hydraulic jack
Name:  269576715_3ziCqL.jpg
Views: 5282
Size:  152.5 KB

After an hour of work, we raised the GV by few inches and put lots of dry stones under every tyre to improve traction. But we still couldn't get the GV underbelly off the ground. The only improvement was that it would shake a little from that position.

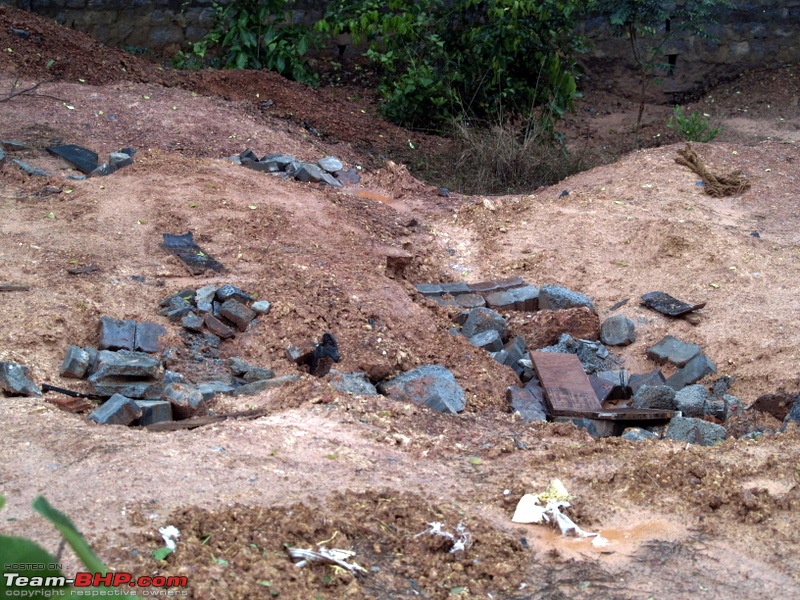

You can see how much stones were filled here.
Name:  _3245659.JPG
Views: 4415
Size:  428.4 KB

Next, we got a Tata 407 and try to pull the GV out. The 1.5inch coir rope snapped after some attempt. Then we got nylon rope from the office. At first even 407 spun it's wheels. Then we got few people to stand in the cargo area right above the tyres. Then I too put the GV in 4L reverse and we combined our efforts. The GV finally moved and got out of the mess.

Name:  269577505_3tGjmL.jpg
Views: 6792
Size:  112.7 KB

Notice the low mounted skid plates seen under the body? I think that should not be permanently mounted all the time. It basically protects petrol tank and exhaust pipes which have very low risk of getting hit. I should use these rear plates only in rare rocky road safaris. For most off-road situations the front plates should suffice very well.

Some of the things I understood about GV are as follows:
1) GV has enough torque, so I'll have to stop complaining about that.
2) The mud I encountered needs proper M/T or mud offroading tyres, I shouldn't try this with H/T or highway tyres.
3) The GV has limited GC as it is, I shouldn't further reduce it, even for protecting it. It is similar to how a warrior wears armour. Too much armour may inhibit the warrior from using his weapons. A compromise has to come out between protection and ground clearance.

The various village folks who came to pull out the GV must be making up lots of the theories about the whole incidence. None of them bought my story that I went there intentionally. They all saw these tracks and concluded that I came down the mud hill accidently, turned and then got stranded. (Psst: You know, these things happen when people with big imported vehicles get drunk.)

Name:  _3245658.JPG
Views: 11765
Size:  424.0 KB

When I told them that those tracks are from going up and I drove in here for fun, I got that same look from everyone. The look that one would give a person who after having been rescued from the well claims that he jumped in intentionally, for fun....

But here is the proof though, the tracks the end right at the ridge. Now explain that!
Name:  _3245661.JPG
Views: 4223
Size:  480.2 KB
Samurai is offline   (1) Thanks Reply With Quote
Old 24th March 2008, 17:18   #2
Senior - BHPian

madan80's Avatar

Join Date: Jan 2006
Location: Santa Clara, CA
Posts: 1,356
Thanked: 73 Times
Default

yikes! quite an adventure- but- as they say there are learnings from everything. So, will the GV be coming to kelambakkam?
madan80 is offline   Reply With Quote
Old 24th March 2008, 17:19   #3
Distinguished - BHPian

Technocrat's Avatar

Join Date: Feb 2004
Location: Mid West
Posts: 14,861
Thanked: 2,398 Times
Default

Phew, Samurai. that was scary, Just wondering, would keeping some metal sheets with some grip(as wide as a tire) in your dicky help i.e. you can put this plates under the wheel & get some grip for tires.

And yes I dont think anyone would believe that you went there deliberately
Technocrat is offline   Reply With Quote
Old 24th March 2008, 17:24   #4
Senior - BHPian

bottle's Avatar

Join Date: Sep 2006
Location: Chennai
Posts: 1,488
Thanked: 131 Times
Default

what an experience. get your new tyres asap

and happy birthday too
bottle is offline   Reply With Quote
Old 24th March 2008, 17:29   #5
Distinguished - BHPian

phamilyman's Avatar

Join Date: Jul 2007
Location: Gurgaon
Posts: 5,582
Thanked: 3,244 Times
Default

woah, whatay! It happens wonlee with Samurai!

and yes, same koshun as techno
/who is recalling his dakar vids!
phamilyman is offline   Reply With Quote
Old 24th March 2008, 17:32   #6
Senior - BHPian

PatienceWins's Avatar

Join Date: May 2007
Location: Bangalore
Posts: 2,134
Thanked: 244 Times
Default

Great adventure!!
What matters is the learning. Keep going. When the going gets tough only the tough gets going. All the Best!!

I can imagine the gossip by villagers.The villagers would not understand off-roading.

Last edited by PatienceWins : 24th March 2008 at 17:39. Reason: spelling
PatienceWins is offline   Reply With Quote
Old 24th March 2008, 17:49   #7
Team-BHP Support

mobike008's Avatar

Join Date: Sep 2006
Location: Hyderabad
Posts: 10,518
Thanked: 7,191 Times
Default

After looking at the video titled defeated by new skid plates. GV looked quite helpless to make that climb. Incidentally the incline does not look to be very high ( maybe 6 ft or so, correct me if i am wrong) and if a GV cannot make it then i will be damned which car can make it?
mobike008 is offline   Reply With Quote
Old 24th March 2008, 17:59   #8
Team-BHP Support

Samurai's Avatar

Join Date: Jan 2005
Location: B'lore-Manipal
Posts: 22,043
Thanked: 13,493 Times
Default

Quote:
Originally Posted by mobike008 View Post
After looking at the video titled defeated by new skid plates. GV looked quite helpless to make that climb. Incidentally the incline does not look to be very high ( maybe 6 ft or so, correct me if i am wrong) and if a GV cannot make it then i will be damned which car can make it?
Boss, did you even read the article or watch the video at all? If you watch the video, you will see that GV did reach the top. But the reduced breakover angle thanks to skid plates made the GV sit on the ridge, stopping it from completing the climb. It would have completed the climb if the skid plates hadn't stopped it abruptly.

Breakover angle: Ramp Breakover Angle on carlist.com
Samurai is offline   Reply With Quote
Old 24th March 2008, 18:06   #9
Team-BHP Support

mobike008's Avatar

Join Date: Sep 2006
Location: Hyderabad
Posts: 10,518
Thanked: 7,191 Times
Default

Quote:
Originally Posted by Samurai View Post
Boss, did you even read the article or watch the video at all? If you watch the video, you will see that GV did reach the top. But the reduced breakover angle thanks to skid plates made the GV sit on the ridge, stopping it from completing the climb. It would have completed the climb if the skid plates hadn't stopped it abruptly.

Breakover angle: Ramp Breakover Angle on carlist.com
My bad, i read the article and saw the video in its entirety. So the skid plates was the party pooper
mobike008 is offline   Reply With Quote
Old 24th March 2008, 18:32   #10
BHPian

simplythebest's Avatar

Join Date: Feb 2008
Location: Coimbatore
Posts: 117
Thanked: 5 Times
Default

You can try to find out if someone makes a height adjustable suspension kit for the GV.

Will help solve some of your problems.
simplythebest is offline   Reply With Quote
Old 24th March 2008, 18:33   #11
Senior - BHPian

kuttapan's Avatar

Join Date: May 2007
Location: Melbourne
Posts: 1,155
Thanked: 11 Times
Default

Great going Samurai. I know that you are going to treat this incident as a learning than anything else and you will only be better of with the education.
kuttapan is offline   Reply With Quote
Old 24th March 2008, 18:41   #12
Team-BHP Support

Samurai's Avatar

Join Date: Jan 2005
Location: B'lore-Manipal
Posts: 22,043
Thanked: 13,493 Times
Default

Quote:
Originally Posted by simplythebest View Post
You can try to find out if someone makes a height adjustable suspension kit for the GV.
Yes, it is available. But it does come with certain compromise on handling and warranty gets void.

Quote:
Originally Posted by kuttapan View Post
Great going Samurai. I know that you are going to treat this incident as a learning than anything else and you will only be better of with the education.
Surely. No more lone-wolf off-roading, it is better to have another vehicle around that is capable of pulling you out.

The way I got stuck is very similar to what happened to the Land Cruiser in Kelambakkam off-roading event. There the winch equipped Jeep could pull it out in minutes, here it took forever for lack of right equipment.
Samurai is offline   Reply With Quote
Old 24th March 2008, 18:53   #13
Distinguished - BHPian

condor's Avatar

Join Date: Jun 2006
Location: Speed-brkr City
Posts: 10,319
Thanked: 3,661 Times
Default

Quote:
Samurai : No more lone-wolf off-roading, it is better to have another vehicle around that is capable of pulling you out.
You could get yourself a winch till then.
condor is offline   Reply With Quote
Old 24th March 2008, 18:55   #14
Team-BHP Support

Samurai's Avatar

Join Date: Jan 2005
Location: B'lore-Manipal
Posts: 22,043
Thanked: 13,493 Times
Default

Quote:
Originally Posted by condor View Post
You could get yourself a winch till then.
Very difficult to install Winch on a GV, I have seen an installation, but it may not be safe.
Samurai is offline   Reply With Quote
Old 24th March 2008, 19:08   #15
Distinguished - BHPian

Mpower's Avatar

Join Date: Mar 2005
Location: Bangalore
Posts: 10,428
Thanked: 1,676 Times
Default

LOL Samurai, reminded me of Massa's situation in Sepang. Good thing you were not in a jungle in the middle of nowhere.

I once rode a dirt bike in mud and rain and swore never to mix the two ever again.
Mpower is offline   Reply With Quote
