Default Pictorial: Replacing the gearbox input-shaft bearing on my Honda Civic

The Issue:

Bearing noise from the left side of the Car.

When:
1. While stationary after starting and in Neutral
2. While in movement, in all gears. More predominant at gears 1, 2,3. Though the noise is there at gears 4, 5 the speed of the car and wind noise makes it difficult to notice.
3. Goes away when clutch is fully pressed

How to identify:
After starting, in neutral listen to the bearing noise in a silent zone with your car. Press the clutch completely in, the bearing noise stops, since we disengage the gears. Release the clutch slowly back, the bearing noise comes back.

If you get a noise while pressing the clutch in, it is a noise from your release bearing.

Diagnosis:
INPUT SHAFT BEARING NOISE

How does it sound? How can I recognize?
Here's an audio of the issue when it begins, and in initial stages


Here's a video of the same left unattended for quite a long time


Here's a video which shows what exactly is the issue


What Should I do if I get this issue?
You need to change the Input Shaft Bearing. The OEM bearing is from NTN Japan. It is a Deep Groove Bearing. While you do that, its a good thing to replace the Oil Seal as well.

OEM Part Number
1. 91002 RPF 003 - INPUT SHAFT BEARING, Costs Rs512
2. 91216 PHR 003 - OIL SEAL, Costs Rs 235

Input Shaft Bearing
Name:  IMG_20170524_134636Edit.jpg
Views: 7181
Size:  326.9 KB

Name:  IMG_20170524_134644Edit.jpg
Views: 7023
Size:  382.6 KB

Name:  IMG_20170524_134759Edit.jpg
Views: 6999
Size:  254.0 KB


Oil Seal
Name:  IMG_20170524_142431Edit.jpg
Views: 6977
Size:  418.6 KB

Name:  IMG_20170524_142442Edit.jpg
Views: 6939
Size:  236.2 KB

Name:  IMG_20170524_142726Edit.jpg
Views: 6932
Size:  315.3 KB

Name:  IMG_20170524_142742Edit.jpg
Views: 6797
Size:  270.1 KB

It would be advisable to do this at HASS, since the whole Gearbox have to be downed and you need the genuine components, trained mechanics, access to good quality tools and a lift. You would definitely be looking at 2 to 3 days of down time for your car.

If you can source this components in any other ways, you can work with your trusted FNG. Key here is the component, and it's quality. Since this is a labor intensive job with huge downtime, its better to do it with original components. Well, we don't want to keep opening Gearboxes all the time, do we?


What did I do? What was wrong with my Civvy?
I wanted to clearly understand the issue, so I asked my trusted and Skilled Mechanics at my favorite FNG to down the gearbox and show me the Input Shaft Bearing.

Here it is as expected: See the broken bearing!
Name:  IMG_20170524_150253Edit.jpg
Views: 6882
Size:  290.0 KB

Once we confirmed it was indeed the Input Shaft bearing, we tried with our local bearing suppliers. They could find equivalents and quotes came from Rs 500 to Rs 5000, but definitely they needed time to source in the range of 3days to 2 weeks.

I then decided to discuss with HASS. The parts were not available locally. They had to order and get the same and no possibility for a counter sale. Have to get the car to HASS. But on discussing the matter and me being their customer since 10 years, and the parts not very expensive, the vehicle already in a garage, it was agreed that I can take it. We then ordered the same via an air delivery mode, which is an expedited form of an order. It was promised to be available in 3 days, and yes indeed it came in three days. With the parts sourced the work was completely done in my supervision at my FNG.

The broken and the new bearing for comparison
Name:  IMG_20170524_150326_01Edit.jpg
Views: 7164
Size:  296.3 KB

It took almost half a day to down the Gearbox, another half to remove the bearing and assemble back, and another half a day to put the gear box back in place. Labour intensive work, indeed.


More about the work and pictures in subsequent posts.

Last edited by Rehaan : 26th May 2017 at 10:00. Reason: Lets avoid the red text, else it will become an epidemic :)
laluks is offline   (24) Thanks Reply With Quote
Old 25th May 2017, 20:14   #2
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 5,753
Thanked: 6,801 Times
Default Input Shaft Bearing Noise

Day 01
18th May 2017


Decided to check Civvy for the bearing noise, and reached my FNG. They already knew I wanted the gear box to be downed and opened and the input shaft bearing checked.

They are on the job as soon as I arrive.
Name:  IMG_20170518_120807Edit.jpg
Views: 6626
Size:  307.3 KB

For Civic if we have to down the gearbox, we need to remove the frame .

After a long hard work, the frame is down and the Gear box is also separated for review.
Name:  IMG_20170518_133020Edit.jpg
Views: 6636
Size:  342.2 KB

Name:  IMG_20170518_133053Edit.jpg
Views: 6624
Size:  338.3 KB

The Frame!

Name:  IMG_20170518_133135Edit.jpg
Views: 6586
Size:  374.1 KB

The bolts that kept all of that in place

Name:  IMG_20170518_133317_01Edit.jpg
Views: 6602
Size:  346.4 KB

Support for the Engine
Name:  IMG_20170518_132302Edit.jpg
Views: 6518
Size:  292.3 KB

Engine bay without the frame and Gearbox
Name:  IMG_20170518_132745Edit.jpg
Views: 6519
Size:  266.2 KB

Flywheel at 148000Kms, probably with the next clutch change I will replace the same
Name:  IMG_20170518_132621Edit.jpg
Views: 6531
Size:  389.0 KB

This clutch did only 20K Kms and good to go for more, the previous one did 125K!
Name:  IMG_20170518_133104Edit.jpg
Views: 6498
Size:  362.1 KB

Left Axle

Name:  IMG_20170518_133120Edit.jpg
Views: 6470
Size:  154.3 KB
laluks is offline   (19) Thanks Reply With Quote
Old 25th May 2017, 20:38   #3
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 5,753
Thanked: 6,801 Times
Default Input Shaft Bearing Noise

Day 01
18th May 2017



That's our Gearbox

Name:  IMG_20170518_132529Edit.jpg
Views: 6414
Size:  264.2 KB

That's the Input Shaft
Name:  IMG_20170518_132552Edit.jpg
Views: 6416
Size:  247.2 KB

Gearbox placed in the operation table
Name:  IMG_20170518_133324Edit.jpg
Views: 6380
Size:  310.4 KB

Sensor

Name:  IMG_20170518_133542Edit.jpg
Views: 6370
Size:  219.7 KB


Name:  IMG_20170518_133548Edit.jpg
Views: 6377
Size:  161.4 KB


Name:  IMG_20170518_133551Edit.jpg
Views: 6359
Size:  193.3 KB

Oil Seal looks Ok
Name:  IMG_20170518_133726Edit.jpg
Views: 6384
Size:  304.9 KB

That's where the axle gets to the differential
Name:  IMG_20170518_133901Edit.jpg
Views: 6335
Size:  325.8 KB

Gear shifting assembly removed
Name:  IMG_20170518_134259Edit.jpg
Views: 6316
Size:  287.9 KB

Name:  IMG_20170518_134351Edit.jpg
Views: 6315
Size:  257.7 KB
laluks is offline   (17) Thanks Reply With Quote
Old 25th May 2017, 20:47   #4
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 5,753
Thanked: 6,801 Times
Default Input Shaft Bearing Noise

Day 01
18th May 2017

We started opening the Gearbox slowly.

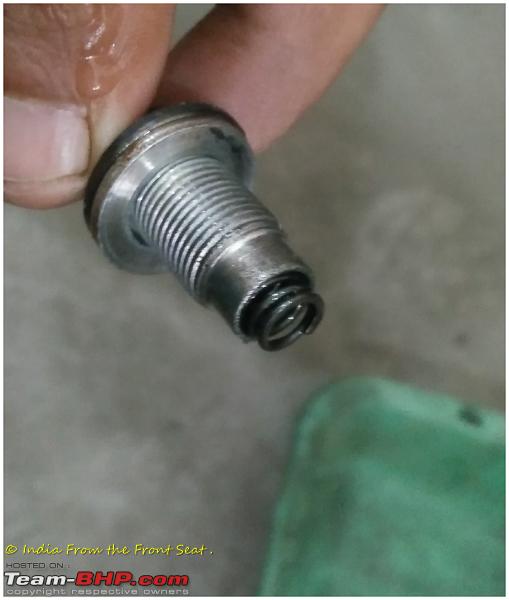

Tricky parts, there are 4 bolts with springs and balls
Name:  IMG_20170518_134504Edit.jpg
Views: 6313
Size:  250.7 KB

Name:  IMG_20170518_134727Edit.jpg
Views: 6306
Size:  241.9 KB

Name:  IMG_20170518_134745Edit.jpg
Views: 6285
Size:  186.0 KB

Name:  IMG_20170518_134833Edit.jpg
Views: 6281
Size:  249.0 KB

Then you have the lock
Name:  IMG_20170518_135250Edit.jpg
Views: 6281
Size:  325.0 KB

Once that is unlocked and all the bolts unscrewed the gear box opens without a fuss.

The Gears, shifting rods
Name:  IMG_20170518_140426Edit.jpg
Views: 6288
Size:  296.8 KB

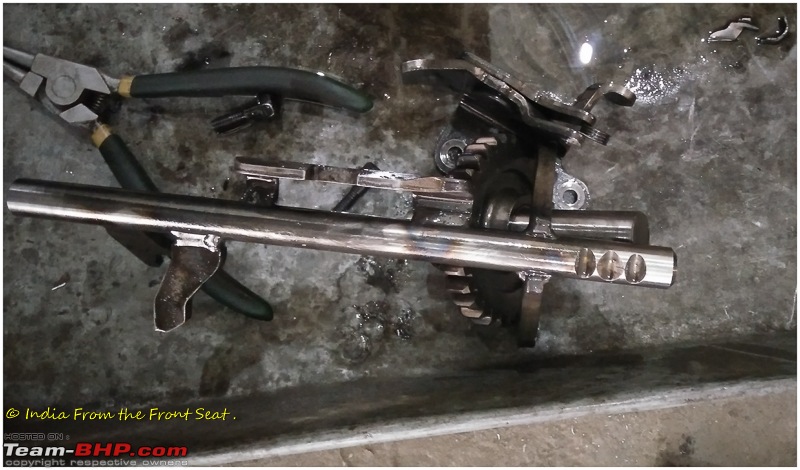

Reverse gear
Name:  IMG_20170518_140431Edit.jpg
Views: 6250
Size:  295.2 KB

The differential
Name:  IMG_20170518_140439Edit.jpg
Views: 6278
Size:  315.9 KB

Name:  IMG_20170518_141944Edit.jpg
Views: 6284
Size:  252.0 KB
laluks is offline   (16) Thanks Reply With Quote
Old 25th May 2017, 21:28   #5
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 5,753
Thanked: 6,801 Times
Default Input Shaft Bearing Noise

Day 01
18th May 2017

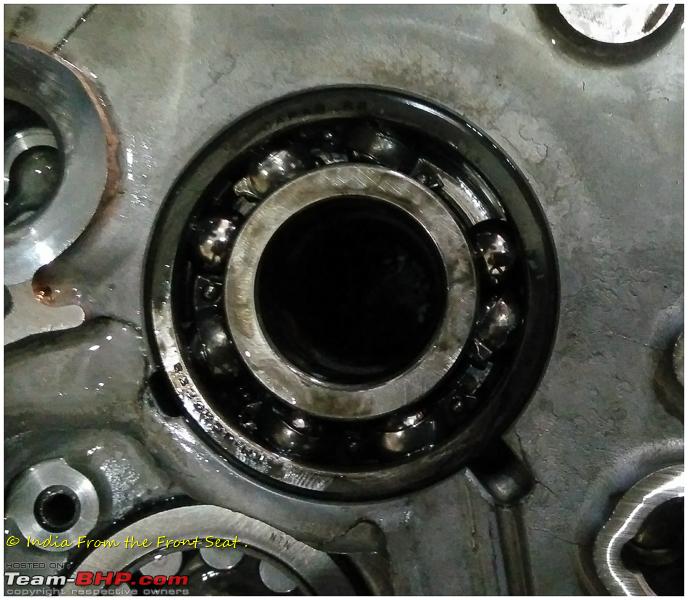

There we see the input shaft bearing, looks bad
Name:  IMG_20170518_140121Edit.jpg
Views: 6250
Size:  334.0 KB

We removed it from the case
Name:  IMG_20170518_140434Edit.jpg
Views: 6211
Size:  229.6 KB

He did 148K before he gave up
Name:  IMG_20170518_140749Edit.jpg
Views: 6238
Size:  301.2 KB

The washers above the bearing
Name:  IMG_20170518_142007Edit.jpg
Views: 6182
Size:  316.0 KB

Two of them, position is important
Name:  IMG_20170518_142019Edit.jpg
Views: 6191
Size:  264.8 KB

Checked the oil seal below the bearing
Name:  IMG_20170518_142037Edit.jpg
Views: 6176
Size:  161.1 KB

It looked ok, but since we opened the case decided to change that as well
Name:  IMG_20170518_142115Edit.jpg
Views: 6170
Size:  350.9 KB

There is a magnet inside the gear box
Name:  IMG_20170518_141917Edit.jpg
Views: 6132
Size:  172.1 KB

See how it attracts the broken metallic pieces and Gear dust. All this collected over 148k and 10 years.
Name:  IMG_20170518_141920Edit.jpg
Views: 6149
Size:  173.3 KB

The broken pieces from the old bearing
Name:  IMG_20170518_141953Edit.jpg
Views: 6116
Size:  128.2 KB


By this time, it was almost a full day of work. We were very clear with our diagnosis and identifying the components was done. Now it was time to source the components.

As mentioned before I gave the order to HASS on 19.05.2017. The promise was to deliver in three working days and I got the components in hand on 23.05.2017

See the date on the package, seems like it was packed after my order!!
Pictorial: Replacing the gearbox input-shaft bearing on my Honda Civic-img_20170524_134644edit.jpg


Made arrangements to start the work on 24.05.2017 at my FNG. Day02 also seems to be like a full day of labour

Last edited by laluks : 25th May 2017 at 21:43.
laluks is offline   (16) Thanks Reply With Quote
Old 25th May 2017, 21:41   #6
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 5,753
Thanked: 6,801 Times
Default Input Shaft Bearing Noise

Day 02
24th May 2017

The outgoing broken bearing
Name:  IMG_20170524_150257Edit.jpg
Views: 6120
Size:  320.2 KB

The oil seal was good
Name:  IMG_20170524_151532Edit.jpg
Views: 6146
Size:  182.9 KB

Still decided to replace with new one

Name:  IMG_20170524_151817Edit.jpg
Views: 6100
Size:  281.5 KB

New Oil seal, New Bearing in place
Name:  IMG_20170524_152147Edit.jpg
Views: 6135
Size:  279.0 KB

Name:  IMG_20170524_152153Edit.jpg
Views: 6089
Size:  147.5 KB

Time to place the washers back
Name:  IMG_20170524_152240Edit.jpg
Views: 6158
Size:  399.9 KB

The Magnet fully cleaned for its next schedule of duty

Name:  IMG_20170524_145855Edit.jpg
Views: 6097
Size:  317.8 KB

In fact the magnet did a wonderful job of not letting the broken pieces from the earlier bearing getting between the gear wheels causing unnecessary wear and tear.
laluks is offline   (18) Thanks Reply With Quote
Old 25th May 2017, 21:51   #7
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 5,753
Thanked: 6,801 Times
Default Input Shaft Bearing Noise

Day 02
24th May 2017

The Gear box assembly after the bearing was changed
Name:  IMG_20170524_152738Edit.jpg
Views: 6091
Size:  285.3 KB

Name:  IMG_20170524_152811Edit.jpg
Views: 6086
Size:  365.6 KB

Sealing using gasket maker

Name:  IMG_20170524_153158Edit.jpg
Views: 6052
Size:  337.0 KB

Name:  IMG_20170524_153202Edit.jpg
Views: 6097
Size:  403.6 KB

Name:  IMG_20170524_153301Edit.jpg
Views: 6025
Size:  237.4 KB

Name:  IMG_20170524_153317Edit.jpg
Views: 6033
Size:  229.8 KB

Time for closing the gear box casing
Name:  IMG_20170524_153324Edit.jpg
Views: 6018
Size:  351.5 KB

Name:  IMG_20170524_153447Edit.jpg
Views: 5994
Size:  305.2 KB

And finally the reassembly
Name:  IMG_20170524_164928Edit.jpg
Views: 6008
Size:  307.6 KB

We then did liberal rounds of test drive and it all looked and felt OK. I need to take it for a bit of a long drive, which I will do this weekend


Civvy gets a good wash too.
Name:  IMG_20170524_183651Edit.jpg
Views: 6001
Size:  401.3 KB


My FNG Charged me Rs3500 for the labor.





By the Way Civvy completed her 10th birthday on 21.05.2017. All alone on a lift in my FNG. The birthday celebrations are on for this weekend
laluks is offline   (38) Thanks Reply With Quote
Old 26th May 2017, 10:10   #8
Team-BHP Support

Rehaan's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 22,261
Thanked: 22,230 Times
Default re: Pictorial: Replacing the gearbox input-shaft bearing on my Honda Civic

Laluks, this is the 'travelogue' of bearing replacements!

I've moved your posts from the Civic maintenance thread to this standalone thread.

Last edited by Rehaan : 26th May 2017 at 10:18.
Rehaan is offline   (8) Thanks Reply With Quote
Old 26th May 2017, 11:10   #9
Senior - BHPian

sumeethaldankar's Avatar

Join Date: May 2007
Location: Mumbai
Posts: 2,631
Thanked: 974 Times
Red face Re: Pictorial: Replacing the gearbox input-shaft bearing on my Honda Civic

What is the reason for the bearing to break? Since the transmission case rarely needs such maintenance what could have prevented this issue?
sumeethaldankar is online now   Reply With Quote
Old 26th May 2017, 11:23   #10
Senior - BHPian

R2D2's Avatar

Join Date: Oct 2008
Location: Punya Nagari
Posts: 1,816
Thanked: 1,038 Times
Default Re: Pictorial: Replacing the gearbox input-shaft bearing on my Honda Civic

Quote:
Originally Posted by sumeethaldankar View Post
What is the reason for the bearing to break? Since the transmission case rarely needs such maintenance what could have prevented this issue?
These are the very questions that I've had in my mind since Laluks started the thread, a thread that I find most informative and interesting. TFS Laluks.

Most modern GBs are sealed with a lifetime lube with the only preventive maintenance being adjusting the shifter play and topping off the oil in case of a leak.

A broken bearing is serious and luckily the Honda GB has a magnet that traps metallic particles which prevent further damage. Hope my vehicles have this sensible feature.

But I think the cause of bearing failure is a simple luck of the draw.
R2D2 is offline   (1) Thanks Reply With Quote
Old 26th May 2017, 11:43   #11
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 5,753
Thanked: 6,801 Times
Default Re: Pictorial: Replacing the gearbox input-shaft bearing on my Honda Civic

Quote:
Originally Posted by Rehaan View Post
Laluks, this is the 'travelogue' of bearing replacements!

I've moved your posts from the Civic maintenance thread to this standalone thread.
Thanks Rehaan

Quote:
Originally Posted by sumeethaldankar View Post
What is the reason for the bearing to break? Since the transmission case rarely needs such maintenance what could have prevented this issue?
Quote:
Originally Posted by R2D2 View Post
These are the very questions that I've had in my mind since Laluks started the thread
.........
But I think the cause of bearing failure is a simple luck of the draw.
No, This is not about luck. If you really do the research online, it seems Honda has acknowledged in their 6th Gen Civics this was a defective design.

The seventh gen civics reported many such cases and the eight gen reports even more.

All these are from heavily run vehicles, over 150K Kms most of the times. I saw one case only which had less kms on the odo when I went paranoid and started collecting reports on this issue.

Further Mazda, reported many such instances. So I guess if you search you will get many reports for all OEMs.


But thankfully the parts are available and was easy to complete the assembly, barring the intensive labour and down time
laluks is offline   (5) Thanks Reply With Quote
Old 26th May 2017, 11:51   #12
Senior - BHPian

Latheesh's Avatar

Join Date: Dec 2007
Location: Bangalore/Kannur
Posts: 2,930
Thanked: 2,511 Times
Default Re: Pictorial: Replacing the gearbox input-shaft bearing on my Honda Civic

I see old bearing is of NTN brand, but did not see any brand name on new bearing. Just my observation, I think there is nothing to worry since it is a Honda genuine part.
Latheesh is online now   Reply With Quote
Old 26th May 2017, 11:57   #13
Distinguished - BHPian

laluks's Avatar

Join Date: Sep 2008
Location: Bangalore
Posts: 5,753
Thanked: 6,801 Times
Default Re: Pictorial: Replacing the gearbox input-shaft bearing on my Honda Civic

Quote:
Originally Posted by Latheesh View Post
I see old bearing is of NTN brand, but did not see any brand name on new bearing. Just my observation, I think there is nothing to worry since it is a Honda genuine part.

Its NTN, same to same
Name:  IMG_20170524_134759Edit.jpg
Views: 5866
Size:  82.0 KB
laluks is offline   (5) Thanks Reply With Quote
Old 26th May 2017, 19:32   #14
BHPian

aghate's Avatar

Join Date: Jul 2015
Location: Pune
Posts: 65
Thanked: 65 Times
Default Re: Pictorial: Replacing the gearbox input-shaft bearing on my Honda Civic

A very informative thread indeed! Thanks for sharing.
I will keep a watch for this noise in my 3rd Gen City as well. Although I did not find any news about it in my random search after reading the details here. Good to have this information and will certainly help prospective owners when buying a pre-owned Civic.
aghate is offline   Reply With Quote
Old 26th May 2017, 19:53   #15
BHPian

Join Date: May 2013
Location: shimla
Posts: 243
Thanked: 247 Times
Default Re: Pictorial: Replacing the gearbox input-shaft bearing on my Honda Civic

Thanks for the nice write up and report. I had this bearing and 5th gear replaced in my alto in 2015. Alto components are readily available. I showed up at MASS at 9am and the car was handed over to me at 6pm. 5th gear cog and the input shaft bearing were replaced. I was charged about 5000 including the cost of the bearing, the 5th gear and labour. But they reused the old gear oil in the car. Did you have your gear oil replaced?
bullrun87 is offline   (2) Thanks Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
Honda Civic DIY: Replacing the condenser fan motor techcoze DIY - Do it yourself 5 8th September 2017 15:29
Autobahn Volkswagen, Mumbai: 3 weeks to change a gearbox bearing! Epic Indian Car Dealerships 3 24th August 2016 15:58
Honda City Vs Honda Civic E Vs Honda Civic V (pre-owned) drkunaldas Sedans 4 31st October 2010 18:07
Wanted : gearbox bearing toyota sera BOMBAY a4_attitude Shifting gears 0 7th March 2006 20:46


All times are GMT +5.5. The time now is 11:36.

Copyright 2000 - 2017, Team-BHP.com
Proudly powered by E2E Networks
