Default DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade

Hello Everyone.
I am Back with another Big upgrade For Facelift Ford Ecosport>2017 model

It’s a Full digital Instrument Cluster/Speedometer upgrade for Facelift model.

You would’ve seen these kinds of fully digital clusters in luxury Sedans and SUVs not on a mid-segment car, even though if present it would’ve been a partial one having segmented displays with LCD

Bad part 1st, Sorry to say it’s not for the older models before 2017 as the architecture and the Pin configurations are totally different. In fact, the older model cluster has the immobilizer key programmed, master for the Vehicle configuration and also follows different electrical architecture, so it’s not possible practically. That’s it about the bad part.
Okey coming back to Facelift model it follows different architecture which is more flexible than the former one I said above, and also we can incorporate many modules from its other sibling such as latest generation puma, Kuga, Focus, Fiesta Escape etc. provided some software and hardware customization done.
As I listed the possible feature mods in this below link, I am introducing the next modification here in this thread.

https://www.team-bhp.com/forum/diy-d...potential.html (Ford EcoSport Extreme Modifications | SYNC3 upgrade and Ford's platform potential)

Again this is also a my late release due to vehicle unavailability. now I bought a facelift model so releasing next mods is very easy for me.
I bought this part two years back from US 2020 Escape, and bringing to India was very difficult. I was worried about possible damage to the part as it’s a complete LCD unit with heavy heatsink around.

if broken it will be like this
DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-broken.jpg

I have seen this cluster being developed during my professional experience,so I was very much sure about technical feasibility and virtually realized about the compatibility on to the dashboard.
I was not worried much about the dashboard fitment part as Iam very much interested into sculpting things.
Only challenging part was on the software. Not all the software low level details cannot be known unless we actually worked and tired it on the vehicle and also using the UDS protocol.
This is very big part so I am not going to touch now, in a nutshell we need to software configure the cluster to make it supported for the actual vehicle configurations either in the NVM or in the EEPROM.


First u need to get the cluster from Escape( LJ6T-10849-DEK ) or Kuga(NV4T-10849-DFC) Puma(L1TT-10849-FPB), Fiesta Focus etc… but u need to find out correct KM or Miles, Diesel or Petrol, AT or MT types based on your vehicle type otherwise u need support on modifying the EEPROM to make it compatible which is not available publicly on top of it the configurations and the frame modifications. This part is costlier as the quality of this HW and SW part is high. i guess the new one costs roughly 2000$, used one may be available at half of its price or even lesser.

so Lets see some physical structural differences

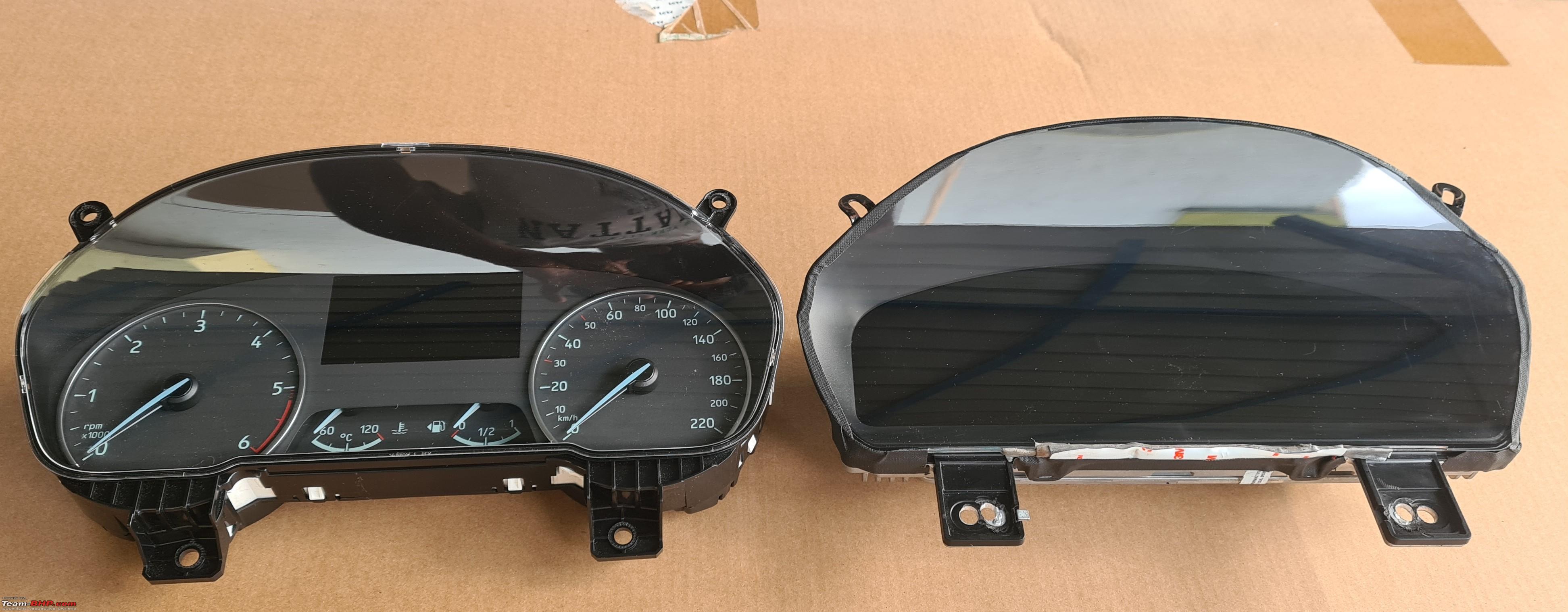

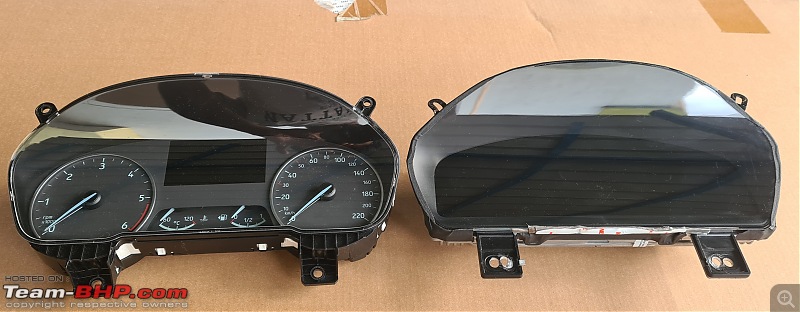

both old and new cluster side by side front view


DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-cluster-front.jpg

Backside view


DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-cluster-rear-full.jpg

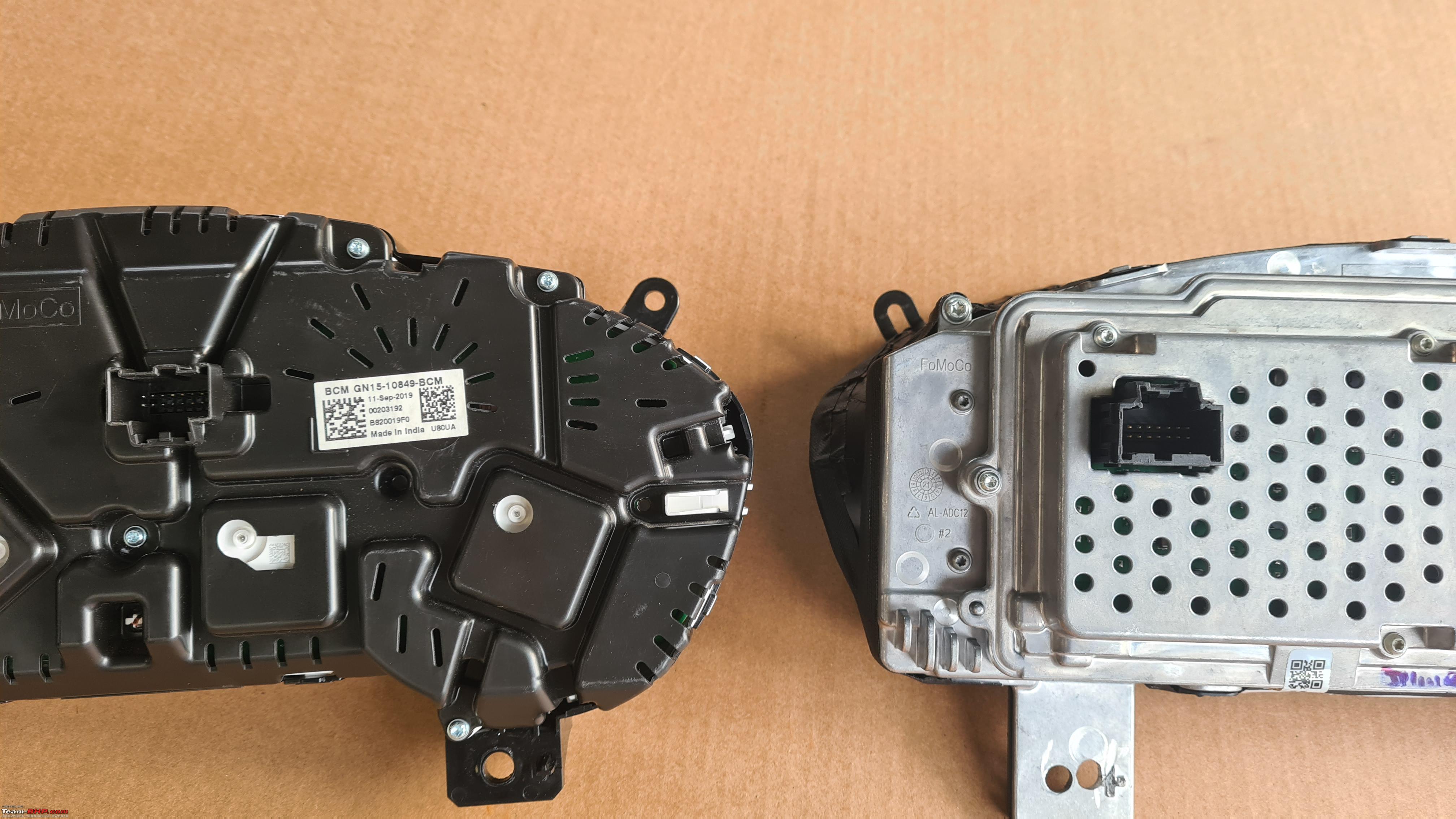

connector closeup


DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-cluster-rear-close.jpg

Glass Frame front side


DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-trim-front.jpg

Glass frame rear


DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-trim-rear.jpg


Mounting screw holders


DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-trim-mount.jpg

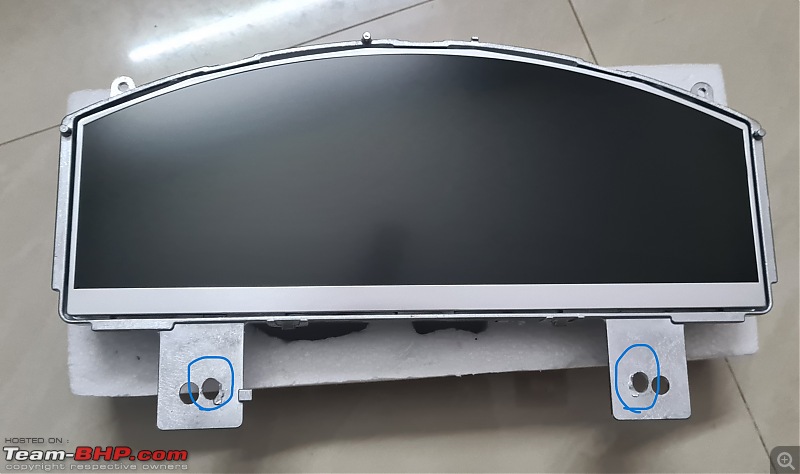

LCD without outerframe and drilled new screw holes



DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-lcd.jpg


so have to trim the outer lens and the plastic frame carefully without a single scratch on the lens and single damage to the LCD
I have used Handle tools from Black and Decker, Dremel tool will work, the intention is not to make any single changes in the dashboard as the reversing things back to stock is trouble free.

here is some more pictures on how it looks

As i have flashed the PUMA software my cluster shows the startup logo from PUMA
DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-pums-logo.jpg

another view


DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-view2.jpg

This is with Sync4 which is currently in the works


DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-dash-sync4.jpg

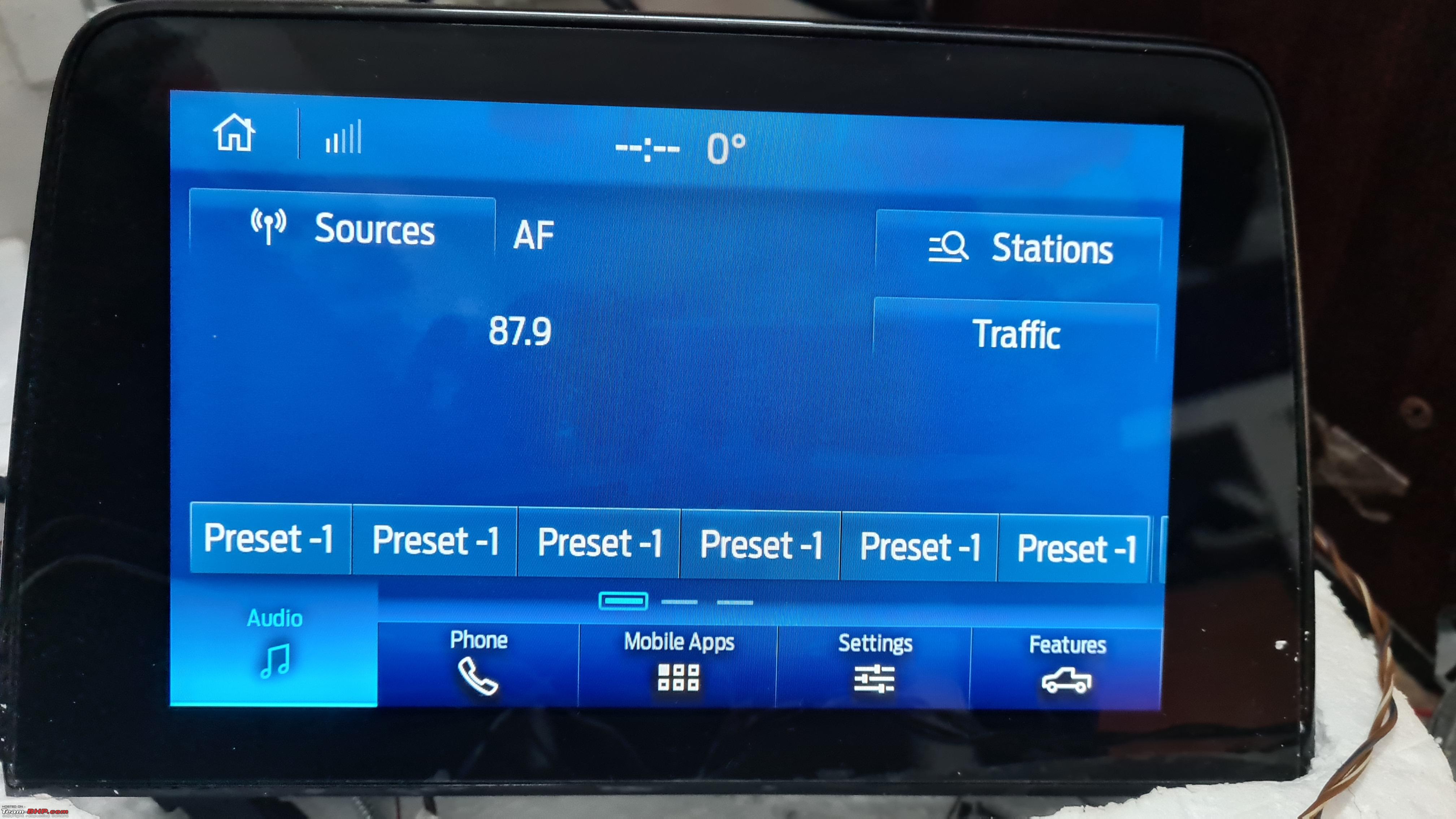

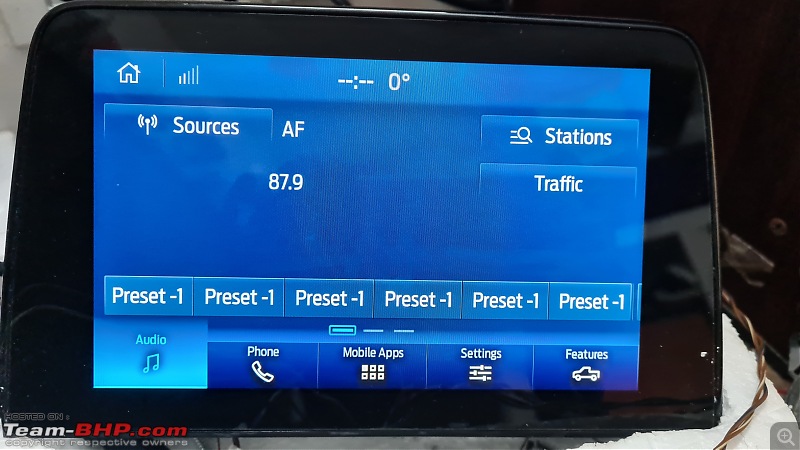

Sync4 in the dash in works soon releasing in the upcoming mod.


DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-sync4.jpg

Click image for larger version

Name:	dash with sync4.jpg
Views:	70
Size:	1.20 MB
ID:	2362548

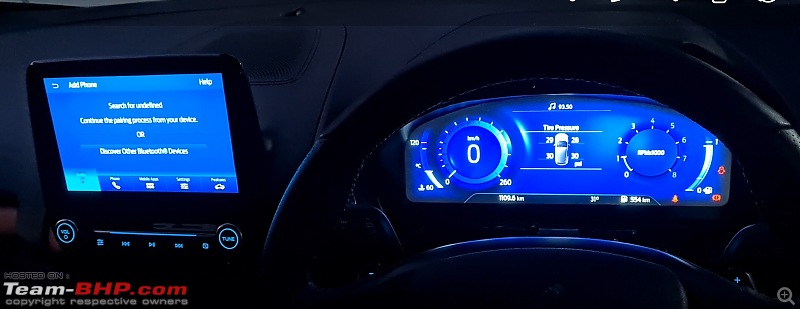

DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-screen-sync4.jpg

with flat bottom steering


DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade-dashboard-flast-steering.jpg

I have the details video here the you tube video below please check.




Thank you.

Last edited by jhenu : 28th September 2022 at 01:36.
jhenu is online now   (105) Thanks
Old 29th September 2022, 12:21   #2
BHPian

anshumandun's Avatar

Join Date: Oct 2014
Location: Bangalore
Posts: 342
Thanked: 1,868 Times
Default Re: DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade

That's a big upgrade and it looks really good. Kudos to you for pulling this off!

The instrument cluster and the steering are the things that a driver would use for 100% of the time so they need to be as good, if not better, than the other features. I am a sucker for the new digital clusters of the VAG group (the ones in Octavia/Tiguan). Is there any way we can fit them in the Polo/Vento?
anshumandun is offline   (2) Thanks
Old 29th September 2022, 12:32   #3
BHPian

GForceEnjoyer's Avatar

Join Date: May 2022
Location: Hyderabad
Posts: 286
Thanked: 1,643 Times
Default Re: DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade

Fantastic upgrade. Ford's digital system is one of the better ones out there, feature wise. SYNC 4 is also generally held in high regard as to its functionality. Nice to see you pull this off perfectly, great job!

the sides of the tachometer and speedometer are now switched, guess it's going to take a little while to get used to!
GForceEnjoyer is offline
Old 29th September 2022, 16:02   #4
BHPian

Join Date: May 2007
Location: chennai
Posts: 49
Thanked: 252 Times
Default Re: DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade

Quote:
Originally Posted by GForceEnjoyer View Post
Fantastic upgrade. Ford's digital system is one of the better ones out there, feature wise. SYNC 4 is also generally held in high regard as to its functionality. Nice to see you pull this off perfectly, great job!

the sides of the tachometer and speedometer are now switched, guess it's going to take a little while to get used to!
Thank you, this is high quality part both software and hardware-wise thus its part cost is costlier.


Quote:
Originally Posted by anshumandun View Post
That's a big upgrade and it looks really good. Kudos to you for pulling this off!

The instrument cluster and the steering are the things that a driver would use for 100% of the time so they need to be as good, if not better, than the other features. I am a sucker for the new digital clusters of the VAG group (the ones in Octavia/Tiguan). Is there any way we can fit them in the Polo/Vento?
yes defenitely. the most welcoming things.
for VAG if they are belongs to same generation then most probably they work, otherwise its might require some external CAN modules to be built to support, but its not easy anyway.
jhenu is online now   (1) Thanks
Old 29th September 2022, 17:37   #5
BHPian

Join Date: Jun 2021
Location: Banglore
Posts: 125
Thanked: 240 Times
Default Re: DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade

That instrument cluster looks absolutely terrifying!
Just goes to show how Ford could easily give updates like these to the Ecosport with a better colour scheme in the interiors, it would have really sold well.
Piyush Kanthak is offline
Old 29th September 2022, 21:01   #6
BHPian

wild child's Avatar

Join Date: Mar 2011
Location: chennai
Posts: 211
Thanked: 262 Times
Default Re: DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade

@jhenu that is a wonderful upgrade! I am looking to install something like this in my 2016 duster. Any lead?
wild child is offline
Old 30th September 2022, 12:52   #7
BHPian

Join Date: May 2007
Location: chennai
Posts: 49
Thanked: 252 Times
Default Re: DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade

Quote:
Originally Posted by wild child View Post
@jhenu that is a wonderful upgrade! I am looking to install something like this in my 2016 duster. Any lead?
its not possible for duster, being old and no compatible full digital available in their line up. centainly ford's never match.
jhenu is online now   (1) Thanks
Old 30th September 2022, 13:42   #8
Senior - BHPian

fiat_tarun's Avatar

Join Date: Jan 2010
Location: Pune / Mysore
Posts: 1,716
Thanked: 2,775 Times
Default Re: DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade

Quote:
Originally Posted by jhenu View Post
...
It’s a Full digital Instrument Cluster/Speedometer upgrade for Facelift model.

....
This is an amazing mod. The Ford cluster is one of the best digital clusters in the market and it's amazing that you have put it in the Ecosport. I would love to do this mod, but just from your description it looks to be quite expensive. Can you share how much this will cost ?

Also, what are the changes with Sync 4 that are useful on the Ecosport?

Last edited by fiat_tarun : 30th September 2022 at 13:44.
fiat_tarun is offline
Old 30th September 2022, 16:03   #9
BHPian

Join Date: May 2007
Location: chennai
Posts: 49
Thanked: 252 Times
Default Re: DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade

Quote:
Originally Posted by fiat_tarun View Post
This is an amazing mod. The Ford cluster is one of the best digital clusters in the market and it's amazing that you have put it in the Ecosport. I would love to do this mod, but just from your description it looks to be quite expensive. Can you share how much this will cost ?

Also, what are the changes with Sync 4 that are useful on the Ecosport?
Hi Thank you. as I mentioned the new part cost in US around 2k$, and used one can be purchased for approximately 500 to 700 pounds + plus shipping and customs. on top of it, the software modifications and HW mounting changes required.
jhenu is online now   (1) Thanks
Old 1st October 2022, 15:50   #10
BHPian

wild child's Avatar

Join Date: Mar 2011
Location: chennai
Posts: 211
Thanked: 262 Times
Default Re: DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade

Quote:
Originally Posted by jhenu View Post
its not possible for duster, being old and no compatible full digital available in their line up. centainly ford's never match.
By any chance, is there any universal programmable display that can be used as an instrument cluster?
wild child is offline
Old 1st October 2022, 17:45   #11
BHPian

Join Date: May 2007
Location: chennai
Posts: 49
Thanked: 252 Times
Default Re: DIY: Ford EcoSport Full Digital Instrument Cluster / Speedometer Upgrade

Quote:
Originally Posted by wild child View Post
By any chance, is there any universal programmable display that can be used as an instrument cluster?
There's no such universal clusters. If u need a full fledged cluster u have to find a matching one from the same oem.
