Quote:
Originally Posted by Leoshashi
(Post 4329982)
Which trim would you like to have?? There are 4 different ones: Carpet one for Alto STD, X FUN, LXi etc??
NOTE: The XFUN ones are of different shade.
|
If it wouldnt be much of a bother can I have the part numbers and prices for all four(left+right x 4)? Since availability is a question, it would be wise to approach my MGP fully prepared incase a particular type is unavailable.
Regards,
Anoop
Can you please give the part number for maruti A-star(2011 model) gear knob. It is the grey golf ball one.
Quote:
Originally Posted by anoop.u
(Post 4329987)
If it wouldnt be much of a bother can I have the part numbers and prices for all four(left+right x 4)? Since availability is a question, it would be wise to approach my MGP fully prepared incase a particular type is unavailable.
Regards,
Anoop
|
RHS
Part No: 76250M79G80-T01
Name: TRIM QTR INNER RR RH(ALTO)
Price: Rs. 472
Part No:76251M79G10-T01
Name:CARPET QTR INNER REAR RH
Price: Rs. 171
Part No: 76251M79G00-B02
Name: TRIM QTR INNER RR R
Price: Rs. 1173
Part No:76251M79G00-P4Z
Name: TRIM QTR WINDOW RH (GRAY
Price: Rs. 478
For LHS, simply replace 250 with 260 and 251 with 261.That is, 76250MXXXXX-ABC becomes 76260MXXXXX-ABC. Rest all will be same.
Quote:
Originally Posted by saion666
(Post 4330248)
Can you please give the part number for maruti A-star(2011 model) gear knob. It is the grey golf ball one.
|
Part No: 28113M68K01-EZS
Name: KNOB GEAR SHIFT CONT LEVER(GREY/SILVER)
Price: Rs. 330
Regards,
Shashi
Require part nos for MGA wheel caps 13inches(that Came with eeco, Astar and Zen estilos). Thanks!
Quote:
Originally Posted by Manoj2268
(Post 4330314)
Require part nos for MGA wheel caps 13inches(that Came with eeco, Astar and Zen estilos). Thanks!
|
Part number of A Star's wheel cap: 43250M68K00-27N
Regards,
Shashi
Quote:
Originally Posted by Leoshashi
(Post 4329424)
Avoid local spares. IIRC you only need the fuel and temperature gauge??
Even if after so much you cannot find, then let me know. I'll activate my sources. :D
|
Finally some good news, yesterday the MGP store manager did some live stock search & found out that one piece was available in Duliajan, Assam. I immediately contacted the MGP store in duliajan & was replied that the part is sealed & intact. One of my friends from duliajan volunteered to pick up the part & ship it to guwahati.clap:

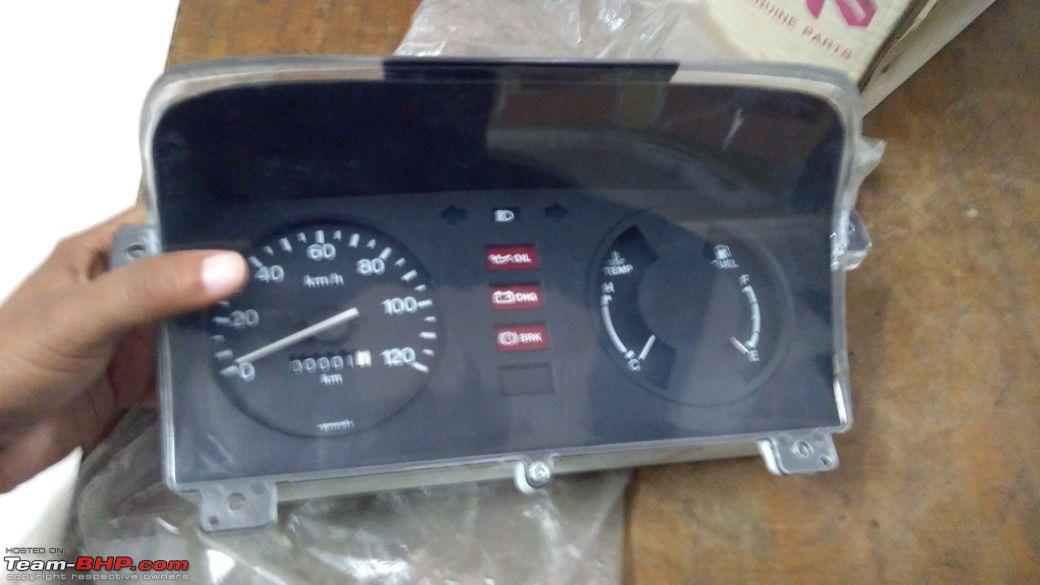

here is the photo my friend shared on whatsapp
Quote:
Originally Posted by chiranjitp
(Post 4330484)
Finally some good news, yesterday the MGP store manager did some live stock search & found out that one piece was available in Duliajan, Assam. I immediately contacted the MGP store in duliajan & was replied that the part is sealed & intact. One of my friends from duliajan volunteered to pick up the part & ship it to guwahati.clap:
here is the photo my friend shared on whatsapp Attachment 1710997
|
Awesome buddy. Looking at the carton in background, it looks like a pretty old stock. Atleast 10 years old.
Pics like these give me a feeling of treasure hunt. :D
PS: The print board at the back is very much prone to damage. Please be careful.
Quote:
Originally Posted by Leoshashi
(Post 4330485)
Awesome buddy. Looking at the carton in background, it looks like a pretty old stock. Atleast 10 years old.
Pics like these give me a feeling of treasure hunt. :D
|
No wonder you are the MGP expert here in Team-bhp, the part is indeed more than 10 years old. The part is from 2003, lets hope that it works.
Here are a few more photos
Quote:
Originally Posted by chiranjitp
(Post 4330489)
No wonder you are the MGP expert here in Team-bhp, the part is indeed more than 10 years old. The part is from 2003, lets hope that it works.
]
|
It will work, looks like an unused piece. Just make sure the print board isn't damaged. In worst case, you can remove the temperature and fuel gauge from the new one and use it. :)
BTW what happened to the wiring harness?? Have they ordered it??
Quote:
Originally Posted by Leoshashi
(Post 4330490)
It will work, looks like an unused piece. Just make sure the print board isn't damaged. In worst case, you can remove the temperature and fuel gauge from the new one and use it. :)
BTW what happened to the wiring harness?? Have they ordered it??
|
Well I haven't yet enquired about the wiring harness & combination switch. My first priority was to get the fuel & temperature gauge working, if the new speedometer assy fixes it then I will move on to the wiring harness. But I am almost certain that the wiring harness is also discontinued.
Quote:
Originally Posted by chiranjitp
(Post 4330495)
Well I haven't yet enquired about the wiring harness & combination switch. My first priority was to get the fuel & temperature gauge working, if the new speedometer assy fixes it then I will move on to the wiring harness. But I am almost certain that the wiring harness is also discontinued.
|
Wiring harness was available a few days ago for 1997 M800, so should be available in your case too. If not, do check the live stock. Thats one useful feature in the DMS for old cars.
Hello Shashi,
Kindly help with Part numbers and pricing of:
01. Brake disc rotor set
02. Brake pads
03. Fog lamps
04. Windshield wiper (this is to verify dimensions with currently available Bosch one)
Model: 2006 Baleno BSIII
Thanks in advance.
Quote:
Originally Posted by sujithpnair
(Post 4330699)
Model: 2006 Baleno BSIII
|
Part No: 55311M61GA0 55311-61G01 DISC FRONT BRAKE 1020
Different part numbers and prices due to probably different vendors:
Part No: 55800-61G73 or 55800-61G74 or 55800-61G75
Name: PAD SET FRONT DISC BRAKE
Price: Rs. 4809.74 or Rs. 5151 or Rs. 6330
Did the Baleno Sedan never get fog lamps as OEM fitment?? Because it's not showing it as MGP/SGP, but as accessories:
Part No: 99000-99019-320
Name: FOG LAMP SET(BALENO)
Price: Rs. 13011.38
Quote:
04. Windshield wiper (this is to verify dimensions with currently available Bosch one)
|
Blade assembly: Both frame plus rubber
Part No:38340-60G00
Name: BLADE ASSY WIPER RH
Price: Rs. 895
Part No:38340-60G10
Name: BLADE ASSY WIPER LH
Price: Rs. 771
Blade: Just the rubber
Part No: 38346-75F00
Name: BLADE
Price: Rs. 297.63
Part No: 38346-75F10
Name: BLADE
Price: Rs. 297.63
Regards,
Shashi
Quote:
Originally Posted by Leoshashi
(Post 4330289)
RHS
Part No: 76250M79G80-T01
Name: TRIM QTR INNER RR RH(ALTO)
Price: Rs. 472
....
Regards,
Shashi
|
Thank you for the details. Have placed an order for 76250M79G80-T01 and 76251M79G80-T01.
Estimated delivery time is 15 days, but based on my previous interactions, this should take anywhere between 15 to 25 days.
Shall update the thread once received.
On a related note, can I also get the part number for the service manual of the 2007 Alto LXi ?
Regards,
Anoop
Quote:
Originally Posted by anoop.u
(Post 4331347)
Thank you for the details. Have placed an order for 76250M79G80-T01 and 76251M79G80-T01.
Estimated delivery time is 15 days, but based on my previous interactions, this should take anywhere between 15 to 25 days.
Shall update the thread once received.
On a related note, can I also get the part number for the service manual of the 2007 Alto LXi ?
Regards,
Anoop
|
Why have you ordered two pieces, both of the right side??
