Default re: DIY: Metal model engine building UPDATE: build complete (page 16)!

I spend a few hours yesterday (Sunday) in tidying up Debbie.

I put the electronic ignition in the wooden base, made a very simple but effective bracket. Bundled all the wiring. Also visible the mass/ground connection. This is the bold that holds the cilinder onto the support

Name:  P5090050.jpg
Views: 2768
Size:  294.7 KB

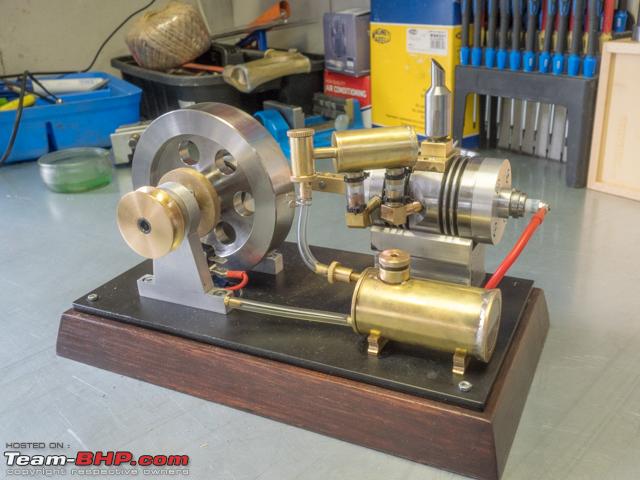

Routed all the wires properly, also put proper connectors on everything:

Name:  P5090051.jpg
Views: 2737
Size:  240.5 KB

Made the correct spacer for the microswitch

Name:  P5090052.jpg
Views: 2739
Size:  188.3 KB

Name:  P5090053.jpg
Views: 2733
Size:  207.6 KB

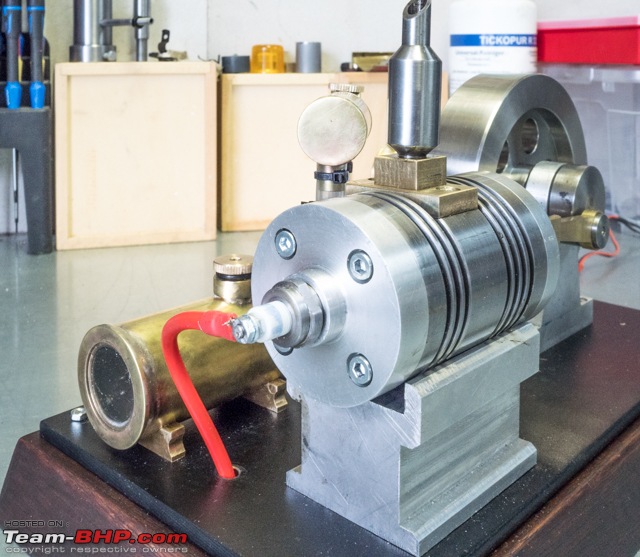

All in all, I am very pleased with how Debbie turned out

Name:  P5090054.jpg
Views: 2723
Size:  236.9 KB

Name:  P5090056.jpg
Views: 2713
Size:  272.8 KB

Name:  P5090057.jpg
Views: 2691
Size:  158.6 KB

I see a lot of things I should/would be doing differently and better next time. But it is still one of my very first proper machining projects. And it runs, much to the surprise of many on the Dutch Modelbuildforum.

I must admit, I have had tonnes of help and support from the Dutch guys. These modelbuildingforums are huge, all about RC cars, planes, boats and helicopters. But there is a small subsection on steam technology. That is where all the hobby machinists hang out. I have been given several tools, bits and lots, lots of very practical advise. yesterday somebody suggested I should put a small capacitor across the micro switch contact. He had a few and already in the mail to me, at no cost. So kind.

I will be making a video, the making of Debbie or something along those lines in the weeks to come. I need to concentrate on fixing the piston rod for my friends little vacuum pump first now. And the V-8 is on its way.

I have not decided what project I will do next. It is likely to be another engine. I have been looking at some 4-stroke engines. They are a bit more complex and I want to up the odds a bit, of course!

Jeroen
Jeroen is online now   (24) Thanks
Old 10th May 2021, 20:05   #227
Distinguished - BHPian

Thad E Ginathom's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 9,758
Thanked: 16,930 Times
Default re: DIY: Metal model engine building UPDATE: build complete (page 16)!

Brilliant, Jeroen.

One idea... I'd like to see a grommet in that hole where the plug lead comes through the base. Same for any other holes for wires. Especially as this is a thing which is going to vibrate.
Thad E Ginathom is online now   (1) Thanks
Old 12th May 2021, 07:13   #228
Distinguished - BHPian

hemanth.anand's Avatar

Join Date: Jan 2010
Location: Bengaluru
Posts: 3,021
Thanked: 11,472 Times
Default Re: DIY: Metal model engine building UPDATE: build complete (page 16)!

Just Awesome Jeroen . This deserves a place in the Homepage of TBHP.

That puttering sound must have plastered a big smile on your face. I've watched such youtube videos so many times and always wished to make one myself....but I really do not have the necessary tools. After the tidying up it looks so beautiful. I was thinking if you can fix a brass name plaque on the wooden base with "Debbie - May 2021" and some other details engraved on it.
hemanth.anand is offline   (1) Thanks
Old 12th May 2021, 18:48   #229
Distinguished - BHPian

Thad E Ginathom's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 9,758
Thanked: 16,930 Times
Default Re: DIY: Metal model engine building UPDATE: build complete (page 16)!

Quote:
Originally Posted by hemanth.anand View Post
... you can fix a brass name plaque on the wooden base with "Debbie - May 2021" and some other details engraved on it.
"Debbie - My first-born."

Thad E Ginathom is online now   (3) Thanks
Old 13th May 2021, 01:08   #230
Distinguished - BHPian

Join Date: Oct 2012
Location: Delhi
Posts: 6,300
Thanked: 28,857 Times
Default Re: DIY: Metal model engine building UPDATE: build complete (page 16)!

Quote:
Originally Posted by Thad E Ginathom View Post
One idea... I'd like to see a grommet in that hole where the plug lead comes through the base. Same for any other holes for wires. Especially as this is a thing which is going to vibrate.
Well spotted, I have a box full of grommets somewhere in my garage.

Quote:
Originally Posted by hemanth.anand View Post
I was thinking if you can fix a brass name plaque on the wooden base with "Debbie - May 2021" and some other details engraved on it.
Excellent idea, I am already looking into it!

Jeroen
Jeroen is online now   (3) Thanks
Old 17th May 2021, 13:26   #231
Distinguished - BHPian

Join Date: Oct 2012
Location: Delhi
Posts: 6,300
Thanked: 28,857 Times
Default Re: DIY: Metal model engine building UPDATE: build complete (page 16)!

I have just ordered the brass name plate for Debbie!

I am also still working on making a new piston rod for my friend Cees his vacuum pump. As you might recall, during our visit to Cees and Anneliesís Bed and Breakfast in France, he showed my this dentist vacuum pump he was given. It was broken. Which was due to a bearing getting stuck and snapping the conrod in two.

I promised to see if I could make him a new one. And it looks like we will be heading to France in our Alfa Romeo Spider in a couple of weeks, so I thought I better get going.

I decided to stick to the original design as much as possible. These days, reading and understanding a technical drawing is becoming a bit of a challenge for me. It tends to be easier to visualise things and just measure and replicate to a degree.

So some images of work in process so to speak:

Name:  P5100001.jpg
Views: 112
Size:  266.9 KB

Name:  P5100002.jpg
Views: 114
Size:  217.3 KB

Name:  P5100003.jpg
Views: 110
Size:  226.1 KB

Here you can see the old one pretty clearly. I cut of the top bit as I will be re-using it. I drilled a hole in it, it will just be bolted onto the top of the rod.

Name:  P5100004.jpg
Views: 109
Size:  201.7 KB

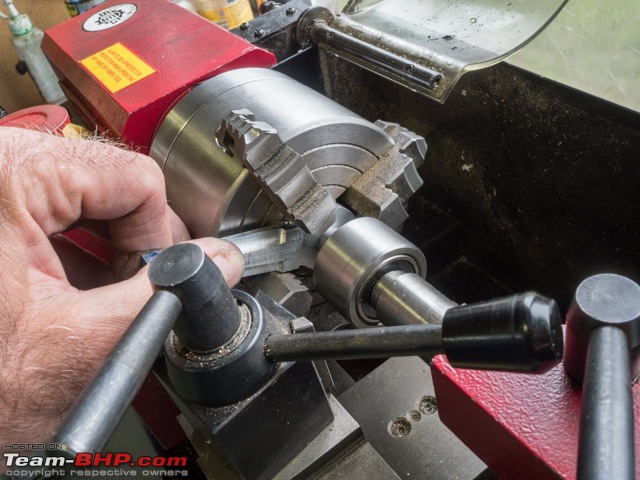

The largest drill I can use on my lathe is 13mm, the bearing is 22mm, so my usual set up to cut this large hole on my lathe.

Name:  P5110006.jpg
Views: 108
Size:  249.6 KB

Name:  P5110007.jpg
Views: 108
Size:  235.9 KB

Name:  P5110008.jpg
Views: 106
Size:  256.9 KB

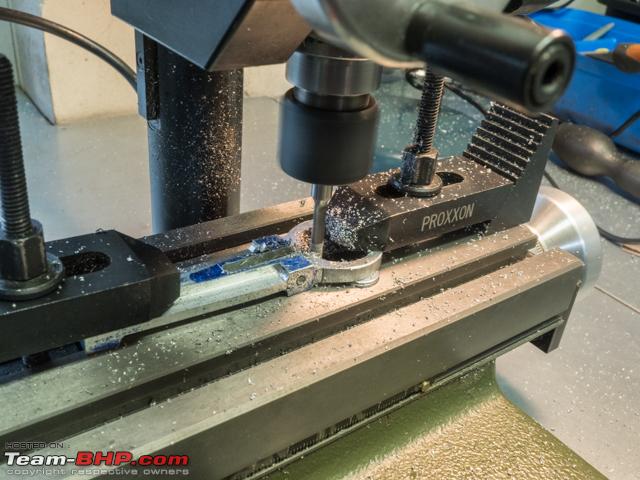

Milling the slot in the middle. A little bolt will go across it, clamping the rod onto the bearing. As per the original design.

Name:  P5110010.jpg
Views: 106
Size:  260.0 KB

Name:  P5110012.jpg
Views: 108
Size:  218.6 KB

The little bolt fits into thread on one side of the slot, then the locking nut just for extra security.

DIY: Metal model engine building UPDATE: build complete (page 16)!-img_4121.jpg

This arrived in the mail from China a few days ago:

Name:  P5110005.jpg
Views: 113
Size:  275.6 KB

Whilst I was struggling to get Debbie to run with the Hall sensor, I ordered a complete new electronic ignition set for her. This one certainly looks a lot more sturdier and better made than the one I have been using. I am not going to try on Debbie. Got her to run, with the cheap Chinese electronic ignition and a good old fashioned microswitch.

I will be using this for future projects.

Jeroen
Jeroen is online now   (4) Thanks
Old 17th May 2021, 18:01   #232
Distinguished - BHPian

Thad E Ginathom's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 9,758
Thanked: 16,930 Times
Default Re: DIY: Metal model engine building UPDATE: build complete (page 16)!

Very nice Jeroen!

What a super machine that little Proxxon mill is! And you are doing great work with it.
Thad E Ginathom is online now   (1) Thanks
Old 21st May 2021, 20:39   #233
Distinguished - BHPian

Join Date: Oct 2012
Location: Delhi
Posts: 6,300
Thanked: 28,857 Times
Default Re: DIY: Metal model engine building UPDATE: build complete (page 16)!

Quote:
Originally Posted by Thad E Ginathom View Post
One idea... I'd like to see a grommet in that hole where the plug lead comes through the base.

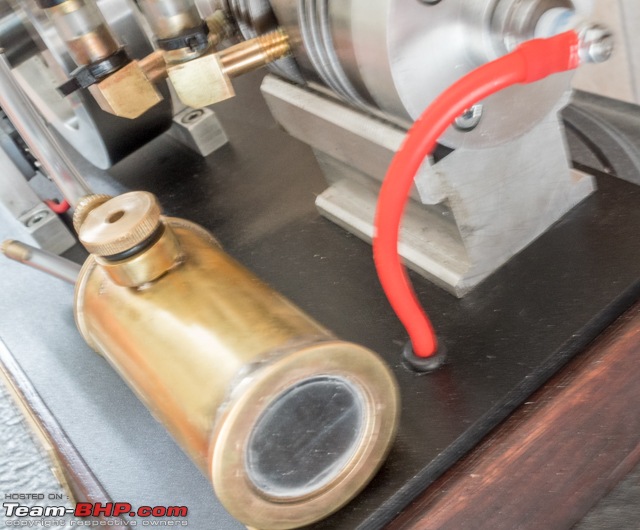

Done!

Name:  P5210002.jpg
Views: 54
Size:  239.3 KB

Quote:
Originally Posted by hemanth.anand View Post
J I was thinking if you can fix a brass name plaque on the wooden base with "Debbie - May 2021" and some other details engraved on it.
Done!

Name:  P5210001.jpg
Views: 53
Size:  161.0 KB

I have also finished my other little project. I am very pleased with it too.

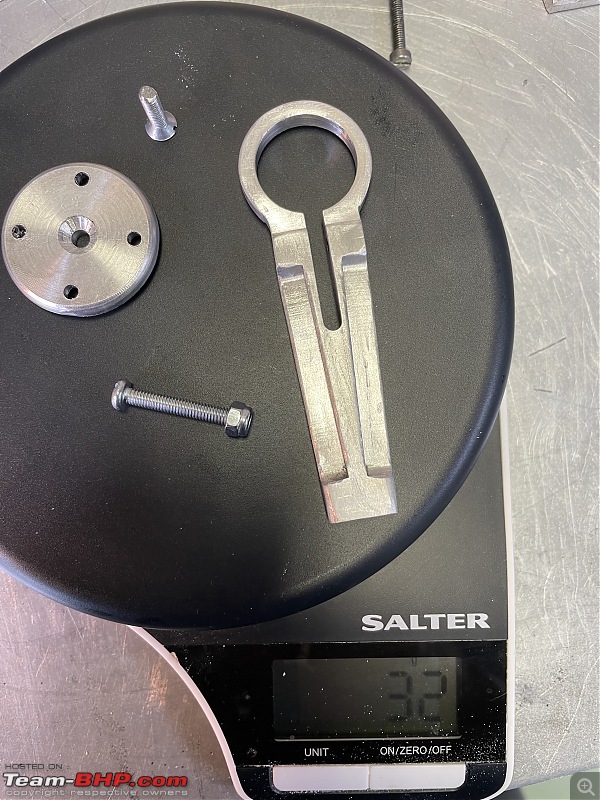

I checked the weight of the original piston rod versus the new one:

DIY: Metal model engine building UPDATE: build complete (page 16)!-img_4132.jpeg

DIY: Metal model engine building UPDATE: build complete (page 16)!-img_4133.jpeg

A little heavier, but I donít think that will matter. This is of course part of the reciprocating mass, but the bearing alone weighs 100 gram or thereabouts. So I like to think it is a whole lot stronger.

We will have to see, this being a vacuum pump there is no pressure on the piston, but a vacuum. So the rod gets pulled at, not compressed!

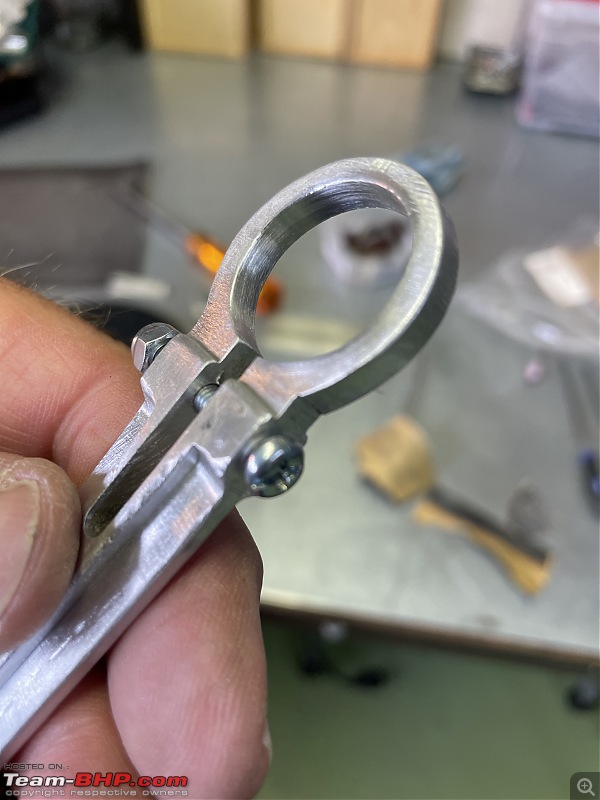

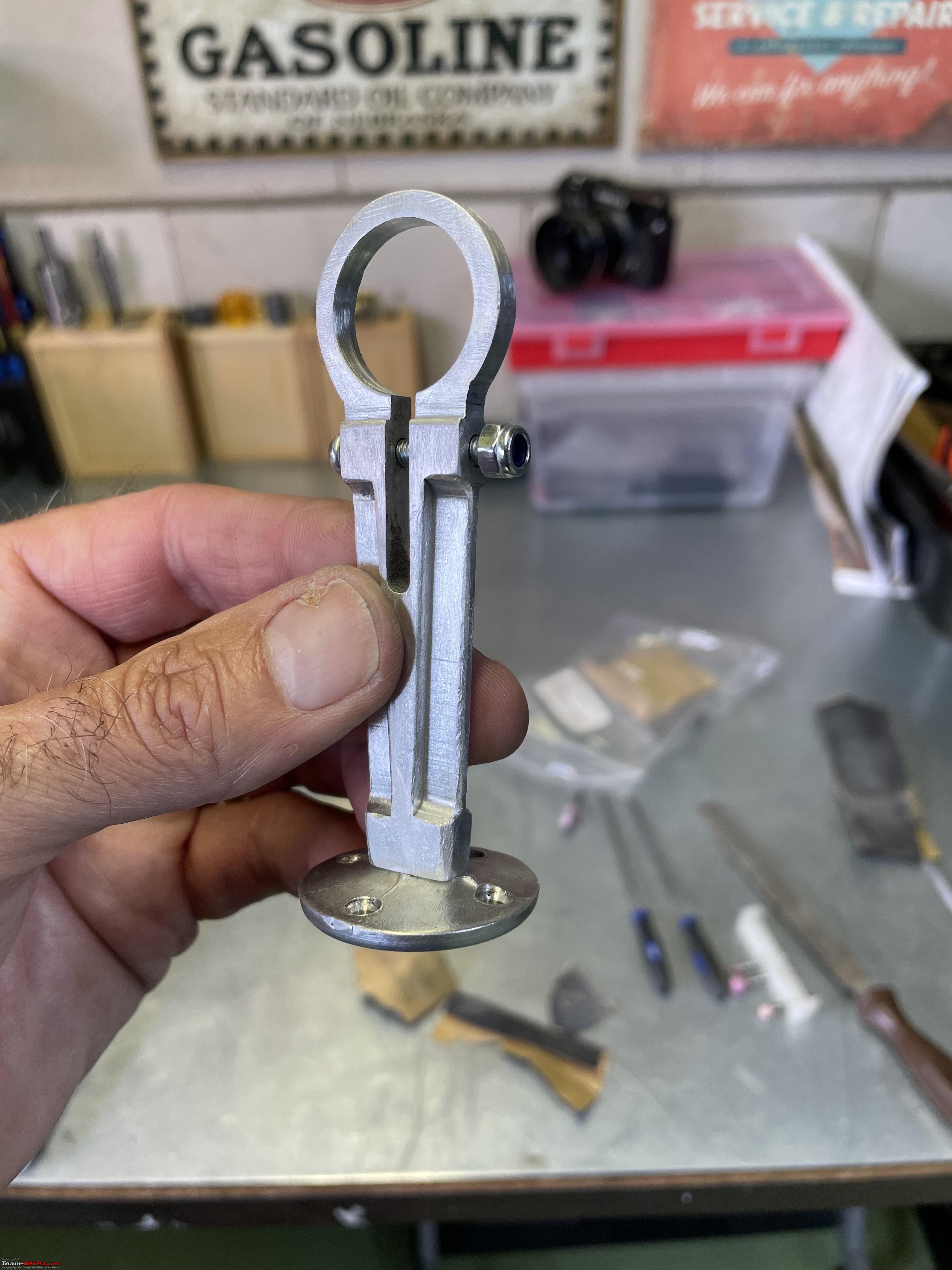

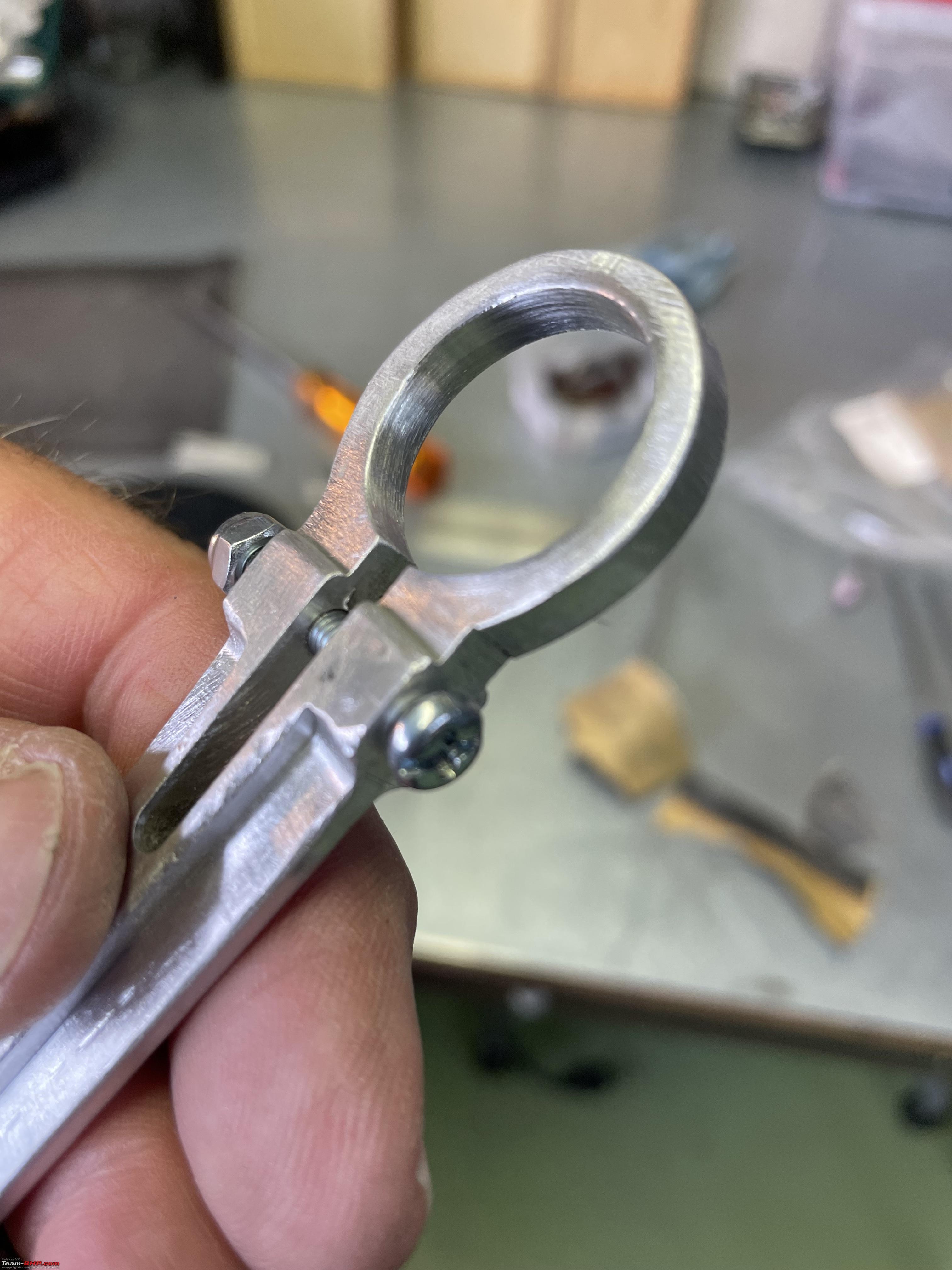

Did a bit of polishing and this is what it looks like:

DIY: Metal model engine building UPDATE: build complete (page 16)!-img_4134.jpeg

DIY: Metal model engine building UPDATE: build complete (page 16)!-img_4137.jpeg

With the bearing installed

DIY: Metal model engine building UPDATE: build complete (page 16)!-3d3fc8c40da0401992dc426c7339a374.jpg

Fingers crossed it will fit and work! We will know in a couple of weeks when we head for France!!
Jeroen is online now   (3) Thanks
Old 22nd May 2021, 01:41   #234
Distinguished - BHPian

Thad E Ginathom's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 9,758
Thanked: 16,930 Times
Default Re: DIY: Metal model engine building UPDATE: build complete (page 16)!

So proud to have inspired a grommet on your excellent engine! The whole thing looks great.

Isn't there an extra screw on the scales in your weight comparison?
Thad E Ginathom is online now
Old 22nd May 2021, 10:27   #235
Distinguished - BHPian

Join Date: Oct 2012
Location: Delhi
Posts: 6,300
Thanked: 28,857 Times
Default Re: DIY: Metal model engine building UPDATE: build complete (page 16)!

Quote:
Originally Posted by Thad E Ginathom View Post

Isn't there an extra screw on the scales in your weight comparison?
Yes, there is. The original version was casted as one piece. I cut of the top bit and I am using that again on the new version. Drilled a hole into it, tapped the top end of the new position rod and the screw/bolt keeps it all together.

Once we have ensured the total length is correct, I think We will superglue the bolt and bits together for additional strength/safety.

Jeroen
Jeroen is online now
