FYI the pictures of your car are still on Team-BHP's Facebook page posted on 22/12/2014. You must have either missed seeing them while scrolling, else when you click '2014', only 'highlights' must be visible to you - change that to 'all stories' and scroll down.

I know there has been silence on my thread yet again, but every time there is a silence remember, some mods are taking place in the background.

Few changes that I did in last few months are:

1) I had Bilstein B6 and decided to put the Eibach springs, the match wasn’t pleasing and there was a play in the spring, would not sit on the bilstein b 6 shock seat properly and had some movement with the eibach.

I was trying to achieve a low stance ride and further improve handling while cornering. It didnt turn out to be so good as I had expected, I quickly switched to KW coilover- Street comfort line set up. Boy its one of the best suspension, I have ever used, its got 16 rebound adjustments, and height adjustment.

This gives me the flexibility to choose the height of the car and keep it safe for city and interstate drives. Regarding the drive the car handles brilliantly (no complaints), you can take any corner at any speed and the car just sticks like a glue on the road. Plus the low ride look that you get, a must do upgrade (IMO). (P.S I love the Bilstein B 6 if you are only looking to replace the damper and not springs, it’s a very good combination, corrects the handling by 70% while keeping the height ride and comfort in the cabin as you use stock springs), But KW is another league for driver/enthusiasts.

2)I also got rid of the tri color stripe and focused to follow the red theme around the car, you will see pin stripe on the side of the car, rear wing painted red and I also painted the paddle shift extension. (all paint job done again by Jahan Mistry my close friend based out from Mumbai).

3) I have also changed the front break pads to VW performance break pads, this is definitely much better than the red brembo break pads (IMO) and work wonders with slotted brembo front disks.

4) A little red accent in the front on the wrc bumper for aesthetics.


Following are the changes and pics, enjoy:

1) Kw Suspension- Street comfort line- Height and damper adjustment with 16 clicks. The front you can just adjust by a bolt on the top of the damper under the black net grill under the hood on top left and right, but for rear you need to lower the shock, but once you have done the set up you would not be changing much unless you going on track and want a real stiff setup for rear, so we have kept rear at +8 and front at +6 which works best for all terrains.
2) Red Black paddle shift extensions.

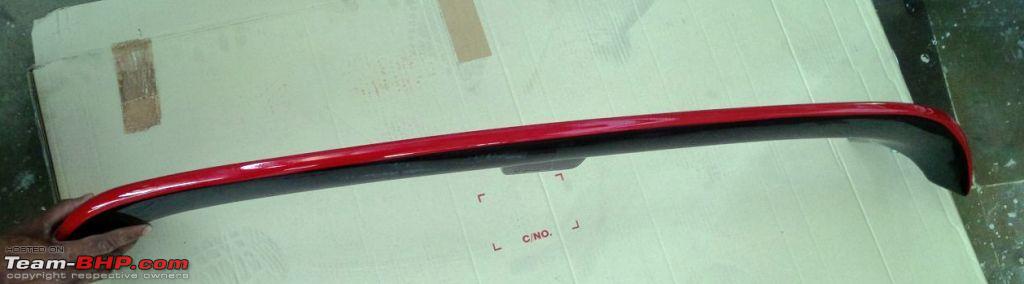

3) Rear wing red.
4) Red pin stripe on the side.

Few shots of car Photo Credit to Gaurav Sawn: he is a GT club member with us. Great photographer.

I hope you guys like the new look and changes.

Cheers

Attached Thumbnails





















Ah ha..now you're getting there bro. Just BRILLIANT !!

I have just gawped at every mod you had done except for the Tri-color thingy. Now that you have got rid of that, arguably the Hottest GT in India, just got 'Red-Black' Hotter !!

Truly droolworthy stuff Saint!!! You have done everything conceivable to mod this car. is this all or will we find something else on this thread?

As you must have known me by now, I always say this is it and land up doing more, you right bro you will see some more very soon, dil mange more

Saint,

Can you please tell me which sharkfin antenna you installed? It looks similar to the one that comes with the Jetta (glossy finish)?

Thanks

Amazing taste you have there my friend. Not going overboard with any aesthetic mods at all. Just keeping it neat and subtle ! Brilliant looking ride ! Safe travels mate !

Amazing mods Vikram, your car was featured in the June edition of Autocar (Page 106 & 107).

I did give her what she deserves, a complete clean up, polishing etc. it is not only about how you modd her but also how you look after her. as it will be her birthday next week I thought to present this to her. a car detailed by one of the best in the market, he is a very hard working man who takes utmost care of the car like a baby.

All the pics were clicked by mobile phone without any photoshop treatment to the pics.

Thanks Mr. Abdul Aziz Ace Car Spa Mumbai. respect for your brother.

Below is the list of job done on the car over 2 days almost 18 hours.

First checked the Current Paint Condition and Gloss Condition --




Car Wash

· Dirt blasting

· Foam Wash using ... Sonax Xtreme Shampoo

· Final Wash & Drying using Drying Towel

Analyzed that the car was full of wax and glaze...

Paint Decontamination

· 3d Eraser & Sonax Xtreme Shampoo to strip the wax & glaze Applied

The car was full of swirl marks and minor scratches and the shine was lost

Claying

· Elastrofoam and Ultima waterless wash liquid as clay lube.

Masking

· To protect the trims used Car Pro red masking tape

Wet sanding

· Some panels and Bumper using Rupes - Big foot 21

· Rupes sanding disk grit 1500 / grit 2000 /grit 3000

Paint Correction

· Decided to do 50/50 test of the bonnet & then correcting every panel

· Rupes - Big foot 21 Kit Correction Method

Step 1

The Rupes Inch Blue Coarse Foam Pad with Rupes Zephir Gloss Coarse Gel Compound

Step 2

The Rupes Green Medium Foam Pad with Rupes Quarz Gloss Medium Gel Compound

Step 3

The Rupes Yellow Polishing Foam with Rupes Keramik Gloss Fine Gel Polish

Step 4

The Rupes White Finishing Foam Pad with Rupes Diamond Ultra Fine Gel Polish

Step 5

Klasse All-In-One to get some more depth of the colour and also followed nano polymer coating to lock the shine

Ceramic Glass Coating



CarPro Eraser Intense Oil & Polisher Cleanser is a unique formula designed to totally strip paint of oil and polish residues.

CarPro Cquartz Ceramic Quartz by CarPro

is an anti-static, hydrophobic nano coating that shines and protects your vehicle like nothing else! CQuartz works on the molecular level to transform the surface. Once treated with CQuartz, your vehicle will repel water and environmental contaminants, and it will maintain a clear, reflective, diamond hard shine. One application can last two years!

CarPro Reload Spray Sealant

Reload enhances the anti-static, hydrophobic nature of CQuartz and, of course, maintains the high gloss shine!



For Alloy Wheels Detailing

· CarPro Iron X Iron Remover

· Dressing done with CarPro PERL

· Microfiber Towel

Door jambs Detailing

· Scholl APC

· Paint Brush

· Microfiber Towel

A/C Vents Detailed

· Menekini Steam Machine

· Earbuds & A/C Detailing Brush







Engine Detailed

· Scholl APC

· Paint Brush

· Garden Sprayer

· Microfibre Towel

· Dressing done with CarPro PERL

Interior Detailed

· Scholl APC

· Menekini Steam Machine

· Microfibre Towel



Cheers

Attached Thumbnails



Great Great treatment to the car. Saw the post on the Facebook Page too.

I might come to Bombay on the 15th. PM me if you are free, I can take some good shots of her too!
I actually loved the change with the red pin stripe. Good job!
Also, what hella's are those?
And is that a custom made cover for them?

oops I just saw your message here, are you still in Mumbai, then do pm me your number. Thanks for the appreciation. Hella is 500 ff and comes with 55 watt bulbs, but I changed them to 100 watts Philips they do fit without any problems. it really helps for night highway drives the cover comes with hella in white color, I did a 3m wrap on the covers.

Cheers

I would love to know where you sourced the headlights from. Looking to upgrade on my GT as well.
What after market casing did you use? Original casing didn't have a good fit?

the quality of the lights turned out to be bad eventually, the DRL stopped working after 3 months, now the high low doesn't work together, I suggest you buy from aliexpress, they have original internals with after market casing, ebay also has full original lights, but it is damn expensive. Full original lights are made in Valeo spain (so you need to remember that while ordering). Ali express has with mitsubhsi ballast, Philips 5 w drl led osram hid. this one I found to be good.

I didn't use any casing the casing always came with the lights.

cheers

Hey any idea about these http://unitedcustomz.in/Headlamp/VW-...id-845861.html
Original internals in these you think?
Which headlights did you get now?

These are not original. Also remember he one with 12 led drl are all after market. The original comes with 14 drl and that can also be after market. If you wish to order the lights for pm me i will help you

Happy shopping.

Cheers
