Hey Shashi! I require the parts for Wagon R Type 2 for the same location(trunk), front/rear wheel well, front and rear bumper. clap:

I am trying to do a diy on repairing some of the plastic parts.

Which parts do you need?? Kindly be a bit more specific.

Regards,
Shashi

Hi,

Can I have the part number and the approx. price of the Radiator Cap of the M800s manufactured in May 2000(5S MPI). Is it SGP or MGP part?

OT: Our car developed coolant leak and our FNG mechanic replaced the cap along with the hoses.(leak was only due to leak). Now I feel the coolant is not getting into radiator from the reservoir due to the non oem cap.

I have installed this zen mirror in my 2008 Alto.



Recently some idiot came too close to my car and managed to break the mirror.

Is only the glass mirror (not the whole assembly) available as an MGP?

Hello Shashi,

Sorry for not explaining by requirements in detail earlier. Please share the image/screenshot of the area(like in the quoted post) so that I can take a printout with the part numbers highlighted and order them separately.

1. Floor carpet(Wagon R type 2)
2. Front bumper area(having images of the bumper and associated fasteners and clips
3. Right and left fender(with the associated fasteners and clips)
4. Rear trunk and bumper(w/associated fasteners, clips, lights)

Hope this helps. Thank you for your time :)

So vice versa should be possible. alto mirror fitting zen. My problem with zen mirror is it is not convex. The mirror glass is plain because of which the coverage area is low objects appear magnified. This is more problematic during night when the fellow behind you is on high beam and the damn mirror redirects the light to the drivers eye. Also the mirror does not have the quote 'objects in the mirror are closer than they appear '. This proves that it is a plain mirror. Absolutely crappy design by Maruti.

If alto mirror glass is convex,and If the assembly would fit zen ,I would gladly swap it out

Dear all,

I won't be able to provide the spare part details for 2 days as I am out of station and am not carrying my laptop with me. Meanwhile, you can let the queries flow in. I'll reply to all of them by 17th evening. :)

Sorry for inconvenience.

Regards,
Shashi

Hello Leoshashi
I need help for the following parts for Grand Vitara 2008 MT.

I was just trying to figure out the leakage point in my car and i was suspecting the rear door beading. Going through the leaky crysta thread i saw your comment regarding the leakage through antenna and careful observation reveals that the leakage may be through antenna.

1) Pleas provide the part number for antenna gasket.
2) Low beam and High beam Bulbs.
3) rear wiper blades(size in inches if possible) i would hunt for after market part.

Thanks

Hi Shashi,

Wanted to know if I can interachange the auto folding ORVM that was introduced in 2016 Maruti DZire in my 2015 edition ?

If yes, can you please let me know the part numbers kindly ?

Hi Shashi,

Needed some information on the grand Vitara 2007 2.0 MT.

The lock system which keeps the mounted spare tyre connected with the cover of the tyre.

What are the various aspects of the unit and the cost for replacement.?

Thanks in advance!

The cap which originally came with my car(I too have a 2000 March 5S MPI) is SGP. However, you can go to any MGP store and ask for a cap with 0.9 rating and it should work just fine. Don't get 1.1 or 0.8 rated cap.

Do let me know if you need SGP's part number in particular.

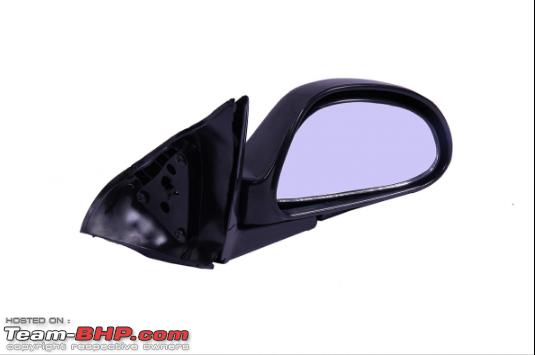

Which side mirror did the idiot break?? lol: Never mind, I am giving details of both RHS and LHS. Giving you part details of the Zen's mirror to avoid any chances of incompatibility with your existing assembly.

Part No: 84720M70F50/70
Name: GLASS & BACKING PLATE ASSY RH(ORVM
Price: Rs. 284/227.5

Part No: 84760M70F50
Name: GLASS & BACKING PLATE ASSY LH(ORVM
Price: 284


Kindly mention the variant details also(LX/LXi or VXi). Request you to kindly go through the first post of this thread to refer to the asking format. Reason why I need this details is because the carpet is different for VXi and LXi. :)


Weirdly enough, while Zen's ORVM has child parts, a similar looking Alto's ORVMs come as a single piece in MGP. Also checked the old Alto K10, same results.

There is no separate gasket available for Grand Vitara. Guess it comes with the base. However, be sure about the water entry point before ordering.

Part No: 39253-64J01
Name: BASE ANTENNA
Price: Rs. 1713

Also, kindly check current gen Swift's antenna base, I have a feeling that it should fit your Vitara and will be cheaper.

Why do you wish to get the bulbs from SGP?? You can get much better and cheaper options outside.

SGP:
Part No: 09471-12188
Name: BULB 12V 55W H7
Price: 825

This same SGP H7 bulb has MGP equivalent with following details:

MGP:
Part No: 990J0M57L11-010(listed under accessories)
Name: BULB H7 12V 55W
Price: 300

SGP:
Part No: 09471-12151
Name: BULB 12V 60W HB3
Price: Rs. 1285

This SGP HB3 bulb has MGP equivalent with following details:

MGP
Part No: 990J0M65J11-010
Name: BULB HB3 12V 60W
Price: Rs. 380

No size details available. Sorry. However the blade(just the rubber) and blade assembly(rubber plus backing plate) are both available in SGP.

Part No: 38346-58J00
Name: BLADE
Price: Rs. 195

Part No: 38340-58J00
Name: BLADE ASSY REAR WIPER
Price: Rs. 416

Kindly no questions about MODS and Swaps please.

It won't be a straightforward swap for sure. You should contact your MASS for this mod job. I can help you with the part details, but I cannot tell which all parts you'll need to swap(including wiring harness if you need a clean install).

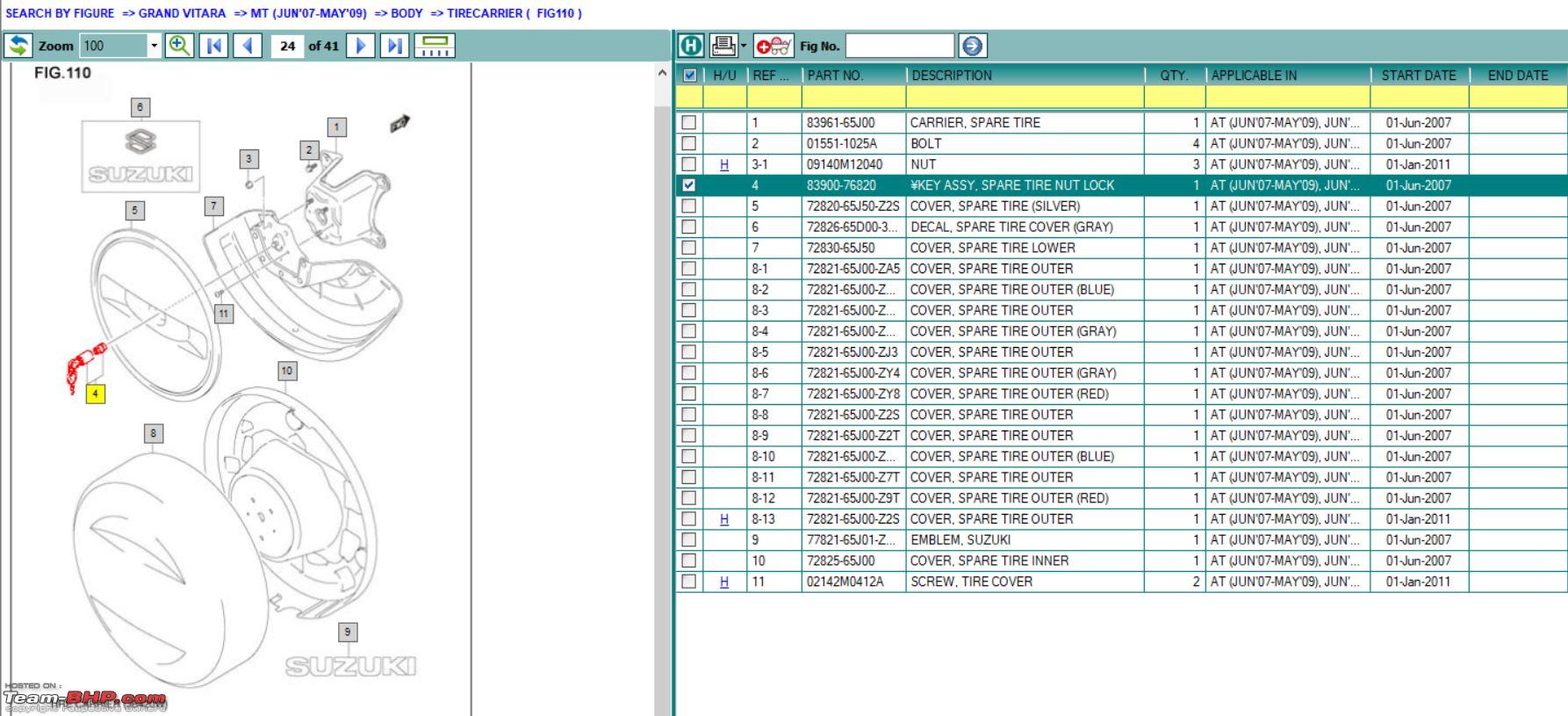

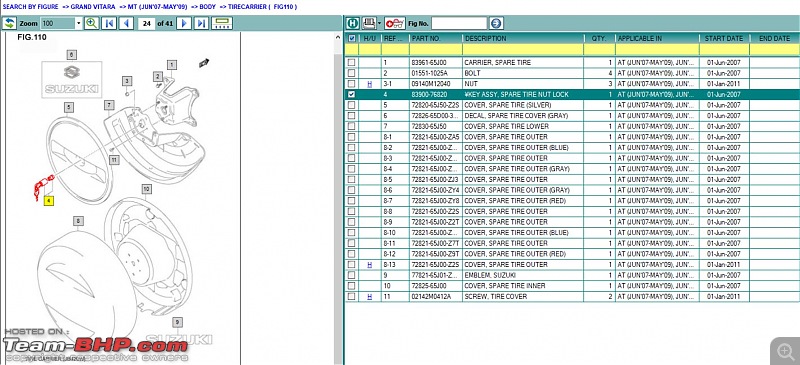

Providing you the image of the tyre carrier assembly. Kindly let me know which part you are interested in. I'll provide more details about that.



Regards,
Shashi

Hi Shashi,

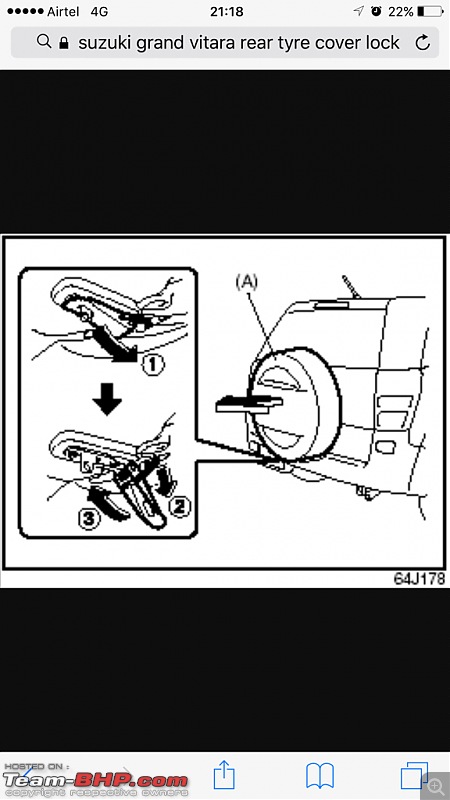

I'm not seeing the part there. It's basically the lock that attaches the tyre cover to the base plastic housing at the bottom of the wheel.

Let me see if I can source a pic.

Thanks!



Maybe this will help.

Thanks for the information. Also please let me know the price for item No4 ( KEY ASSY SPARE TIRE NUT LOCK).

Thanks Shashi. Kindly let me know the part numbers please for Dzire Autofold ORVM's.

Best.

Can you please give the part no & cost of the gear knob of Swift VDI 2013.

Mine has cracked & I want to replace it for better aesthetics.
